OBSOLETE - Astralpool Viron eVo 350 Gas Pool & Spa Heater
OBSOLETE - Astralpool Viron eVo 350 Gas Pool & Spa Heater - Astralpool Viron eVo 350 Gas Heater - Natural Gas is backordered and will ship as soon as it is back in stock.
This product is obsolete or no longer available. Scroll down for more information about replacements, etc.
Description
Description
No Longer Available. Consider the JXI 200, IXI 200, or Raypak 350.

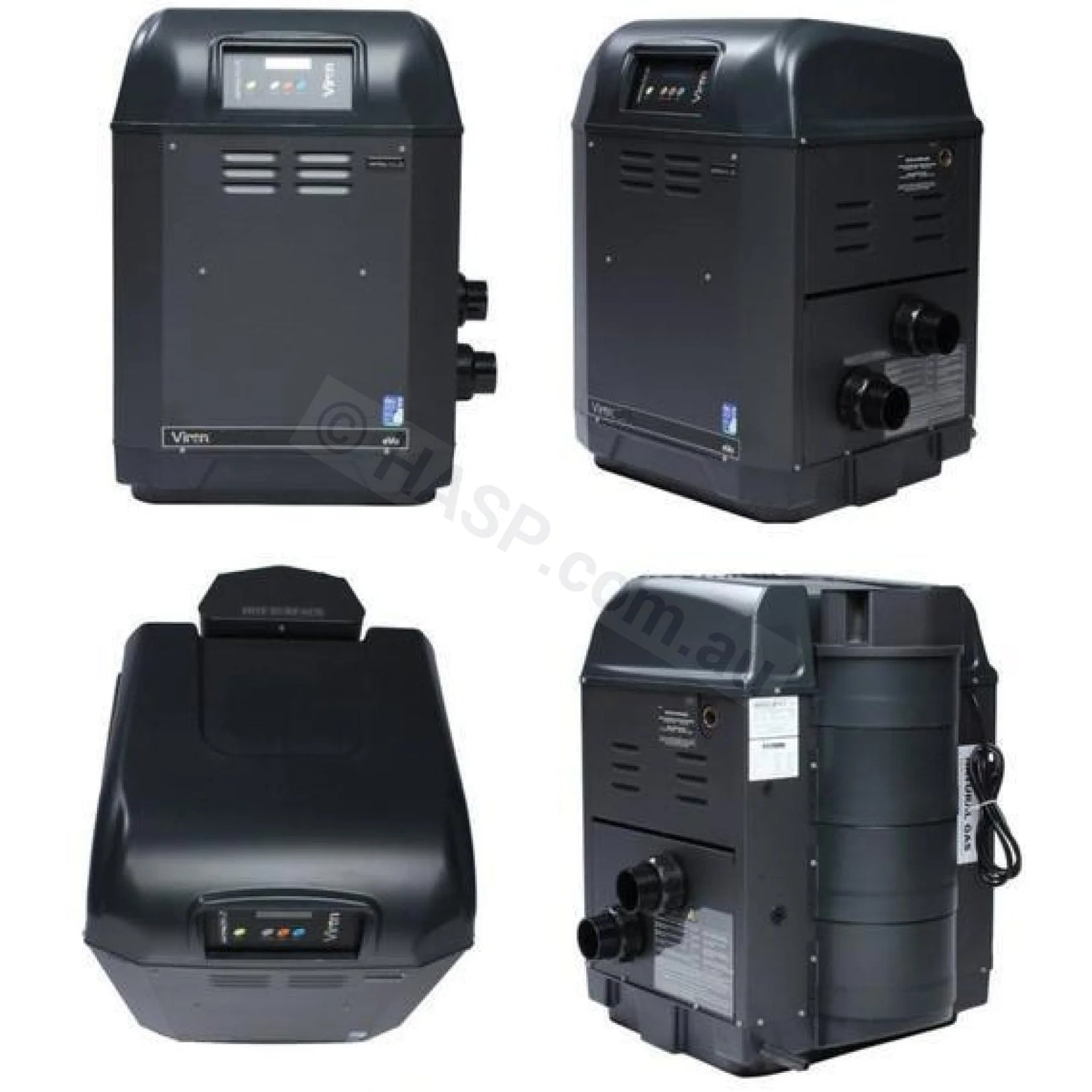

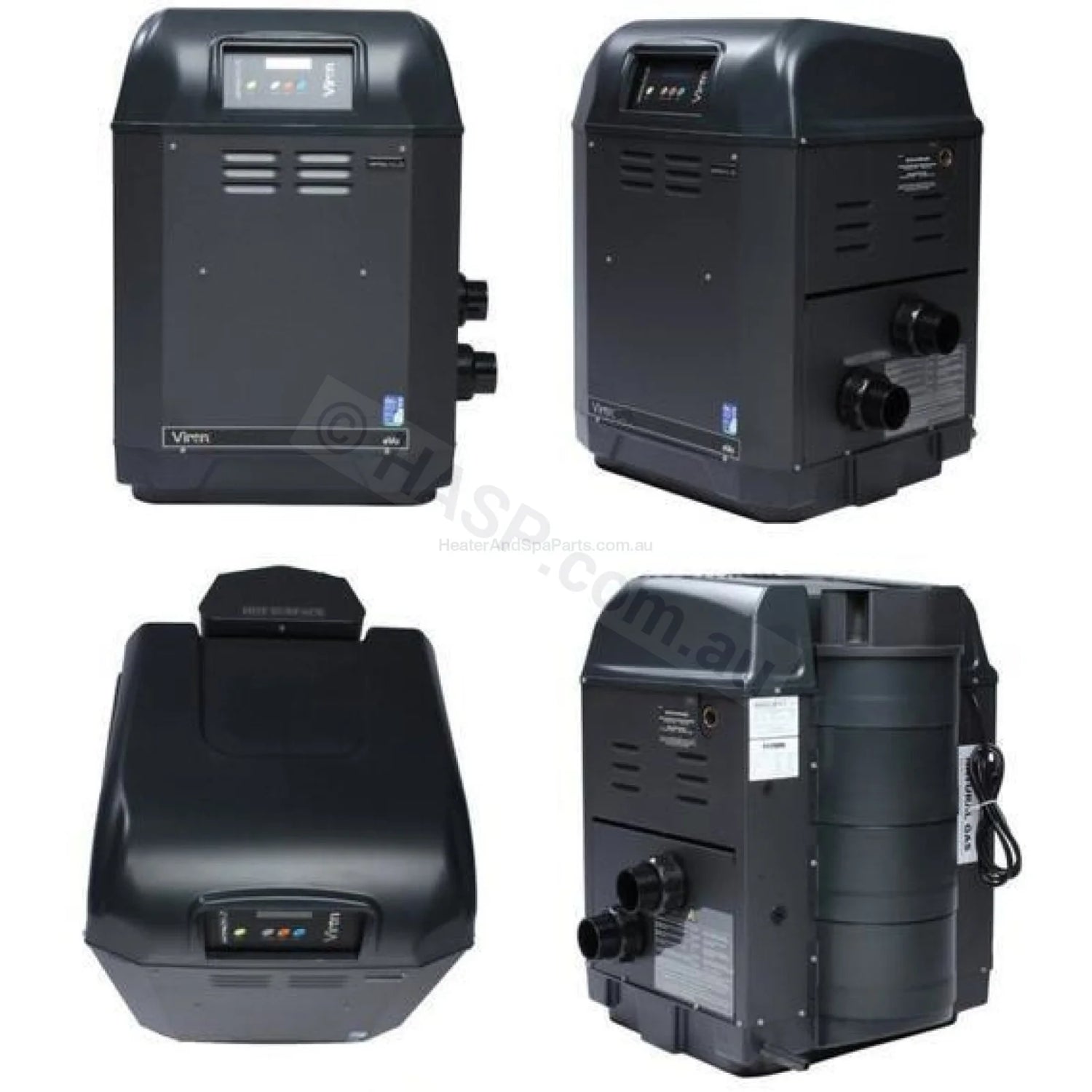

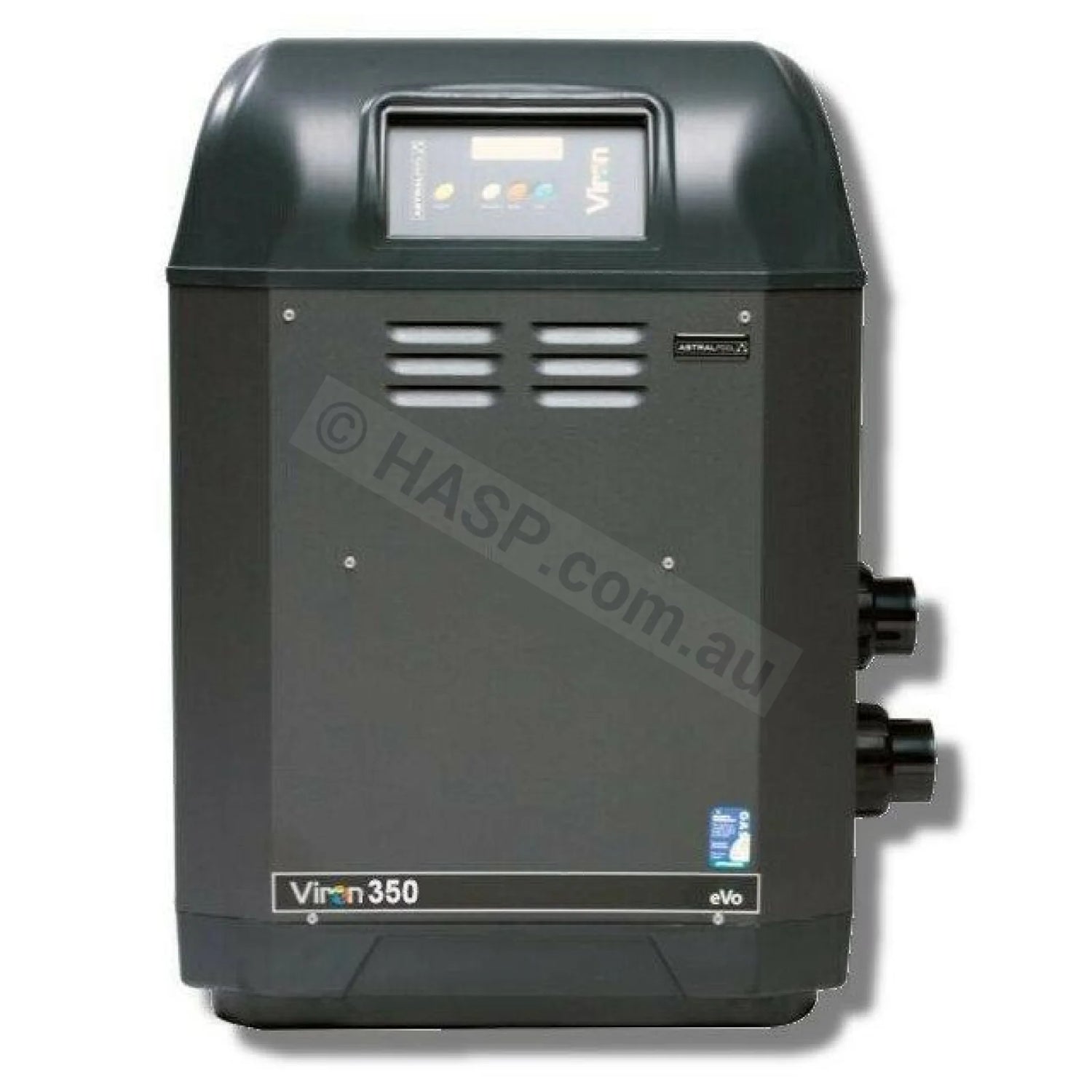

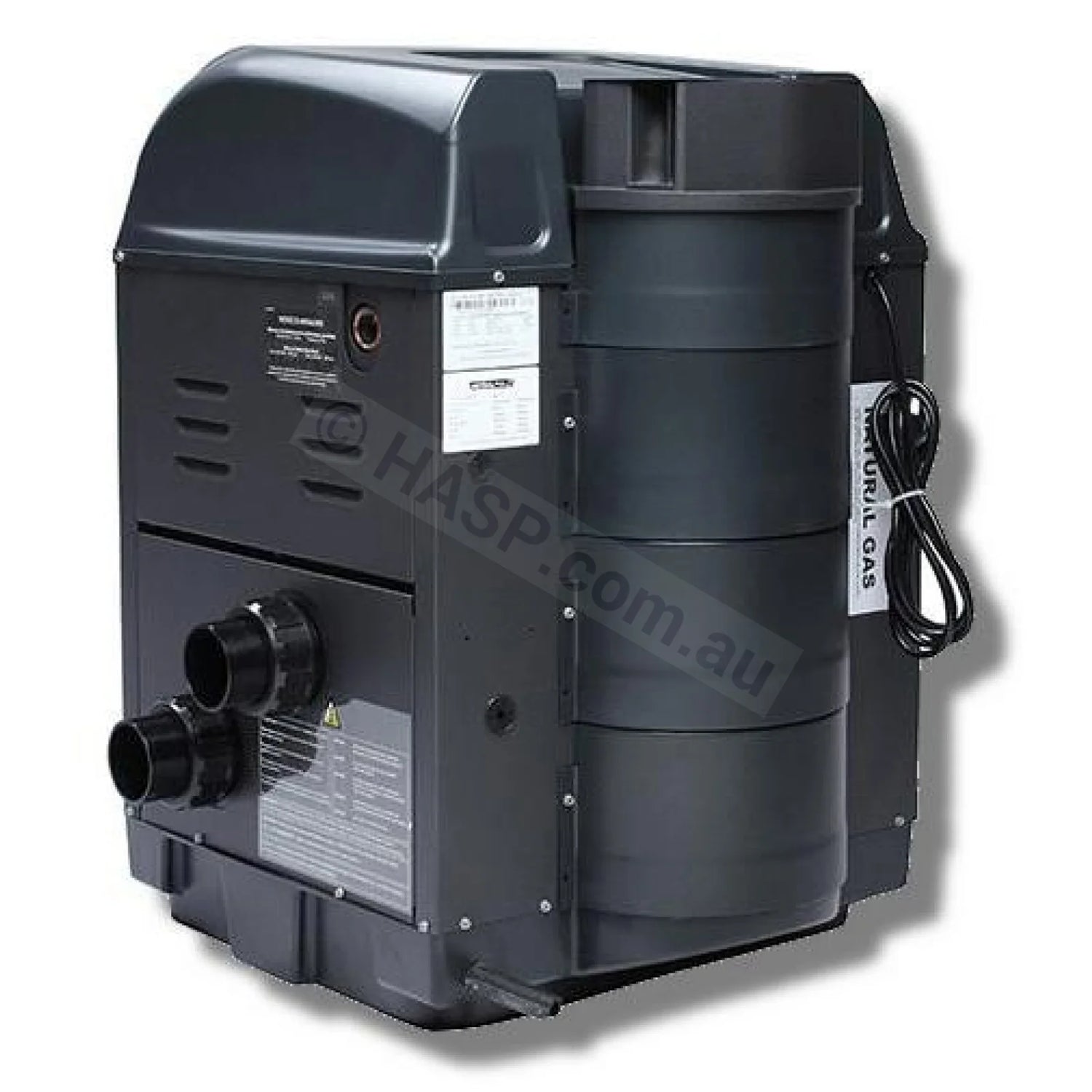

Hurlcon Astralpool Viron eVo 350 gas pool heaters. This is the latest eVo version, which have a completely different combustion & ignition system to the old Viron gas heaters. The only gas pool and spa heater that can reach up to 97% efficiency.
These are VERY different internally to the old Hurlcon Viron gas heaters. They have gone through several revisions, and the newest version is hardier than ever.
Some of the changes & improvements over older models:
- Vastly improved, solid-tube manifolds - no longer convex. Helps prevent leaks
- Deeper Brass Plugs for High-Limits. Helps prevent leaks
- Spark Ignition changed to simpler Hot-Surface Ignition
- No pilot light
- No pilot hood to wear
- HSI Ignition now on Top & easy to access
- Insulation is now Solid rather than "Wool" style
- Burner is now retained by solid welded steel, rather than pop-rivets

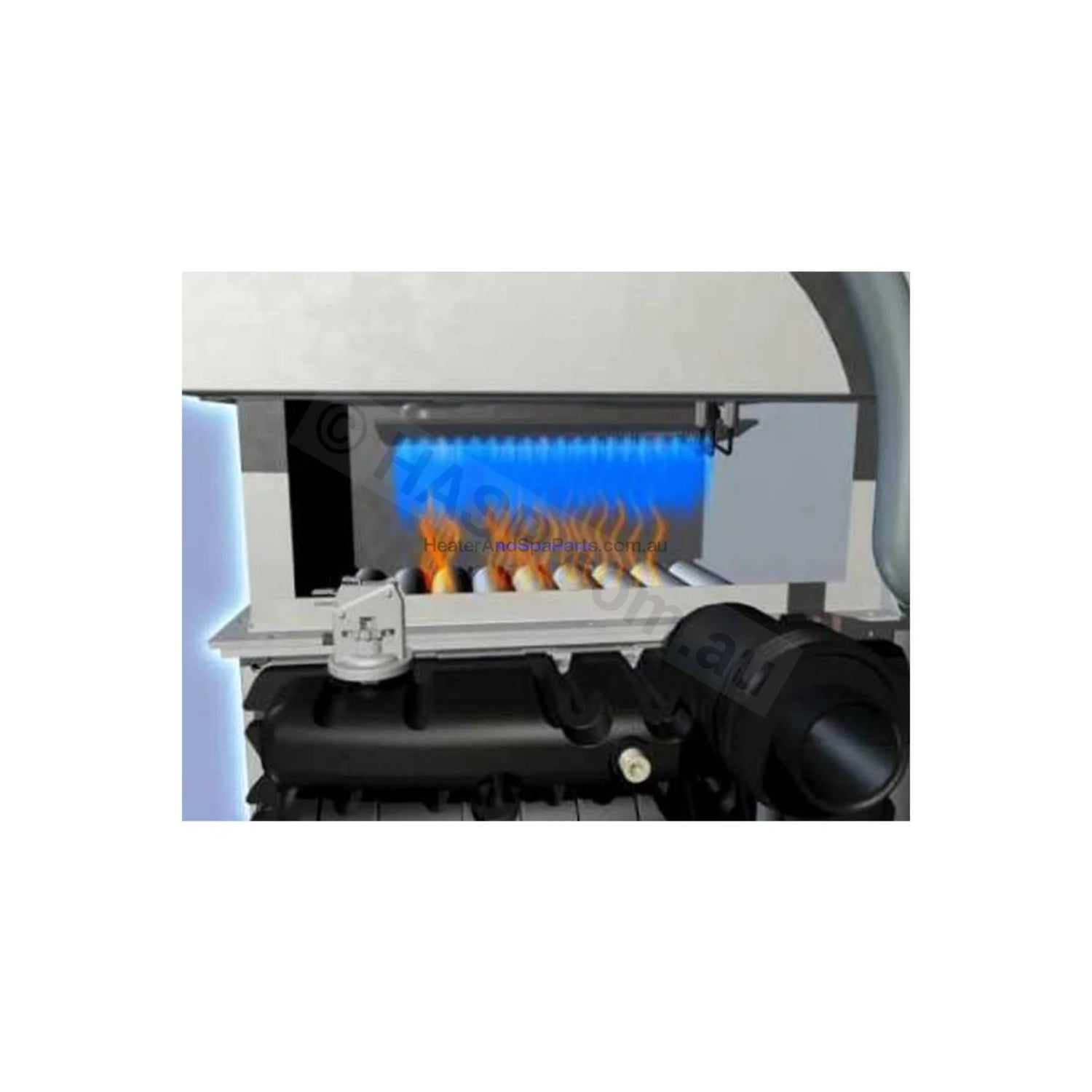

- Burner is now high-temp ceramic mesh
- Gas input is solid & straight into gas valve.
- Ignition Module has been vastly improved
- Much easier to work on than previous models
Warranty:
- Pick-up / Delivery: Full Manufacturer's Warranty, as per their terms.
- Changeovers & New-Installs: Full Manufacturer's Warranty, plus our in-house Warranty, with priority call-outs from us, as an Astral Authorized Service Agent.
This is a major upgrade from the original Hurlcon Viron gas pool and spa heaters. They have had many improvements over their previous models.
- Top-Mount Hot Surface Ignition. No Pilot. No Spark Ignitor
- Doesn't suffer the leakage problems that the early Hurlcon versions had.
- This is literally the top-of-the-line heater on the market.
- Save up to 20% on operating costs over traditional heaters
- Reduced CO2 emissions
- Condensation produced can be collected and returned to the pool=
- 30% - 50% smaller to save space
- Maintains a consistent and even temperature.
- LPG & Natural Gas models available.
Model | SKU - Nat Gas |
SKU - LPG | Recommended Retail Price |
Viron eVo 250 Gas Heater - 49kW |
15250 | 152501 | |
Viron eVo 350 Gas Heater - 68kW |
15251 | 152511 | |
Viron eVo 450 Gas Heater - 96kW |
15252 | 152521 | |
Viron eVo 550 Gas Heater |
15253 | NLA |

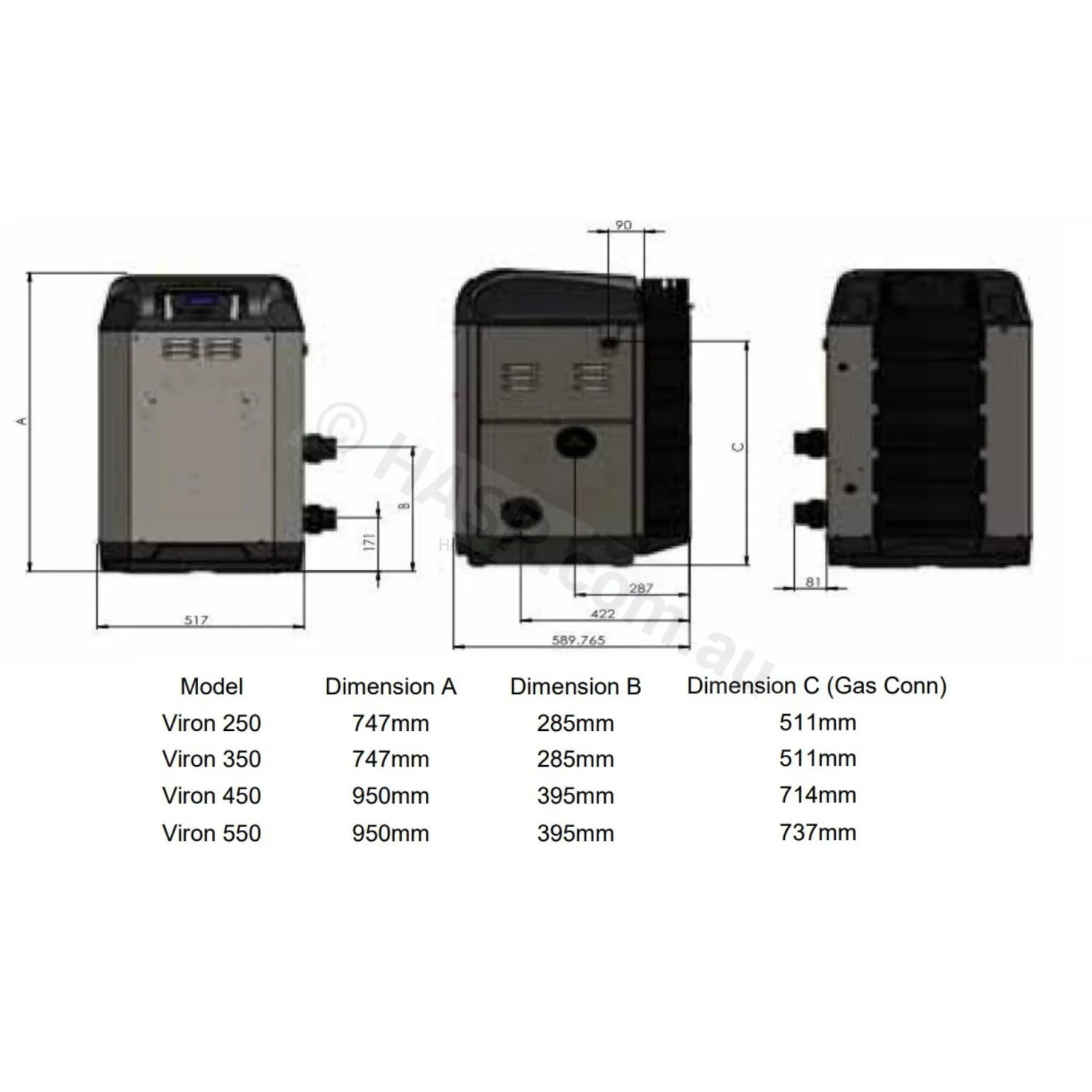

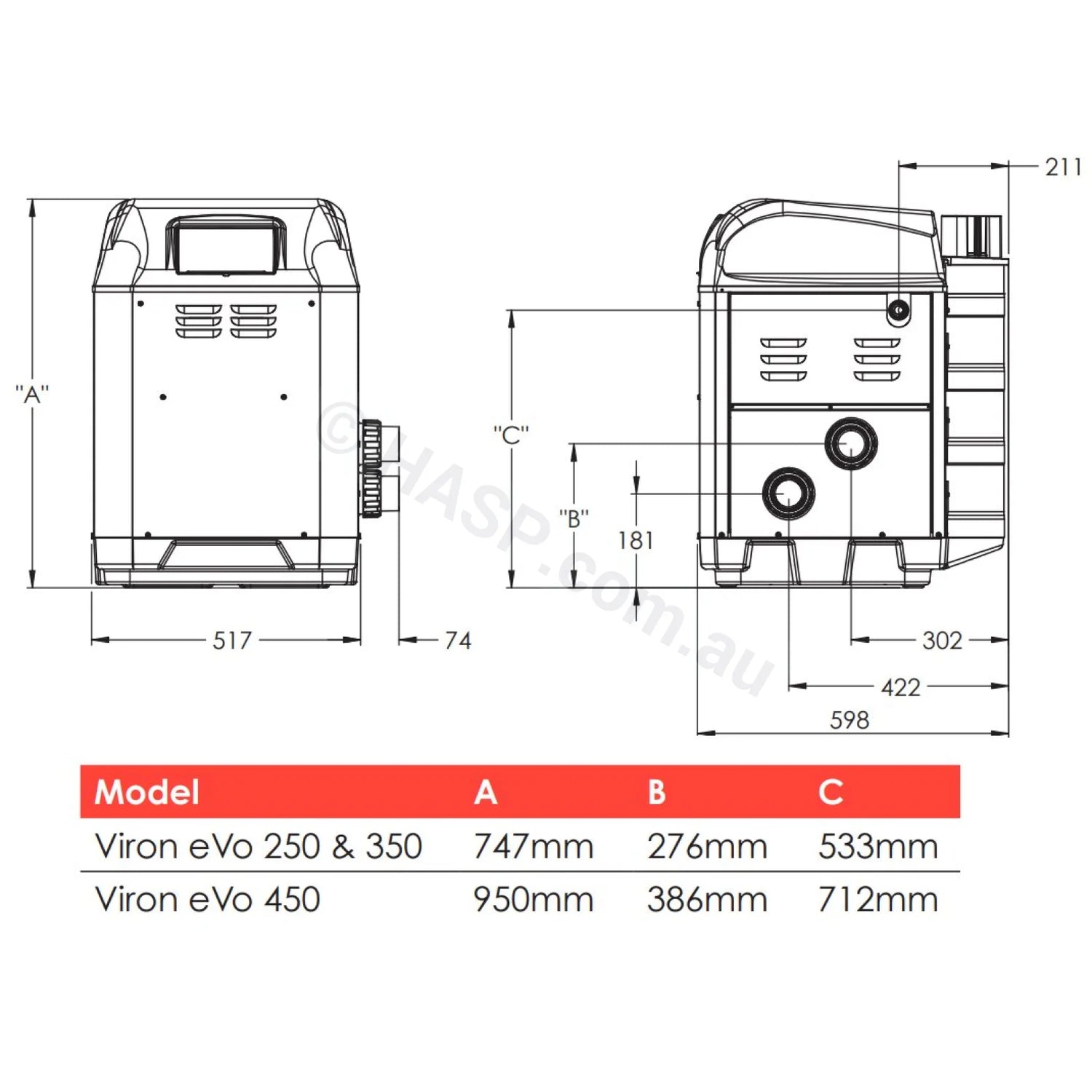

Model | Height | Width | Depth |
Viron eVo 250 | 747mm | 517mm | 590mm |
Flow Rates
The Viron eVo Pool Heater requires a minimum of 250 litres per minute flow for 250/350 models and 350 litres per minute flow for 450/550 models. The maximum permissible flow rate is 500 litres per minute. For flow rates in excess of 500 litres per minute, an external by-pass valve must be fitted.
Parts | Warranty Period |
Cabinet, refractory insulation and combustion chamber | 5 years |
Components such as gas valve, thermostat, pilot, wiring, burner, gaskets | 2 years |
Heat exchanger, inlet and return water headers | 12 months |
