Dontek Aquatek aka Theralux, Aquamate - Pool & Spa Controller with WiFi
Dontek Aquatek aka Theralux, Aquamate - Pool & Spa Controller with WiFi - is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

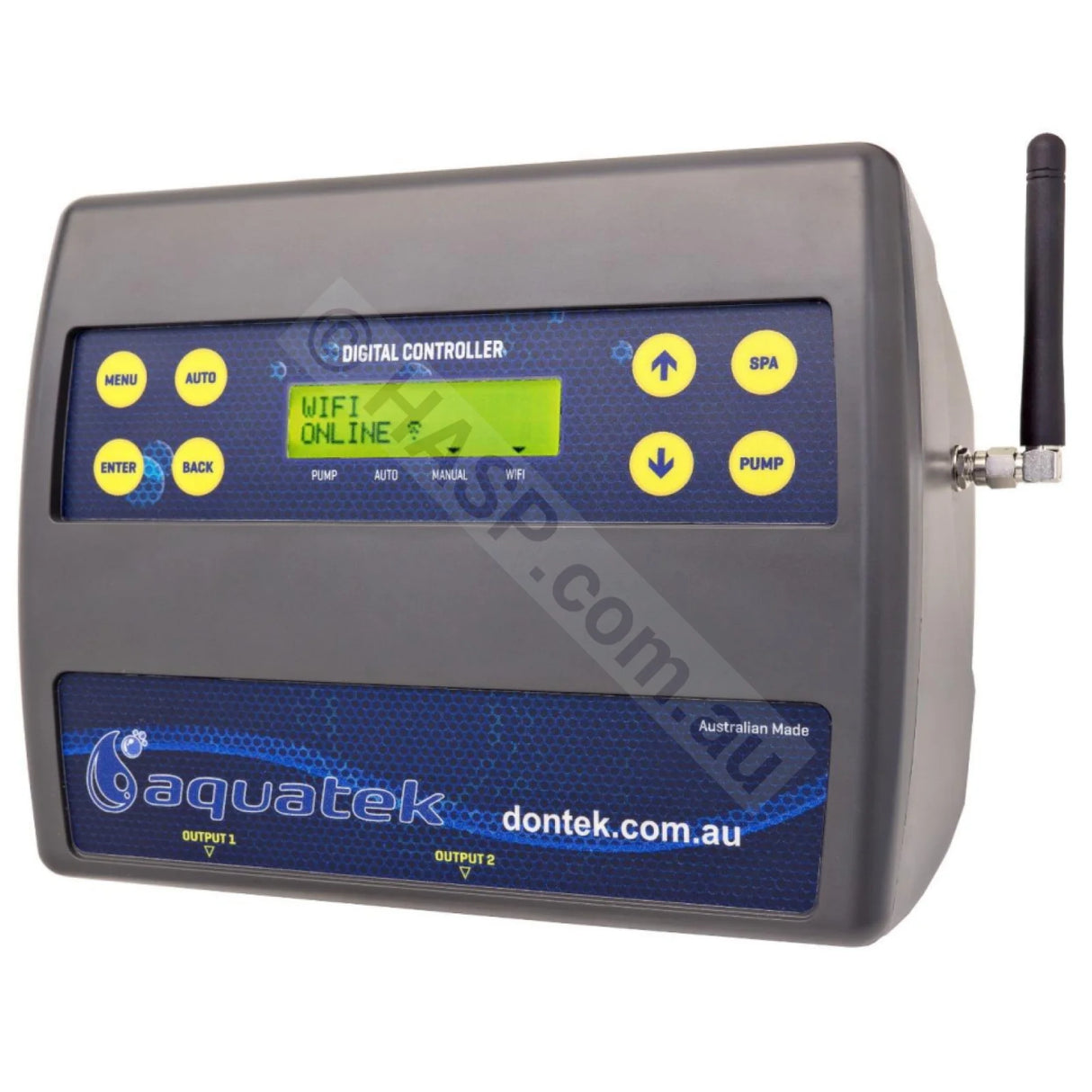

The Dontek Aquatek (also sold as Theralux Pool+ Manager & Aquamate X) is one of the simplest pool & spa controllers with in-built WiFi. A modular system that can have up to 2x Expansion Modules, this system is one of the easiest controllers to set up and use. Fit the Master Controller, and add additional Slave Controllers for more equipment.

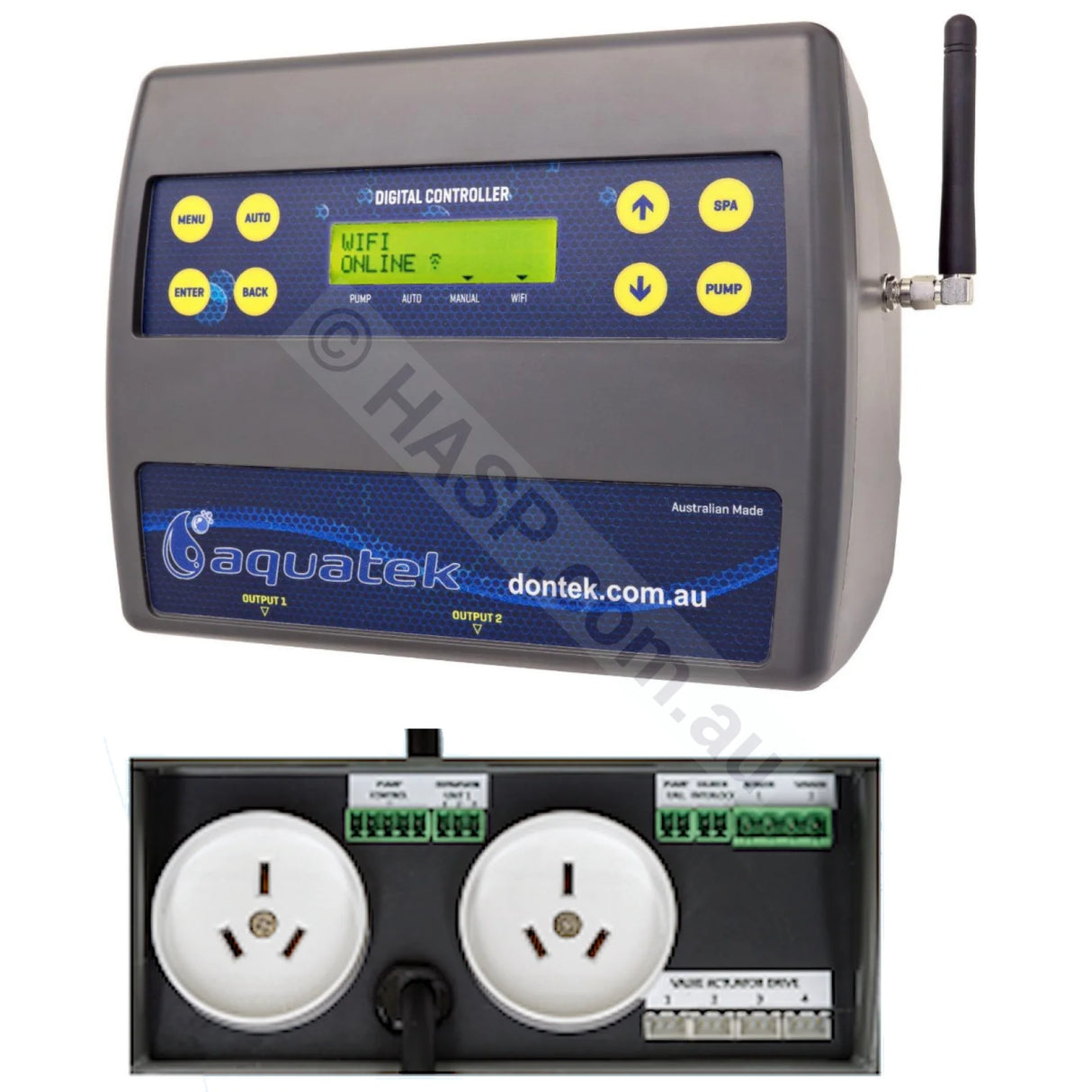

- Master Controller (required) can control Two Outlets (Eg: Pump & Blower or Pump & Lights) up to 10A
-

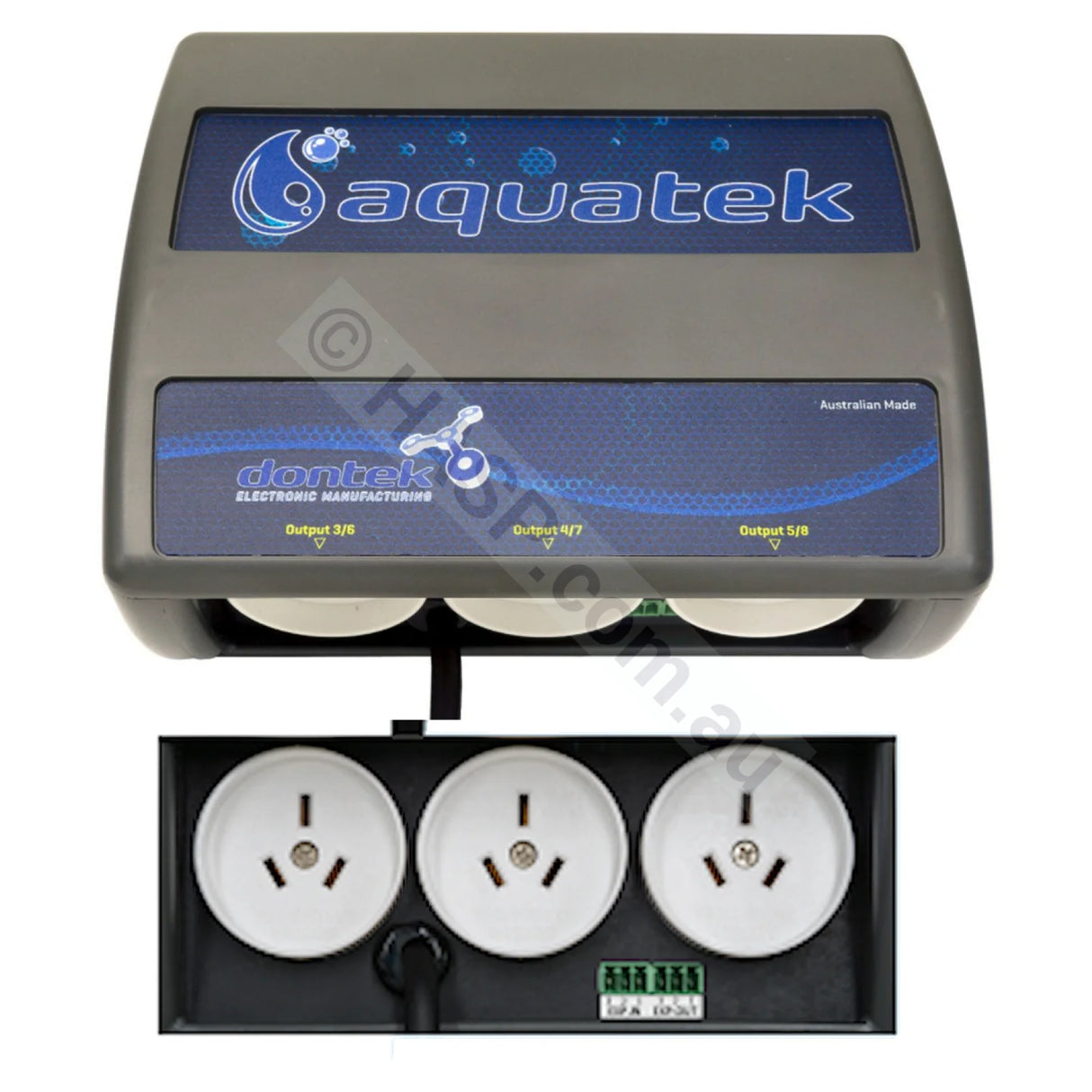

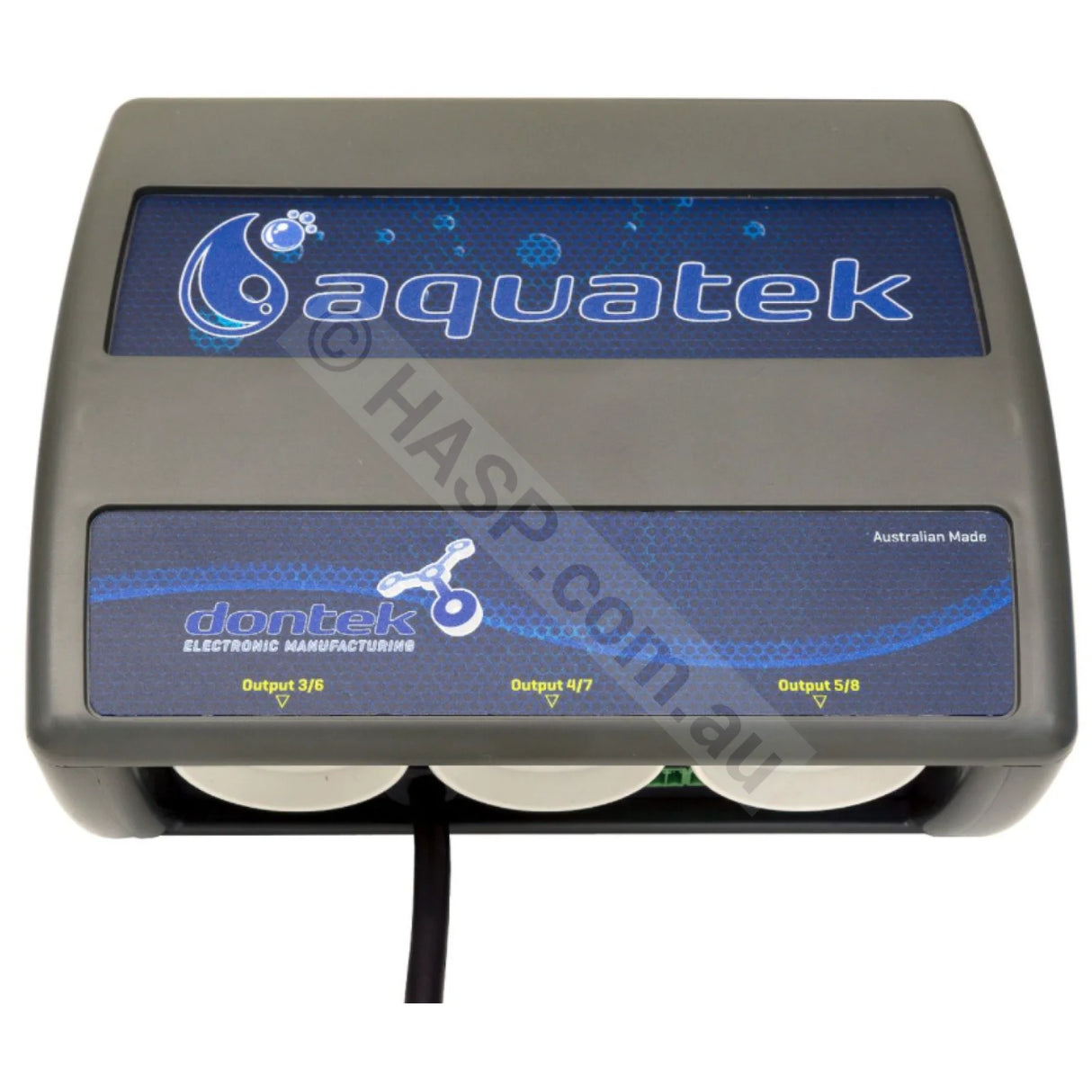

Slave Controller can control an additional Three 240V Outlets (10A or 15A). You have have up to Two Aquatek Slave controllers.
It can control:
- Single speed pumps
- Variable speed pumps
- Sanitisers - Chlorinators, Ozone, UV
- Heaters - Solar, Gas, Heat Pumps
- Lights - Single or Multi-colour
- Water Features
- Jets
- Blowers
- Valve Actuators
Information:
Features & Benefits:
- In-built WiFi control
- Genuine Plug n Play solution
- Simple and intuitive menu design
- Clear and detailed LCD display and plug connections

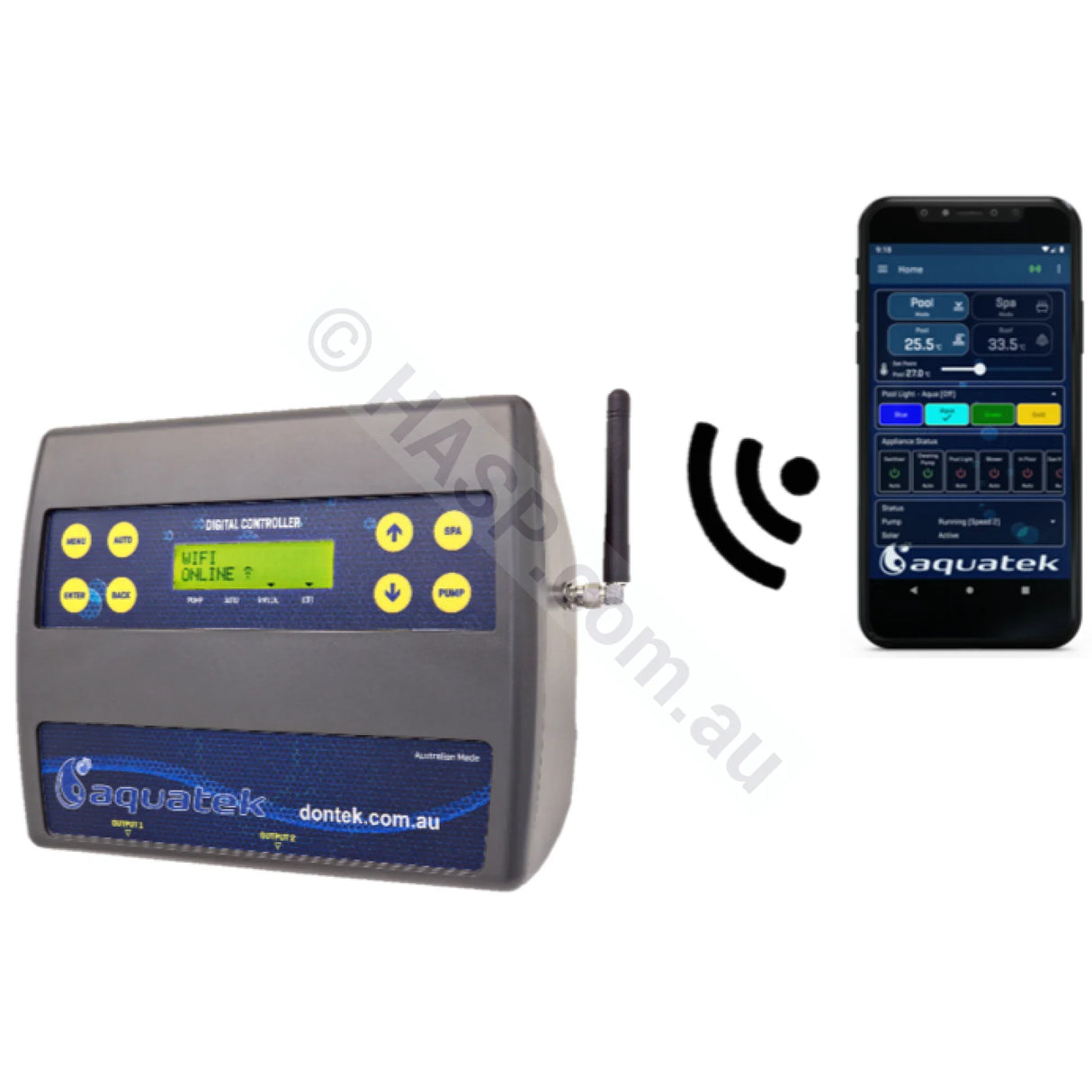

- Self-populating app control – via local Wifi connection
- Customisable auxiliary/appliance AND valve selection
- Up to 4x Filtration Times
- Compatible with a variety of VS pump models
- Compatible with a variety of multi colour light models
- Spa Mode – w/ sanitiser reduction AND in-floor cleaner cut-out
- Solar capable via a separate pump (suction/return) OR integrated to filtration
- Detailed programmability of spa equipment function
- Pump Call feature for heat demand OR balance tank management
- Expansion units available in 10amp OR 15amp plug options
Compatible Brands:
Pumps
- Pentair - Intelliflo (via external pump speed selection)
- INSNRG
- Theralux - TVS1 AND TVS1.5 (Regal motor)
- Reltech - EcoFlo V3/V5 AND Platinum V3/V5/V8 (Regal motor)
- DAB
Lights
- AquaQuip
- Spa Electrics – Multi And Multi Plus
- Astralpool
- ALL single colour lights
Heaters
- All Astralpool HX, JX, MX, Viron, HiNRG, IXI gas heaters
- All Zodiac LRZ, JXI gas heaters
- All Raypak gas heaters
- Sensaheat, Evoheat, and others.
- Most other gas heaters.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
