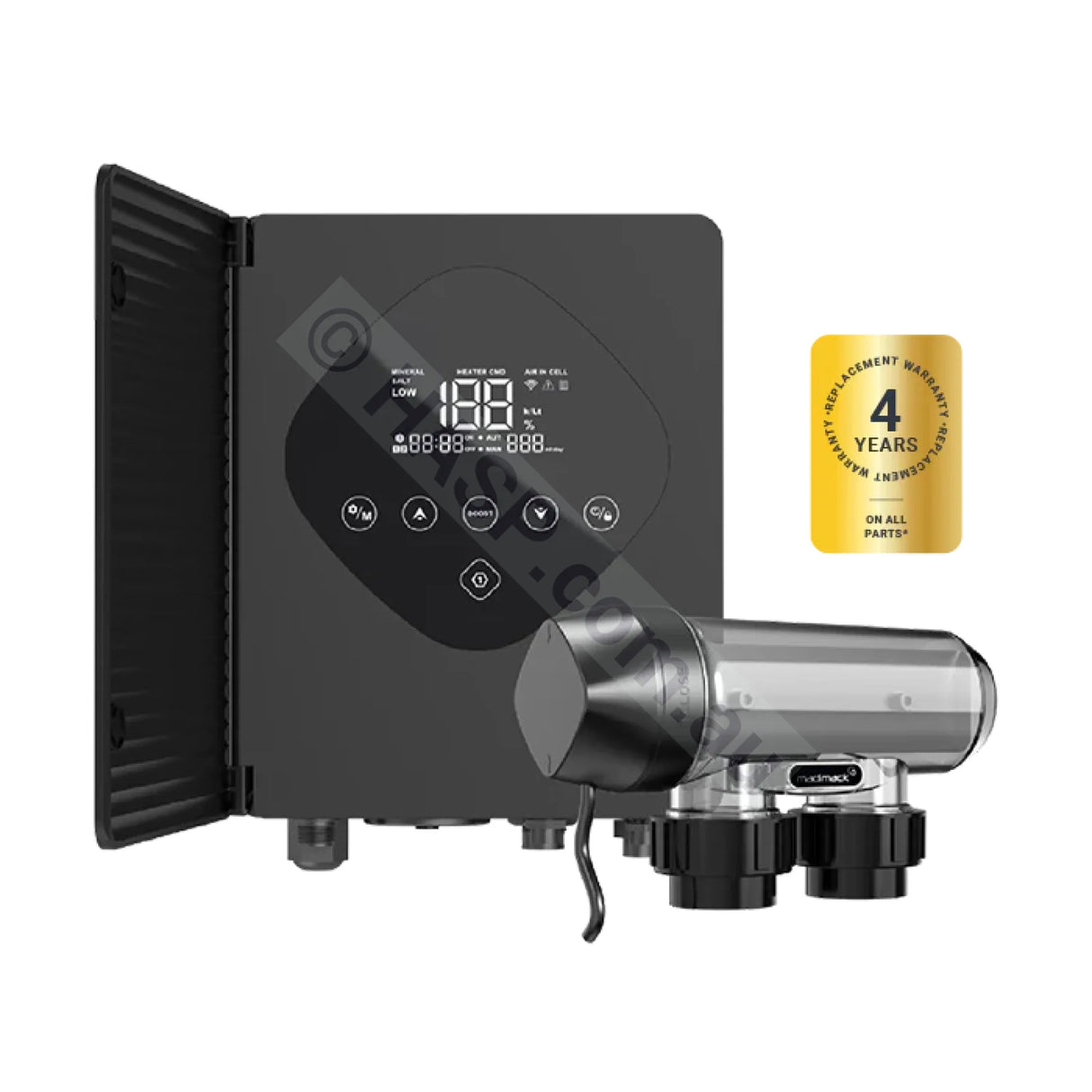

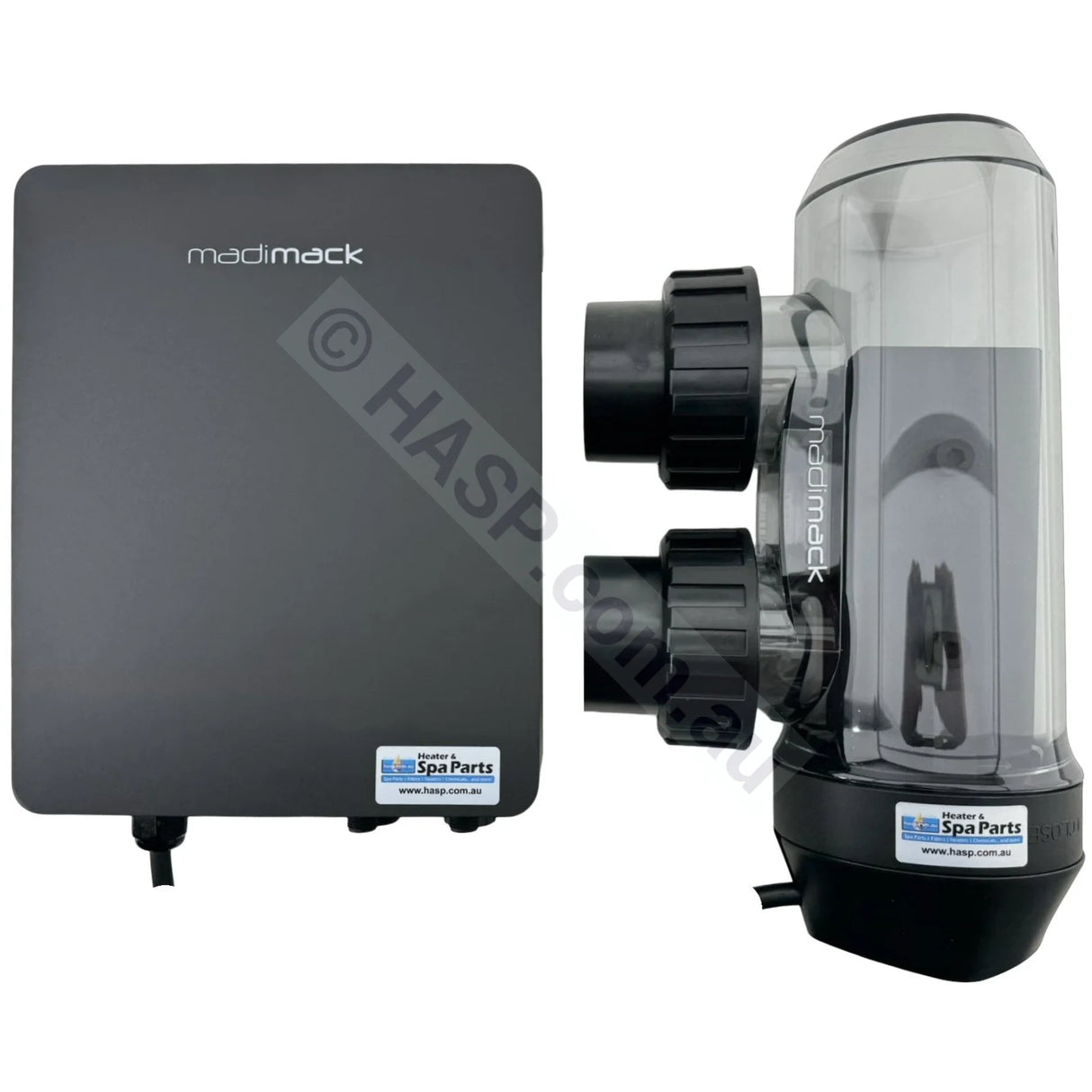

Madimack InverCHLOR – The Intelligent Salt & Mineral Chlorinator - Smart, Efficient & Hassle-Free Pool Sanitization. Retrofits Astralpool & Hurlcon chlorinators.
InverCHLOR revolutionizes pool chlorination with intelligent control, real-time monitoring, and exceptional performance for both salt and mineral pools. Designed for Australian conditions, this advanced system automatically adjusts to maintain optimal water quality year-round, so you can enjoy a clean and healthy pool with minimal effort.
Optional Add-on: Enhance your pool water quality with the Madimack pH Doser—perfectly paired with your InverChlor Salt & Mineral Chlorinator for even clearer, sparkling water!
Heat Pump Compatible: Synchronises with Madimack heat pumps to allow the heater to run outside of standard filtration/chlorination times, while using the same circulation pump
Documentation: Installation & User Manual | Brochure
General Sizing Guide*:
Inverchlor 100 handles up to:
- 10,000L in Tropical or Hot Climates
- 15,000L in Temperate or Warm climates
- 20,000L in Cool climates
Inverchlor 200 handles up to:
- 35,000L in Tropical or Hot Climates
- 45,000L in Temperate or Warm climates
- 55,000L in Cool climates
Inverchlor 300 handles up to:
- 60,000L in Tropical or Hot Climates
- 75,000L in Temperate or Warm climates
- 90,000L in Cool climates
Inverchlor 400 handles up to:
- 85,000L in Tropical or Hot Climates
- 105,000L in Temperate or Warm climates
- 125,000L in Cool climates
* to be used as a guide only. Different pools and climates may require alternative sizing. We generally recommend going at least one size up.
Why Choose the Madimack InverCHLOR?
Extended Cell Life - Advanced intelligent control system optimizes operation, extending cell life beyond 10,000 hours.

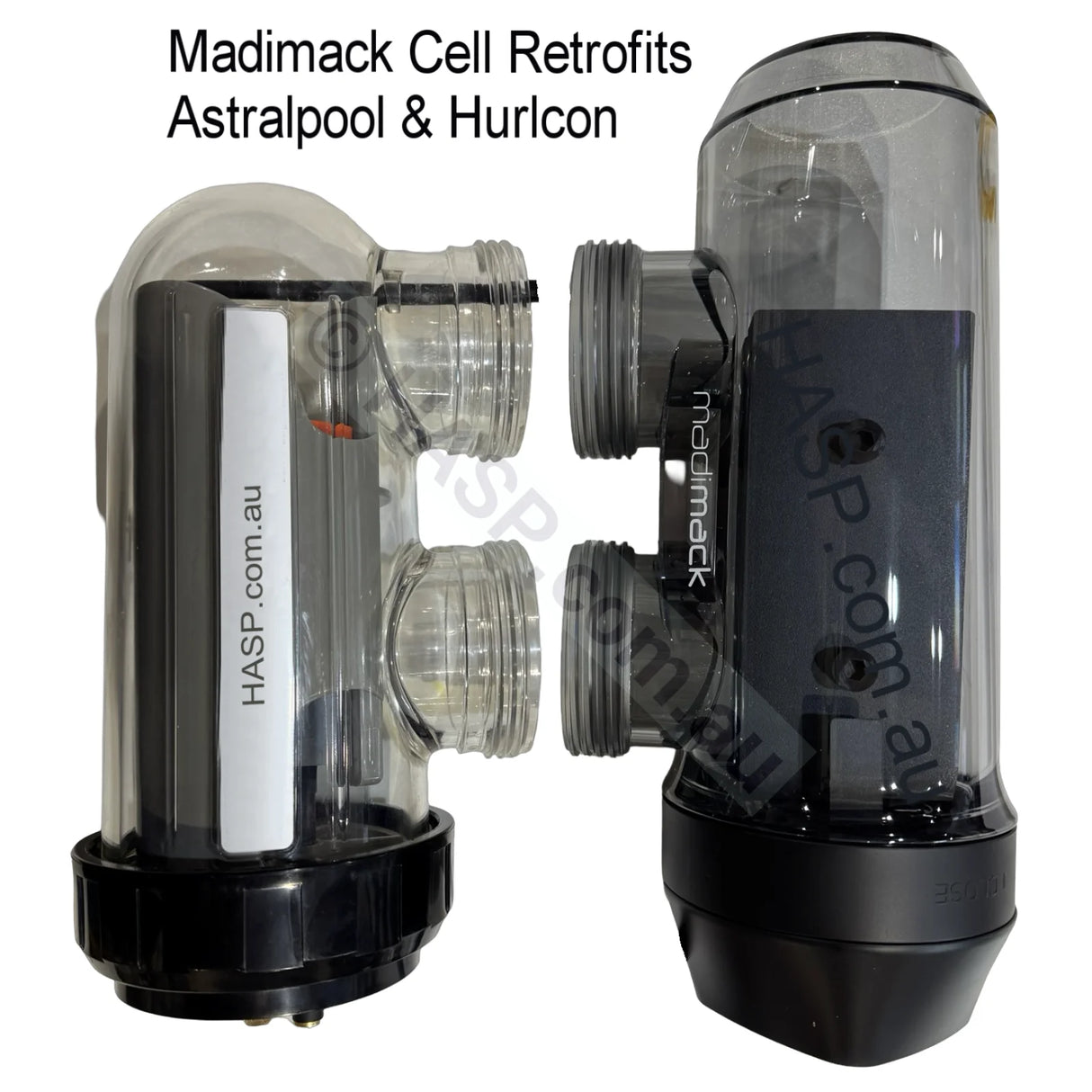

Compact & Easy to Install - A space-saving design that fits neatly into your pool system for quick and simple installation. Replaces Astralpool & Hurlcon salt chlorinators without the need for replumbing!
Low TDS Compatibility - Works efficiently with ultra-low salt or mineral levels (1,200 - 6,000 ppm), ensuring superior chlorine production. (Specs based on ~3000ppm)
Smart Alerts & Notifications - No more guesswork! Real-time alerts notify you when salt or minerals need to be added.
Durable & Weather-Resistant - Built with a UV-protected front cover for longevity in harsh outdoor conditions.

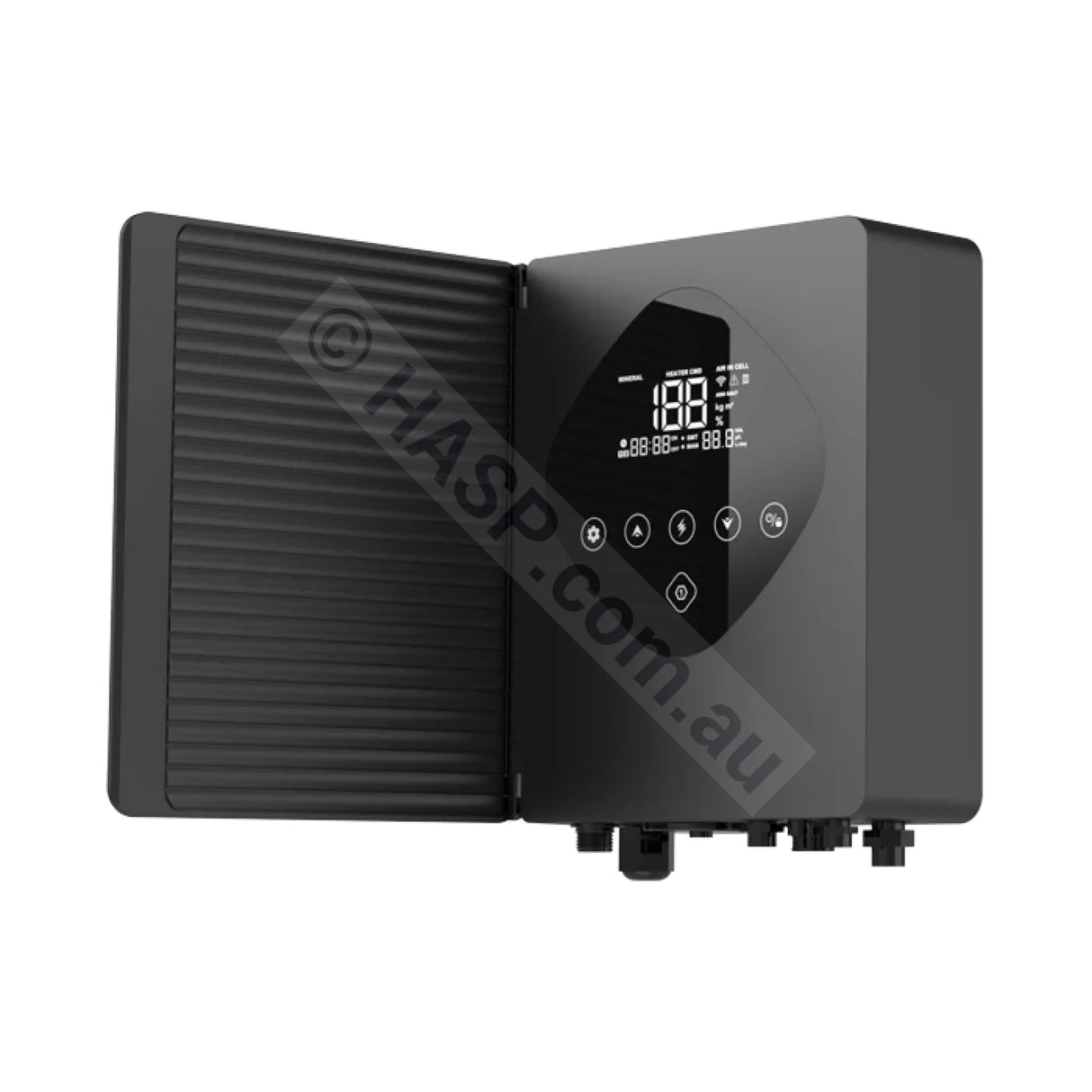

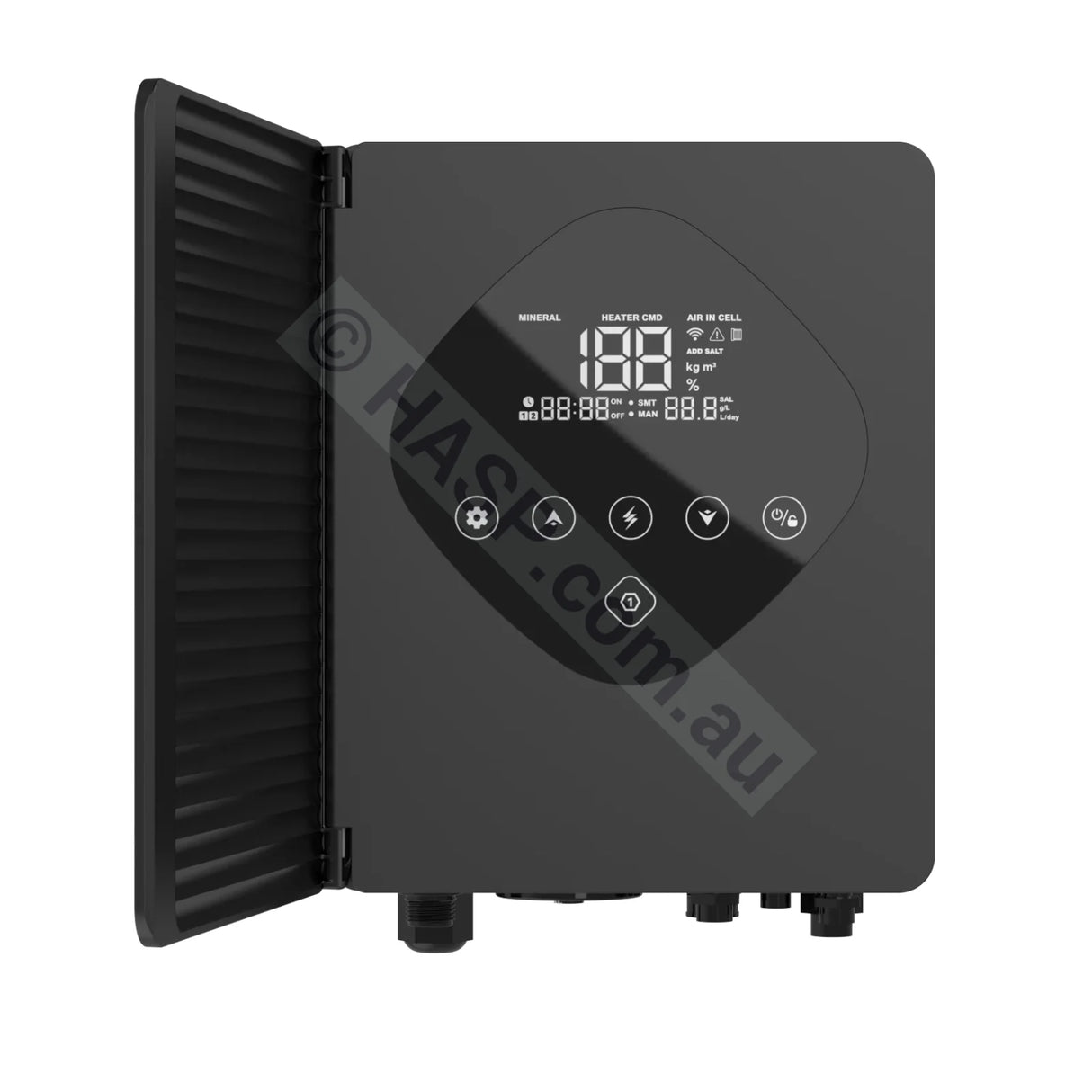

Touchscreen LCD Display - Easy-to-use interface for seamless adjustments and real-time water chemistry updates. Comes with UV-Protection Cover.
Enjoy Crystal-Clear Water with InverCHLOR – Smarter, Stronger, and More Efficient!
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
