Davey SpaQuip Spa Power SP 400, 500, 600, 601 Rectangle 4-Button Touchpad Control Panel Key Pad
Davey SpaQuip Spa Power SP 400, 500, 600, 601 Rectangle 4-Button Touchpad Control Panel Key Pad is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Davey SpaQuip Spa Power SP 400, 500, 600, 601 Rectangle 4-Button Touchpad Control Panel Key Pad is backordered and will ship as soon as it is back in stock.

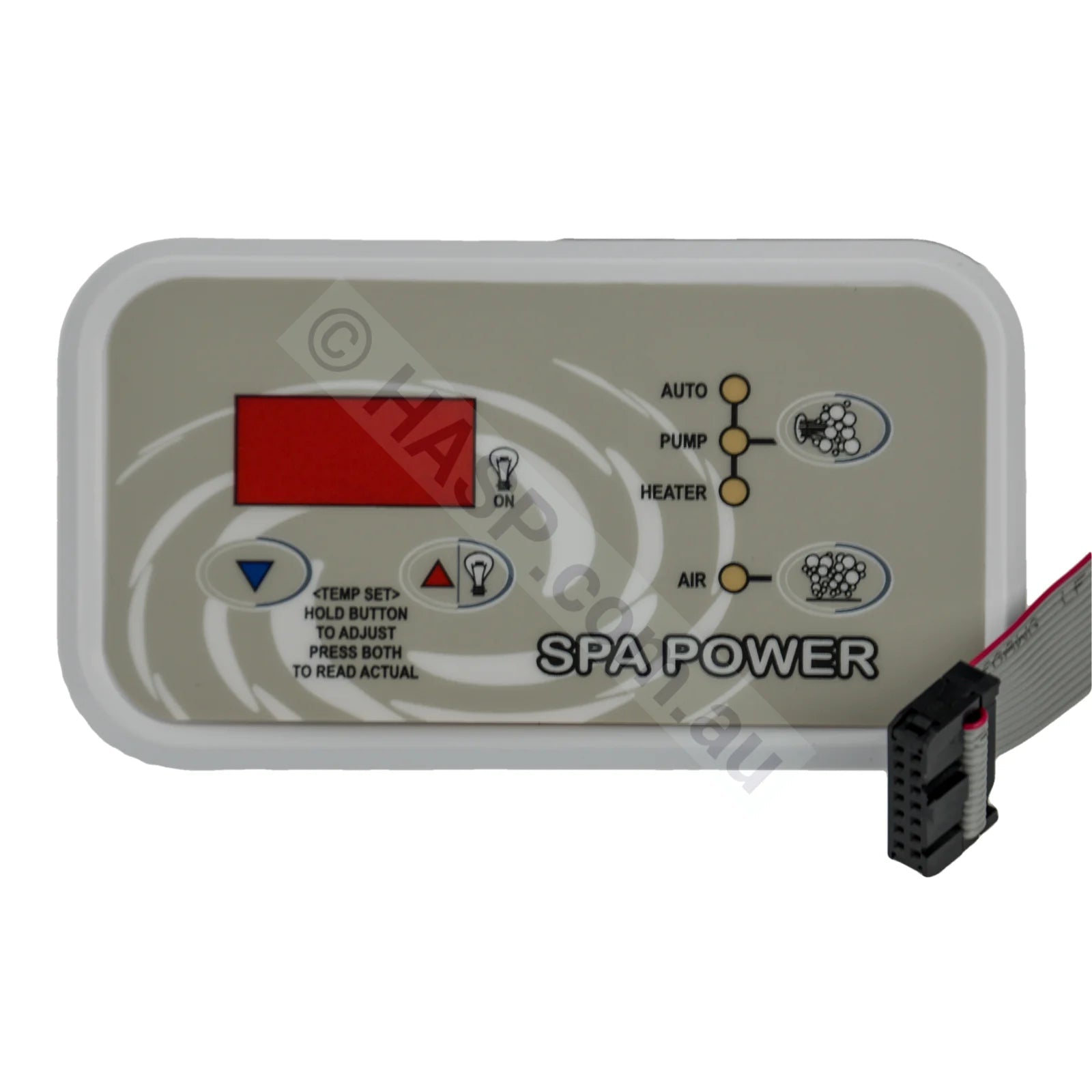

Genuine Davey SpaQuip Spa Power Rectangular 4-Button Touchpad / Keypad / Control Panel. Suits many Spa Power 400, 500, 54500, 600 and 601 control systems, and is commonly used in older spas from brands such as Maax, Monarch, Impact, Heritage, Aristocrat, Sapphire, Signature and others.
This is the genuine rectangular version touchpad, commonly referred to as a touch pad, keypad, control pad or control panel. It is a popular replacement for older Davey SpaQuip Spa Power systems and is also commonly sold as a Monarch Spa Power 500 touchpad.
Fast shipping or pickup available.

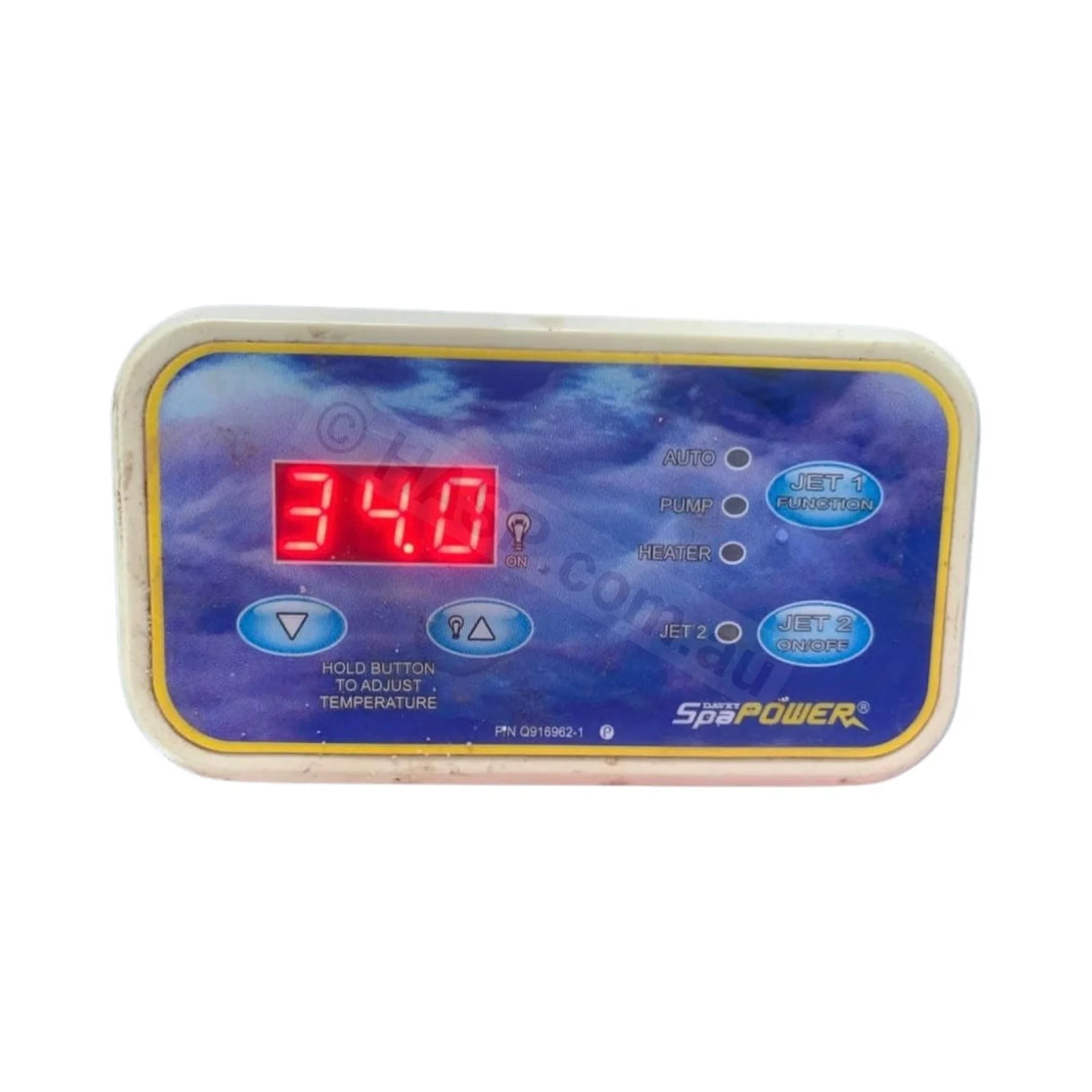

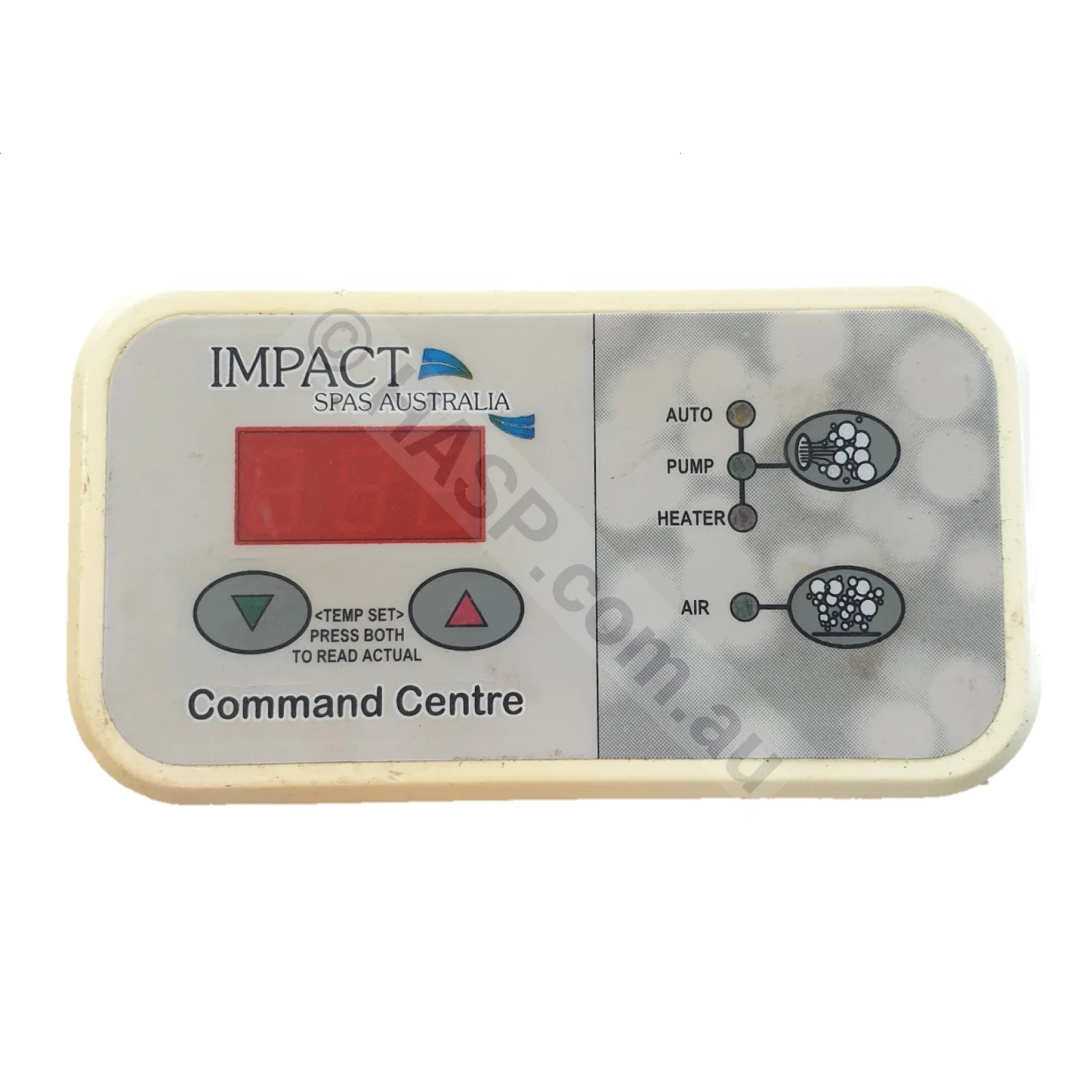

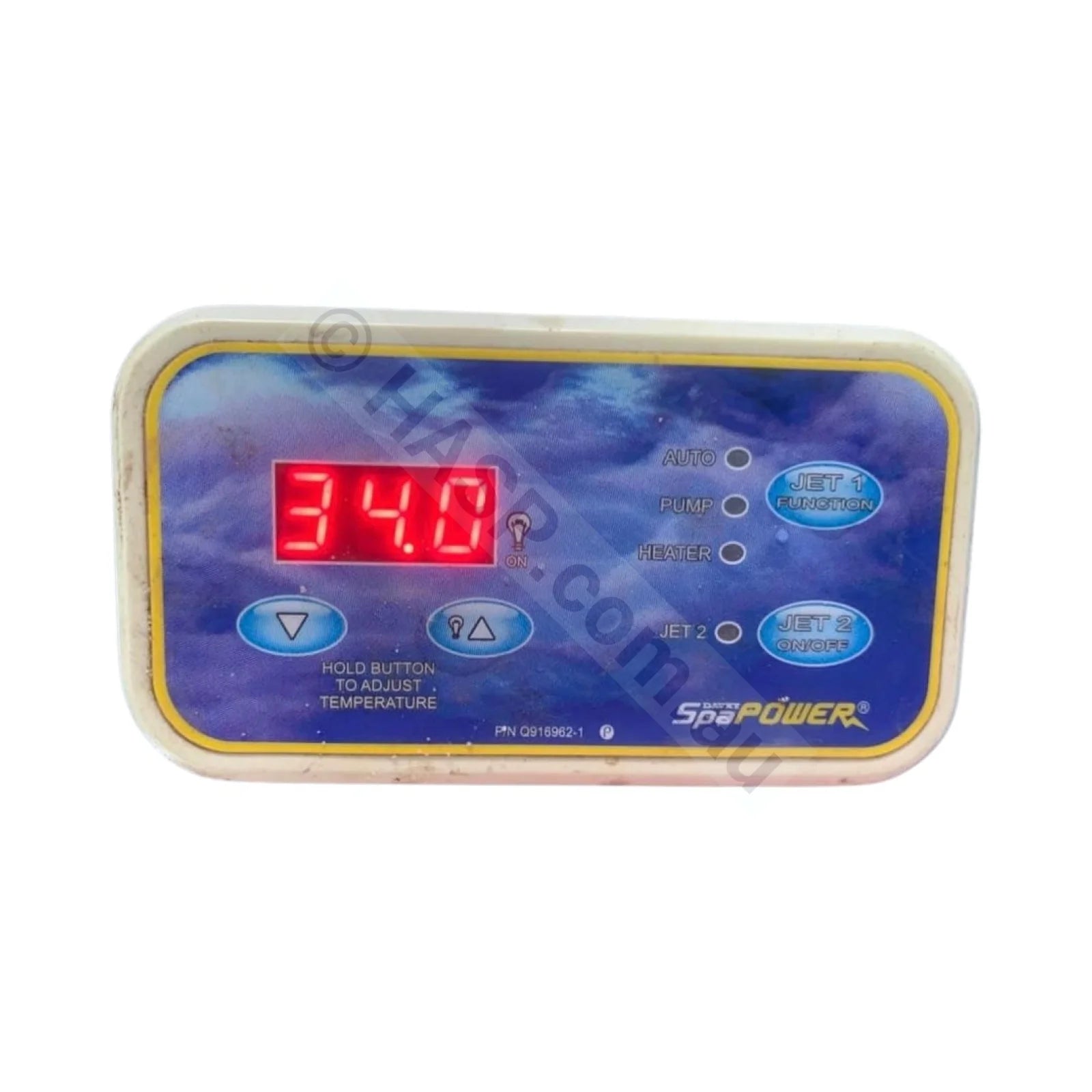

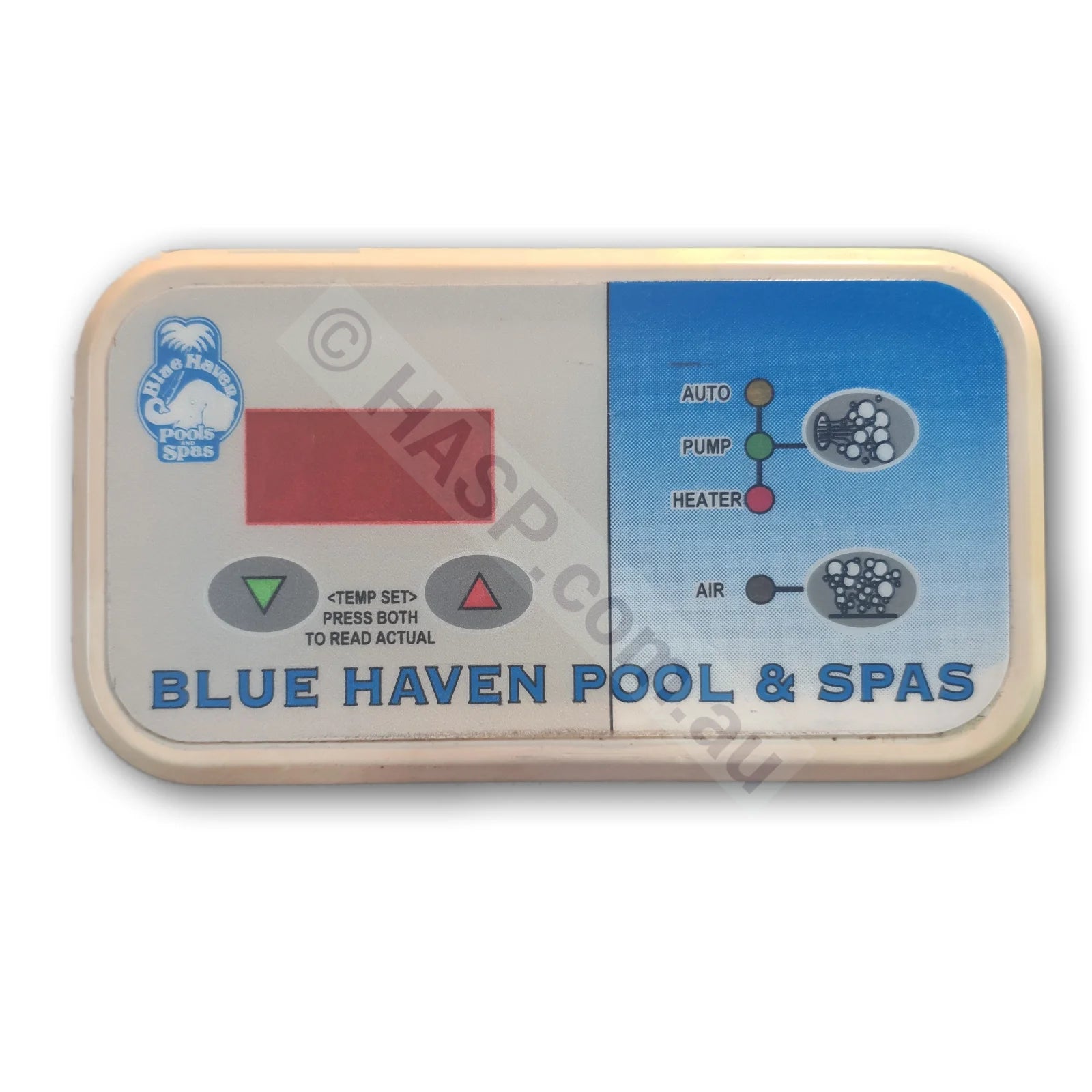

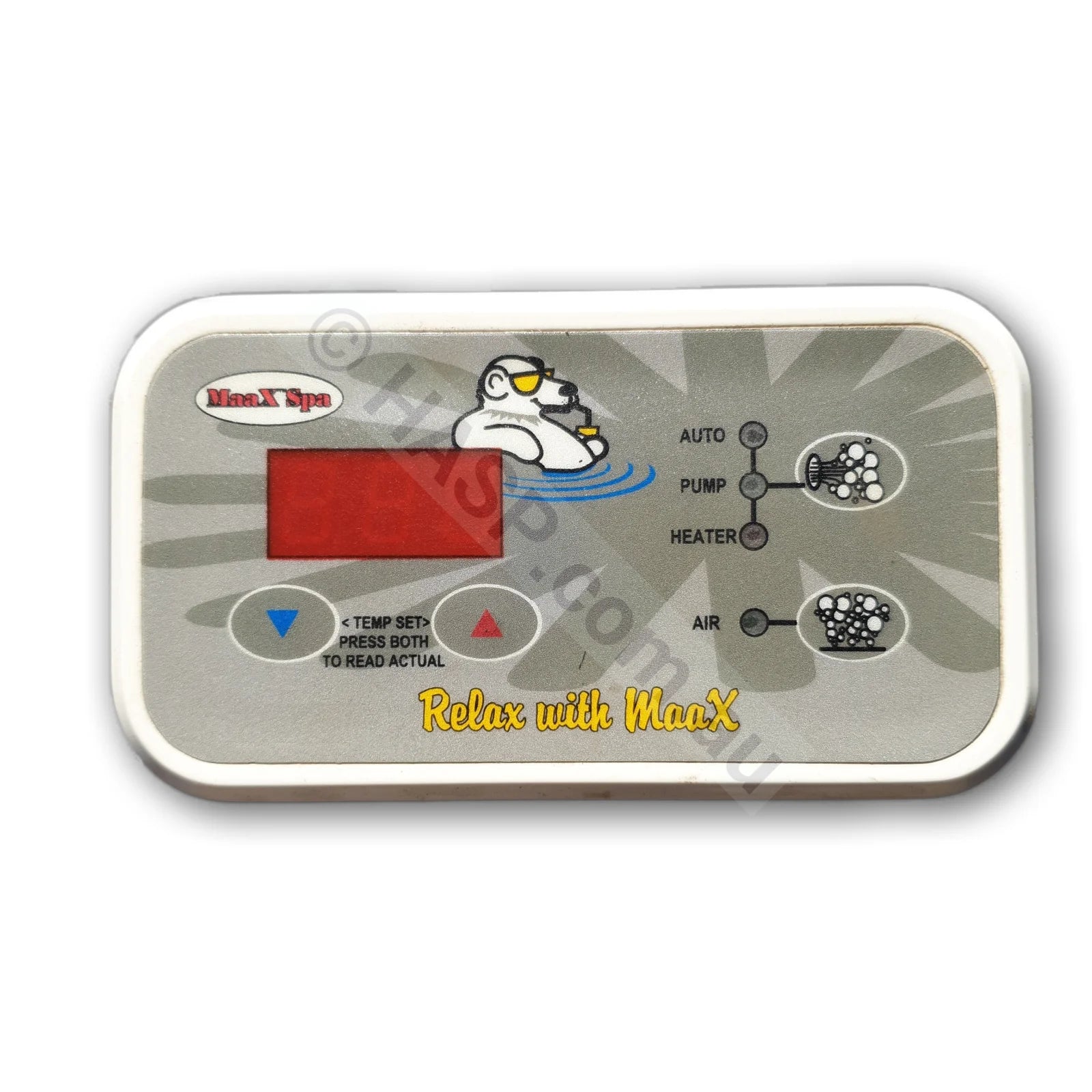

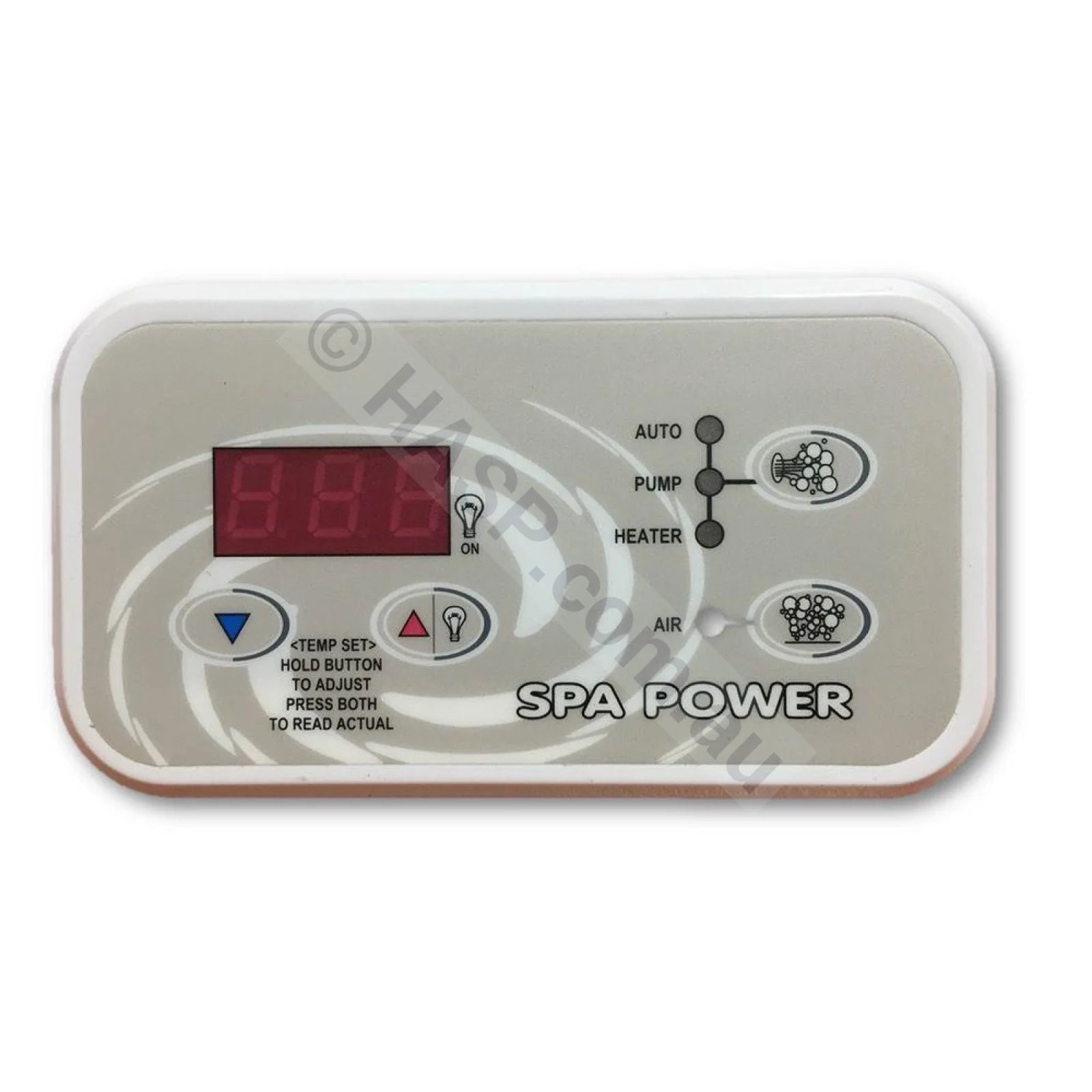

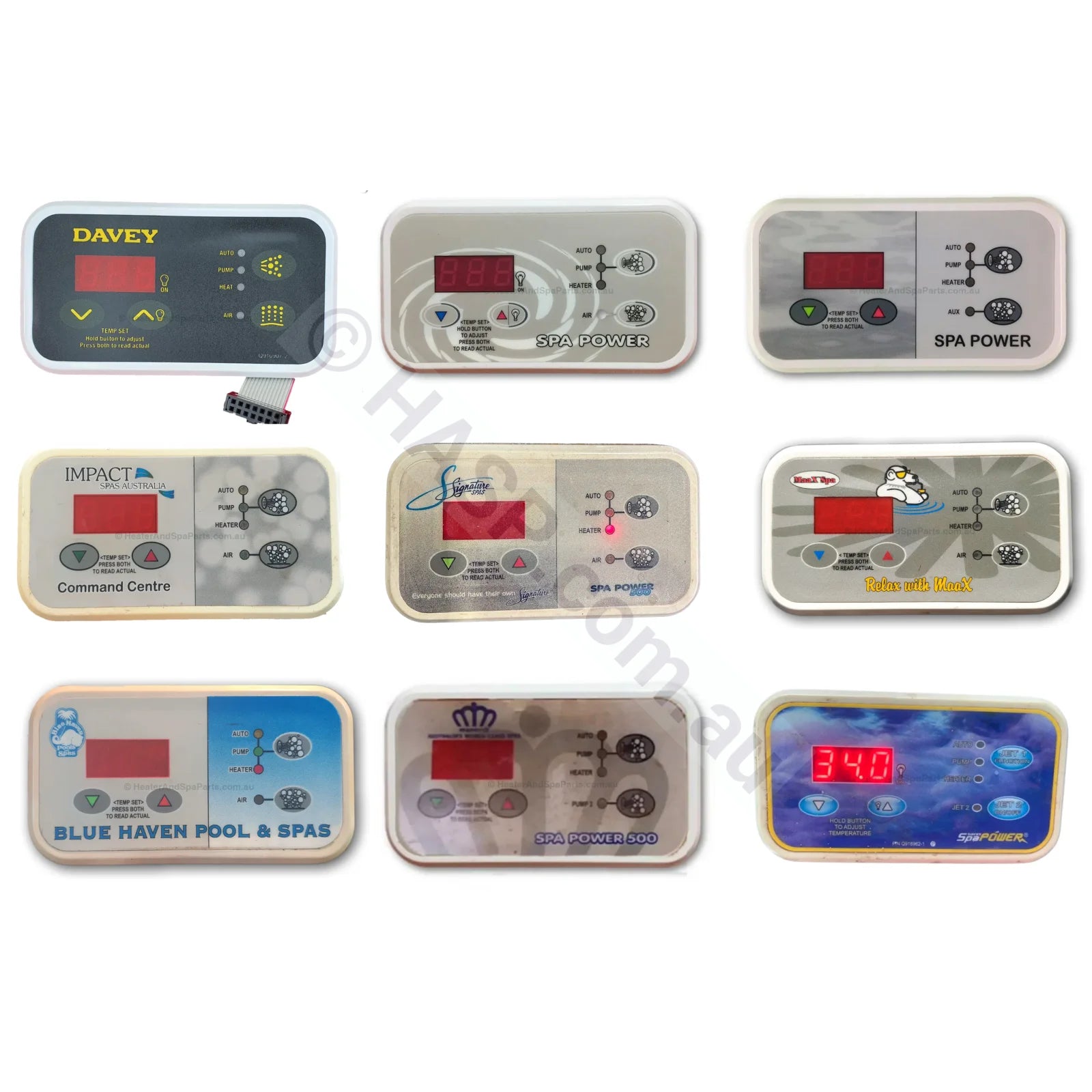

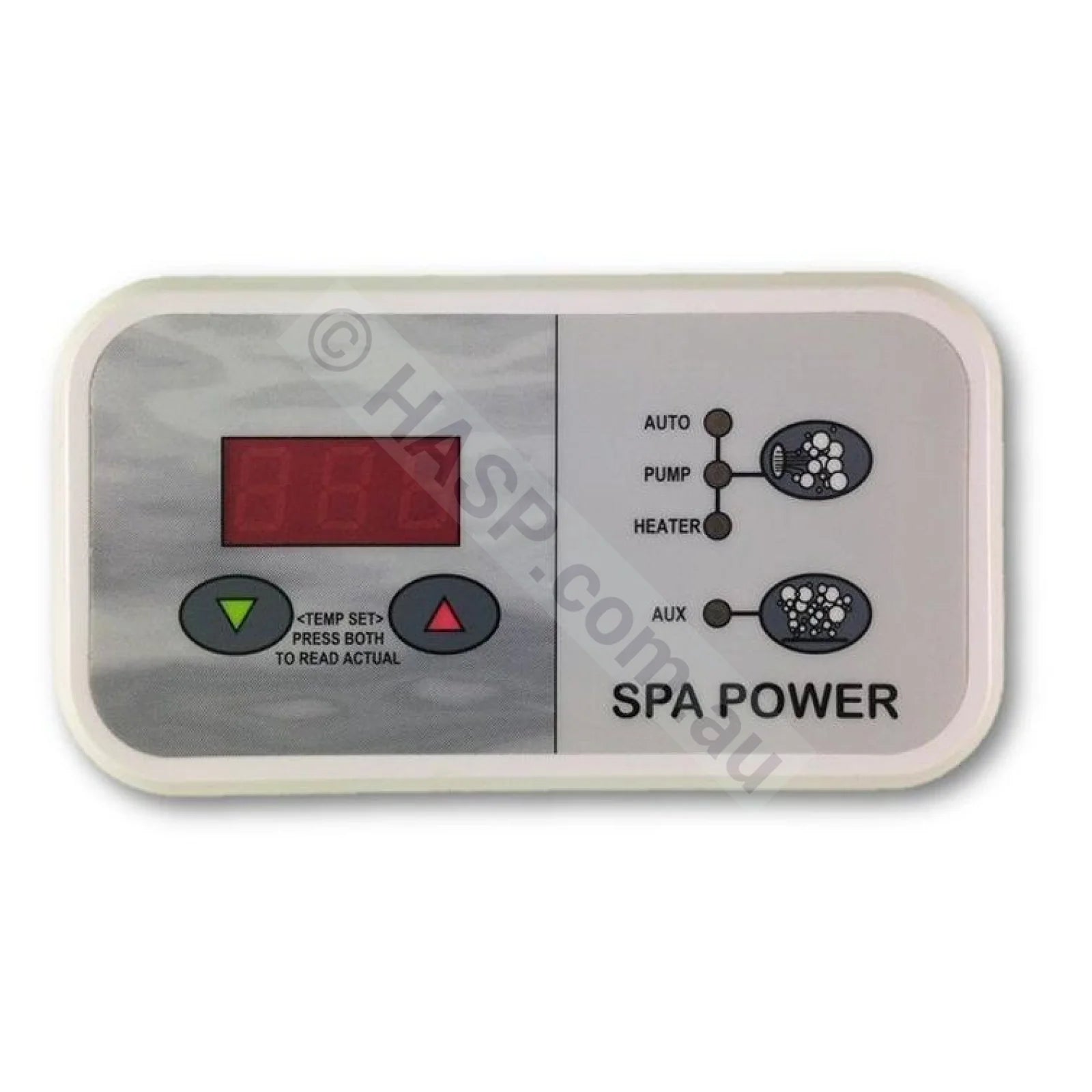

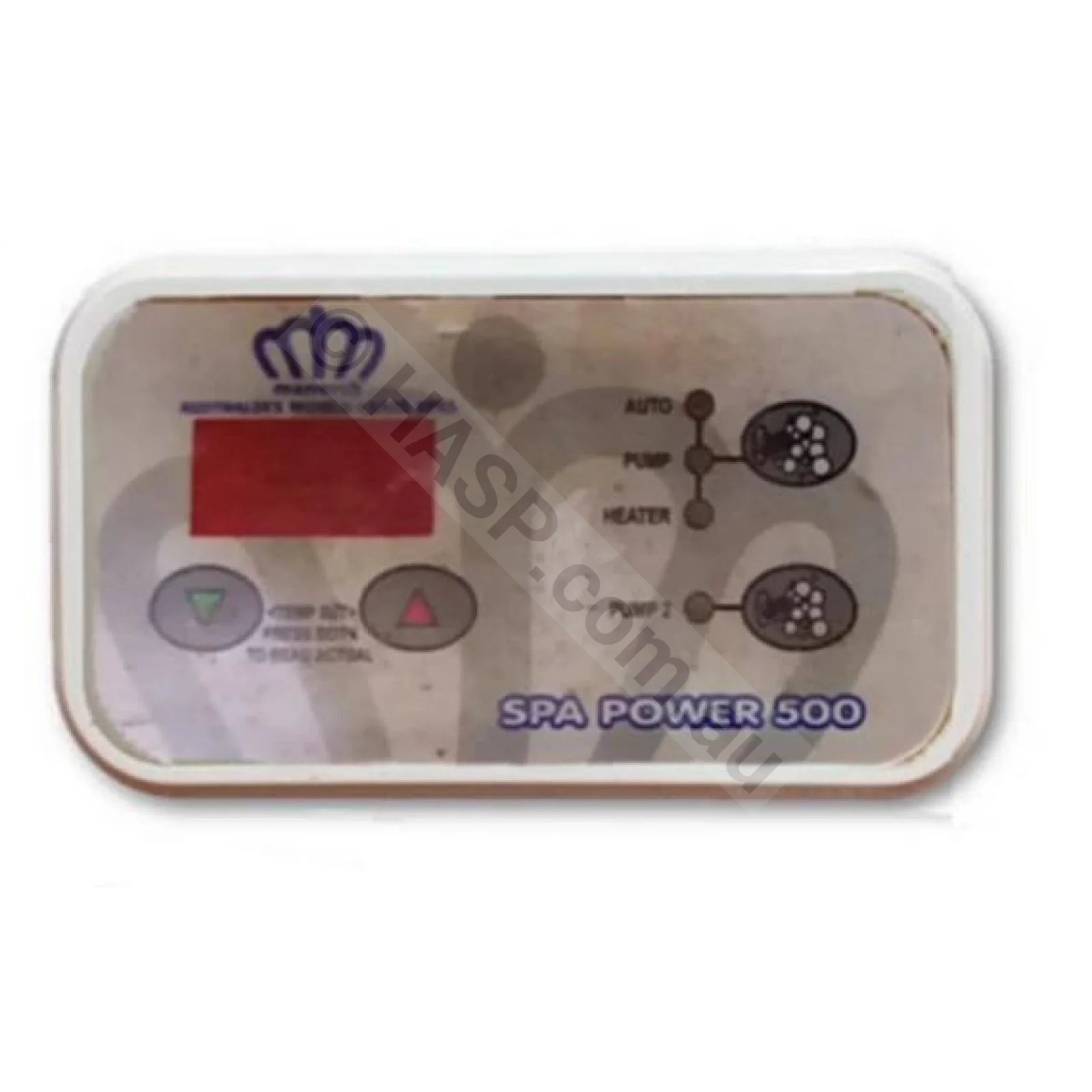

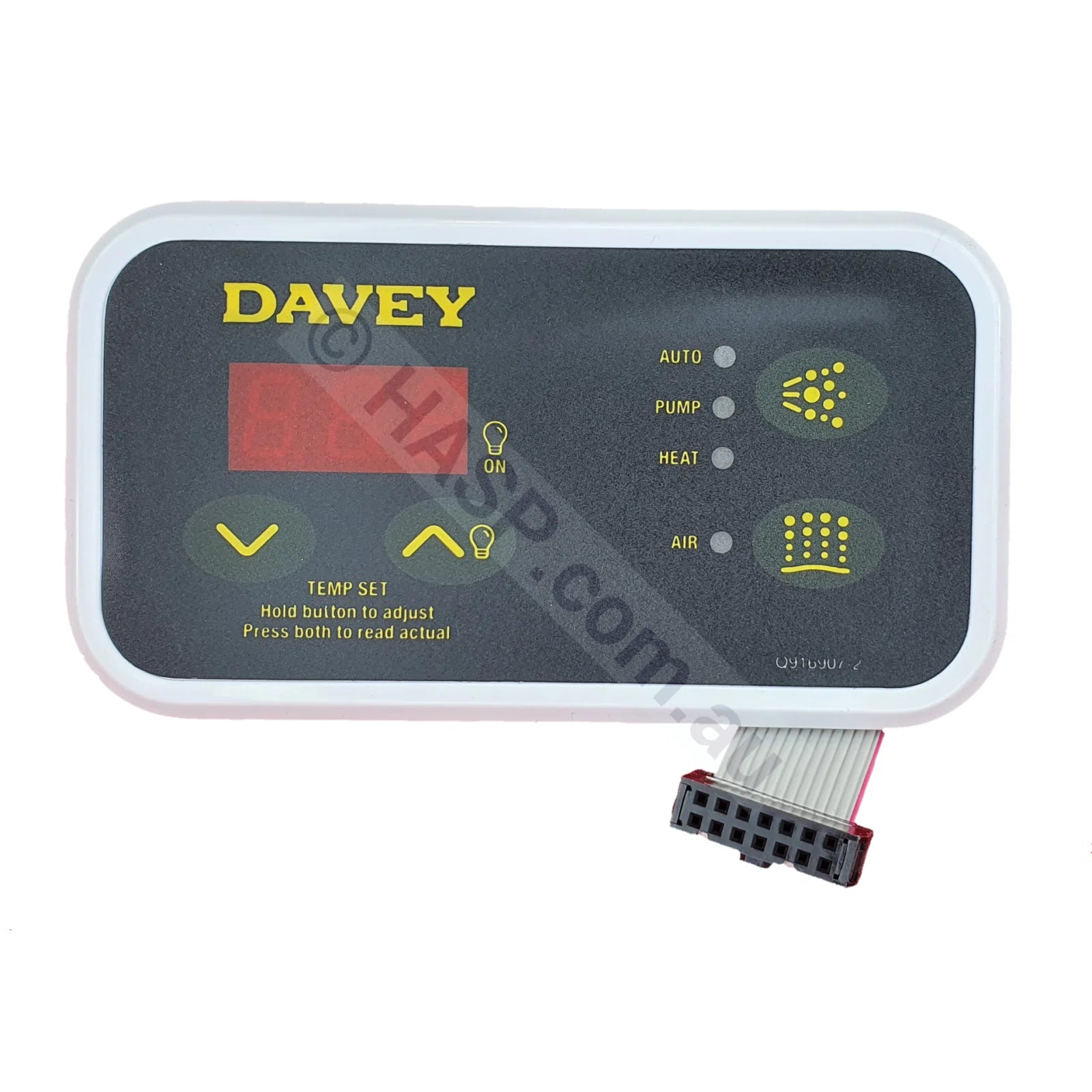

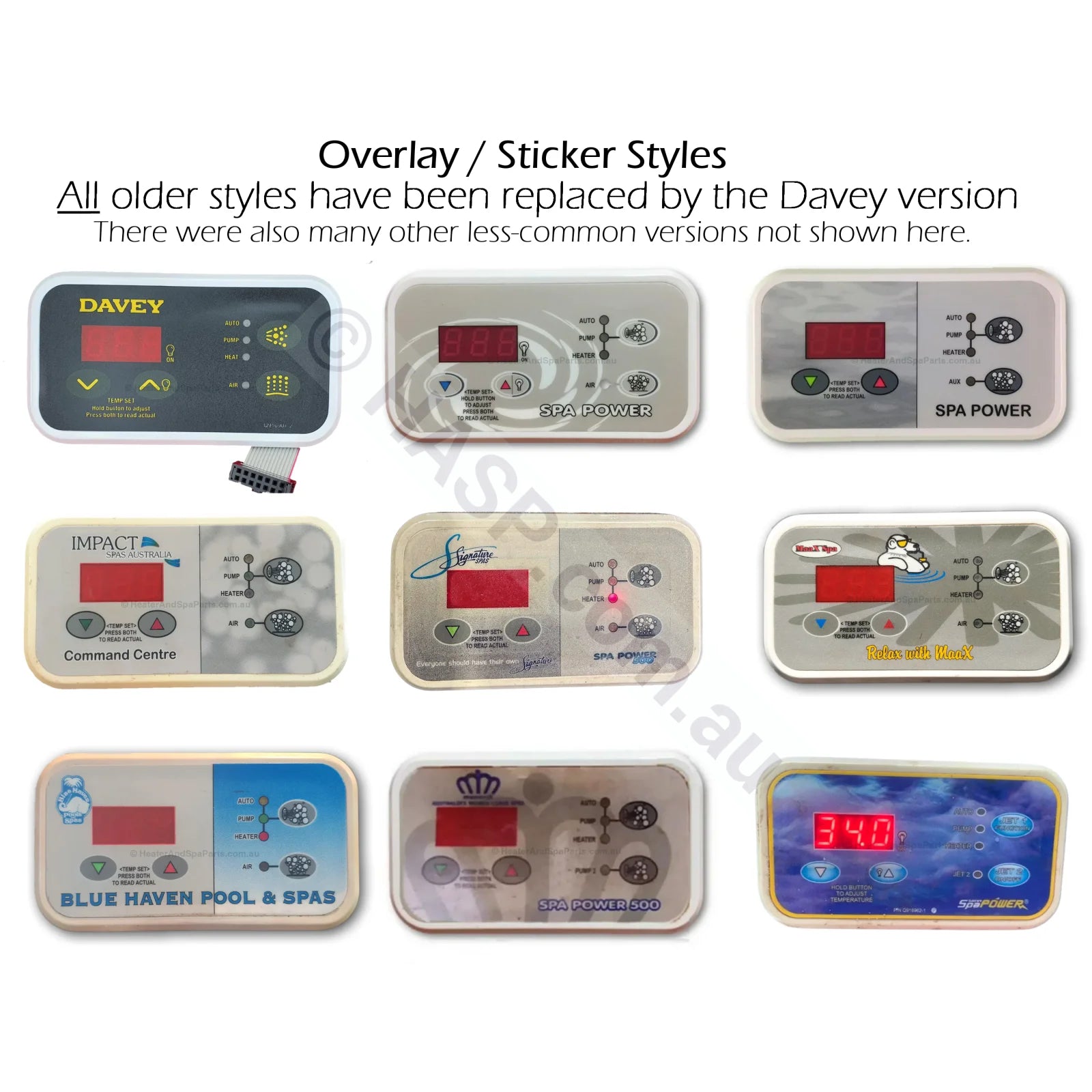

Important overlay note: These have been supplied over the years with different overlay decal styles, as shown in the photos. Listing images may show older or alternate overlay versions for reference only. Current stock now comes with the Davey black and yellow overlay style only. Other older overlay styles shown are no longer available.
This is the rectangular version: Q71092-03SP / SQ71092-03SP61 / Q71092-03RECT / 71092-03SP.
Looking for the oval version? See it here.
Suits
- Davey SpaQuip Spa Power: 400, 500, 54500, 54500A, 600, 601, Xcelsior
- Also referred to as: SP400, SP500, SP600, SP601
- Common spa applications: Older Maax, Monarch, Impact, Heritage, Aristocrat, Sapphire, Signature and many other spas
- Also listed for: eTech 900 / 107232
- Does not suit Spa Power 750 (SP750 / SP 750).
Specifications
- Type: Rectangular digital touchpad with 4 buttons
- Buttons: Temp Up, Temp Down, Pump, AUX
- Display: LED temperature display
- Face Size: 118 x 65mm
- Hole Size: 92 x 39mm
- Part Numbers: Q71092-03SP / SQ71092-03SP61 / Q71092-03RECT / 71092-03SP
- Cable Length: Approx. 2.4m to 3m depending on production batch or how measured
Fitment note: Please compare the shape, dimensions, plug style, and part number on your existing keypad before ordering. Older spa systems can vary by model and production year, even within the same spa brand.
This genuine Davey SpaQuip replacement touchpad is the correct rectangular style used on many older Spa Power systems and remains one of the most common replacement keypads for SP400, SP500, SP600 and SP601 controllers.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) |
|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm |
| 3/4" | 20 mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 32 mm | ~42.1–42.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 65 mm | ~75.2–75.5 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
