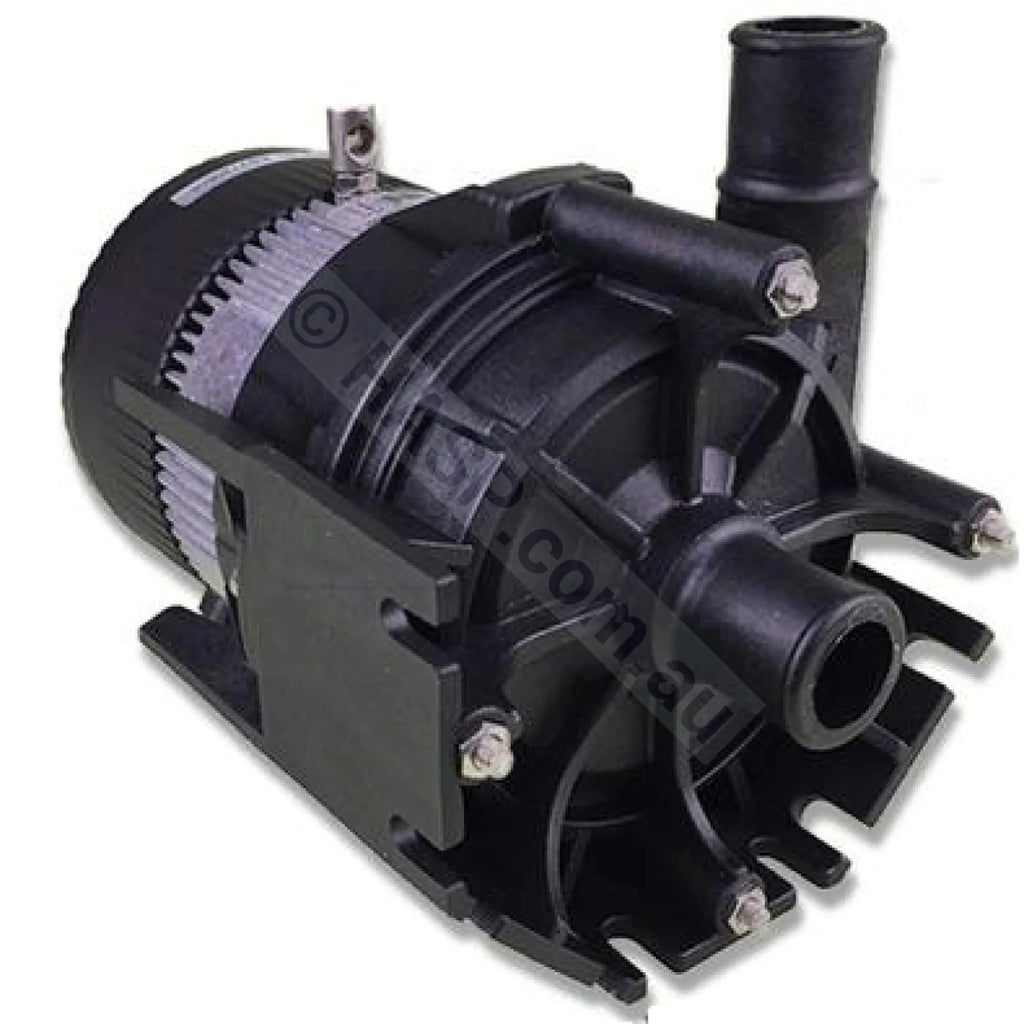

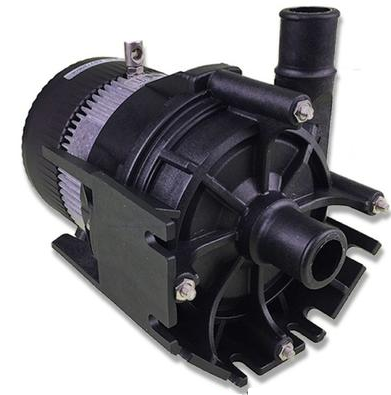

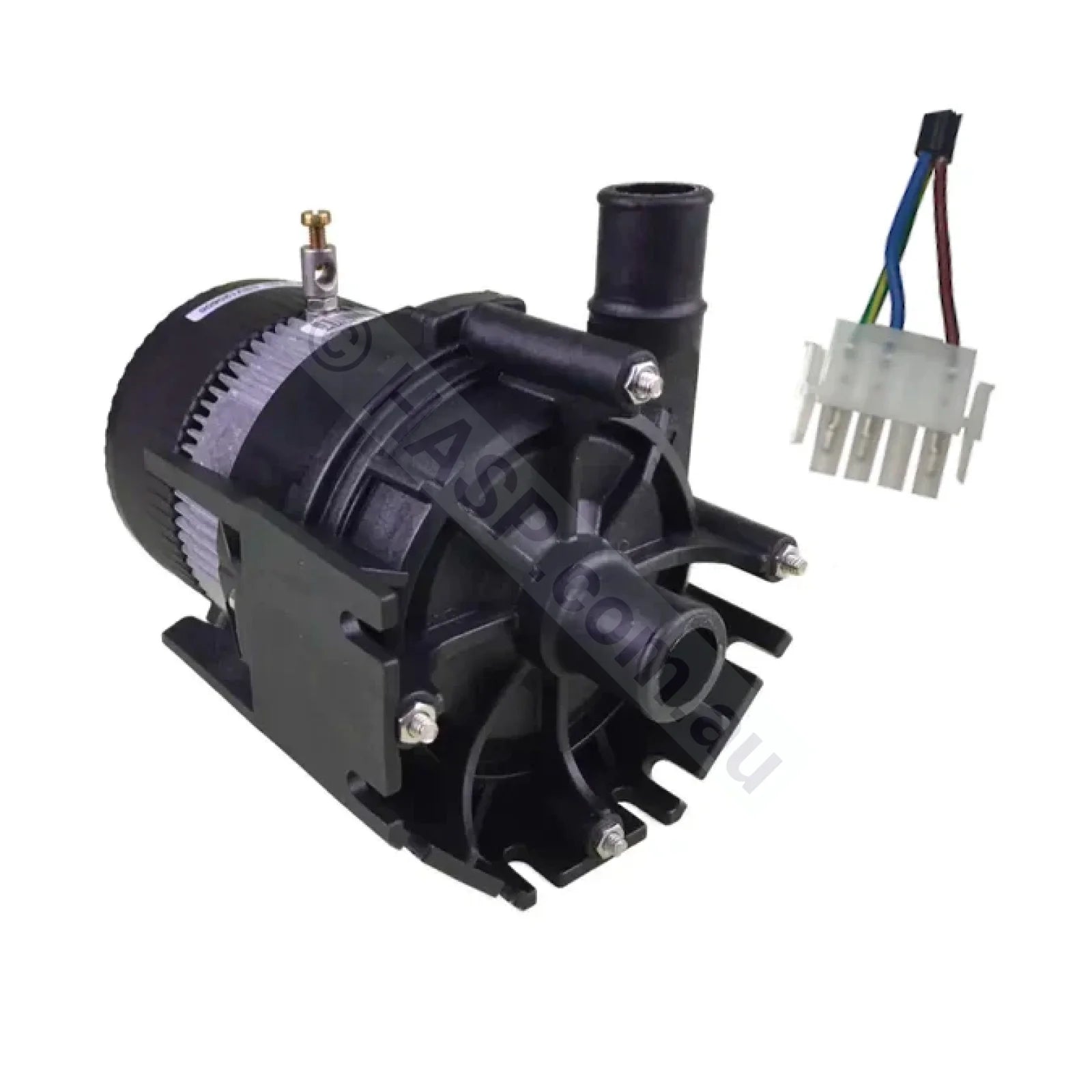

Genuine Laing Thermotech E-10 Circulation Pump for Spas
Fast Shipping or Local Pickup
The Laing Thermotech E-10 (also sold as Xylem, ITT Laing, Thermotech, and Goulds) is the industry-standard spa circulation pump used globally since the 1990s. The current E-10 replaces earlier E-3, E-5, SilentFlo 5000, and legacy SM-series pumps, offering higher flow, cooler operation, and lower energy consumption.

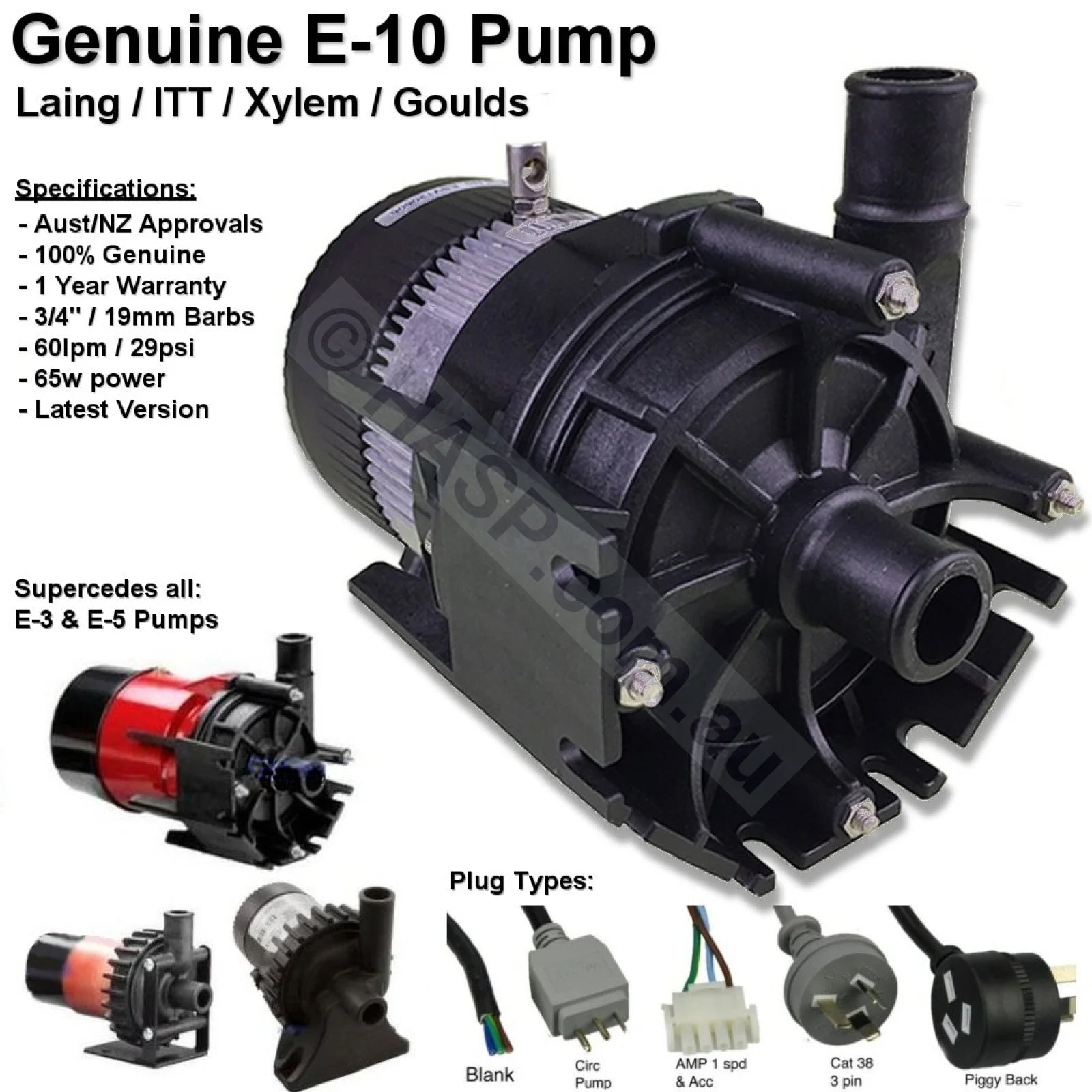

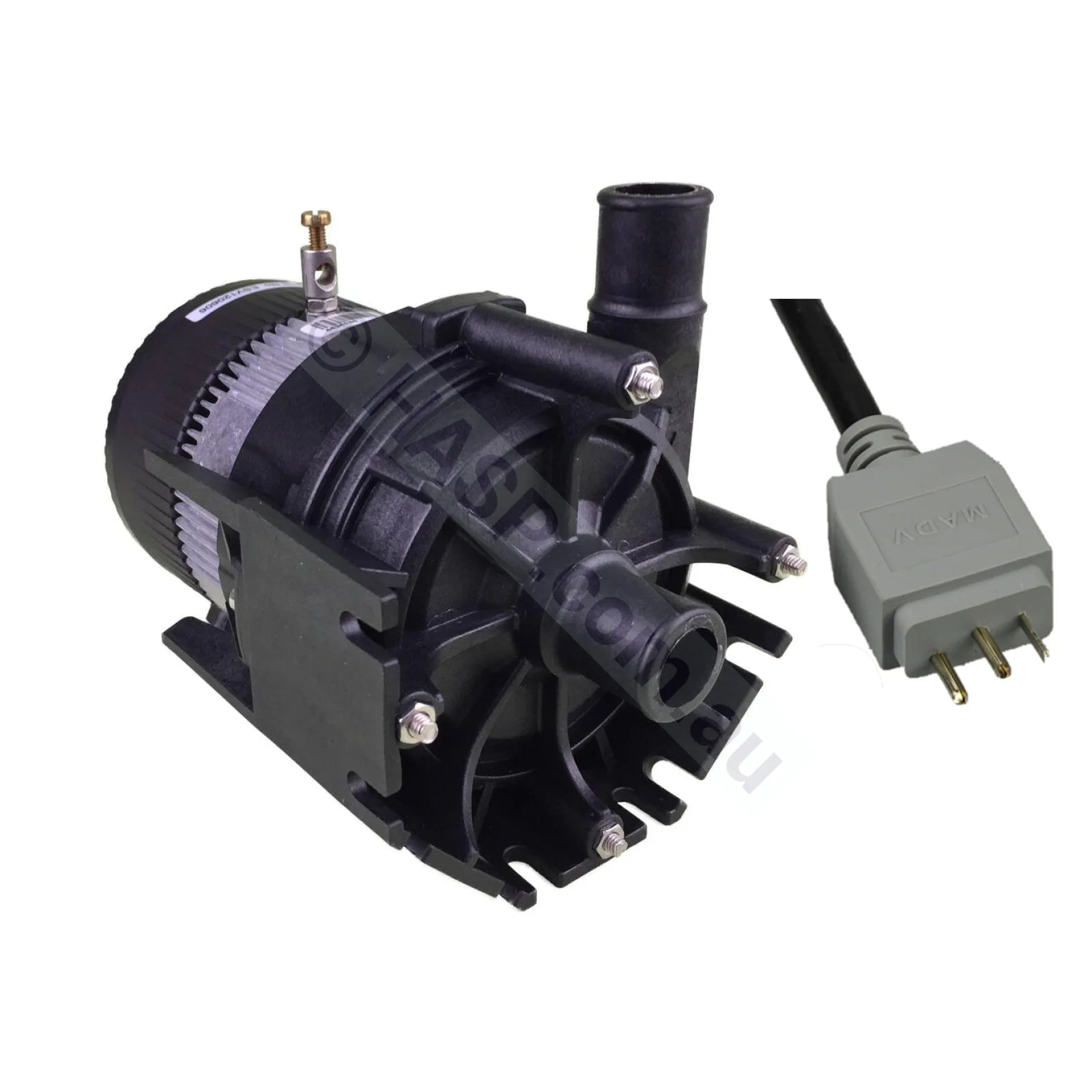

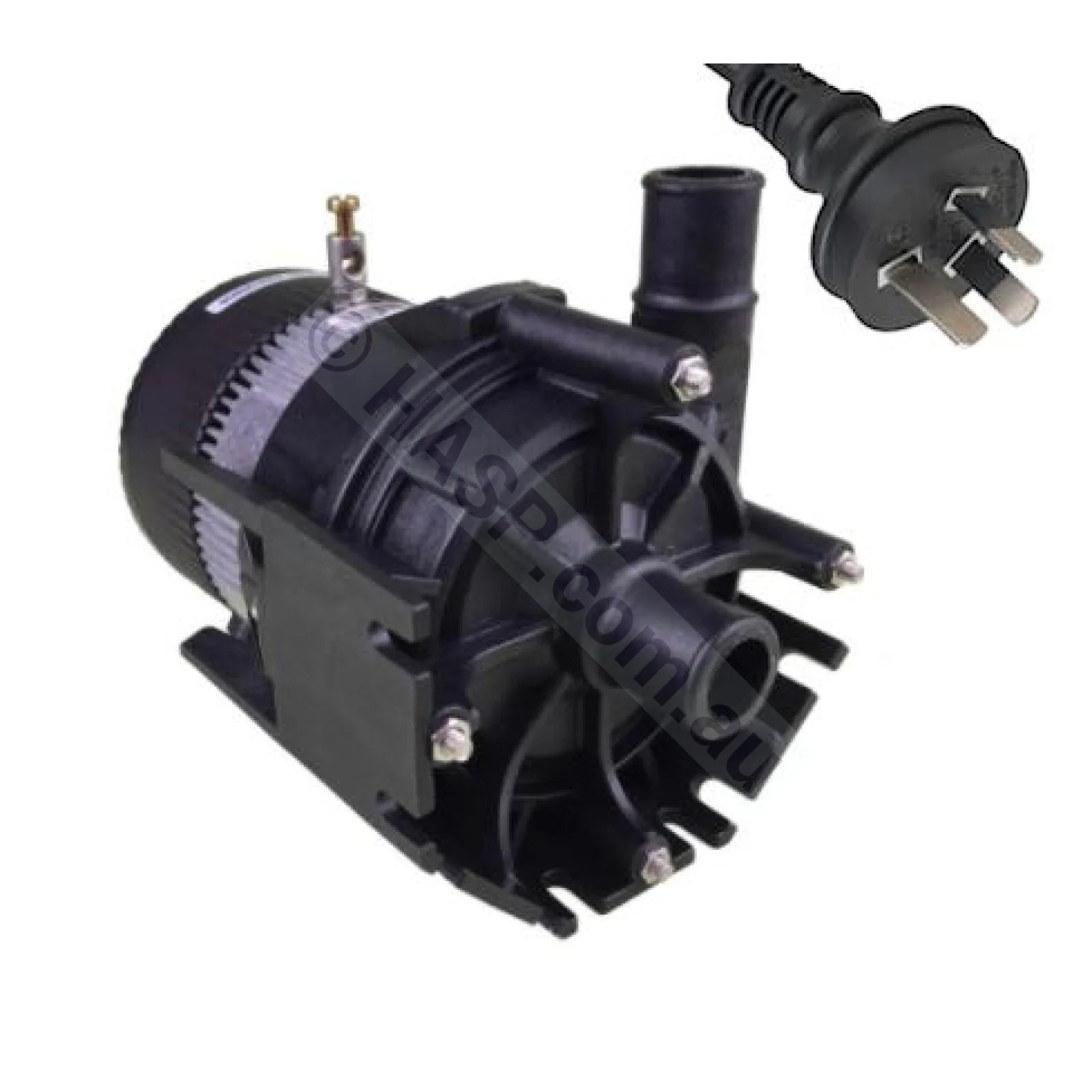

Commonly found in Caldera, Dimension One, Hot Spring, Jacuzzi, Spa Industries, Sundance, Sweetwater, Watkins and other brands. Compatible with standard 19 mm (3/4″) hose. Available with Mini JJ (Circ), AMP, C-38 (3-pin) plugs, or blank cord — please confirm plug type before ordering. A licensed technician may re-use a safe, intact existing lead.
Genuine Australian-approved product – Certification ESV180553. ⚠️ Beware of imported copies that lack electrical approval — they are not the same product.

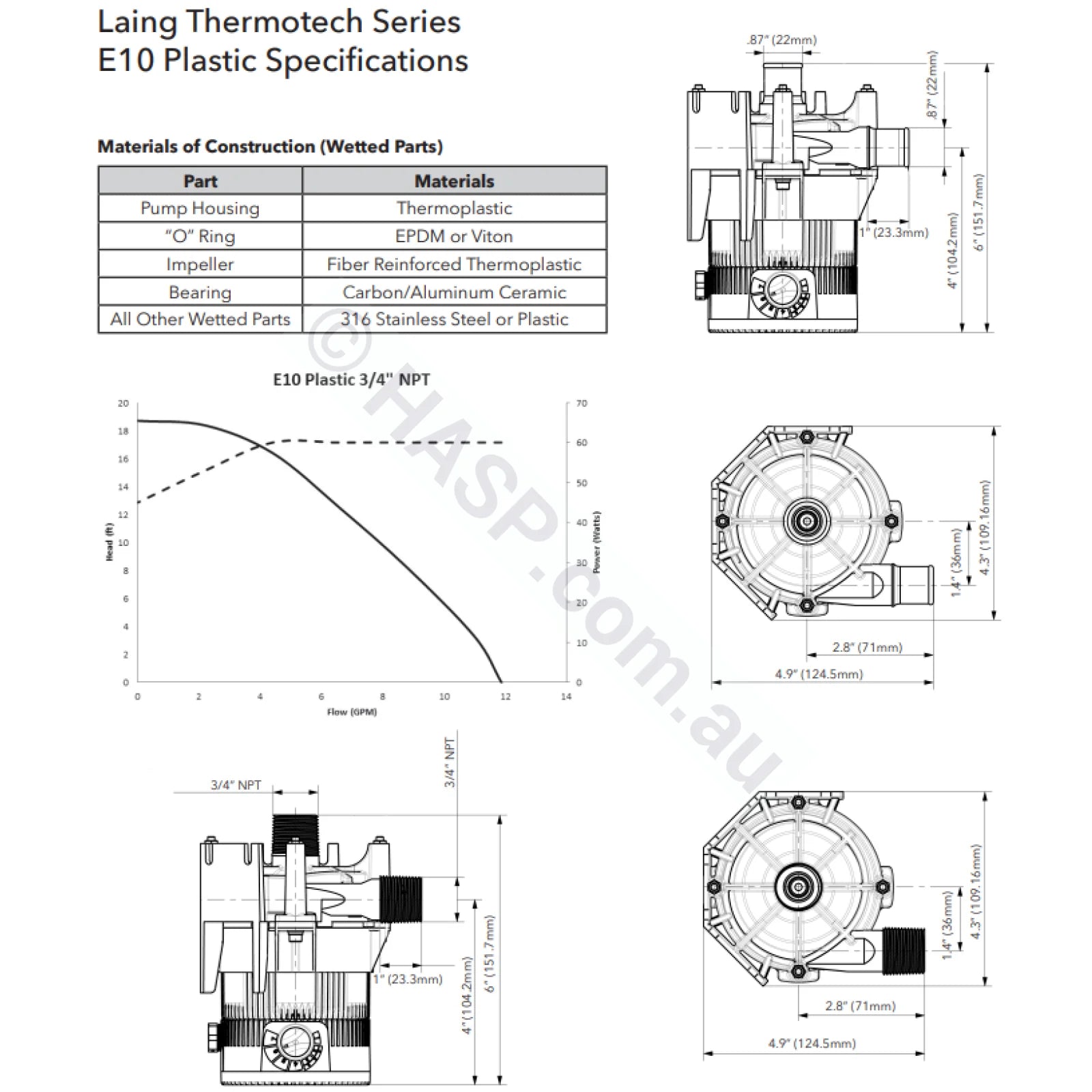

Key Specifications
- Power: 65 W (max)
- Flow rate: 60 LPM (≈ 15 GPM)
- Maximum head: 6.5 m (≈ double the older SM959)
- Maximum pressure: 29 PSI / 2 bar
- Connections: 19 mm / 3⁄4″ barb
- Max water temperature: 60 °C / 140 °F
- Noise level: < 40 dB
- Rotatable pump head for flexible mounting
- Body: Glass-reinforced nylon | Ceramic bearing | 316 Stainless steel shaft | EPDM seal O-ring
Documentation
Warranty & Reliability Information
1 Year Return-to-Base Warranty (details here)
These are excellent little pumps — but they are also one of the most common sources of spa warranty claims. Most failures are due to installation or water-quality issues, not manufacturing faults. Please read carefully:
- Must be installed perfectly horizontal – if tilted, the impeller can rub and seize.
- Remove all inline filters or strain-screens before the pump – restricted flow will overheat and damage the unit.
- Do not use in saltwater systems.
- Avoid clarifiers and flocculants – they can block filters and starve flow.
- Maintain balanced water chemistry – corrosive or acidic water voids warranty. See corrosive water damage info.
- Do not modify or splice cords — use the correct lead type for your spa controller.
Cross-Reference & Compatibility

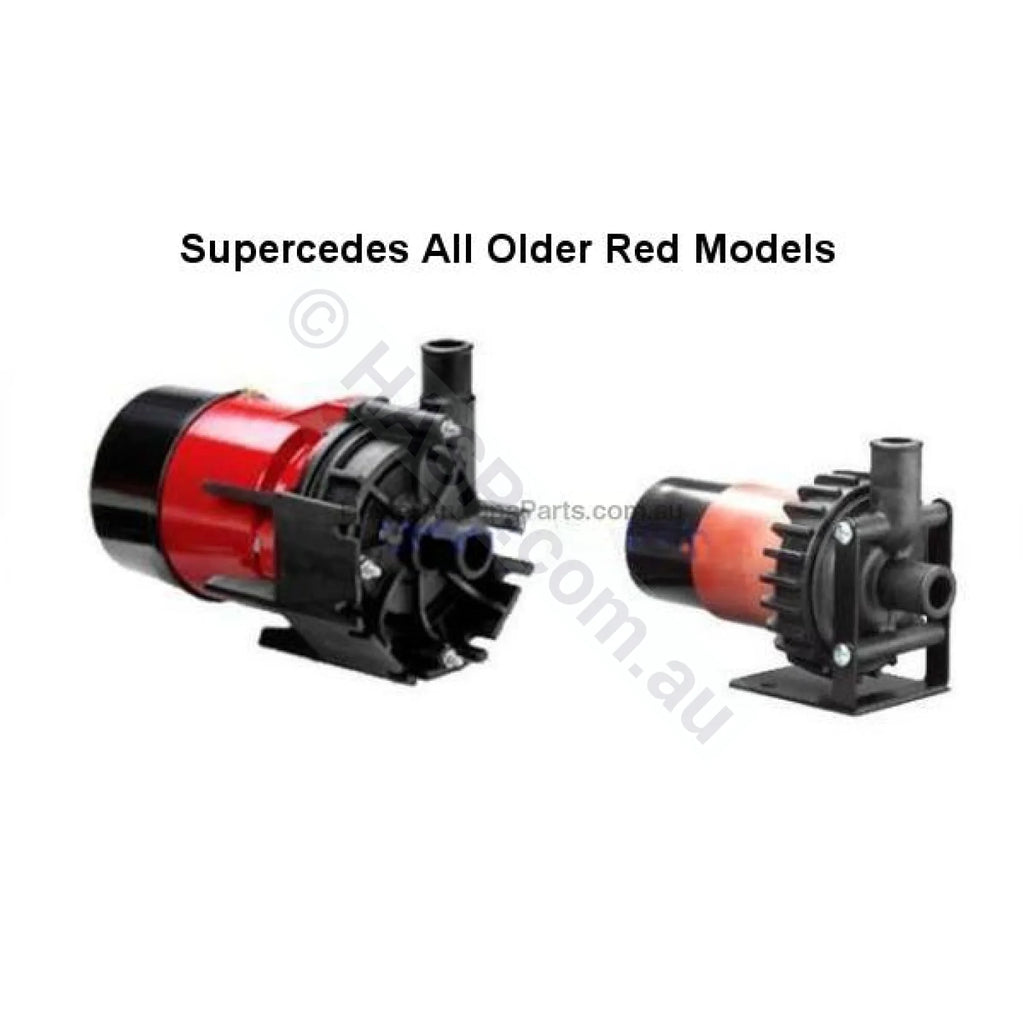

Replaces and supersedes Laing / Thermotech E-3, E-5, SilentFlo 5000, SM-303, SM-909, SM-959, SM-959-NHW-26, 68219 and other legacy spa circulation pumps.
Compatible Spa Brands
- Jacuzzi®
- Sundance Spas
- Hot Spring / Watkins
- Caldera Spas
- Spa Industries / Signature
- Goulds / ITT Laing Thermotech
Jacuzzi® Models Supported
J-300 Series (2002 +): J-310, J-315, J-320, J-325, J-330, J-335, J-340, J-345, J-350, J-355, J-360, J-365, J-370, J-375, J-380, J-385
J-200 Series: J-270, J-280 (2007–2011)
Replaces Jacuzzi® Part Numbers
- 6000-125
- 6000-125E
- 6000-125EW
- 98979740P1
- 6500-460 (115 V models)
Model Relationships
| Core Laing Model | Replaced / Superseded Models | Typical OEM / Alias Numbers | Common Spa Brands |
|---|---|---|---|
| E-3 | Early compact circ pump, replaced by E-5 / E-10 | SM-1212, E-3-NHW | Hot Spring (older), Signature Spas |
| E-5 | E-3, SM-303, SilentFlo 5000 | 74427, 9026, 9406 (Hot Spring parts) | Hot Spring, Tiger River, Limelight, Caldera |
| E-10 | E-5, SM-909, SM-959, SM-959-NHW-26, 68219 | 6000-125, 6000-125E, 6000-125EW, 6500-460, 98979740P1 | Jacuzzi J-200 / J-300, Sundance, Caldera, Spa Industries, Dimension One |
Additional Notes

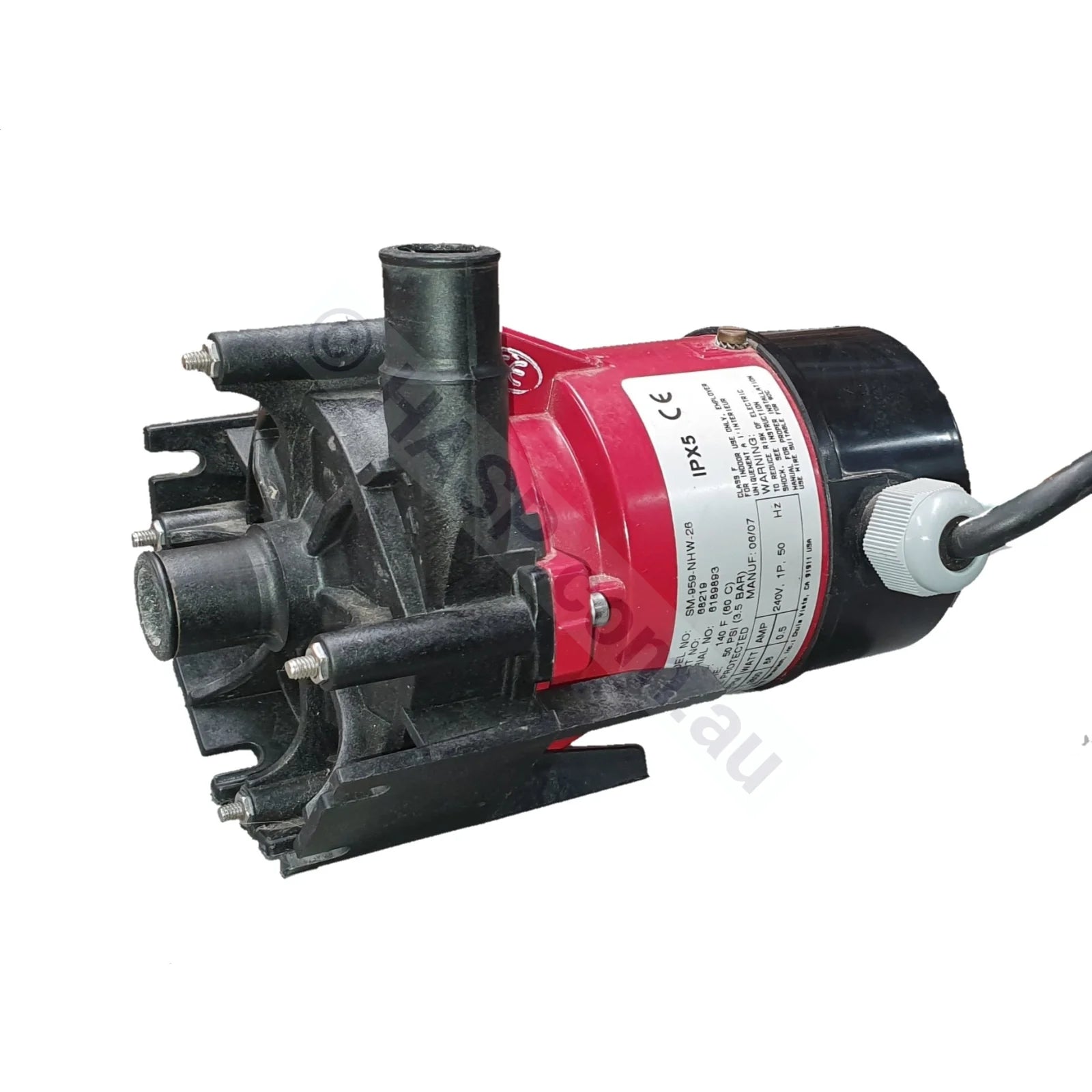

- SM-959-NHW-26 (Laing 73979) = current E-10 equivalent.
- SM-909 / SM-1212 = same hydraulic body as E-10, different motor revision.
- SilentFlo 5000 was Watkins’ brand name for the Laing SM-303 / E-5.
- Goulds / ITT / Xylem variants use identical internals under different labels.
All names and trademarks are the property of their respective owners and are used for reference purposes only.
