Threaded Pressure Gauge Adaptor for Sand Filters

Filter Pressure Gauge Adaptor (W01111048)

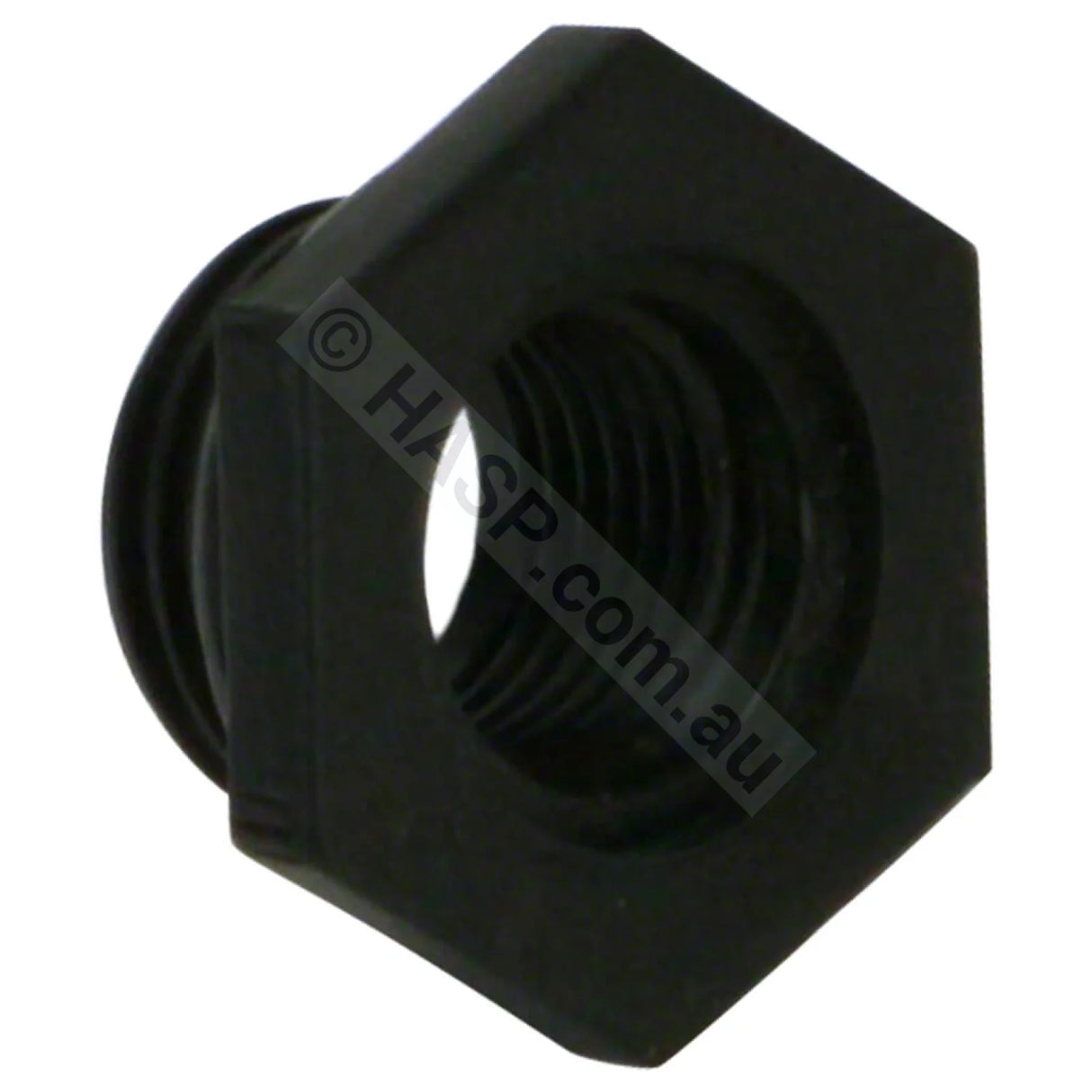

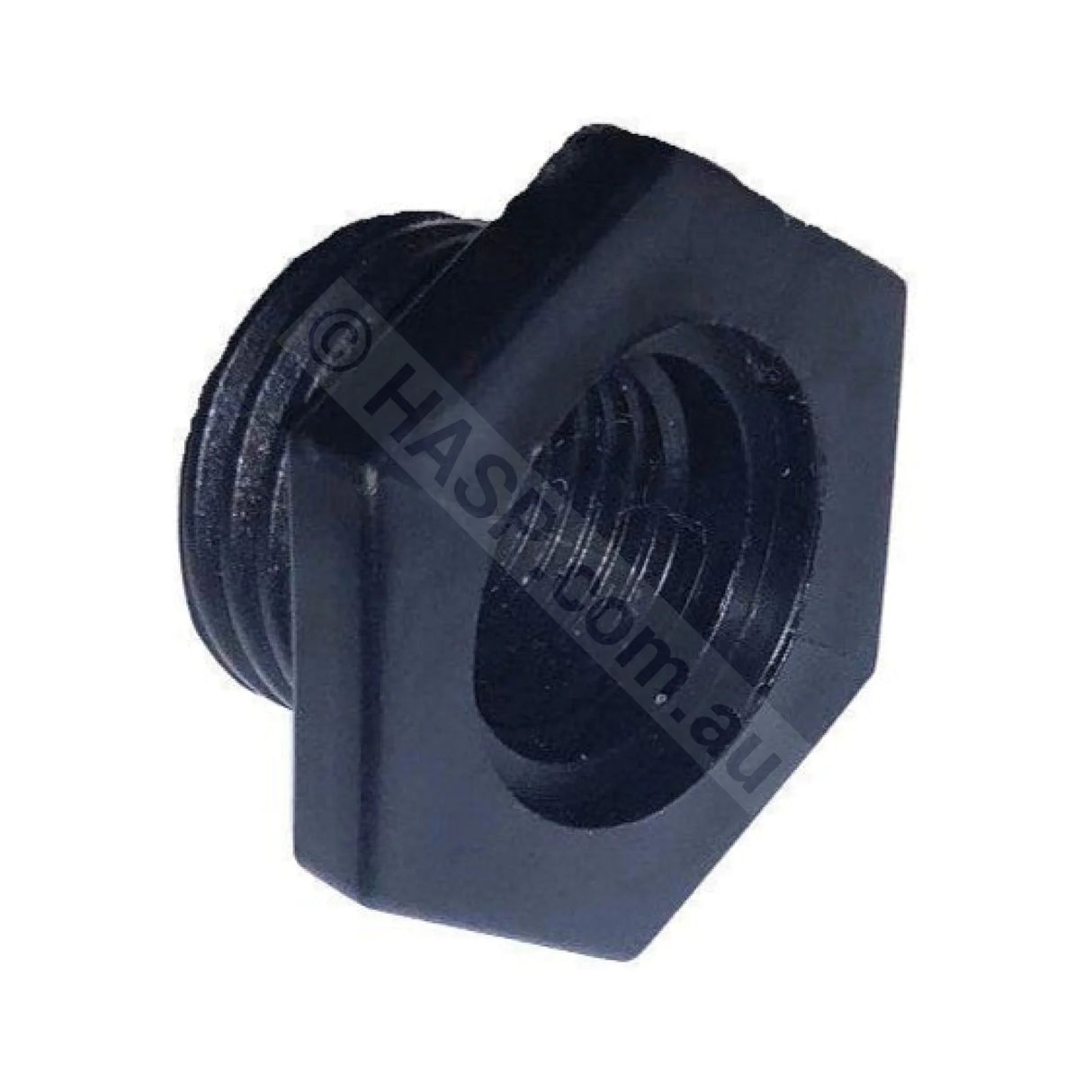

This is the small threaded bush that sits between your pressure gauge and the filter lid or multiport valve. It is the part that is usually still stuck in the lid, or still screwed onto the back of the old gauge, when a filter gauge is replaced. They often crack with age and overtightening.

Pressure gauge adaptor for many Sand / Media and cartridge pool filters. Used on Emaux, Zodiac CF, Zodiac Titan, Magnaflow, Madimack, Waterlinx, Sensaclear, SpaPro, Edgetec, WWDG, Hayward-style and many other filters. Adaptor for the pressure gauge where it connects to the filter lid or MPV.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

Filters and Valves It Suits

• Zodiac Titan media filters: ZT500, ZT650, ZT650B, ZT700B, ZT900
• Zodiac TP series valves: TP500, TP700, Titan, CT150
• Zodiac CF cartridge filters: CF75, CF100, CF150
• Astral FG / APV media filters: APV650, APV700, APV800, APV900
• Other brands using the same gauge boss: Emaux, Magnaflow, Waterlinx, Sensaclear (Sensapool), Madimack, Edgetec, Hayward-style import filters, and the SpaPro and WWDG media filters supplied through Australian spa retailers, along with a long list of unbadged Chinese import sand and media filters built on the same valve tooling.

One Moulding, Multiple Brands

Australian suppliers list this same part under at least four different names: Zodiac CF Cartridge Filter Pressure Gauge Connector, Zodiac Titan ZT and TP Series Valve Filter Pressure Gauge Connector, Magnaflow Filter Pressure Gauge Connector, Waterlinx Filter Pressure Gauge Connector, and Astral FG APV700 / APV800 / APV900 Pressure Gauge Connector. Every one of them is part number W01111048. If you have been quoted a brand-specific connector at a brand-specific price, this is the part you were being quoted on. It appears as item 19 on the Zodiac Titan TP500 to TP700 valve parts list.

Part Numbers

W01111048. Some supplier websites append a suffix such as W01111048_1, W01111048_2, W01111048_3 or W01111048_4. Those suffixes are website SKU codes for the four brand-named listings, not four different parts.

Frequently Asked Questions

Is this the gauge, or just the adaptor?
This listing is the adaptor only. The gauge is a separate part. If you need both, order the gauge as well and fit them together on the bench before the adaptor goes into the lid.

How do I know if my filter uses an adaptor at all?
Unscrew the gauge with the pump off and the pressure released. If a separate plastic bush is involved, you need one. If the gauge threads straight into a tapped hole in the valve body and seals on its own O-ring, you do not.

Will my existing gauge screw into it?
Only if the gauge male thread is 1/8". Measure across the thread crests with a caliper. Roughly 9.7 mm is 1/8". Roughly 13.2 mm is 1/4" BSP and will not enter a 1/8" female thread.

Do I use PTFE tape or an O-ring?
PTFE tape on the male thread. A few wraps wound in the direction of tightening is enough. Some gauges also carry their own O-ring or washer where they seat, and that seal should be replaced at the same time.
