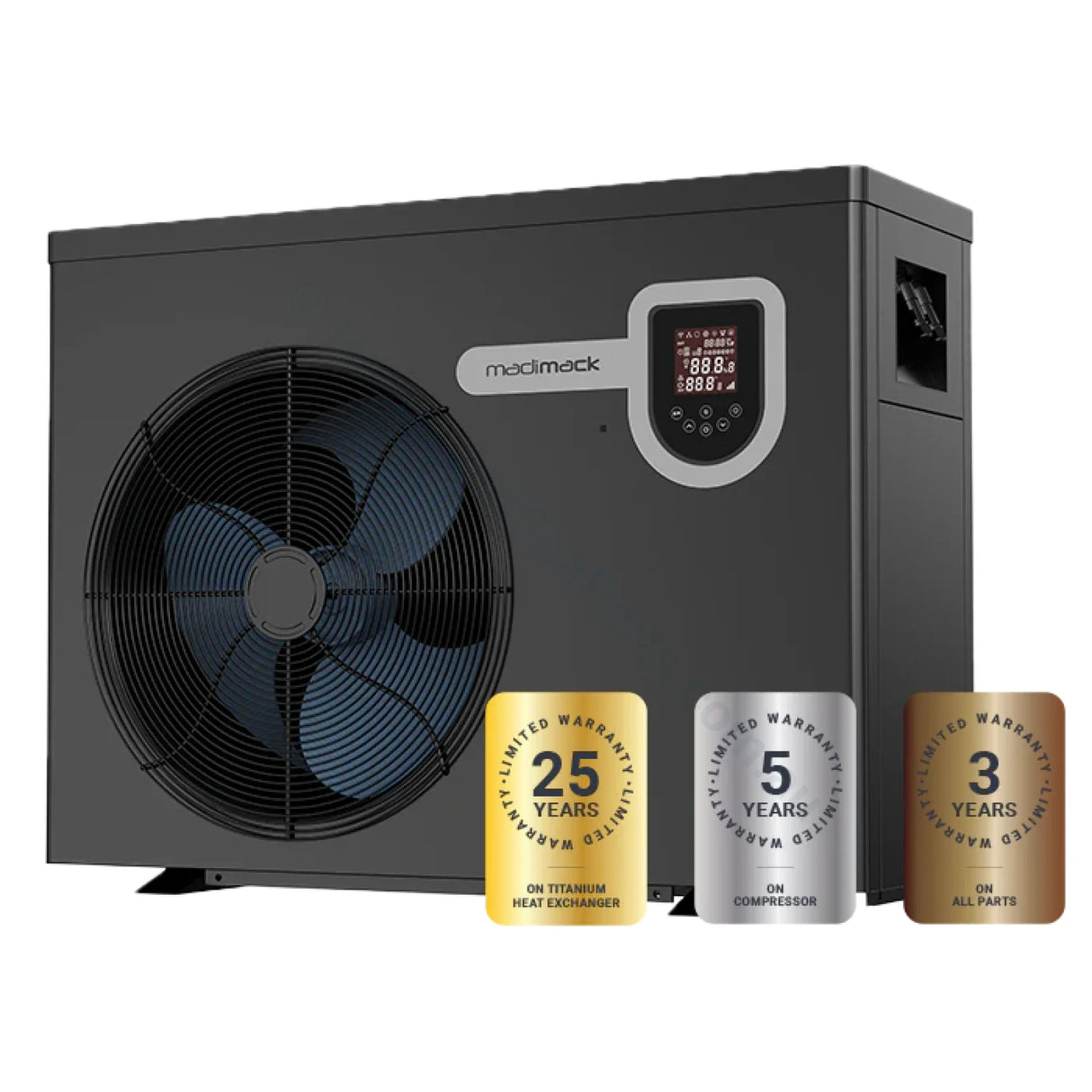

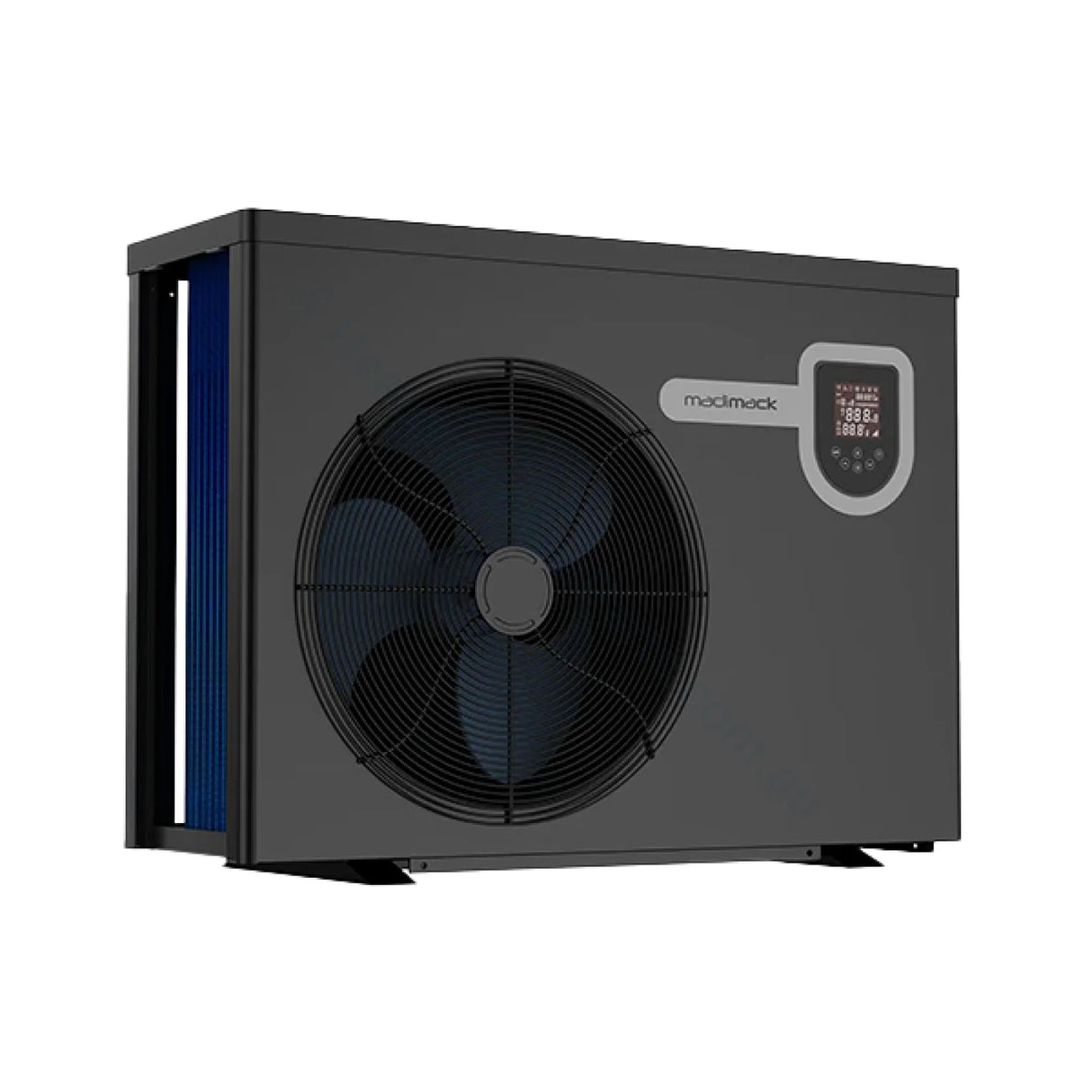

20kW Madimack InverEco EcoPlus Pool Heat Pump
20kW Madimack InverEco EcoPlus Pool Heat Pump is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
20kW Madimack InverEco EcoPlus Pool Heat Pump
- Free Shipping Australia Wide
- Comes with HASP's Exclusive Free Valve Installation Kit
- Documentation: Brochure | User Manual
- Heat Pump Calculator Form & Sizing Guide
Why Choose InverECO Plus?
- Whisper-Quiet & Long-Lasting: Built with premium components for reliable performance.
- Smart Energy Savings: Low-energy and night-time modes boost efficiency by up to 20%.
- Remote Control via WiFi: Adjust temperature and timers from anywhere.
- Durable, Weather-Resistant Casing: Anti-corrosion ABS housing withstands harsh conditions.
- Perfect for Australian Climates: Designed to perform in extreme weather, operating in temperatures as low as 0°C.
Advanced Features & Benefits
Market-Leading Heat Pump Technology – High-quality heat exchanger for all pool types.Flexible Installation – Compact design with a corrosion-resistant casing, ideal for high-salt areas.
Active Defrost Function – Ensures smooth operation in cold environments.
Powered by InverMAC Technology – Uses high-efficiency inverter technology, reducing energy costs by up to 66%.
Renewable Energy Compatible – A sustainable heating option for eco-conscious pool owners.
Operating conditions and range:
- Air temperature operating range -5°C～43°C
- Heating temperature setting range 18°C～40°C.
- Ambient air temperature for best performance is between 15°C ~ 25°C.
InverECO Series Specifications:
| Model | ECO90 | ECO130 | ECO160 | ECO200 | ECO240 |
|---|---|---|---|---|---|
| PERFORMANCE CONDITION: Air 27C/ Water 27C/ Humidity 80% | |||||
| Heating capacity (Kw) | 9 | 13 | 16 | 20.2 | 24.2 |
| COP Range | 10.5 ~ 6.2 | 10.8 ~ 6.3 | 10.7 ~ 6.2 | 10.9 ~ 6.3 | 10.8 ~ 6.3 |
| PERFORMANCE CONDITION: Air 15C/ Water 26C/ Humidity 70% | |||||
| Heating Capacity (Kw) | 6.5 | 9 | 11 | 14 | 16 |
| COP Range | 6.5 ~ 4.2 | 6.2 ~ 4.5 | 6.6 ~ 4.3 | 6.4 ~ 4.3 | 6.6 ~ 4.5 |
| TECHNICAL SPECIFICATIONS | |||||
| Compressor | Full Stepless DC Compressor | ||||
| Casing | ABS Anti Corrosion Case | ||||
| Heat Exchanger | Twisted Titanium Heat Exchanger | ||||
| Power Supply | 230V/1Ph/50Hz | ||||
| Rated Input Power (Kw) | 0.28 ~ 1.55 | 0.41 ~ 2.01 | 0.50 ~ 2.56 | 0.60 ~ 3.26 | 0.72 ~ 3.81 |
| Rated Input Current (A) | 1.21 ~ 6.73 | 1.76 ~ 8.70 | 2.17 ~ 11.12 | 2.61 ~ 14.16 | 3.13 ~ 16.56 |
| Maximum Input Current (A) | 8 | 12.5 | 17 | 19.2 | 20 |
| Sound Level at 1m dB (A) | 41.6 ~ 53.5 | 43.9 ~ 54.0 | 46.2 ~ 57.3 | 46.3 ~ 58.1 | 46.9 ~ 58.7 |
| Sound Level at 10m dB (A) | 21.6 ~ 33.5 | 23.9 ~ 34.0 | 26.2 ~ 37.3 | 26.3 ~ 38.1 | 26.9 ~ 38.7 |
| Advised Water Flow (L/Min) ±20 | 50 | 75 | 90 | 120 | 150 |
| Water Connection (mm) | Common 40mm (~48mm OD Pipe) | ||||
| Net Weight (kg) | 46 | 49 | 60 | 68 | 68 |
| Net Dimension L x W x H (mm) | 903x349x654 | 903x349x654 | 991x349x654 | 991x349x754 | 991x420x757 |
Heat Pump Sizing - Heat Pump Sizing Guides for Pools & Spas -The above tables are to be used as a guide only and using ideal operating conditions. We recommend the largest heat pump you can budget for, as larger heat pumps ensure shorter running periods and are the most cost-effective over the long run. If possible, go at least one size up from the guide's recommendation. Note: Right-click a chart to open in a new window for a larger version.
General Heat Pump Sizing Guides

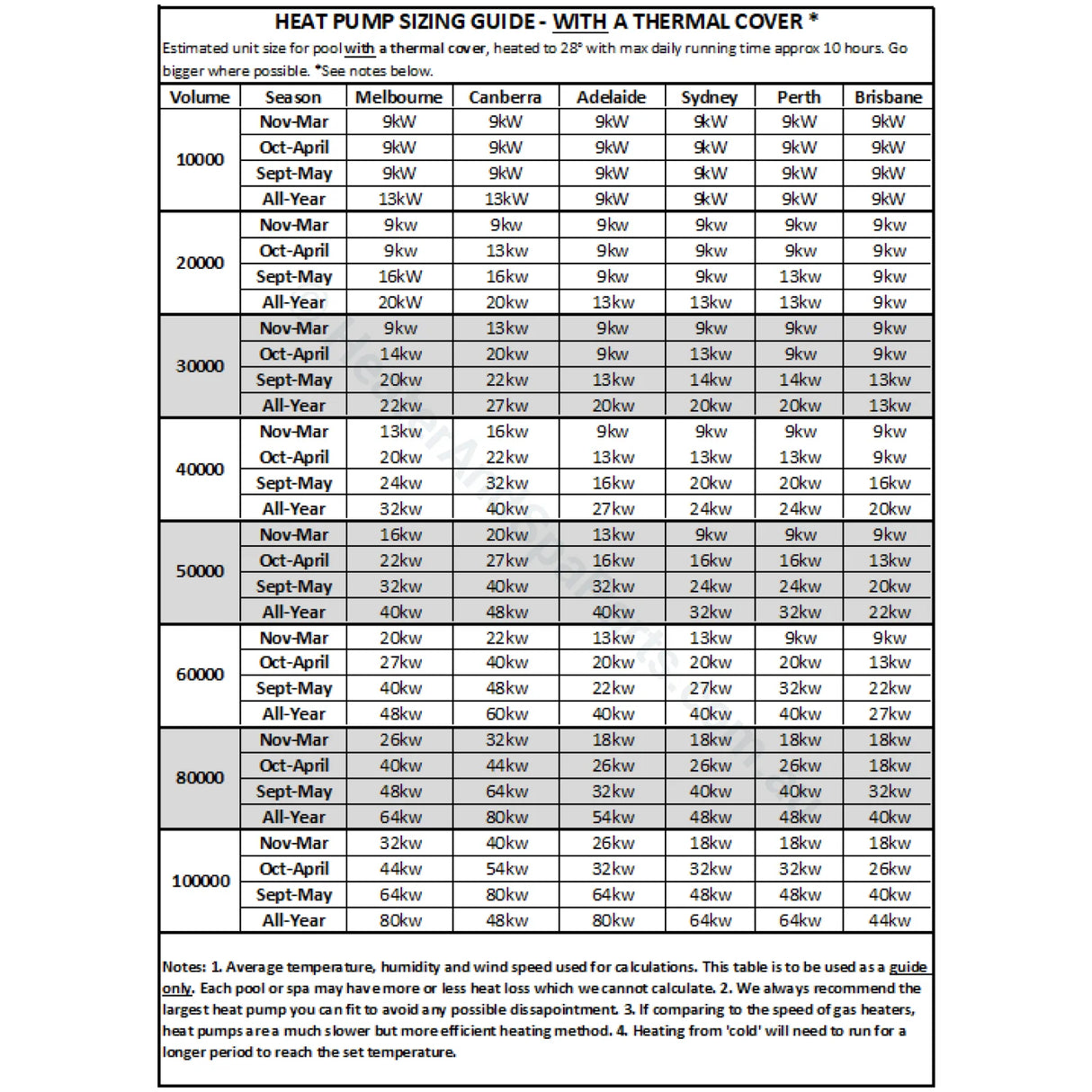

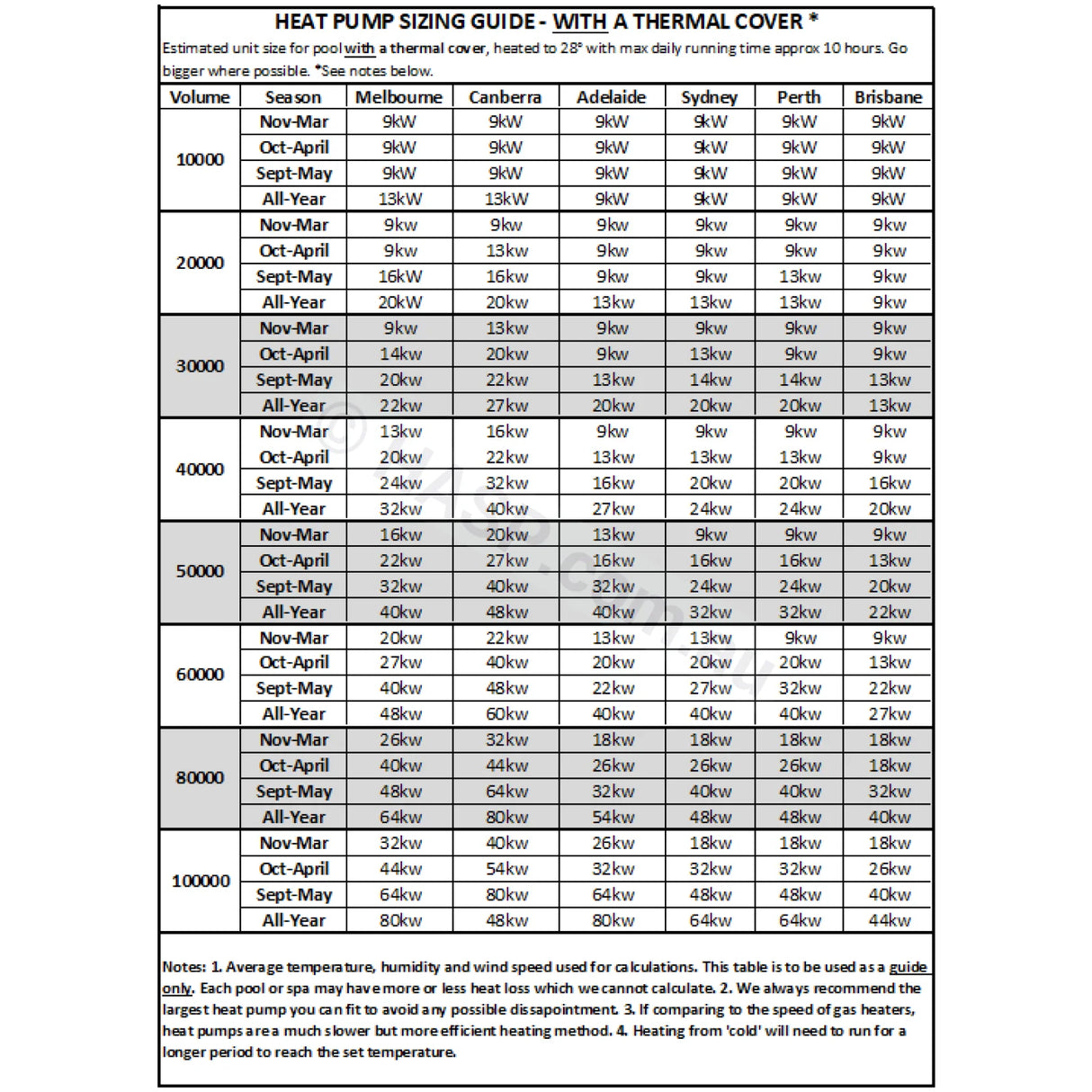

Heat Pump Sizes When Using a Cover:

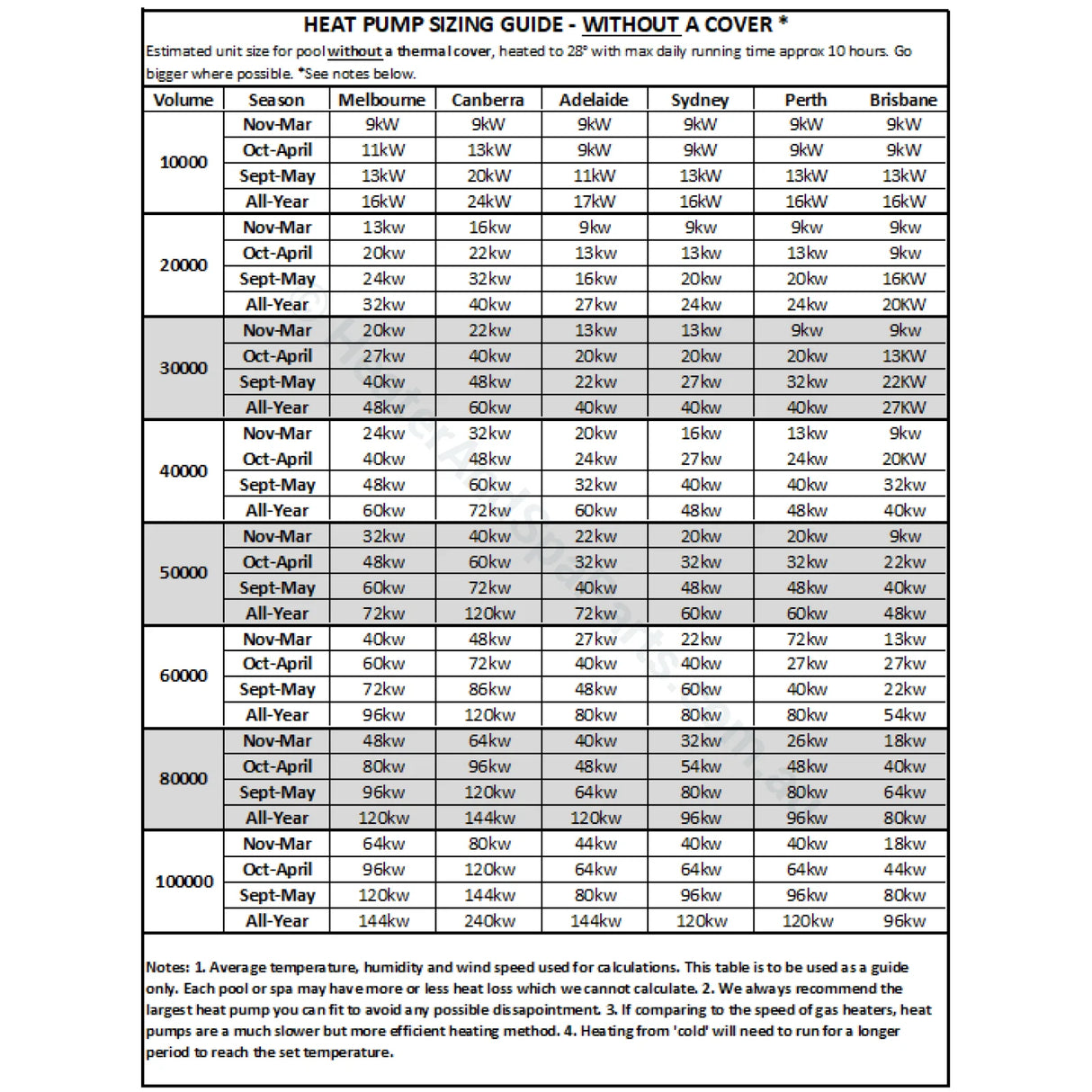

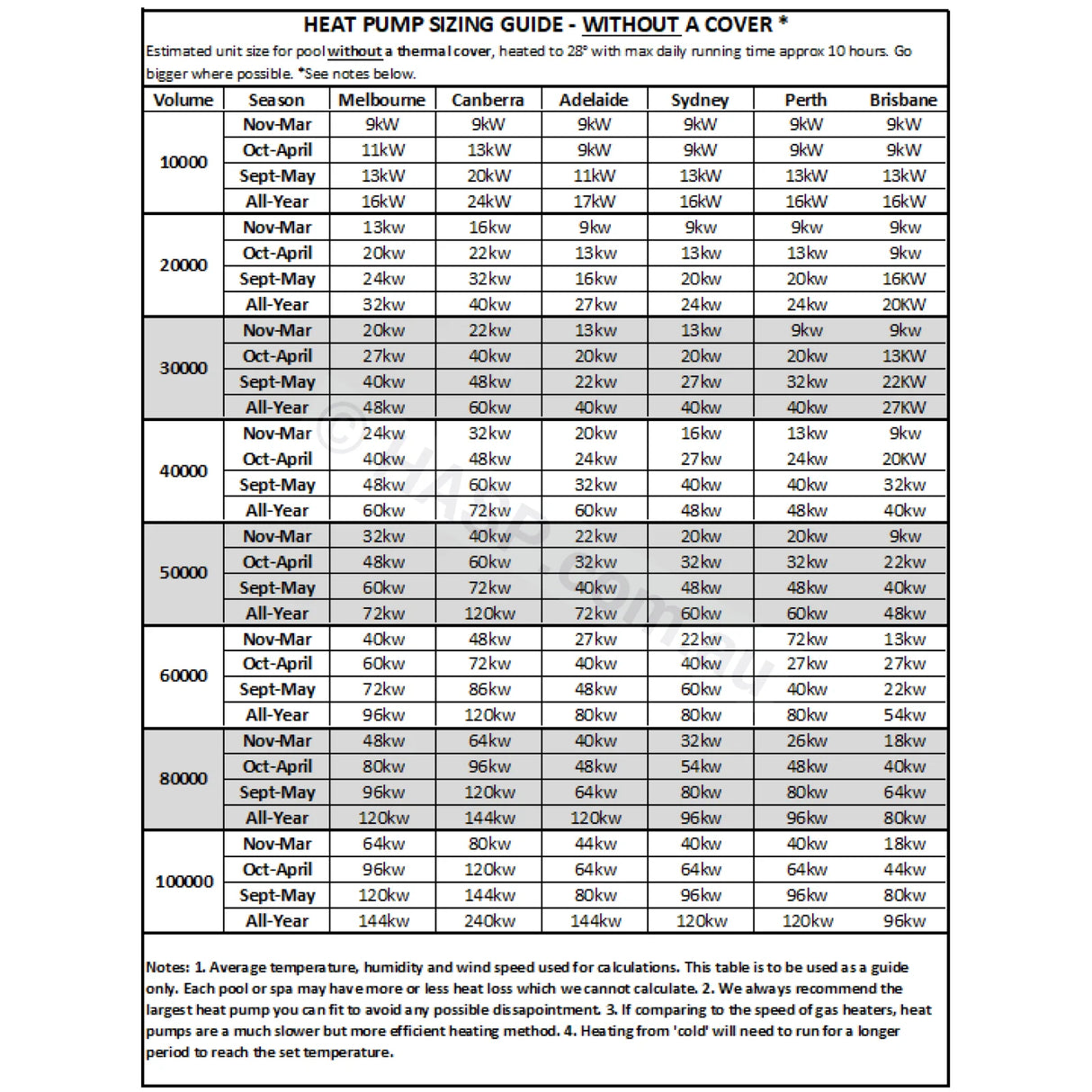

Heat Pump Sizes When Not Using a Cover:

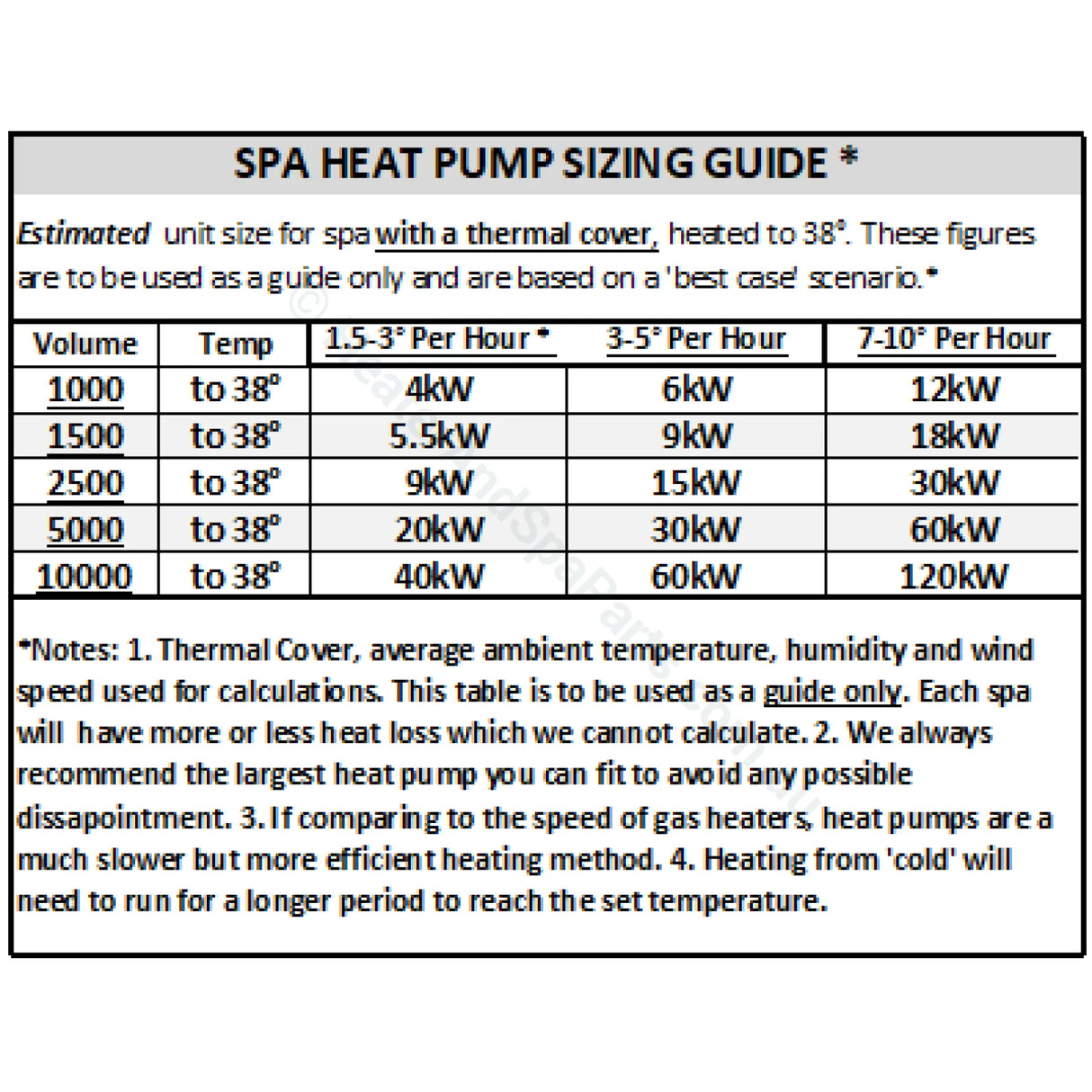

Heat Pump Sizing for Spas:
