Description

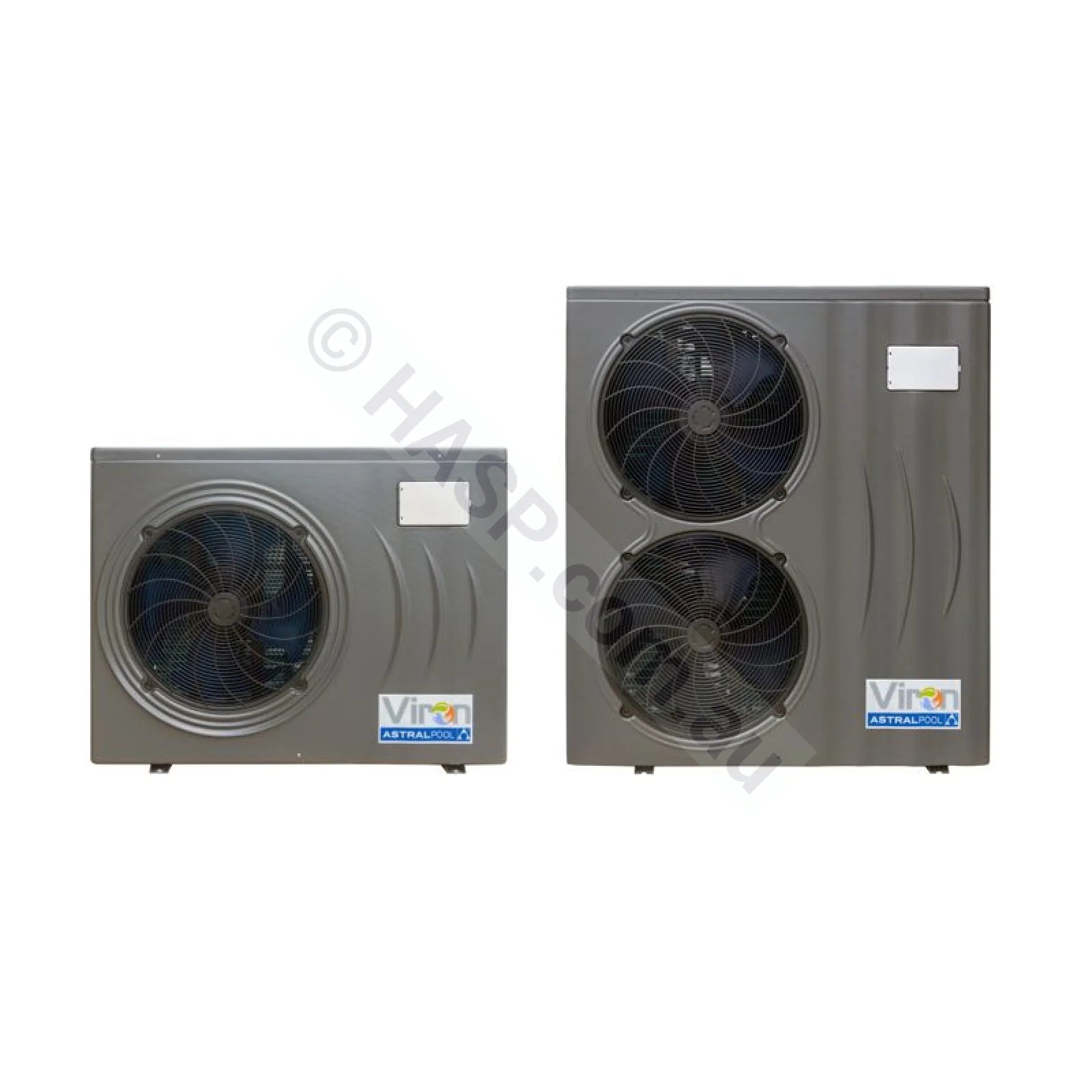

Astral Pool & Spa iHP Heat Pumps. Astralpool's range of heat pumps have been available for several years, and have only improved over that time. The iHP is the side-discharge version of their premium Viron series. Astral has one of the largest support networks available.
- Sold within Victoria only & prices cannot be shown due to the Fluidra dealer agreement. All authorised Fluidra (Astralpool/Zodiac) dealers can only sell within their home state. Anyone advertising to sell interstate or with pricing online cannot be an Authorised Dealer. Buying from unscrupulous dealers may affect Warranty & Servicing in the future.
-
Click here to fill out our detailed Heater Evaluation form. Filling out this form will give you the most accurate recommendations for sizing of a heat pump for a pool or spa.
Information:
- Environmentally Friendly pool heating extend your swimming season or swim all year round
- Whisper quiet
- Super Efficient
- Maintains the pool temperature 24 hours a day
- Fast heat-up times
- Reduced temperature when the pool is not in use
- Low operating Costs
- Inverter models are able to be controlled remotely though the HeatPumpGo App (available on Android and iOS)
Viron Side-Discharge Series:
- Viron iHP90 - 9kW - 10A w/ cable & plug
- Viron iHP120 - 12kW - 15A w/ cable & plug
- Viron iHP170 - 17kW - 13.6A Single-phase
- Viron iHP195 - 19.5kW - 17.7A Single-phase
- Viron iHP242 - 24.2kW - 21.8A Single-phase
- Viron iHP283 - 28.3kW - 25.3A 3-Phase
| Model No. | Viron iHP90 | Viron iHP120 | Viron iHP170 | Viron iHP195 | Viron iHP242 | Viron iHP283 |
|---|---|---|---|---|---|---|
| Technology | ||||||
| AquaTemp app | Yes | Yes | Yes | Yes | Yes | Yes |
| Pool Coverage | ||||||
| Heating capacity | 2.15~9 | 2.85~12 | 3.77~17 | 4.6~19.5 | 5.7~24.2 | 6.7~28.3 |
| Water flow volume | 53.33 L/m | 70 L/m | 88.33 L/m | 111 L/m | 143.33 L/m | 166.67 L/m |
| Programming | ||||||
| Viron Connect compatible | No | No | No | Yes | Yes | Yes |
| Wifi module included | Yes | Yes | Yes | Yes | Yes | Yes |
| Equipment | ||||||
| Input power | 0.16~1.6 | 0.21~2.12 | 0.3~3.02 | 0.37~3.94 | 0.46~4.8 | 0.54~5.57 |
| Water pressure drop (max) Kpa | 4 | 4.5 | 5 | 6 | 11 | 15 |
| Water connection | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Sound pressure 1M Db(A) | 40-50 | 42-52 | 44-53 | 45-56 | 46-57 | 48-58 |
| Power | 10A Cable with plug | 15A Cable with plug | Single Phase | Single Phase | Single Phase | Triple Phase |
| Voltage/phases/frequency | 220-240V~/1Ph | 220-240V~/1Ph | 220-240V~/1Ph | 220-240V~/1Ph | 220-240V~/1Ph | 380-415V/3Ph |
| Running current | 0.69-6.9 Amp | 0.9-9.2 Amp | 1.3-13.1 Amp | 1.6-17.1 Amp | 2.0-20.8 Amp | 1.1-9.3 Amp |
| Refrigerant type | R32 | R32 | R32 | R32 | R32 | R32 |
| COP | 13.44~5.63 | 13.57~5.66 | 12.57~5.63 | 12.43~4.95 | 12.39~5.04 | 12.41~5.08 |
| Net Dimensions (L/W/H) | 950×400×620 mm | 950×400×620 mm | 1110×480×870 mm | 1110×480×870 mm | 1110×480×1220 mm | 1110×480×1220 mm |
Warranty: See here
