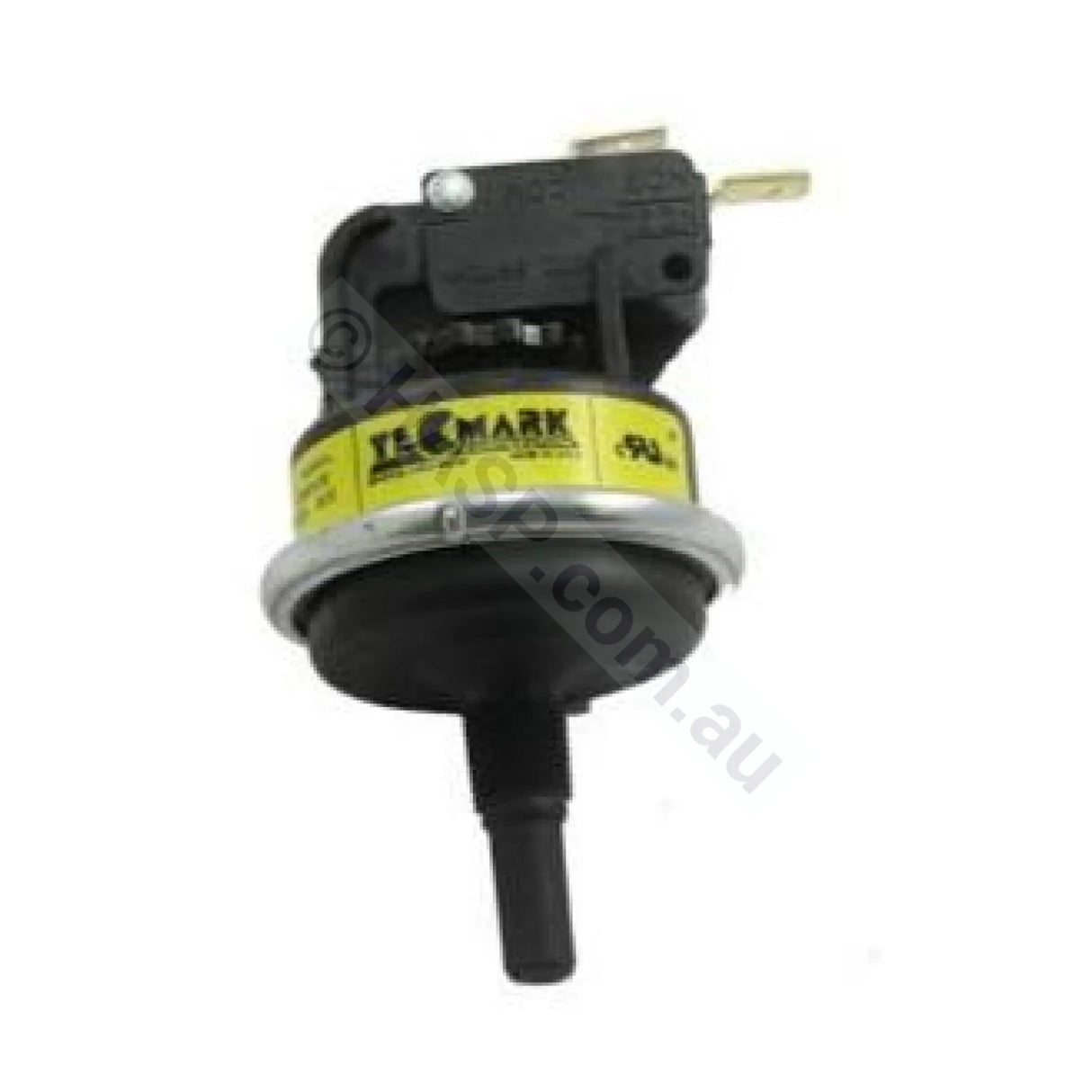

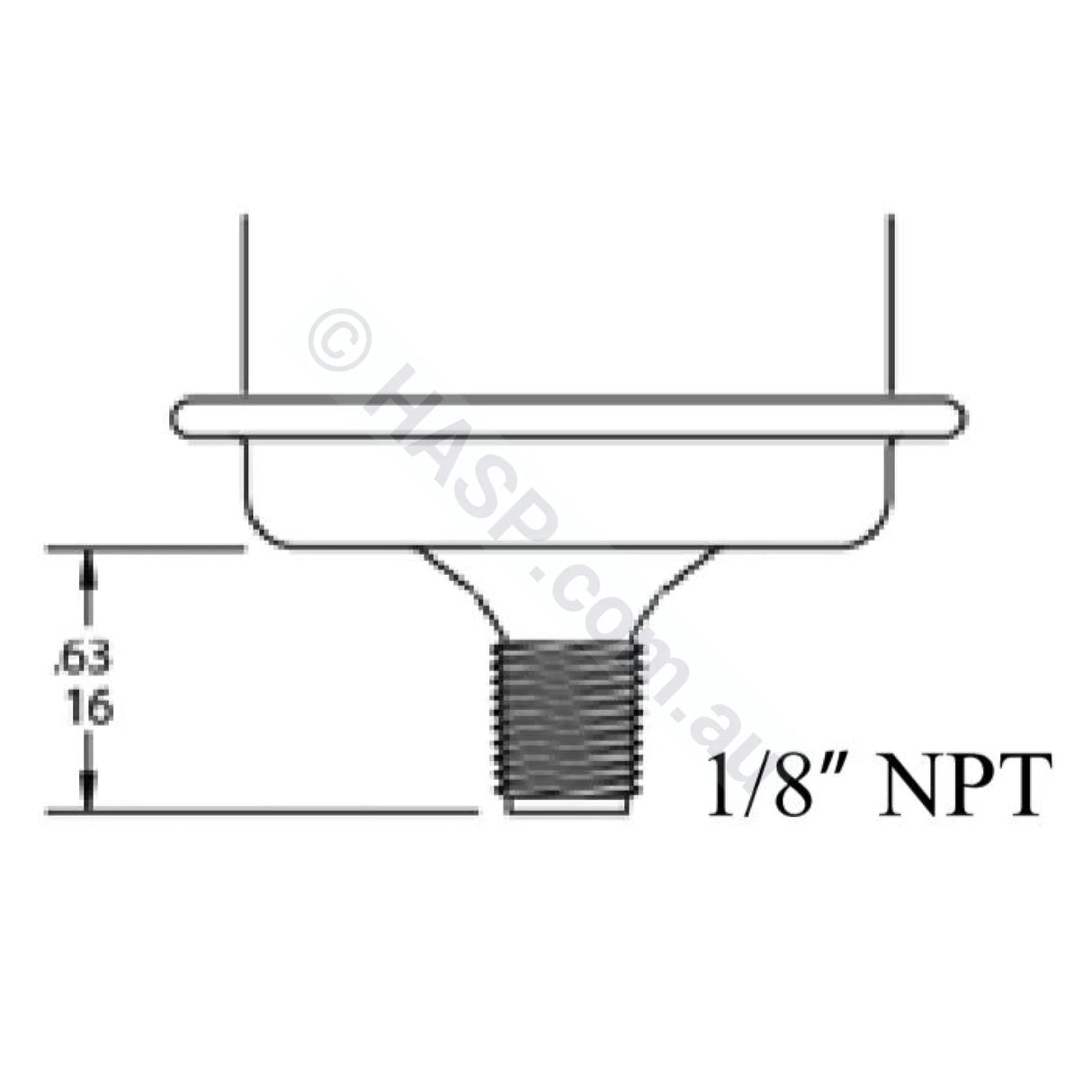

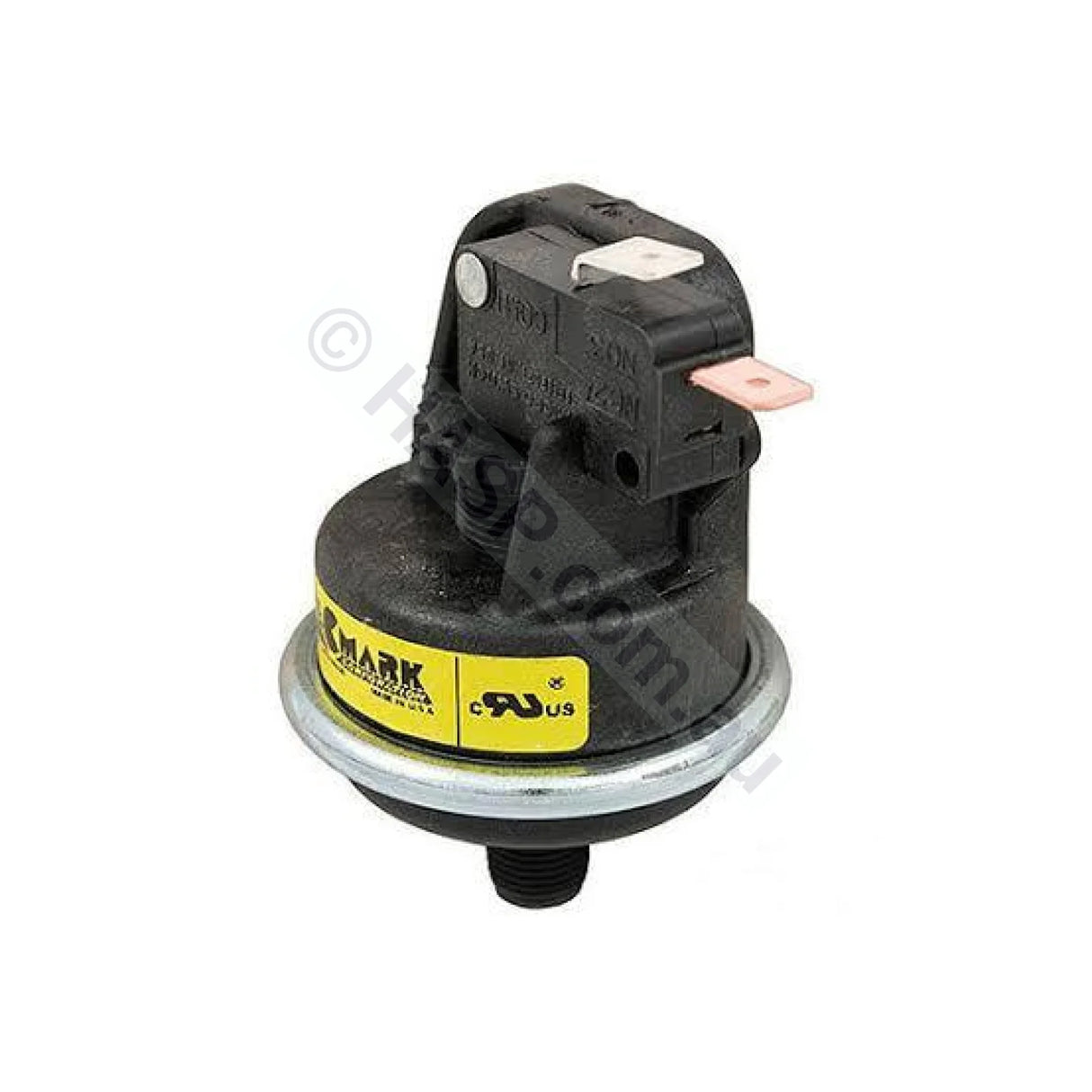

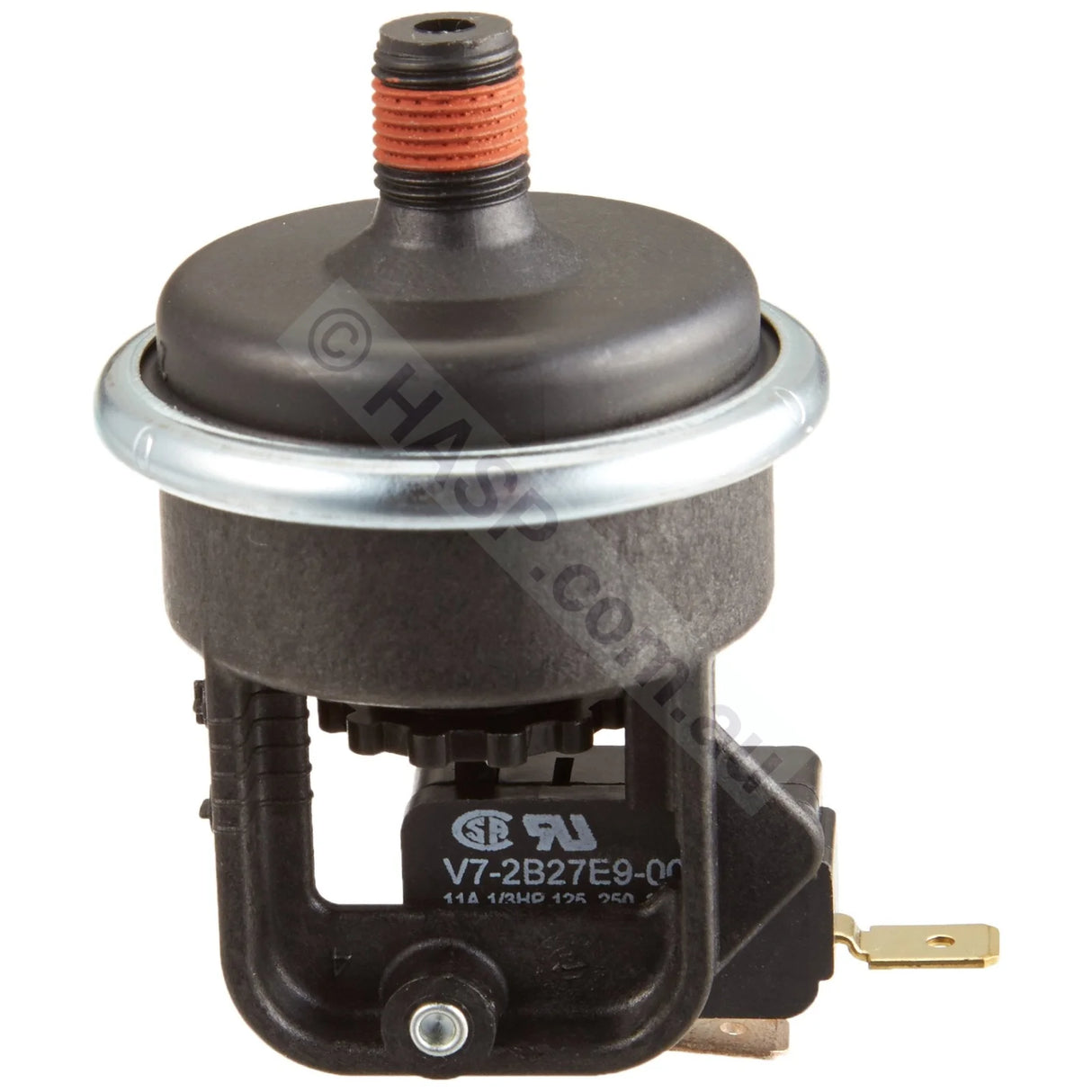

Tecmark / HydroQuip Water Pressure switch used in Zodiac JXI 200 / 370, Astralpool IXI 200 / 370, Pentair Mastertemp 125 / 200 / 300 / 400, Waterco Turbotemp, Sta-Rite Max E Therm, Raypak heaters and many other applications. May be listed as several models, and are interchangeable. 1/8" NPT thread. Adjustable pressure.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

May have the following details: Model - 4098AP-DB, 4098*-* / K30F, 38 , 04, 0407, 4037P CWCW / K30F 245, 4098P, 4010P, 4015P, 3010P, R0457002, 42001-0060S and others.

• Hurlcon & Astralpool: Part # 71580 (OEM) 800122-3
  • HX 70, HX 120, HX 150, MX 150, MX 200, MX 250, MX 300, MX 350, MX 400, MX 500, JX 130, JX 160, HiNRG 175, HiNRG 250, HiNRG 400, Viron 250, Viron 350, Viron 450, Viron 550, WX 70, WX 120, WX 150, ICI 200, ICI 400,
  • Jacuzzi and many more.

  • Also used in Astral BPM and BPA heat pumps - BPA 400, BPA 600, BPA 700, BPA 800, BPA 900, BPM 400, BPM 600, BPM 700, BPM 800, BPT 900 and other BP series heaters.
• Raypak: Part # 56651284
  • 131 Gemini, Raypak 200, Raypak 280, Raypak 350, Raypak 430, all RP2100 heaters, and almost all others. (may require 1/8" NPT thread tap and/or Brass Tube Fitting)
• INSNRG: Part # 8001403
  • GI 160, GI 265, GI 420
• Jandy / LRZ / Lite / Teledyne Laars / Zodiac: Part # R0015500, R0011300
  • All Models
• Davey / Spa-quip (SpaQuip):
  • • EcoSpa, Eco-Salt, and other spa equipment

    • Davey Solarmatic - Part of M6601
• Jacuzzi
  • J-HN250C & J-HN400C heaters, most Hayward heaters and Compu-Heat spa controllers.
• Pentair: Part # 42001-0060s
  • Mastertemp 125, Mastertemp 200, Mastertemp 300, Mastertemp 400
  • Waterco Turbotemp 125, Waterco Turbotemp 200, Waterco Turbotemp 300, Turbotemp 400, Sta-Rite Max-E-Therm 125, Max E Therm 200, Max E Therm 300, Max E Therm 400
• TC-4015P, asp-tdi4010p,AU-5-20-0026

Typical Applications

Commonly used as an interlock device to sense air, gas or water pressure at a specific point, Series 4000 switches provide on/off control of:

• Electric or gas heaters
• Pumps
• Small air compressors
• Electric Strip heaters in VAV systems
• Waste oil heating systems
• Food processing equipment
• Residential boilers
• Other electrical equipment in pneumatic, gas or fluid flow systems

Manufacturer Catalogues, Diagrams & Part Numbers

Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
