Balboa Copper Heater Connector - Heater to PCB - Suits GS / GL series


Connectors: Single - Balboa Heater to PCB Connector
Price:
$24.95

Description

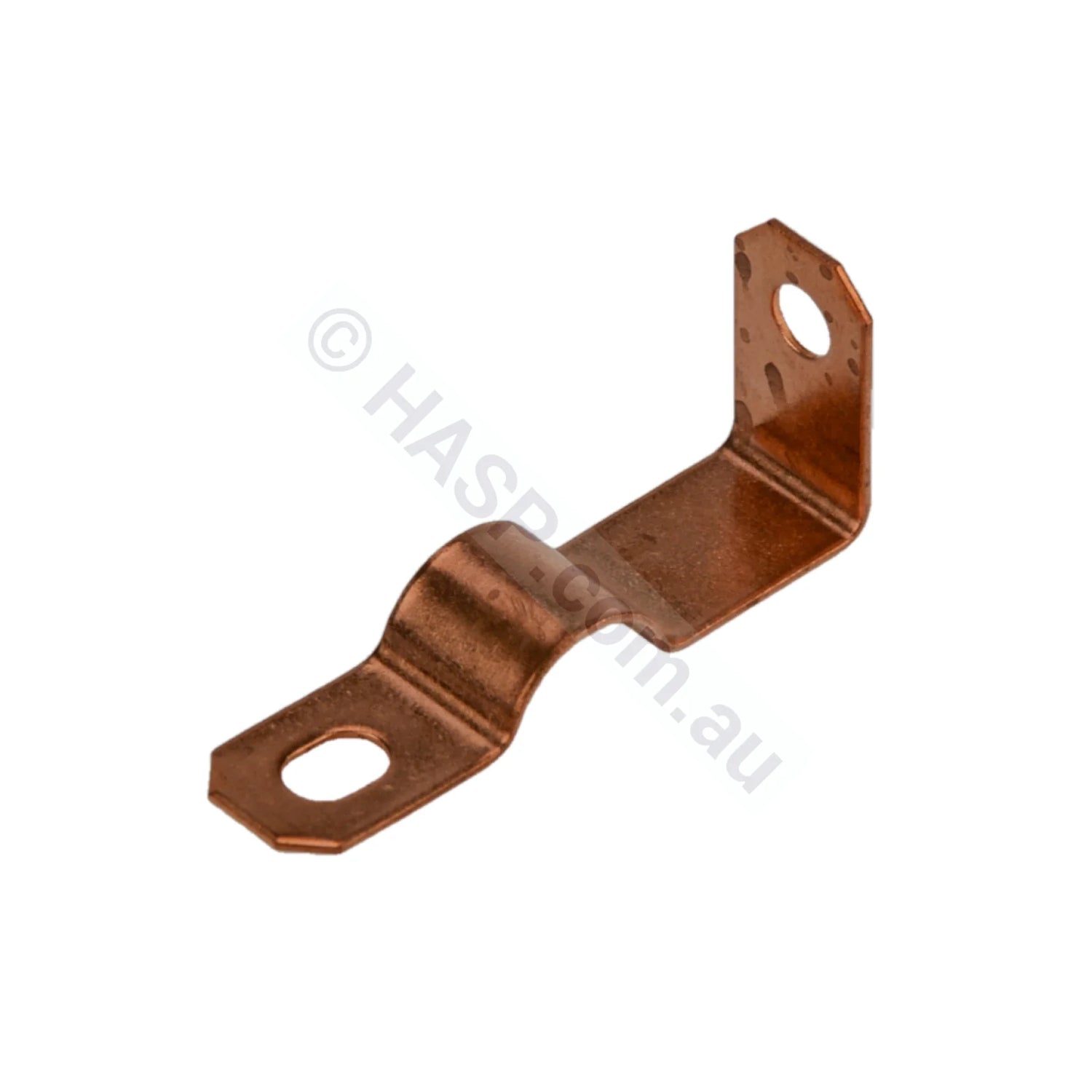

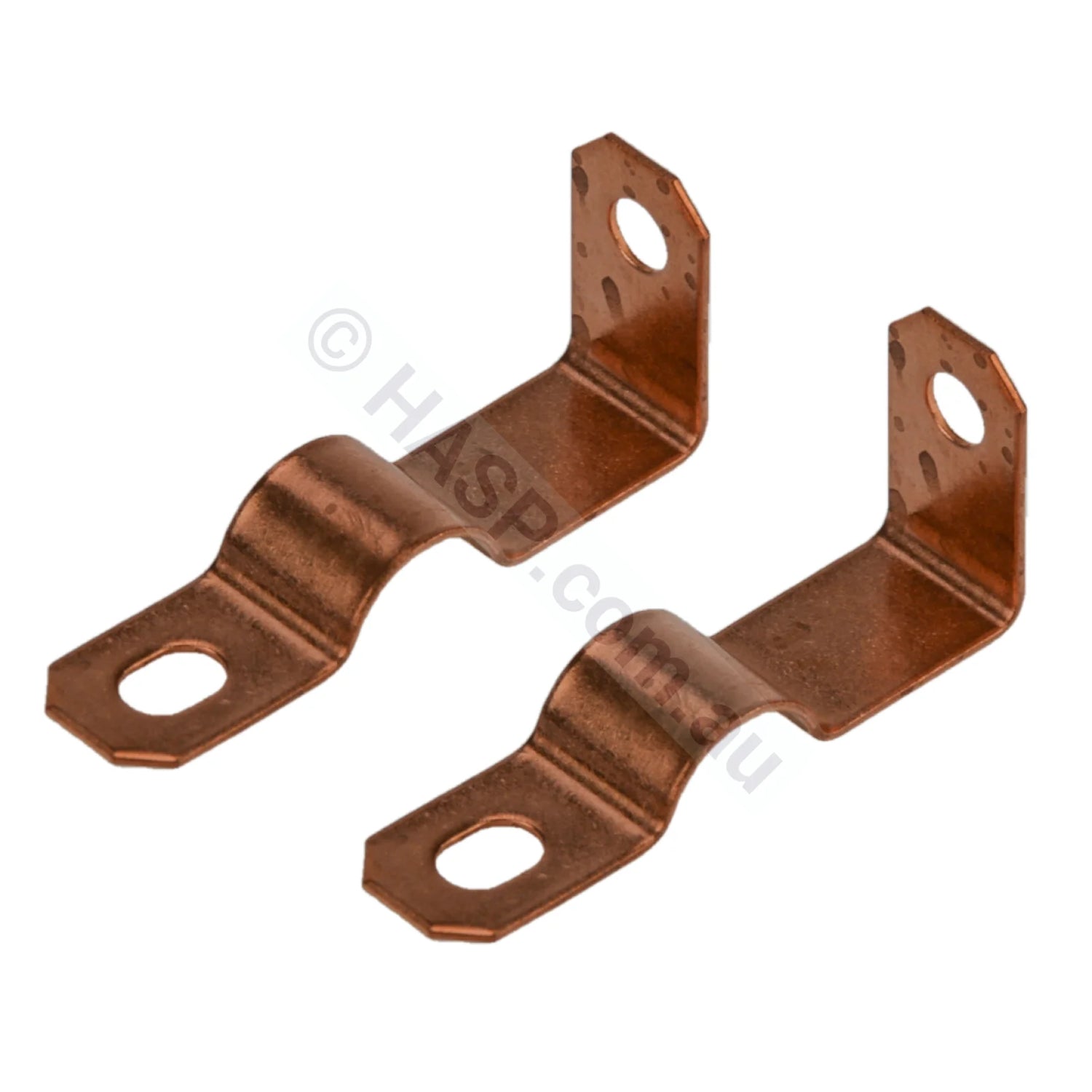

Balboa Copper Heater Jumper Strap, Connects Heater to PCB. Suits EL, GL, GS, VS series Balboa controllers.

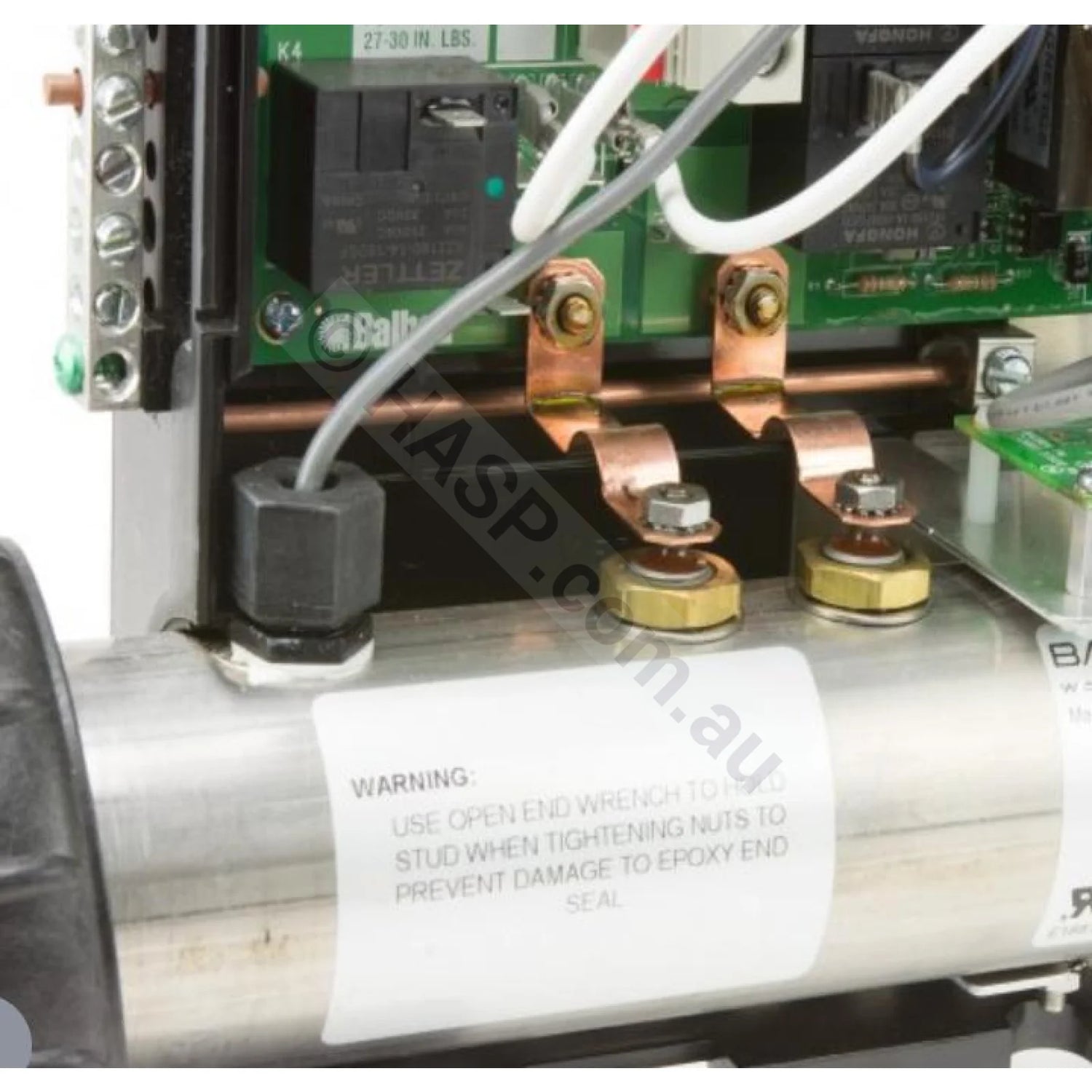

Heater to circuit board electrical connection

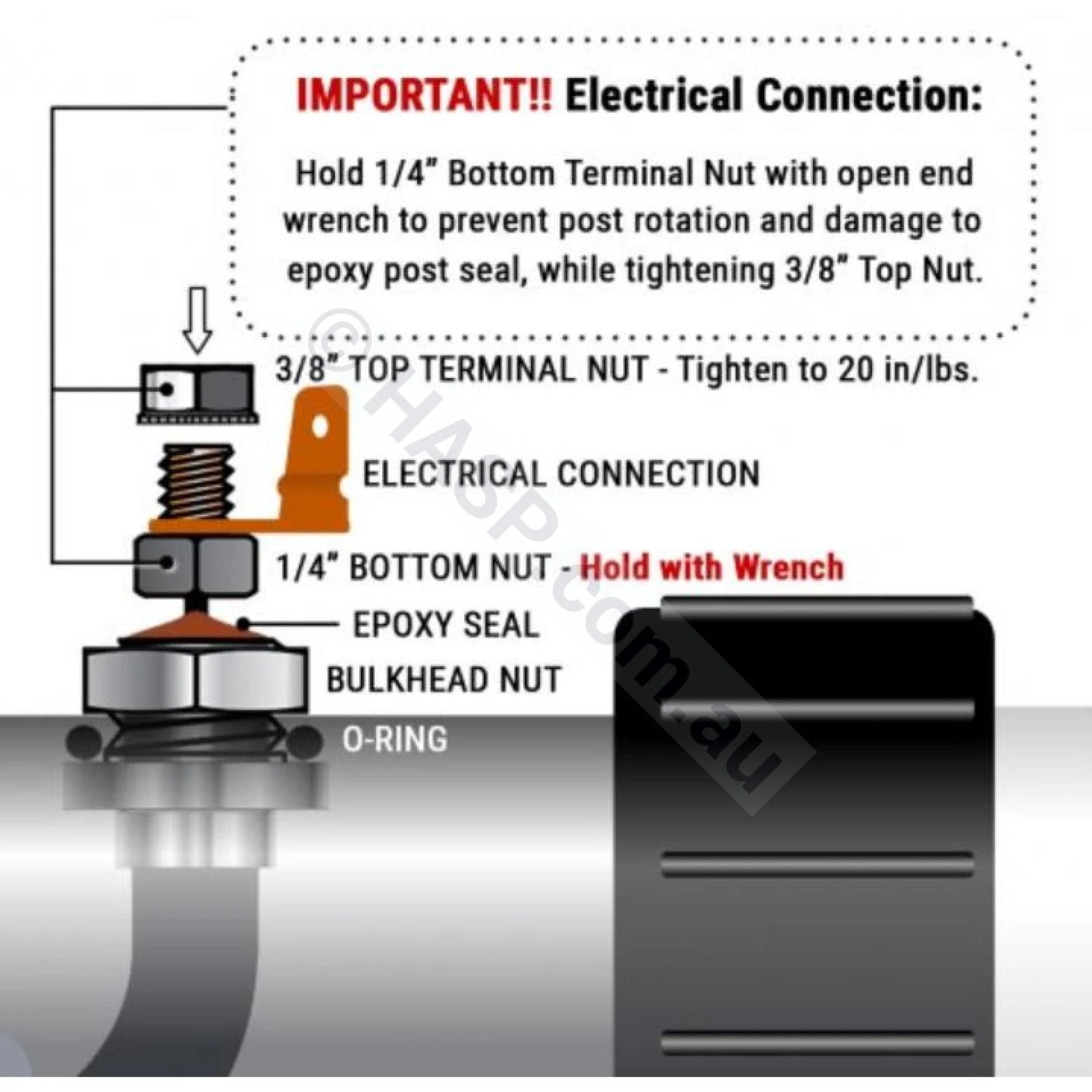

Note: Always use two wrenches when making electrical connection to heater element terminals, to avoid damage to epoxy post seal. Tighten top nut to 20 inch pounds, while holding bottom terminal nut. (Refer to illustration). On circuit board, tighten nuts to 30-35 inch pounds. Improper installation will result in premature failure and void warranty. OEM #30039.
