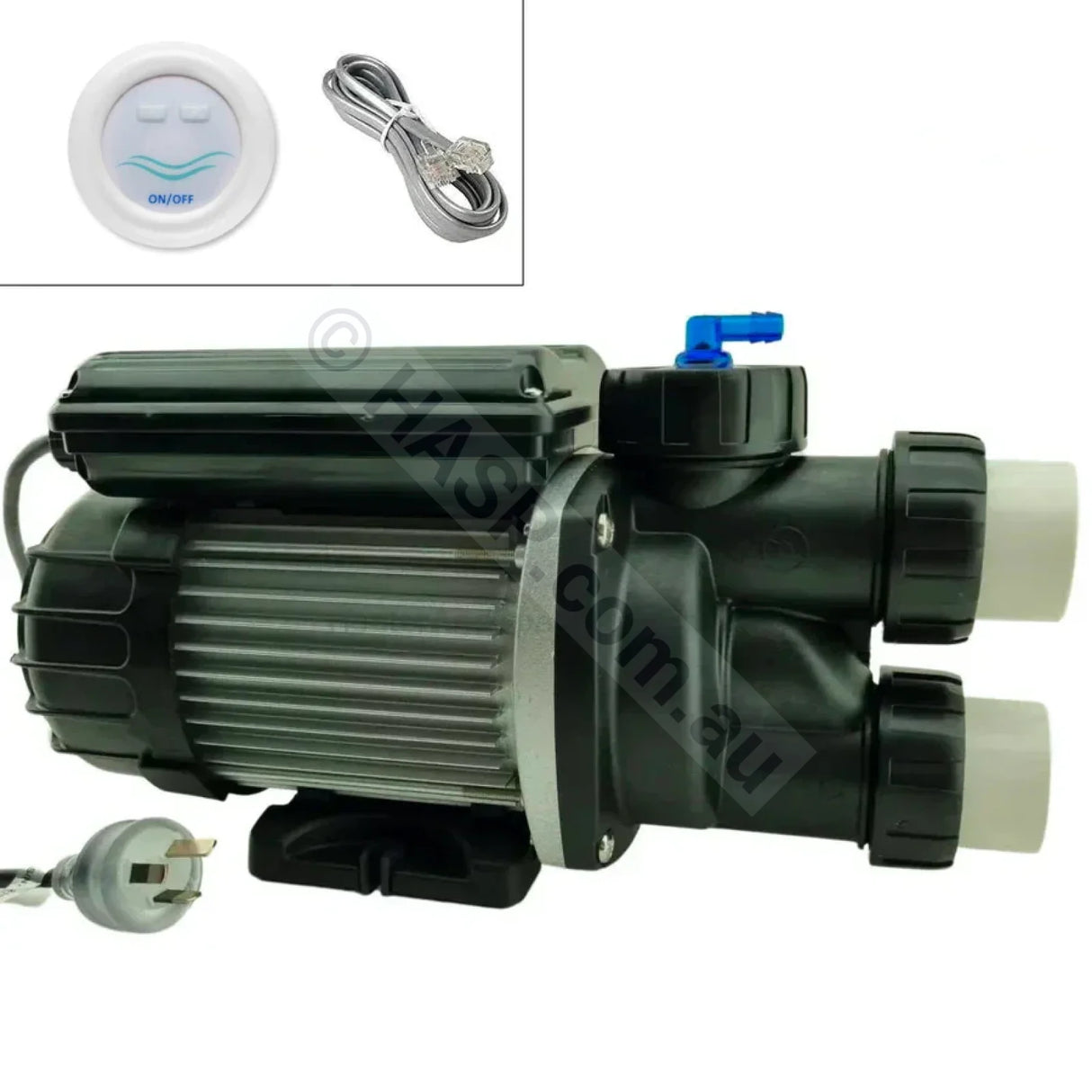

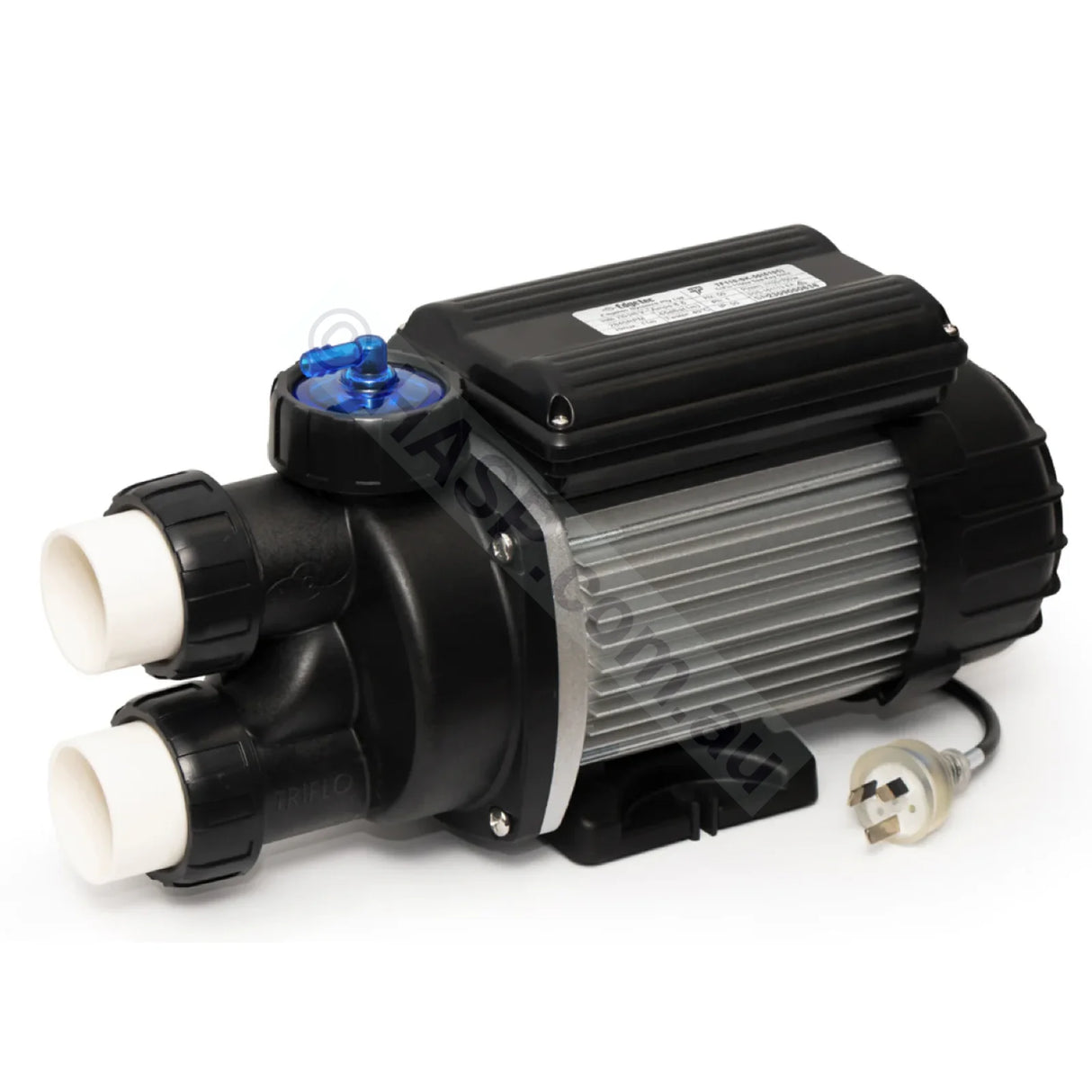

Edgetec / Decina Sensa-Touch Eco Triflo 1.0 Heated Spa Bath Pump w/ Heater
Edgetec / Decina Sensa-Touch Eco Triflo 1.0 Heated Spa Bath Pump w/ Heater - is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

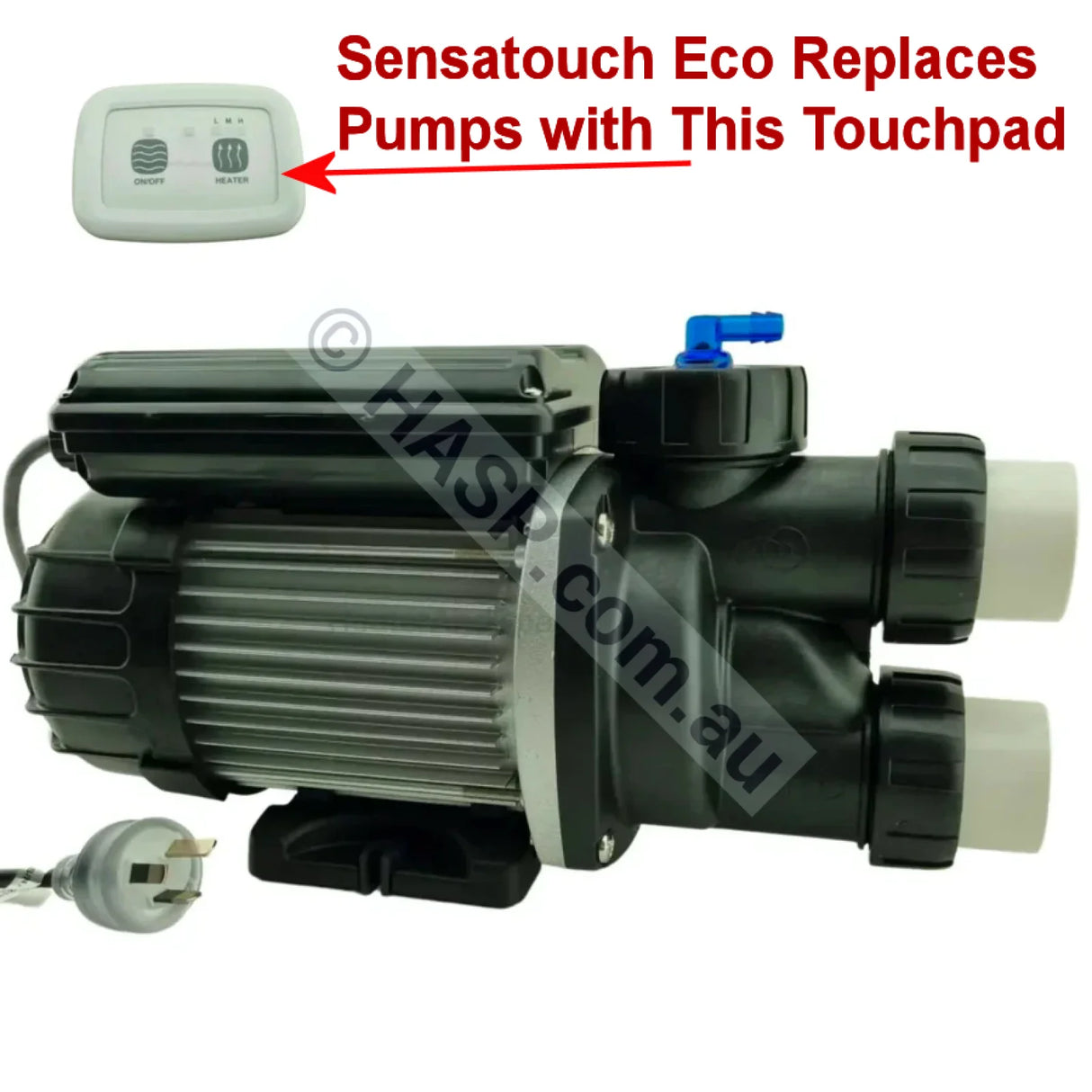

Edgetec Sensatouch Eco (aka Eco Touch) replaces the obsolete Sensatouch 1.0 2 and 3 button version. spa bath pump with electronic touch button operation. Comes with dry-run & blocked suction protection. Supersedes the Sensa-touch 1.0hp as of late 2025. New version no longer has the small 700W but instead picks up residual heat from the motor itself. Used replace many obsolete bath pumps with touchpads from Onga, Balboa, Davey, Spaquip, Englefield, Dega and others.

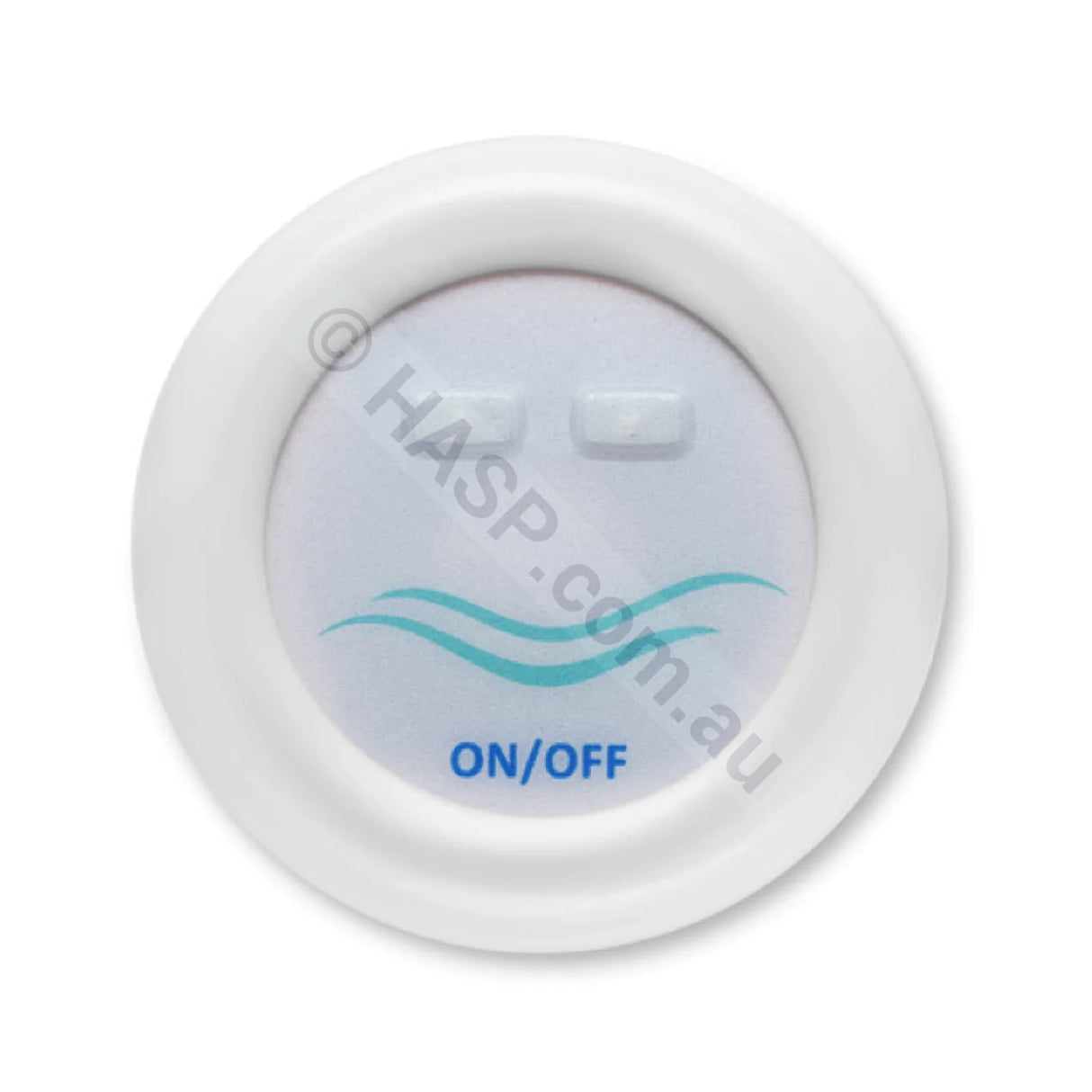

- Low profile touchpad - fits hole where older Sensatouch touchpads were
- 1.0HP
- Built-in air release valve for easy priming
Important Note: This pump is the recommended replacement for older models such as Onga & Balboa 2372, 2373, 2382, 2383, 2392, 2393, 2402, 2403 (aka 23720, 23730, 23820, 23830, 23920, 23930, 24020, 24030) and Davey XS 200HD, XS 250HD. When replacing pumps from other brands (e.g. Davey, Onga, Balboa, Dega, Spaquip, Englefield), new barrel unions are required because each brand uses different unions. These are included with the pump and will need to be fitted during installation to ensure proper plumbing.
Details:
-
Edgetec / Decina Sensatouch Eco / EcoTouch 1hp
-
Dimensions: L: 406mm | W: 148mm | H: 198mm | 10kg
- Warranty: 1 Year Domestic / 6 Month Commercial - Note: we often see these pumps last over 10+ years!
-
Documentation: Edgetec Bath Pump Installation Manual w/ Diagrams
Supersedes the following:
- Edgetec / Decina Sensatouch 1.0hp
- E-6109 - TF075-ST-50 / TF075-ST-50-HF
- E-6209 - DC075-ST / DC075-ST-50-HF
- DC-075-ST-50 / DC075-ST-50 / TF-075-ST-50 / TF-075-ST-50-HF
-
Also replaces the following obsolete models:
- E-6127: TF060-ET-50 / TF060-ET-50-HF (Eezi-Touch 0.8hp w/ 700w heater)
- E-6227: DC060-ET / DC060-ET-50 (Eezi-Touch 0.8hp w/ 700w heater)
- E-6111: TF060-STE-6121 - TF075-ET-50 / TF075-ET-50-HF (Eezi-Touch 1.0hp w/ 700w heater)
- E-6211: DC060-ST-50 / DC060-ST-50-HF (0.8hp w/ 700w heater)
- E-6121: TF075-ET-50 / TF075-ET-50-HF (Eezi-Touch 1.0hp w/ 700w heater)
- E-6221: DC075-ET / DC075-ET-50-HF-50 / TF060-ST-50-HF (Eezi-Touch 1.0hp w/ 700w heater)
- E-6124: TF110-ET-50 / TF110-ET-50-HF (Eezi-Touch 1.5hp w/ 700w heater)
- E-6224: DC110-ET / DC110-ET-50 (Eezi-Touch 1.5hp w/ 700w heater)
The Edgetec Triflo Sensa-touch Eco control panel operates the pump and heater from the side of your bath. By simply pressing the pump button your pump starts. The internal control system features automatic shut down under “no water/blocked suction” condition for optimum safety.
The TriFlo pump internal design allows the water to self drain so that there is no residue water left in the pump when the spa is emptied in accordance with Local Health Regulations.
TriFlo spa bath pumps are designed for spa bath operation only and should not be used in chemically treated water or permanently filled spas or any other purpose without seeking written approval from Edgetec Systems Pty Ltd for the application.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
