Edgetec / Decina Triflo Pump Plumbing Unions - Inlet & Outlet

Edgetec / Decina / Spa-Craft Triflo Pump Barrel Union Pair

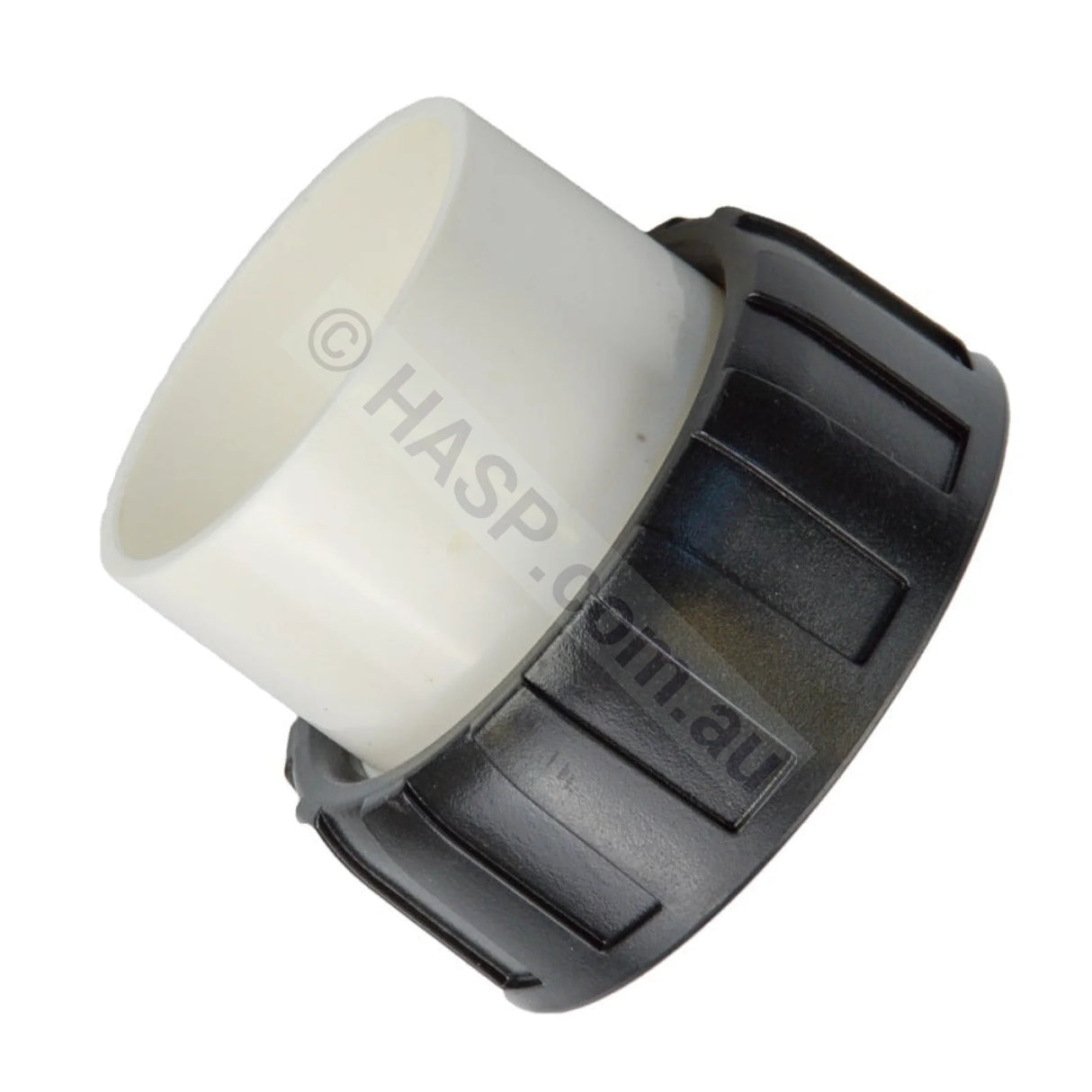

Replacement pump plumbing barrel union pair for Edgetec-made spa bath pumps. Supplied as a complete set with 1 x union tail, 1 x union nut, and 1 x O-ring for both the inlet and outlet connections.

These are the common unions used on Edgetec / Decina / Spa-Craft Triflo spa bath pumps and suit 40mm pressure pipe (approximately 48mm outside diameter).

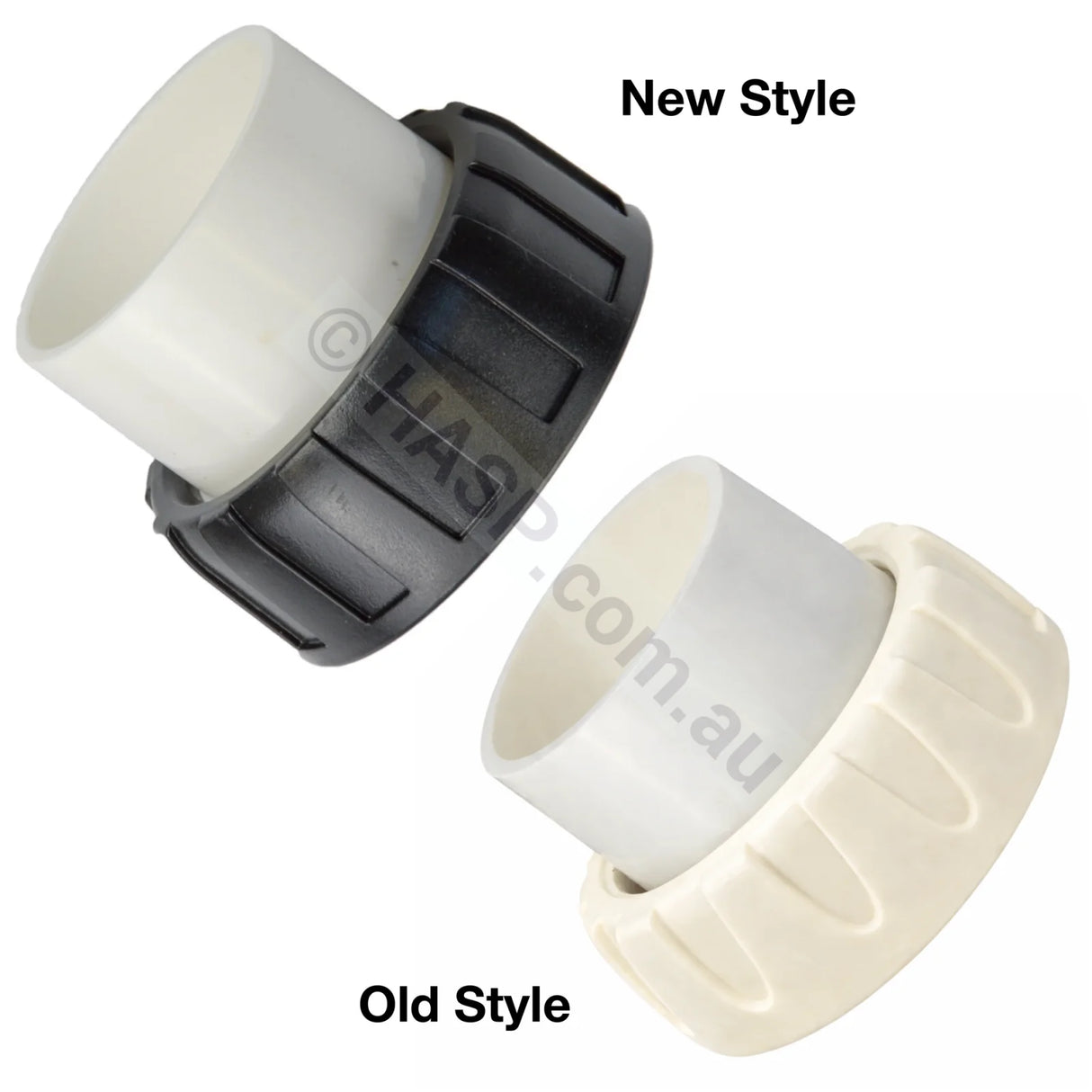

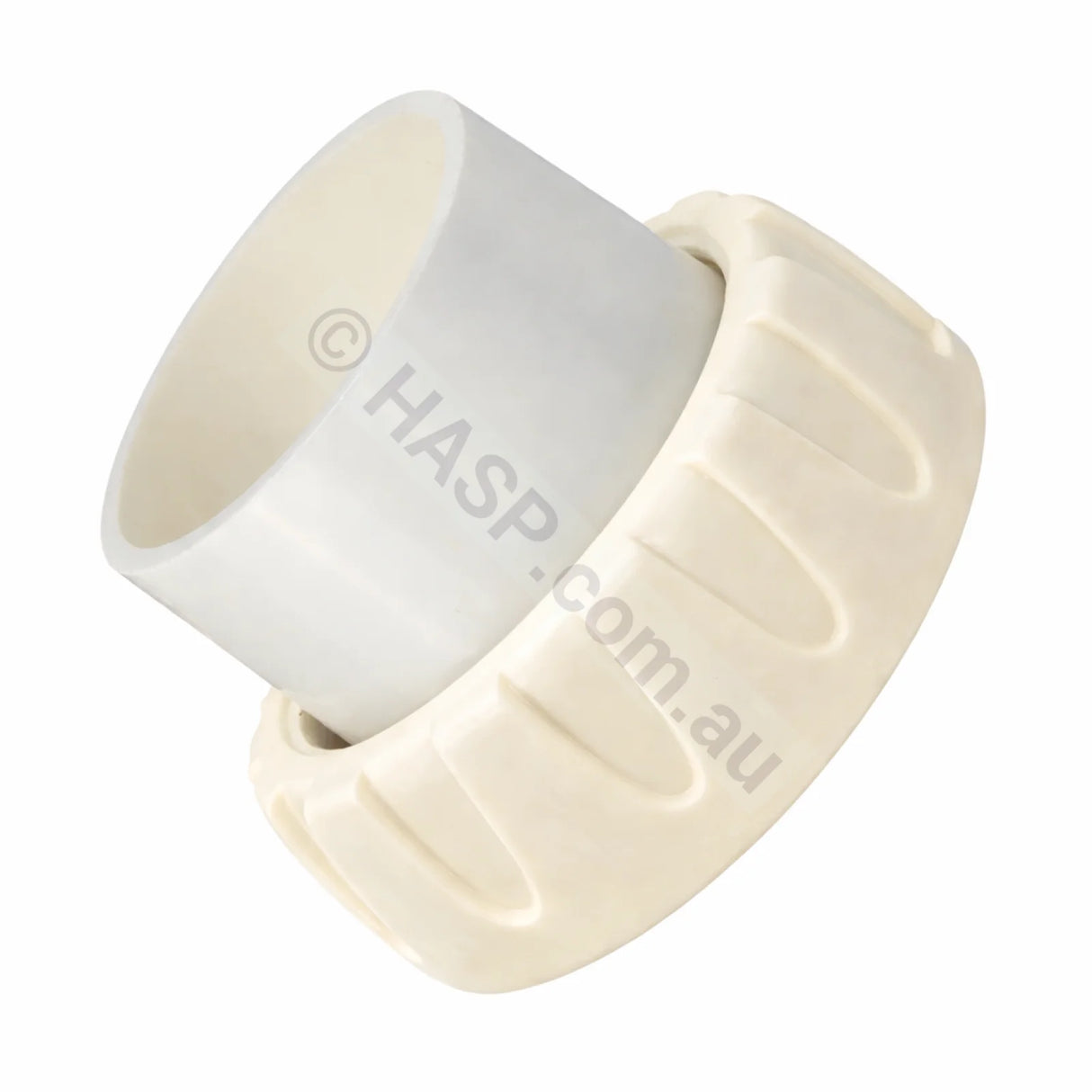

Original unions were typically white when new, but many older ones have aged to a cream or yellow colour over time as the earlier plastics were not as UV resistant.

These unions suit all Edgetec-made spa bath pumps, including those sold under the Edgetec, Decina and Spa-Craft brands.

They are also known to fit WWDG and SpaPro pumps that use the same Edgetec-style plumbing connections.

Includes

• 1 × barrel union tail

• 1 × union nut

• 1 × O-ring

Pipe Size

• Suits 40mm pressure pipe

• Pipe outside diameter approximately 48mm

Fits Edgetec / Decina / Spa-Craft Triflo pump ranges including

Auto-Heat series

E-6100 – TF075-AH-50 / TF075-AH-50-HF

E-6200 – DC075-AH / DC075-AH-50-HF

E-6106 – TF060-AH-50 / TF060-AH-50-HF

E-6206 – DC060-AH / DC060-AH-50-HF

E-6103 – TF110-AH-50 / TF110-AH-50-HF

E-6203 – DC110-AH-50 / DC110-AH-50-HF

Xtra-Heat series

E-6101 – TF075-XH-50 / TF075-XH-50-HF

E-6201 – DC075-XH / DC075-XH-50-HF

E-6107 – TF060-XH-50 / TF060-XH-50-HF

E-6207 – DC060-XH / DC060-XH-50-HF

E-6104 – TF110-XH-50

E-6204 – DC110-XH / DC110-XH-50

Spa-Key / Eco Key series

E-6102 – TF075-SK-50 / TF075-SK-50-HF

E-6202 – DC075-SK / DC075-SK-50-HF

E-6108 – TF060-SK-50 / TF060-SK-50-HF

E-6208 – DC060-SK-50 / DC060-SK-50-HF

Sends-Touch / EcoTouch series

E-6109 – TF075-ST-50 / TF075-ST-50-HF

E-6209 – DC075-ST / DC075-ST-50-HF

E-6111 – TF060-ST-50 / TF060-ST-50-HF

E-6211 – DC060-ST-50 / DC060-ST-50-HF

Eezi-Touch series

E-6127 – TF060-ET-50 / TF060-ET-50-HF

E-6227 – DC060-ET / DC060-ET-50

E-6121 – TF075-ET-50 / TF075-ET-50-HF

E-6221 – DC075-ET / DC075-ET-50-HF

E-6124 – TF110-ET-50 / TF110-ET-50-HF

E-6224 – DC110-ET / DC110-ET-50

These unions are commonly replaced when removing or installing spa bath pumps, or when the original fittings have become brittle, discoloured, or damaged with age.
