Gecko MSPA-1 circuit board PCB - Export CE 230v, 50Hz

Name: Gecko MSPA-1 circuit board PCB - Export CE 230v, 50Hz
Brand: SXSC
SKU: g9920-200516
Price: 3346.00 AUD
Availability: OutOfStock

Price:

$3,346.00 $3,550.58

Quantity:

Tax Included. Shipping over $149 FREE or calculated at checkout. T&Cs

About Us: We keep physical stock in Vic, NSW, Qld, WA unline most online stores. We offer sustainable, value-based pricing that reflects our stock and support. We don’t price match but stay competitive for the long term.

Limited to stock on hand.
Do not 'Backorder' if nil stock displays

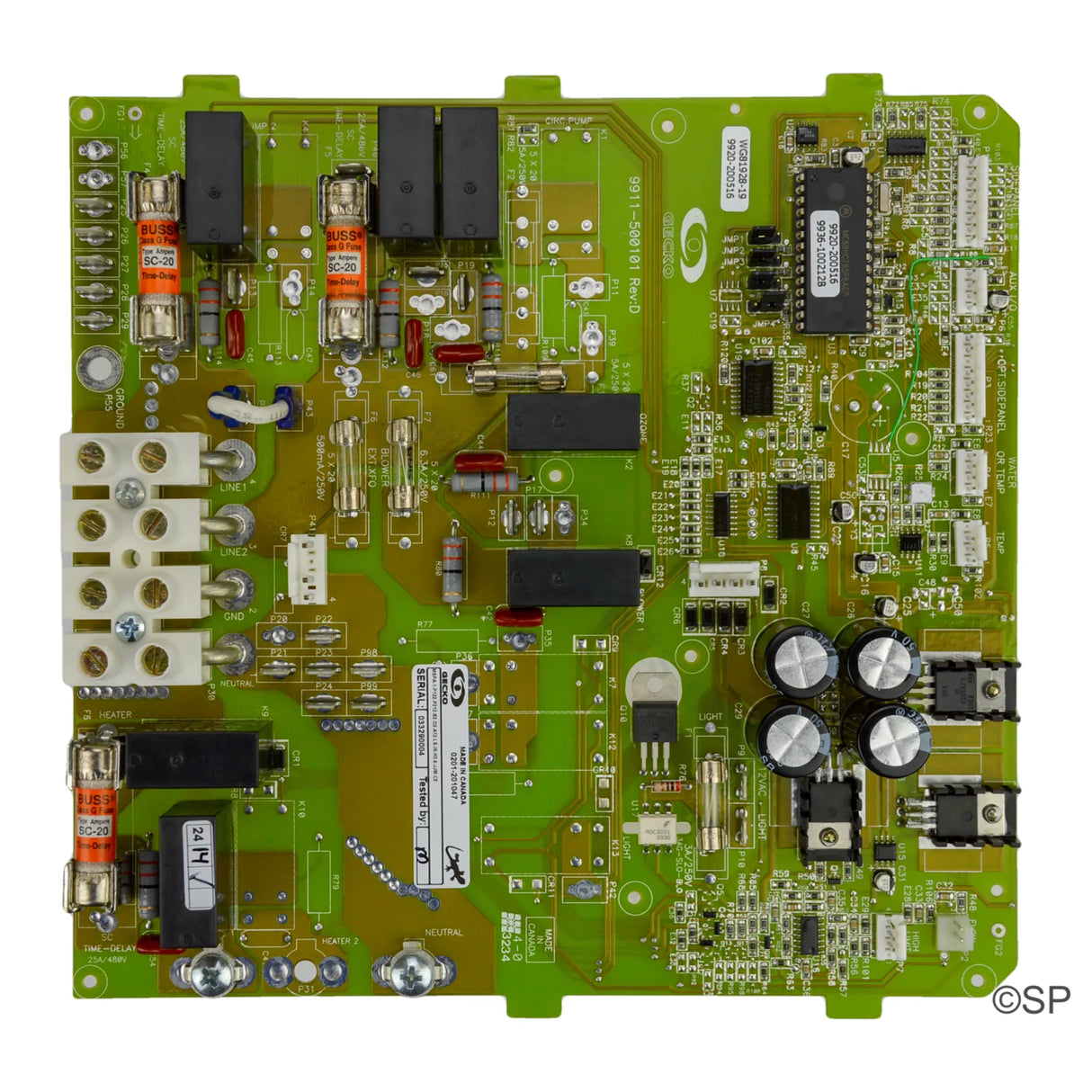

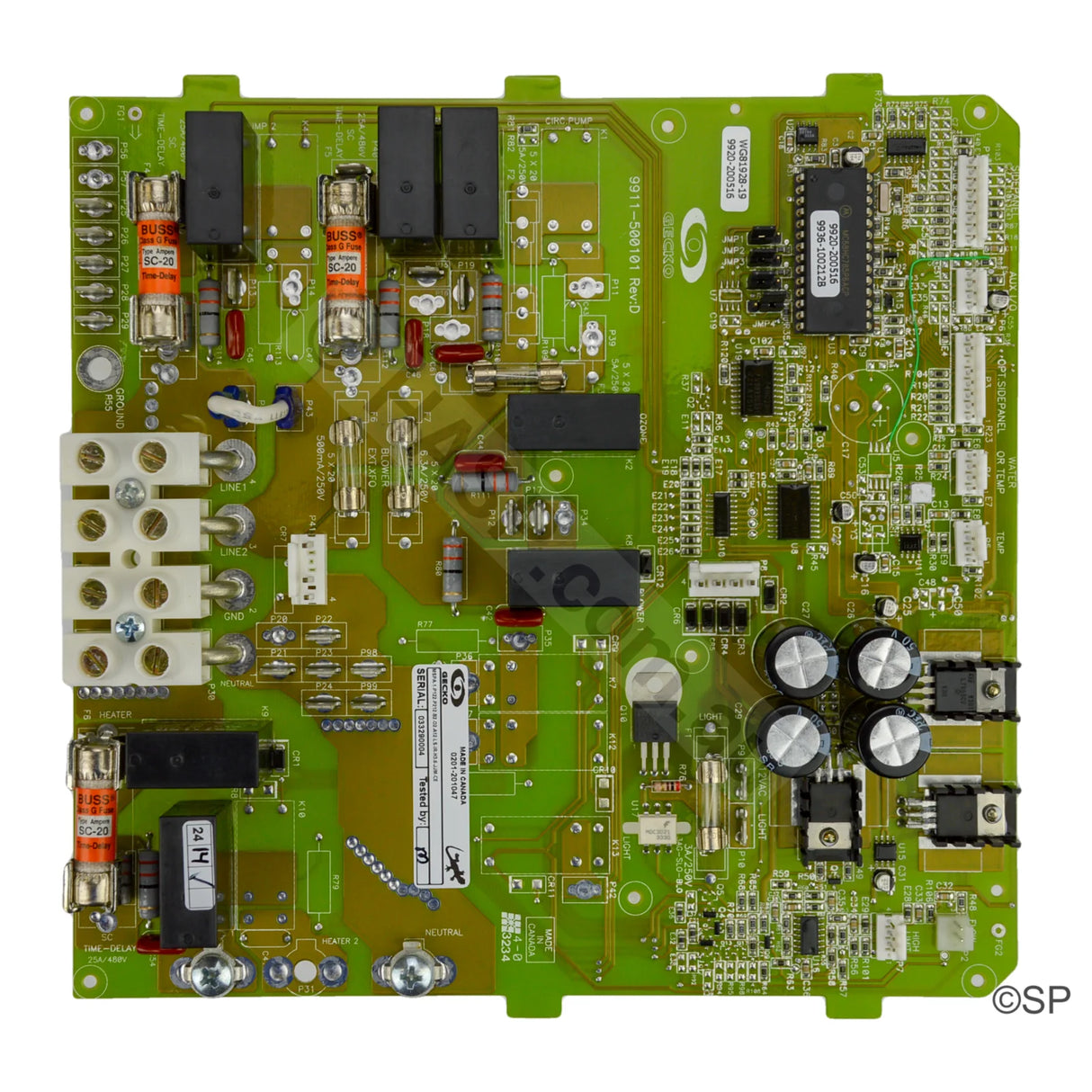

Gecko MSPA-1 circuit board (suits white metal box only)
For 230v, 50Hz export Australian and European applications - all outputs 230v
MSPA-1 spa packs are white metal boxes with flow through tube below. They were sold in Australia from 1999-2002 only (serial numbers start with 99, 00, 01, 02)
Not to be confused with MSPA-MP blue plastic box version which are completely different
MSPA-1 pcb typically controlling 2 speed pump one, one speed pump 2, blower, ozone, light and heater TSC-8 / K-8 eight button touchpad compatable.
(will not work with 3 pump 10 button K-4 touchpads used with MSPA-MP packs)
4 x logic jumper settings on the circuit board allow selection of the following:
low / high current mode - heater load shedding setting
blower / no blower
pump 2 / no pump 2
pump 2 - 2 speed / pump 2 - single speed
*NB this setting MUST be set to single speed - there is no 2nd relay on the board to allow a two speed pump 2 to connect
