Henden by Reece Elevate Inverter Heat Pumps - 11kW, 14kW, 18kW, 21kW, 26kW, 32kW, 40kW

From $5,496.00 $9,104.55

Tax included Shipping calculated at checkout.

Choose Maximum Outputs

11kw Henden Elevate 14kw Henden Elevate 18kw Henden Elevate 21kw Henden Elevate 26kw Henden Elevate 32kw Henden Elevate 40kw Henden Elevate (3-ph)

Delivery and Shipping

Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

Free, Flat Rate & Express Post Shipping Information.

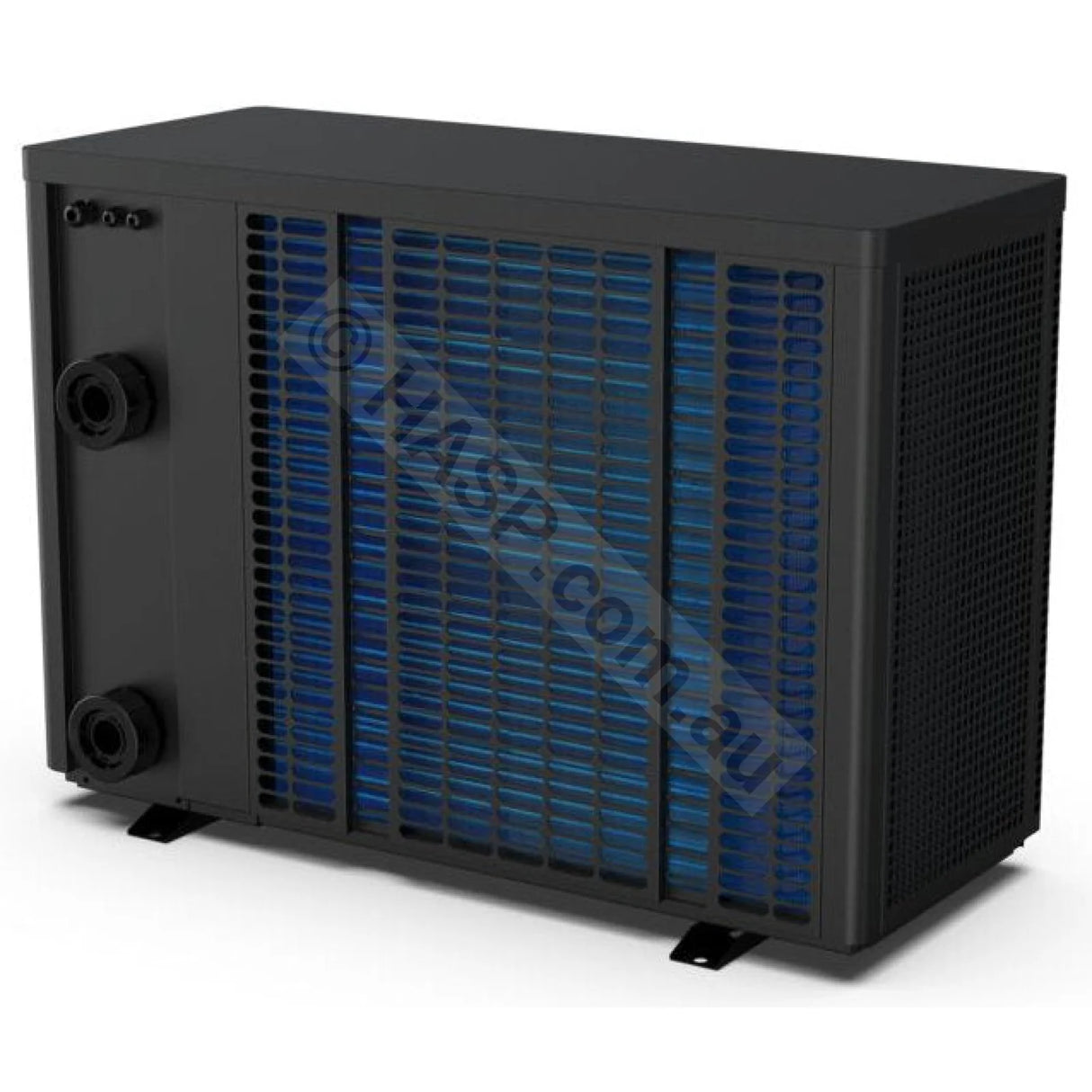

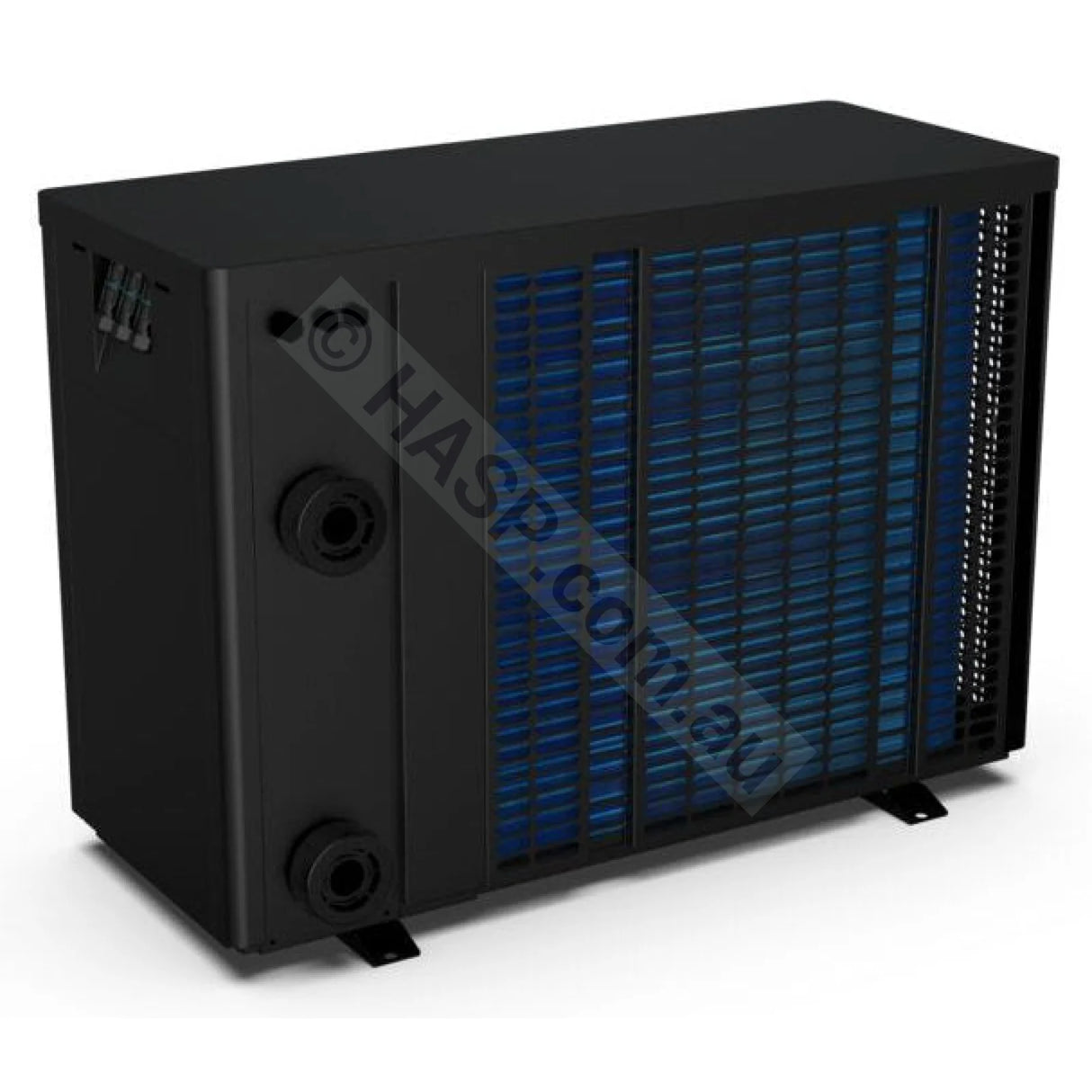

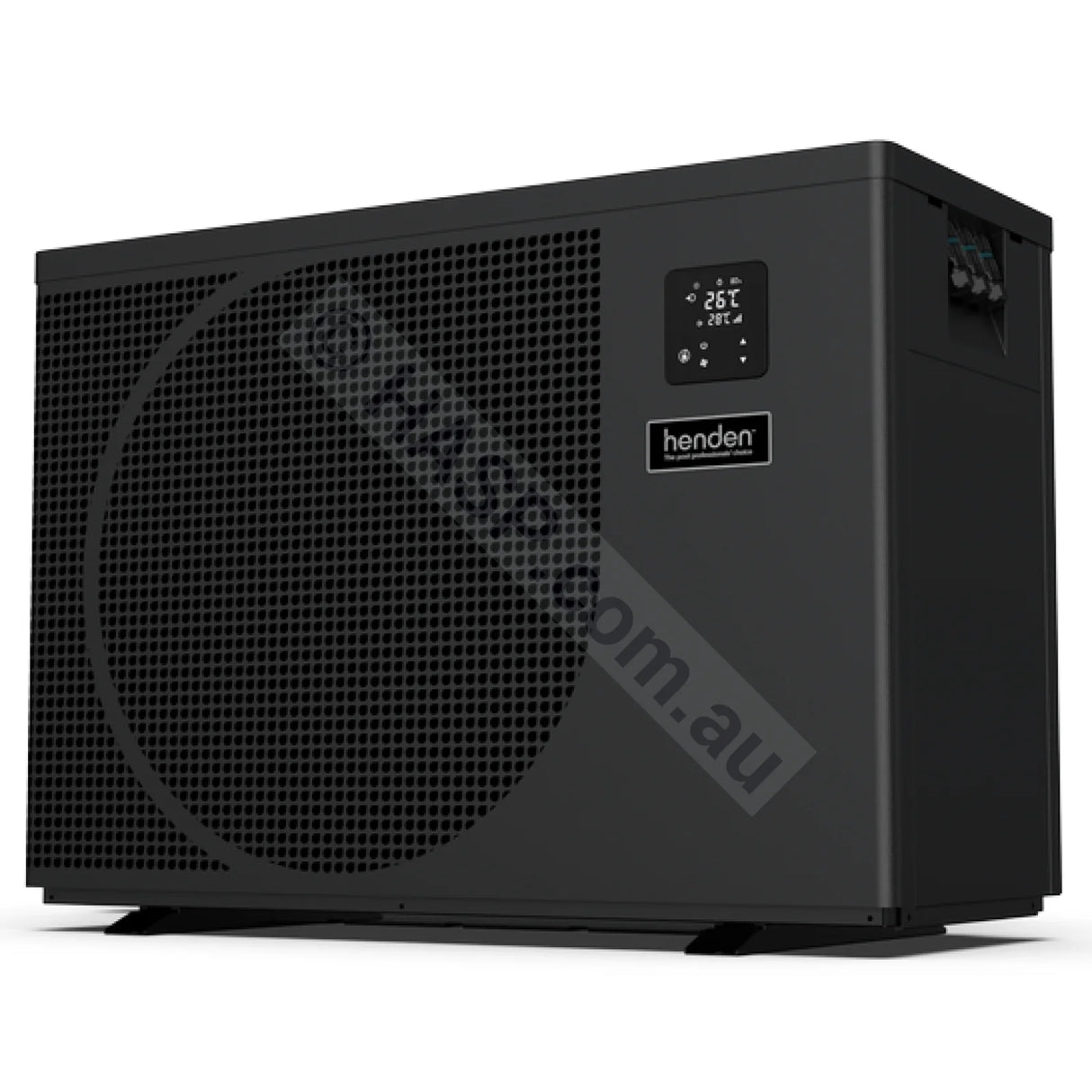

Henden Elevate - Elite Full Inverter Heat Pump – Powerful, Quiet & Efficient - 11kW, 14kW, 18kW, 21kW, 26kW, 32kW, 40kW maximum outputs.

Free Shipping Australia Wide

Maximize your pool’s comfort with this high-performance heat pump, engineered with Full Inverter Technology for exceptional energy efficiency and ultra-quiet operation. Designed for elite performance, it offers powerful heating and cooling while maintaining low running costs.

Documentation: Spec Sheet | User Manual

Key Features

Intuitive Touchscreen Controller – Effortless control with a user-friendly interface.
Quick & Easy Installation – External three-point quick connection for hassle-free setup.
Innovative Perforated Design – Enhances performance and airflow.
Three Operating Modes – Choose from Turbo for rapid heating, Smart for balanced efficiency, or Silent for whisper-quiet operation.
Eco-Friendly R32 Refrigerant – Efficient and environmentally responsible.
Advanced Full Inverter Technology – Optimizes power usage for maximum energy savings.

Industry-Leading Warranty

25 Years – Titanium heat exchanger
10 Years – Compressor
3 Years – Componentry
1 Year – Labour

*Performance Conditions: Air 26°C, Water 26°C, Humidity 80%
**Cooling Performance Conditions: Air 35°C, Water 28°C, Humidity 80%

Heat Pump Sizing - Heat Pump Sizing Guides for Pools & Spas -The above tables are to be used as a guide only and using ideal operating conditions. We recommend the largest heat pump you can budget for, as larger heat pumps ensure shorter running periods and are the most cost-effective over the long run. If possible, go at least one size up from the guide's recommendation. Note: Right-click a chart to open in a new window for a larger version.

General Heat Pump Sizing Guides

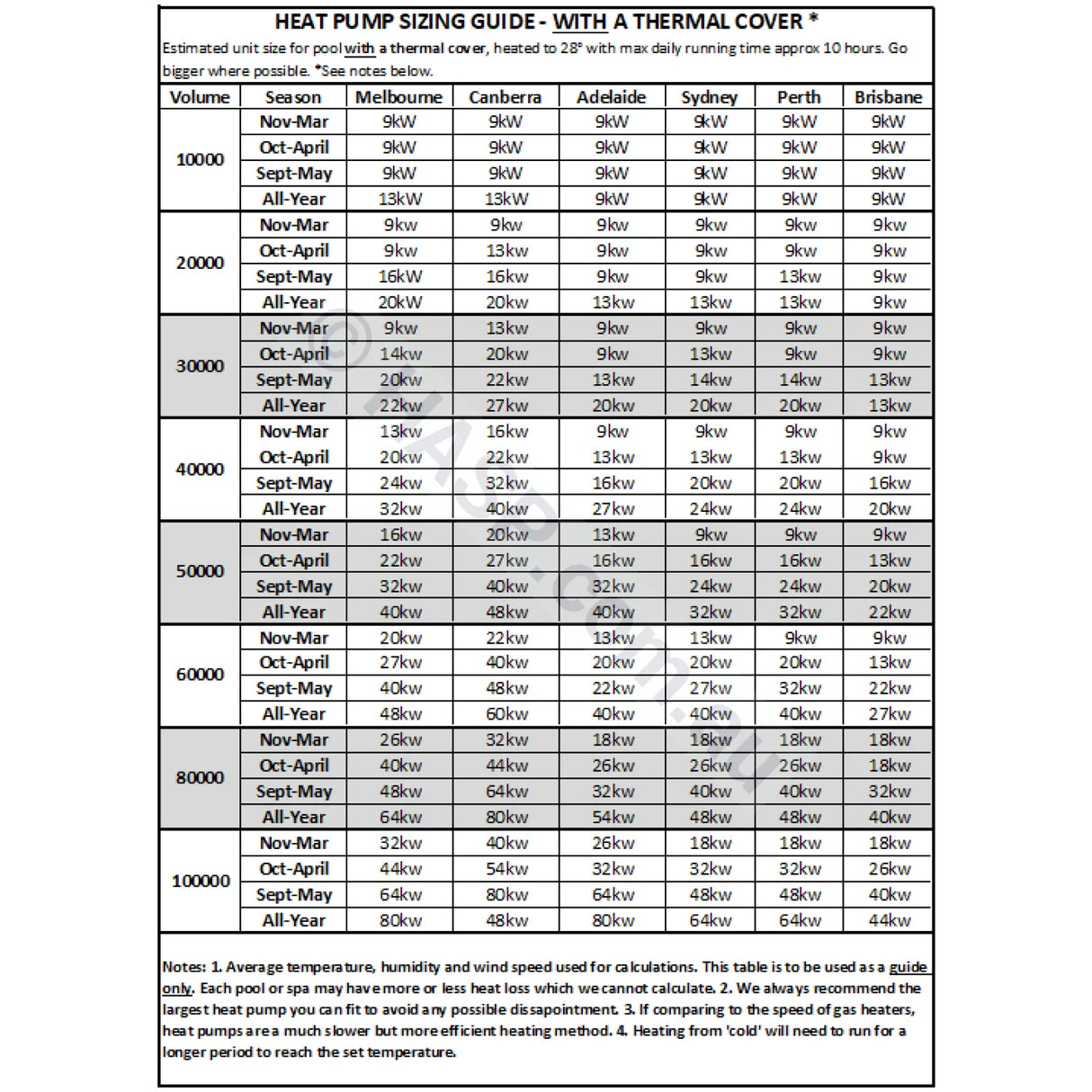

Heat Pump Sizes When Using a Cover:

Heat Pump Sizes When Not Using a Cover:

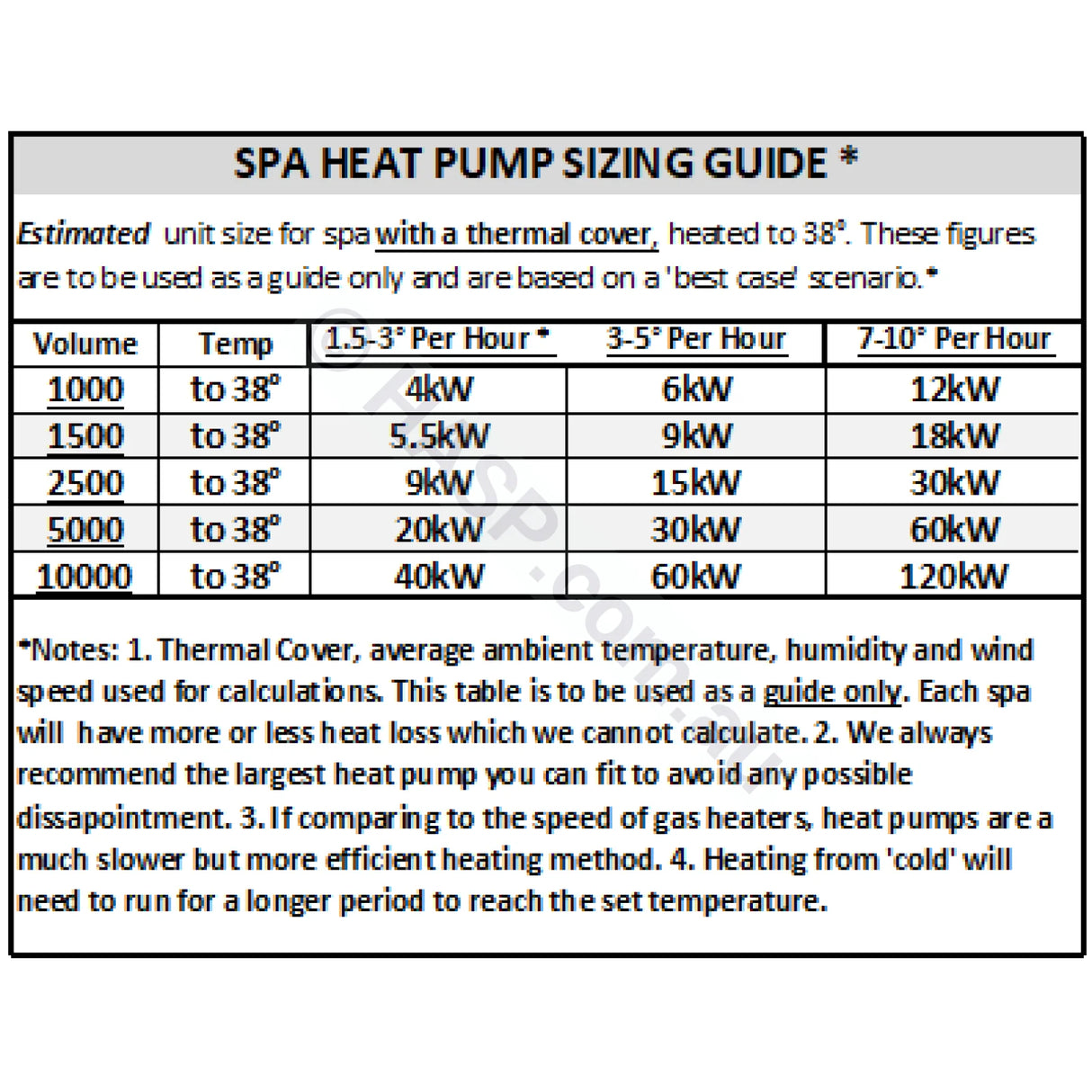

Heat Pump Sizing for Spas:

Heat-Up Times for Various kW Outputs:

We cannot be held responsible for undersized heat pump choices.

xxxxx

Pool / Spa Heat Pump Sizing Assessment

Please complete the form below. We’ll use this information to recommend a properly sized heat pump.

Contact & Address

First Name *

Last Name *

Email *

Company (if applicable)

Street Address *

Suburb *

State *

Postcode * Australian 4-digit postcode

Pool / Spa Dimensions (metres)

Length (m)

Width (m)

Shallow End Depth (m)

Deep End Depth (m)

Site & Usage

Indoor / Outdoor

Usage Type

Wind Exposure

Shading

Does it have an infinity edge?

Targets & Costs

Desired Temperature (°C)

Electricity Cost per kWh (cents) Tip: Check your latest bill. Enter cents per kWh (e.g. 32.5)

Notes

We’ll reply to your email with our recommendation.

Payment & Security

We accept: Visa, Mastercard, Amex, Apple Pay, Google Pay, ShopPay, Paypal, Zip, Afterpay

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Handy PVC Plumbing Size Info
Plumbing sizes can be confusing. Pressure PVC pipe use nominal sizes - the size is simple a name, not the measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
- 50mm / 2" = ~60-61mm OD
- 40mm / 1.5" = ~48mm OD
- 25mm / 1" = ~33-34mm OD
