Astralpool
Seal Kits for all Astralpool / Hurlcon HX, JX, WX gas heaters. Fixes common leaks on Hurlcon and Astral pool gas heaters. Suits all HX 70, HX 120, HX 150, JX 130, JX 160 & WX (Wilton) Gas Heaters. Genuine OEM parts.
-
Shipped Fast or can be Picked Up
Important Note: When installing the Bypass Kit, the round disc must be accessed from the outlet side of the water plumbing. Please ensure that all surrounding pipework is carefully repositioned to prevent the disc from accidentally falling into the plumbing system.
These parts fit the following Hurlcon and Astralpool gas pool heaters:
- HX 70 / HX 120 / HX 150
- JX 130 / JX 160
- WX 70 / WX 120 / WX 150

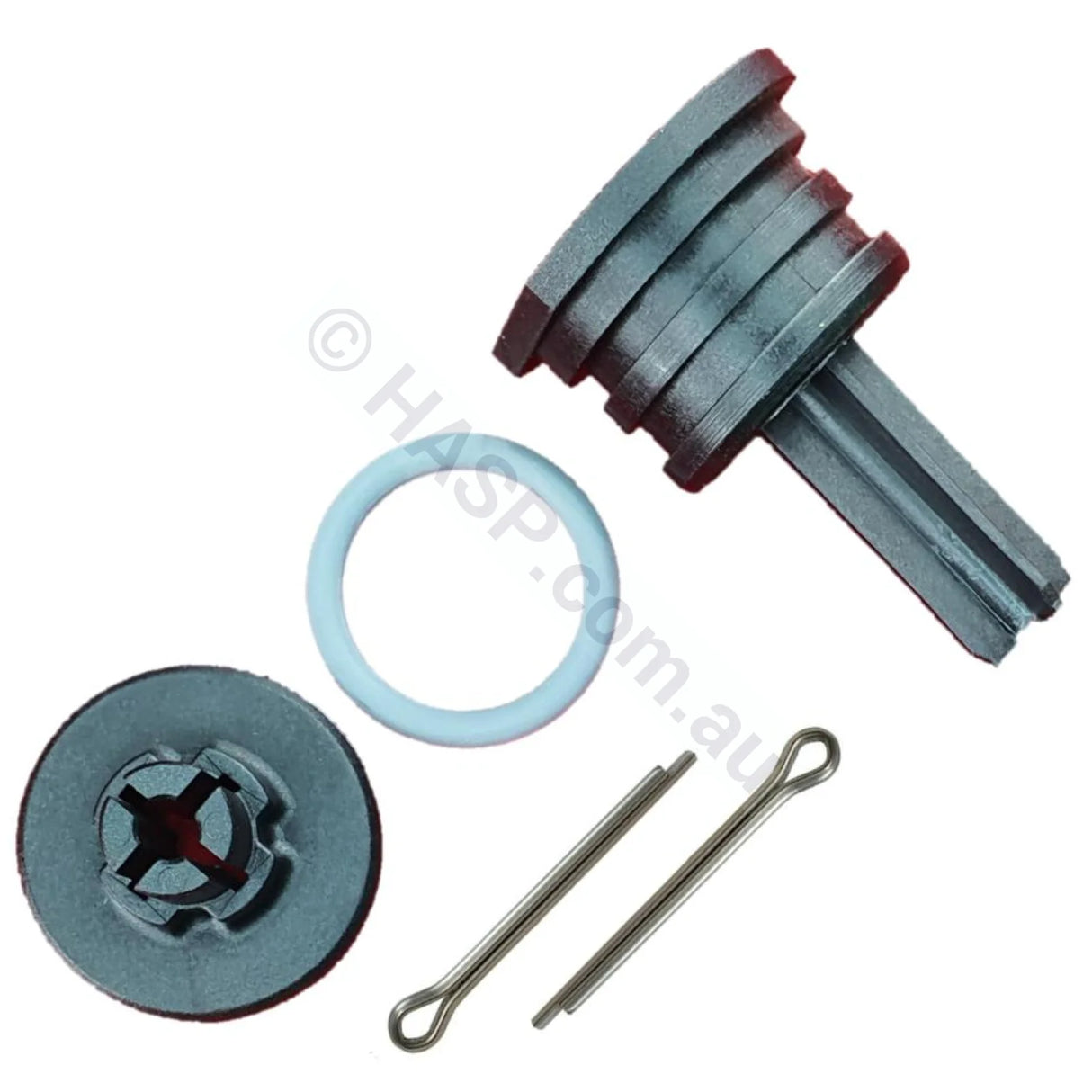

The Bypass & Seal Kit Comes with:
- 1x Plunger for Bypass Assembly
- 1x O-ring for Bypass Assembly
- 1x Disc for Bypass Assembly

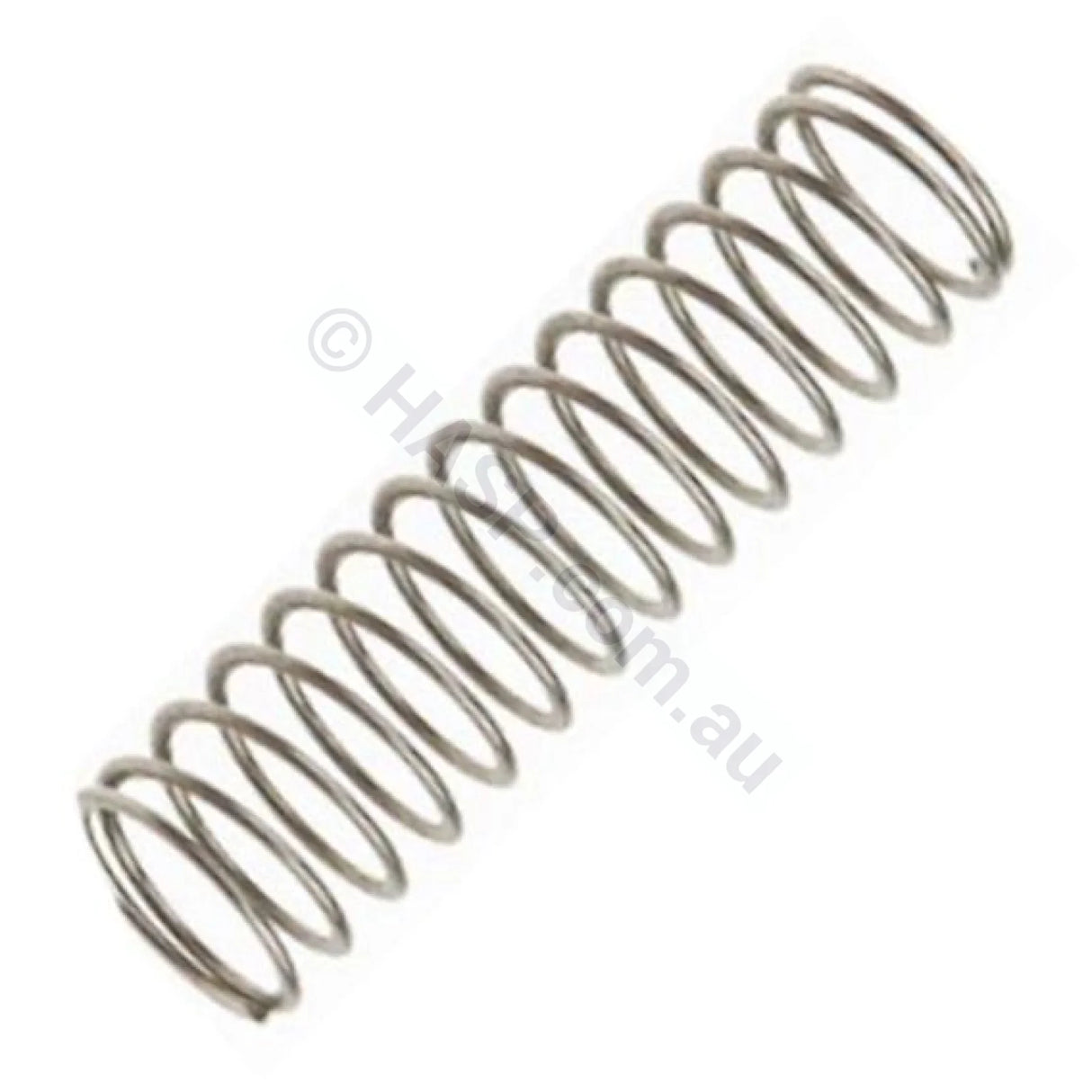

- 1x - Bypass Spring

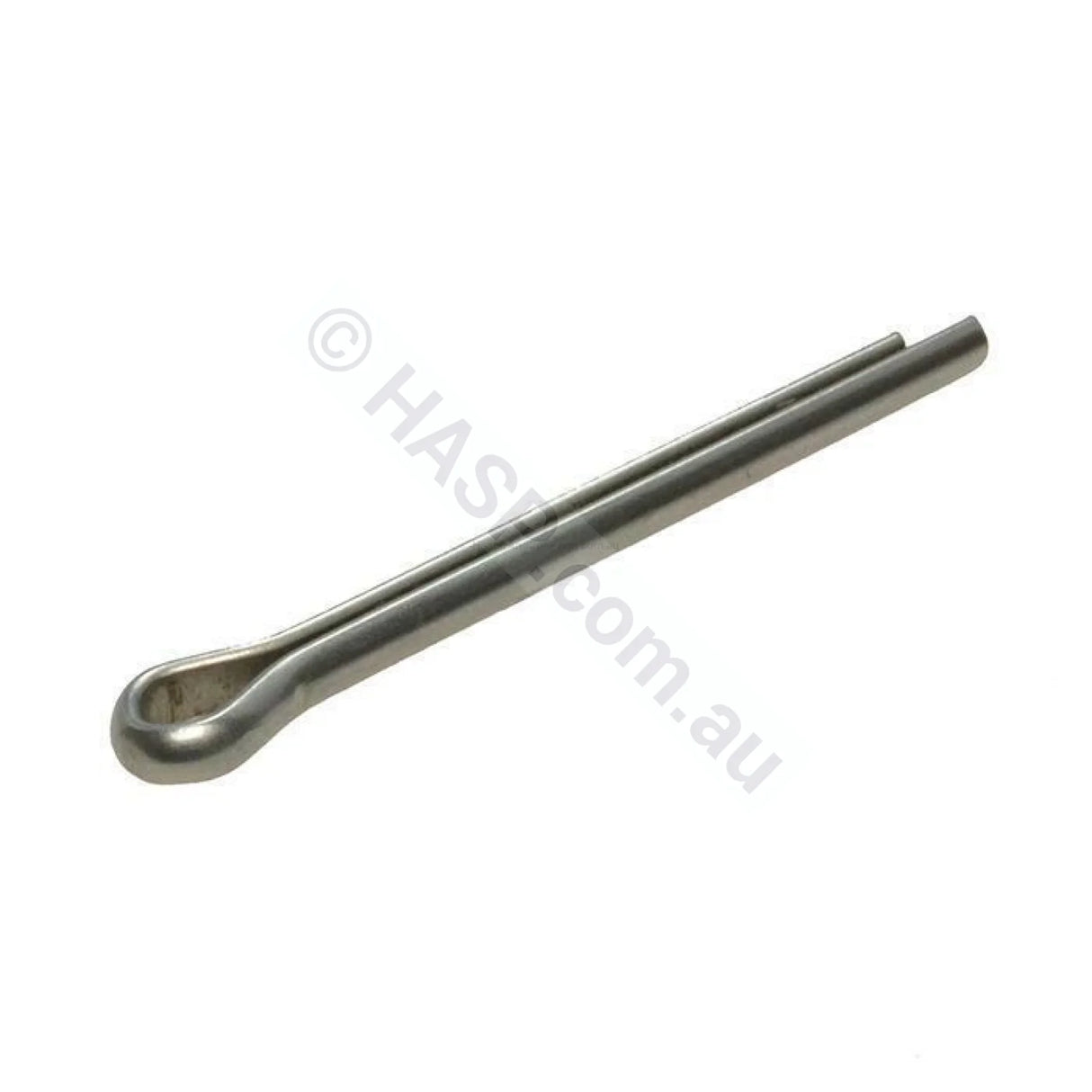

- 2x Split Pins

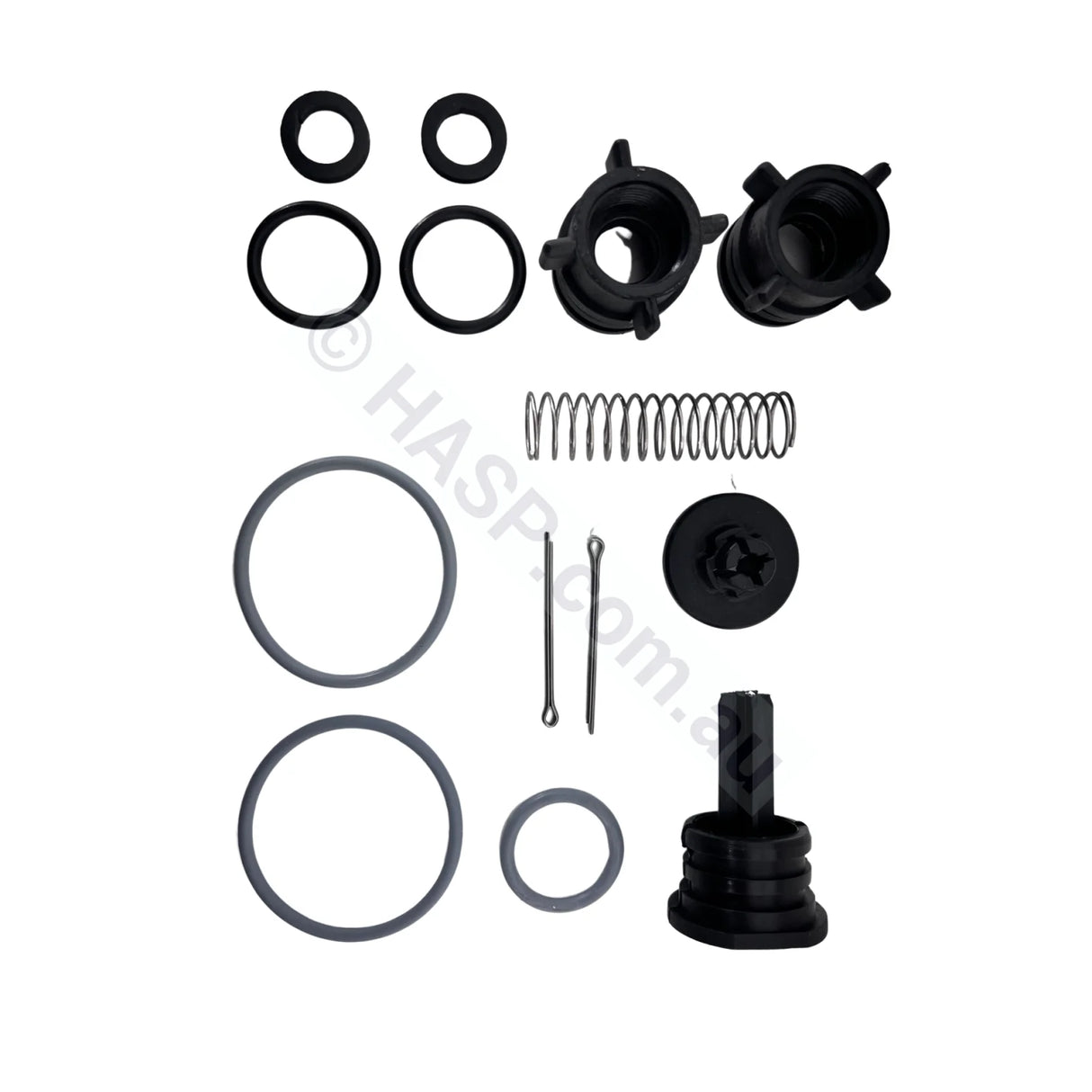

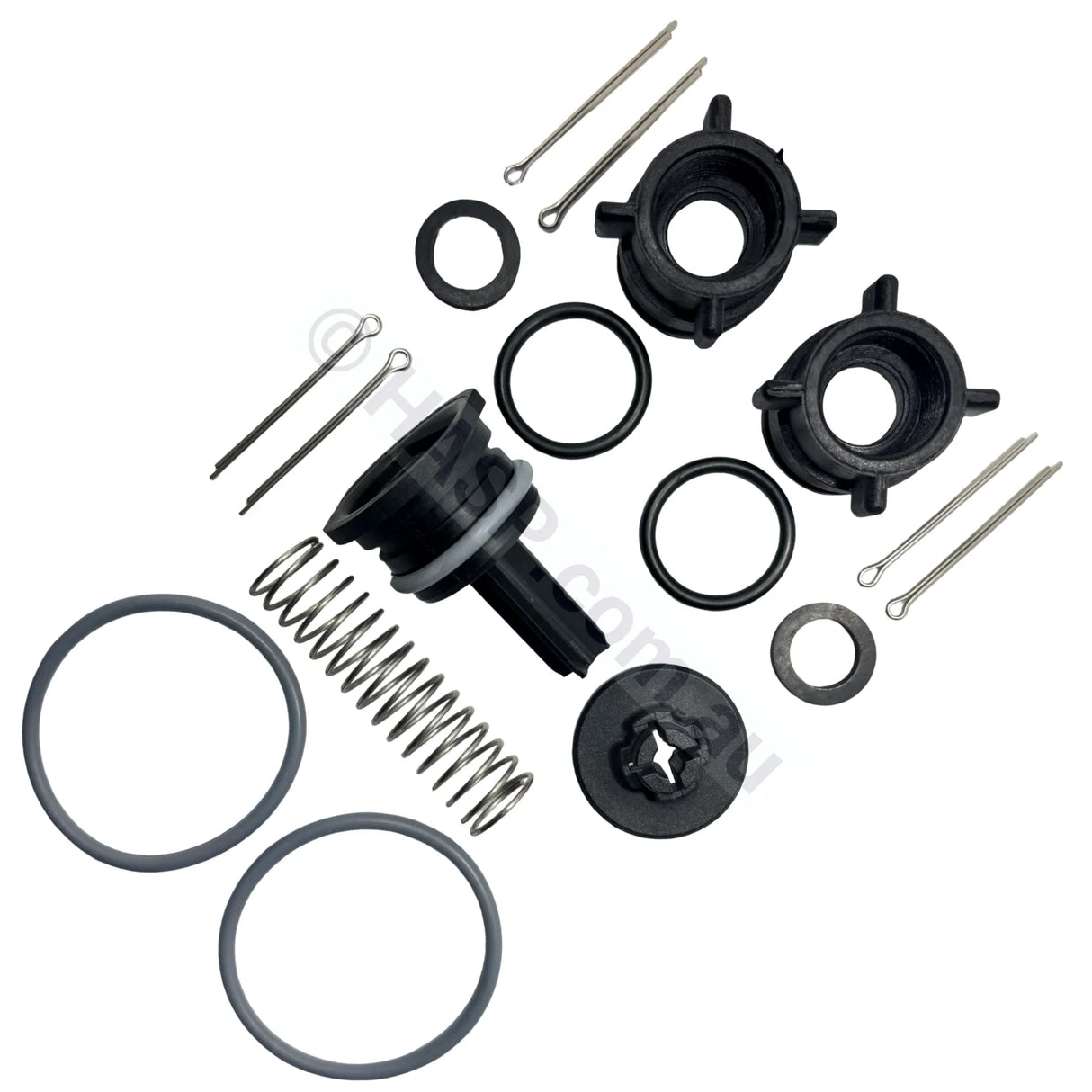

The HX/JX Complete Seal Kit Comes with:
- 2x Heat Exchanger Adaptors & O-Rings
- 1x Plunger for Bypass Assembly
- 1x O-ring for Bypass Assembly
- 1x Disc for Bypass Assembly
- 2x O-rings for Barrel Union -
- 2x Santoprene Gaskets (O ring) for adaptors
- 1x Bypass Spring
- 2x Split Pins
76025, 70007, 76026, 75109, 70003,71922,76025, 70007, 76026, 71922, 76030, 70002
