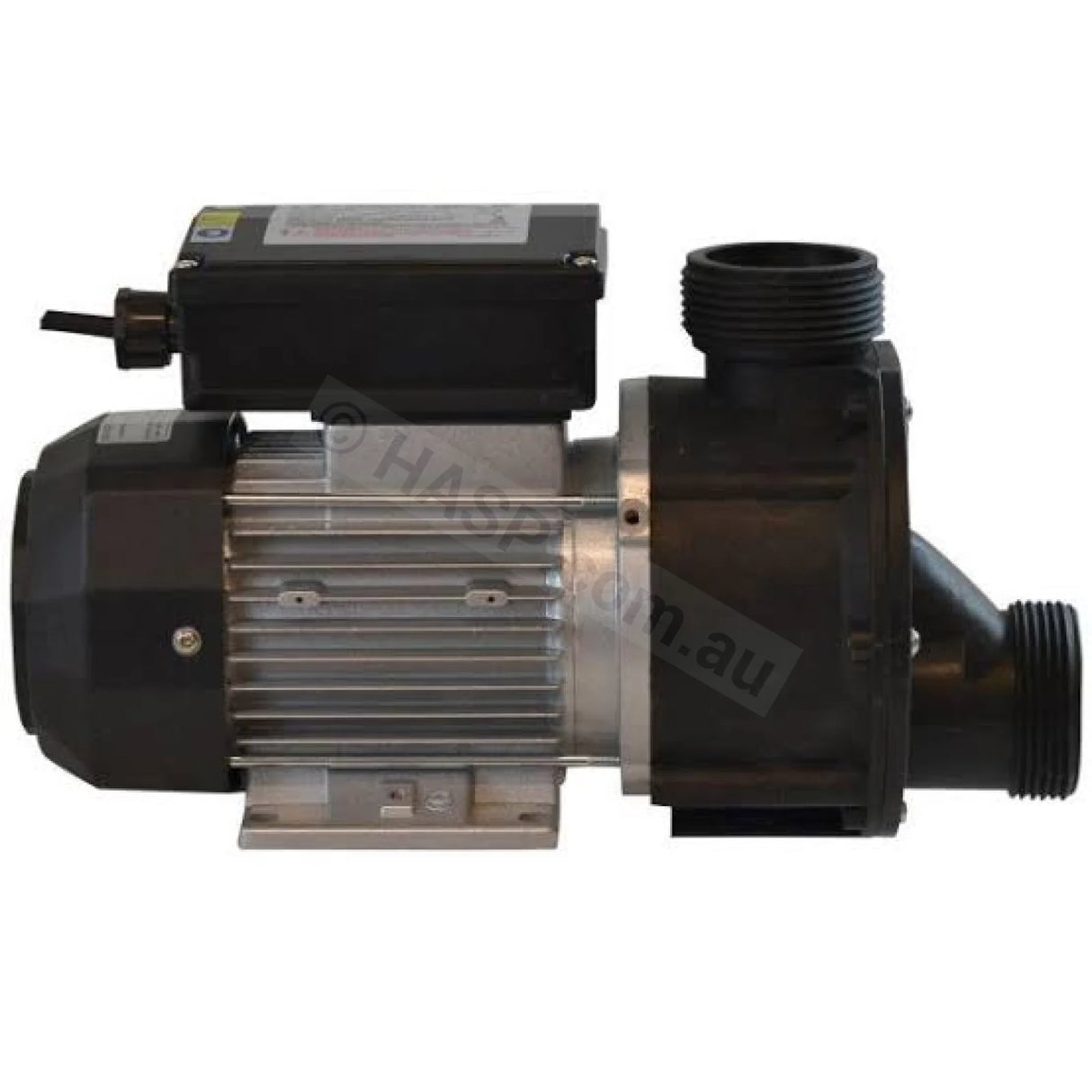

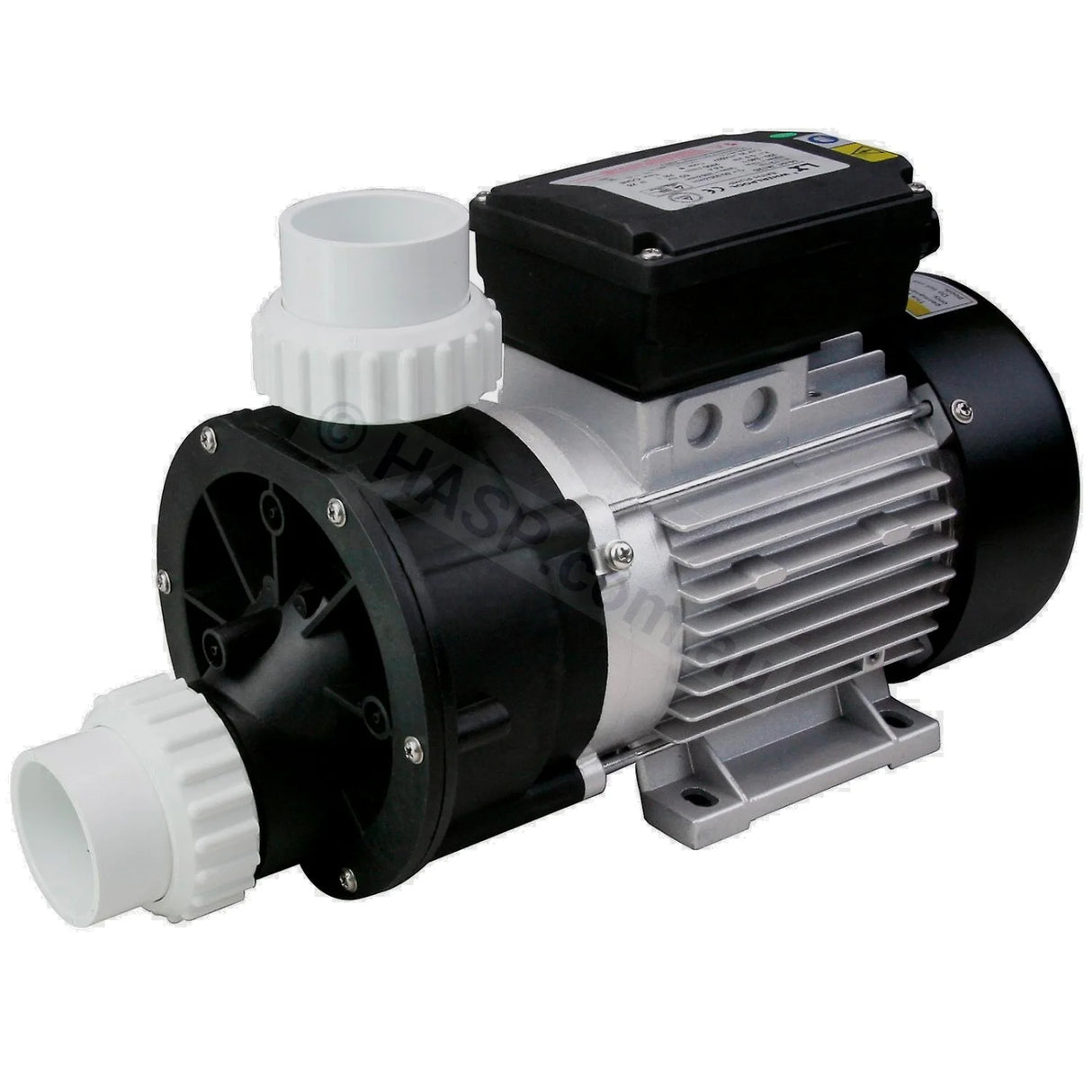

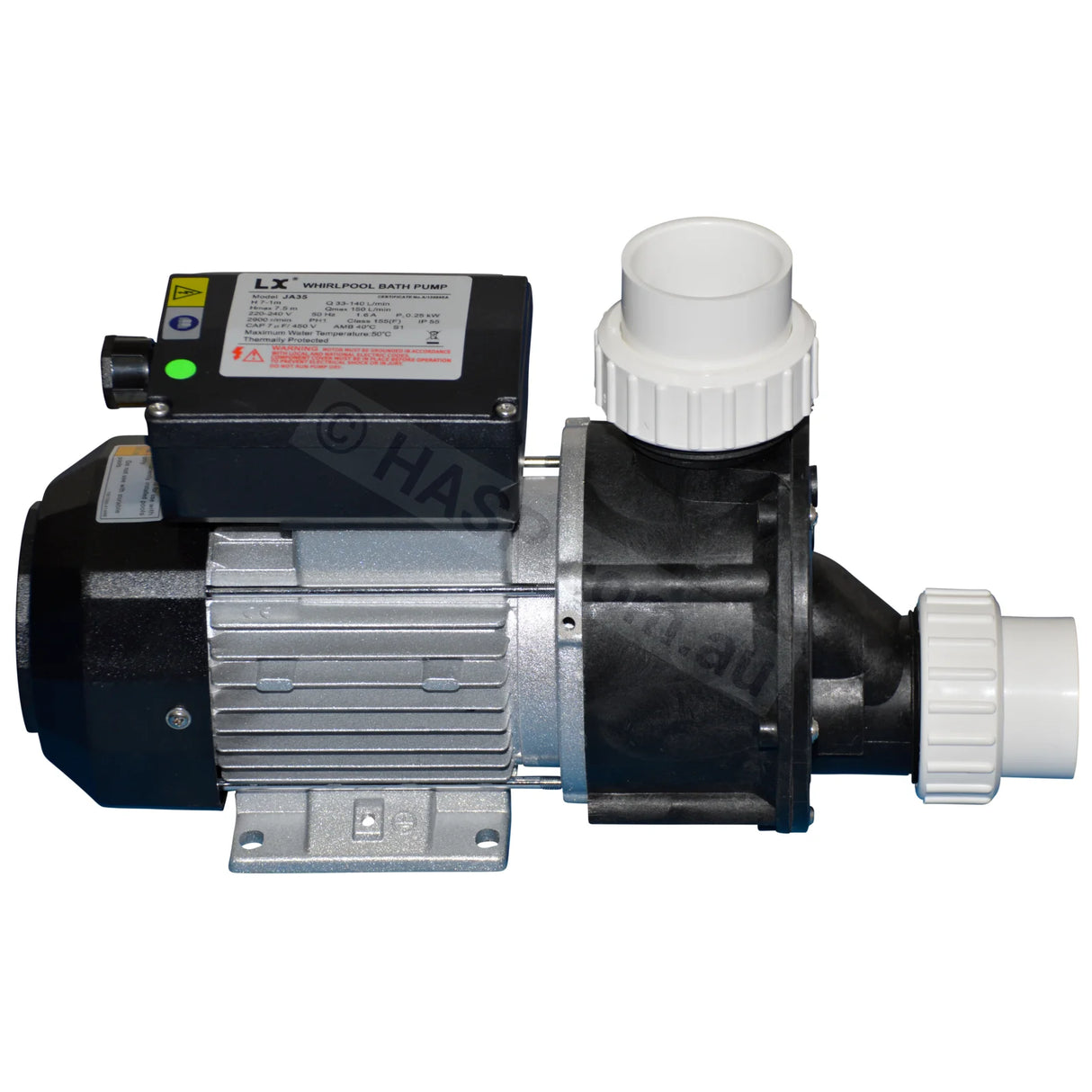

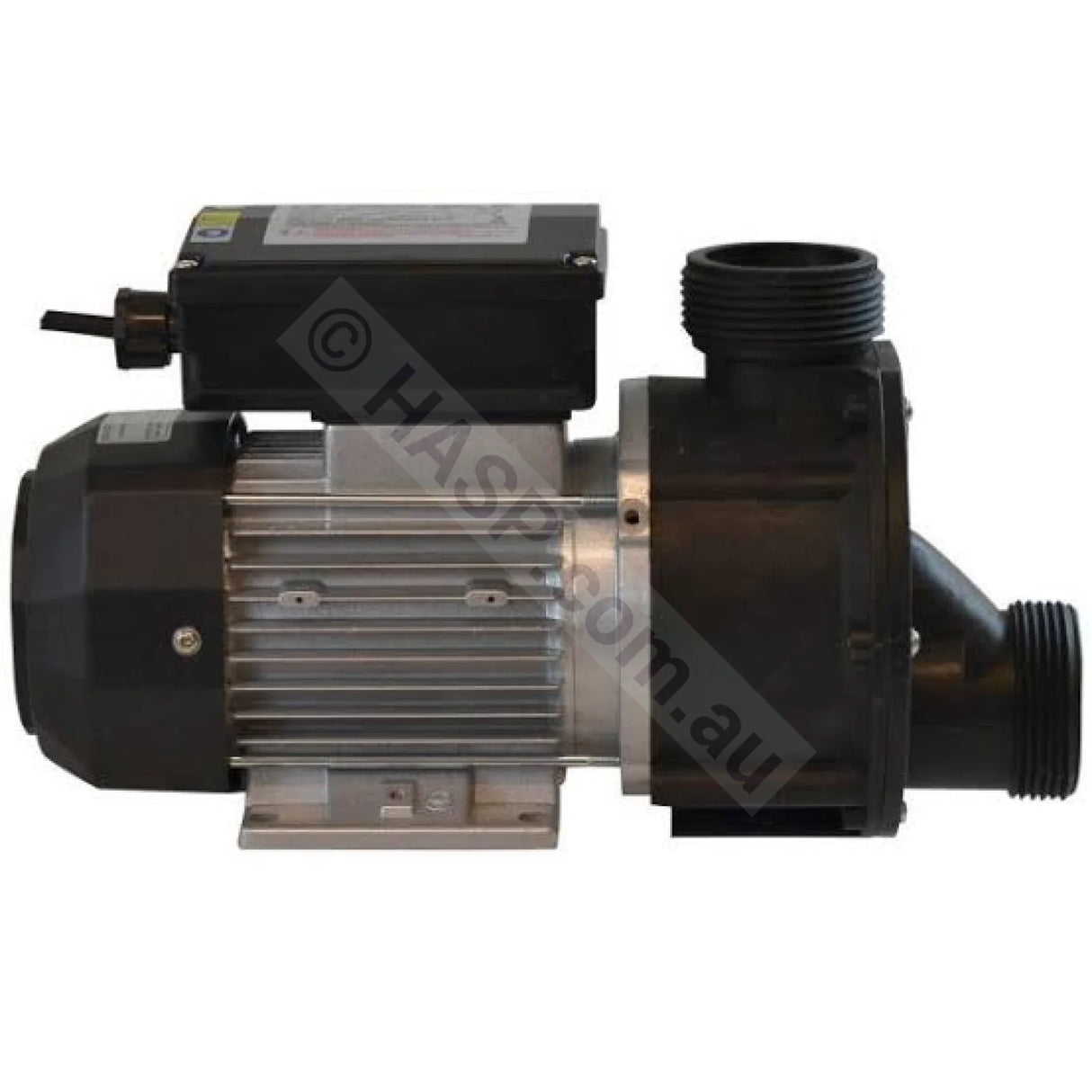

Pro LX Whirlpool JA35 JA 35 spa circulation pump 0.35hp, 250w Mona Lisa
Pro LX Whirlpool JA35 JA 35 spa circulation pump 0.35hp, 250w Mona Lisa - is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
LX Whirlpool JA-35 Pro-Series Circulation Pump – Australian Approved Version
Upgrade your spa with the high-spec LX Whirlpool JA-35 Pro-Series pump – the Australian-approved version that outperforms cheap eBay or imported models. This JA-35 model is a direct replacement for low-grade pumps found in many Chinese-manufactured spas (including Aurora, Infinity Megastore, Winer, and similar brands).
- Perfect upgrade for JA-50 pumps – same size and fittings
- More efficient, longer-lasting, and legal for use in Australia

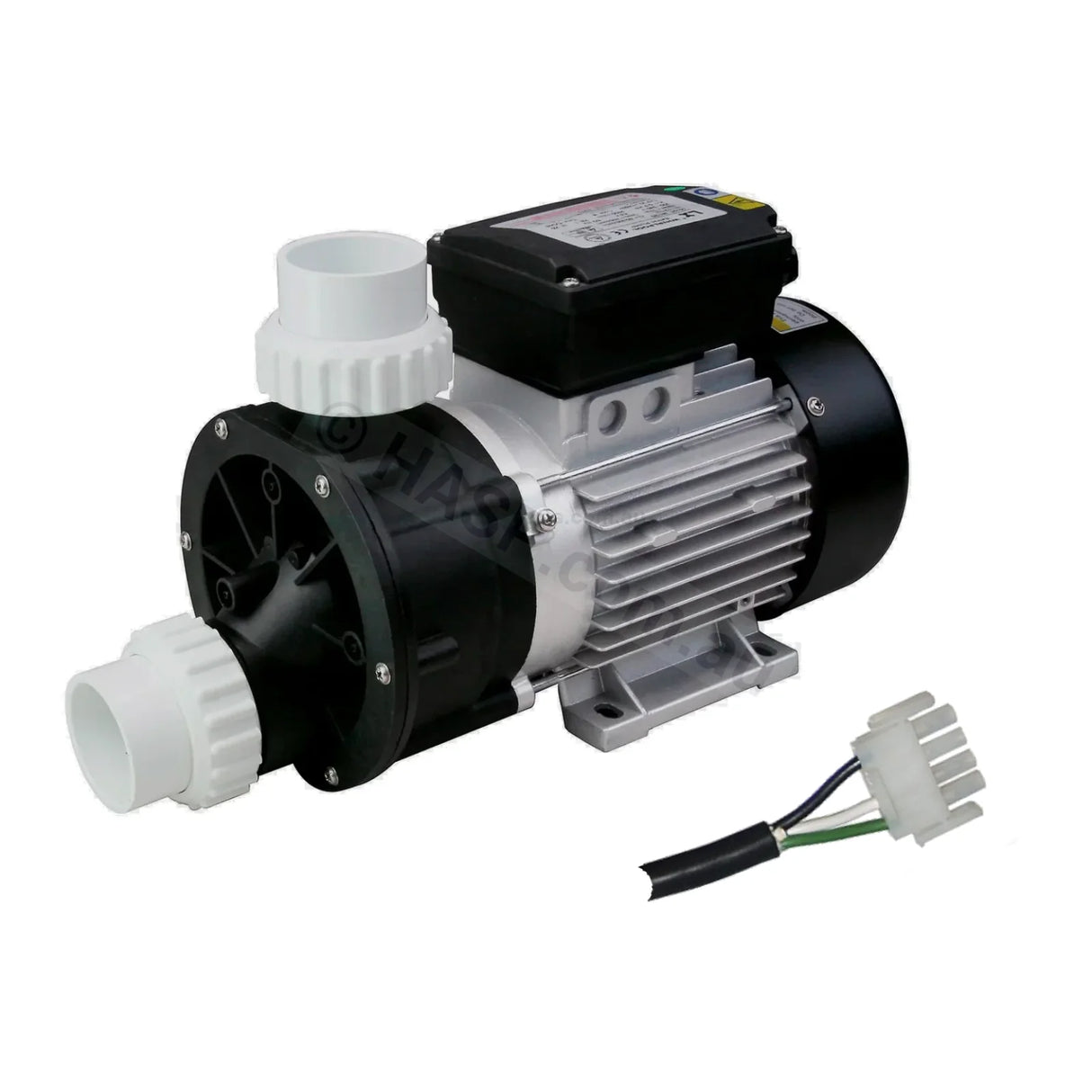

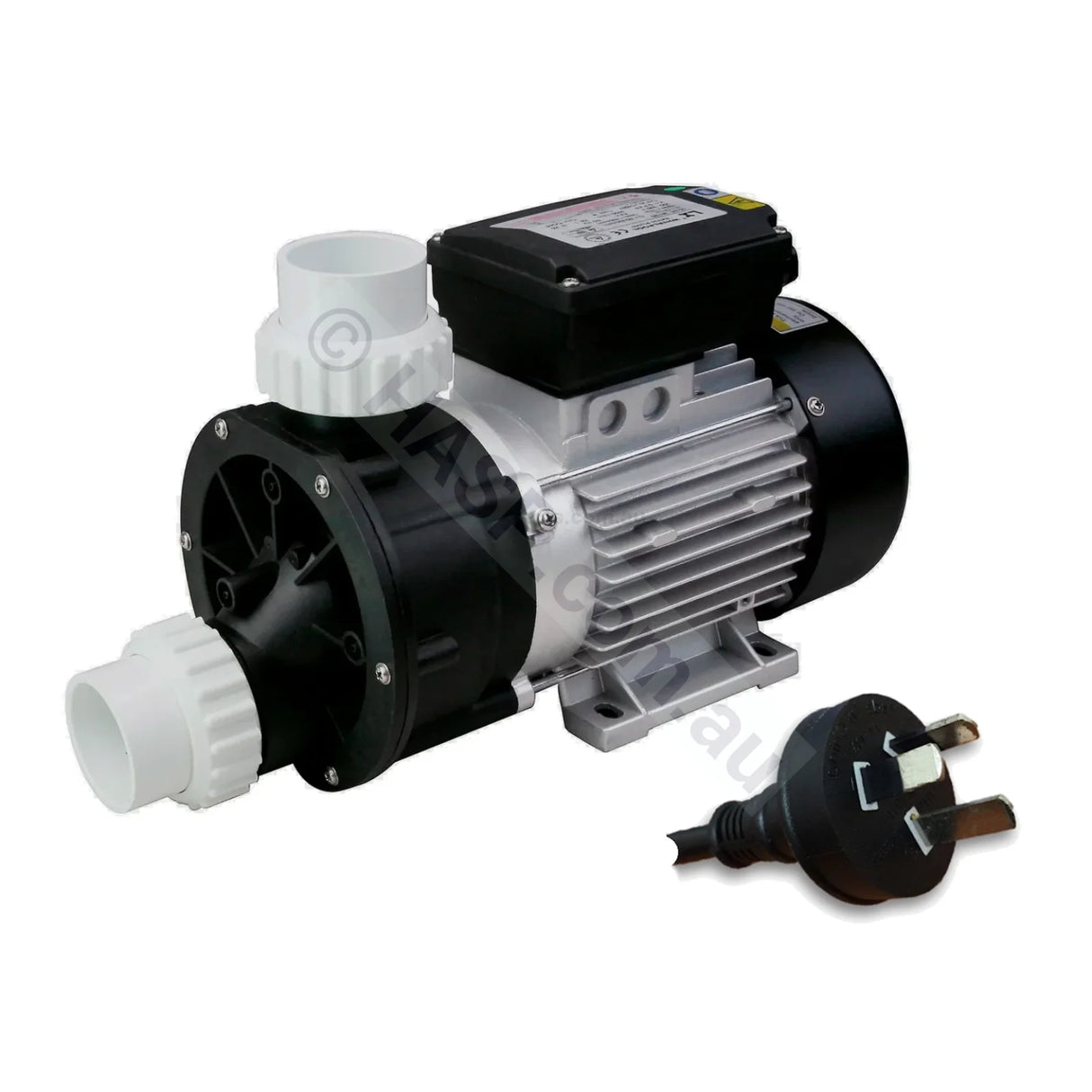

- Comes pre-wired with your choice of AMP plug or standard 3-pin Australian (C38) plug
- Includes unions for easy installation
Why Choose This High-Spec JA-35 Pump?
Many online versions of this pump are not compliant with Australian safety standards, and may be listed under different names such as:
- Riptide C50-JA
- Mona Lisa JA-35
- Generic JA35 or JA50 (from eBay or overseas)
Don’t risk illegal or unsafe spa equipment!
This pump meets all Australian electrical standards and includes superior components, including:
- High-grade mechanical seals for longer life
- Durable impeller plastic that won’t warp
- Quality sealed bearings for smooth, quiet operation
Technical Specifications:
- Voltage: 230V, 50Hz
- Power: 0.35 HP / 250W
- Current: 1.6A
- Plug: AMP or 3-pin AUS (C38)
- Includes unions for plumbing connection
- 1-Year Warranty (excludes chemical damage)
Ideal For:
- Replacing worn or noisy spa circulation pumps
- Upgrading from LX JA50 or lower-quality JA35 models
- Aurora, Infinity, Winer, and other Chinese spa brands
- Anyone wanting peace of mind with a compliant, high-quality pump
Beware of Low-Grade Imitations
Imported versions often cut corners:
- No Australian Electrical Certification
- Cheap seals and bearings
- Inferior impeller materials
- May not be safe or legally compliant
Buy With Confidence
We’re Australia's leading spa parts supplier. Every JA-35 pump we sell is fully compliant, in stock, and backed by our expert support.
Get fast shipping, local warranty support, and genuine quality – only from Heater & Spa Parts.
Frequently Asked Questions (FAQ)
Is this the same pump as the ones sold on eBay?
No. While it may look similar, our JA-35 pump is the Australian-approved high-spec version. Many eBay and imported models are non-compliant, use lower-grade materials, and are not legal for use in Australia.
Can this pump replace a JA-50?
Yes. In almost all cases the LX JA-35 Pro-Series is a perfect upgrade for JA-50 pumps. It has the same fittings and dimensions but is more efficient and durable.
Does this pump come with unions and a plug?
Yes. It comes with unions for easy plumbing and your choice of an AMP plug or standard 3-pin Australian (C38) plug.
Is this pump safe and compliant in Australia?
Yes. Our JA-35 pump meets Australian electrical safety standards and is fully compliant for legal installation and operation in Australian spas unlike most sold overseas on eBay, Fruugo and others.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
