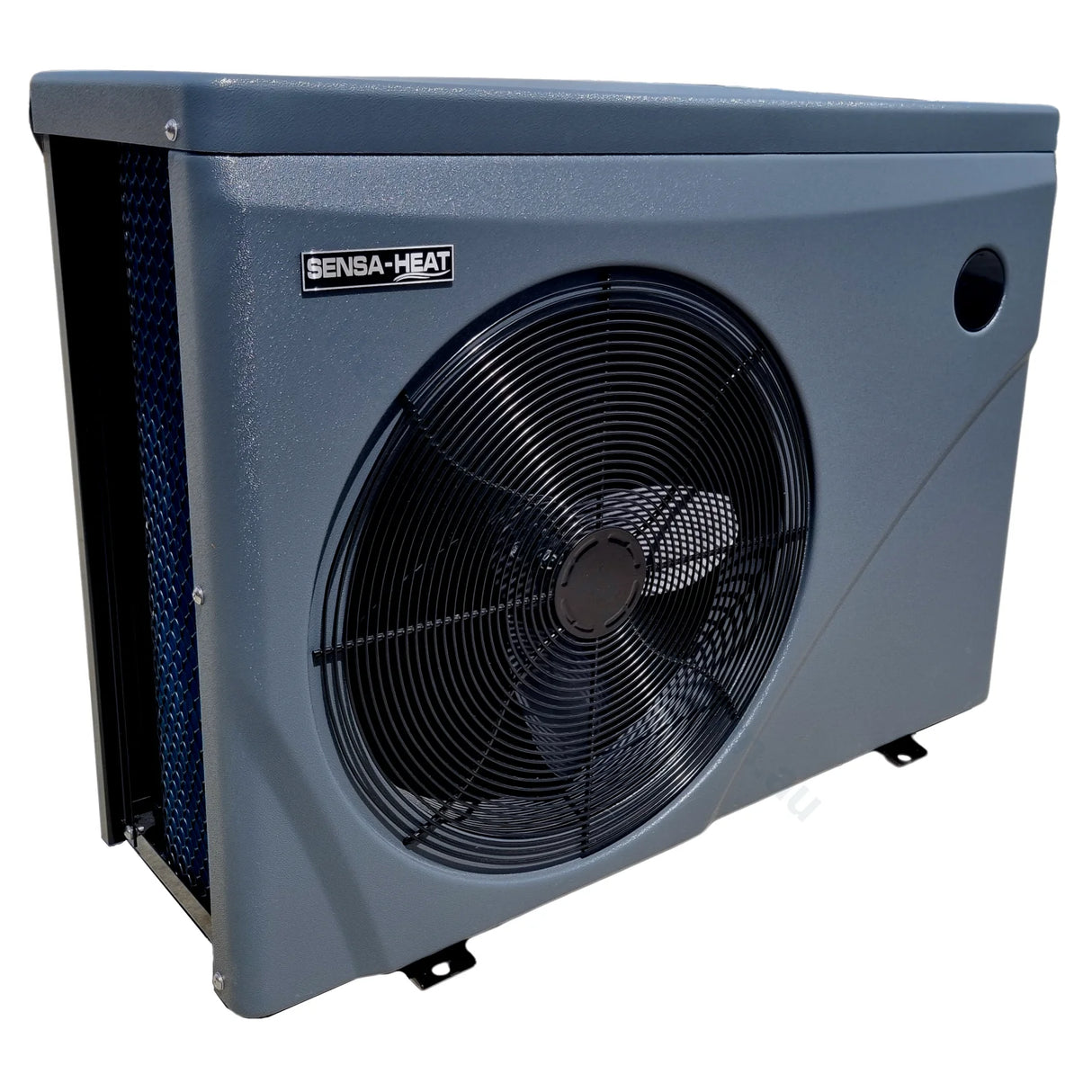

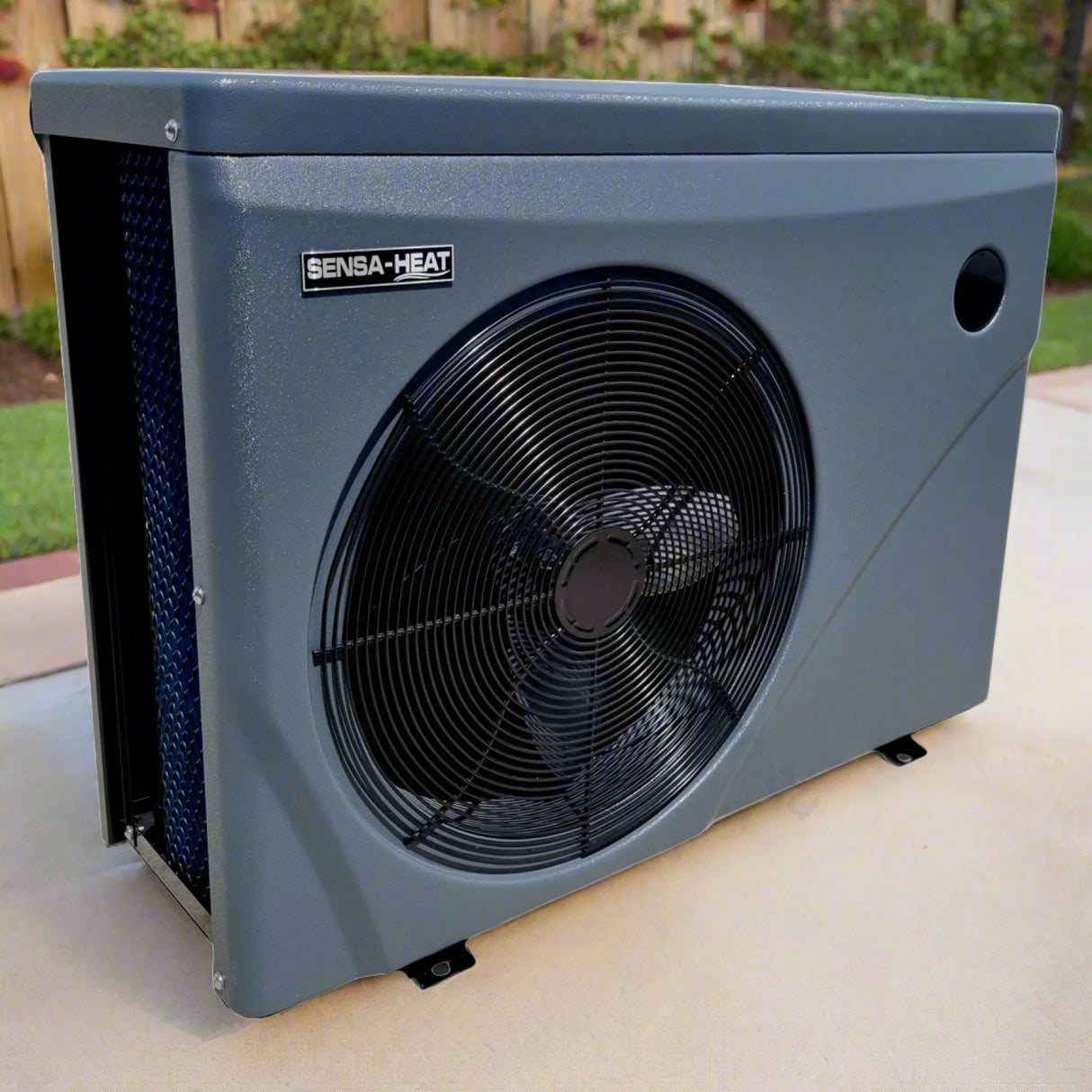

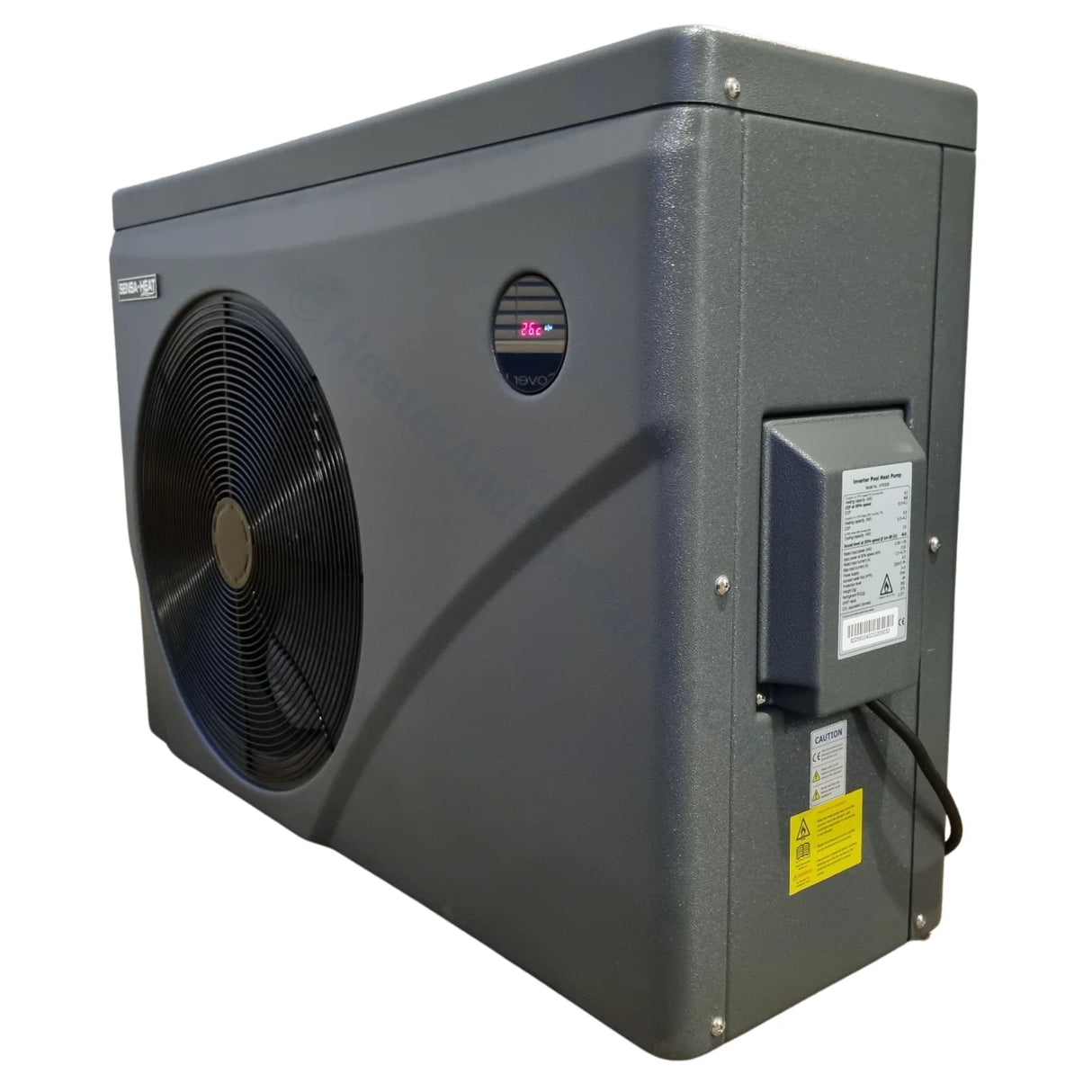

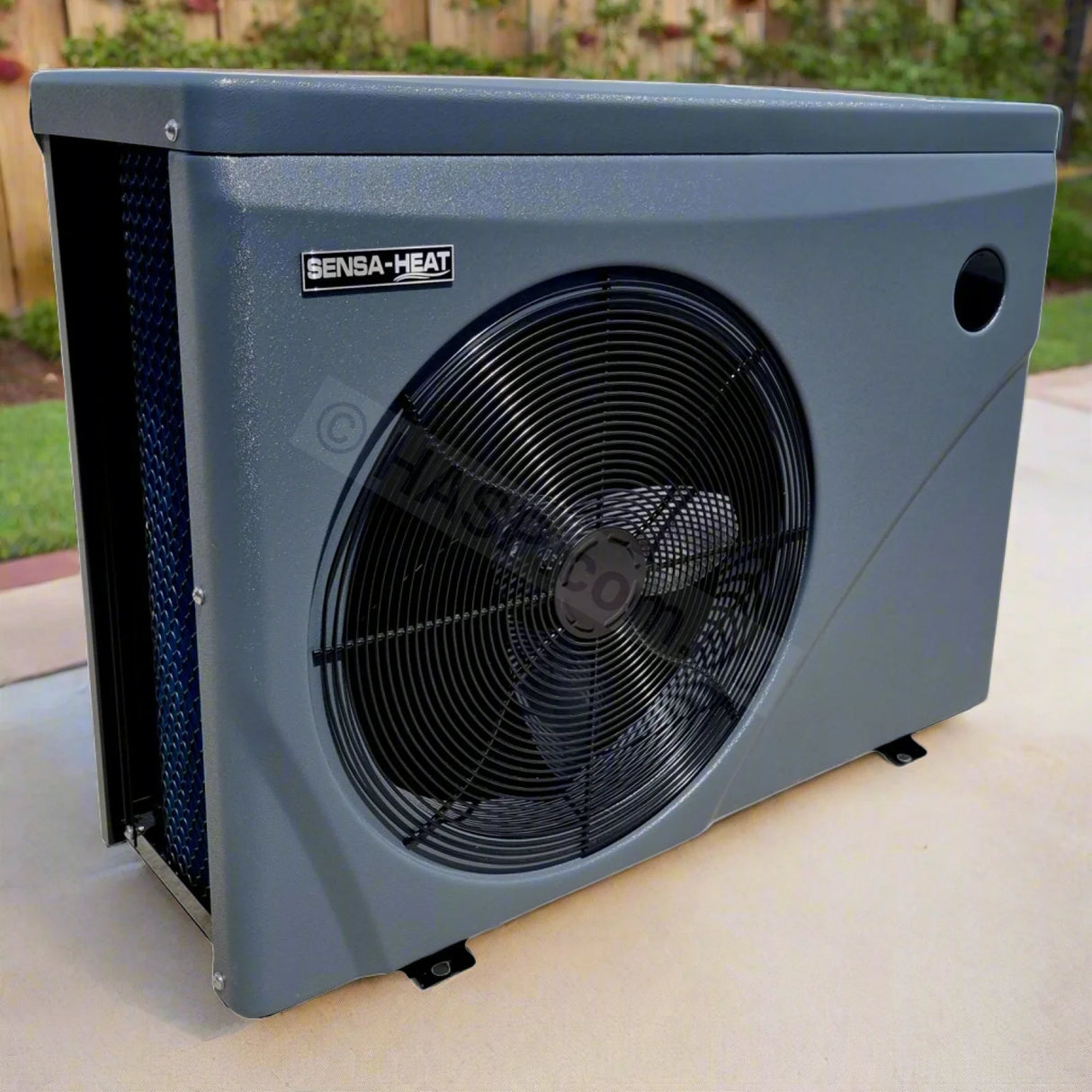

SALE - FREE SHIPPING. SensaHeat ES (Eco) with Wifi 9kW, 13kW, 16kW, 20kW, 24kW - is the latest Economical heat pump on the market. Designed by Australia's largest OEM spa distributor for the Australian & New Zealand market.
These heat pumps are 3-7 times more efficient than a standard heater element in a spa.
On display at our showroom
Shipping Australia-wide
User & Installation Manual
Designed as a long-lasting, highly efficient pool and spa heater. The Es series is packed with modern features, including an energy-saving full inverter power supply, an easy-to-use digital control panel and our Wi-Fi control from anywhere app. The ES series is ideal for heating a spa or extending the swimming season of your swimming pool.
- Wi-Fi as standard
- Highly efficient inverter technology
- Reverse cycle (heat and cool mode ) with auto defrost

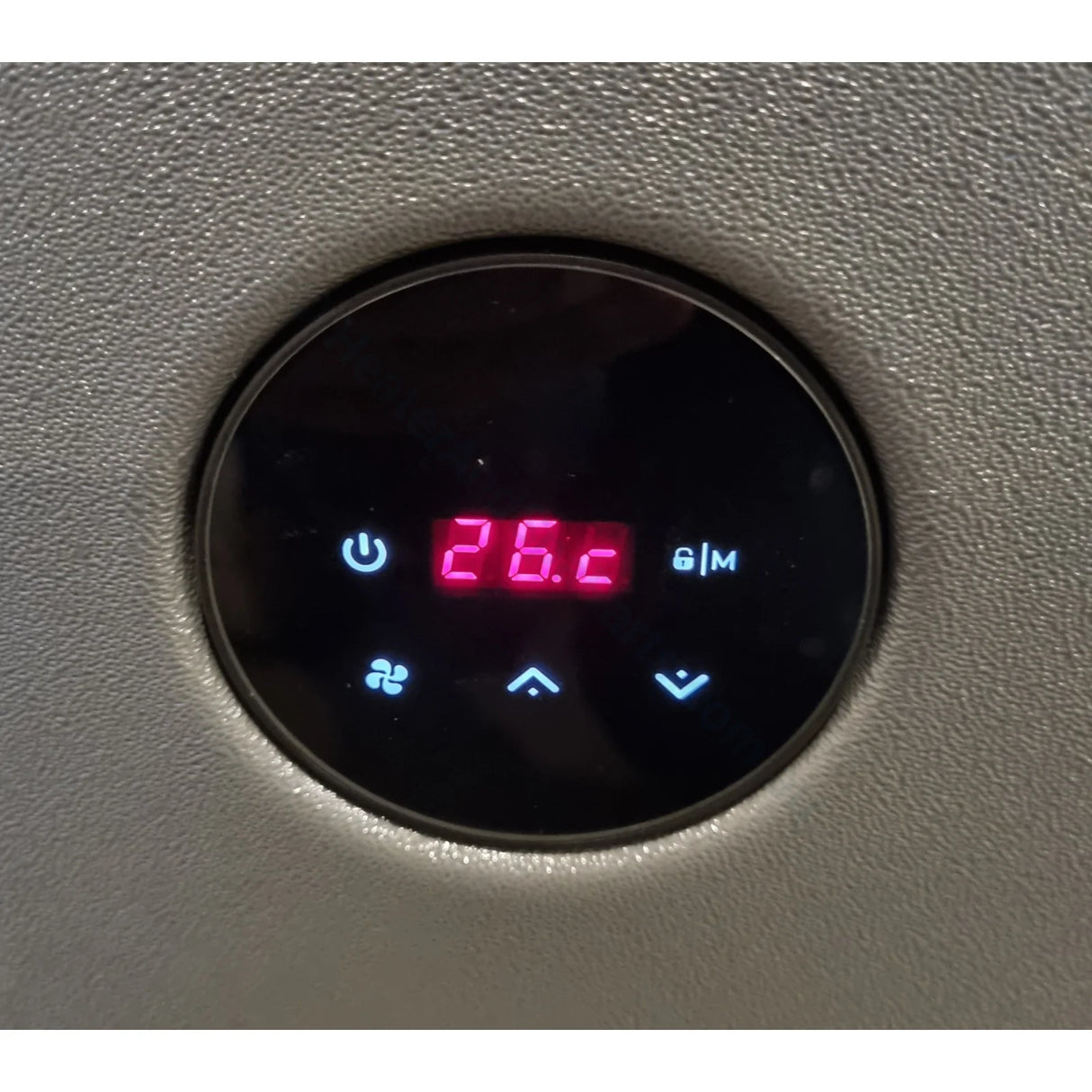

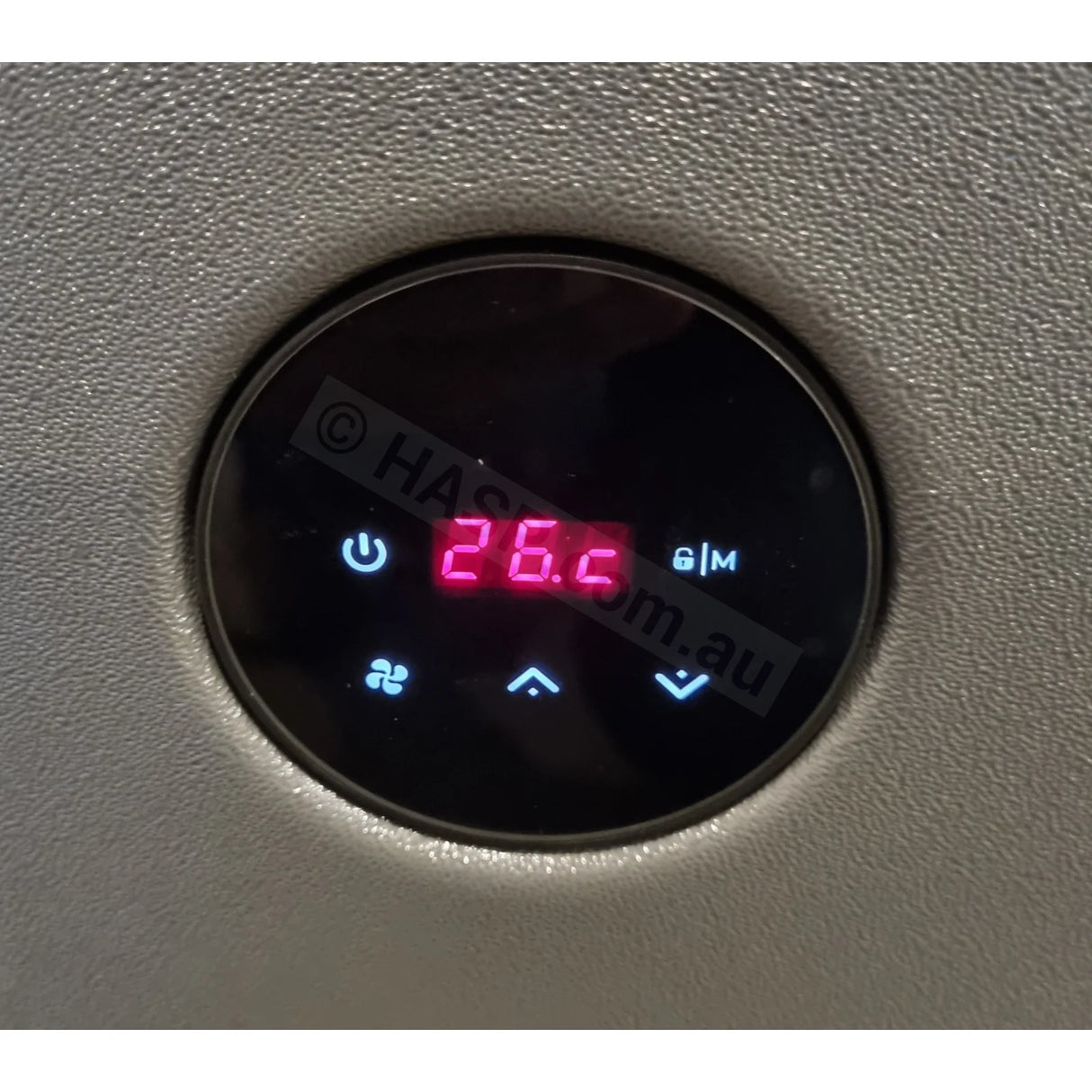

- Easy to use digital controller
- R32 Eco-friendly refrigerant
- Titanium heat exchanger with a 25-year warranty*
Warranty Information *:
Heat Pump model |
Heat Exchanger |
Compressor |
Parts |
On-Site Labor |
ES Series - Eco |
25 years |
3 years |
2 years |
1 year |
PI Series - Premium |
25 years |
5 years |
2 years |
1 year |
TD - Top Discharge |
25 years |
5 years |
2 years |
1 year |
* T & Cs apply. See manual for full information

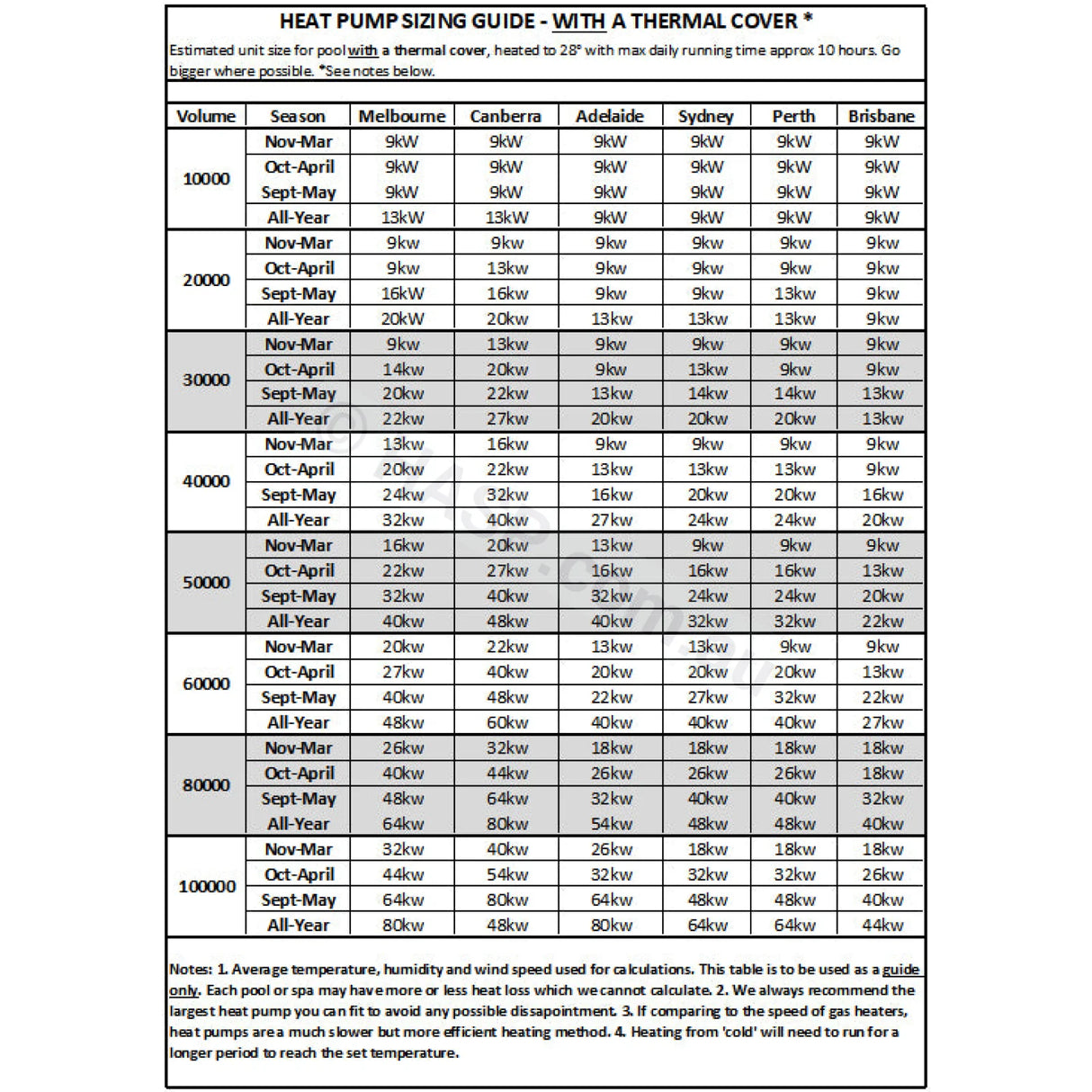

Pool Heater Sizing Guide Based on 10-Hour Max Run Time & Pool Cover *
Volume |
Season |
Melbourne |
Sydney |
Canberra |
Brisbane |
Adelaide |
Perth |
Hobart |
20,000l |
Nov-Mar |
13kW |
9kW |
16kW |
9kW |
9kW |
9kW |
16kW |
|
Oct-April |
20kW |
13kW |
22kW |
9kW |
13kW |
13kW |
22kW |
|
Year-Round |
32kW |
24kW |
40kW |
20kW |
27kW |
24kW |
40kW |
|
|
|
|
|
|
|
|
|
30,000l |
Nov-Mar |
20kW |
13kW |
22kW |
9kW |
13kW |
9kW |
22kW |
|
Oct-April |
27kW |
20kW |
40kW |
13kW |
20kW |
20kW |
40kW |
|
Year-Round |
48kW |
40kW |
60kW |
27kW |
40kW |
40kW |
60kW |
|
|
|
|
|
|
|
|
|
40,000l |
Nov-Mar |
24kW |
16kW |
32kW |
9kW |
20kW |
13kW |
32kW |
|
Oct-April |
40kW |
27kW |
48kW |
20kW |
24kW |
24kW |
48kW |
|
Year-Round |
60kW |
48kW |
72kW |
40kW |
60kW |
48kW |
72kW |
|
|
|
|
|
|
|
|
|
50,000l |
Nov-Mar |
32kW |
20kW |
40kW |
9kW |
22kW |
14kW |
40kW |
|
Oct-April |
48kW |
32kW |
60kW |
22kW |
32kW |
32kW |
60kW |
|
Year-Round |
72kW |
60kW |
120kW |
48kW |
72kW |
60kW |
120kW |
|
|
|
|
|
|
|
|
|
60,000l |
Nov-Mar |
40kW |
22kW |
48kW |
13kW |
27kW |
22kW |
48kW |
|
Oct-April |
60kW |
40kW |
72kW |
27kW |
40kW |
40kW |
72kW |
|
Year-Round |
96kW |
80kW |
120kW |
60kW |
80kW |
80kW |
120kW |
|
|
|
|
|
|
|
|
|
80,000l |
Nov-Mar |
48kW |
13kW |
60kW |
18kW |
40kW |
26kW |
60kW |
|
Oct-April |
80kW |
55kW |
96kW |
40kW |
48kW |
48kW |
96kW |
|
Year-Round |
120kW |
96kW |
135kW |
80kW |
120kW |
96kW |
135kW |
|
|
|
|
|
|
|
|
|
100,000l |
Nov-Mar |
64kW |
20kW |
80kW |
18kW |
44kW |
28kW
|
80kW |
|
Oct-April |
96kW |
64kW |
120kW |
44kW |
64kW |
64kW
|
120kW |
|
Year-Round |
140kW |
120kW |
240kW |
96kW |
140kW
|
120kW
|
240kW |

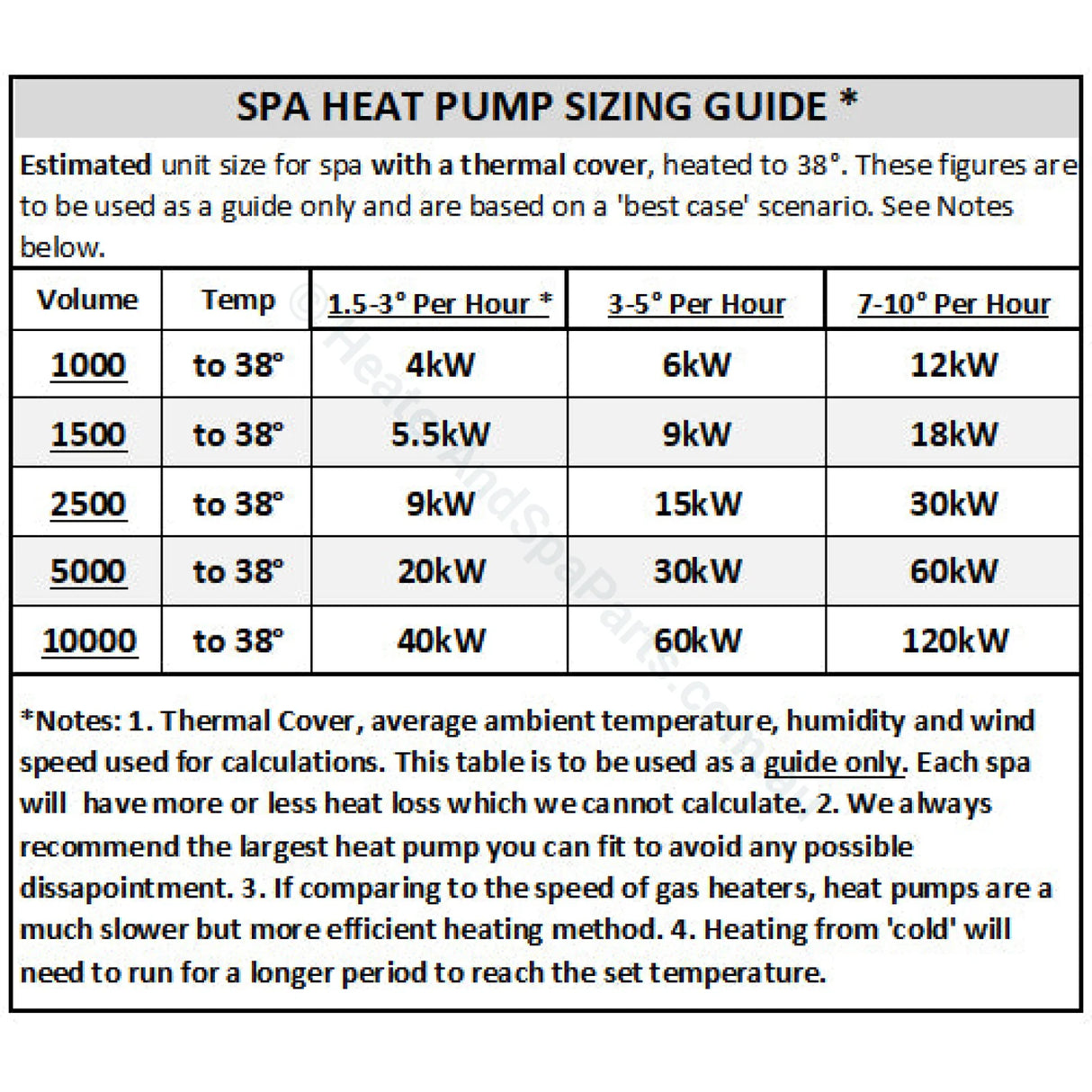

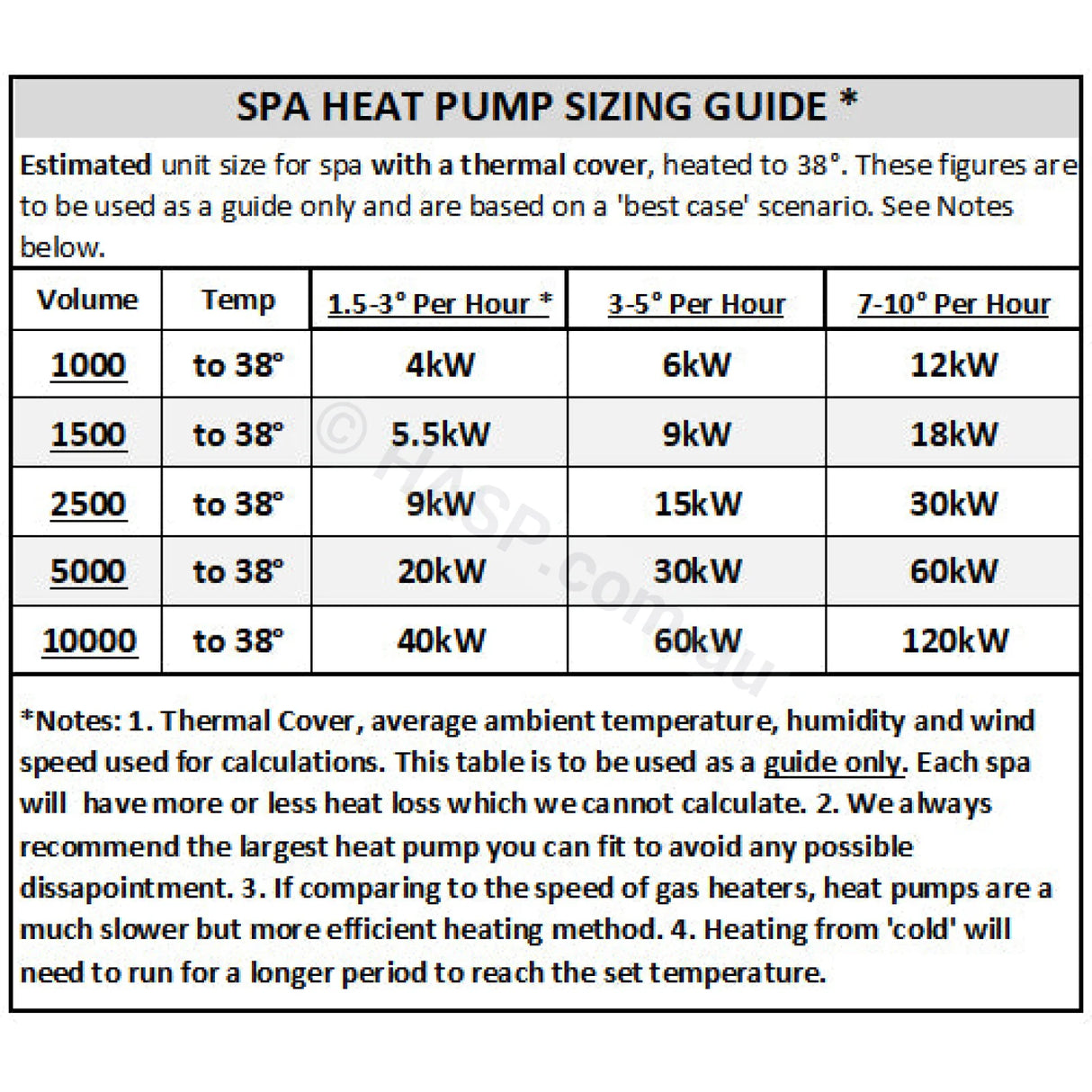

Spa Heater Sizing Guide **
|
5° Per Hour (Max) |
10° Per Hour (Max) |
20° Per Hour (Max) |
1000l |
6kW |
12kW |
24kW |
1,500l |
9kW |
18kW |
36kW |
2,500l |
15kW |
29kW |
58kW |
5,000l |
29kW |
58kW |
116kW |
10,000l |
58kW |
116kW |
232kW |
* These values are calculated using the average temperature, humidity and wind speed in the location listed. The above table lists sizes for an extended season with a swimming temperature of 28 degrees Celsius.
Calculations are based on average pool dimensions for an in-ground pool using a cover with a run time of 10 hours a day with an average wind exposure and standard shading.
** Spa temperature rises are based on an insulated spa with thermal hard cover & ideal conditions. Temperature rises are a maximum theoretical temperature rise for water and based on the maximum output of a heat pump.
Where possible we recommend going at least one size above to avoid dissapointment. These tables are a guide to be used as a guide only and we take no responsiblity for innaccurate sizing, as there are too many variable to account for all scenarios.
Features:
- Wifi APP control
-
COP up to 11 - (Air 27℃/Water 27℃/Humidity 80%) The Sensa-Heat ES will adjust the heating capacity according to the pool temperature. When running at 20%-25% speed, it reaches the highest COP11. With low-speed running philosophy, Sensa-Heat ES is more energy saving than a On/Off heat pump.
-
R32/R410A gas - R32 is a new gen refrigerant for pool and spa heat pumps. Sensa-heat uses this in all models making for a more efficient heat pump with a lower environmental impact.
-
EEV technology - 10 times flexibility to adjust the gas flow and increase COP by up to 20%.
-
Twisted titanium heat exchanger - 40% higher efficiency than normal titanium heat exchanger.
-
Soft starting - Soft start technology smoothes out the start up power demend. And can reduce start up power demand by up to 70%
-
Hot gas defrosting - Saginomiya 4-way valve for quick & efficient deforesting.
- Stable DC Inverter
- Anti-rust ABS casing
- Designed for 0℃ operation

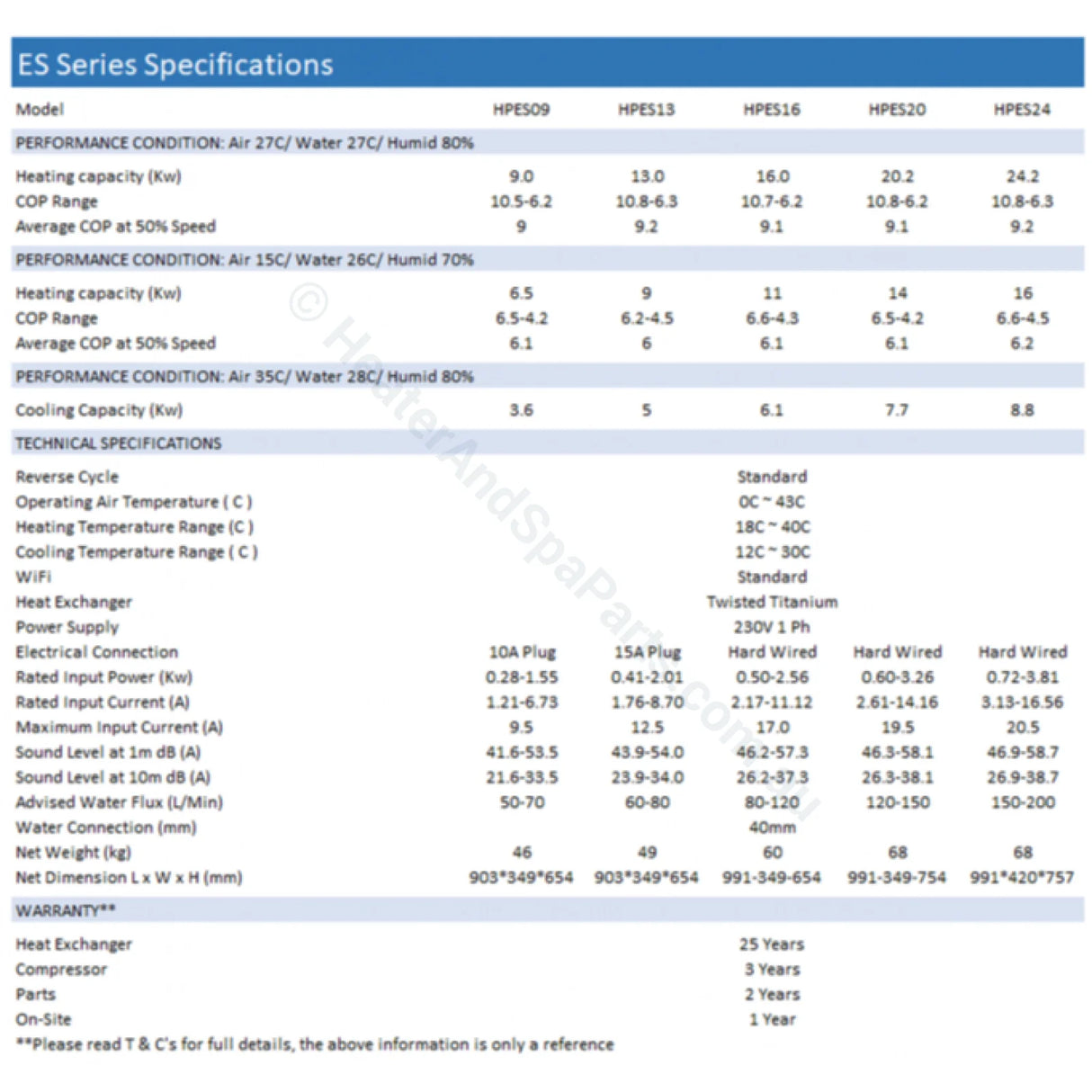

Details & More Information:
Model |
HPES09 |
HPES13 |
HPES16 |
HPES20 |
HPES24 |
PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% |
Heating capacity |
9.0kW |
13.0kW
|
16.0kW
|
20.2kW
|
24.2kW
|
COP Range |
10.5~6.2 |
10.8~6.3 |
10.7~6.2 |
10.8~6.2 |
10.8~6.3 |
Average COP at 50% Speed |
9 |
9.2 |
9.1 |
9.1 |
9.2 |
PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70% |
Heating capacity |
6.5kW
|
9.0kW
|
11.0kW
|
14.0kW
|
16.0kW
|
COP Range |
6.5~4.2 |
6.2~4.5 |
6.6~4.3 |
6.5~4.2 |
6.6~4.5 |
Average COP at 50% Speed |
6.1 |
6 |
6.1 |
6.1 |
6.2 |
TECHNICAL SPECIFICATIONS |
Operating air temperature |
0℃~43℃
|
Heat exchanger |
Twisted Titanium Heat Exchanger |
Power supply |
230V/1 Ph/50Hz |
Rated input power |
0.28~1.55kW |
0.41~2.01kW |
0.50~2.56kW |
0.60~3.26kW |
0.72~3.81kW |
Input power at 50% Speed |
0.53kW |
0.75kW |
0.9kW |
1.15kW |
1.29kW |
Rated input current |
1.21~6.73A |
1.76~8.70A |
2.17~11.12A |
2.61~14.16A |
3.13~16.56A |
Maximum input current |
8A |
12.5A |
17A |
19.5A |
20A |
Sound level at 1m dB(A) |
41.6~53.5 |
43.9~54.0 |
46.2~57.3 |
46.3~58.1 |
46.9~58.7 |
Sound level by 50% speed 1m dB(A) |
46.8 |
49.5 |
49.7 |
50.6 |
51.1 |
Sound level at 10m dB(A) |
21.6~33.5 |
23.9~34 |
26.2~37.3 |
26.3~38.1 |
26.9~38.7 |
Advised water flow rate |
50-85lpm |
65-100lpm |
100-135lpm |
115-170lpm |
165-200lpm |
R32 gas weight |
550g |
900g |
1000g |
1100g |
|
Net dimension LxWxH (mm) |
864*359*648 |
864*359*648 |
954*359*648 |
954*359*748 |
954*429*755 |
Net Weight |
47kg |
49kg
|
60kg
|
68kg
|
65kg |
Remarks: * The data above is only for reference. For specific data, please refer to the nameplate on the unit. |
