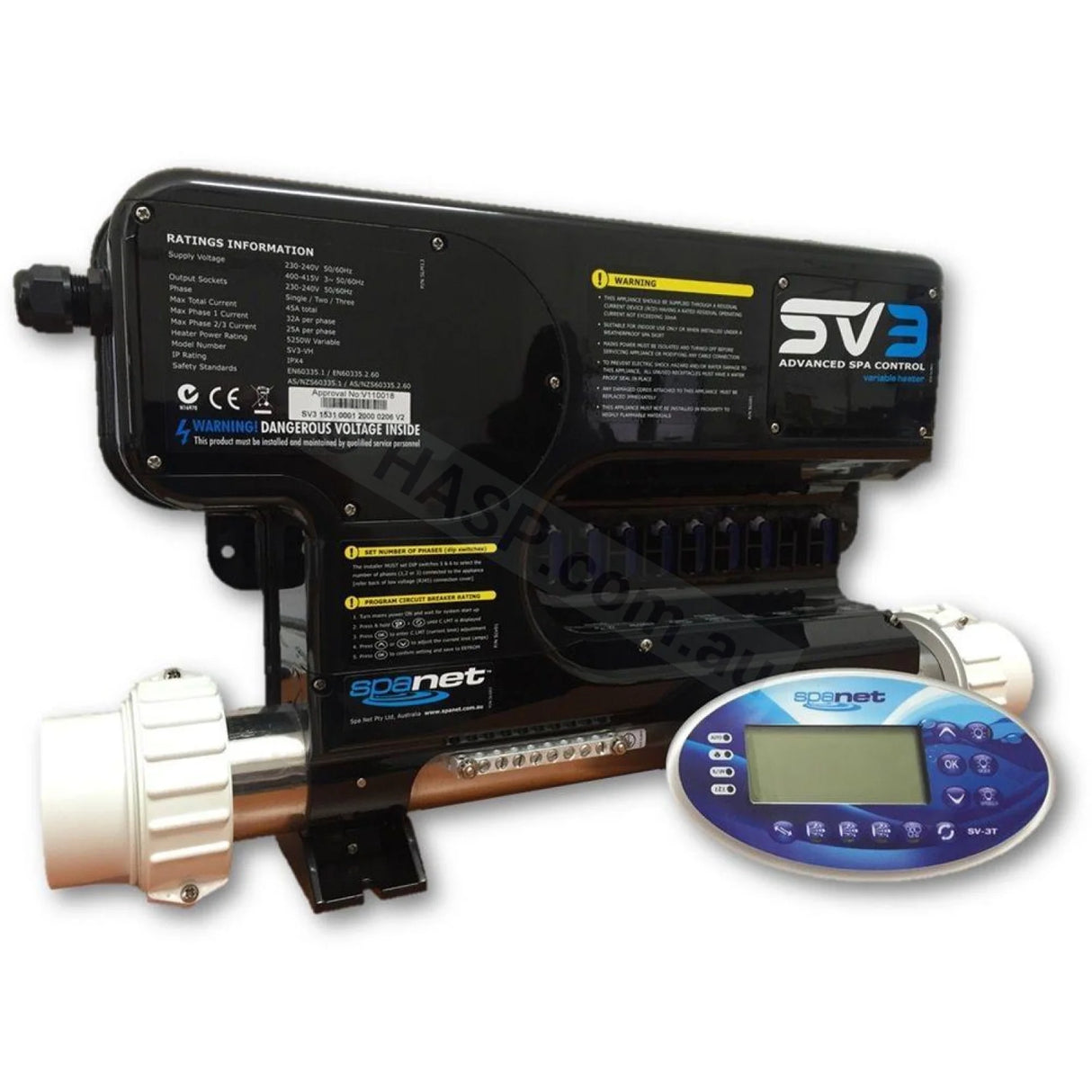

SpaNet SV3 Spa Controller with Touchpad - aka VSX4 3VH
SpaNet SV3 Spa Controller with Touchpad - aka VSX4 3VH - is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
SpaNET SV3 Spa Control System and Spare Parts. The SpaNET PowerSMART SV3 Spa control system sets a new standard in equipment levels for small to medium sized spas. Designed to operated 2, 3, or 4 pump* spas, the SV3 features Smart Variable Heater technology with Dynamic Thermal Tuning. SV3 Controls are supplied ready-to-connect to SV Series Heat Pumps and the SV Smartlink Wifi.
Compatible with Vortex® Spas VSX4 3VH - All Parts are interchangeable, with the only difference being the touchpad label.
Supports:
1 or 2-Speed Pump + 1-Speed Pump OR 1x Circulation Pump + 3x 1-Speed Jet Pumps, Blower, Ozone, LED Lighting
Replacement Spare Parts Available:
- Complete control system with touchpad
- Controller with heater
- Touchpad Keypad Control Panel
- Main PCB V1 / V2
- Brain PCB V1 / V2
- Heater V1 / V2
- Optical Sensor
- Blower Triac
- Transformer
- 50mm Barrel Union (1 set)
- SV WiFi Module
To be fitted by a Licensed, Qualified and Experienced person.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
Imperial Name | Metric Name | Pipe Diameter (OD) |
---|---|---|
1" | 25 mm | ~33.4–33.7 mm |
1.5" | 40 mm | ~48.1–48.4 mm |
2" | 50 mm | ~60.2–60.5 mm |
2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
---|---|---|---|---|---|
1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
Imperial Name | Metric Name | Inside Diameter (ID) |
---|---|---|
3/8" | 9–10 mm | ~9 mm |
3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
---|---|---|
1/16" BSP | 7.7 mm / 0.304" | 28 |
1/8" BSP | 9.7 mm / 0.383" | 28 |
1/4" BSP | 13.16 mm / 0.518" | 19 |
3/8" BSP | 16.66 mm / 0.656" | 19 |
1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
5/8" BSP | 22.99 mm / 0.902" | 14 |
3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
7/8" BSP | 30.20 mm / 1.189" | 14 |
1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
1-1/4" BSP | 41.91 mm / 1.650" | 11 |
1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
2-1/4" BSP | 65.71 mm / 2.587" | 11 |
2-1/2" BSP | 75.18 mm / 2.960" | 11 |
3" BSP | 87.88 mm / 3.460" | 11 |
4" BSP | 113.03 mm / 4.450" | 11 |
5" BSP | 138.43 mm / 5.450" | 11 |
6" BSP | 163.83 mm / 6.450" | 11 |
