Zodiac SpaBot - Robotic Spa Cleaner - Spa Robot Vacuum
Zodiac SpaBot - Robotic Spa Cleaner - Spa Robot Vacuum is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

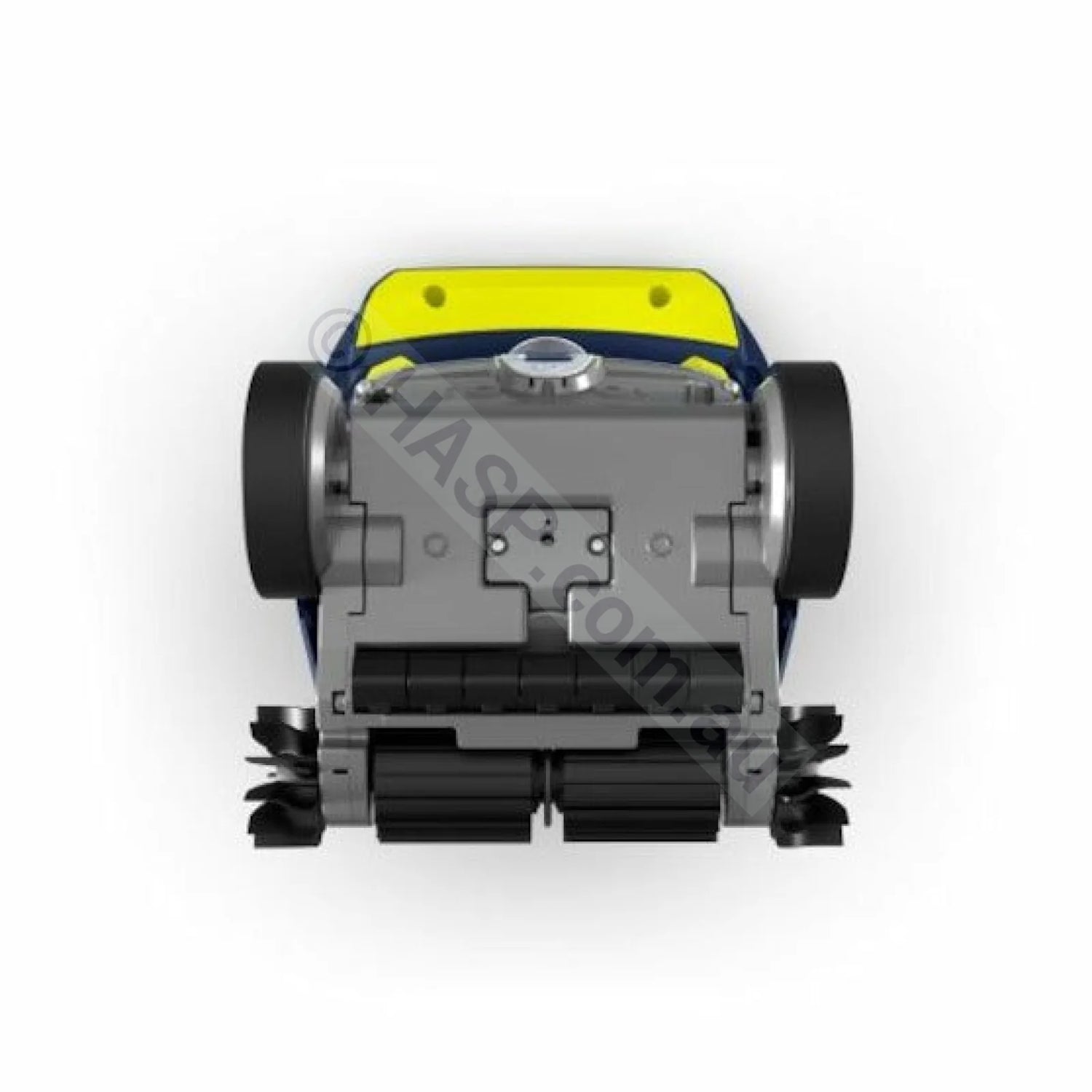

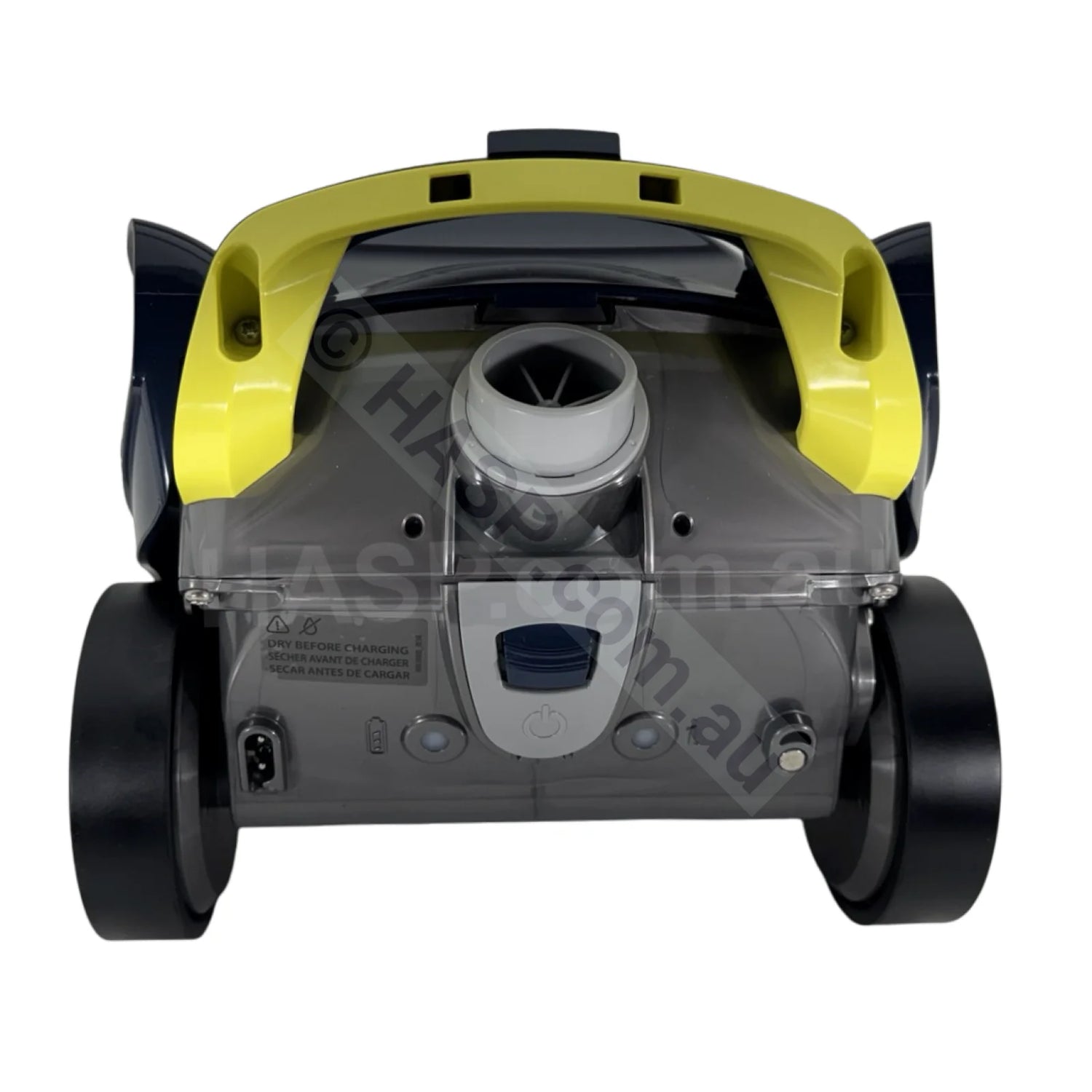

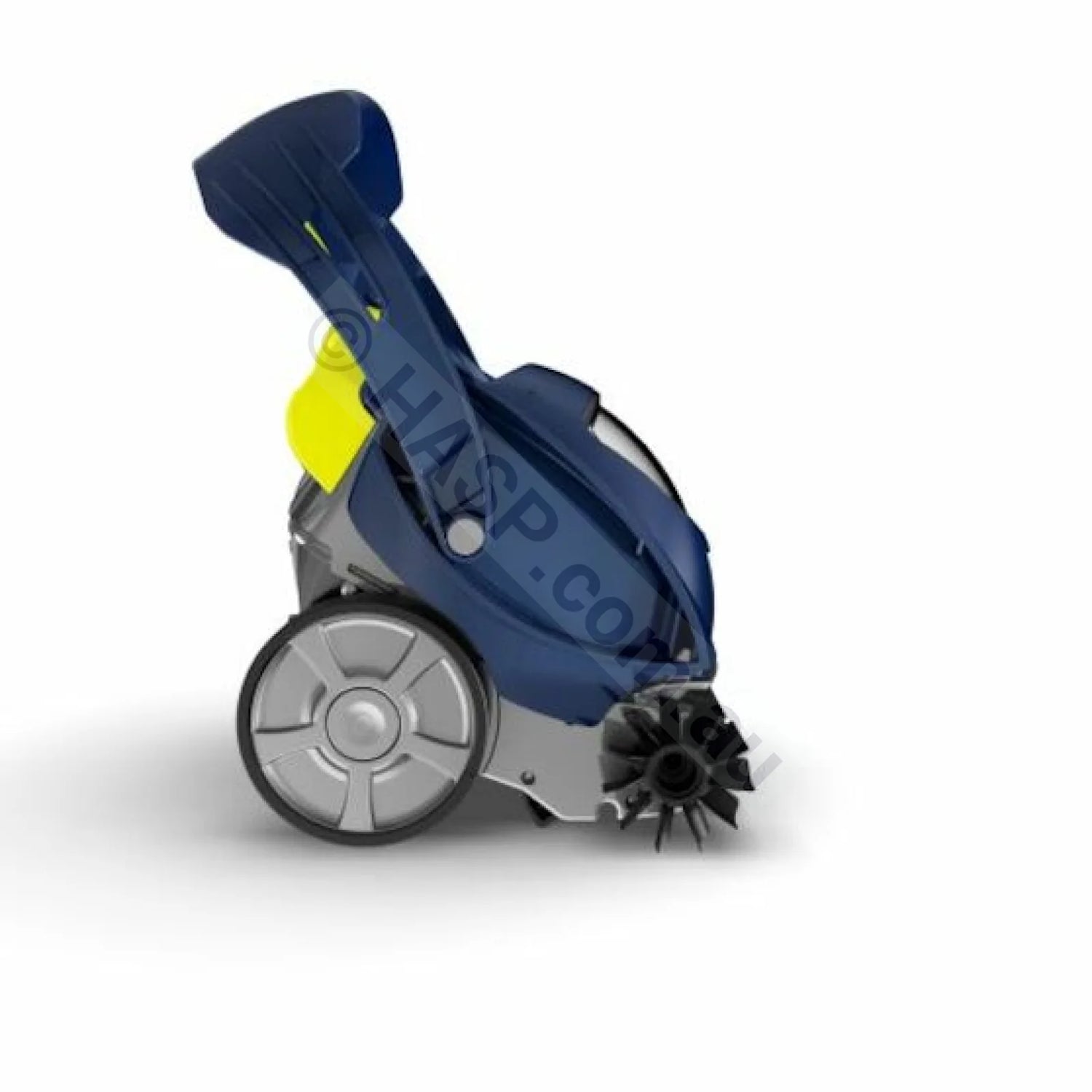

The Zodiac SPABOT™ SB1000 is the first rechargeable autonomous robot specially designed to clean spas. Powered by a Lithium-ion battery, just turn it on, let it clean, remove it at the end of its one-hour cycle and recharge it.
- Physically Kept in Stock. Fast Shipping or Pick Up!
- 10 Industry Blvd, Carrum Downs Vic 3201
Thanks to its Float Finish™ technology, SPABOT™ floats to the surface at the end of its cycle for an effortless retrieval.
Details:
- Spa Size to 3m x 3m
- 60min Cleaning Cycle
- Robot Size: 28cm x 26cm x 23cm - 2.5kg
- Filter Size: 1 litre
- Battery: 6Ah | Charging time: ~4 hours
- 100 micron filter
- Motors: 3
- Dimensions: 280mm x 255mm x 230mm
- Float Finish Retrieval
- Documentation: User Manual | Brochure & Datasheet
Suitable for:
- Inground or above-ground spas
- Spas without intricate seating and footwells and/or 90° floor to wall transitions
- Sizes up to 3m x3m
Effortless Spa cleaning - The first-ever automatic cleaner for home spas. SPABOT™ is an autonomous robotic cleaner that is also cordless thanks to its 6Ah rechargeable lithium-ion battery. Its indicator lights show the device’s charge level and its progression through the cycle steps.
Optimal performance - Thanks to its programme especially designed for spas, SPABOT™ efficiently cleans spa floors, seats and the water line in 60 minutes. It is equipped with a 1-L filter canister that provides a 100-micron filtration fineness in order to retain all types of debris.
SPANAV™ TECHNOLOGY - Dips and dives, crawls and climbs to maneuver around the seats and small confines of most spa corners & seats. It is suitable for in-ground or above-ground spas and jacuzzis up to 3m x 3m.
OPTIMAL COVERAGE - Thanks to its programme especially designed for spas, SPABOT™ efficiently cleans spa floors, seats and the water line in 60 minutes.

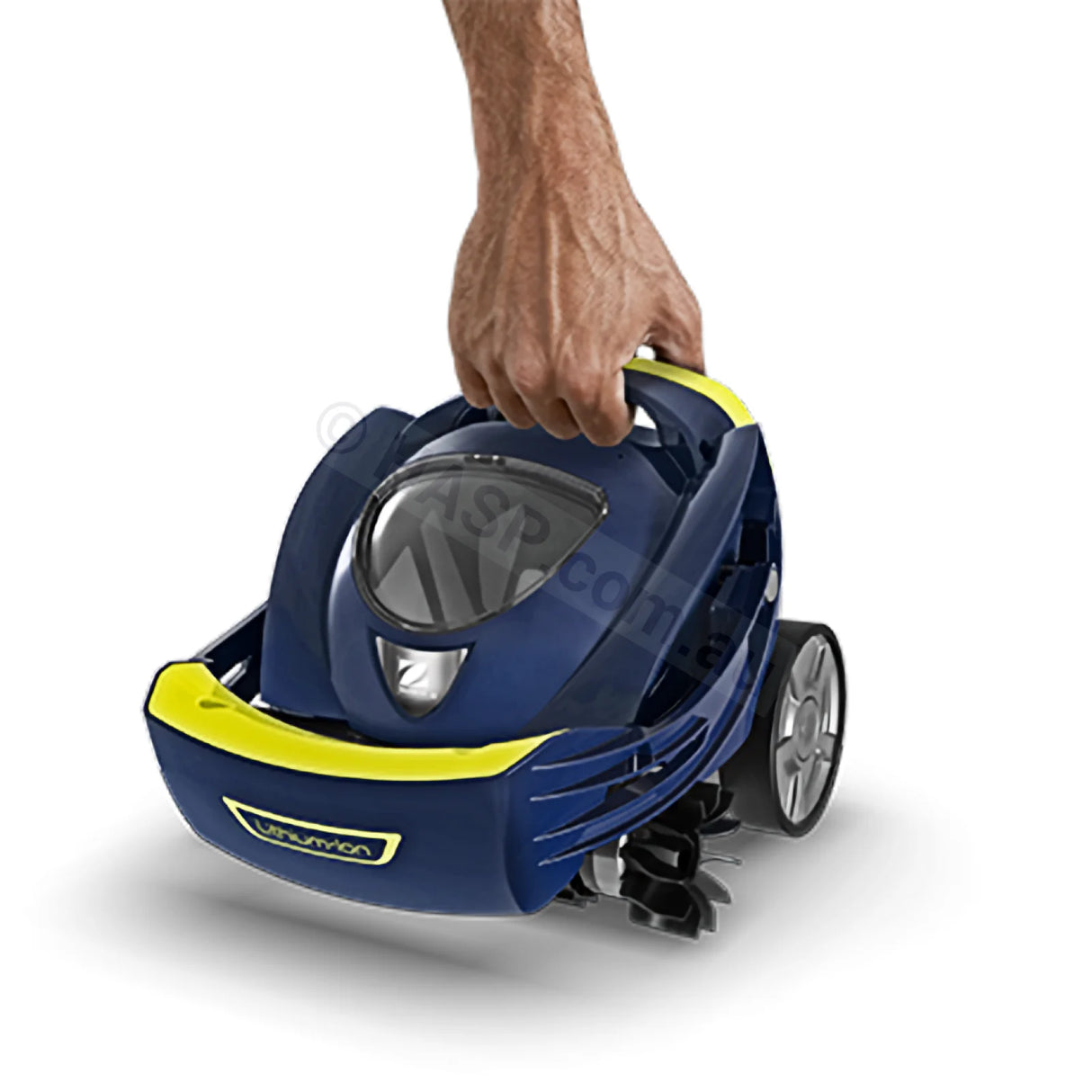

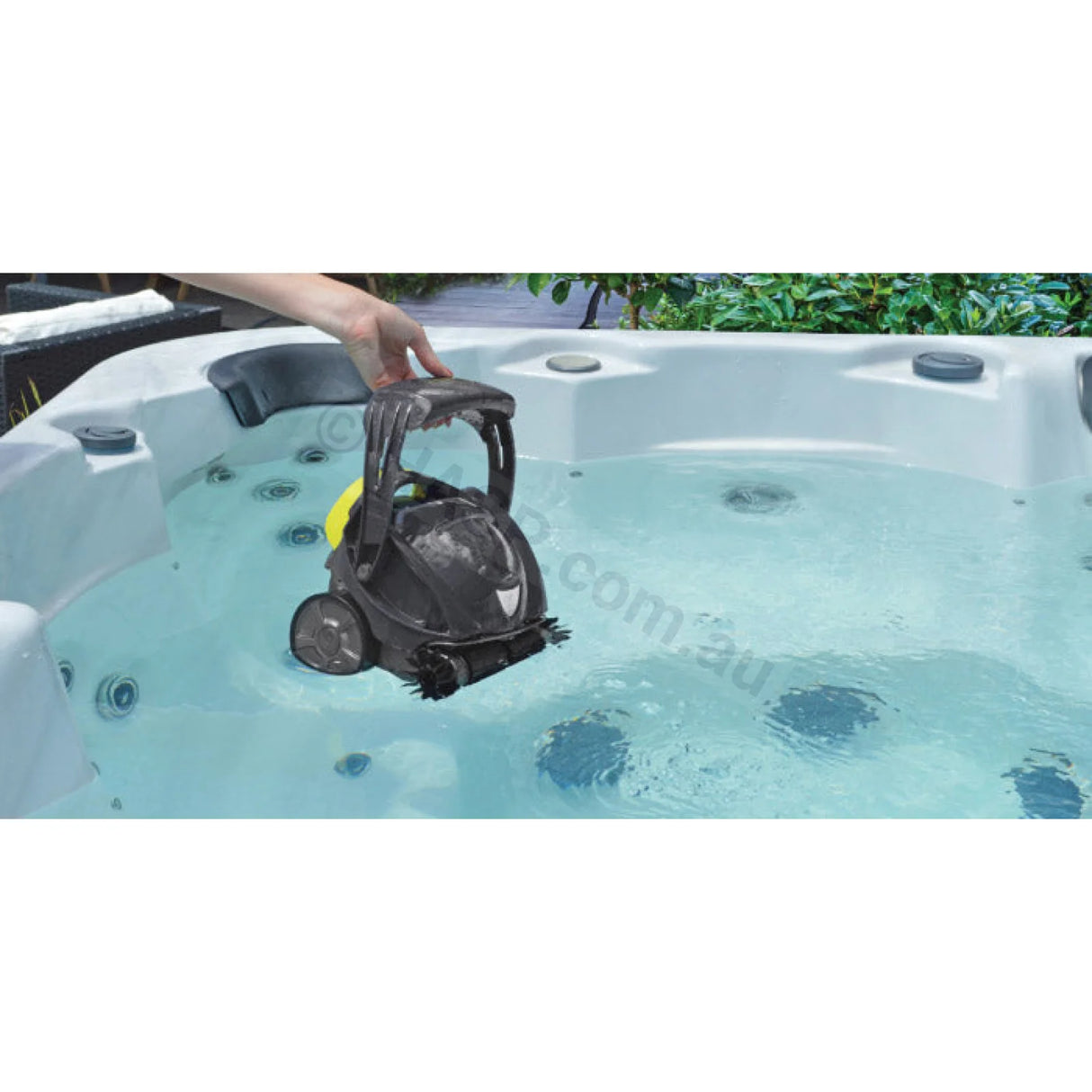

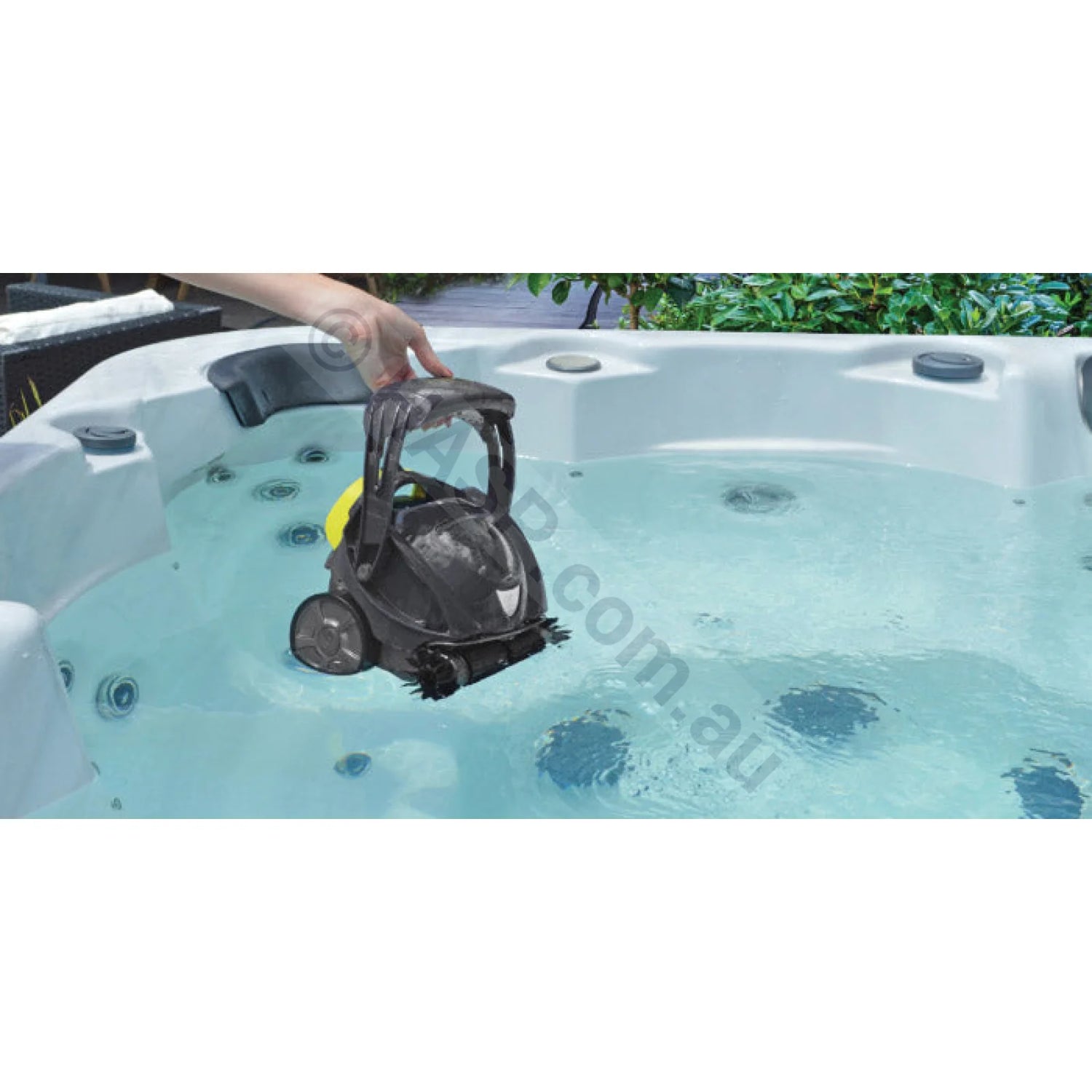

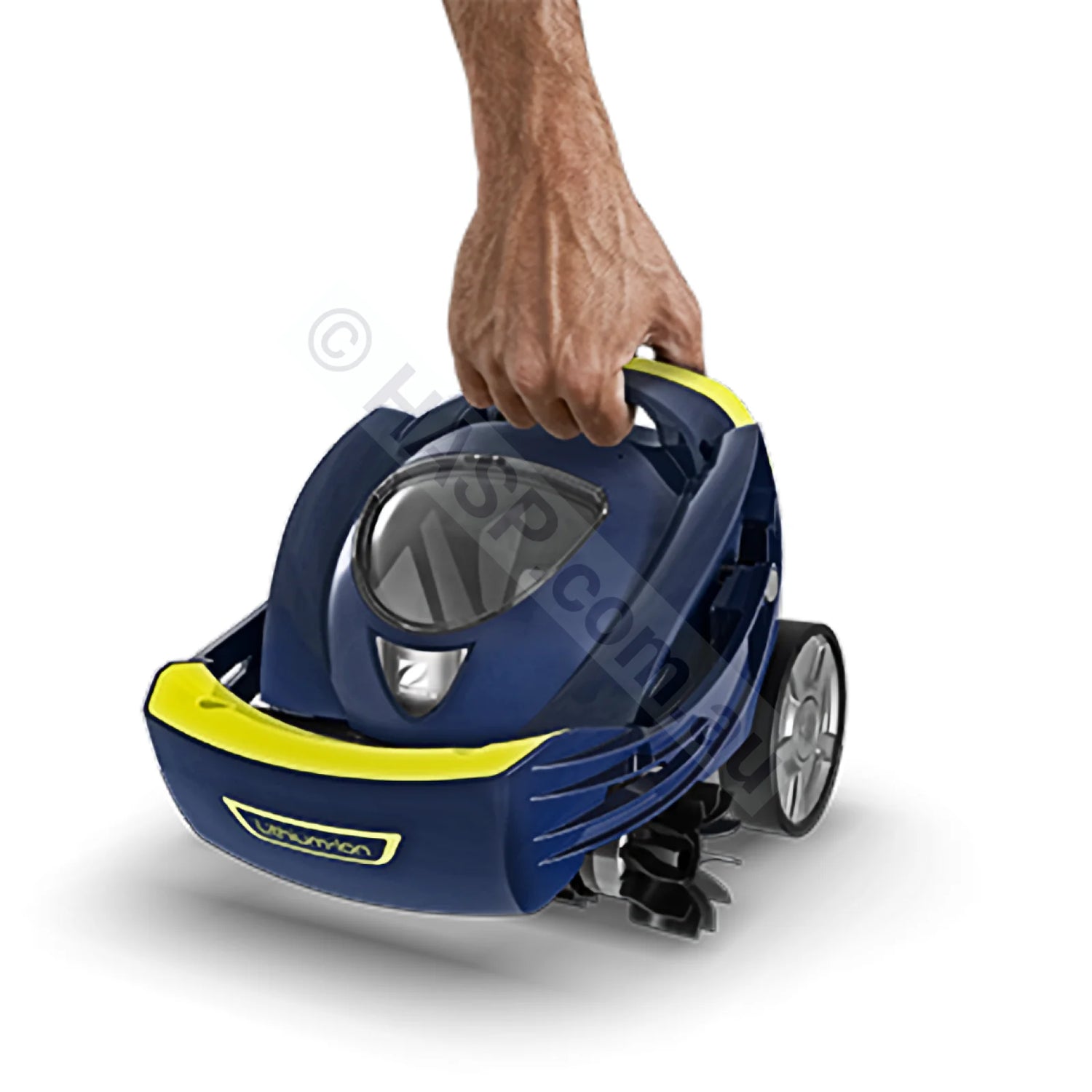

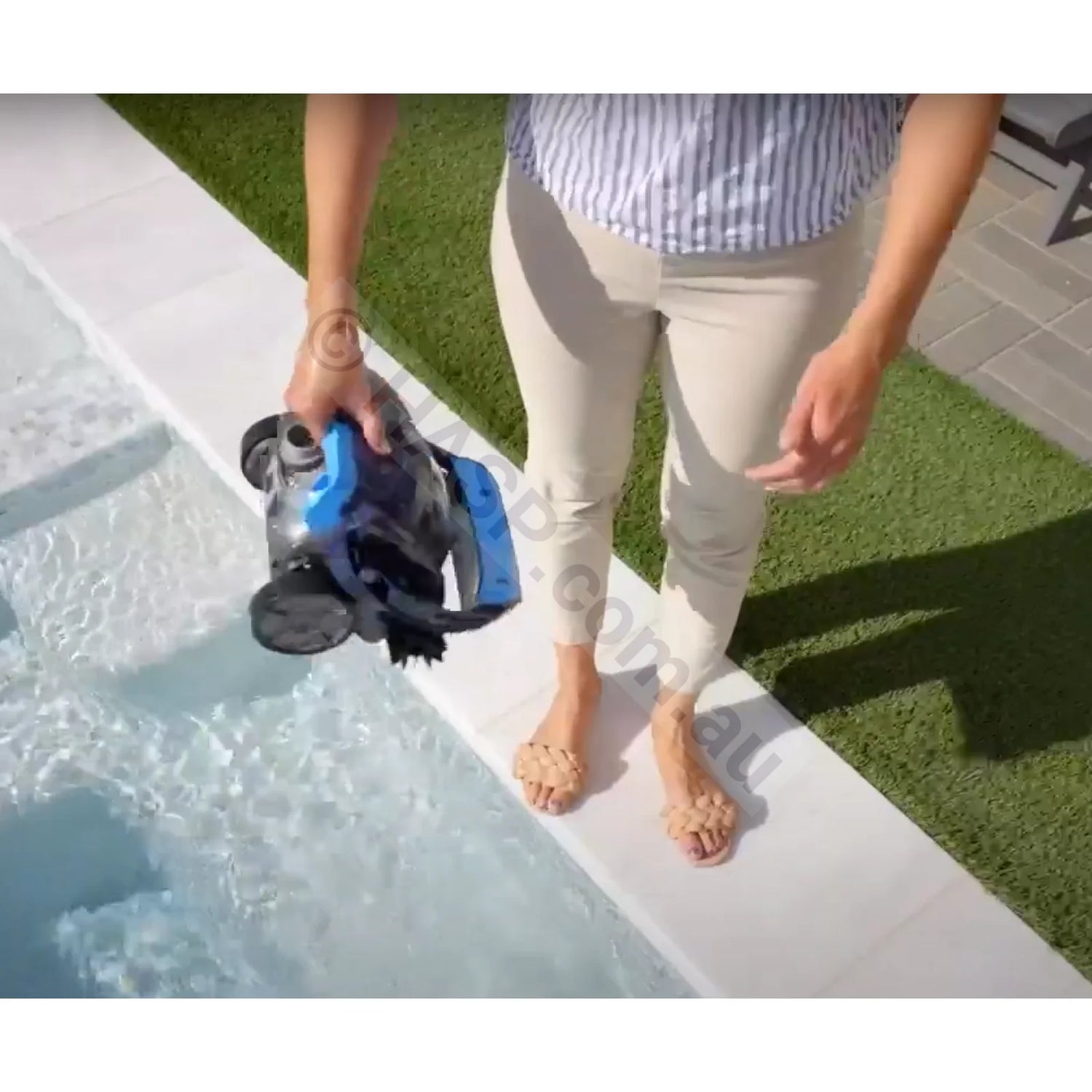

FLOAT FINISH™ RETRIEVAL - Compact and lightweight, weighing only 2.5 kg, SPABOT™ is easy to handle and remove from the spa. It floats at the surface at the end of a cycle, making it easy to retrieve. Debris is readily visible through the clear window and easy to remove through top access to the filter canister. It is normal for the SPABOT™ to float to the surface from time to time to orient itself while it is cleaning the spa.
RS 0800

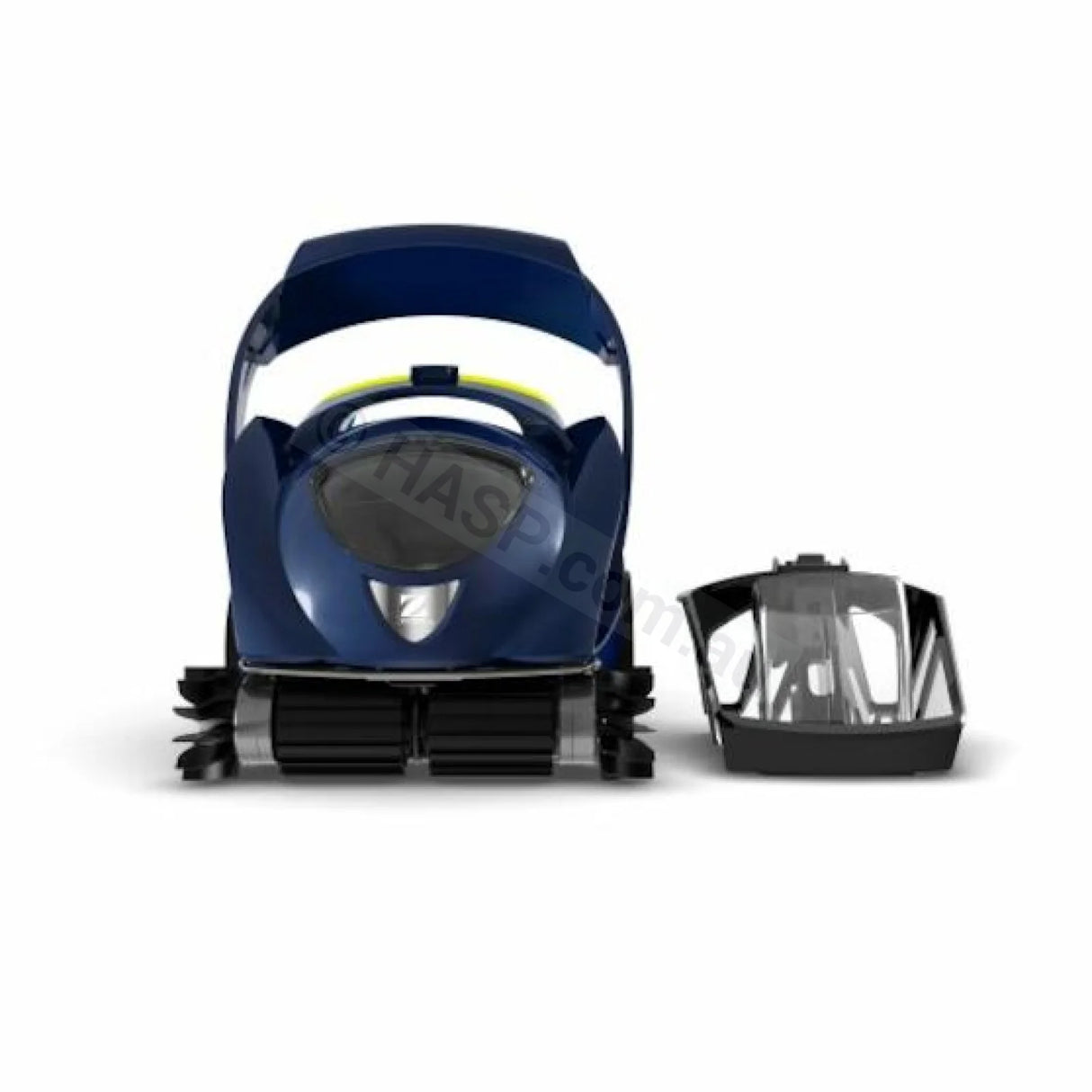

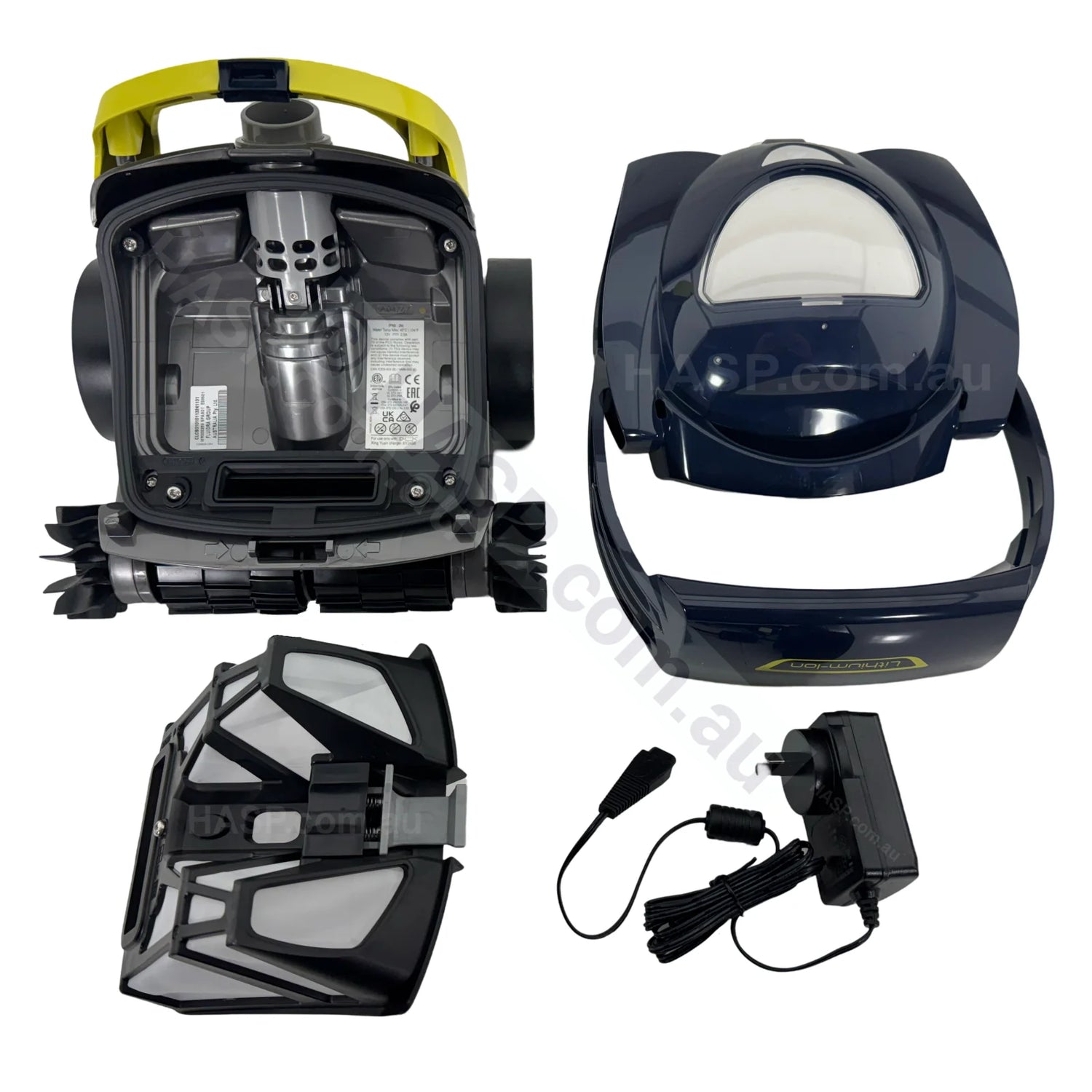

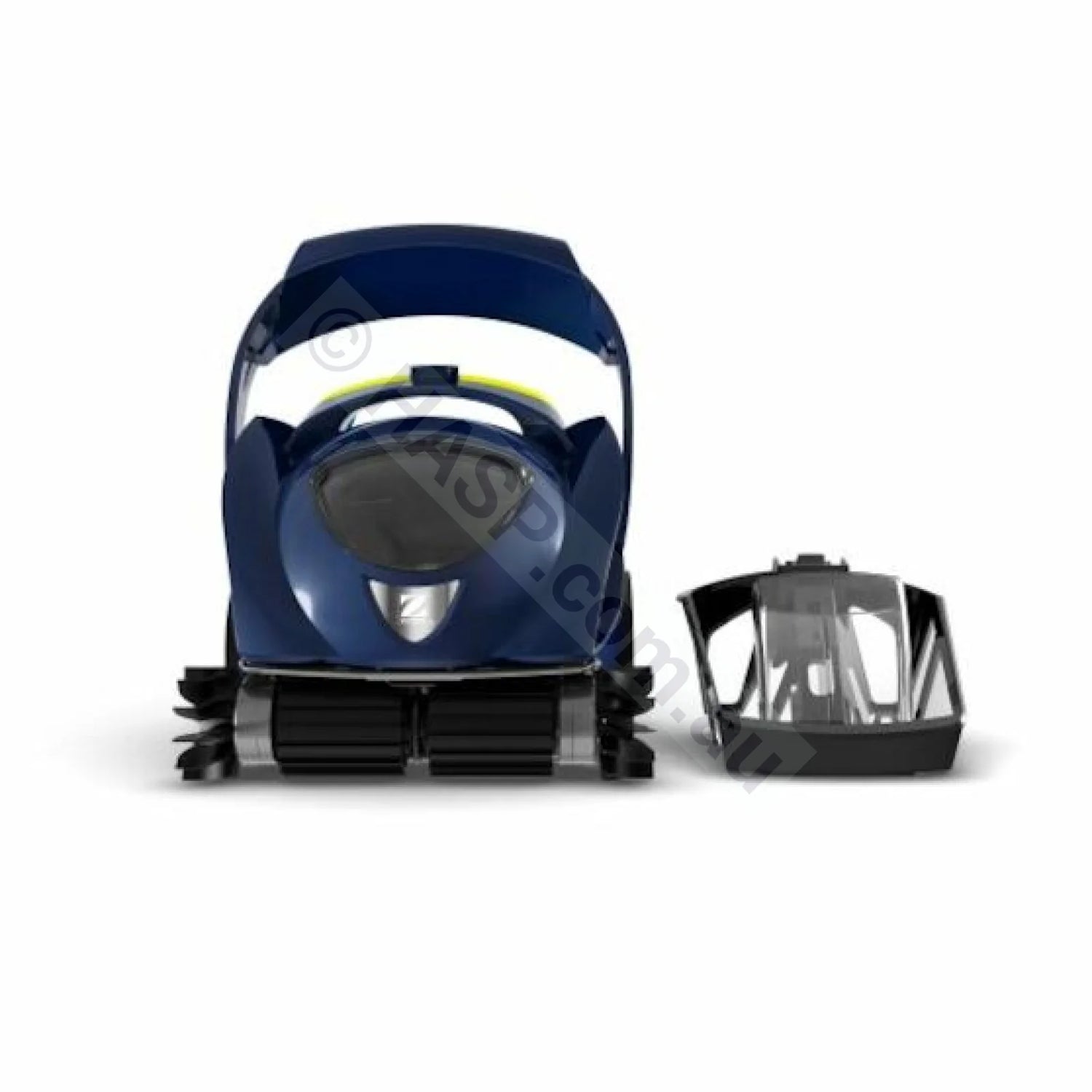

EASY TO USE - SPABOT™ is equipped with a 1L easy clean 100-micron filter canister. The transparent window makes it easy to view when it's full. It has easy one touch start operation. The 6AH lithium-ion WWDG battery charges in just 4 hours, ready to be used again.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
