Balboa SpaTouch Mini Touchpad – Touchscreen Control

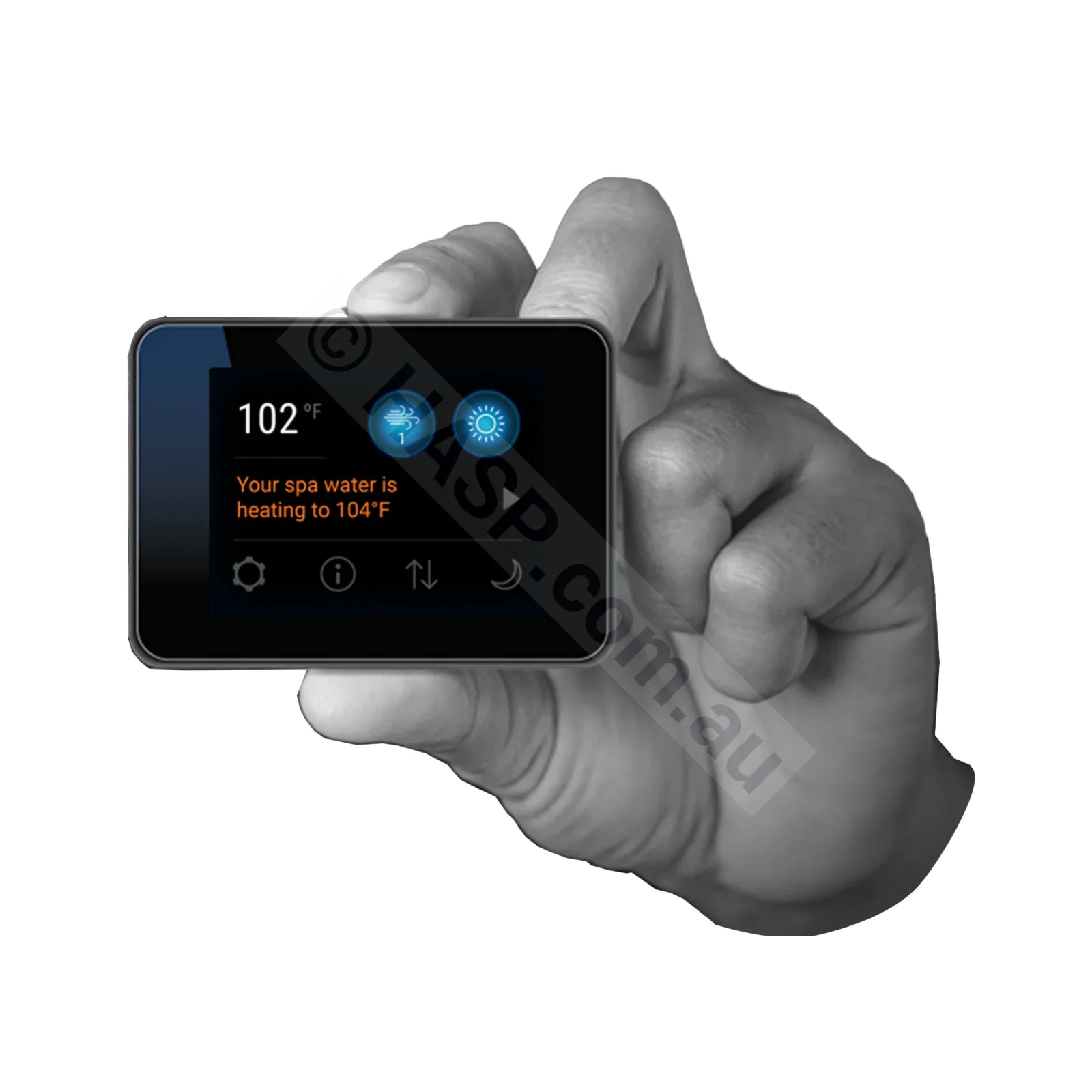

The Balboa SpaTouch Mini is a compact touchscreen touchpad designed for use with Balboa BP series spa packs. It features a 2.9" diagonal screen (58mm x 44mm) in a sleek, space-saving design.

Key Measurements:

• Overall dimensions: 85mm x 61mm

• Cut-out hole required: 70mm x 48mm

• Glass thickness: 2mm

• Height above spa shell: 13mm

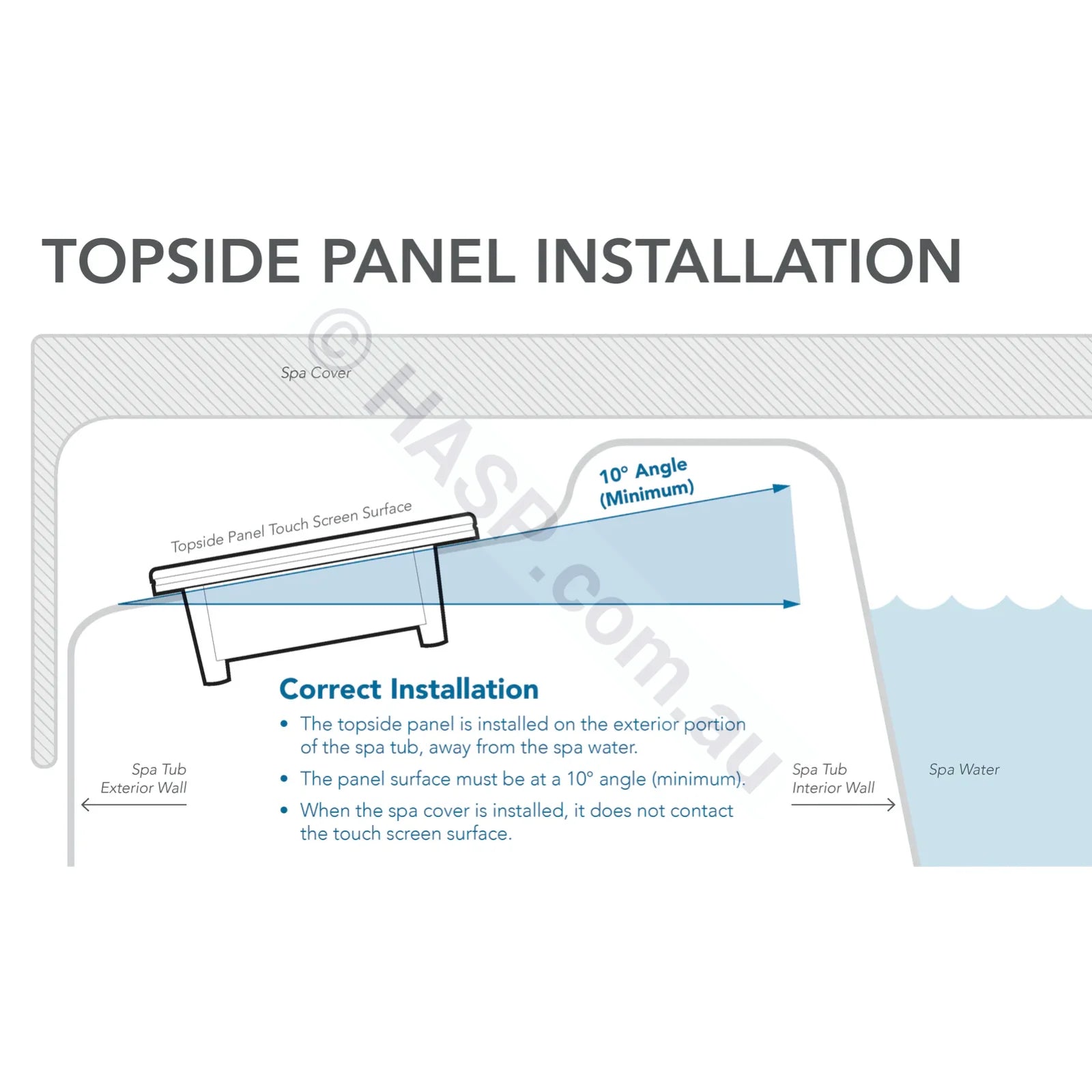

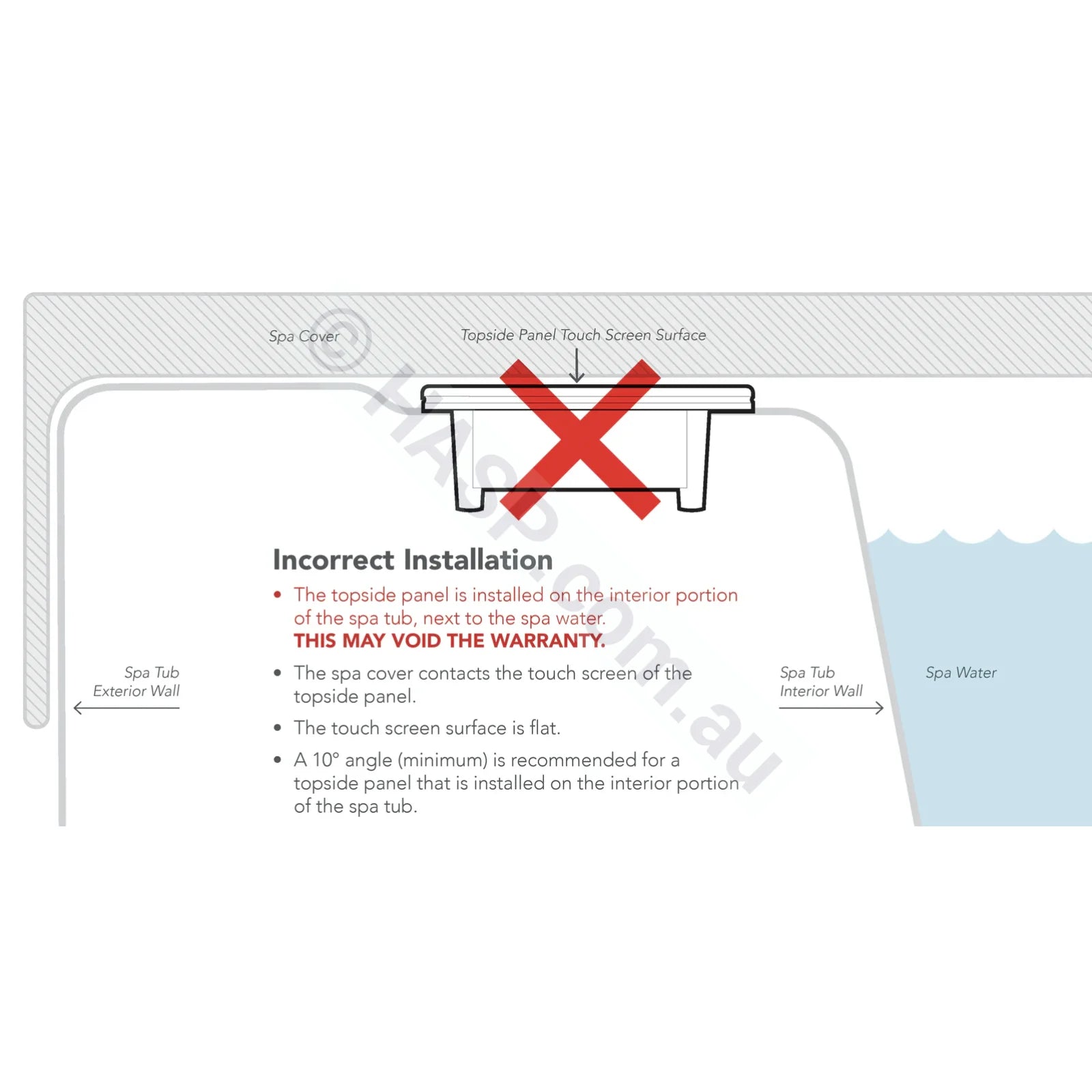

To ensure longevity and proper operation, do not install in areas exposed to moisture or where excess pressure may be applied to the screen. Avoid positioning near spa steps or where someone might stand or fall onto the touchpad. Always ensure the unit is not in contact with the spa cover when closed.
