Description

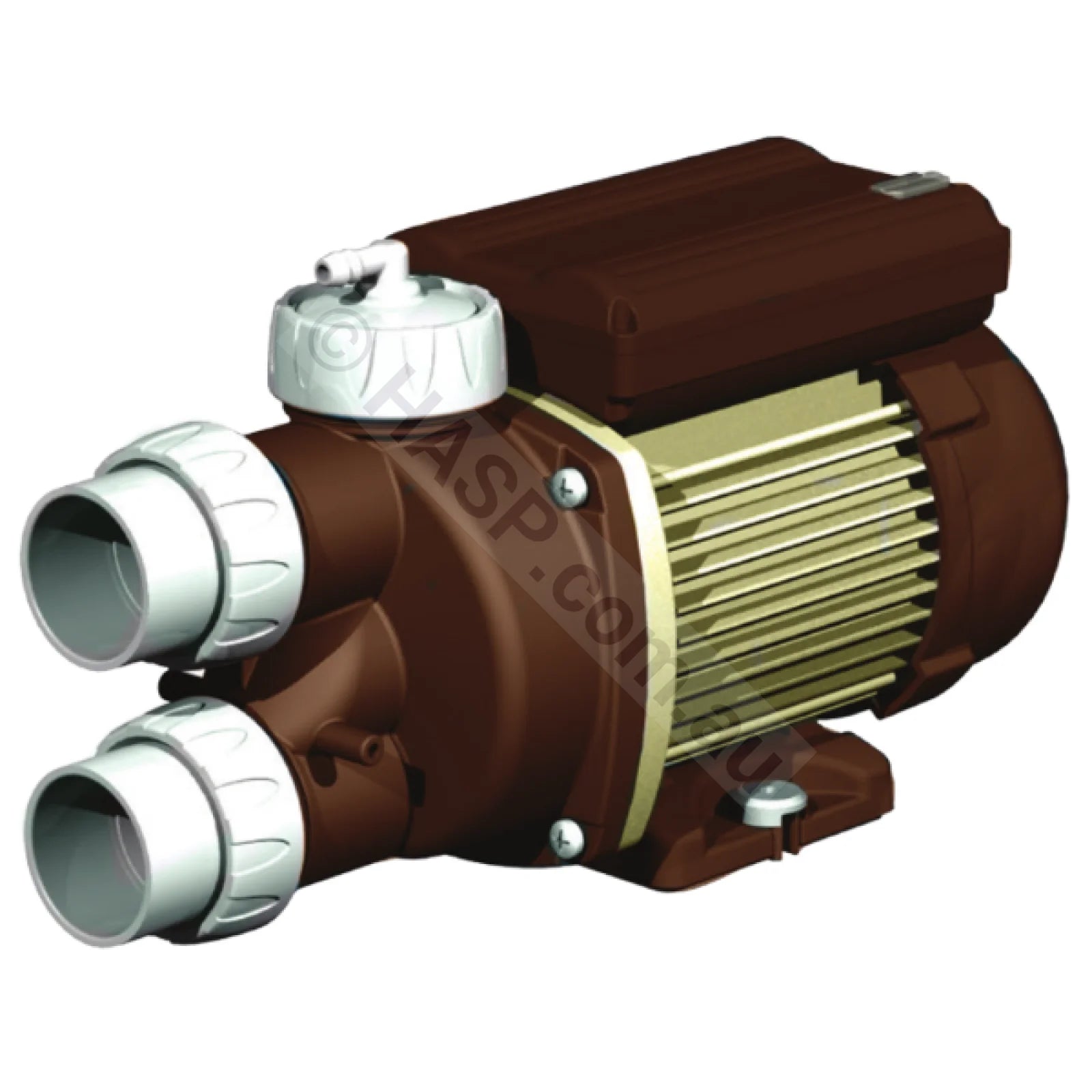

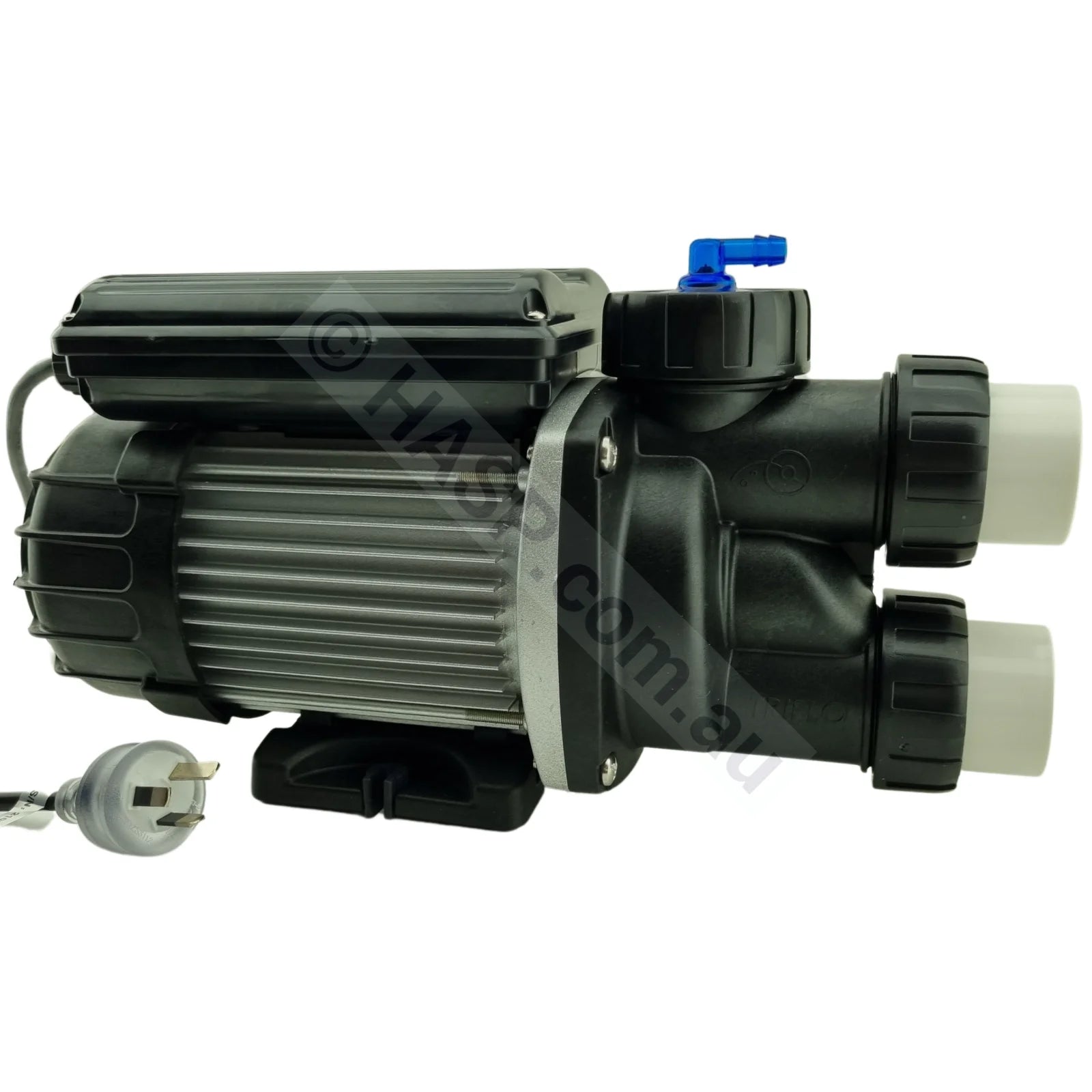

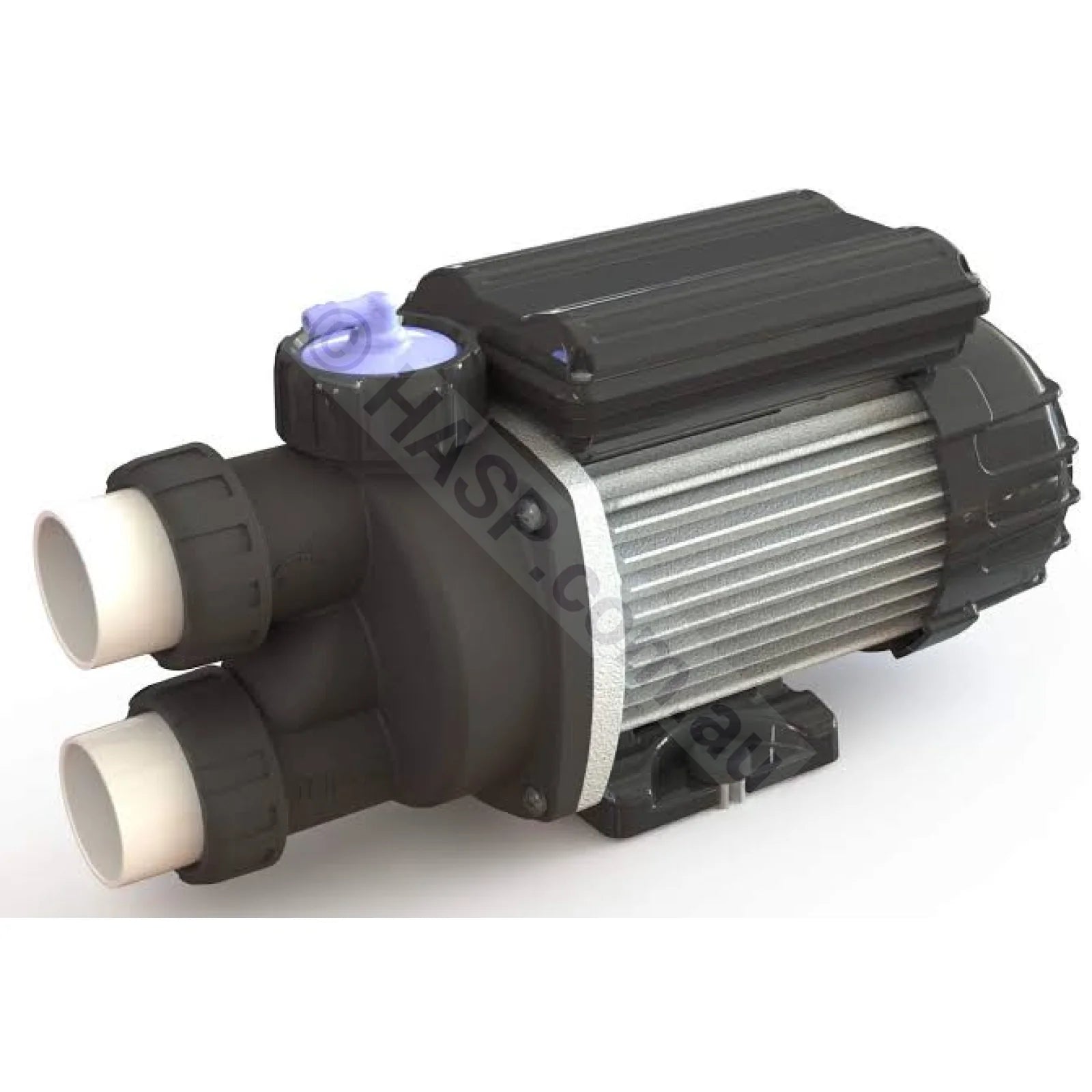

Universal Edgetec / Decina TriFlo 1.0HP Auto-Heat spa bath pumps. Air Switch operated. Motor heat is transferred to the water via the TriFlo's unique backing plate.
Used on many spa baths, and is a great retrofit for any non-heat spa bath pump. Used by Monarch, Decina, Lanark, Round Bath Company, Microjet SpaBath, and many others.
Replacing Other Brands (Davey, Onga, Balboa, Kohler, etc.):
- When replacing obsolete bath pumps from other brands, the old barrel unions( screw-on plumbing fittings) must be cut off and the supplied unions fitted. Some minor plumbing changes may also be required. Any plumber or capable handyman can generally handle this easily.
- This pump replaces several discontinued models, including the Davey XS200, XS250, Bath Pump 230, Onga 2381, 2388, 2391, 2398, 4381, Balboa 2381, 2388, and others.
As with all Davey pump replacements, new unions (included) must be installed to suit this pump.
Details / Models:
- Edgetec / Decina Auto-Heat 1.0hp
- E-6100 - TF075-AH-50 / TF075-AH-50-HF
- E-6200 - DC075-AH / DC075-AH-50-HF
-
Also replaces the following obsolete models:
- E-6106: TF060-AH-50 / TF060-AH-50-HF (0.8hp non-heated)
-
E-6206: DC060-AH / DC060-AH-50-HF (0.8hp non-heated)

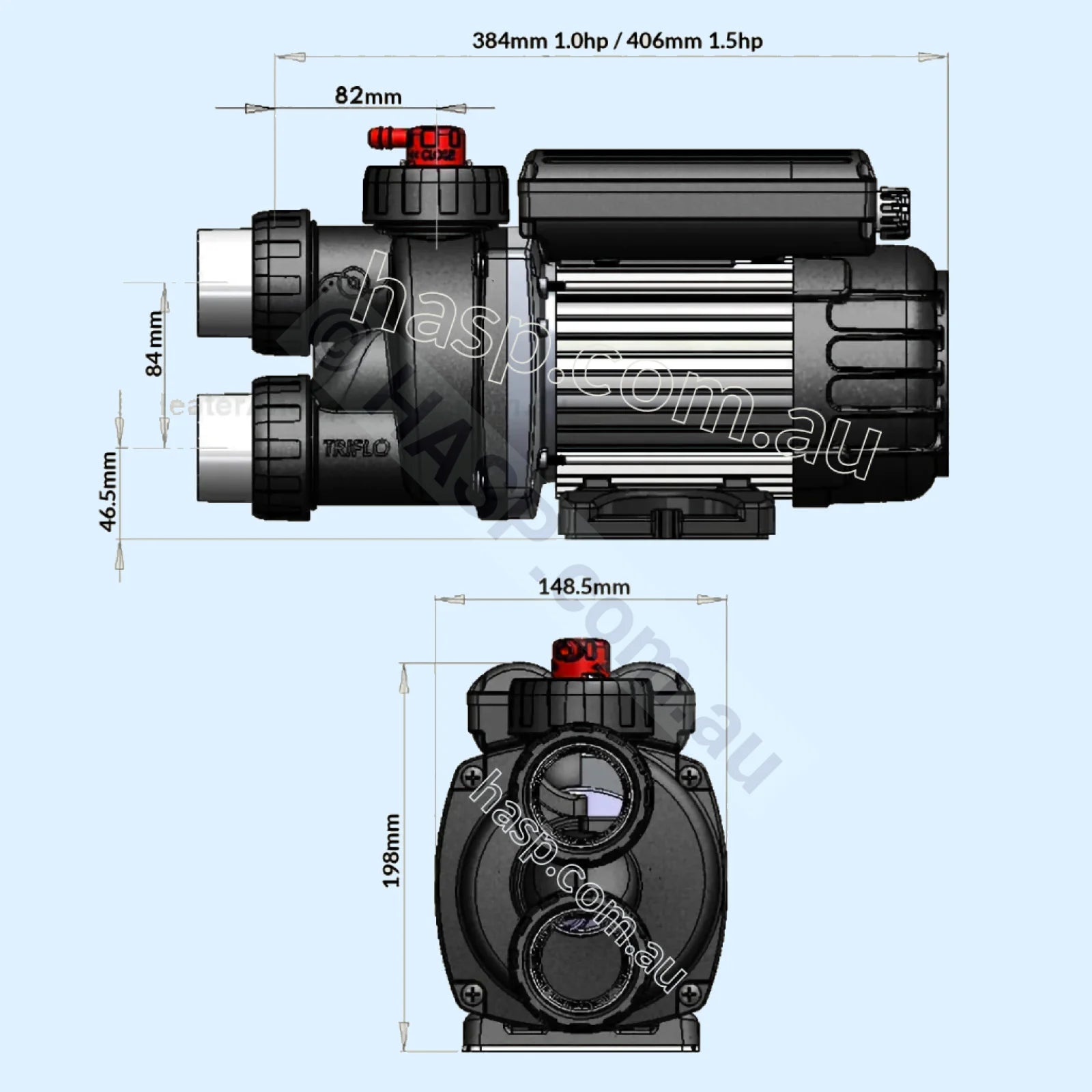

- Dimensions: L: 384mm | W: 148mm | H: 198mm | 10kg
- Warranty: 1 Year Domestic / 6 Month Commercial - Note: we often see these pumps last over 10+ years!
- For use in Spa Baths only - Warranty does not cover use in portable or in-ground spas.
-
Important Note: Includes new barrel unions for plumbing when replacing pumps from other brands (e.g., Davey, Onga, Balboa, Spaquip, Englefield), as each brand uses different unions.
Documentation:
MULTI PORTS: can be plumbed as a top or front discharge plump.
AIR BLEED: Air Bleed can be activated any time should air locking occur, the air bleed has an o'ring seal to ensure positive sealing once air has been expelled.
The TriFlo pump internal design allows the water to self drain so that there is no residue water left in the pump when the spa is emptied in accordance with Local Health Regulations.
TriFlo spa bath pumps are designed for spa bath operation only and should not be used in chemically treated water or permanently filled spas or any other purpose.
