Madimack InverfloQuick Connect Comms Cable - 7 pin to 2 pin
Madimack InverfloQuick Connect Comms Cable - 7 pin to 2 pin is backordered and will ship as soon as it is back in stock.

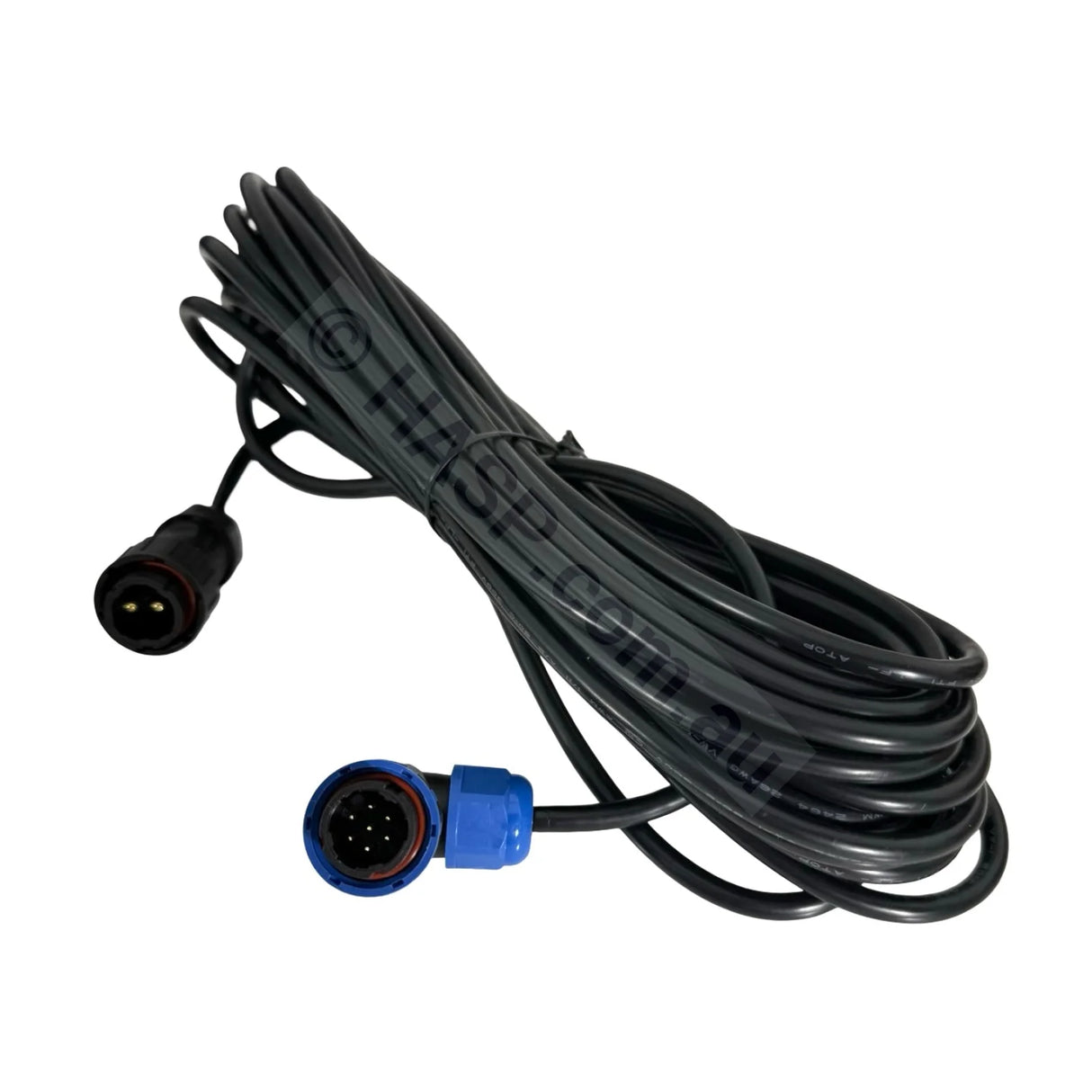

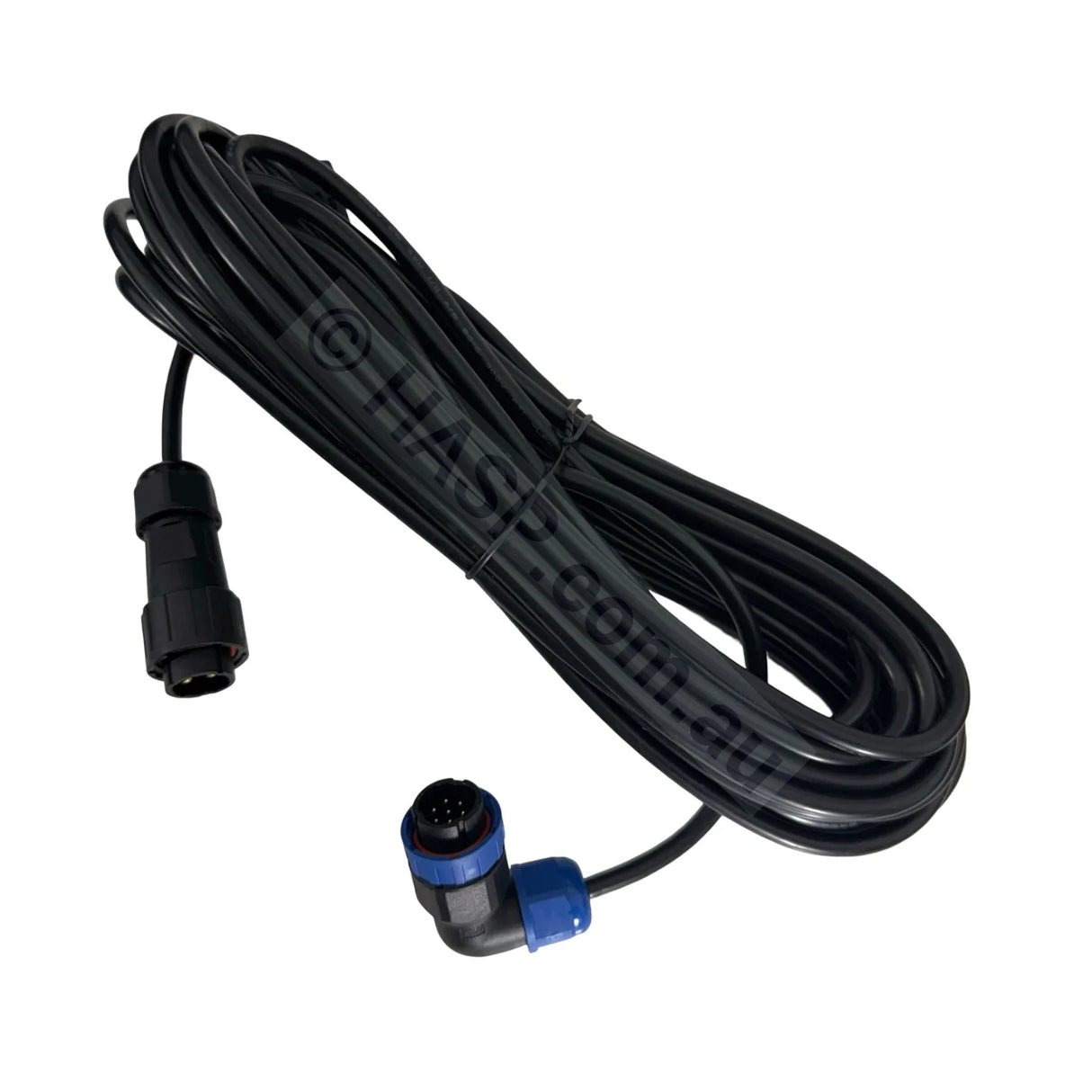

Madimack InverFLOW Quick Connect Comms Cable
Genuine Madimack 20030 / 2004060600042 - 7 pin to 2 pin communication cable for InverFLOW pool pumps to connect to Madimack Heat pumps & controllers. Delivers fast, stable data transfer between the pump and its controller or heat pump for smooth, efficient operation.
Key Features
- Quick Connect: Plug-and-play fitting for fast, hassle-free installation.
- Reliable Communication: Ensures consistent data transmission between pump and control system.
- Durable Construction: Built with quality materials to withstand harsh outdoor conditions.
- Perfect Compatibility: Designed specifically for Madimack InverFLOW Eco pool pumps.
Part Details
| Brand | Madimack |
|---|---|
| Model / Range | InverFLOW |
| Manufacturer Part No. | 2004060600042 |
| Alternate/Supplier Code | SP-INVFLO-Quick Connect Comms Cable ECO |
| Type | Quick Connect Communication Cable |
What’s Included
- 1 × Madimack InverFLOW Quick Connect Comms Cable
Installation
Power off equipment before connecting. Match connectors to pump/controller ports; route cable to avoid pinch points and moisture ingress. If unsure, consult a licensed technician.
FAQs
Is this cable compatible with other Madimack pumps?
It is designed for the InverFLOW series. Check your model or contact support if unsure.
Is this a genuine part?
Yes—genuine Madimack part number 2004060600042.
Do I need any tools?
Typically no—this is a quick-connect cable. Basic tools may help with cable routing/management.
Tip: For best performance, inspect connectors for damage or corrosion before installation. Keep the cable clear of sharp edges and direct sunlight where possible.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
