New-Style Raypak Secondary PCB Circuit Board - Pool Spa Mode and Valve Controller
New-Style Raypak Secondary PCB Circuit Board - Pool Spa Mode and Valve Controller is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
New-Style Raypak Secondary PCB Circuit Board - Pool Spa Mode and Valve Controller is backordered and will ship as soon as it is back in stock.

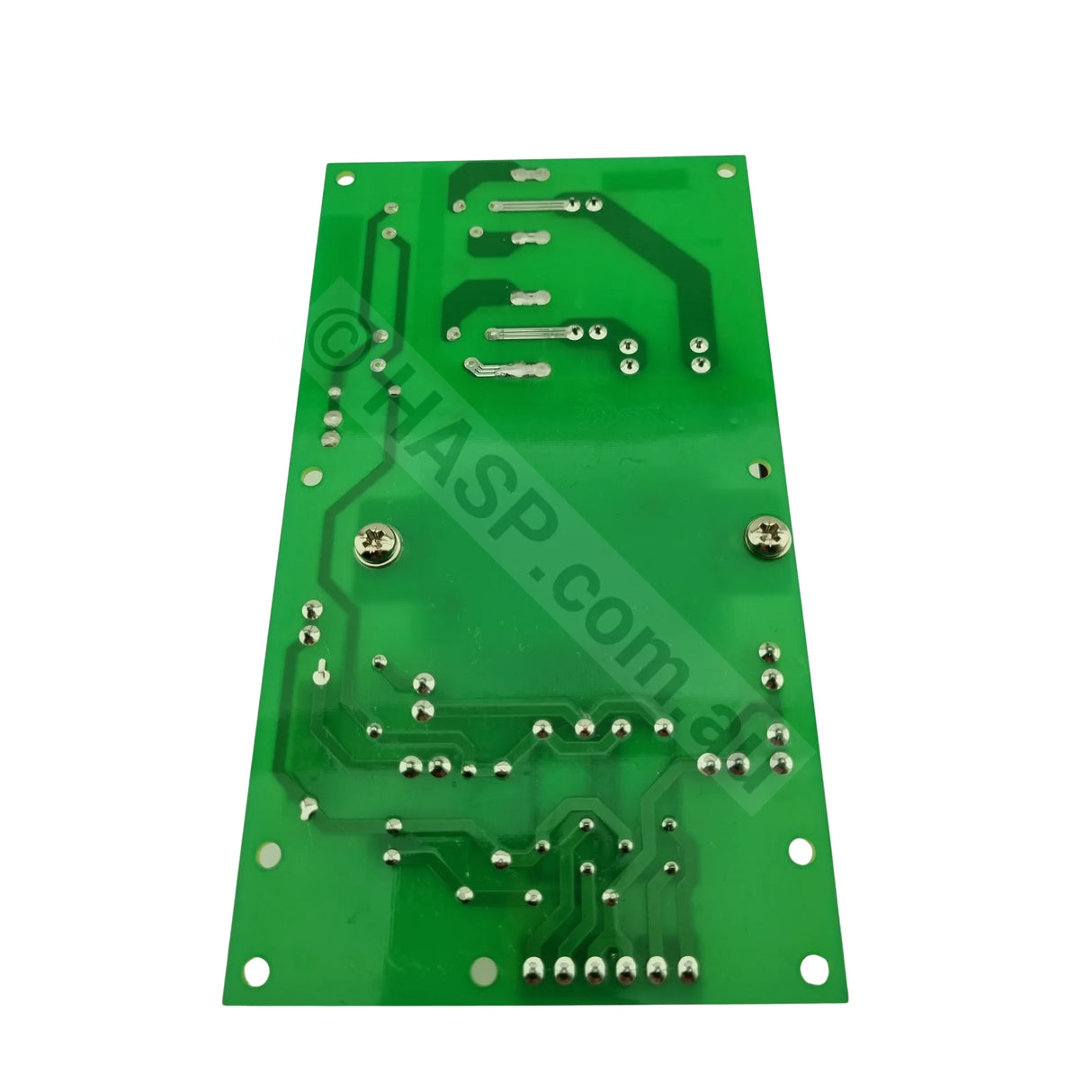

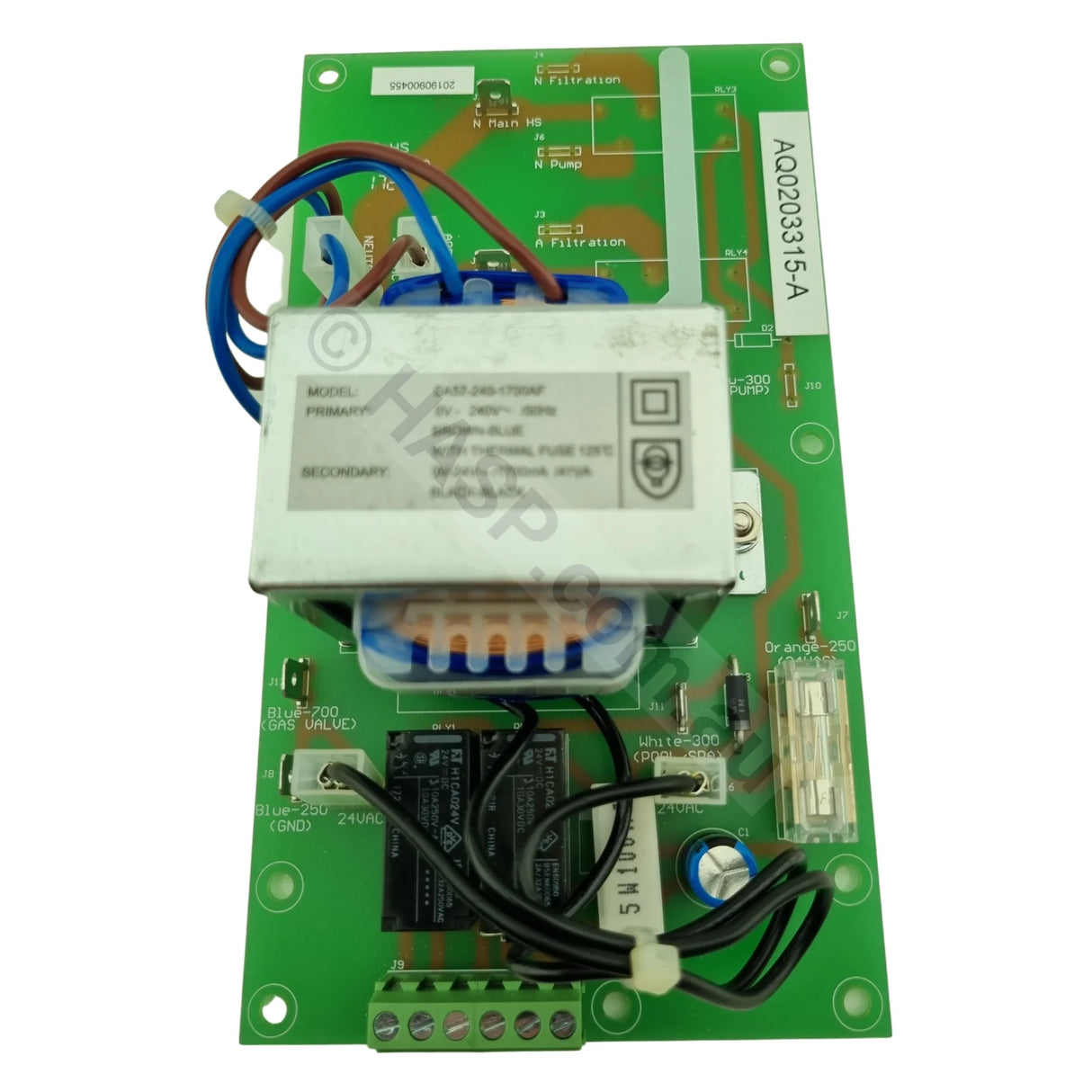

Secondary PCB found on Raypak 200, 280, 350, 430 gas heaters. Original circuit board used to control valve actuators. No longer controls pump & timer.
Comes with PCB, PCB Standoffs, Cable Ties, Instructions, Diagrams.
Replaces 56PE5003 & 96PE5002.
AS2415013
