SpaNet XS 3000 / XS 2000 Heater Assembly

Spanet Xs 3000 / 2000 Heater Assembly - Element Retrofit Heaters

Roll over image to zoom in Click on image to zoom

Spanet XS heaters are OBSOLETE and NO LONGER AVAILABLE. You will need to replace your control system, as these are no longer made or available.

XS-2000 replaced by SpaNet Mini 2
XS-3000 generally replaced by SpaNet Mini 2
SpaNet Mini generally needs no plumbing or plug changes to equipment.

Archived Information:

Spanet XS Series 2.0kw & 3.0kw* heater assemblies for XS-RH3000 & XS-RH2000 for XS-2000 & XS-3000 SpaNet controllers. Spanet no longer manufactures XS heaters or parts.

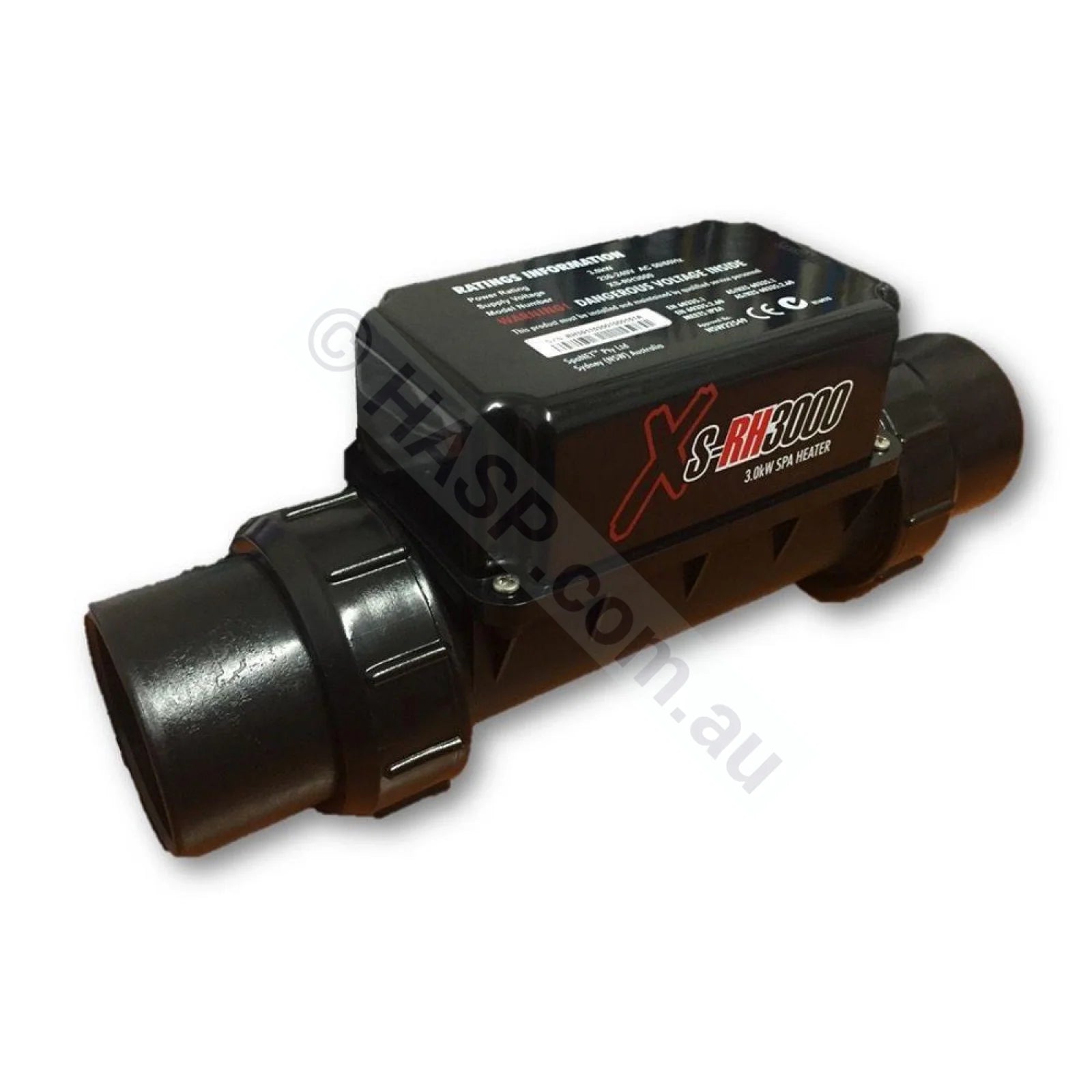

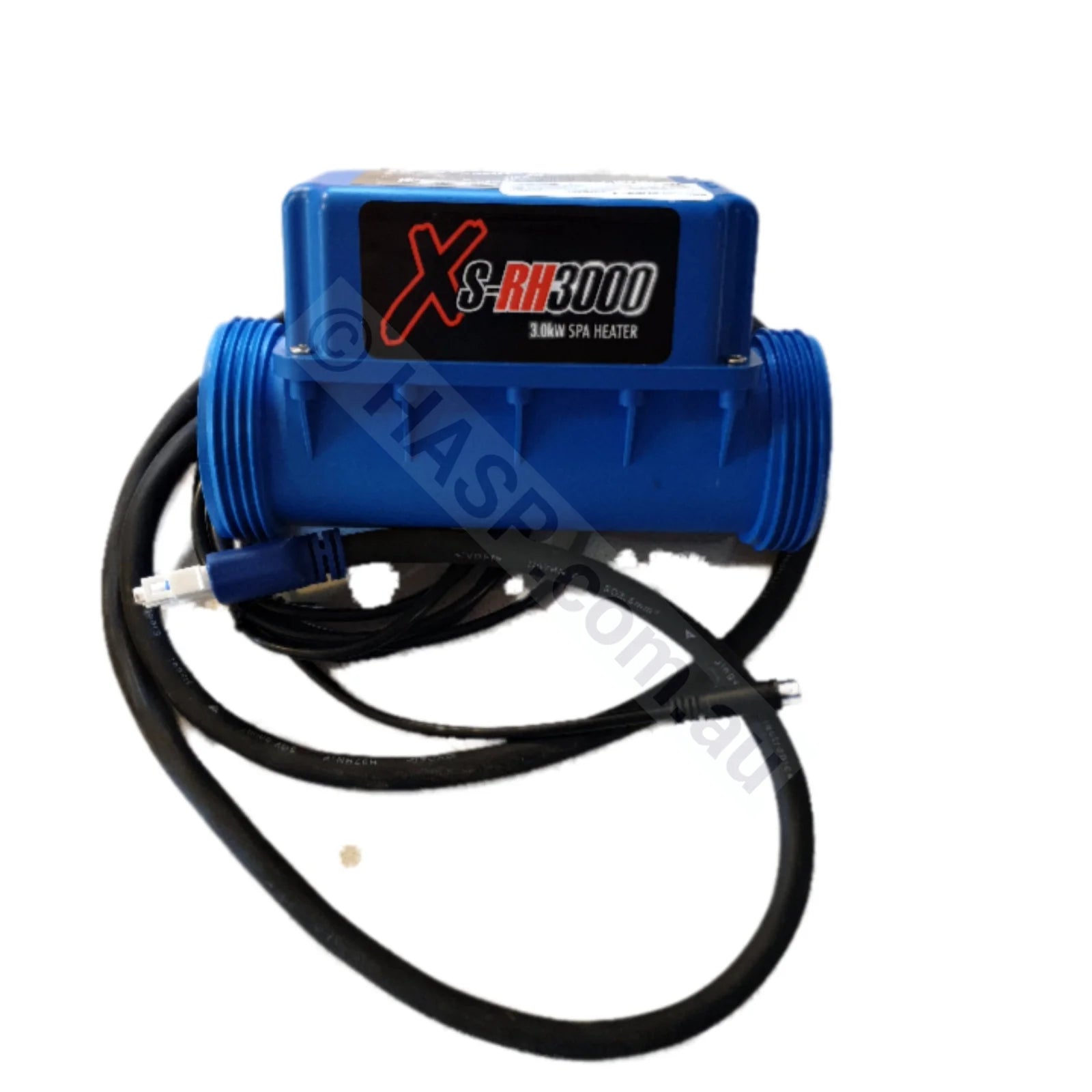

SpaNet XS Series 3.0kw replacement element = XS-RH3000

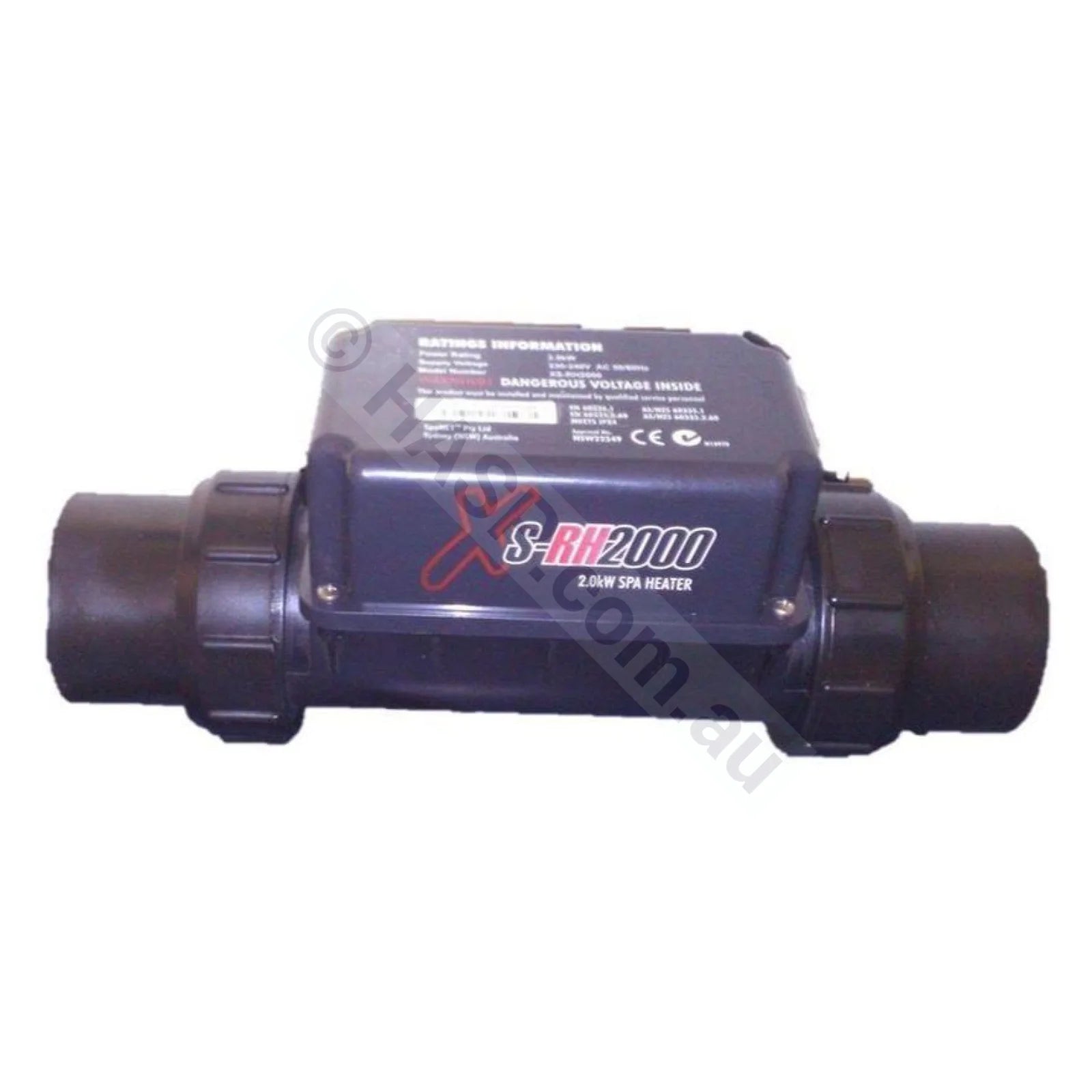

SpaNet XS Series 2.0kw replacement element = XS-RH2000

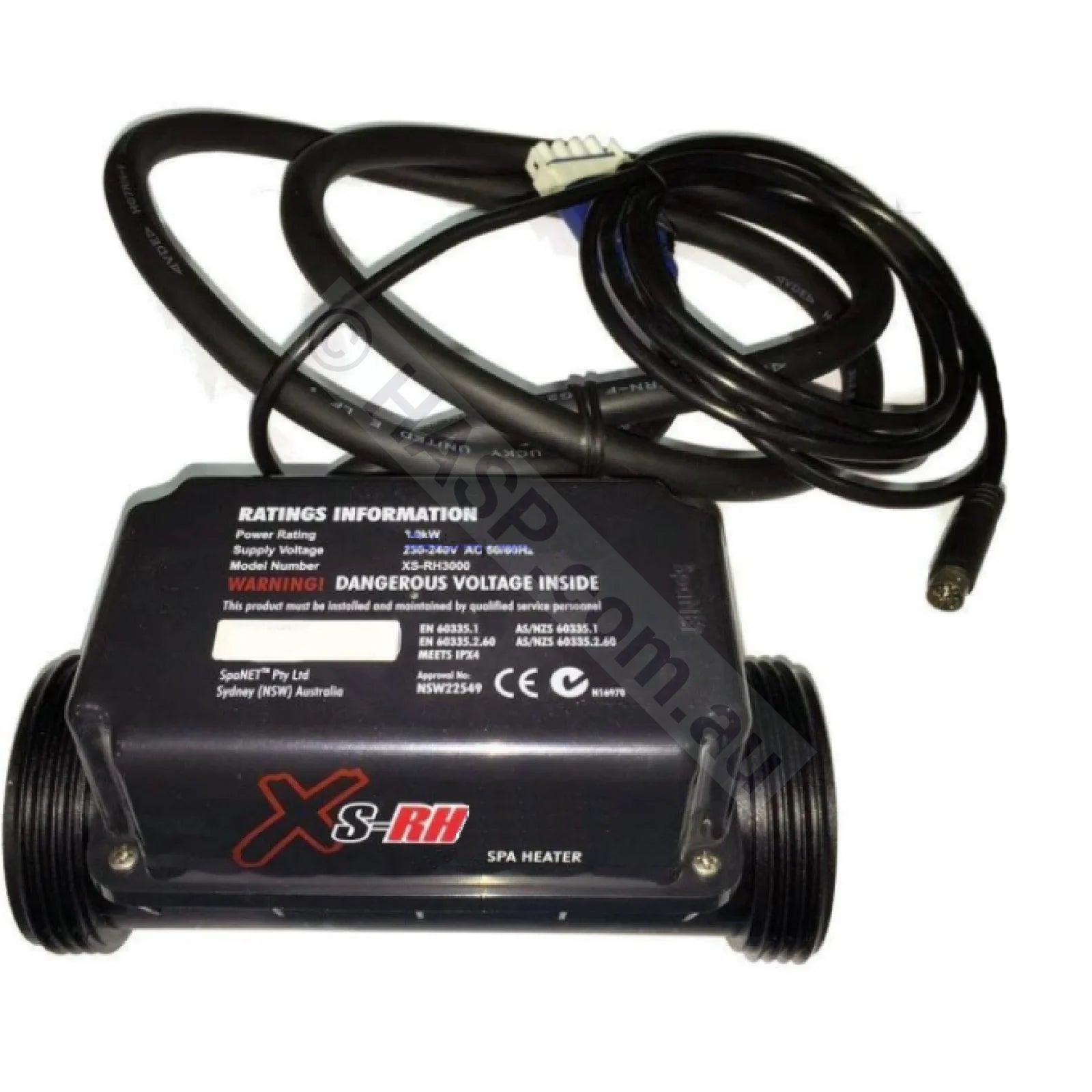

Came with Overmoulded AMP Lead & Mini DIN round heater plug.
Suits XS-2000 & XS-3000 Controllers only.

Heater can be fitted to a XS-3000 and also the XS-2000 (If labelled XS-2015, it should have a 15amp power supply to the spa, dip switch is set to load shed, running a circulation or two speed pump).

Commonly leak at the optical sensor assembly due to water quality issues. Comes with Heater Element, Sensor, Leads. Common on Monarch, Sapphire, Heritage, Maax, Lanark, and many other spas.
