Sx200-2 - 2Hp 2-Speed Jet Pump Universal Spatex Spa Booster

Sx200-2 - 2Hp 2-Speed Jet Pump Universal Spa Booster Spatex Amp For Balboa/Gecko

Sx200-2 - 2Hp 2-Speed Jet Pump Universal Spa Booster Spatex Mini Jj (Older Spas)

Sx200-2 - 2Hp 2-Speed Jet Pump Universal Spa Booster Spatex Overmoulded Amp For Davey/Spanet

Roll over image to zoom in Click on image to zoom

SX200-2 - 2HP - 2-Speed Jet Pump - Universal Spa Booster Pump - Spatex

Choose Plug Type: AMP for Balboa / Aeware in.ye / Joyonway

Variant

Price:

$685.00 $998.32

Quantity:

Tax Included. Shipping over $149 FREE or calculated at checkout. T&Cs

About Us: We keep physical stock in Vic, NSW, Qld, WA unline most online stores. We offer sustainable, value-based pricing that reflects our stock and support. We don’t price match but stay competitive for the long term.

SX200-2 Two-Speed 2.0HP Universal Spa Jet Booster Pump - Perfect for replacing the Aquaflo XP2 2.0/4.8BHP, Balboa, Davey QB2002, LX Whirlpool WP200 & WP200-II, Spanet XS20-2S, Waterway, and many other spa jet booster pumps.

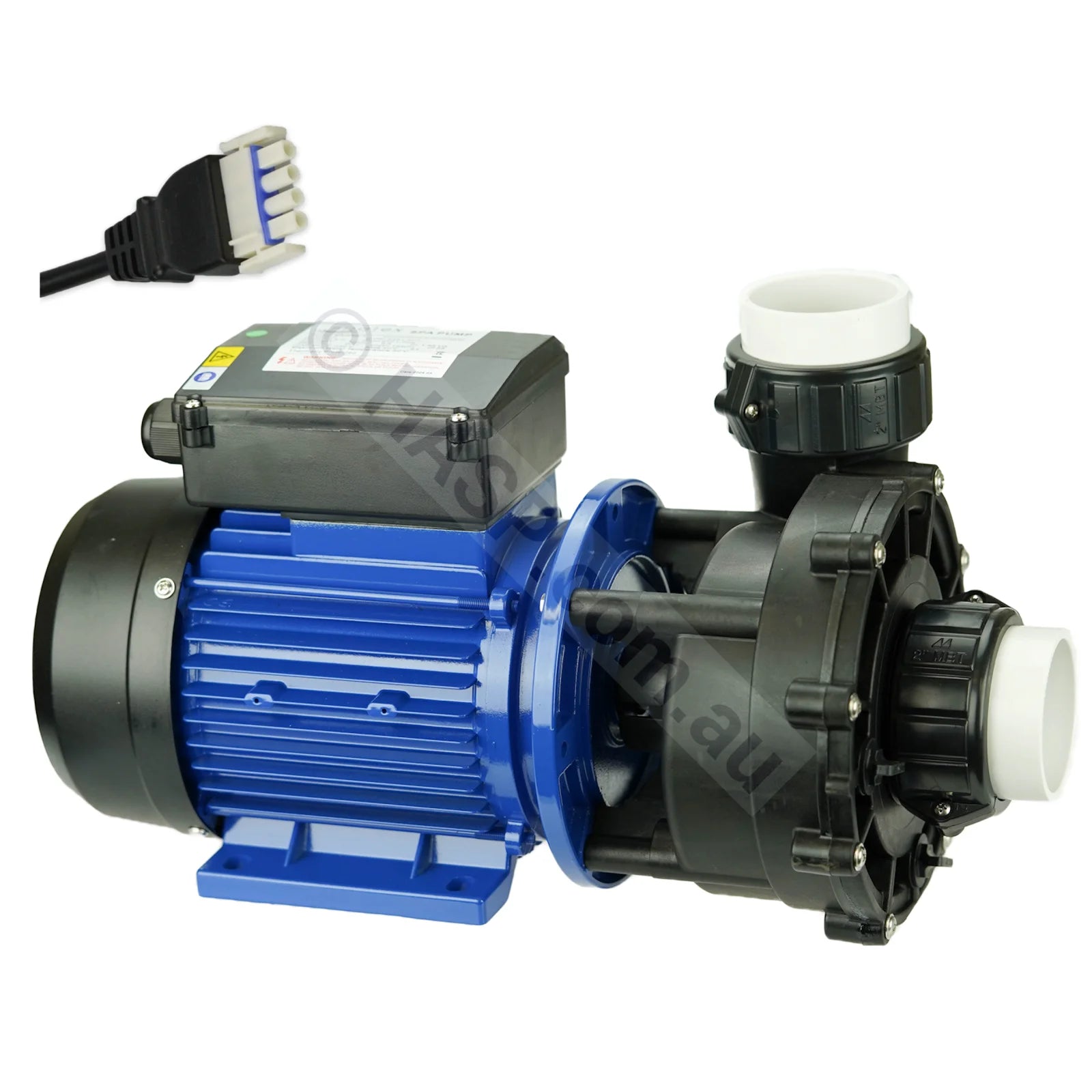

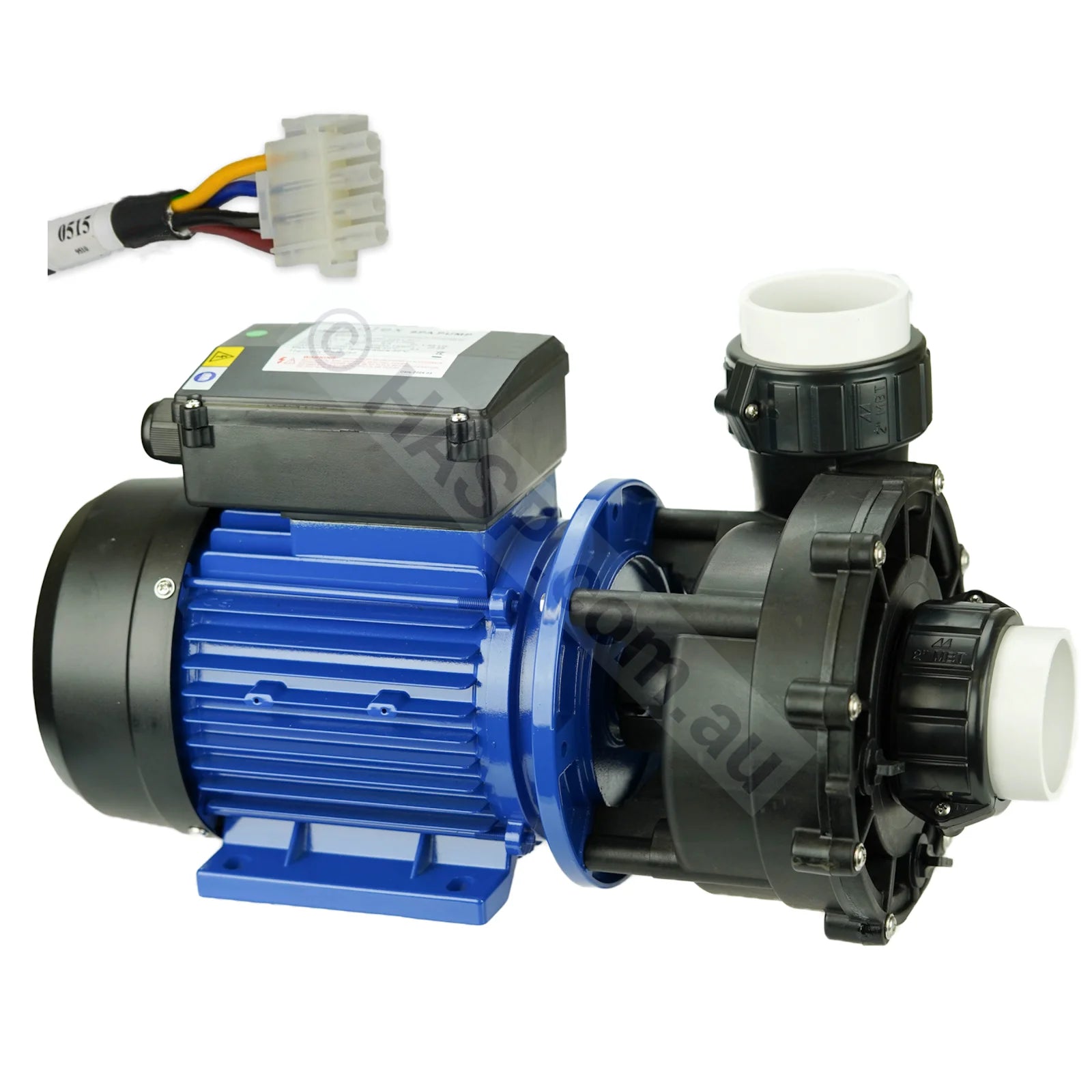

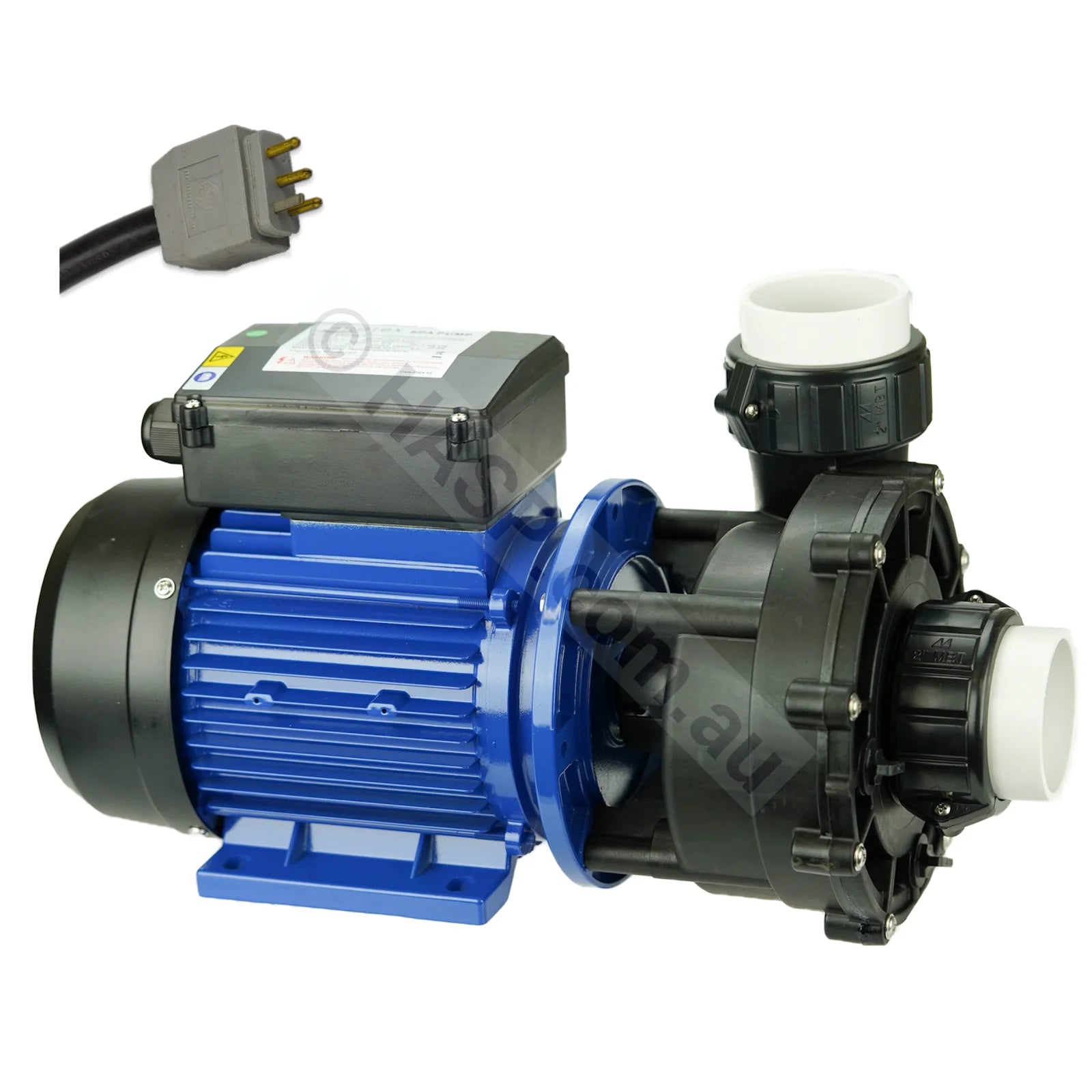

Comes fitted with an AMP plug (Balboa, Gecko in.y*), Overmoulded AMP plug (Spanet, Davey), or a Mini JJ plug (older systems).

Mini JJ plugs are fitted to order, so please allow a couple of extra days for dispatch. In some cases, the High & Low speeds may be reversed with Mini JJ plugs. If this occurs, your electrician can swap the connections either inside the pump (a wiring diagram is located under the lid) or within the spa control box.

Perfect for replacing the Aquaflo XP2 2.0 & 4.8BHP pumps - Uses exactly the same plumbing.
Supplied with 50mm / 2" unions and included split nuts. Split nuts make retrofitting of other pump brands with different threads, such as SpaQuip Maxiflow, Spa Systems Piranha and others.
Retrofits Aquaflo XP2, Davey QB, LX LP/WP Whirlpool, Waterway and many other pumps without the need to plumbing changes.
230v, 50Hz, 2.0hp
Low speed 0.5hp, 0.35kw, 2A | High speed 2.0hp, 1.5kw, 7A

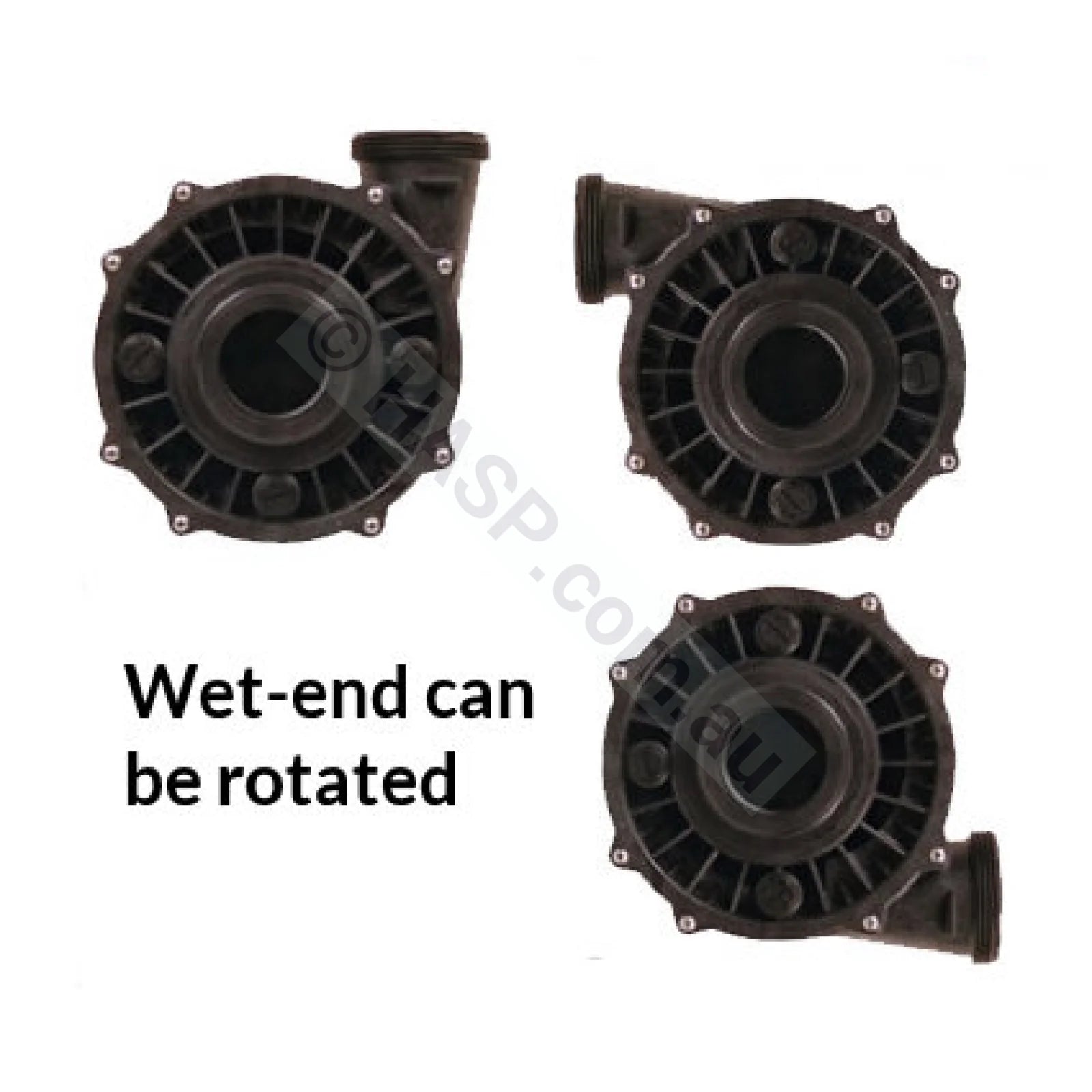

Wet-end can be rotated.

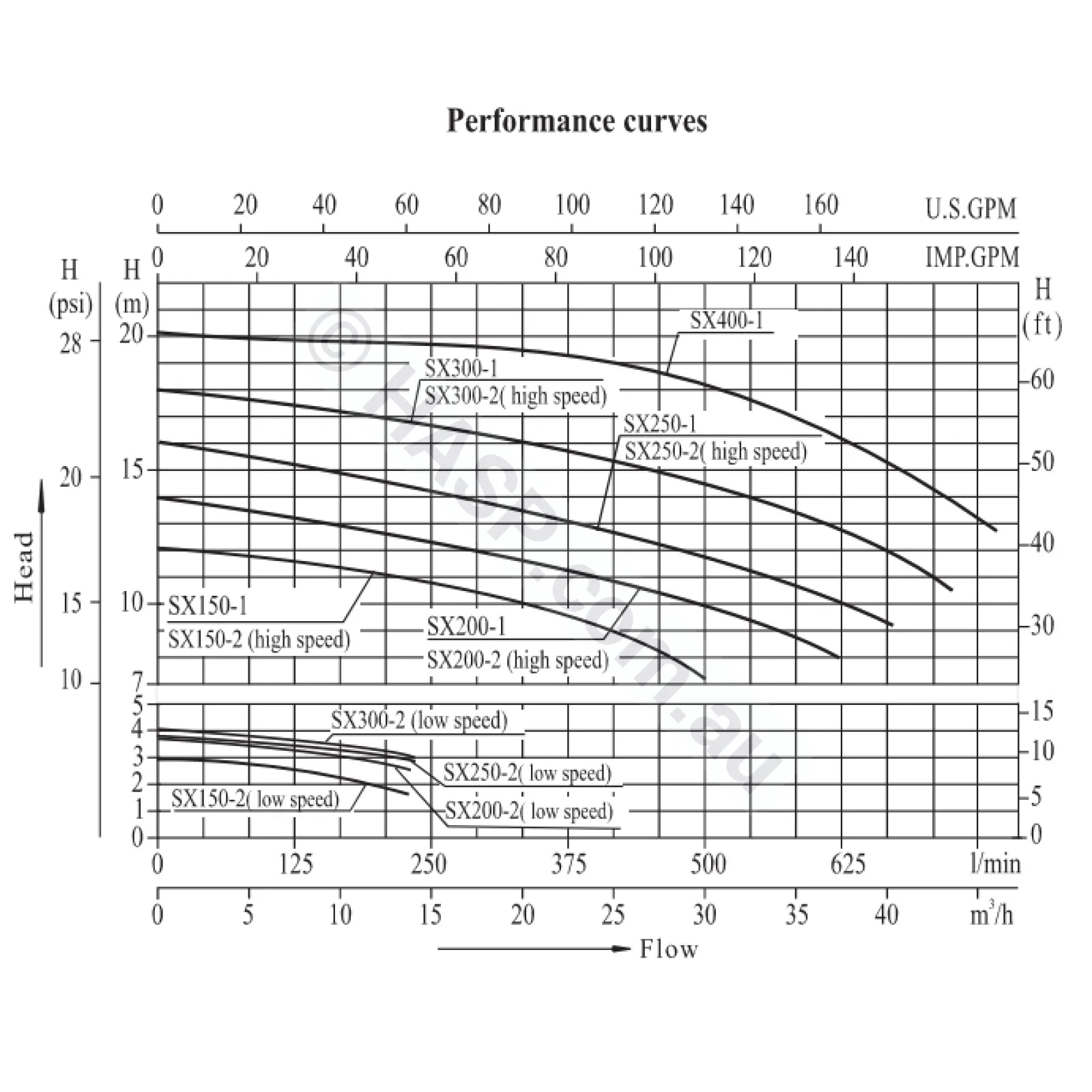

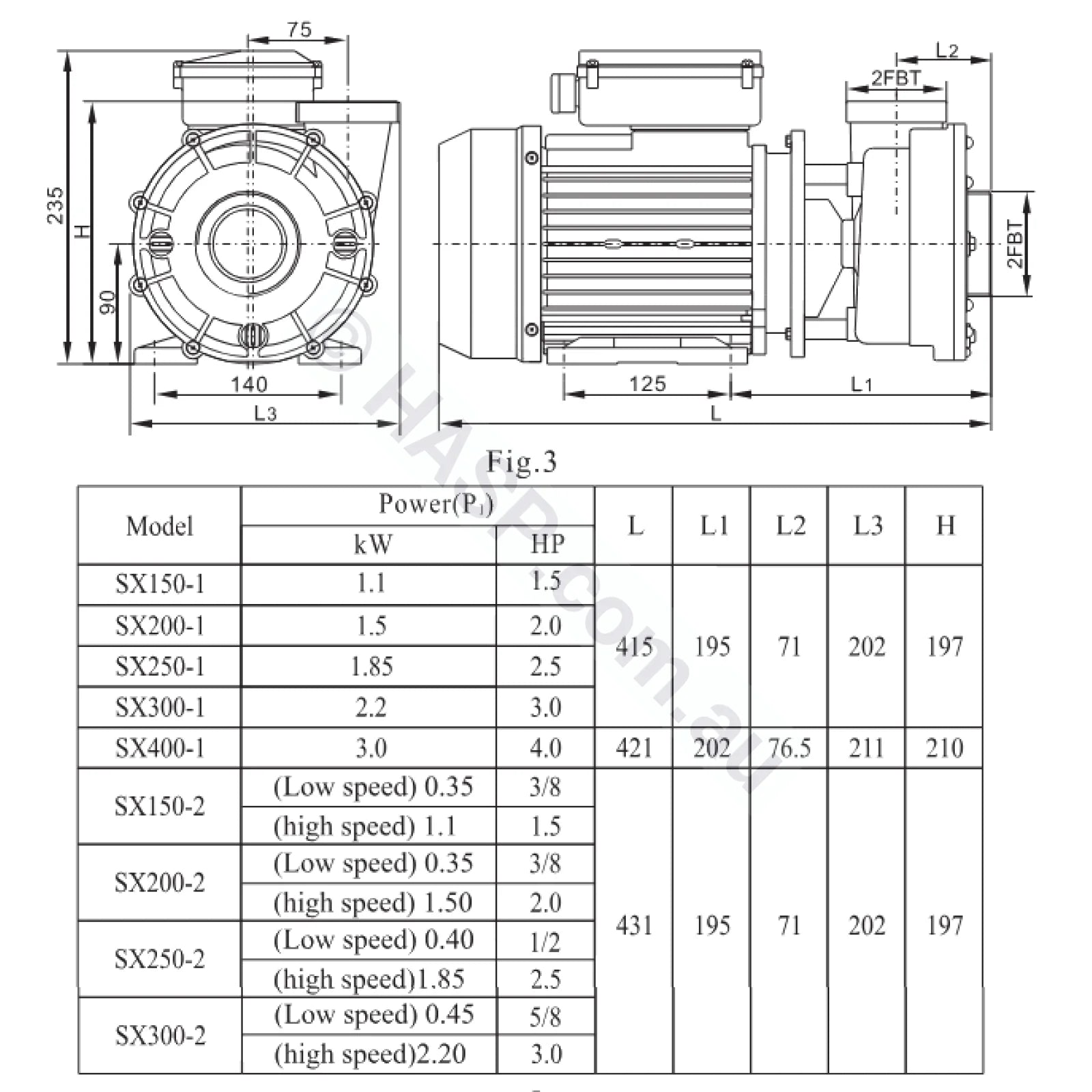

See images for dimensions of pump performance curves.
2 year warranty*
User & Installation Manual

Uses the same Wet-end (Plumbing) as many brands and models of pumps such as:

Aquaflo XP2 Flo-Master 2-Speed 2hp aka 4.8hp or SGS 4.8 BHPG. Note that the "4.8 BHP" is just a misleading way to rate the horsepower used by some spa manufacturers. 4.8 BHP = 2.0HP. May have numbers such as 8 - 194082 - 40. 06120223-1, 97452010, Code 01291, Part 7 186364 02, 06120070-1, 802024
Davey QB2001
LX Whirlpool WP200 & WP200-II
Spanet XS20-2S
Waterway Executive Euro

These pumps can replace most major brands of spa pumps directly, without the need to replumbing. Their unique split-union adaptors allow them to be used as retrofit pumps where the older pump may have different threads.

About the Spatex brand:

Spatex has over 30 years in the Australian spa industry. They've built these pumps with high-end bearings, mechanical seals, and quality materials. They exceed OEM specifications for all major brands of pumps. These pumps have been welcomed by the spa industry and are used by the best spa technicians around.

Other Part Numbers Associated with Aqua-flo, Watkins, Caldera, Sundance, etc:

05320761-2000,06020815-6000,06120001-1300,06120002-1240,06120003-1300,06120004-1200,06120004-1300,06120005-1340,06120006-6340,06120008-1040,06120008-1340,06120009-1240,06120010-6040,06120010-6340,06120070-1040,06120070-1300,06120070-1340,06120116-1040,06120116-1340,06120163-1000,06120167-1040,06120167-1340,06120170-1040,06120172-1340,06120176-1304,06120176-1340,06120223-1040,06120223-1300,06120223-1340,06120276-1040,06120500-2040,06120730-1040,06120809-1000,06120809-1040,06120809-1300,06120809-1340,06120810-1040,06120810-1240,06120810-1340,06120811-1000,06120811-1040,06120811-1200,06120812-1000,06120812-1040,06120812-1200,06120812-1240,06120813-1000,06120813-1200,06120814-1000,06120814-1200,06120814-1340,06120815-1000,06120815-1300,06120816-1000,06120816-1300,06120817-1040,06120818-1040,06120818-1200,06120818-1240,06120914-1300,06120914-1340,06120915-1340,06120920-1040,06120920-1340,06120922-1340,06120978-1200,06120978-1210,06120978-1240,06122809-1340,06122811-1340,06122817-1300,06122817-1340,06126809-1340,06126815-2000,06126815-2300,06130001-1300,06130002-1340,06130003-6340,06130004-1240,06130008-1300,06130009-1300,06130010-1300,06130167-6300,06130167-6340,06130223-2300,06130343-1340,06130824-1300,06130941-1300,06130942-1300,06130944-1040,06130944-1340,06130952-1340,06130962-1340,06130989-1200,06620500-2341,06620500-5040,06620509-2040,06620509-2300,06620512-2040,06620512-2300,06620512-2340,06620514-2000,06620514-2040,06620514-2300,06620514-2340,06620521-1000,06620533-1300,06620536-1340,06620557-1040,06620608-1040,06620608-1340,06620625-2340,06620681-2040,06620685-2300,06620702-2300,06620704-2300,06620706-2040,06620708-2340,06620764-1340,06620764-2340,06620768-2300,06620768-2340,06620776-2340,06620785-2340,06620788-2340,06620789-2340,06620792-2040,06620792-2340,06620826-1340,06620873-1000,06620876-1040,06620876-1340,06620876-2340,06620882-1040,06620887-2340,06620894-1300,07120500-2040,07122782-2300,07122782-2340,07122784-2300,07130944-6040,07320001-2040,07320001-2340,07320001-2362,07320395-2040,07320395-2340,07320485-2040,07320485-2340,07320500-2040,07320500-2340,07322000-7340,07322001-7300,07322782-2300,07322782-2340,07322783-2300,07322783-2340,07322784-2300,07323000-2300,07323001-2300,07323002-7300,07323325-1300,07323325-2300,07622782-2340,91694200,91694201,91694202,91694203,93496103.0,93496170,93496171,93496930.0,93515300.0,93526106.0,93526114.0,93526170,93526830.0,93526930.0,93526931.0,93526932.0,93556490,93575350.0,93575375.0,KOI-552024,XP2-552022,XP2-552023,XP2-552024,XP2-632022,XP2-902024
