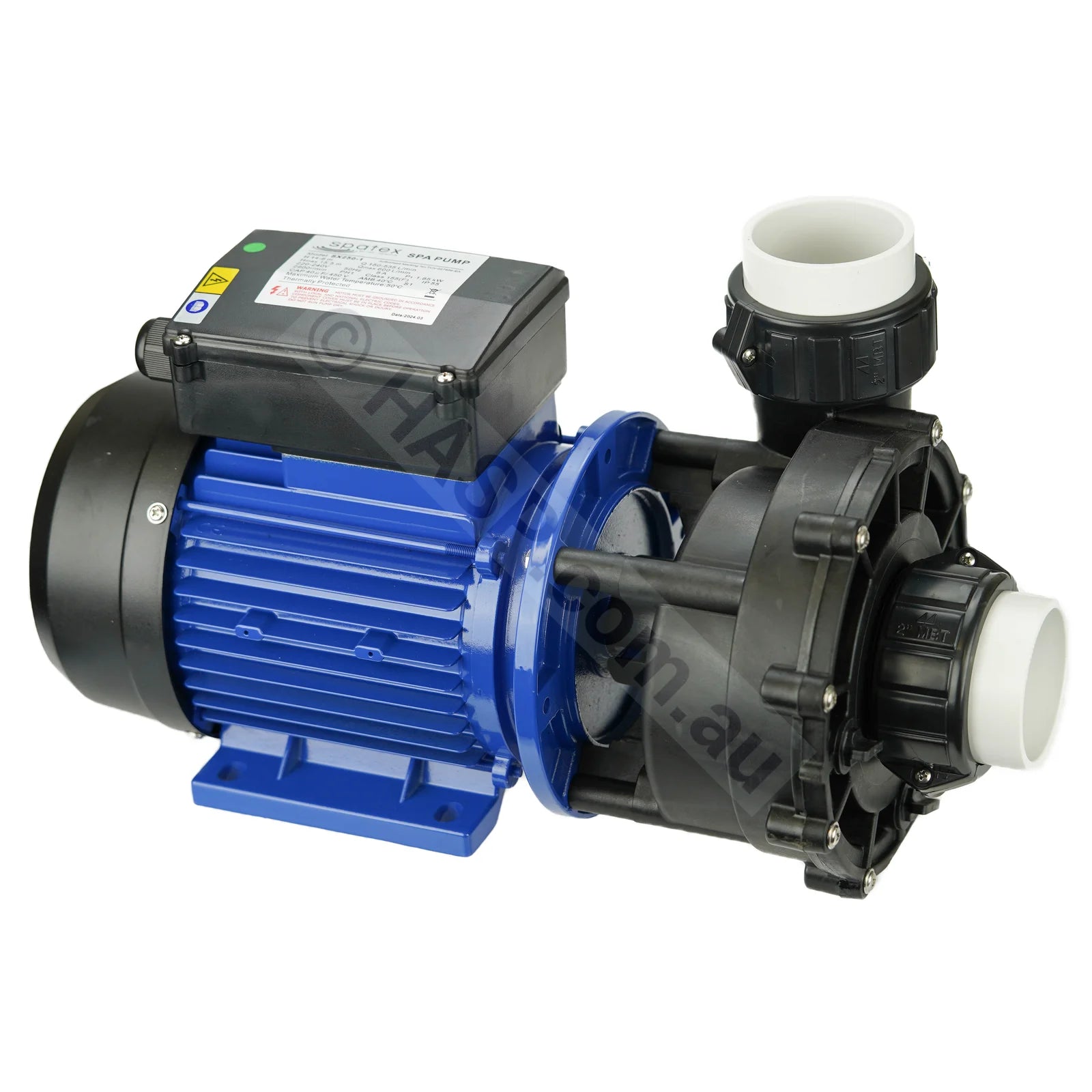

SX200 - 2HP - 1-Speed Jet Pump - Universal Spa Booster Pump - Spatex

$604.00 $738.73
Tax included Shipping calculated at checkout.
Choose Plug Type

Delivery and Shipping

Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

Free, Flat Rate & Express Post Shipping Information.

SX200 One-Speed 2.0HP Universal Spa Jet Booster Pump - Perfect for replacing the Aquaflo XP2 2.0/4.8BHP, Balboa, Davey QB2001, LX Whirlpool LP200, Waterway, and many other spa jet booster pumps.

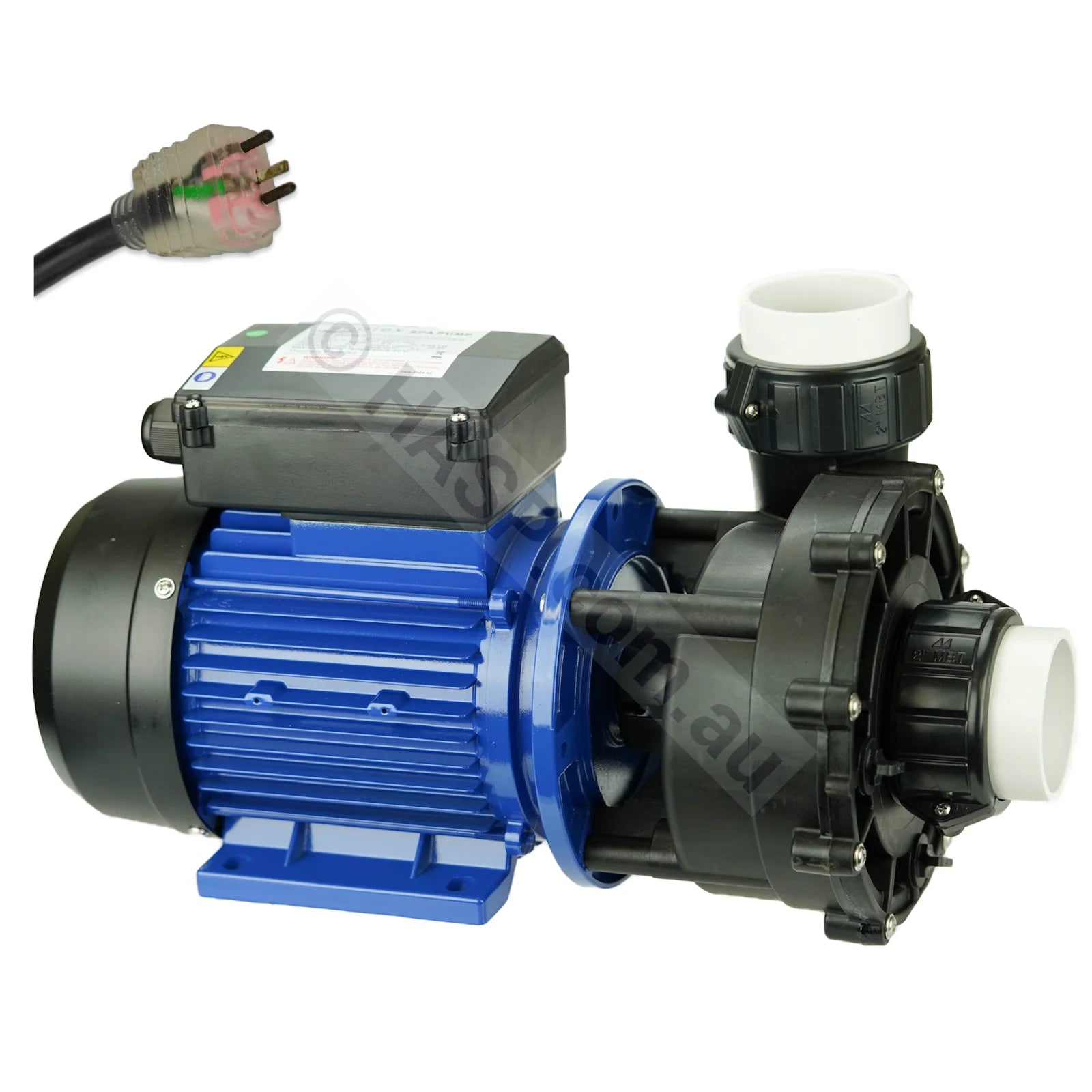

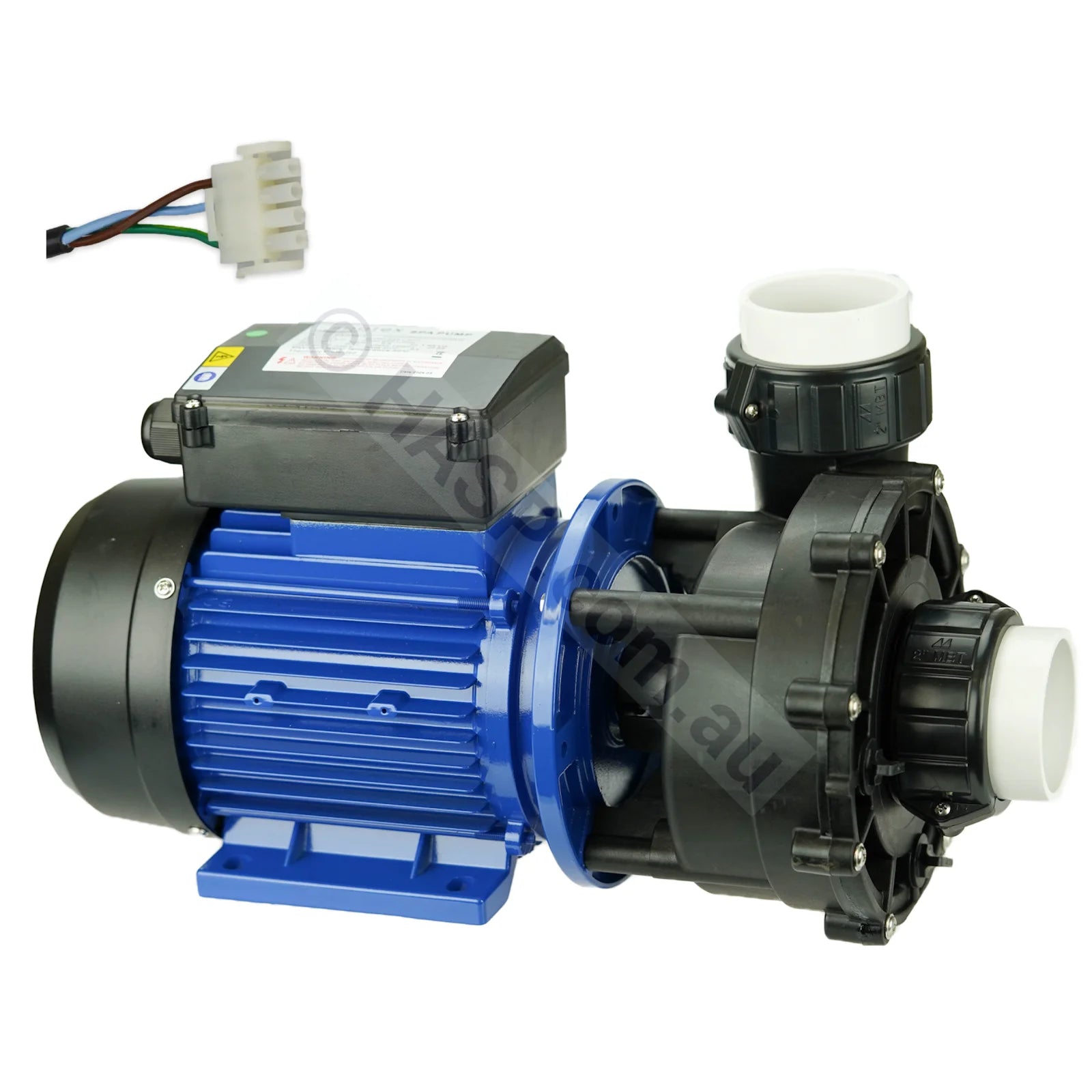

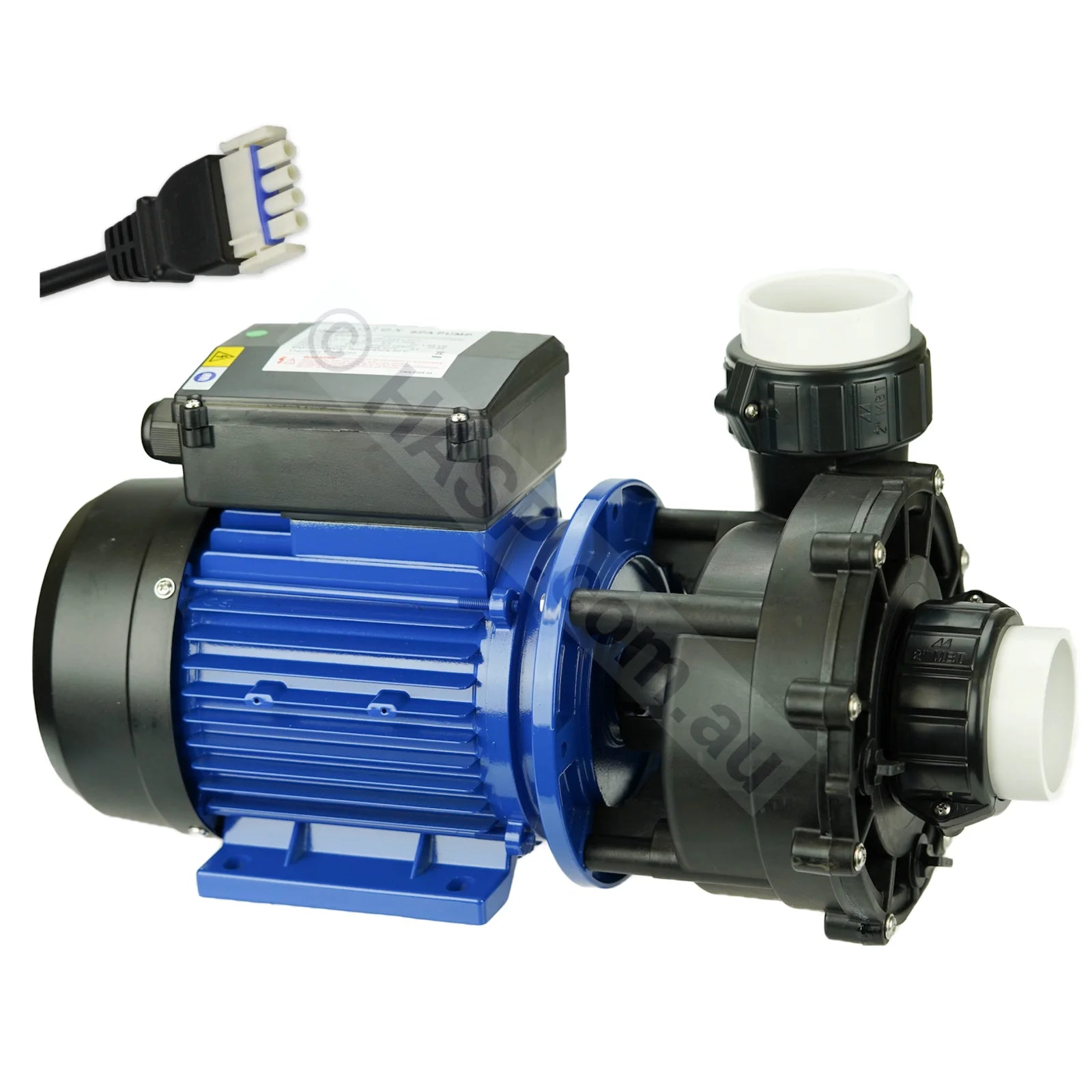

Comes with AMP plug for Balboa, Gecko in.y* / Overmoulded AMP plug for Spanet, Davey / Mini JJ Plug / C38 (Aus 3-pin) plug for older systems. Mini JJ plugs are fitted to order, so please allow a couple of extra days for dispatch.

  • Perfect for replacing the Aquaflo XP2 2.0 & 4.8BHP 1-speed pumps - Uses exactly the same plumbing.
  • Supplied with 50mm / 2" unions and included split nuts. Split nuts make retrofitting of other pump brands with different threads, such as SpaQuip Maxiflow, Spa Systems Piranha and others.
  • Retrofits Aquaflo XP2, Davey QB, LX LP/WP Whirlpool, Waterway and many other pumps without the need to plumbing changes.
  • 230v, 50Hz, 2.0hp, 1.5kw, 7A

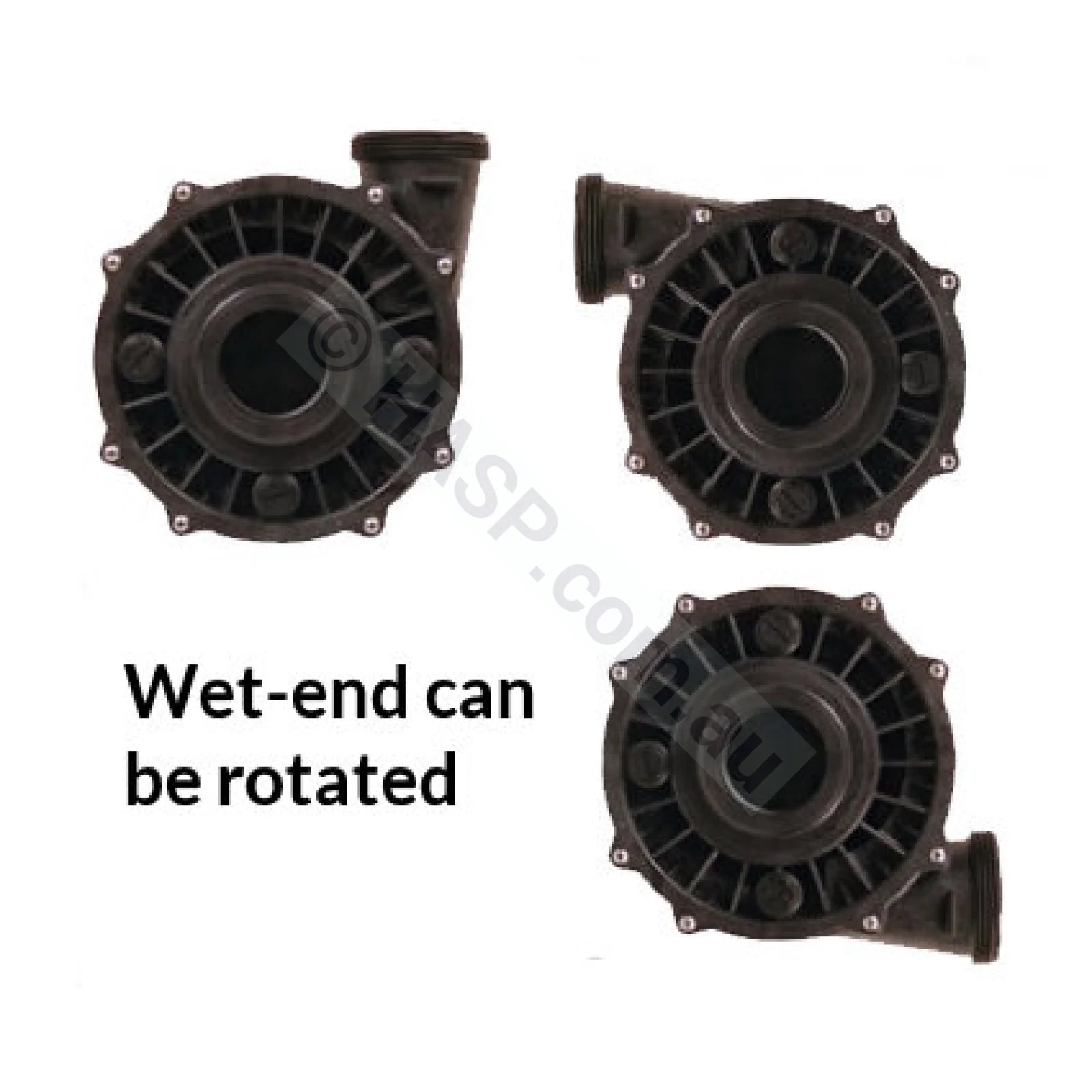

  • Wet-end can be rotated.

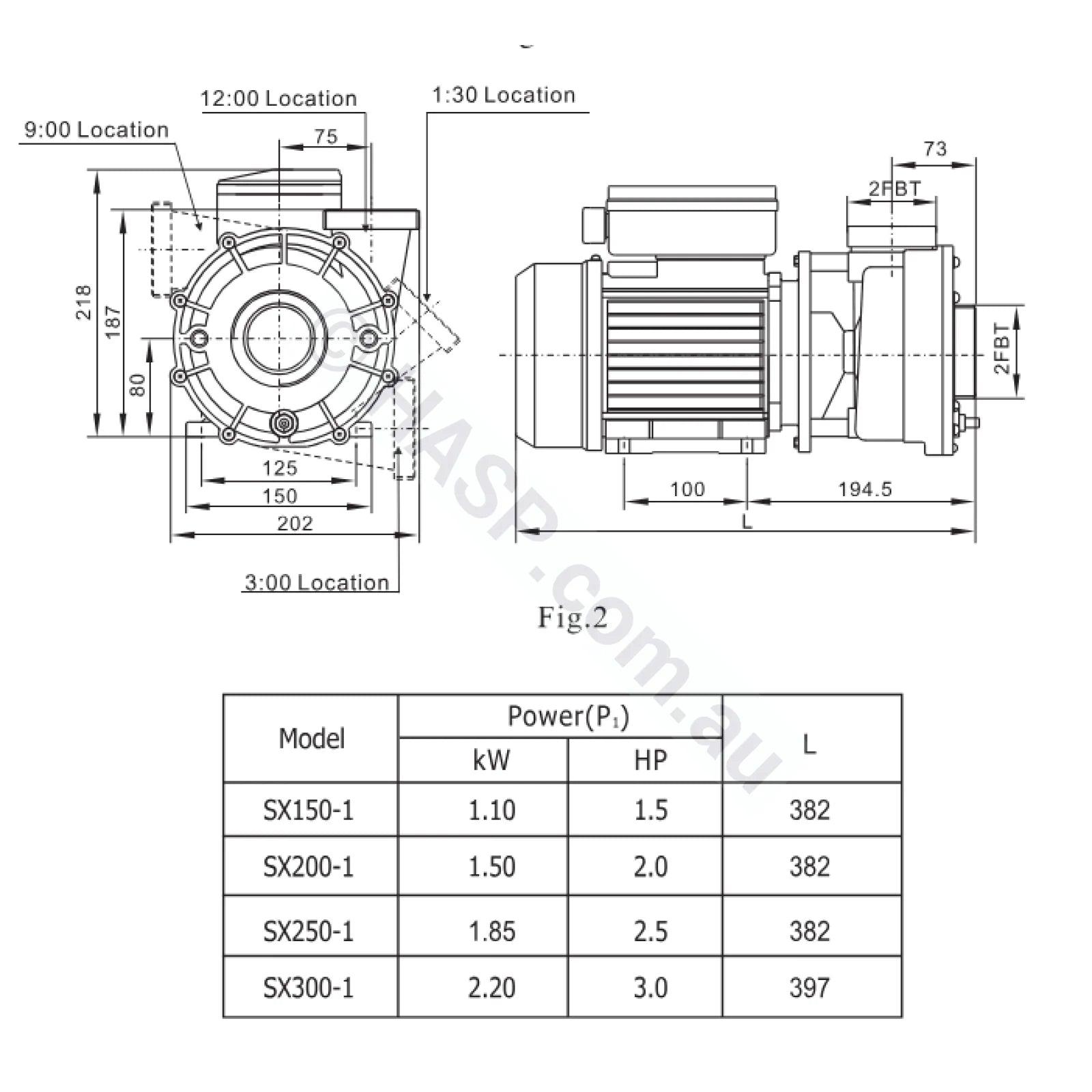

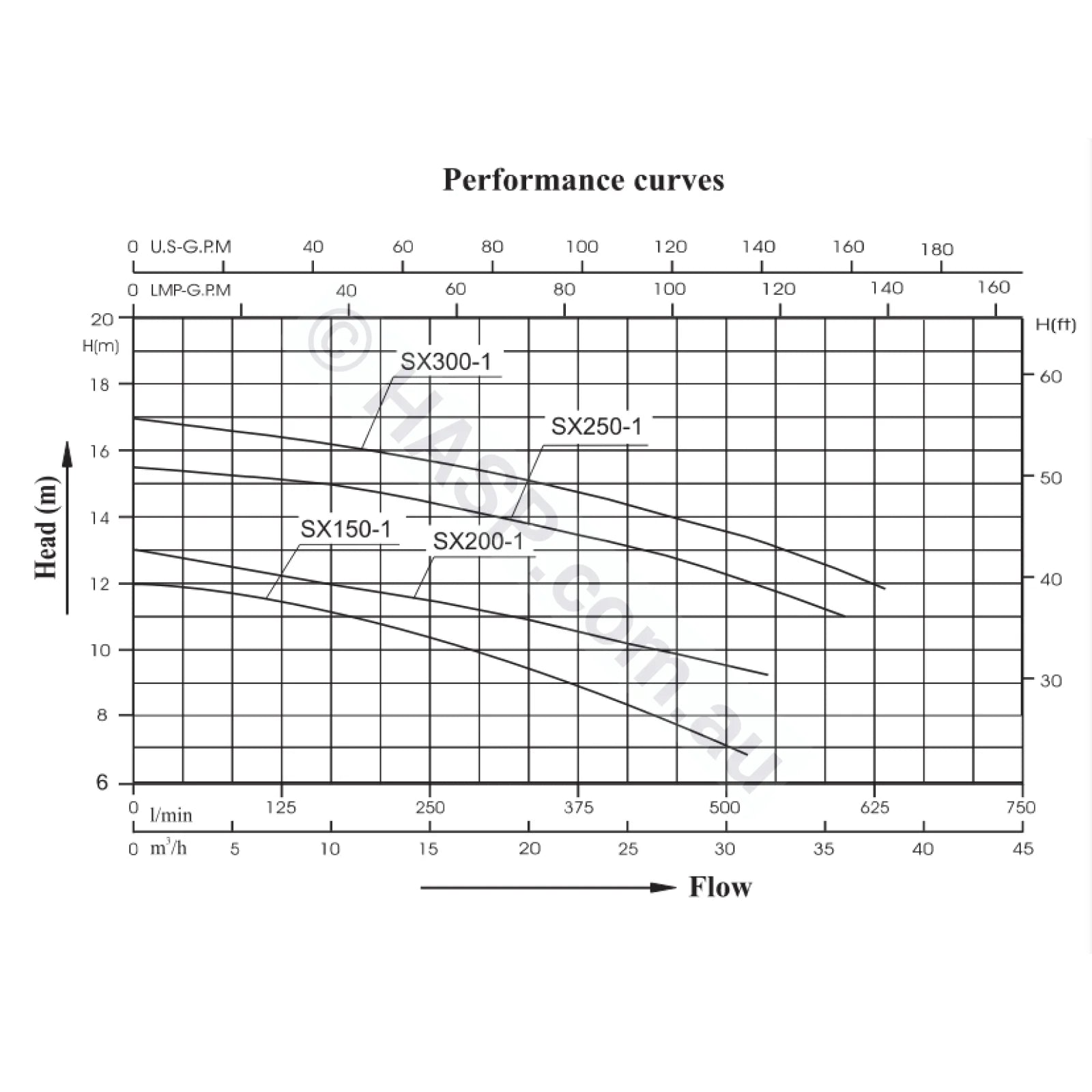

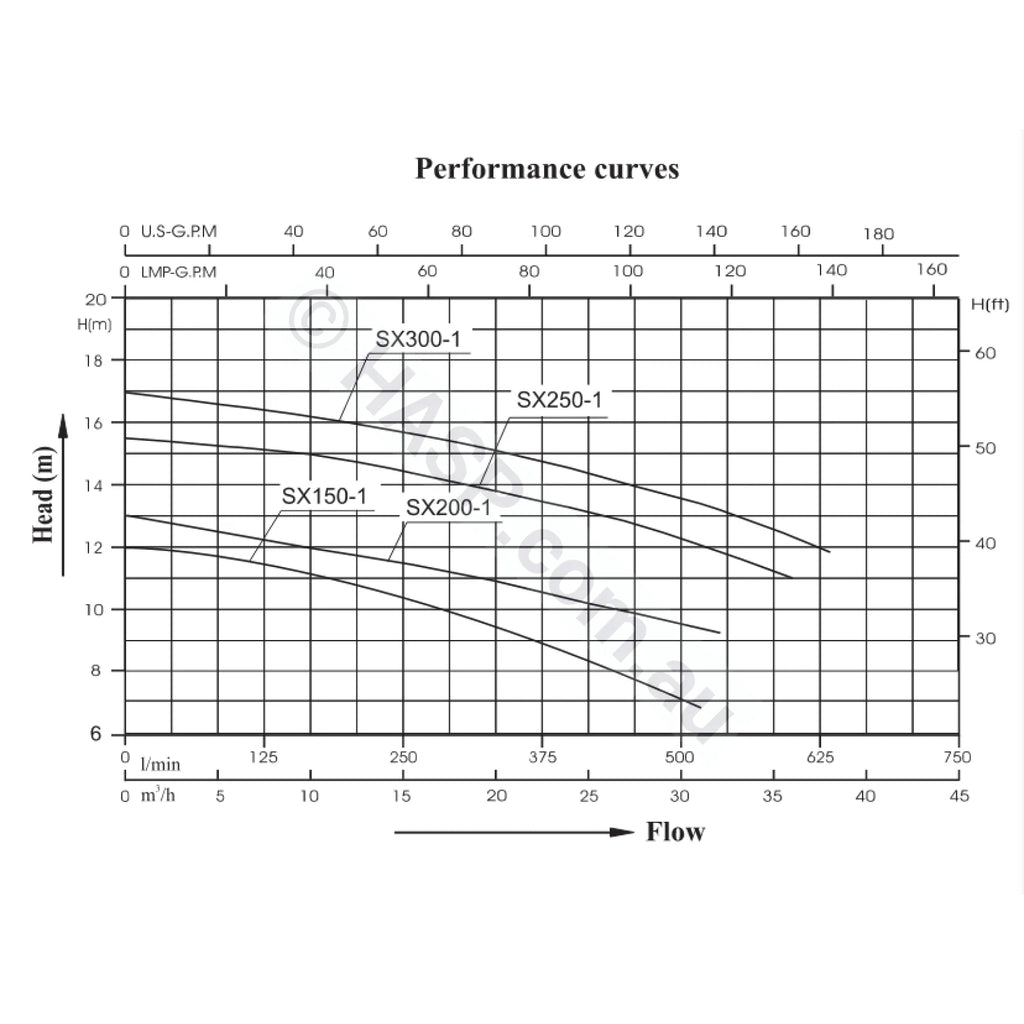

  • See images for dimensions of pump performance curves.
  • 2 year warranty*
  • User & Installation Manual

Uses the same Wet-end (Plumbing) as many brands and models of pumps such as:

  • Aquaflo XP2 Flo-Master 1-Speed 2hp aka 4.8hp or SGS 4.8 BHPG or SCS Industries 4.8 BHP XP2. Note that the "4.8 BHP" is just a misleading way to rate the horsepower used by some spa manufacturers. 4.8 BHP = 2.0HP.  Replaces all XP2 Pumps with the Century LASAR Pool/Spa Motor with AO Smith motors, eg: 06015742-2, 06120000-1040, 06120000-1340, 06120007-2040, 06120007-2340, 06120080-1040, 06120181-1040, 06120181-1340, 06120181-1341, 06120190-1300, 06120191-1300, 06120193-2000, 06120193-2200, 06120195-1200, 06120298-1040, 06120301-2040, 06120328-2340, 06120427-2000, 06120427-2300, 06120453-2000, 06120453-2340, 06120459-2040, 06120485-2040, 06120489-2340, 06120500-2000, 06120500-2040, 06120500-2300, 06120511-2340, 06120608-1040, 06120608-1340, 06120608-2300, 06120626-2340, 06120717-1300, 06120731-1300, 06120731-1340, 06120732-1300, 06120799-2040, 06120826-1340, 06120854-1300, 06120854-1340, 06124717-1300, 06124854-1300, 07040939, 07030003-6040., 552012, 552022, 6015742, 632522, 93496103, 93496105, 93526106, 93526114, 93526600, Caldera 009014, Watkins 0982701, Watkins 1019801, Watkins 39581, Watkins 39581-01
  • Davey QB2001 AUS (all) - use split nut adaptors (included) to convert coarse to new fine thread.
  • LX Whirlpool LP200  (all)
  • Waterway Executive Euro 2.0HP & 3.5HP BR (EMG Elettromeccanica)
  • Piranha - Spa Systems LP200 - use split nut adaptors (included) to convert coarse to new fine thread.

  • Theramax Sundance Spas Model 06020841-6 05179 6500-239

These pumps can replace most major brands of spa pumps directly, without the need to replumbing. Their unique split-union adaptors allow them to be used as retrofit pumps where the older pump may have different threads.

About the Spatex brand:

Spatex has over 30 years in the Australian spa industry. They've built these pumps with high-end bearings, mechanical seals, and quality materials. They exceed OEM specifications for all major brands of pumps. These pumps have been welcomed by the spa industry and are used by the best spa technicians around.

More Aqua-flo, Watkins, Caldera, Sundance part numbers it can replace: 05040848-6000,XP2e-802014,05040848-6300,XP2e-802014,05052848-6000,XP2e-802014,05052848-6300,XP2e-802014,05240842-6200,XP2e-802014,05240848-6000,XP2e-802014,05240848-6300,XP2e-802014,05240940-6300,XP2e-802014,05320761-2000,05220001-2040,91695200,XP2e-632012,93526936.0,05320761-2000,05220001-2340,91695200,XP2e-632012,93526936.0,05320761-2000,05220002-2040,91695200,XP2e-632012,93526936.0,05320761-2000,05220002-2340,91695200,XP2e-632012,93526936.0,05320761-2000,05220400-7040,91695200,XP2e-632012,93575250.0,05320761-2000,05220737-2000,91695200,XP2e-632012,93526936.0,05320761-2000,05720000-7340,91695200,XP2e-632012,93575250.0,05320761-2000,05720001-1340,91695200,XP2e-632012,93496935.0,05320761-2000,05720003-7340,91695200,XP2e-632012,93575250.0,05320761-2000,07220001-2040,91694200,XP2-632012,05320761-2000,07220001-2340,91694200,XP2-632012,05320761-2000,07220001-2362,91694200,XP2-632012,05320761-2000,07220003-7040,91694200,XP2-632012,05320761-2000,07220500-2040,91694200,XP2-632012,05320761-2000,07220500-2340,91694200,XP2-632012,05320761-2000,07222782-2300,91694202,XP2-632012,05320761-2000,07720000-7340,91694200,XP2-632012,05320761-2000,07720001-7300,91694200,XP2-632012,05320761-2000,07720002-7040,91694200,XP2-632012,05340858-6300,XP2e-902024,05340863-6300,XP2e-902024,06020001-6300,XP2-802014,06020001-6340,XP2-802014,06020003-6040,XP2-802014,06020003-6300,XP2-802014,06020006-6300,XP2-802014,06020048-2300,91694200,FMXP-552012,06020157-1000,91694200,XP2-552012,06020157-1300,91694200,XP2-552012,06020157-2300,91694200,XP2-552012,06020162-1300,XP2-552013,06020182-1040,91694200,XP2-552012,06020182-1340,91694200,XP2-552012,06020732-1300,91694200,XP2-552012,06020732-1340,91694200,XP2-552012,06020733-1300,91694200,XP2-552012,06020822-6000,XP2-802014,06020822-6300,XP2-802014,06020842-6200,XP2-802014,06020842-6300,XP2-802014,06024732-1300,91694204,XP2-552012,06025834-6 ,06030936-1300,XP2-552013,06120500-2040 ,06520001-2340,91694200,XP2-552012,06120500-2040 ,06520005-2340,91694200,XP2-552012,06120500-2040 ,06520007-2340,91694200,XP2-552012,06120500-2040 ,06520028-1340,91694200,XP2-552012,06120500-2040 ,06520358-2000,91694200,XP2-552012,06120500-2040 ,06520358-2040,91694200,XP2-552012,06120500-2040 ,06520500-2000,91694200,XP2-552012,06120500-2040 ,06520500-2040,91694200,XP2-552012,06120500-2040 ,06520500-2300,91694200,XP2-552012,06120500-2040 ,06520500-2340,91694200,XP2-552012,06120500-2040 ,06520500-5040,91694200,XP2-552012,06120500-2040 ,06520514-2040,91694200,XP2-552012,06120500-2040,05020400-2040,91695200,XP2e-552012,93526003.0,06120500-2040,05020737-2000,91695200,XP2e-552012,93526003.0,06120500-2040,05520000-2300,91695200,XP2e-552012,93526003.0,06120500-2040,05520000-2340,91695200,XP2e-552012,93526003.0,06120500-2040,05520001-2340,91695200,XP2e-552012,93526003.0,06120500-2040,05520002-2340,91695200,XP2e-552012,93526003.0,06120500-2040,05520003-5340,91695200,XP2-552012,93515200.0,06120500-2040,05520004-2300,91695200,XP2e-552012,93526003.0,06120500-2040,05520092-1340,91695200,XP2e-552012,93496000.0,06120500-2040,06020000-1040,91694200,XP2-552012,06120500-2040,06020010-1040,91694200,XP2-552012,06120500-2040,06020142-1040,91694200,XP2-552012,06120500-2040,06020176-2040,91694200,XP2-552012,06120500-2040,06020191-1300,91694200,XP2-552012,06120500-2040,06020192-1300,91694200,XP2-552012,06120500-2040,06020294-1340,91694200,XP2-552012,06120500-2040,06020300-2040,91694200,XP2-552012,06120500-2040,06020355-2000,91694200,XP2-552012,06120500-2040,06020355-2300,91694200,XP2-552012,06120500-2040,06020366-2340,91694200,XP2-552012,06120500-2040,06020367-2340,91694200,XP2-552012,06120500-2040,06020391-2340,91694200,XP2-552012,06120500-2040,06020400-2040,91694200,XP2-552012,06120500-2040,06020400-2340,91694200,XP2-552012,06120500-2040,06020427-2000,91694200,XP2-552012,06120500-2040,06020427-2300,91694200,XP2-552012,06120500-2040,06020428-2000,91694200,XP2-552012,06120500-2040,06020428-2300,91694200,XP2-552012,06120500-2040,06020462-2040,91694200,XP2-552012,06120500-2040,06020489-2040,91694200,XP2-552012,06120500-2040,06020492-2040,91694200,XP2-552012,06120500-2040,06020500-2040,91694200,XP2-552012,06120500-2040,06020503-2040,91694200,XP2-552012,06120500-2040,06020514-2040,91694200,XP2-552012,06120500-2040,06020558-1040,91694200,XP2-552012,06120500-2040,06020838-1340,91694200,XP2-552012,06120500-2040,06520000-1040,91694200,XP2-552012,06120500-2040,06520000-1300,91694200,XP2-552012,06120500-2040,06520000-1340,91694200,XP2-552012,06120500-2040,06520002-2300,91694200,XP2-552012,06120500-2040,06520002-2340,91694200,XP2-552012,06120500-2040,06520034-1040,91694200,XP2-552012,06120500-2040,06520082-1040,91694200,XP2-552012,06120500-2040,06520093-2300,91694200,XP2-552012,06120500-2040,06520096-1040,91694200,XP2-552012,06120500-2040,06520096-1340,91694200,XP2-552012,06120500-2040,06520100-2040,91694200,XP2-552012,06120500-2040,06520189-1040,91694200,XP2-552012,06120500-2040,06520280-2000,91694200,XP2-552012,06120500-2040,06520287-1300,91694200,XP2-552012,06120500-2040,06520353-2340,91694200,XP2-552012,06120500-2040,06520355-2000,91694200,XP2-552012,06120500-2040,06520355-2040,91694200,XP2-552012,06120500-2040,06520355-2300,91694200,XP2-552012,06120500-2040,06520366-2300,91694200,XP2-552012,06120500-2040,06520378-2340,91694200,XP2-552012,06120500-2040,06520391-2340,91694200,XP2-552012,06120500-2040,06520422-2040,91694200,XP2-552012,06120500-2040,06520422-2340,91694200,XP2-552012,06120500-2040,06520424-2040,91694200,XP2-552012,06120500-2040,06520424-2340,91694200,XP2-552012,06120500-2040,06520445-2300,91694200,XP2-552012,06120500-2040,06520466-2040,91694200,XP2-552012,06120500-2040,06520466-2340,91694200,XP2-552012,06120500-2040,06520488-2040,91694200,XP2-552012,06120500-2040,06520488-2340,91694200,XP2-552012,06120500-2040,06520492-2040,91694200,XP2-552012,06120500-2040,06520492-2340,91694200,XP2-552012,06120500-2040,06520666-2040,91694200,XP2-552012,06120500-2040,06520666-2340,91694200,XP2-552012,06120500-2040,06520667-1300,91694200,XP2-552012,06120500-2040,06520668-2040,91694200,XP2-552012,06120500-2040,06520668-2340,91694200,XP2-552012,06120500-2040,06520670-2300,91694200,XP2-552012,06120500-2040,06520679-2300,91694200,XP2-552012,06120500-2040,06520680-2040,91694200,XP2-552012,06120500-2040,06520709-2340,91694200,XP2-552012,06120500-2040,06520791-2040,91694200,XP2-552012,06120500-2040,06520791-2340,91694200,XP2-552012,06120500-2040,06520868-1040,91694200,XP2-552012,06120500-2040,06520873-1300,91694200,XP2-552012,06120500-2040,06520873-2300,91694200,XP2-552012,06120500-2040,06520875-1040,91694200,XP2-552012,06120500-2040,06520875-1340,91694200,XP2-552012,06120500-2040,06520875-2340,91694200,XP2-552012,06120500-2040,06520880-1040,91694200,XP2-552012,06120500-2040,06520880-1340,91694200,XP2-552012,06120717-1300,91694200,XP2-552012,07030003-6000,XP2-802014,07030842-8200,07030940-6300,XP2-802014,07130018-6300,XP2-902024,07130026-6300,XP2-902024,07130858-6300,XP2-902024,07130863-6300,XP2-902024,07130944-6040,05240000-6300,XP2e-802014,07130944-6040,05240000-6340,XP2e-802014,07130944-6040,05240840-6300,XP2e-802014,07130944-6040,05240841-6300,XP2e-802014,07130944-6040,05240939-6340,XP2e-802014,07130944-6040,05240949-6340,XP2e-802014,07130944-6040,05240949-8340,XP2e-802014,07130944-6040,05340000-6300,XP2e-902024,07130944-6040,05340001-6300,XP2e-902024,07130944-6040,05340002-6340,XP2e-902024,07130944-6040,05340003-6340,XP2e-902024,07130944-6040,05340929-6370,XP2e-902024,07130944-6040,05340929-8370,XP2e-902024,07130944-6040,05534000-1361,XP2e-552013,07130944-6040,06020000-6000,XP2-902024,07130944-6040,06020004-6040,XP2-802014,07130944-6040,06020005-6040,XP2-802014,07130944-6040,06020007-6340,XP2-802014,07130944-6040,06020067-1040,XP2-552013,07130944-6040,06020070-1040,XP2-552013,07130944-6040,06020070-1340,XP2-552013,07130944-6040,06020095-1040,XP2-552013,07130944-6040,06020099-1300,XP2-552013,07130944-6040,06020160-1300,XP2-552013,07130944-6040,06020161-1300,XP2-552013,07130944-6040,06020166-1040,XP2-552013,07130944-6040,06020751-1340,XP2-552013,07130944-6040,06020800-6040,XP2-802014,07130944-6040,06020800-6300,XP2-802014,07130944-6040,06020800-6340,XP2-802014,07130944-6040,06020801-6000,XP2-802014,07130944-6040,06020801-6300,XP2-802014,07130944-6040,06020802-6000,XP2-802014,07130944-6040,06020802-6040,XP2-802014,07130944-6040,06020802-6300,XP2-802014,07130944-6040,06020802-6340,XP2-802014,07130944-6040,06020803-6000,XP2-802014,07130944-6040,06020803-6040,XP2-802014,07130944-6040,06020803-6300,XP2-802014,07130944-6040,06020803-6340,XP2-802014,07130944-6040,06020804-6040,XP2-802014,07130944-6040,06020805-6040,XP2-802014,07130944-6040,06020805-6300,XP2-802014,07130944-6040,06020805-6340,XP2-802014,07130944-6040,06020806-6300,XP2-802014,07130944-6040,06020807-6340,XP2-802014,07130944-6040,06020808-6040,XP2-802014,07130944-6040,06020808-6340,XP2-802014,07130944-6040,06020813-6000,XP2-802014,07130944-6040,06020813-6300,XP2-802014,07130944-6040,06020814-6000,XP2-802014,07130944-6040,06020814-6300,XP2-802014,07130944-6040,06020819-6040,XP2-802014,07130944-6040,06020819-6340,XP2-802014,07130944-6040,06020820-6300,FMXP-802014,07130944-6040,06020832-6300,XP2-802014,07130944-6040,06020834-6340,XP2-802014,07130944-6040,06020840-6300,XP2-802014,07130944-6040,06020841-6300,XP2-802014,07130944-6040,06020841-6340,XP2-802014,07130944-6040,06020843-6300,XP2-802014,07130944-6040,06020847-6300,XP2-802014,07130944-6040,06020847-6340,XP2-802014,07130944-6040,06020921-6040,XP2-802014,07130944-6040,06020921-6340,XP2-802014,07130944-6040,06030753-2370,XP2-552013,07130944-6040,06030801-6040,XP2-802014,07130944-6040,07026000-6300,XP2-802014,07130944-6040,07026000-8300,XP2-802014,07130944-6040,07026007-8340,XP2-802014,07130944-6040,07028000-6340,XP2-802014,07130944-6040,07030000-6040,XP2-802014,07130944-6040,07030000-6340,XP2-802014,07130944-6040,07030000-8340,XP2-802014,07130944-6040,07030001-6300,XP2-802014,07130944-6040,07030002-6000,XP2-802014,07130944-6040,07030004-6340,XP2-802014,07130944-6040,07030005-6300,XP2e-802014,07130944-6040,07030807-6300,XP2-802014,07130944-6040,07030840-8300,XP2-802014,07130944-6040,07030841-8300,XP2-802014,07130944-6040,07030843-8300,XP2-802014,07130944-6040,07030961-6340,XP2-802014,07130944-6040,07030975-6340,XP2-802014,07130944-6040,07115000-6300,XP2e-902024,07130944-6040,07115816-6000,XP2-902024,07130944-6040,07115816-6300,XP2-902024,07130944-6040,07122817-6300,XP2-902024,07130944-6040,07126001-6300,XP2-902024,07130944-6040,07126815-6000,XP2-902024,07130944-6040,07126815-6300,XP2-902024,07130944-6040,07130001-6040,XP2-902024,07130944-6040,07130001-6340,XP2-902024,07130944-6040,07130002-6340,XP2-902024,07130944-6040,07130002-8340,XP2-902024,07130944-6040,07130003-6340,07130944-6040,07130004-6300,XP2-902024,07130944-6040,07130004-6340,XP2-902024,07130944-6040,07130005-6040,XP2-902024,07130944-6040,07130006-6040,XP2-902024,07130944-6040,07130008-6300,XP2-902024,07130944-6040,07130009-6300,XP2-902024,07130944-6040,07130010-6300,XP2-902024,07130944-6040,07130011-6340,XP2-902024,07130944-6040,07130011-8340,XP2-902024,07130944-6040,07130012-6340,XP2-902024,07130944-6040,07130013-6300,XP2-902024,07130944-6040,07130014-6340,XP2-902024,07130944-6040,07130015-6340,XP2-902024,07130944-6040,07130016-6300,XP2-902024,07130944-6040,07130016-6340,XP2-902024,07130944-6040,07130016-8300,XP2-902024,07130944-6040,07130017-6300,XP2-902024,07130944-6040,07130019-6040,XP2-902024,07130944-6040,07130020-6340,XP2-902024,07130944-6040,07130021-6300,XP2-902024,07130944-6040,07130022-6300,XP2-902024,07130944-6040,07130023-6300,XP2-902024,07130944-6040,07130024-6340,XP2-902024,07130944-6040,07130025-6300,XP2-902024,07130944-6040,07130167-6040,XP2-902024,07130944-6040,07130167-6340,XP2-902024,07130944-6040,07130167-6360,XP2-902024,07130944-6040,07130944-6040,XP2-902024,07130944-6040,07130944-6300,XP2-902024,07130944-6040,07130944-6340,XP2-902024,07130944-6040,07130944-8340,XP2-902024,07130944-6040,07130953-6000,XP2-902024,07130944-6040,07130953-6300,XP2-902024,07130944-6040,07130953-6340,XP2-902024,07130944-6040,07130980-6040,XP2-902024,07130944-6040,07130983-6300,XP2-902024,07130944-6040,07130988-6040,XP2-902024,07130944-6040,07130988-6340,XP2-902024,93556590 (2.5HP). ,Pump Mod: 07040001-6, 07130002-6 ,Spa Industries APUM42152A ,XP2-802513 ,Code 03337 ,No G39H3720,XP2-902513, M 93546590, No. 244802260507 ,A452X582A6100
