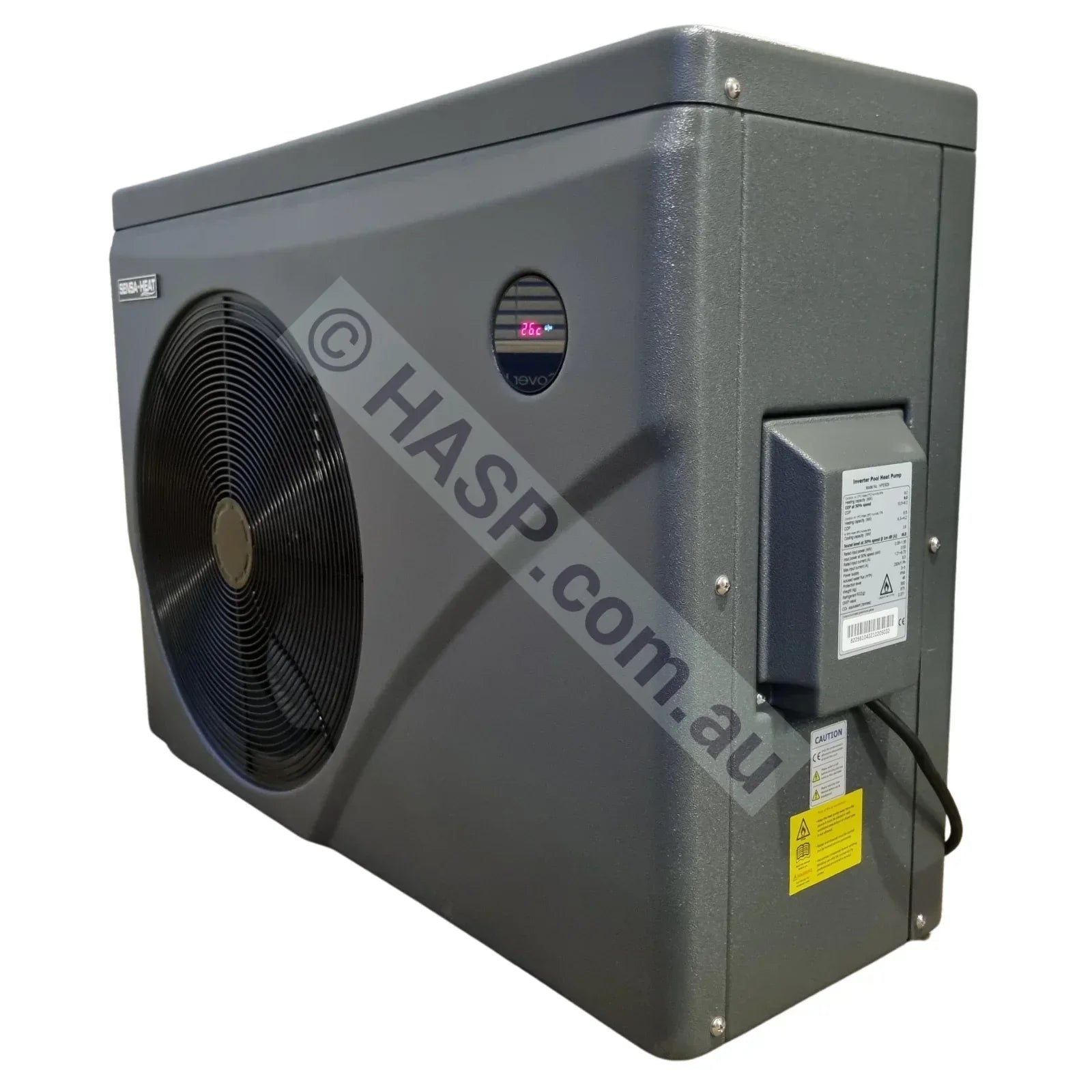

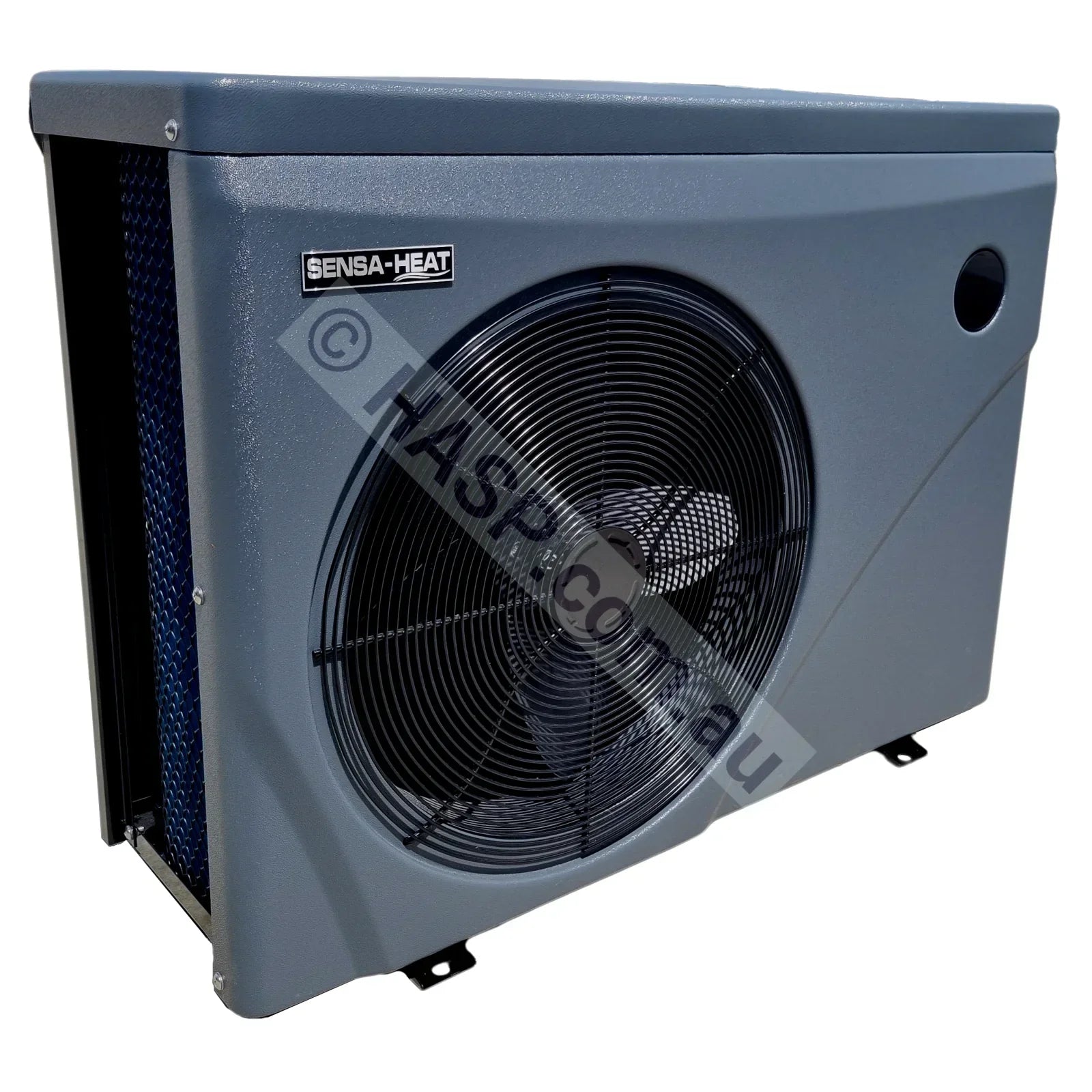

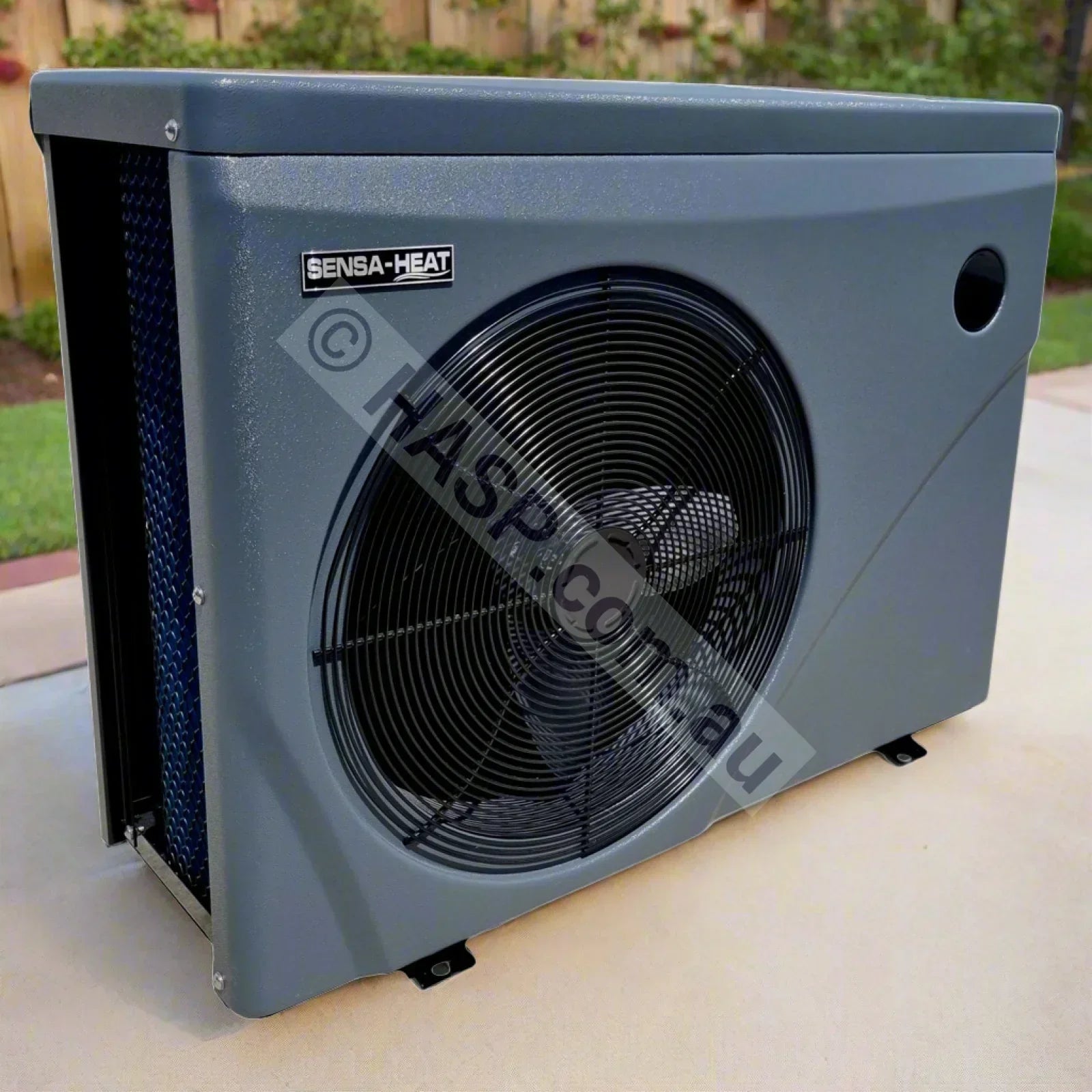

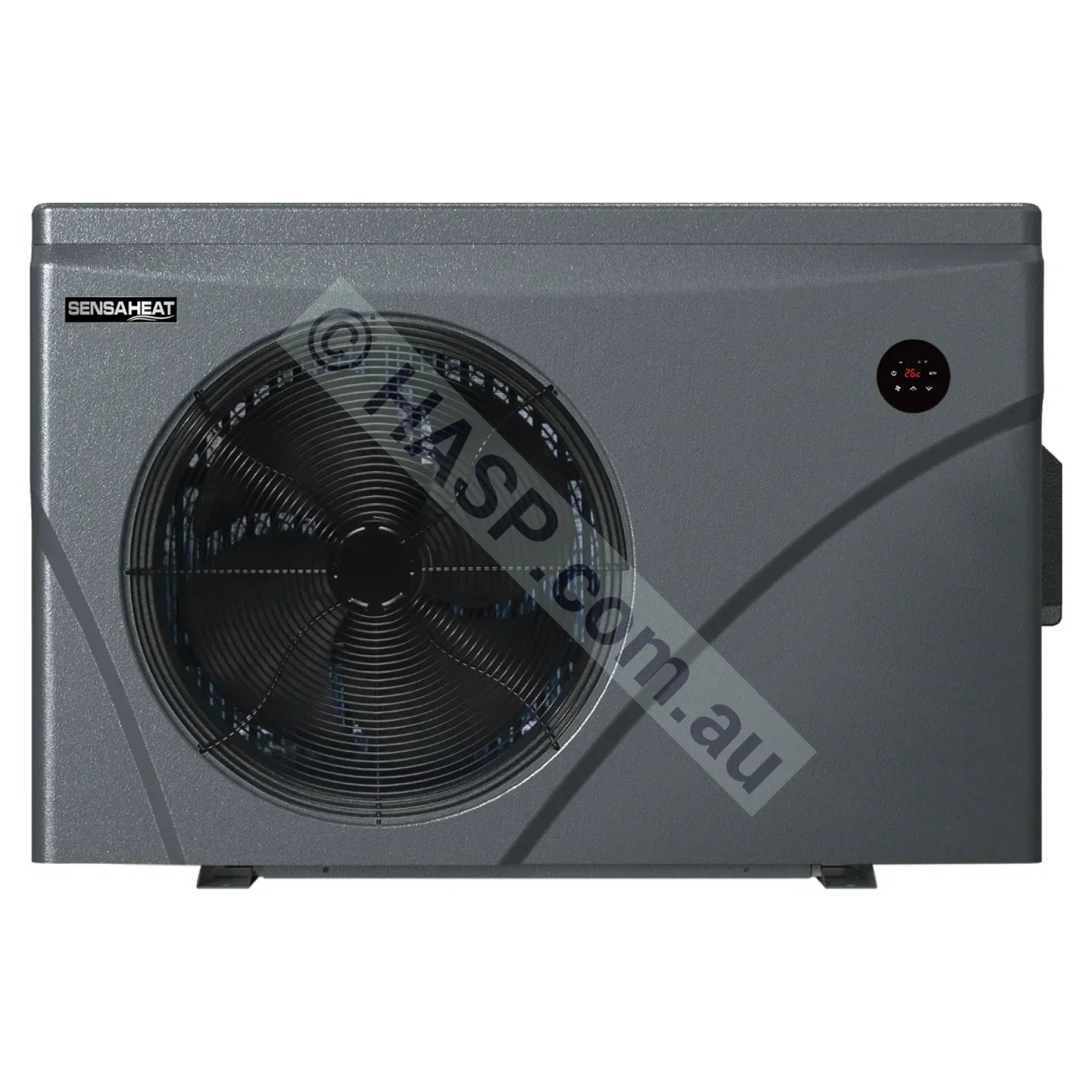

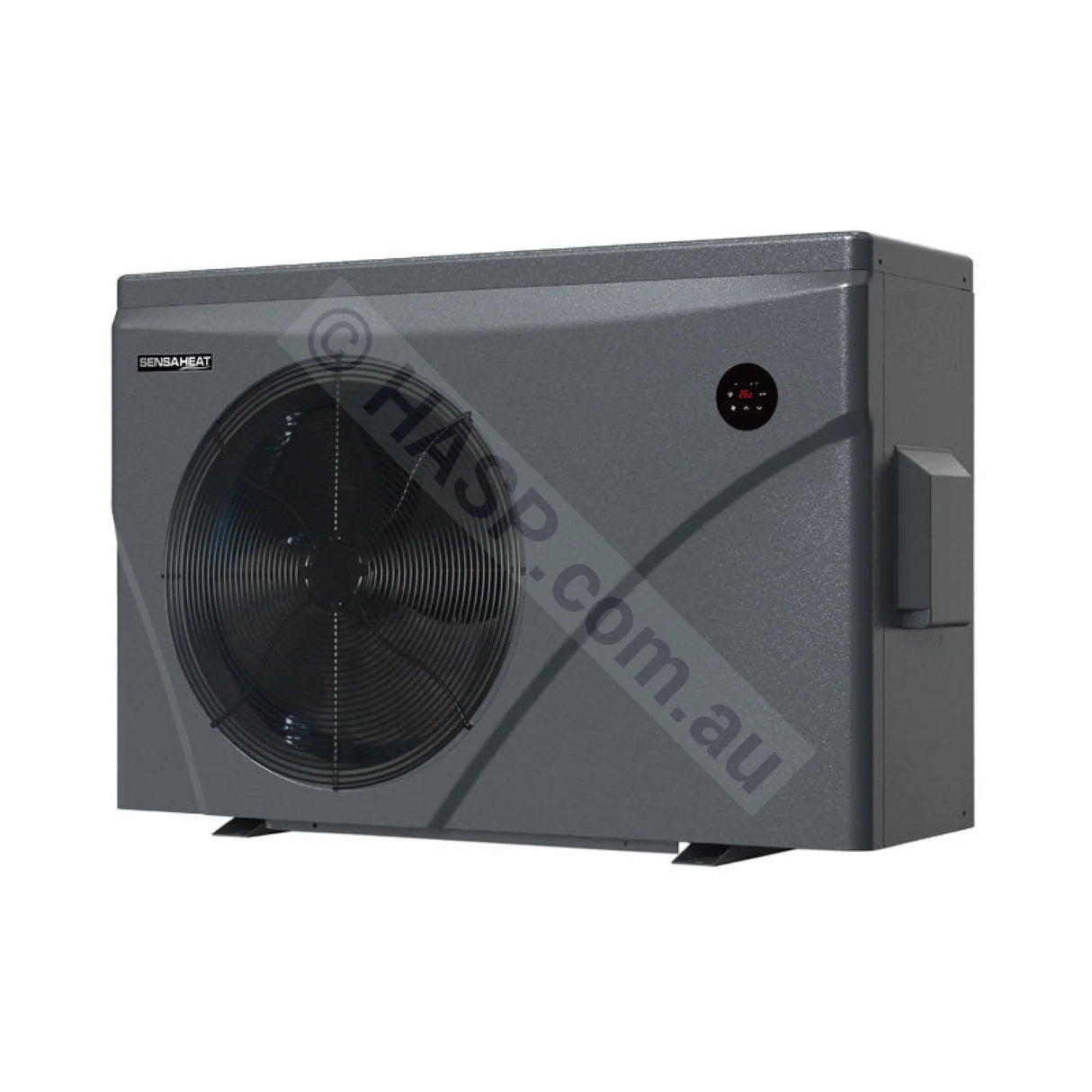

The SensaHeat ES Series 16kW is a full DC inverter spa and pool heat pump with WiFi control as standard, built around a Mitsubishi DC compressor and titanium heat exchanger. Sized for medium residential pools and larger spas — delivers strong heating output and faster heat-up times on single-phase power. Hard-wired install (licensed electrician required). Backed by Australia's largest OEM spa equipment distribution network — local stock and service across VIC, NSW, QLD, and WA, not the typical drop-shipping experience.

Heating & Cooling Performance

• 16.0kW heating @ 27°C Air / 27°C Water / 80% Humidity — COP 10.7 ~ 6.2 (average 9.1 at 50% speed)
• 11.0kW heating @ 15°C Air / 26°C Water / 70% Humidity — COP 6.6 ~ 4.3 (average 6.1 at 50% speed)
• 6.1kW cooling capacity — reverse cycle for hot-day pool cooling

Recommended For

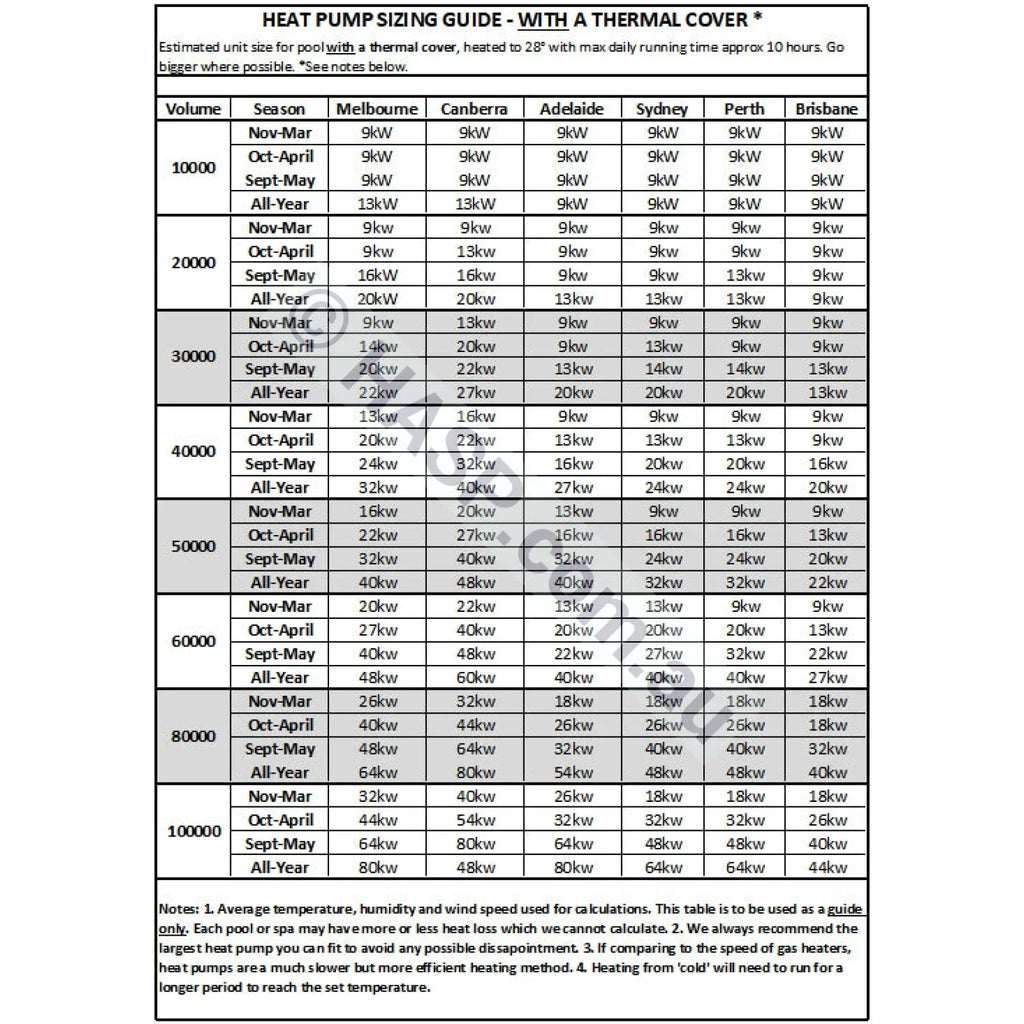

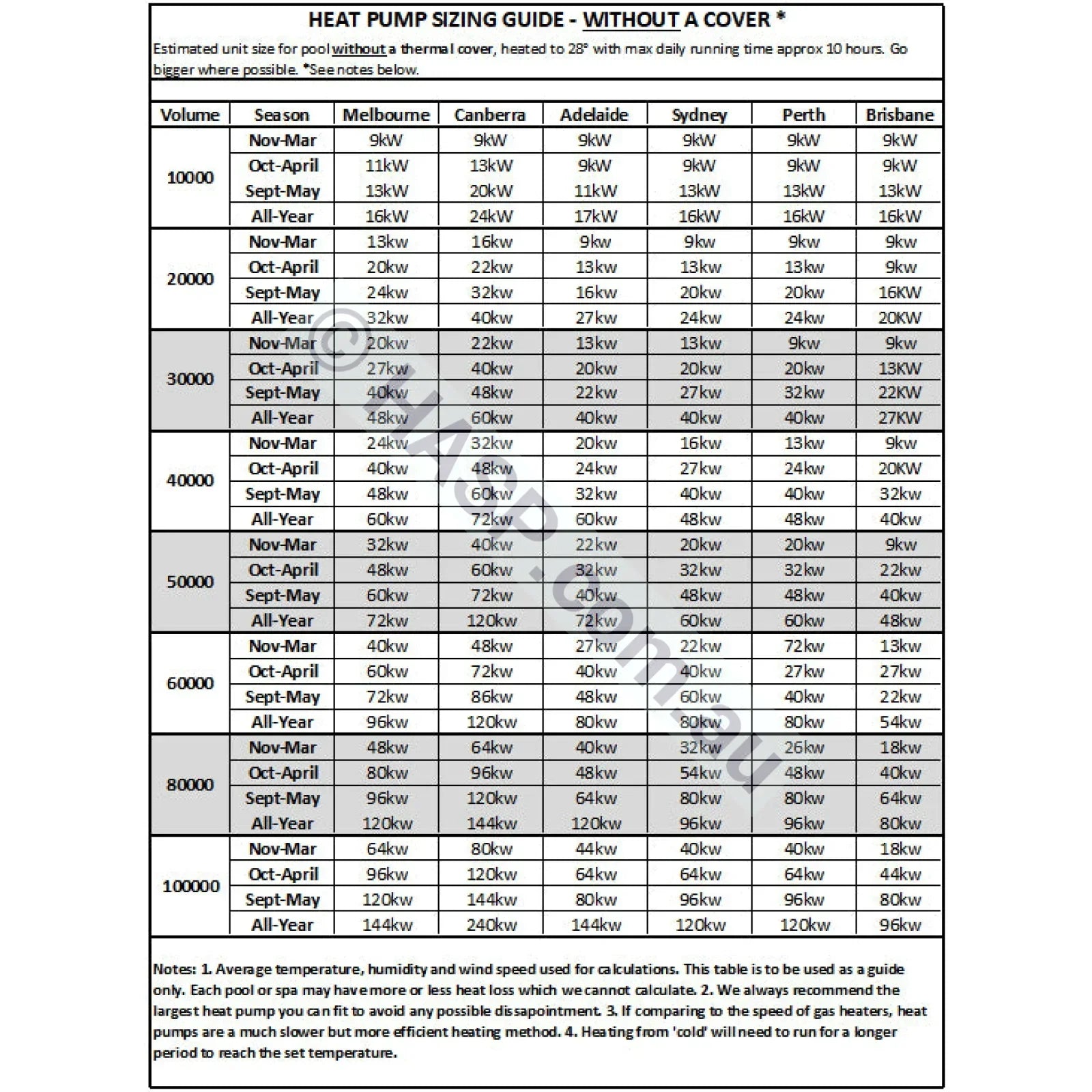

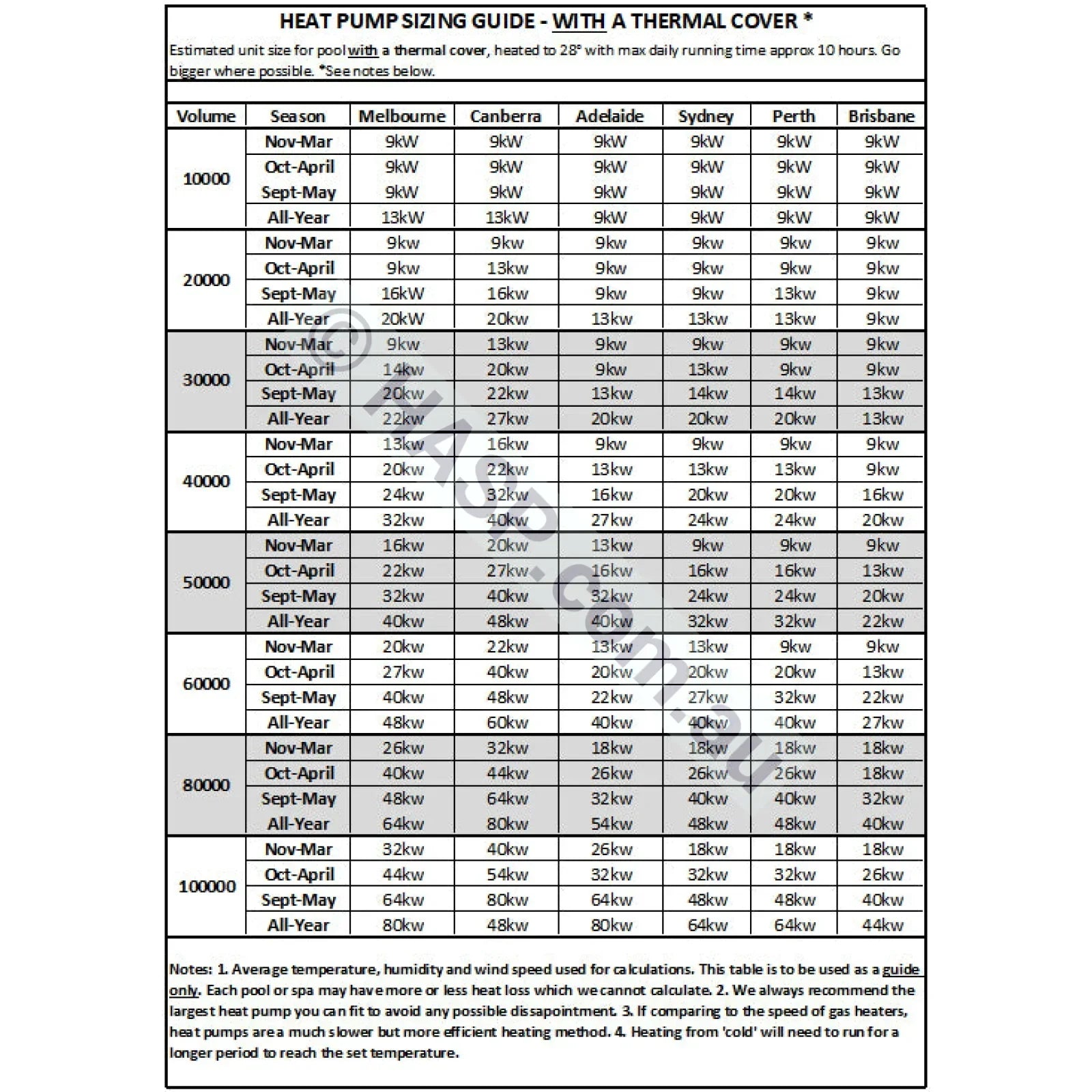

• Medium-sized residential pools up to ~40,000L

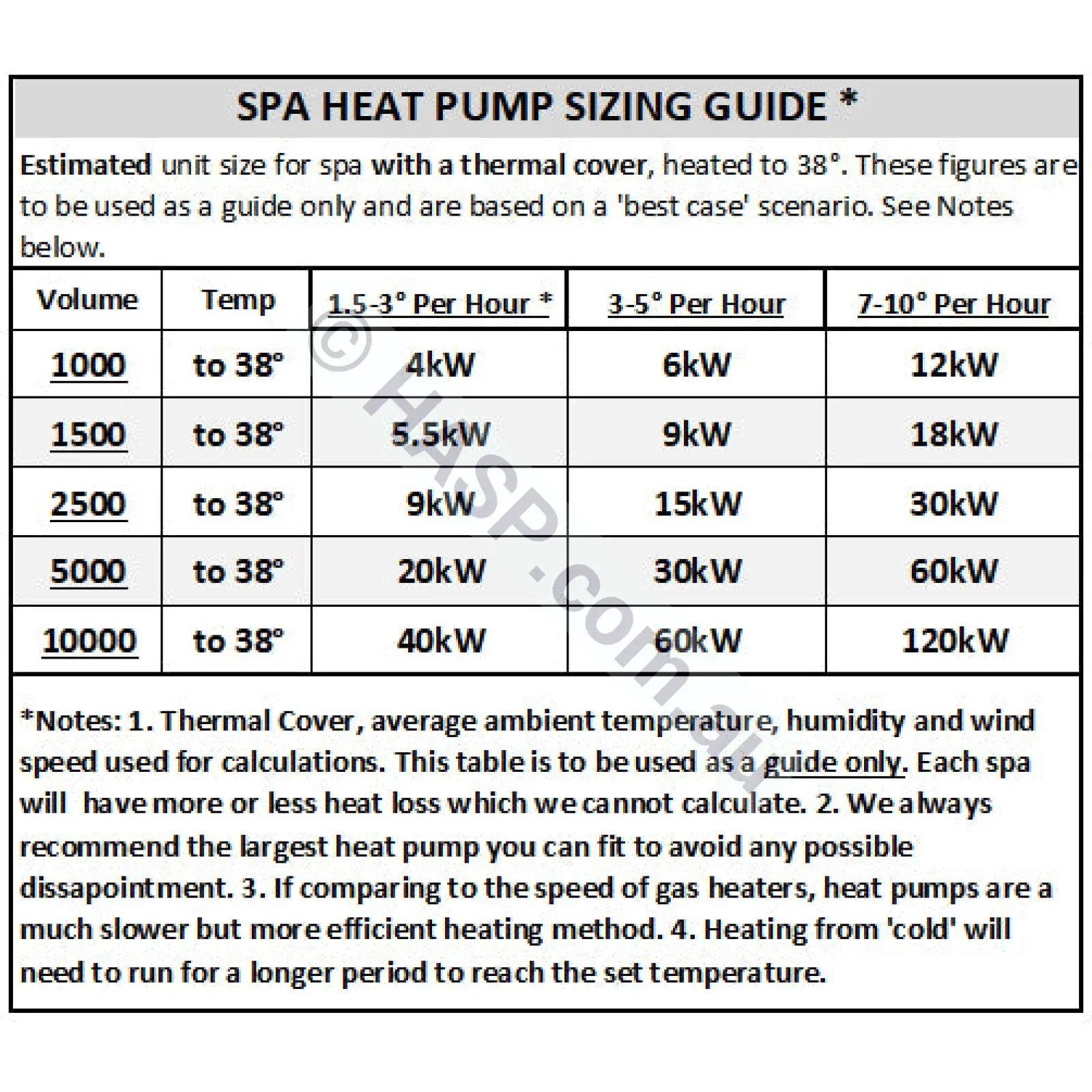

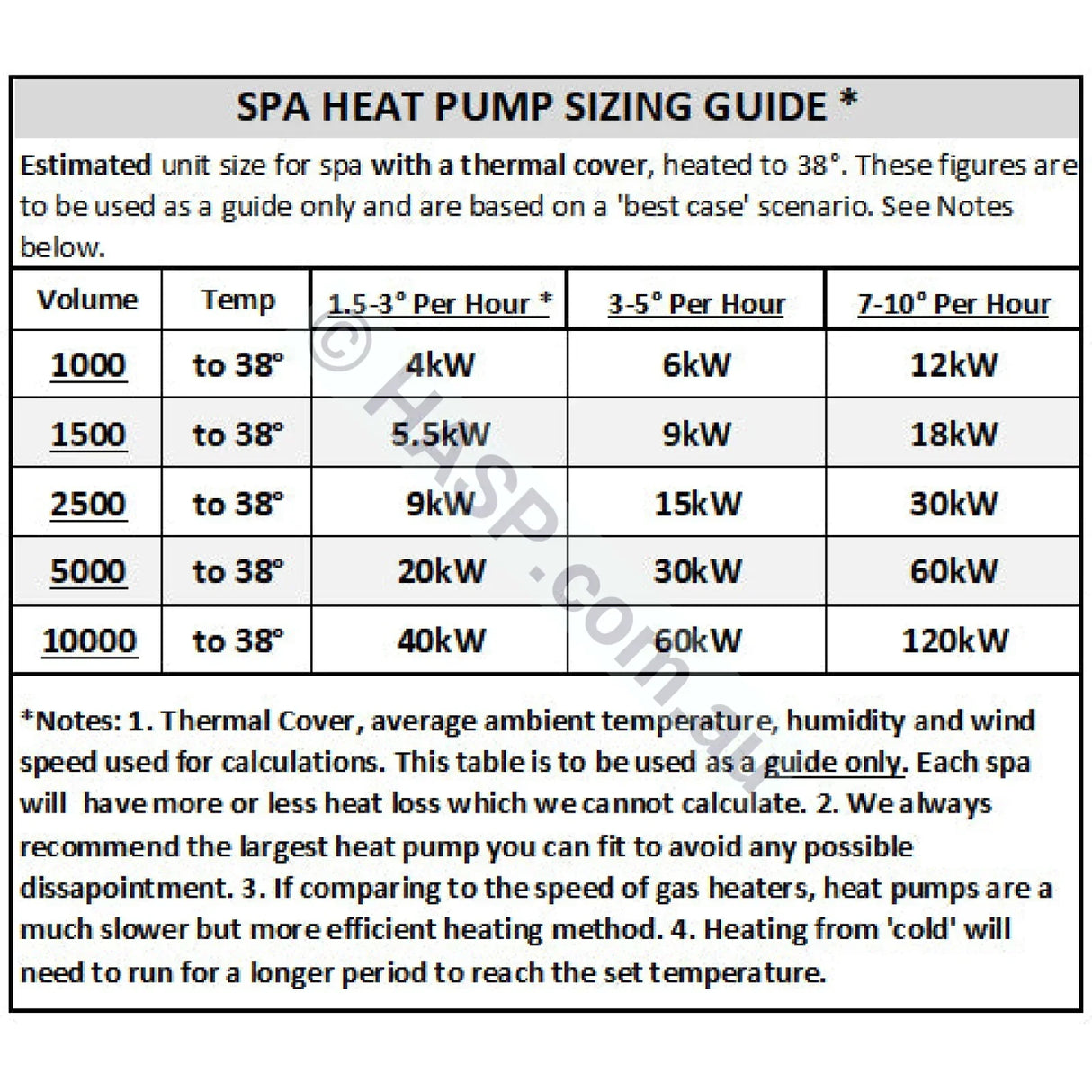

• Large spas, swim spas, and small commercial spa installations
• Year-round operation across Melbourne, Sydney, Brisbane, and Perth climates
• Pool owners stepping up from 13kW for faster recovery and lower run-time

Why Choose SensaHeat ES?

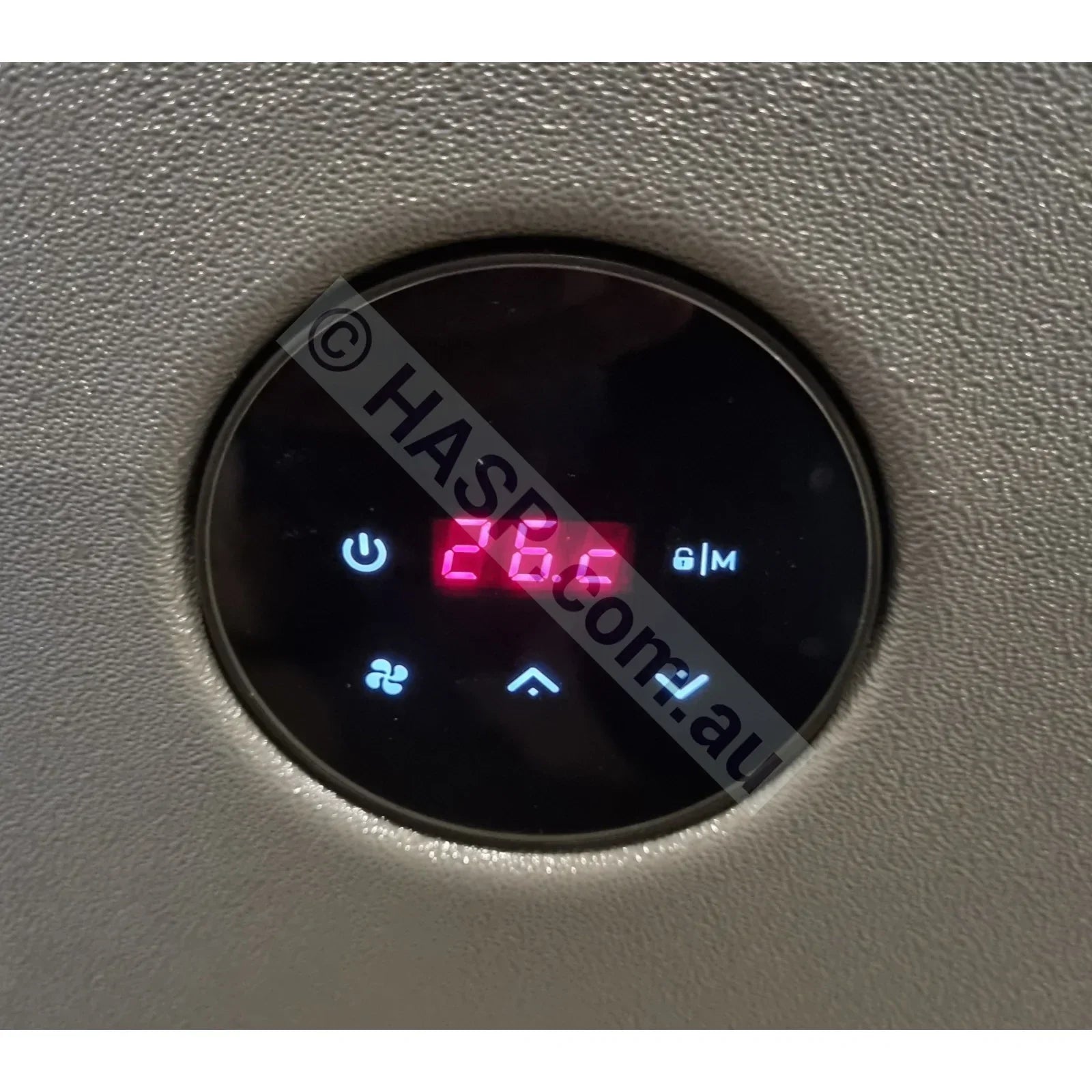

• WiFi App Control as Standard: Monitor temperature, schedules, and modes from anywhere.
• Mitsubishi DC Inverter Compressor: Up to 7x more efficient than fixed-speed heat pumps at part load.
• Reverse-Cycle Heating & Cooling: Auto-defrost with stable DC inverter operation.

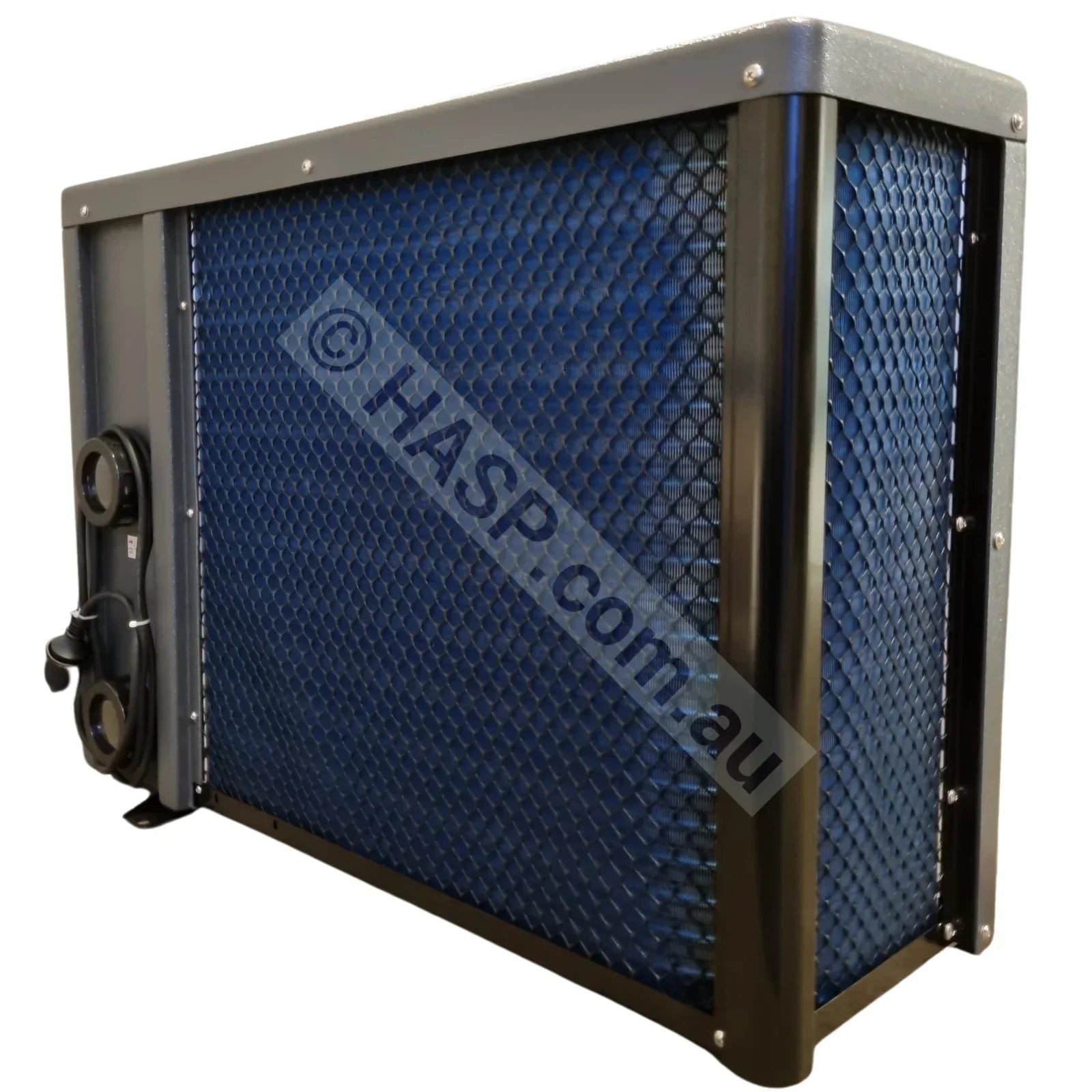

• Titanium Heat Exchanger: ~40% higher efficiency than standard exchangers, chlorine and salt-water rated.
• R32 Refrigerant: Low-GWP (675, ~30% of R410A), future-proof gas charge.
• Anti-Rust ABS Casing: Built for Australian outdoor weather.
• Soft Start Technology: Reduces startup current draw by up to 70%.
• Single-Phase Power: Standard 230V single-phase — no 3-phase upgrade required.
• Quiet Operation: 46.2 ~ 57.3 dB at 1m — drops to 26.2 ~ 37.3 dB at 10m.

Spa Control System Integration

The SensaHeat ES is a popular retrofit heat pump for spas running Balboa, SpaNet, Gecko (AEware), and Davey control systems — including SpaPro, WWDG, Sapphire, Alpine, Oasis, Vortex, and most Chinese-import spas. Integration uses the optional Sensaheat Heat Pump Relay Controller (DT-1071021) for spa-controller-driven heating. For standalone pool installs, the Dontek / Sensaheat Universal Heat Pump Controller (J-Box / MJ Box / Intelliheat) provides full filtration and heating automation. Common spare parts — flow switches, water temperature sensors, controllers, capacitors, and PI/ES union gaskets — are held locally in stock for fast turnaround on repairs.

Warranty

• Titanium Heat Exchanger: 25 Years
• Compressor: 3 Years
• Other Parts: 2 Years
• On-Site Labour: 1 Year (T&Cs apply)

Documentation

SensaHeat ES Series User & Installation Manual (PDF)

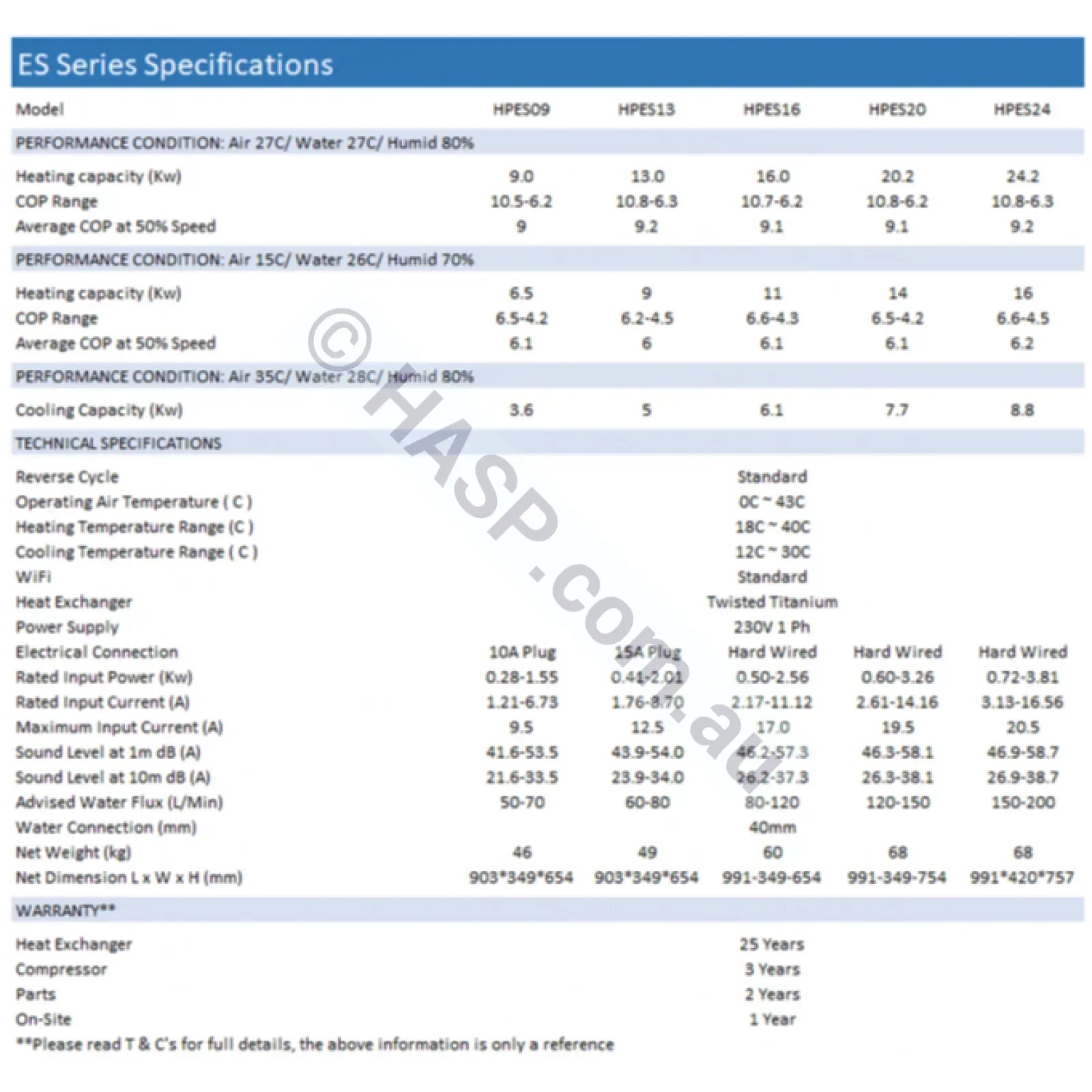

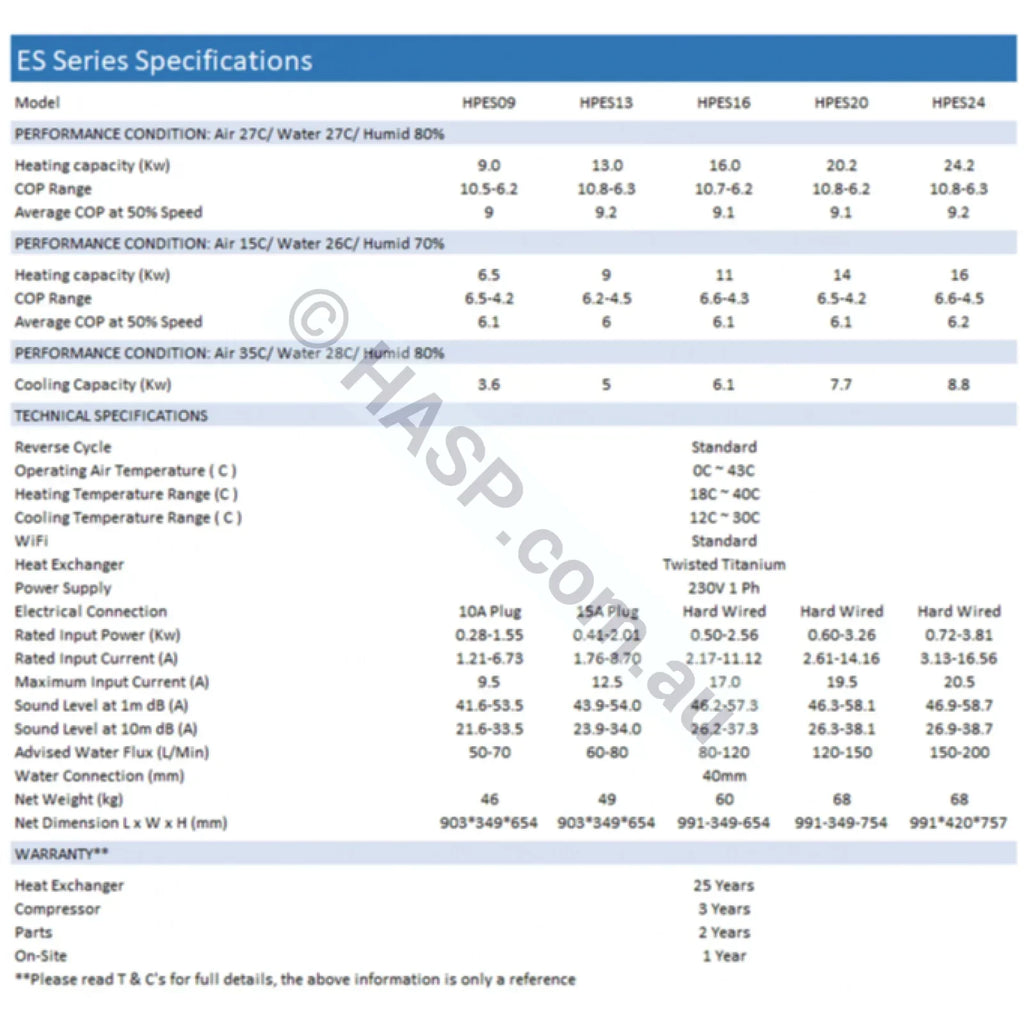

Full Specifications — 16kW (SP-HPES16)

Model	SP-HPES16
Heating @ Air 27°C / Water 27°C / Humidity 80%
Heating capacity	16.0kW
COP Range	10.7 ~ 6.2
Average COP at 50% Speed	9.1
Heating @ Air 15°C / Water 26°C / Humidity 70%
Heating capacity	11.0kW
COP Range	6.6 ~ 4.3
Average COP at 50% Speed	6.1
Cooling capacity	6.1kW
Technical Specifications
Reverse cycle	Standard
Operating air temperature	0°C ~ 43°C
Heating temperature range	18°C ~ 40°C
Cooling temperature range	12°C ~ 30°C
WiFi	Built-in
Heat exchanger	Titanium
Power supply	230V / 1 Ph
Electrical connection	Hard Wired (electrician required)
Rated input power	0.50 ~ 2.56 kW
Rated input current	2.17 ~ 11.12 A
Maximum input current	17.0 A
Sound level at 1m	46.2 ~ 57.3 dB(A)
Sound level at 10m	26.2 ~ 37.3 dB(A)
Advised water flow rate	80 ~ 120 L/min
Water connection	40mm
Net dimensions (LxWxH)	911 x 349 x 654 mm
Net weight	60 kg

For specific data, please refer to the installation manual and the nameplate on the unit.

Pair It With

• Sensaheat Heat Pump Relay Controller — for Balboa, SpaNet, Gecko, Davey integration
• Dontek Universal Heat Pump Controller (J-Box / Intelliheat) — for standalone filtration and heating automation
• Pool Heat Pump Condensate Drainage Kit

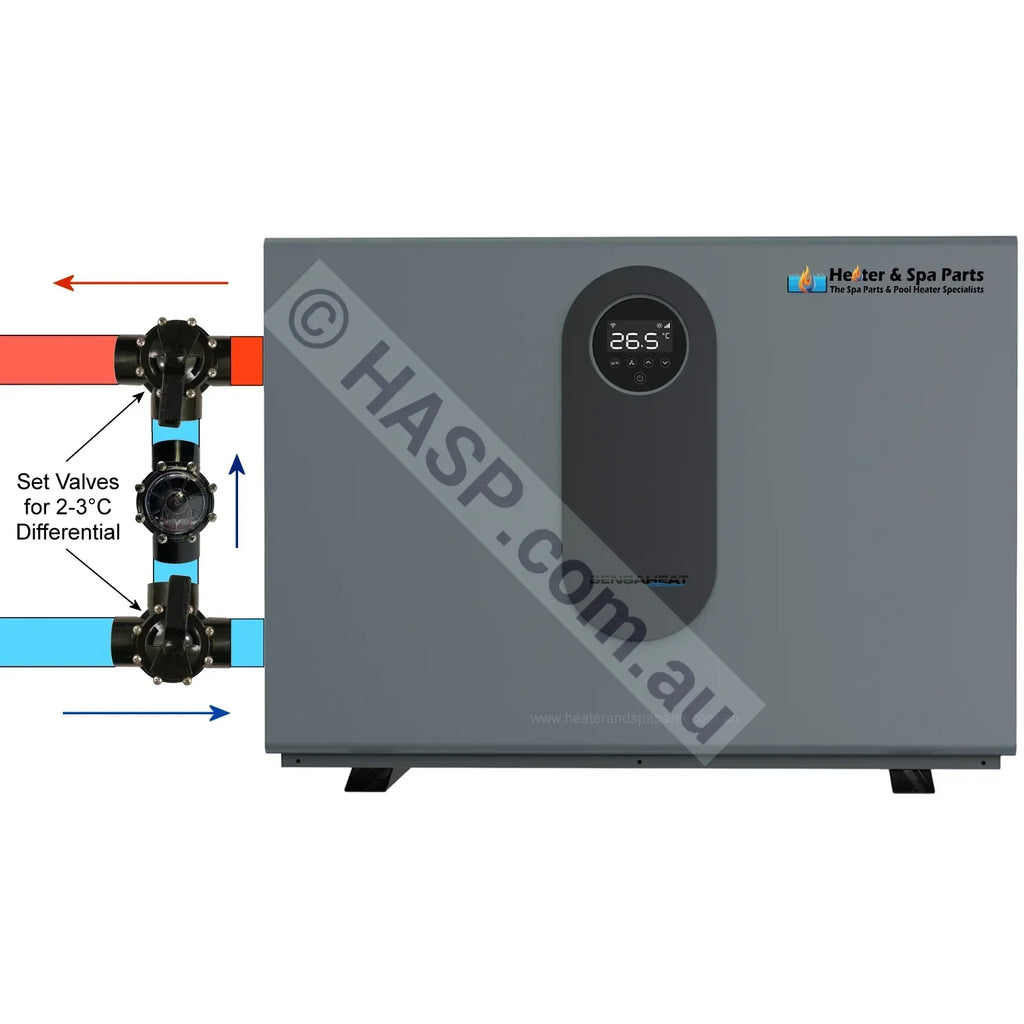

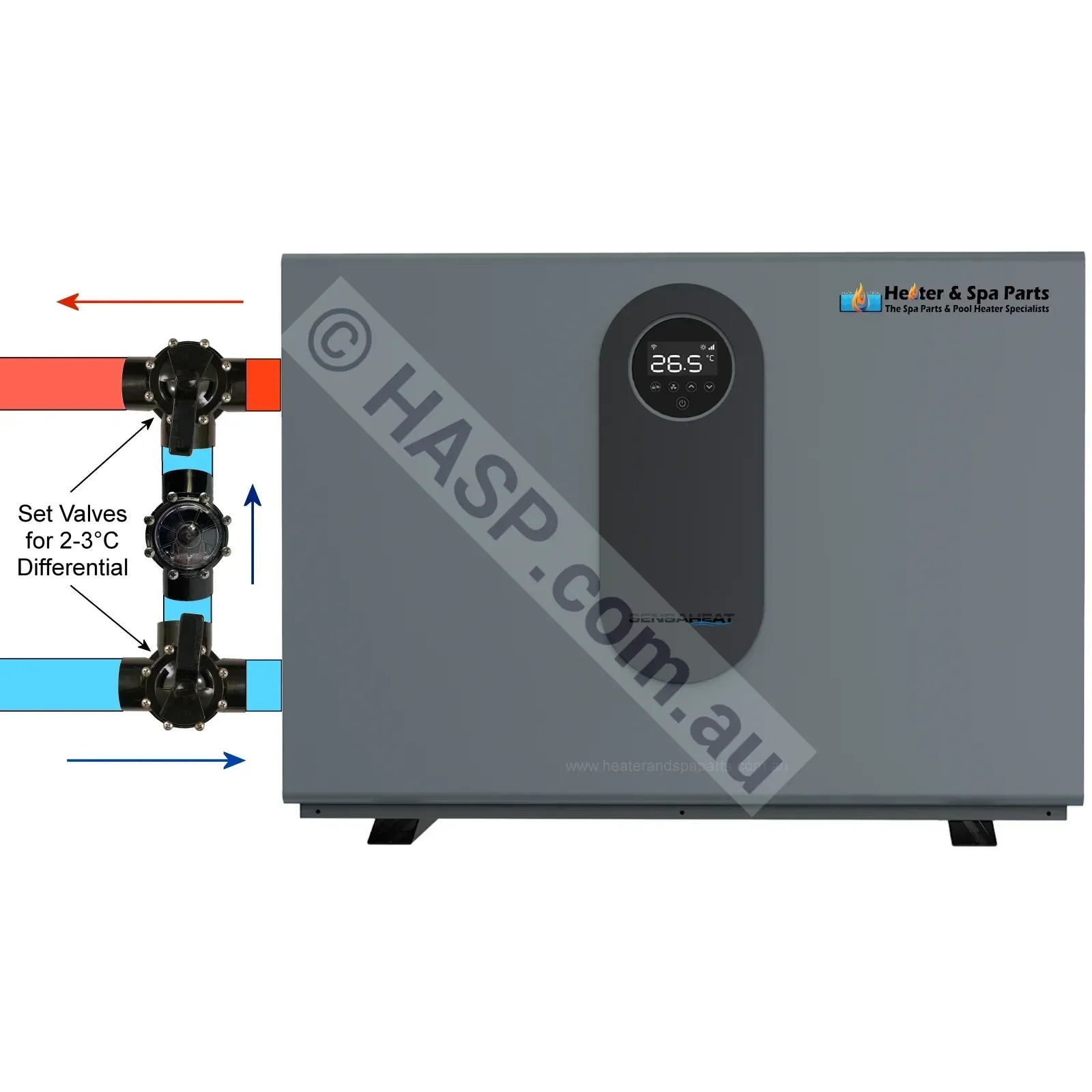

• 3-way valve kit (discounted when bundled with this heat pump — ask in cart)
• SensaHeat PI / ES Union Gaskets (spare seals)
