3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Maxiflow, Onga, Waterway and others

This is the most common sized mechanical seal. Fits many brands of pumps. Genuine product. This is a much higher quality seal than some of the cheaper ones you find online with cheap rubbers and poor carbon faces.

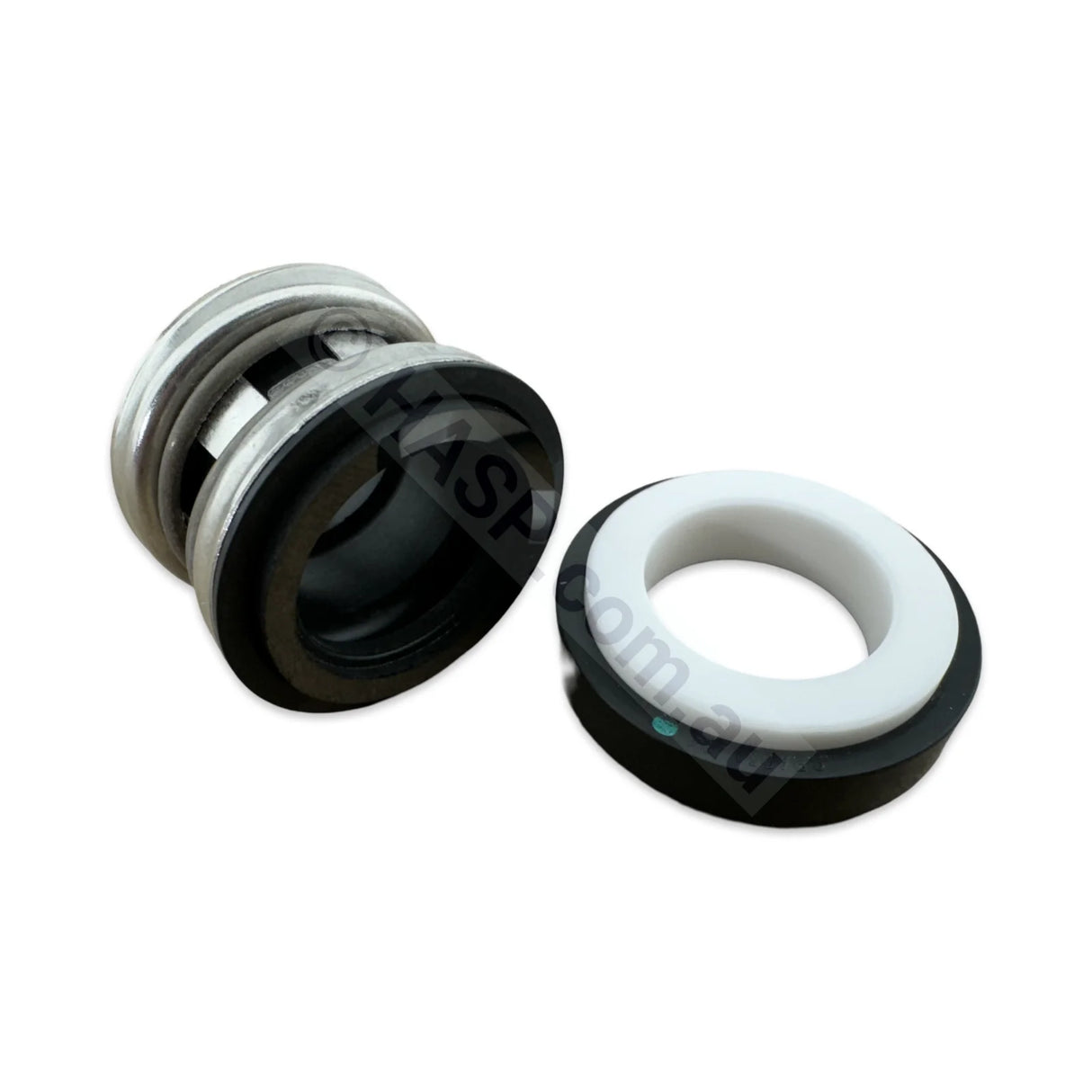

3/4" type 6 premium mechanical seal.

Dimensions & Specifications:

• OD of Ceramic Base: ~35.1-35.4mm (including rubber) - Inside diameter varies & is not relevant (other than needing to clear 3/4" shafts).
• ID of Top (spring) Section: ~17.8mm (for shaft seal) - Outside diameter varies & is not relevant.

• Overall Height: ~32-34mm
• Minimum Compression (Working Height): ~22mm
• Stainless Steel Hardware with Ceramic Face, Carbon face.
• Elastomer Bellows style in spring section for superior shaft seal (better than cheap quad-ring style shaft seals).

Confirmed to fit:

• Maxiflow / SpaQuip pumps: All - Monster, Magnum
• Hurlcon & Astralpool: All CX, TX, CTX, FX, XP, BX, P320, P520
• Onga: Silentflo, Starite, Pantera
• Suits many Filtermaster, Hayward, Poolrite, Powerplus, Stroud, Quiptron, Questa, FPI, Poolstore, WWDG, and plenty of others

Installation Tips:

• Use water-based lubrication for tight fitting parts.
• Do not twist spring section when fitting onto shaft.
• Where the seal plate base has thinned, or worn, use marine silicone sealant on outside rubber-to-sealplate. Do not use sealant on the spring section.
• Never run dry. Running a pump dry will cause the seal to overheat within seconds.
