3.0kW Davey Spaquip Spa Power 600 601 800 Heater Element Tube Assembly
3.0kW Davey Spaquip Spa Power 600 601 800 Heater Element Tube Assembly is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

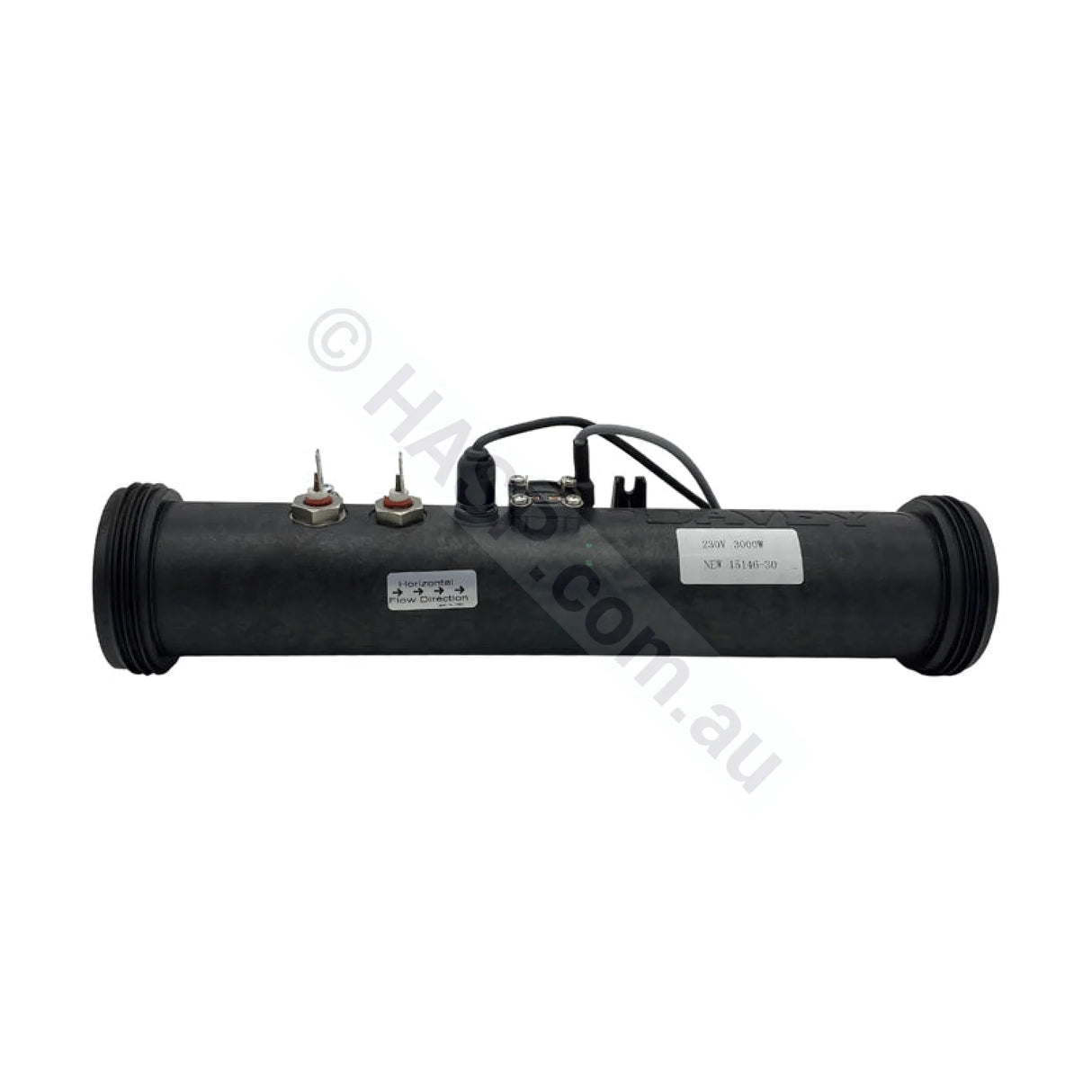

Genuine 3kW Davey SpaQuip Spa Power 600, 601, 800 3000W heater element aka tube assembly. Comes with the newer Titanium element since late 2015, which retrofits the older obsolete Teflon-coated elements and flat brass bulkhead top. Newer version is more sturdy than the older type. Comes with new klixon overtemp sensor, temperature sensor, and optical water sensor.
- Physically Kept In Stock Unlike Most "Dropship" stores.
- Fast Shipping, or Pick-Up In-store.
Important:

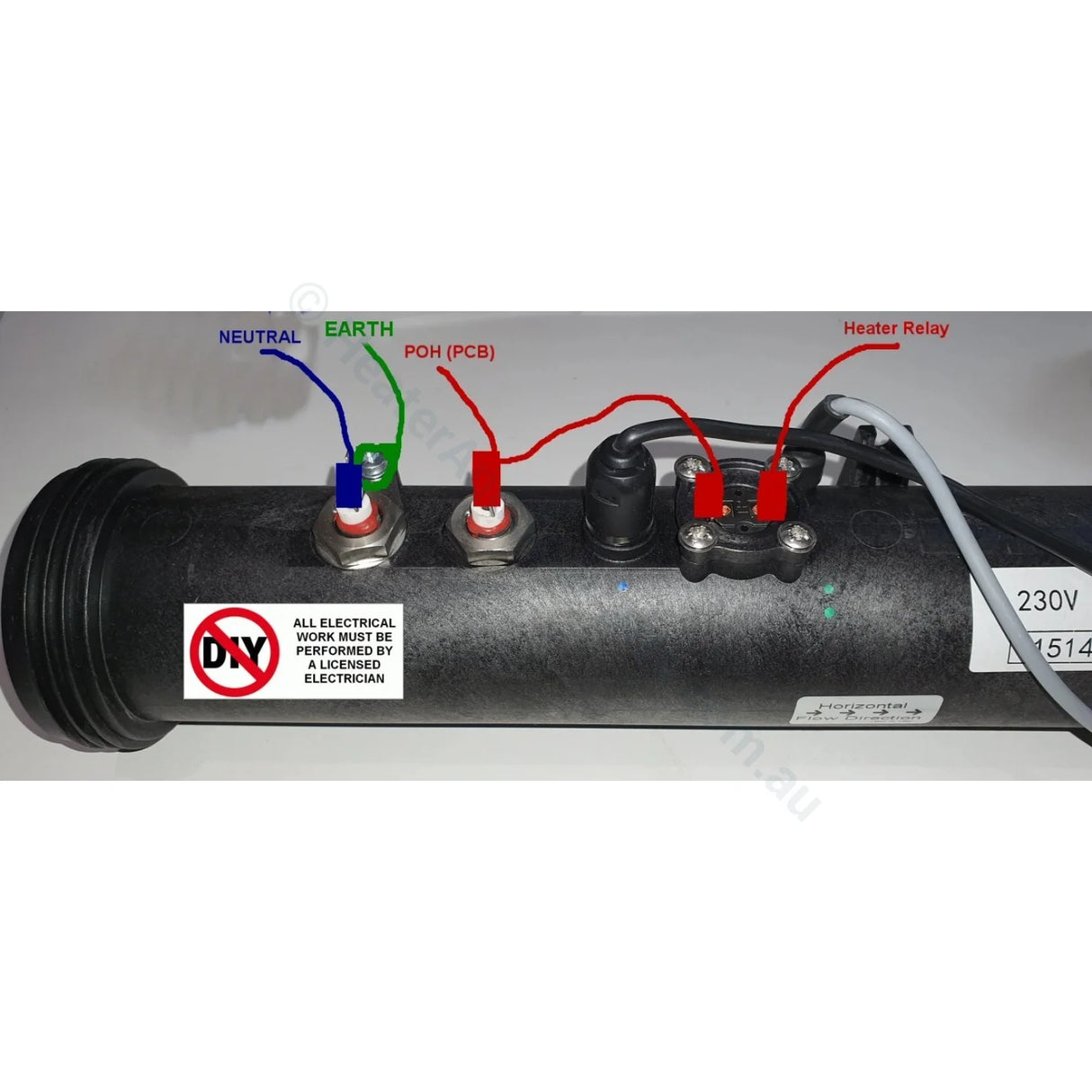

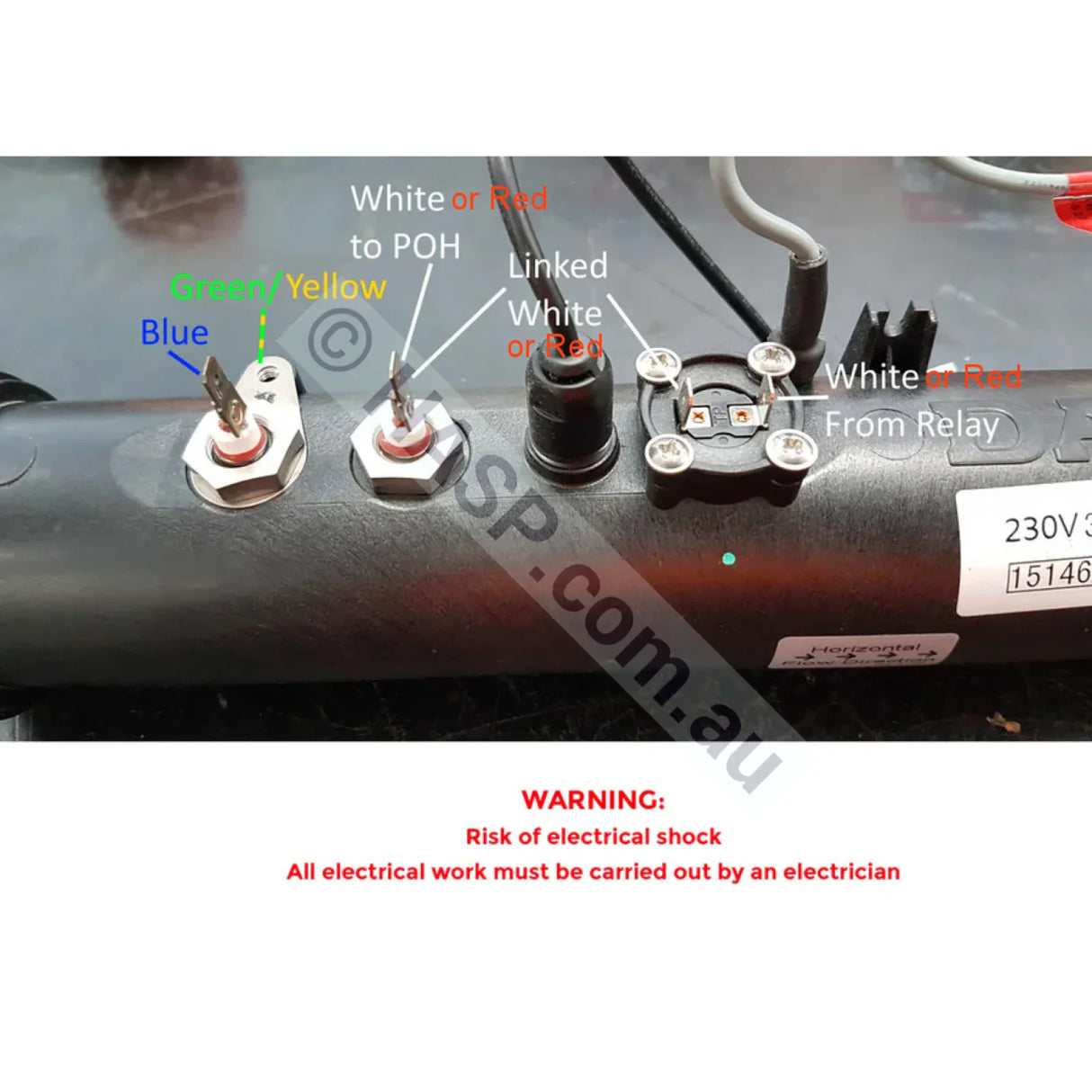

- New Style Heater Wiring Diagram Instructions: SP 600 / SP 601 | SP 800

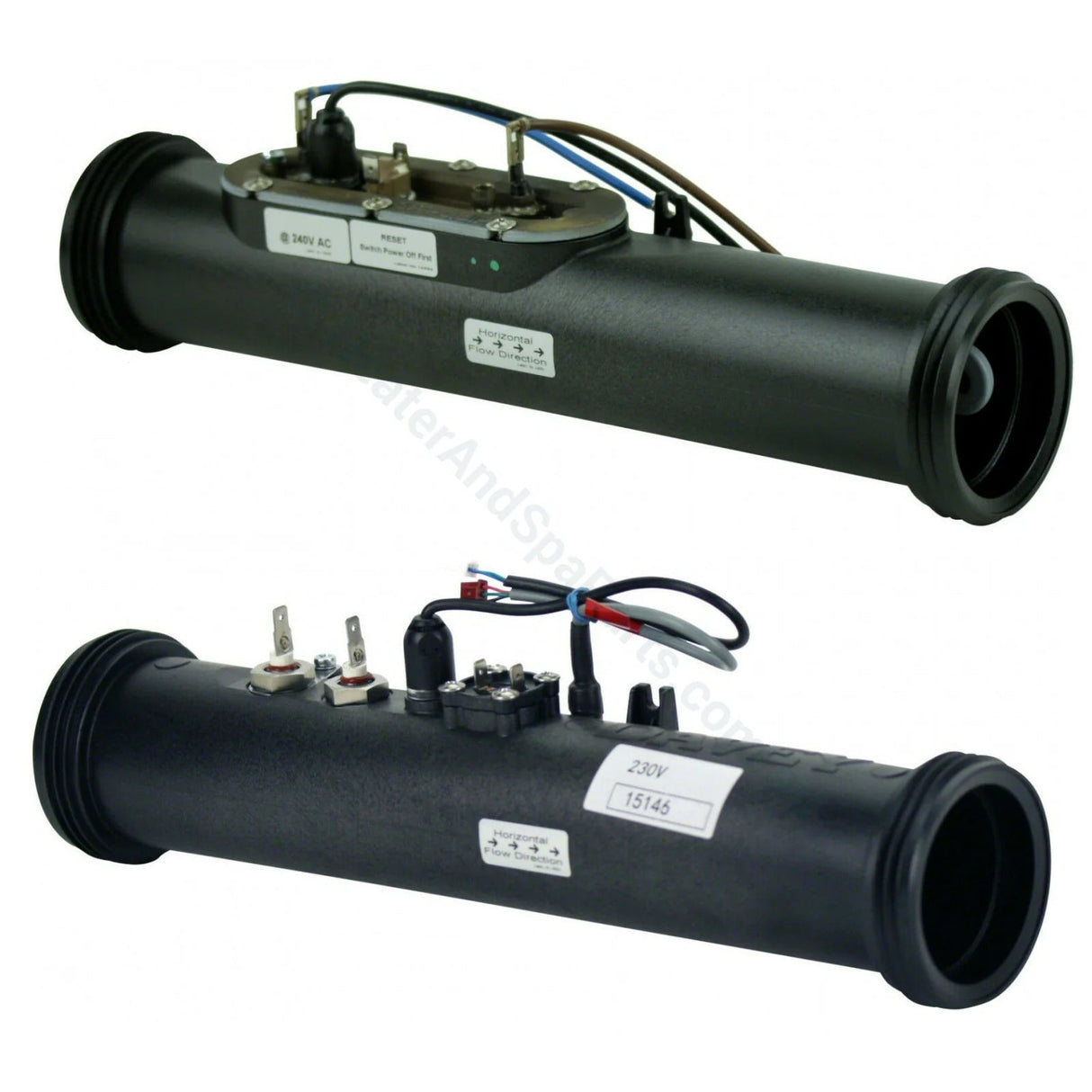

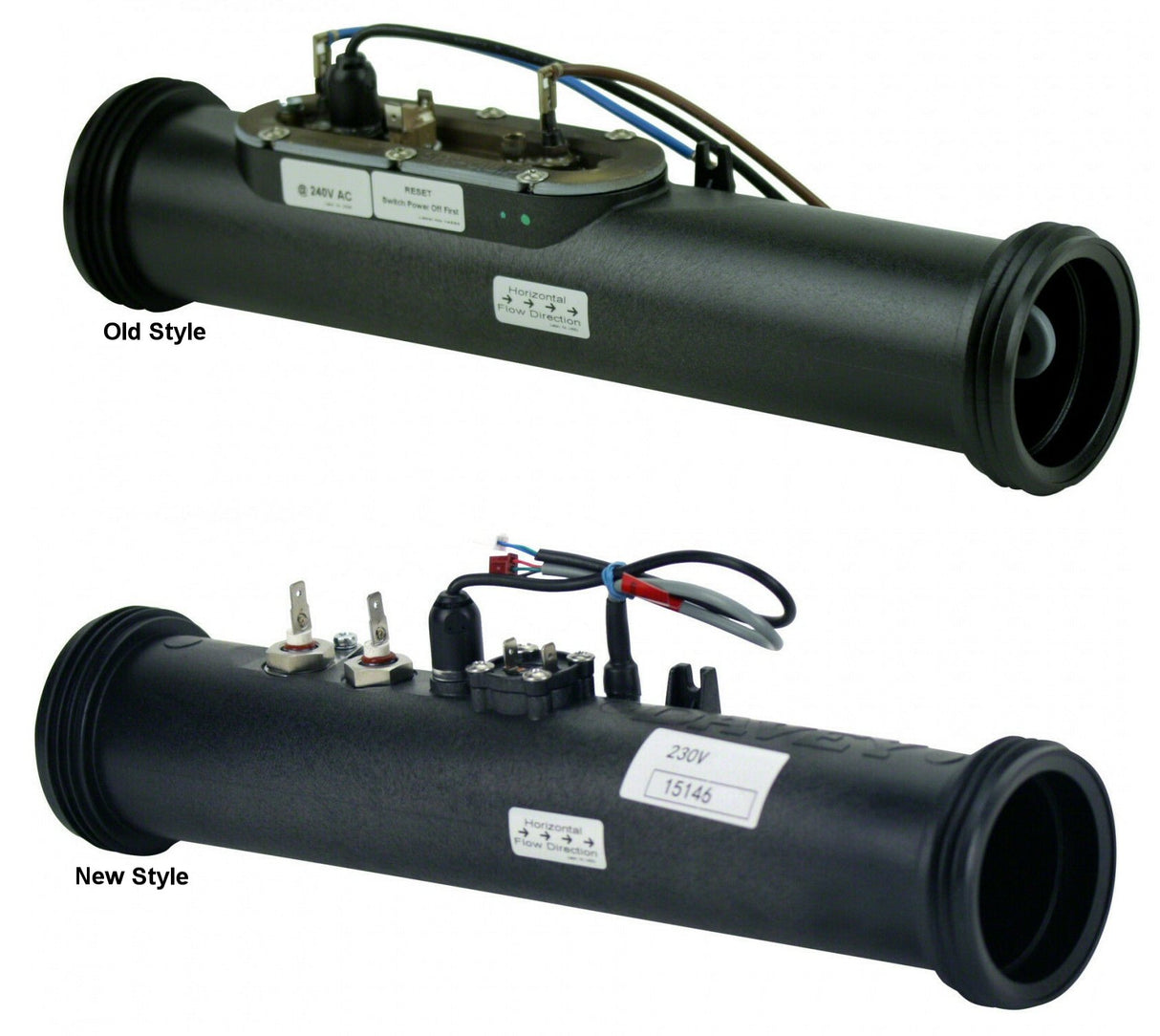

- New heaters have Titanium elements and a slightly different body. (Old style is the top version in first photo. New style is the bottom version in first photo). The old ones have been superseded by the new assembly (bottom image) with titanium element.
- Must be fitted by a qualified person such as a licensed electrician.
Suits the Following Spa Controllers:
- Davey SpaQuip Spa Power 600 & Spa Power 601 - SP600 / SP601
- Davey SpaQuip Spa Power 800 - SP800 / SP 800
SP 600, SP 601, SP 800 Heater Element Sizes & Models:
- 1.5kW Heater -15146-15SP
- 2.5kW Heater -15146-20SP
- 3.0kW Heater -15146-30sp
Warranty: 1-Year Return to Base. Does not cover damage due to corrosive water.
Other Names:
SpaQuip Heater, Spa-Quip Heater, Spa Quip Heater, Davey Spa Heater, Davey SpaQuip Heater, SpaQuip Spa Heater, SpaQuip Spa Power Heater, Davey Spa Power Heater, SpaQuip 3kW Heater, SpaQuip 3.0kW Heater, SpaQuip 3000W Heater, Davey 3kW Heater, Davey 3.0kW Heater, Davey 3000W Heater, SpaQuip Heater Element, SpaQuip Heater Tube Assembly, Davey Heater Element, Davey Heater Tube Assembly, SpaQuip Titanium Heater, Davey Titanium Heater, SpaQuip Heater Replacement, Davey Heater Replacement, SpaQuip Heater Controller, Davey Heater Controller, D-15146-30SP, 15146-30SP, 15146, d15146-xxSP, SP600, SP601, SP800, SP1200, Q80062T, Q80066T, Q80065T, Q80038T, Q80064T, Q80045T, Q80047T, "SpaQuip 3kW heater replacement", "Davey 3.0kW spa heater element", "SpaQuip titanium heater tube", "Davey SP800 heater assembly", "SpaQuip SP601 3kW heater", "SpaQuip heater element 15146-30SP", "Davey spa heater controller SP800", "Davey spa heater replacement parts"
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
