40gm Madimack Inverchlor Salt & Mineral Chlorinator w/ WiFi - Astralpool Hurlcon Retrofit
40gm Madimack Inverchlor Salt & Mineral Chlorinator w/ WiFi - Astralpool Hurlcon Retrofit is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
40gm Madimack Inverchlor Salt & Mineral Chlorinator w/ WiFi - A...
40gm Madimack Inverchlor Salt & Mineral Chlorinator w/ WiFi - Astralpool Hurlcon Retrofit is backordered and will ship as soon as it is back in stock.

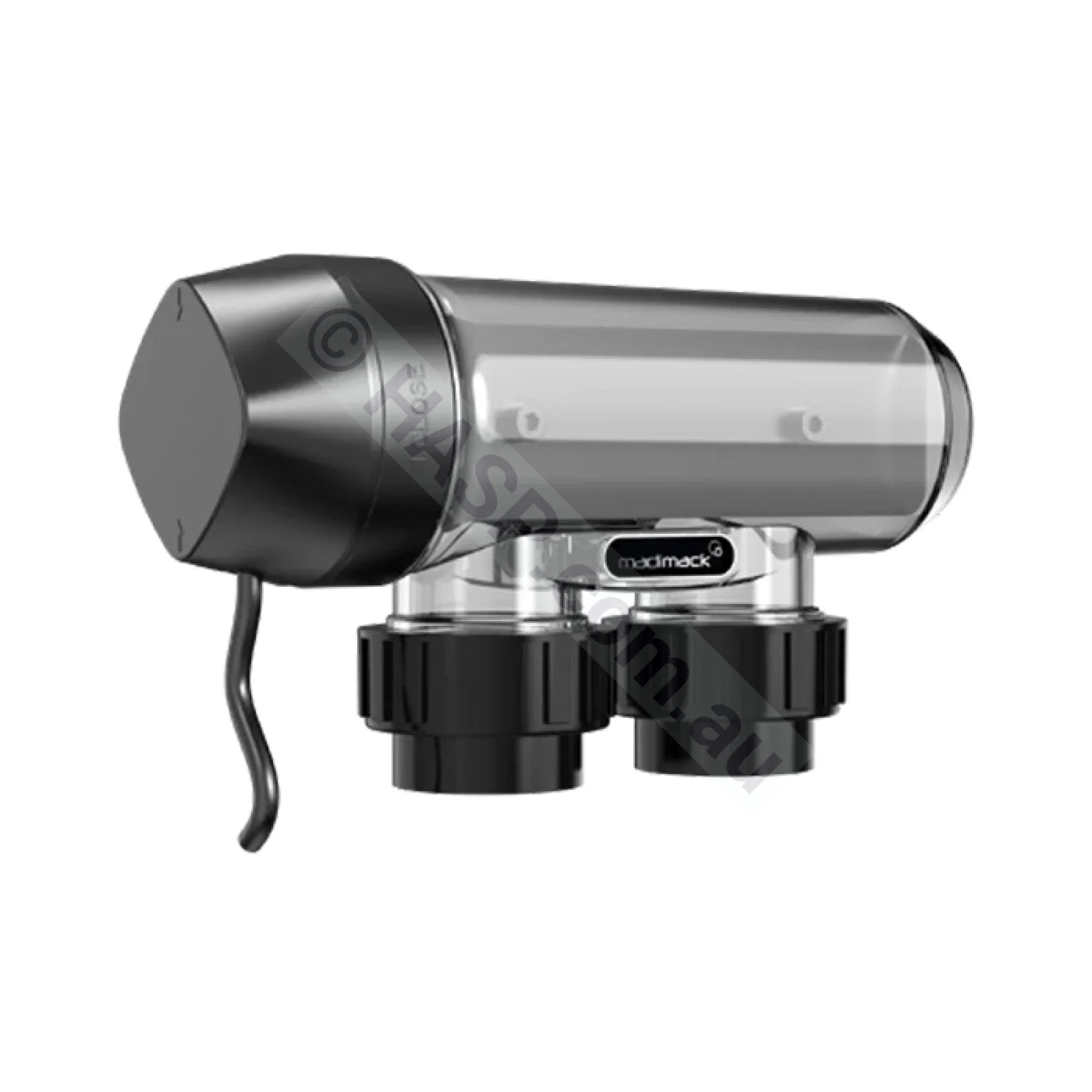

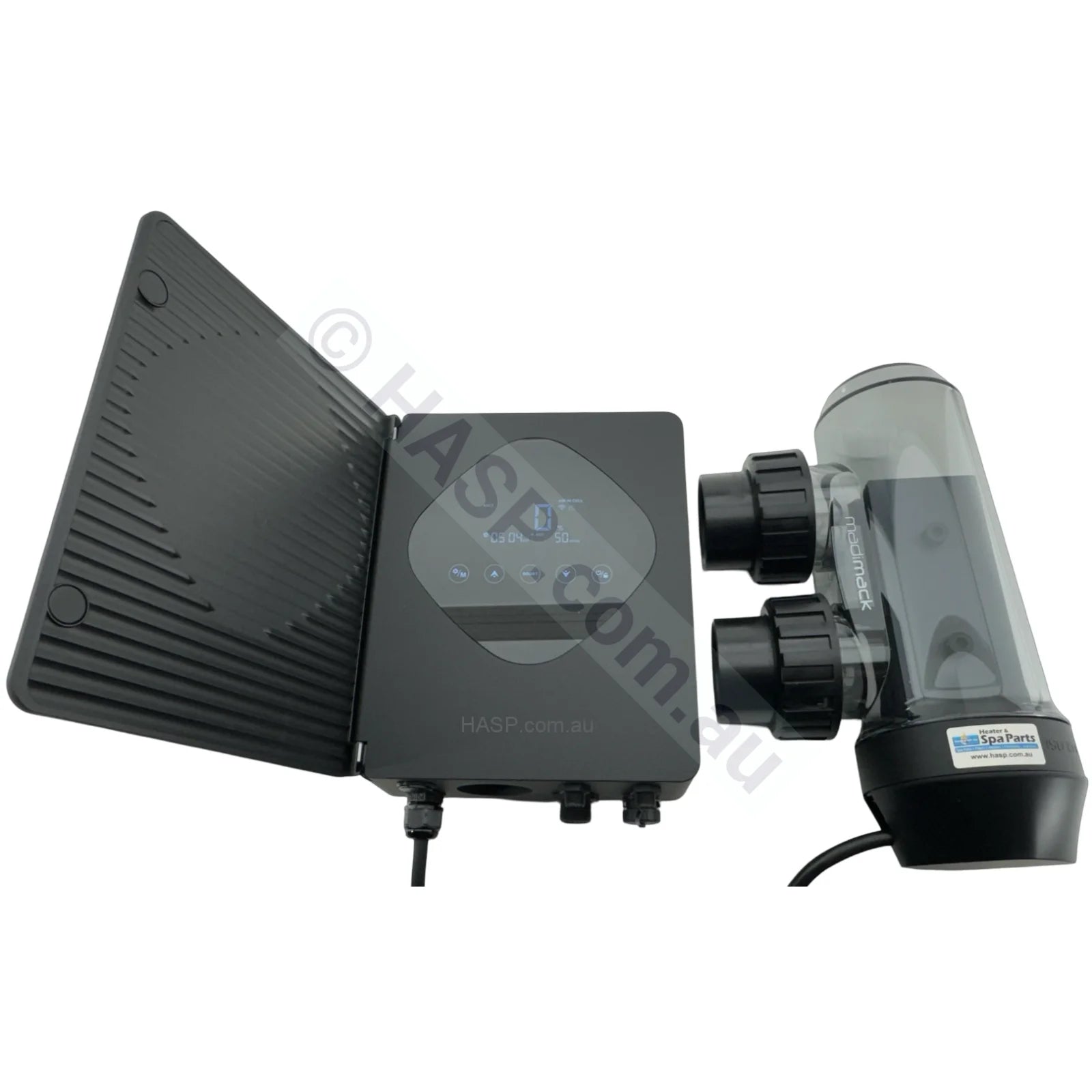

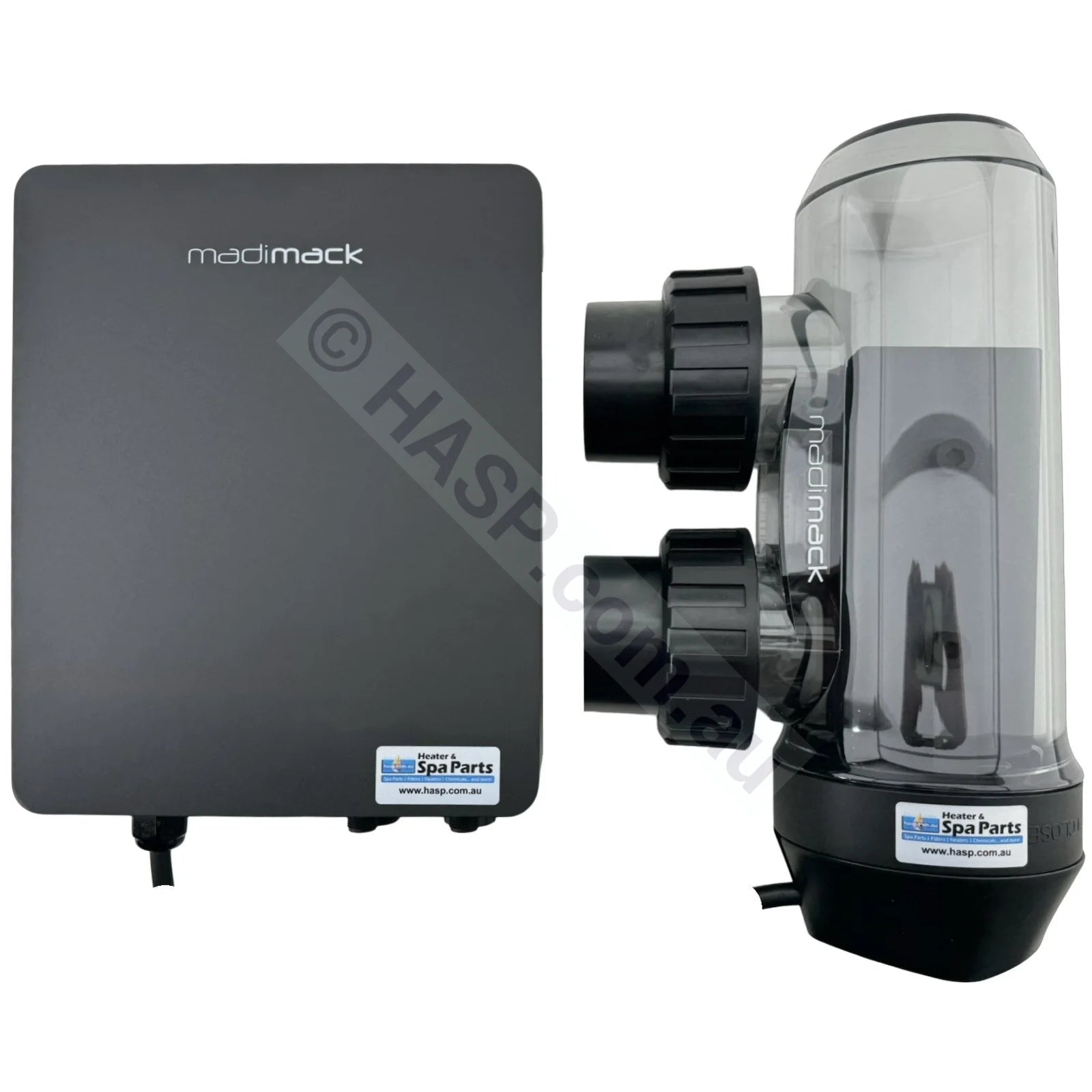

40gm Madimack InverCHLOR 400 with WiFi for salt and mineral pools. Intelligent chlorination with smart control, strong output, and simple retrofit suitability for many older AstralPool and Hurlcon chlorinators.
We keep these physically in stock for fast shipping or local pick-up, unlike most drop-shipping websites.
Handles up to*: 85,000L in tropical or hot climates, 105,000L in temperate or warm climates, and 125,000L in cool climates.

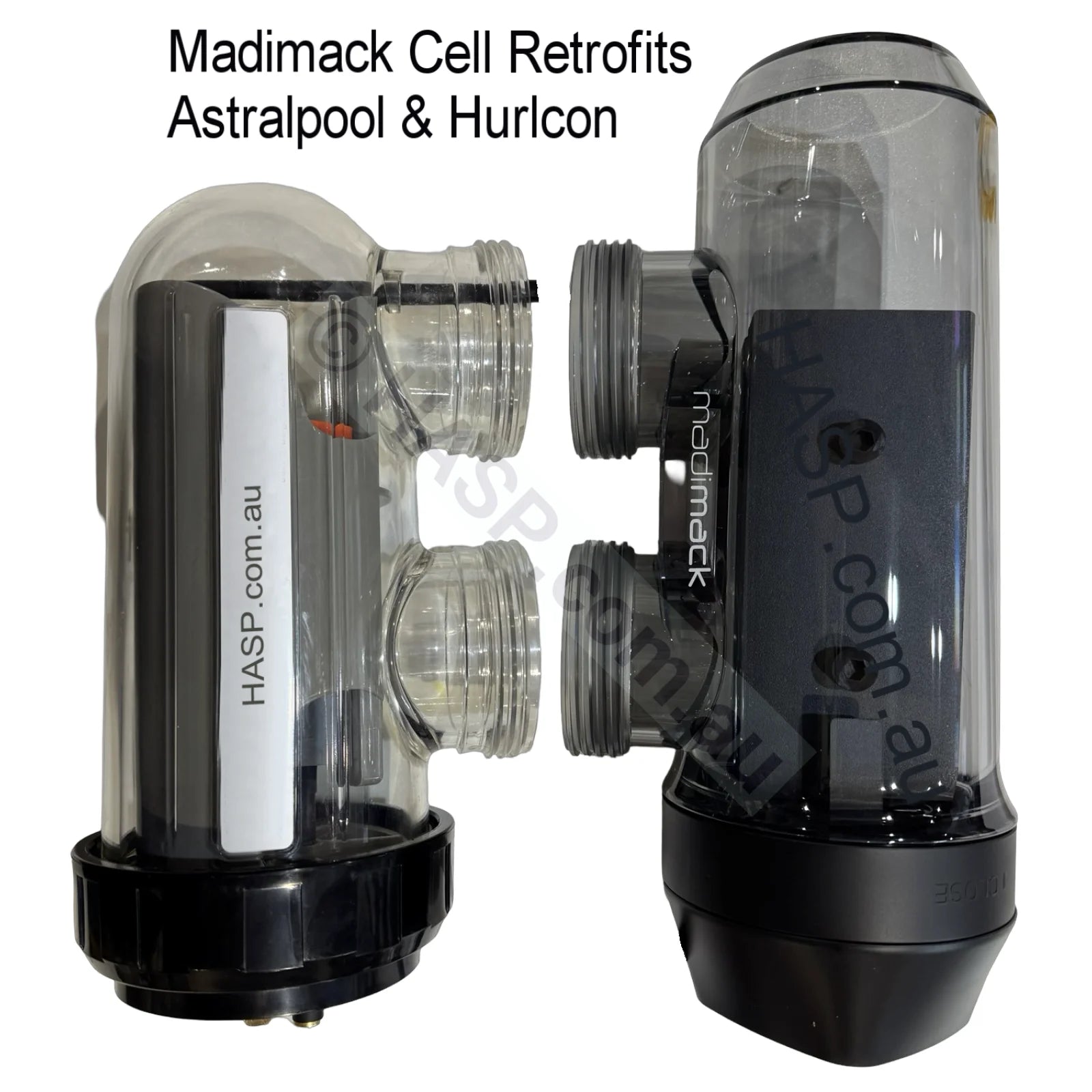

Retrofit suitability: Designed to retrofit many AstralPool and Hurlcon chlorinators without plumbing changes, including E35, VX9, VX11, Viron V35, EQ35 and Halo 35.
Documentation, Startup & Warranty
Documentation: Installation & User Manual | Brochure
Startup & Operation: Video 1 | Video 2

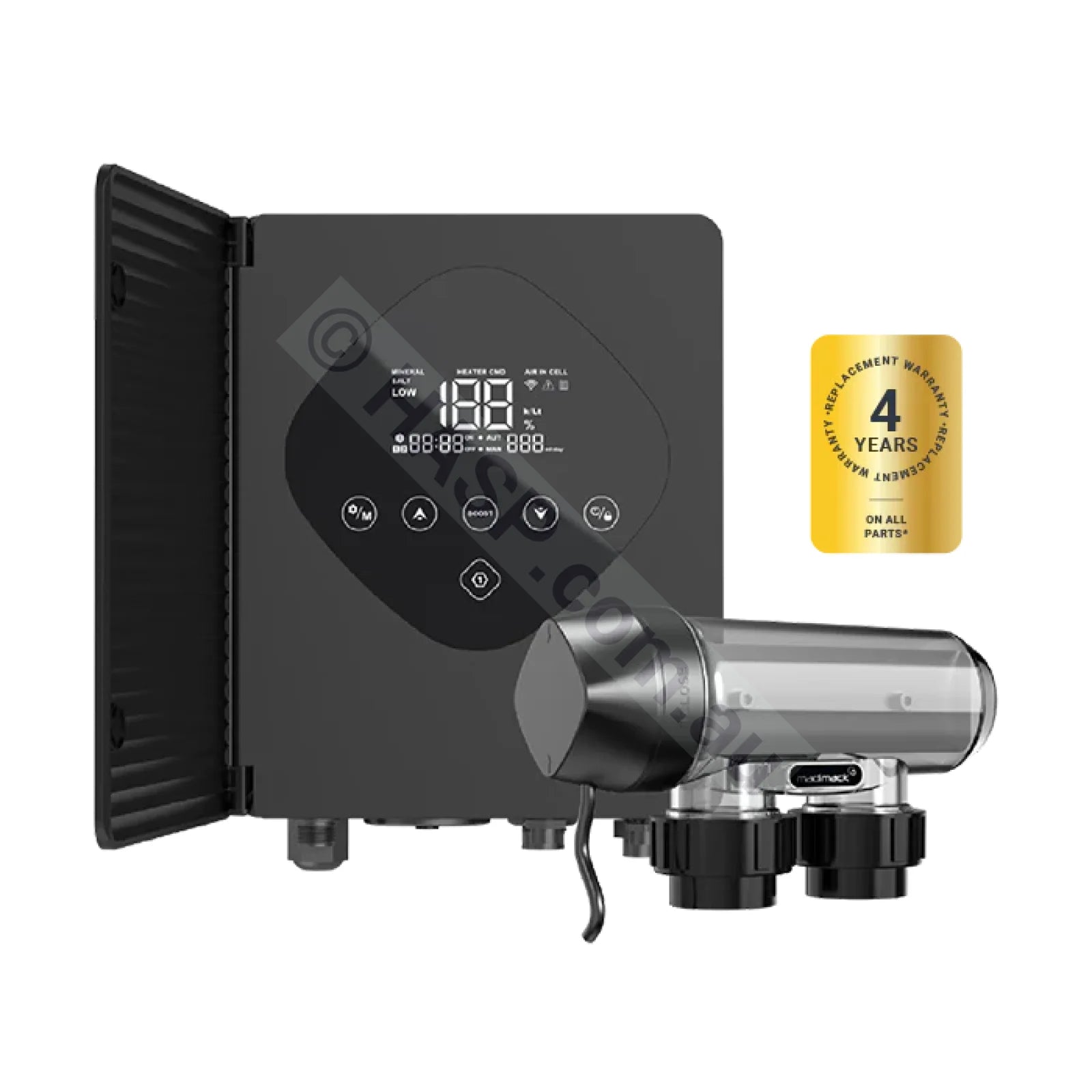

Warranty: Cell = 4 years or 10,000 hours | Control box = 4 years | pH doser = 1 year
The Madimack InverCHLOR is a smart, efficient and low-maintenance chlorinator built for Australian conditions. It provides intelligent control, real-time monitoring, and excellent performance for both salt and mineral pools, helping maintain healthy water with less guesswork.
- Works with any standard pool pump
- Communicates directly with Madimack Inverflow pumps
- Can be used to run pump and control Madimack InverEco Plus and Elite V4 heat pumps
- Does not communicate with Viron variable speed pumps

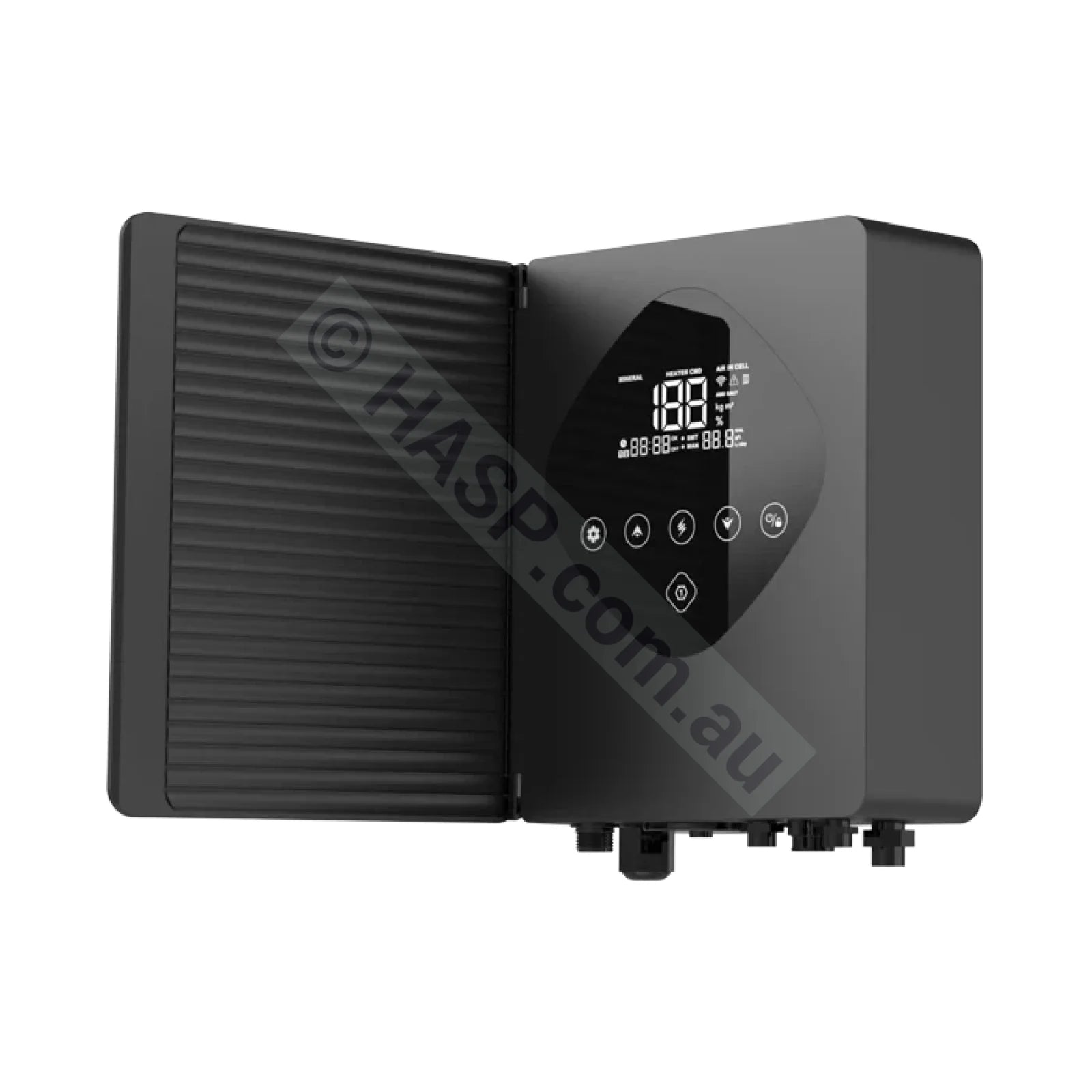

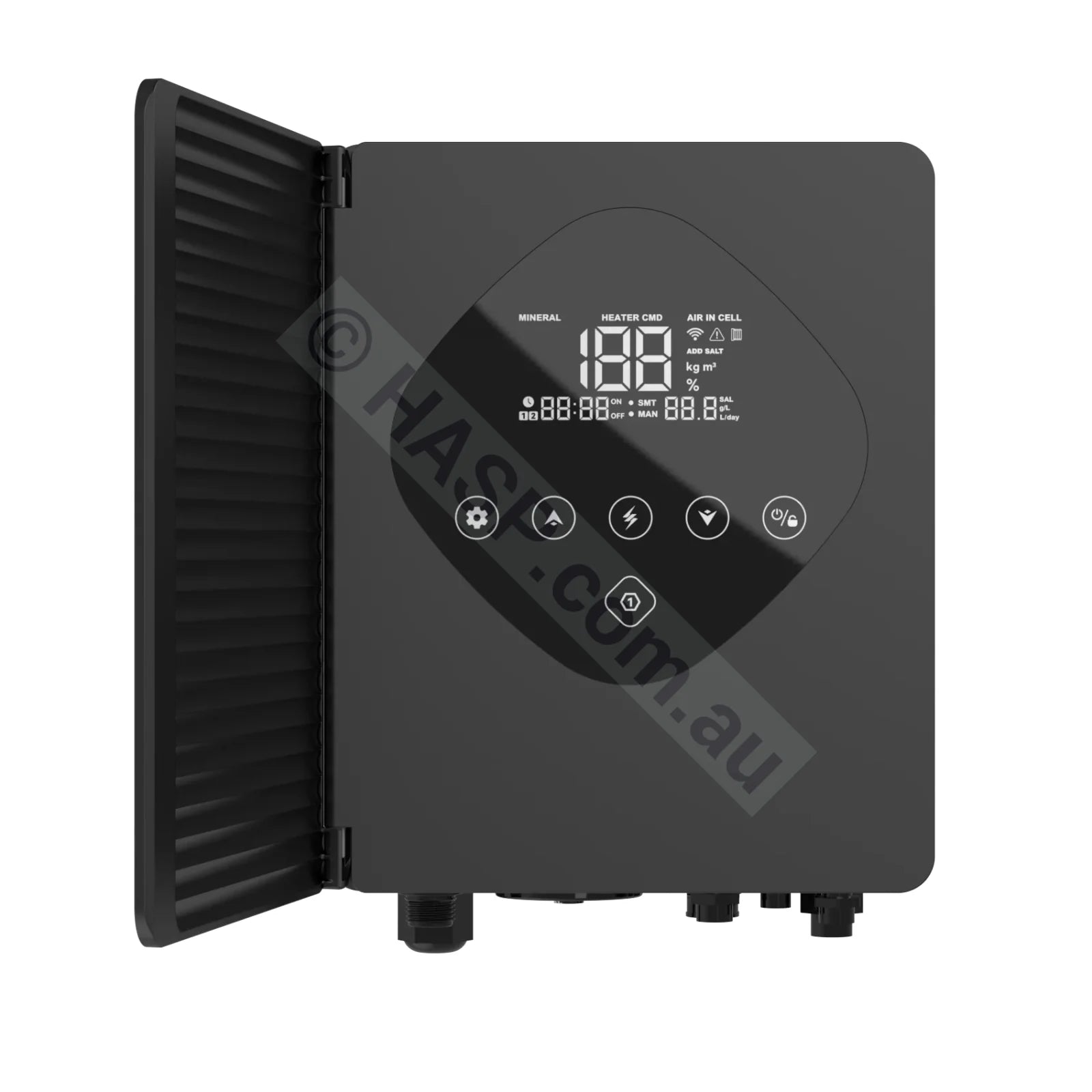

- Touchscreen LCD display with UV-protection cover
- Smart alerts for salt and mineral levels
- Low TDS compatibility for low salt or mineral operation
Optional add-on: Pair it with the Madimack pH Doser for even better water balance and clearer water.
Heat pump compatible: Synchronises with Madimack heat pumps, allowing the heater to run outside normal filtration and chlorination times while using the same circulation pump.
Variable speed pump integration: Direct-fit variable speed upgrade option for Madimack Inverflow Plus pumps. Also suits many AstralPool and Hurlcon pump retrofit situations without plumbing changes.

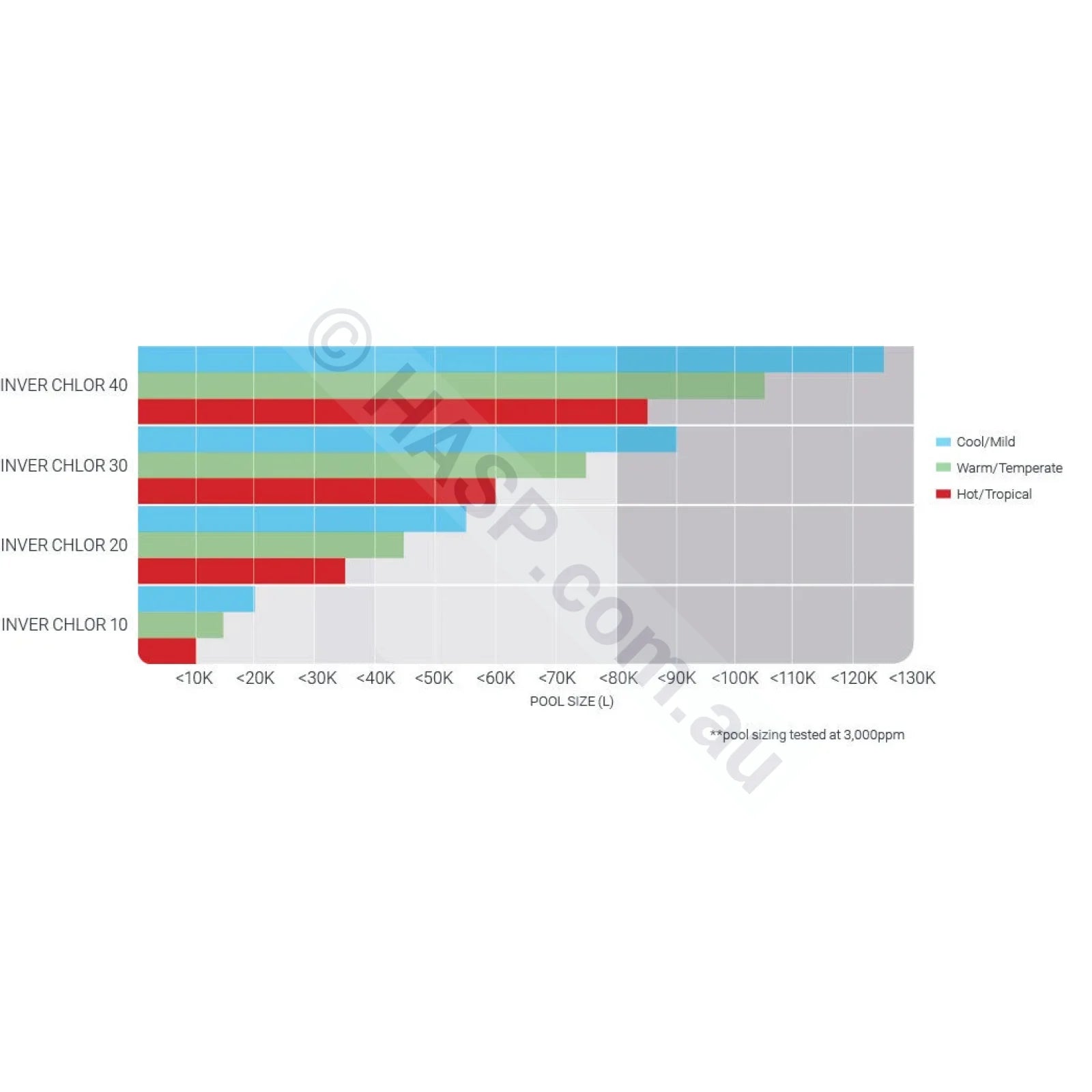

General Sizing Guide*
InverCHLOR 100
Up to 10,000L in tropical or hot climates
Up to 15,000L in temperate or warm climates
Up to 20,000L in cool climates
InverCHLOR 200
Up to 35,000L in tropical or hot climates
Up to 45,000L in temperate or warm climates
Up to 55,000L in cool climates
InverCHLOR 300
Up to 60,000L in tropical or hot climates
Up to 75,000L in temperate or warm climates
Up to 90,000L in cool climates
InverCHLOR 400
Up to 85,000L in tropical or hot climates
Up to 105,000L in temperate or warm climates
Up to 125,000L in cool climates
*Sizing is a guide only. Pool size, climate, bather load, water balance, and environmental conditions all affect chlorinator sizing. We generally recommend going at least one size up.
Why Choose the Madimack InverCHLOR?
Extended cell life: Advanced intelligent control helps optimise operation and extend cell life beyond 10,000 hours.
Compact and easy to install: Space-saving design with straightforward installation. Replaces many AstralPool and Hurlcon chlorinators without replumbing.
Low salt and mineral operation: Suitable for ultra-low salt or mineral levels from 1,200 to 6,000ppm. Specifications are based on around 3,000ppm.
Smart alerts and monitoring: Real-time notifications help you stay on top of pool water quality.
Built for outdoor conditions: Durable housing with UV-protected front cover for long service life.
Modern user interface: Touchscreen LCD display for easy setup, operation and monitoring.
For a smart, efficient, and easy-to-use chlorinator upgrade, the Madimack InverCHLOR 400 is a strong option for larger residential pools. Not recommended for standalone spas & swimspas.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
