40mm 1.5" PVC Barrel Union Pipe Joiner for Pools & Spas - Heavy Duty
40mm 1.5" PVC Barrel Union Pipe Joiner for Pools & Spas - Heavy Duty is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

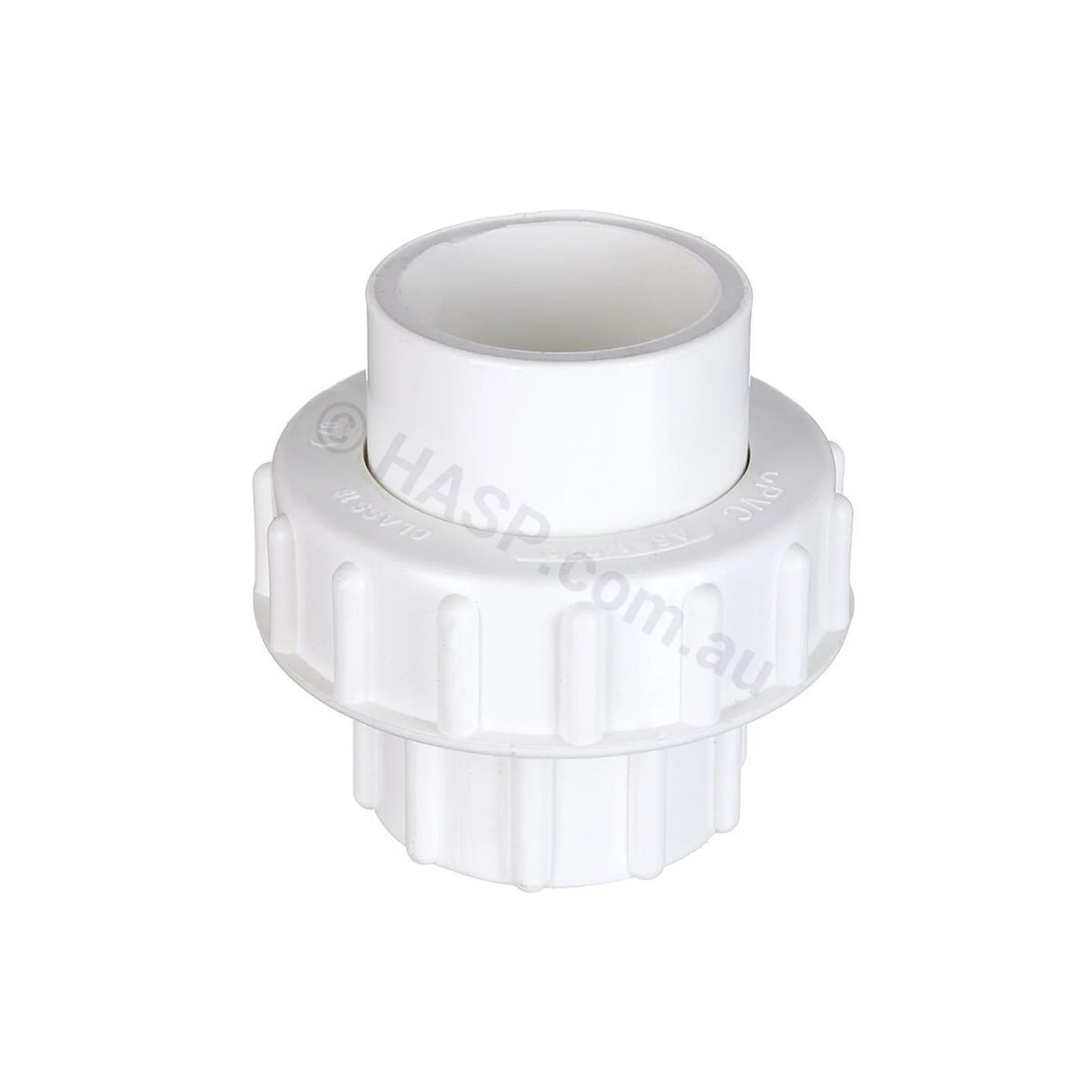

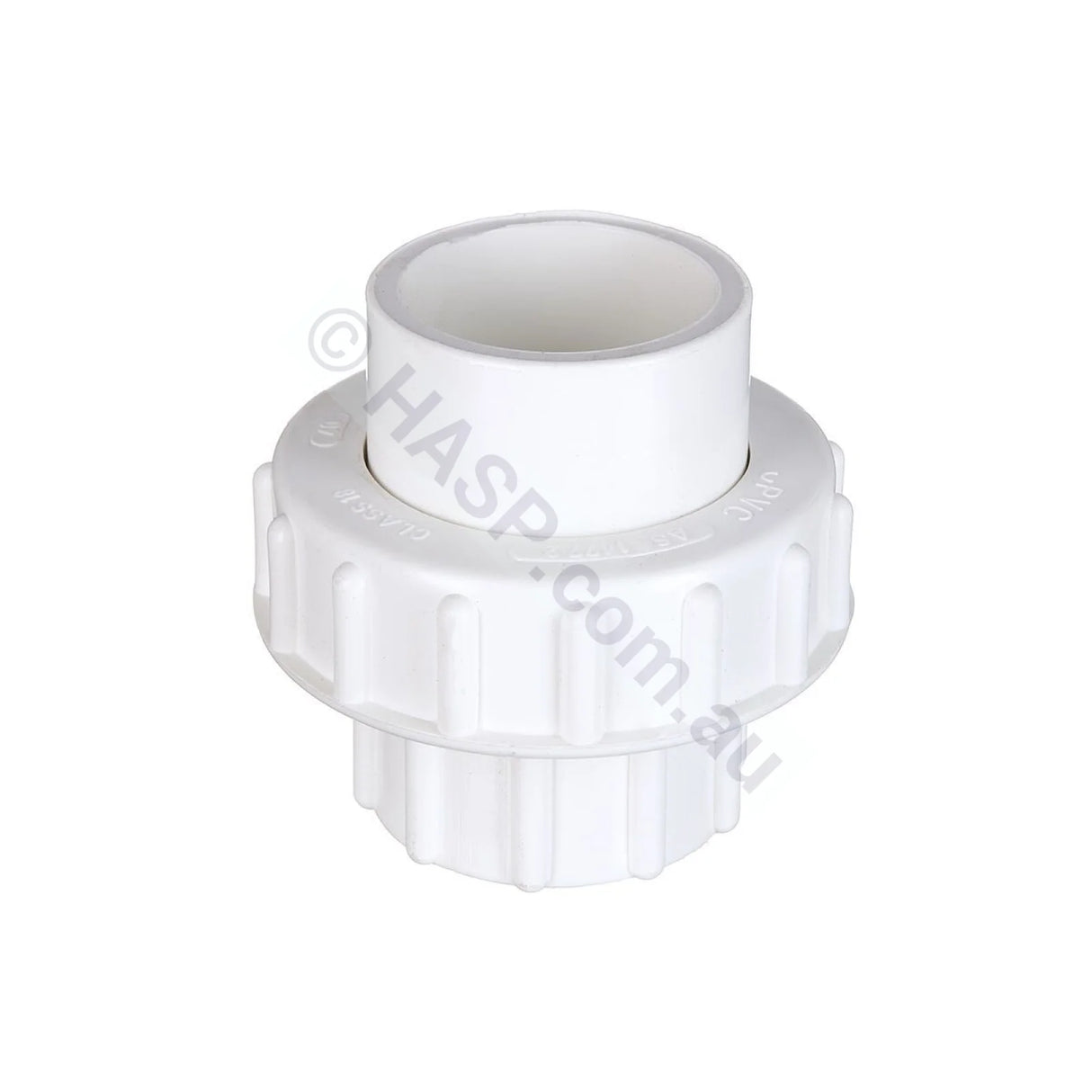

40mm 1.5" Pressure PVC Class 18 Barrel Union Pipe Joiner for Pools & Spas. Used to connect 50mm pressure pipe, where pipe can still be removed. This is a heavy-duty union, not a cheap Bunnings one.
Note for non-plumbers: Please See This PVC Pressure Pipe Dimensions Info, as PVC Pressure Pipe uses "Nominal" names, and does not measure what it's called.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
