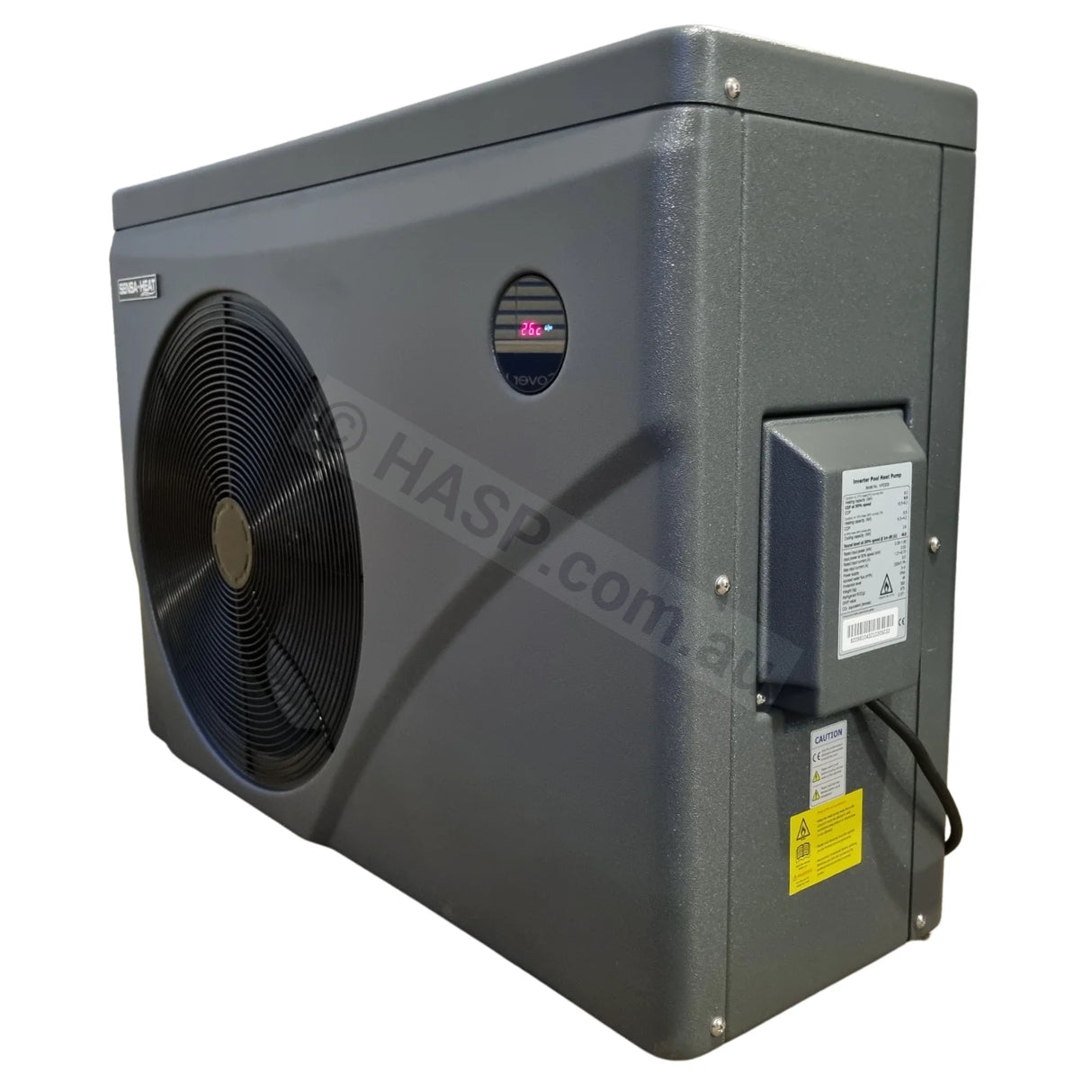

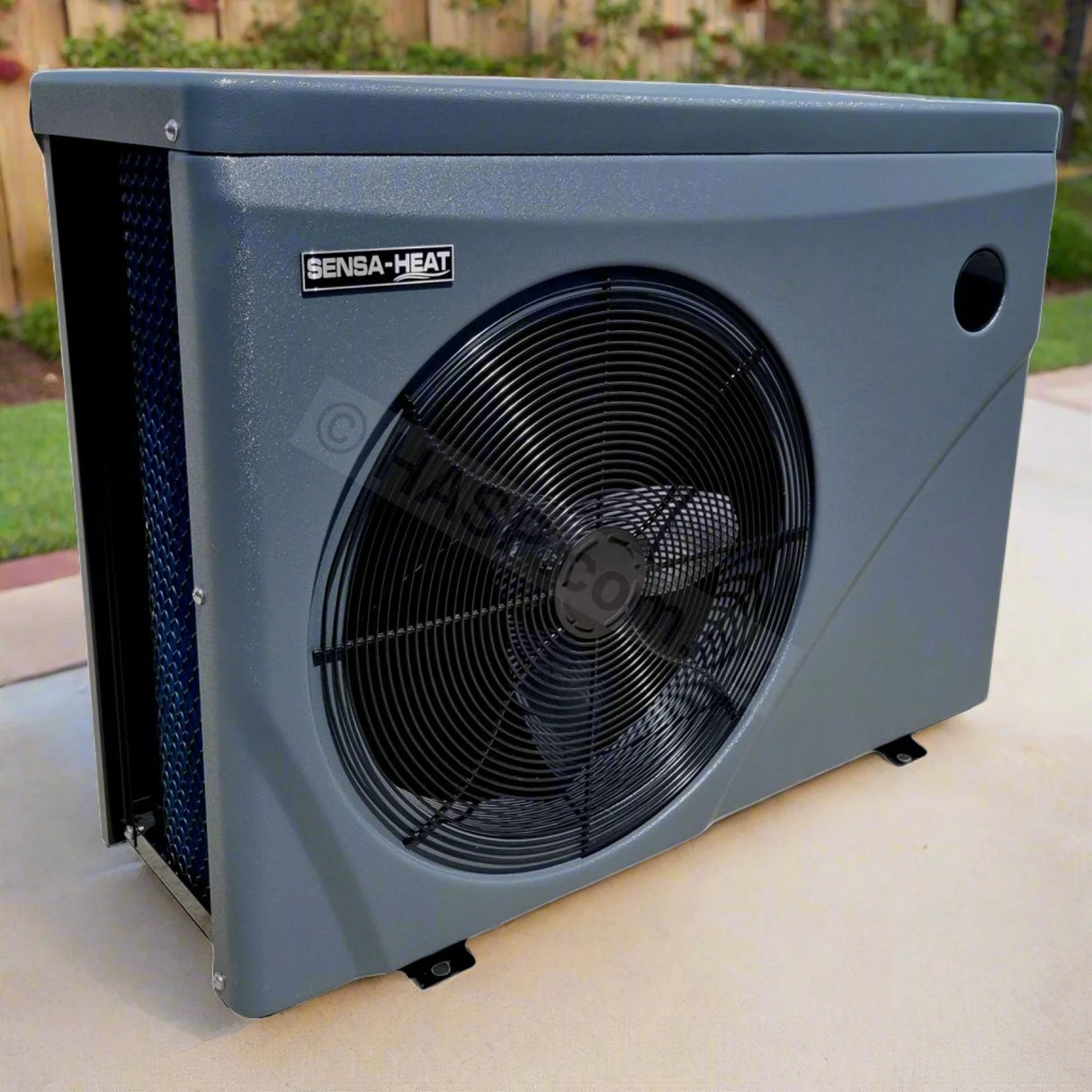

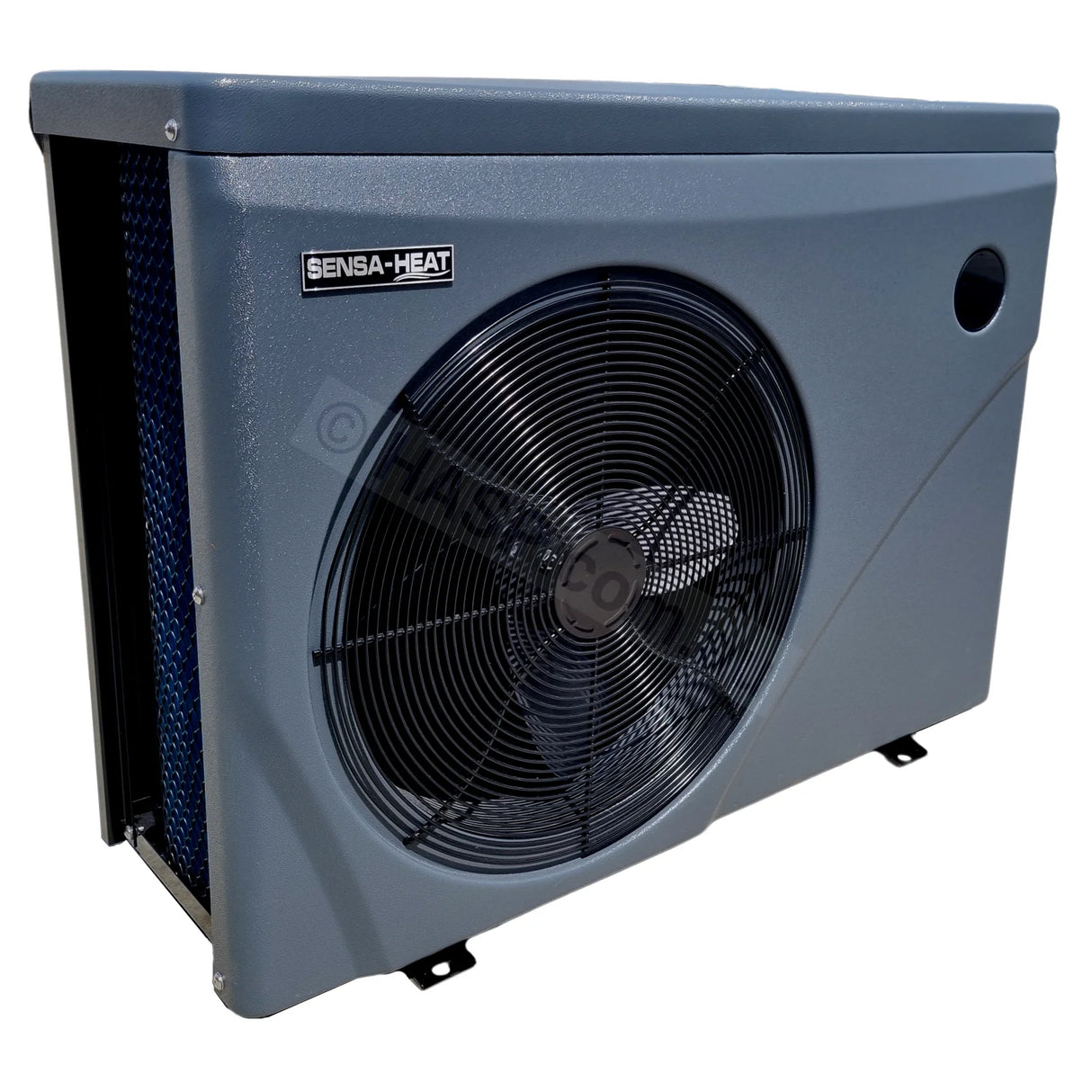

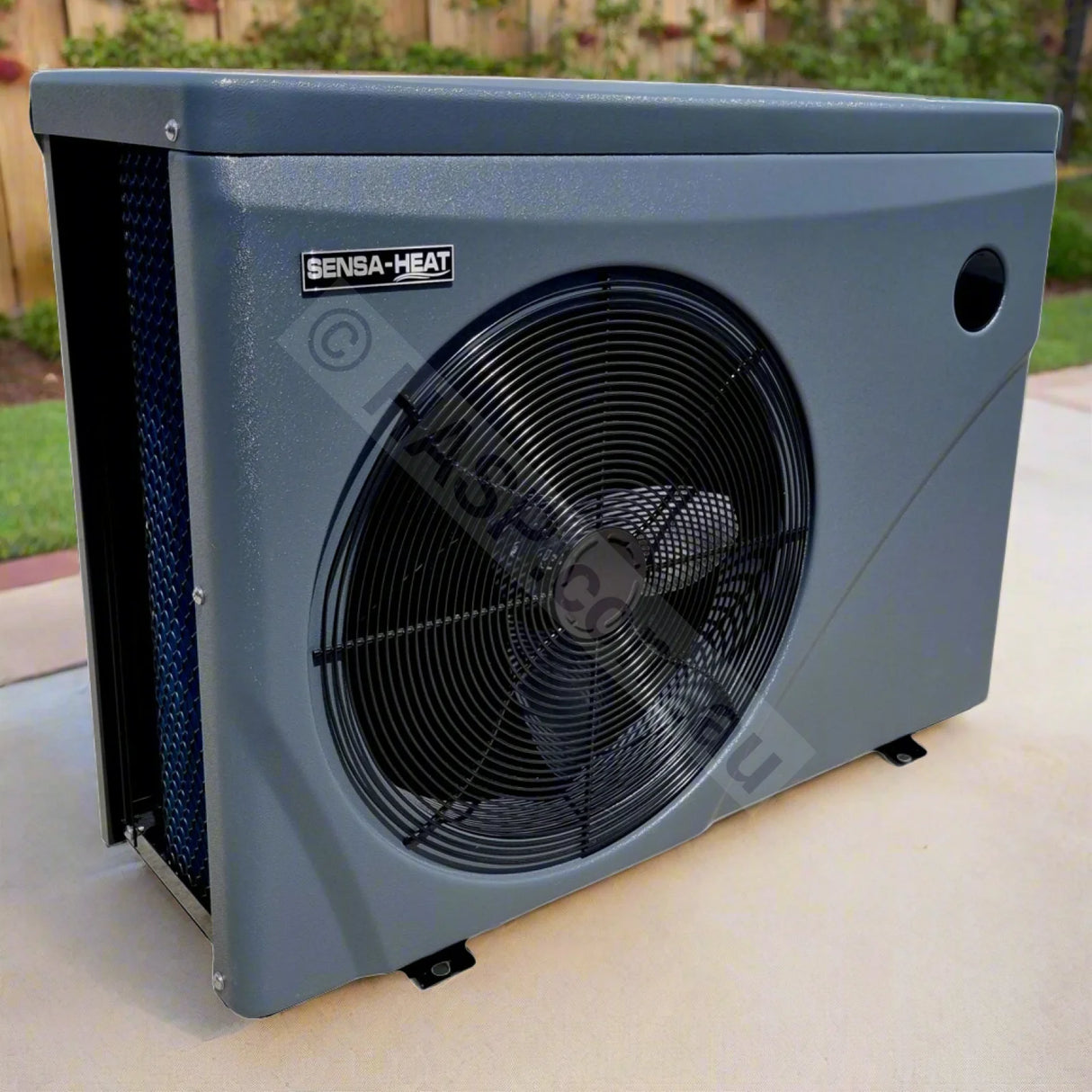

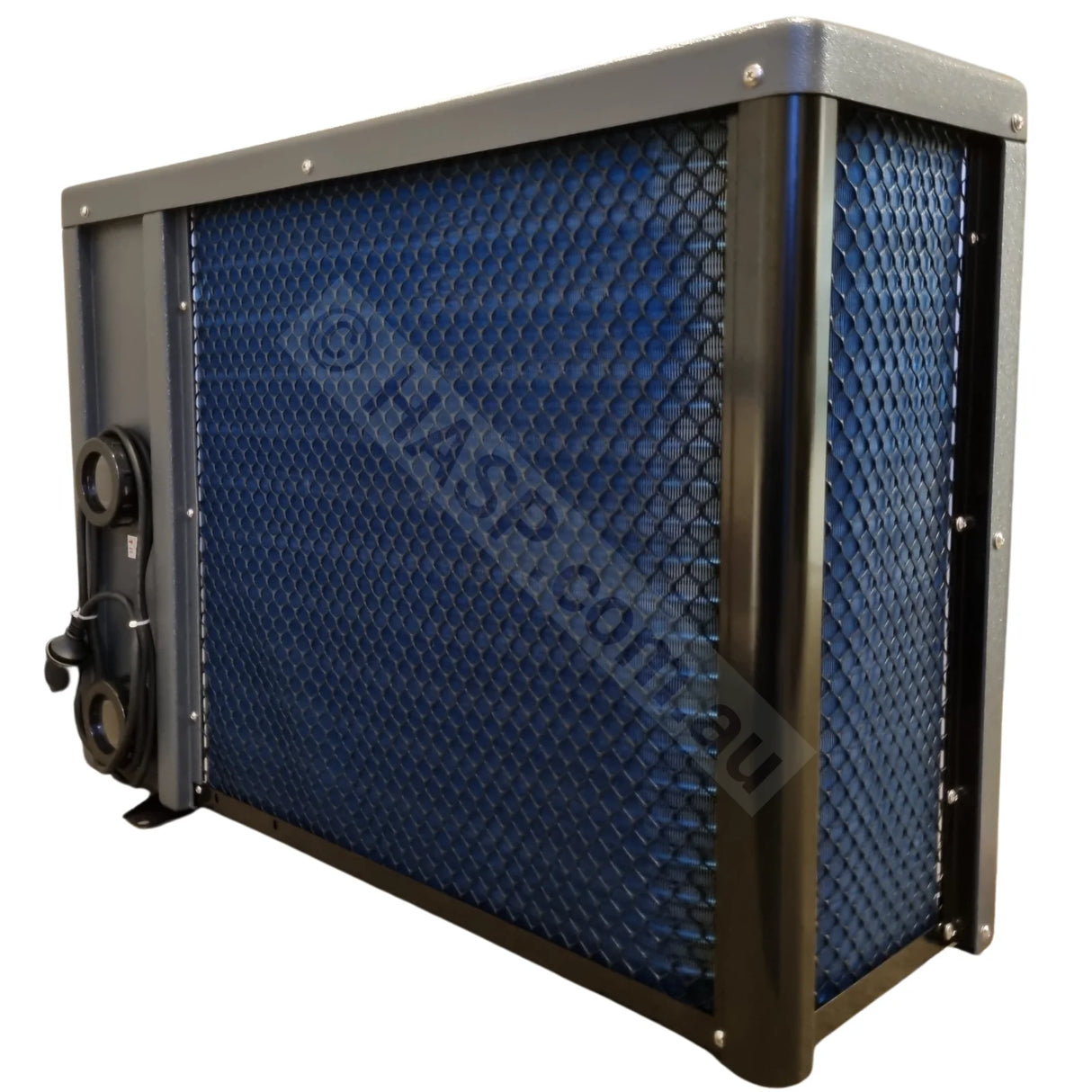

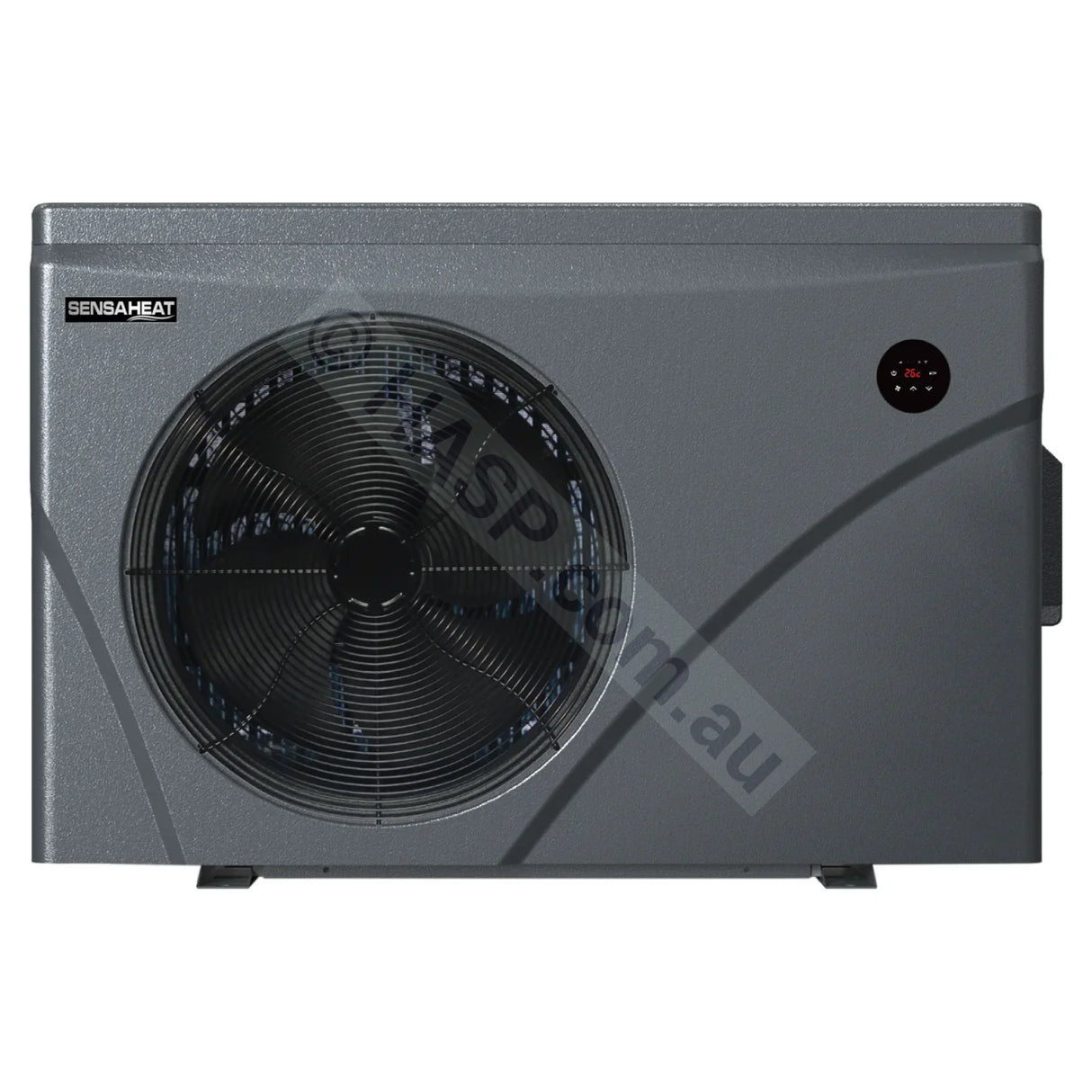

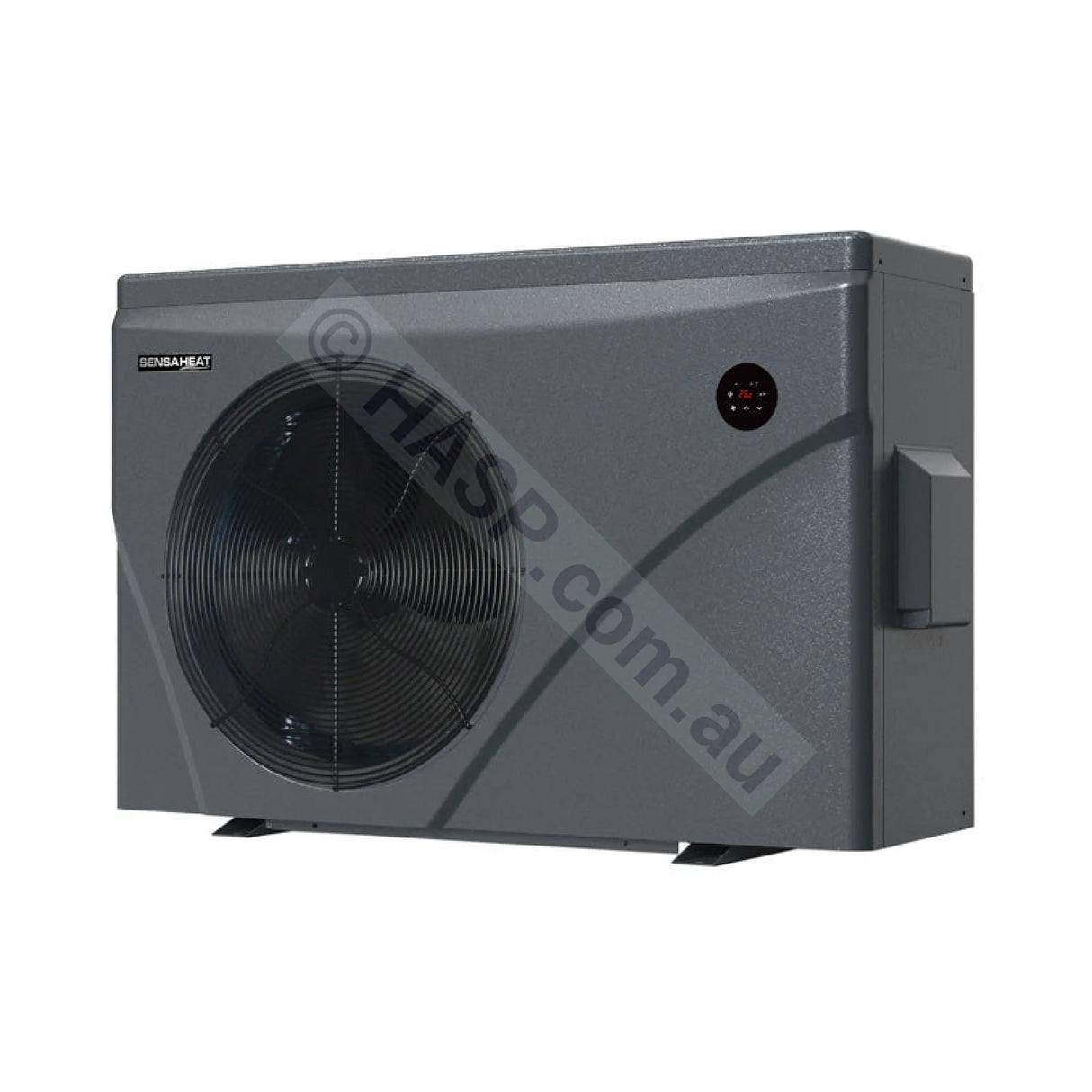

The SensaHeat ES Series 9kW is a compact full DC inverter spa and pool heat pump with WiFi control as standard, built around a Mitsubishi DC compressor and titanium heat exchanger. The smallest in the range — and the only model that plugs straight into a standard 10A outlet, no electrician required for connection. Ideal for spas, swim spas, and small plunge pools. Backed by Australia's largest OEM spa equipment distribution network — local stock and service across VIC, NSW, QLD, and WA, not the typical drop-shipping experience.
Heating & Cooling Performance
- 9.0kW heating @ 27°C Air / 27°C Water / 80% Humidity — COP 10.5 ~ 6.2 (average 9.0 at 50% speed)
- 6.5kW heating @ 15°C Air / 26°C Water / 70% Humidity — COP 6.5 ~ 4.2 (average 6.1 at 50% speed)
- 3.6kW cooling capacity — reverse cycle for hot-day pool cooling
Recommended For
- Spas, swim spas, and small swim-spa style installations
- Plunge pools up to ~10,000L
- Year-round spa heating across Melbourne, Sydney, Brisbane, and Perth climates
- Households without a hard-wired electrical circuit — plugs into a standard 10A outdoor outlet
Why Choose SensaHeat ES?
- 10A Plug — Plug-and-Play: Locate near any standard 10A outdoor outlet. No hard-wiring, no electrician call-out.

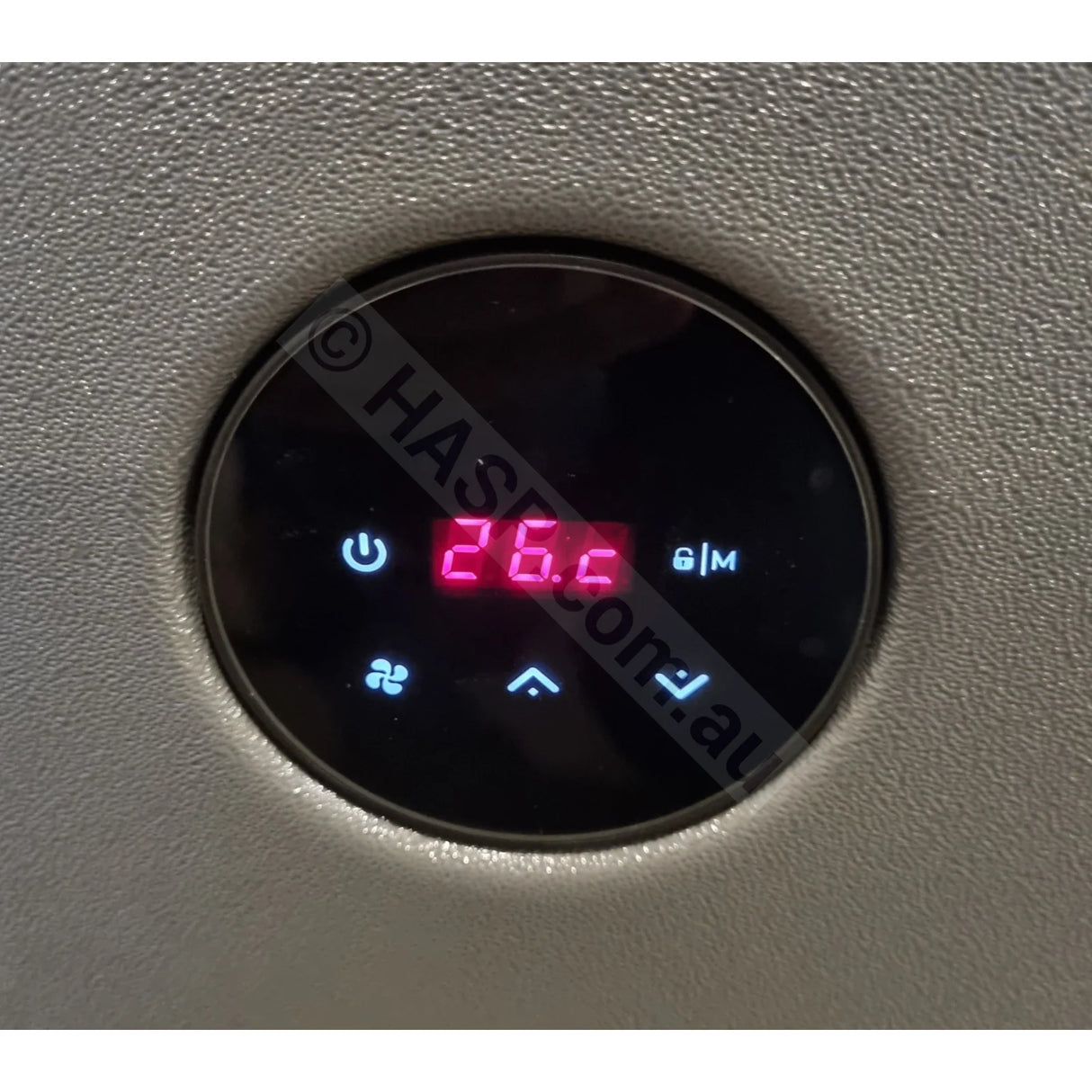

- WiFi App Control as Standard: Monitor temperature, schedules, and modes from anywhere.
- Mitsubishi DC Inverter Compressor: Up to 7x more efficient than fixed-speed heat pumps at part load.
- Reverse-Cycle Heating & Cooling: Auto-defrost with stable DC inverter operation.

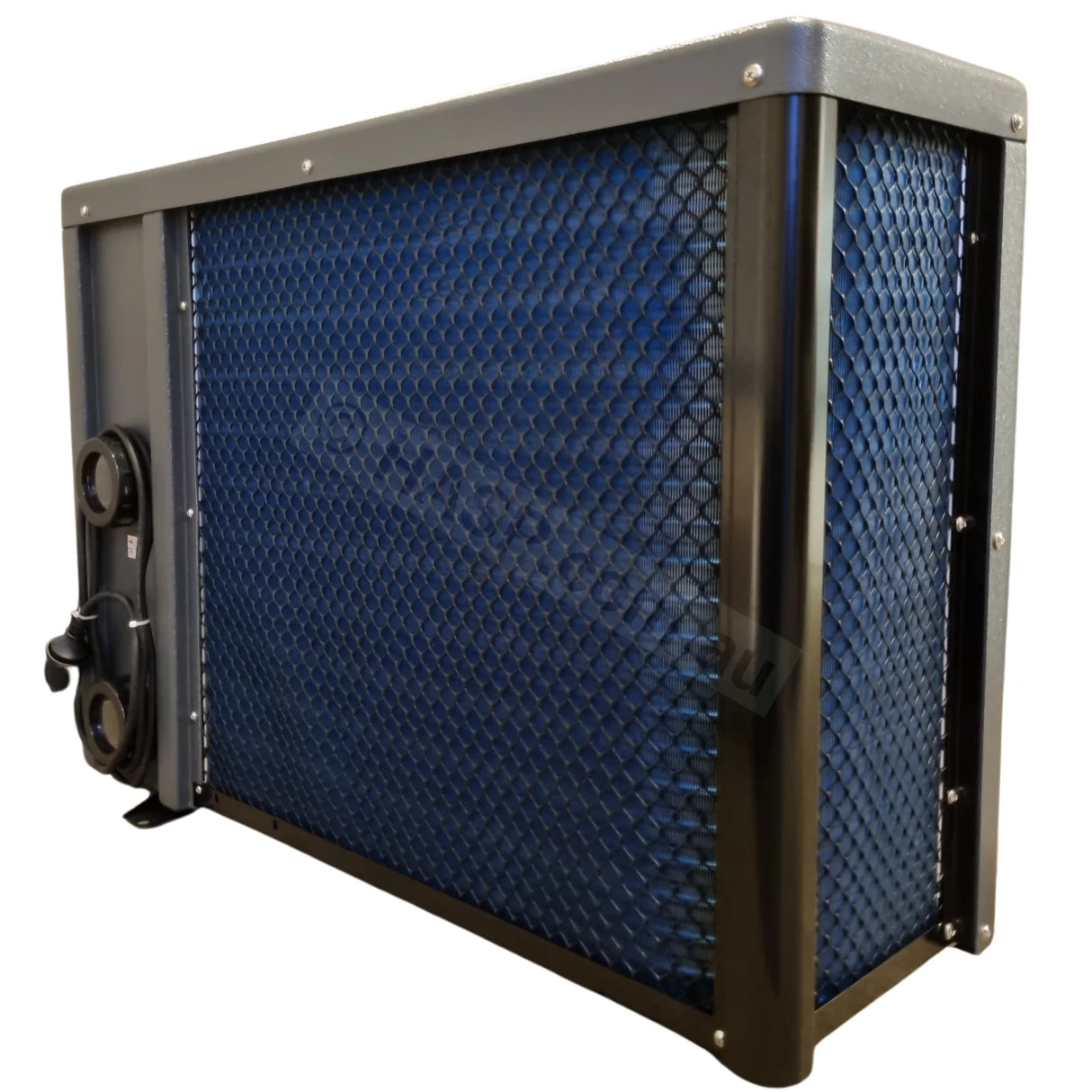

- Titanium Heat Exchanger: ~40% higher efficiency than standard exchangers, chlorine and salt-water rated.
- R32 Refrigerant: Low-GWP (675, ~30% of R410A), future-proof gas charge.
- Anti-Rust ABS Casing: Built for Australian outdoor weather.
- Soft Start Technology: Reduces startup current draw by up to 70%.
- Ultra-Quiet: 41.6 ~ 53.5 dB at 1m — drops to 21.6 ~ 33.5 dB at 10m. Neighbour-friendly.
Spa Control System Integration
The SensaHeat ES is a popular retrofit heat pump for spas running Balboa, SpaNet, Gecko (AEware), and Davey control systems — including SpaPro, WWDG, Sapphire, Alpine, Oasis, Vortex, and most Chinese-import spas. Integration uses the optional Sensaheat Heat Pump Relay Controller (DT-1071021) for spa-controller-driven heating. For standalone pool installs, the Dontek / Sensaheat Universal Heat Pump Controller (J-Box / MJ Box / Intelliheat) provides full filtration and heating automation. Common spare parts — flow switches, water temperature sensors, controllers, capacitors, and PI/ES union gaskets — are held locally in stock for fast turnaround on repairs.
Warranty
- Titanium Heat Exchanger: 25 Years
- Compressor: 3 Years
- Other Parts: 2 Years
- On-Site Labour: 1 Year (T&Cs apply)
Documentation
SensaHeat ES Series User & Installation Manual (PDF)

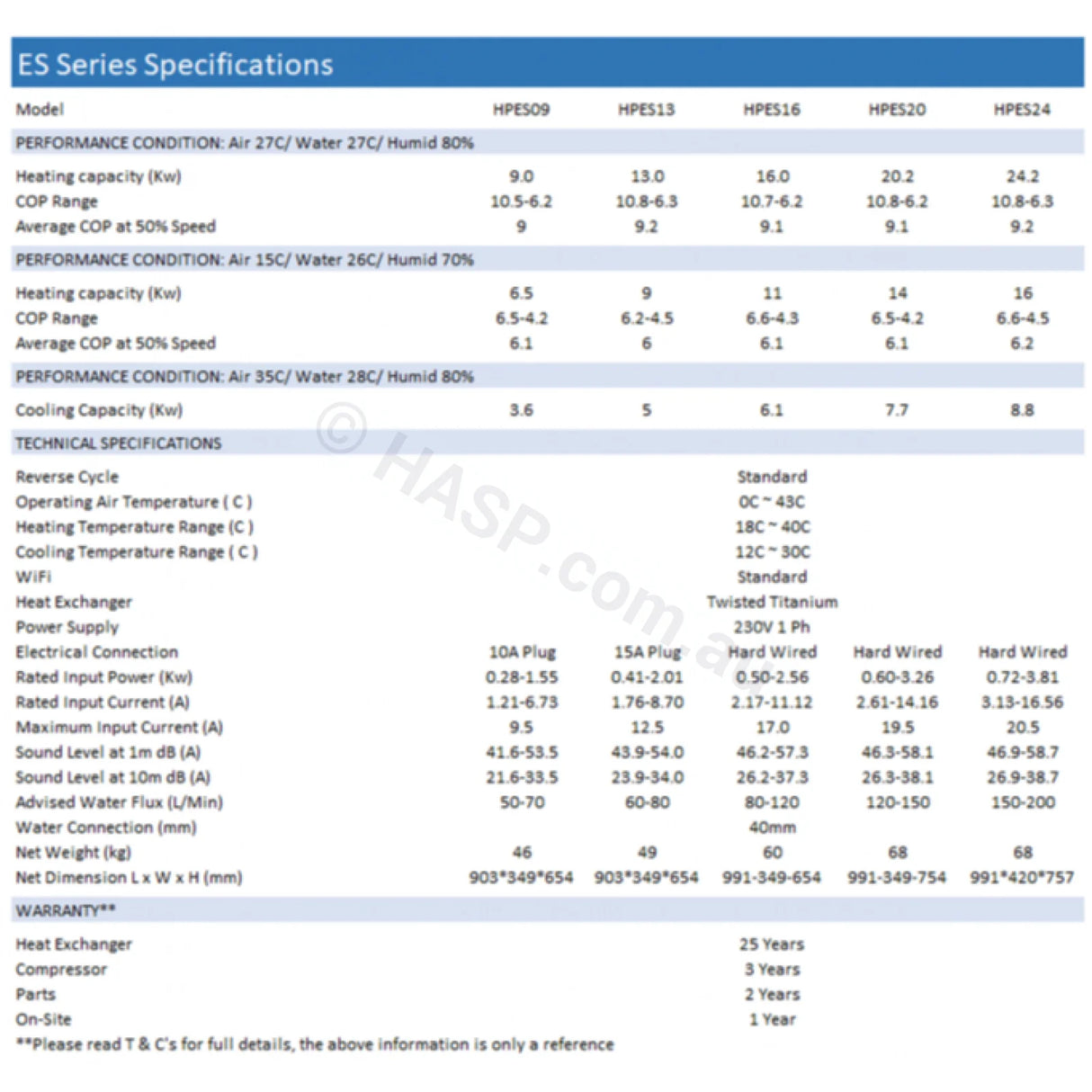

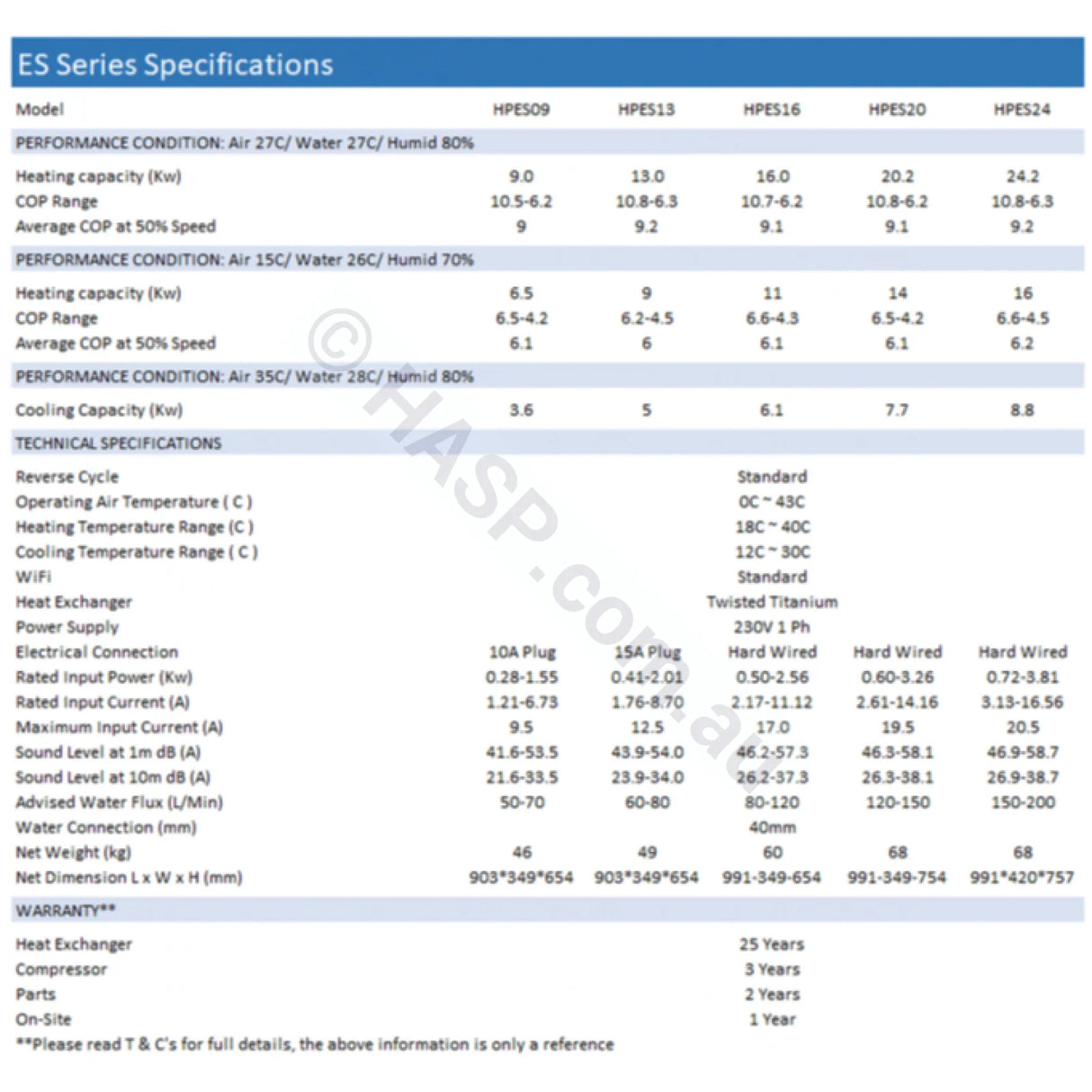

Full Specifications — 9kW (SP-HPES09)
| Model | SP-HPES09 |
| Heating @ Air 27°C / Water 27°C / Humidity 80% | |
| Heating capacity | 9.0kW |
| COP Range | 10.5 ~ 6.2 |
| Average COP at 50% Speed | 9.0 |
| Heating @ Air 15°C / Water 26°C / Humidity 70% | |
| Heating capacity | 6.5kW |
| COP Range | 6.5 ~ 4.2 |
| Average COP at 50% Speed | 6.1 |
| Cooling capacity | 3.6kW |
| Technical Specifications | |
| Reverse cycle | Standard |
| Operating air temperature | 0°C ~ 43°C |
| Heating temperature range | 18°C ~ 40°C |
| Cooling temperature range | 12°C ~ 30°C |
| WiFi | Built-in |
| Heat exchanger | Titanium |
| Power supply | 230V / 1 Ph |
| Electrical connection | 10A Plug (no electrician required) |
| Rated input power | 0.28 ~ 1.55 kW |
| Rated input current | 1.21 ~ 6.73 A |
| Maximum input current | 8.0 A |
| Sound level at 1m | 41.6 ~ 53.5 dB(A) |
| Sound level at 10m | 21.6 ~ 33.5 dB(A) |
| Advised water flow rate | 50 ~ 70 L/min |
| Water connection | 40mm |
| Net dimensions (LxWxH) | 903 x 349 x 654 mm |
| Net weight | 46 kg |
For specific data, please refer to the installation manual and the nameplate on the unit.
Pair It With
- Sensaheat Heat Pump Relay Controller — for Balboa, SpaNet, Gecko, Davey integration
- Dontek Universal Heat Pump Controller (J-Box / Intelliheat) — for standalone filtration and heating automation
- Pool Heat Pump Condensate Drainage Kit

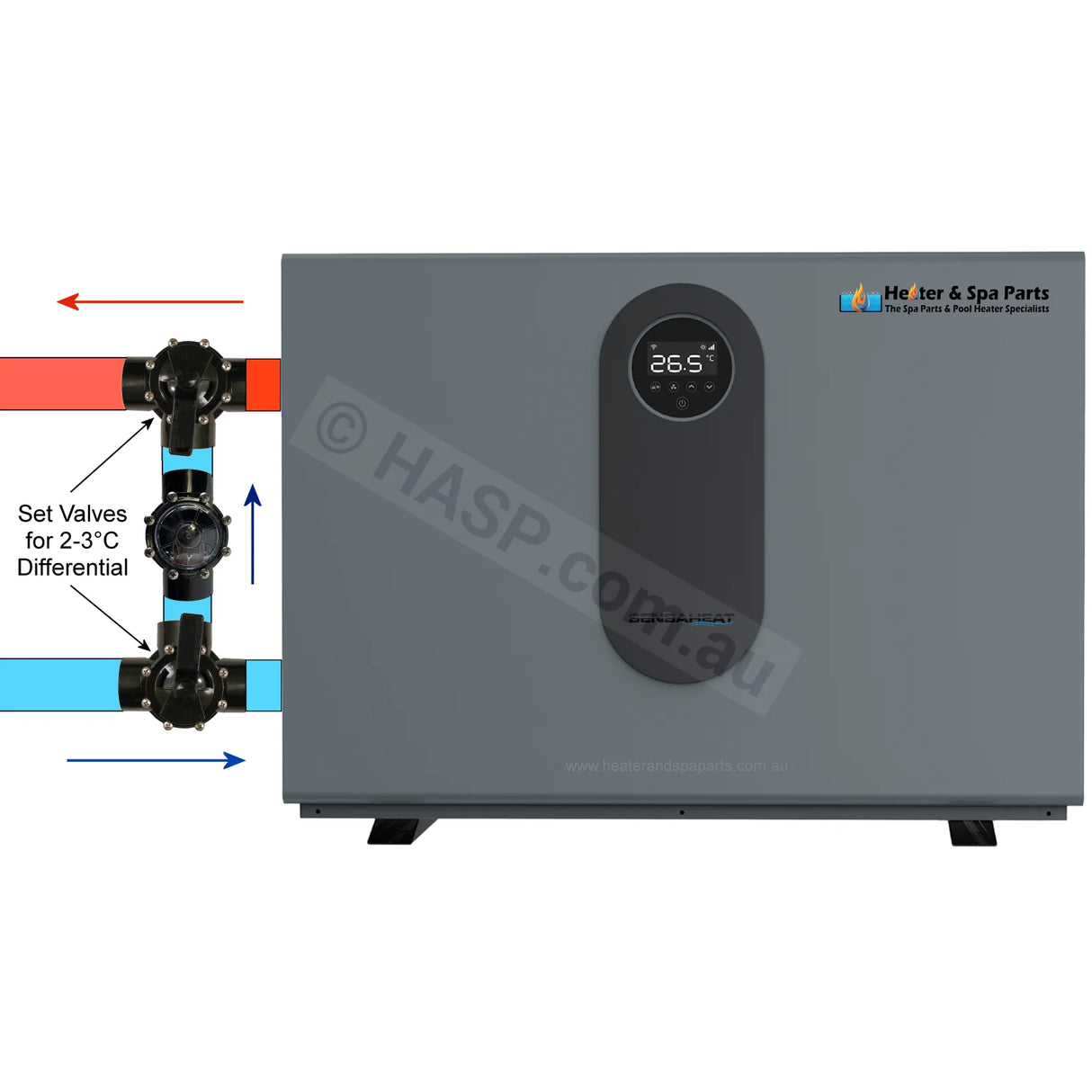

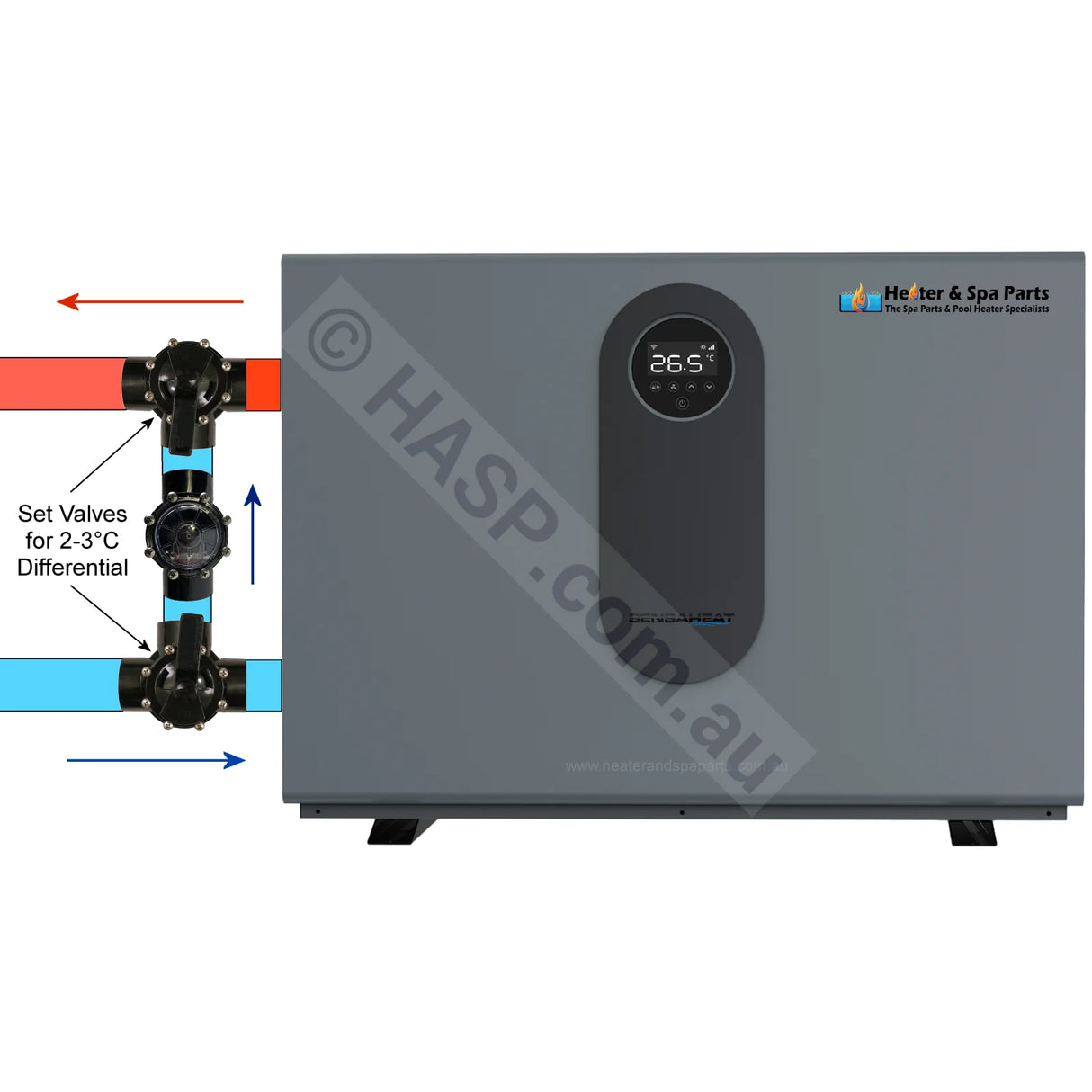

- 3-way valve kit (discounted when bundled with this heat pump — ask in cart)
- SensaHeat PI / ES Union Gaskets (spare seals)
Heat Pump Sizing - Heat Pump Sizing Guides for Pools & Spas -The above tables are to be used as a guide only and using ideal operating conditions. We recommend the largest heat pump you can budget for, as larger heat pumps ensure shorter running periods and are the most cost-effective over the long run. If possible, go at least one size up from the guide's recommendation. Note: Right-click a chart to open in a new window for a larger version.
General Heat Pump Sizing Guides

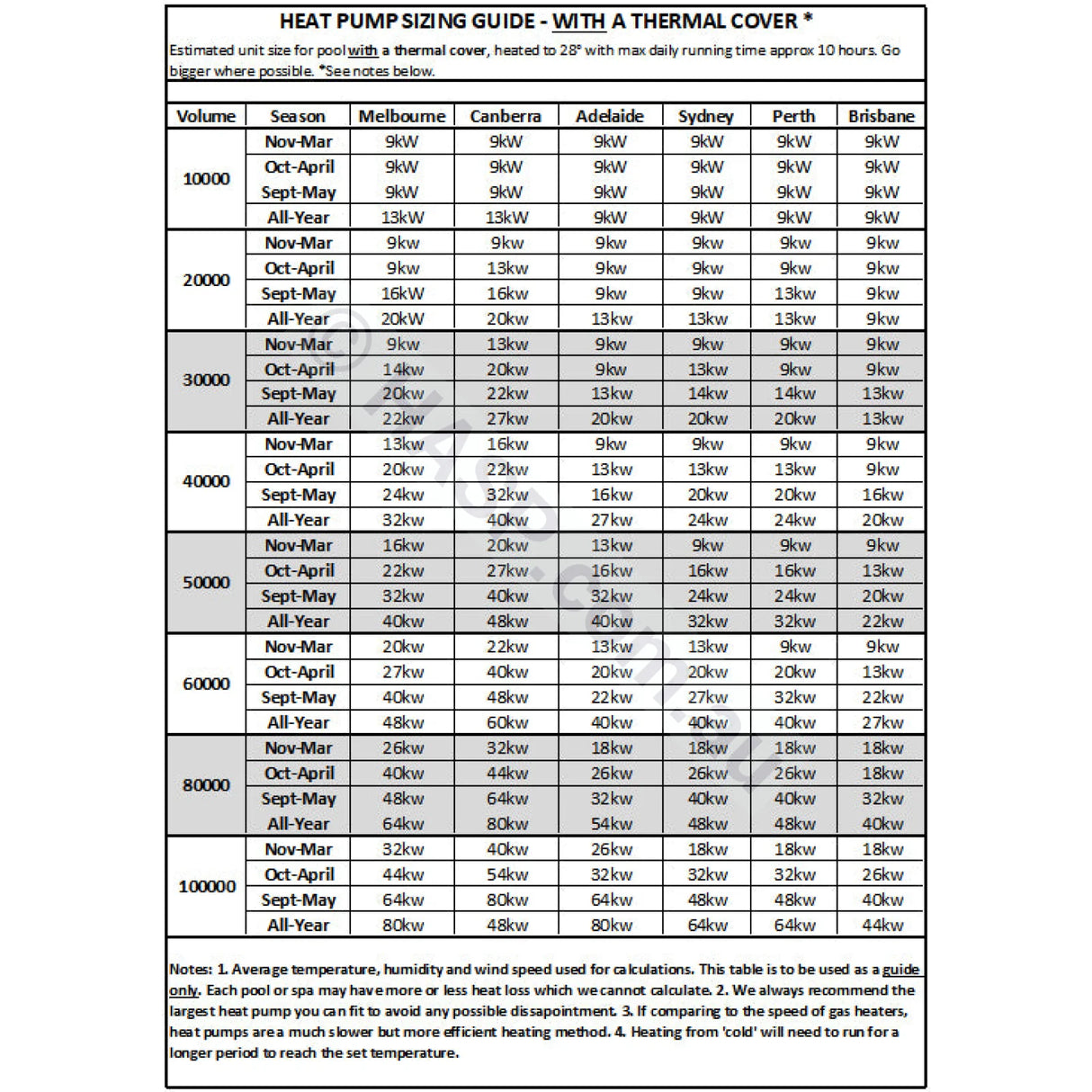

Heat Pump Sizes When Using a Cover:

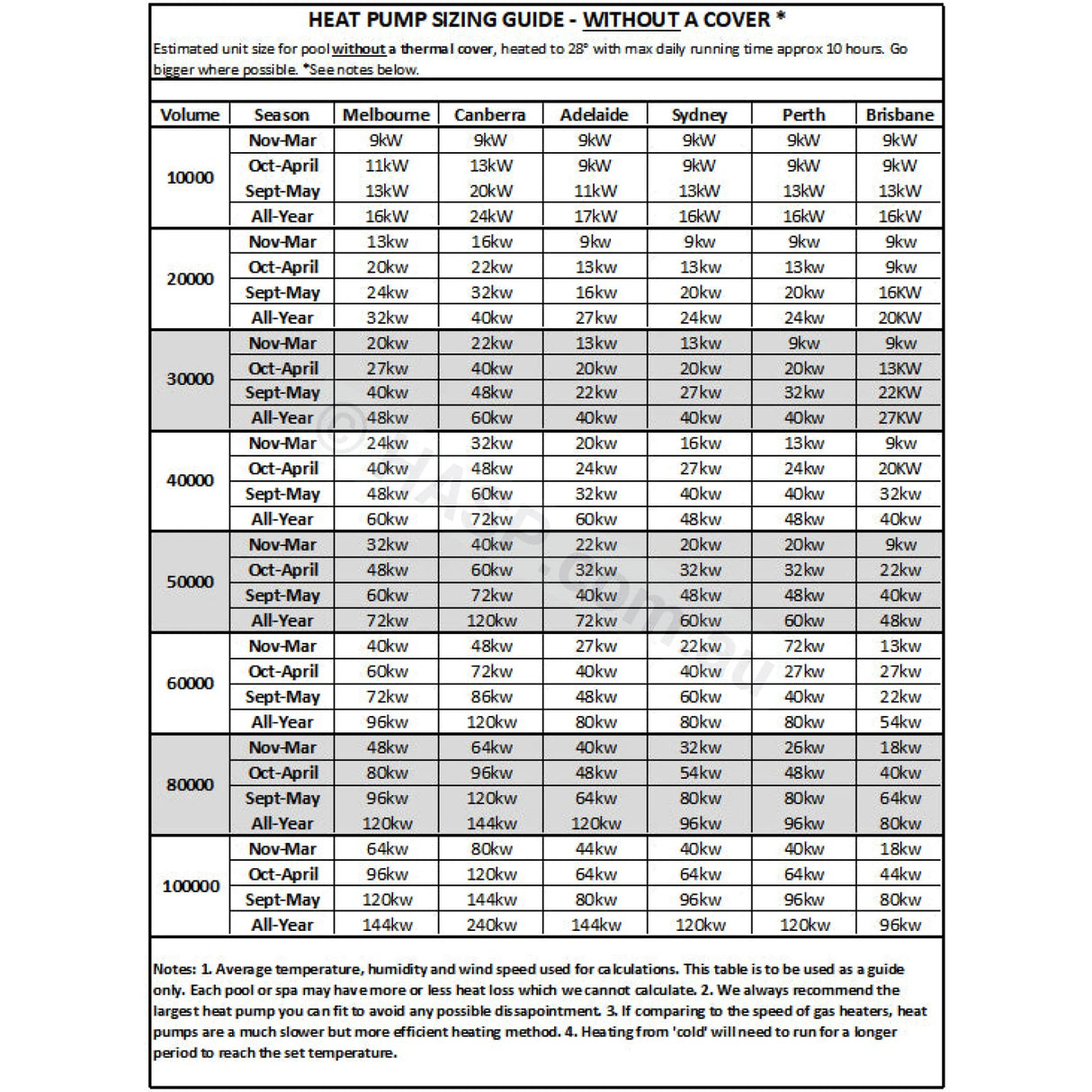

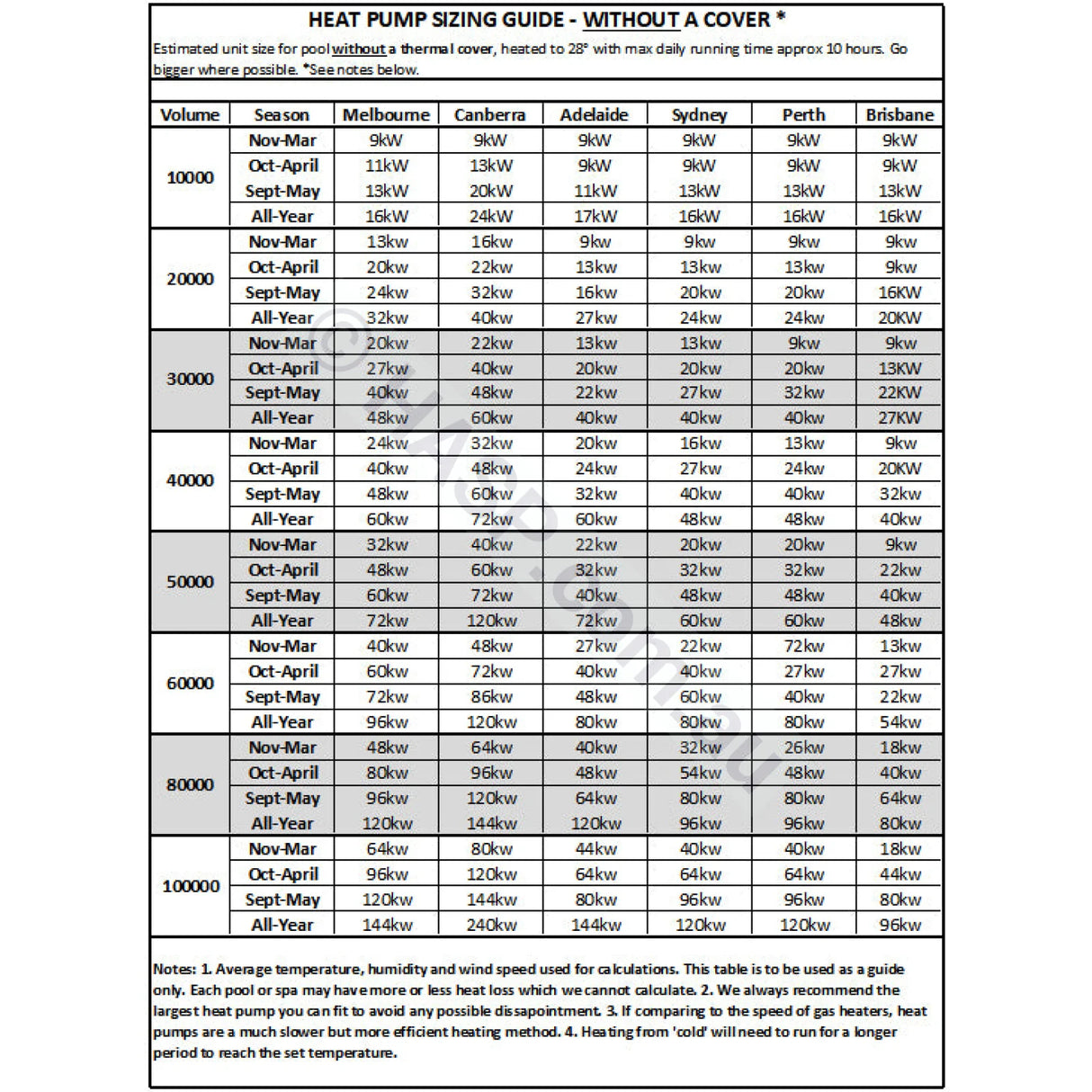

Heat Pump Sizes When Not Using a Cover:

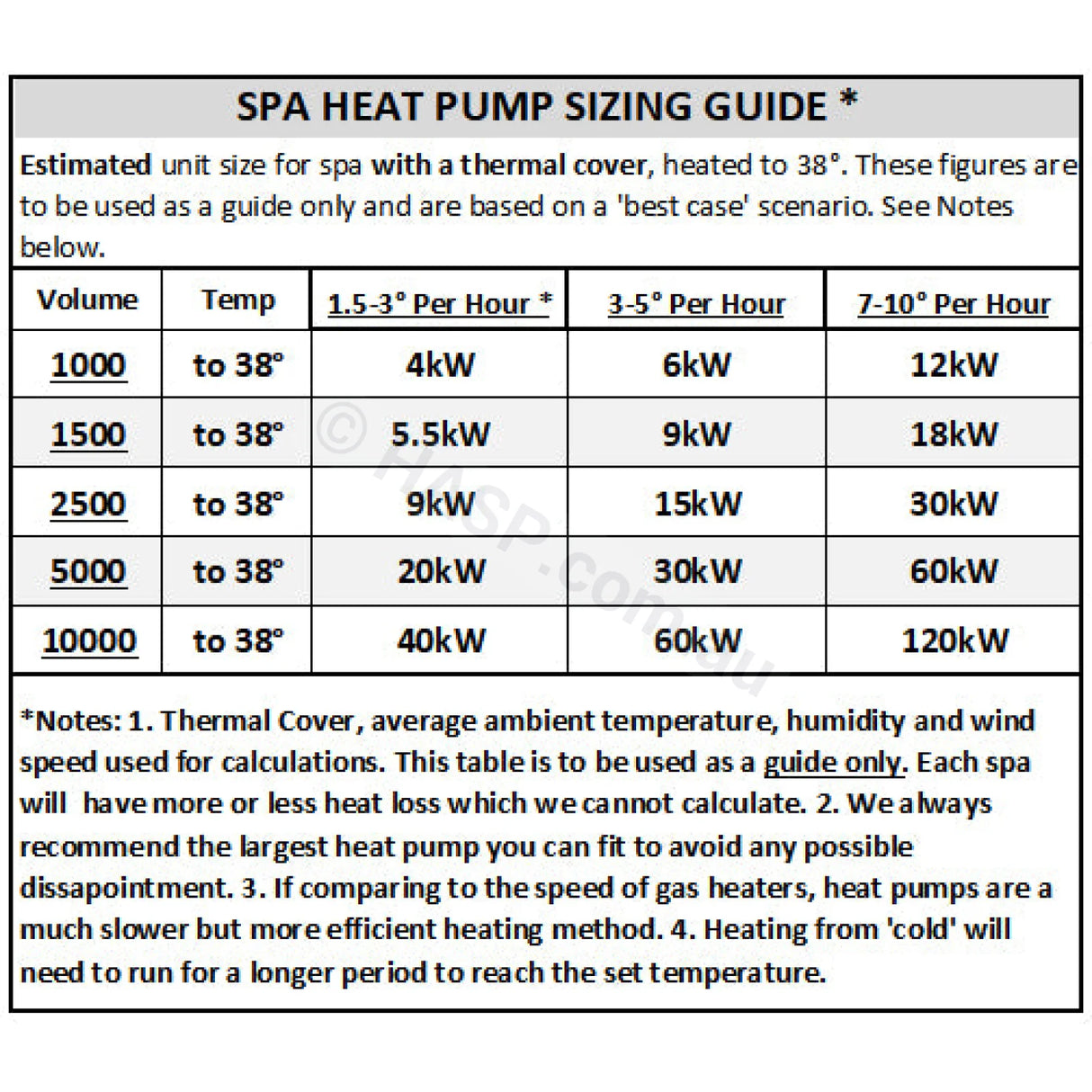

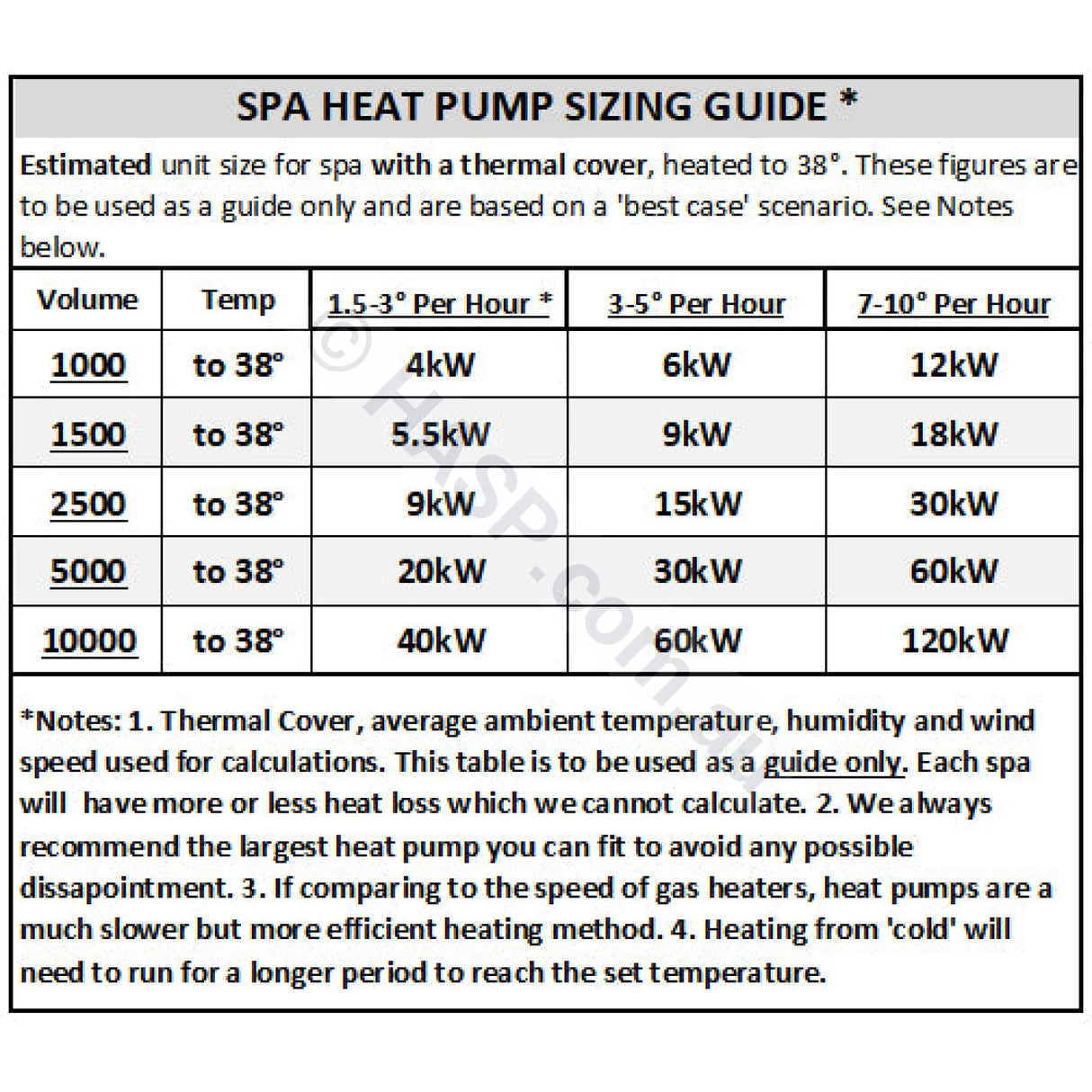

Heat Pump Sizing for Spas:
