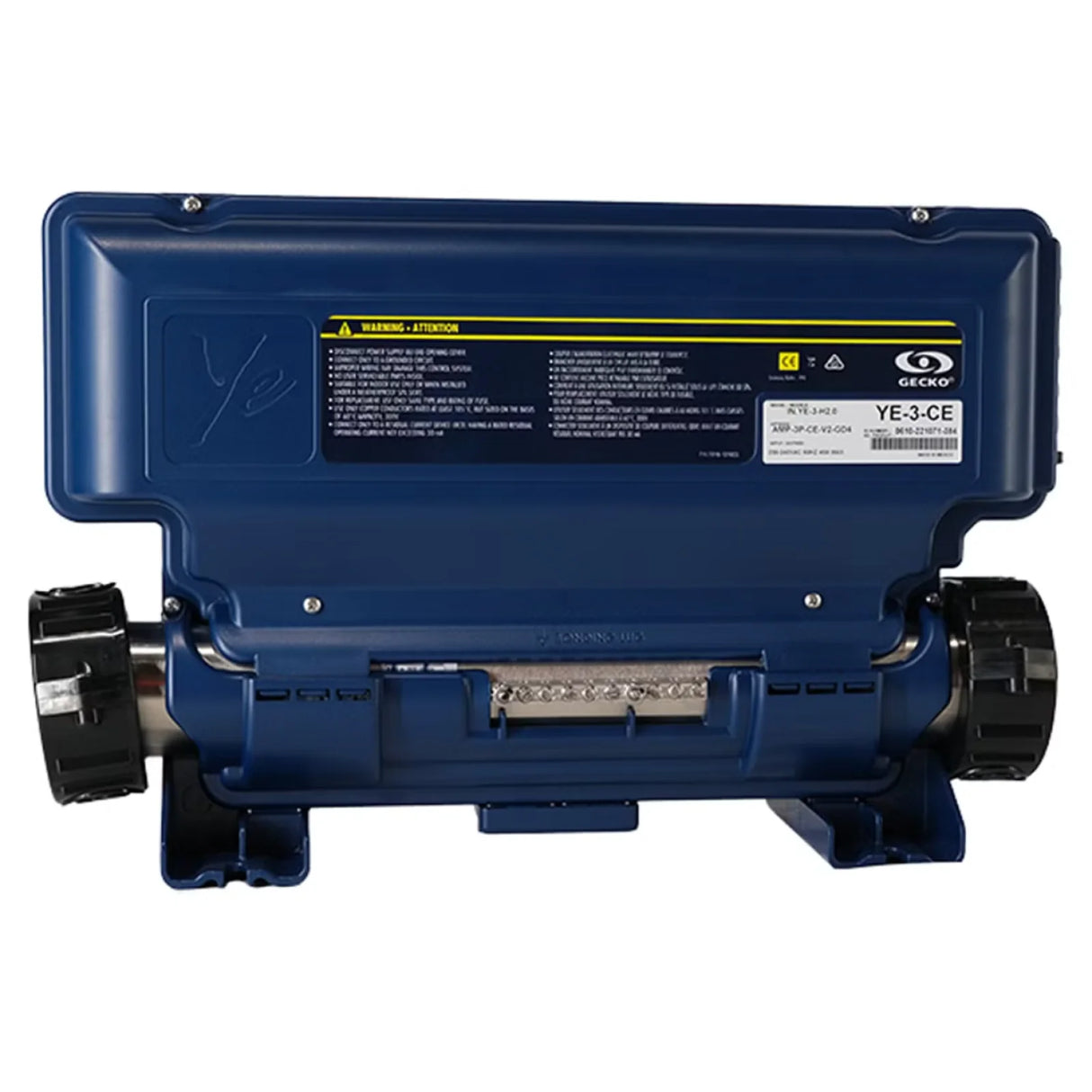

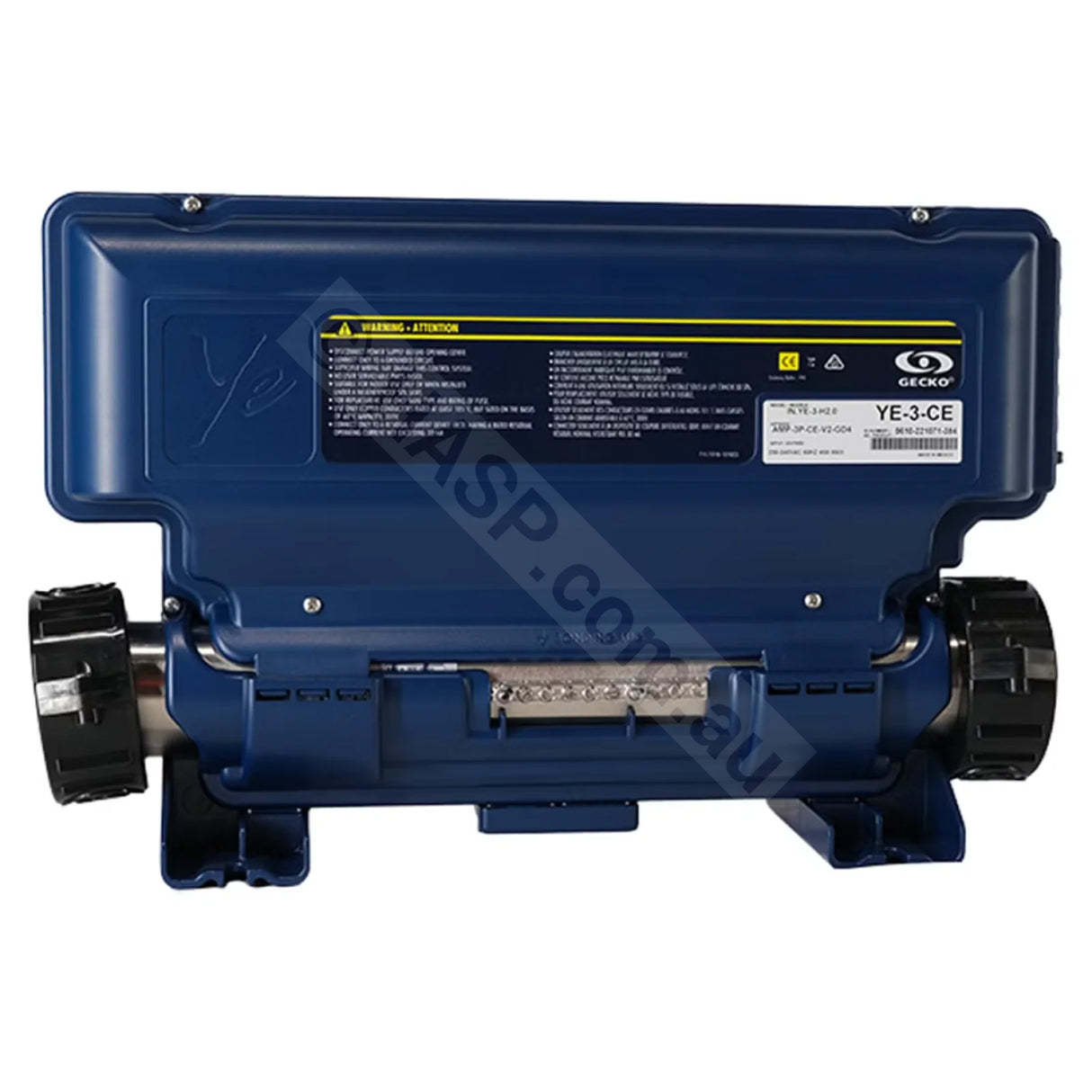

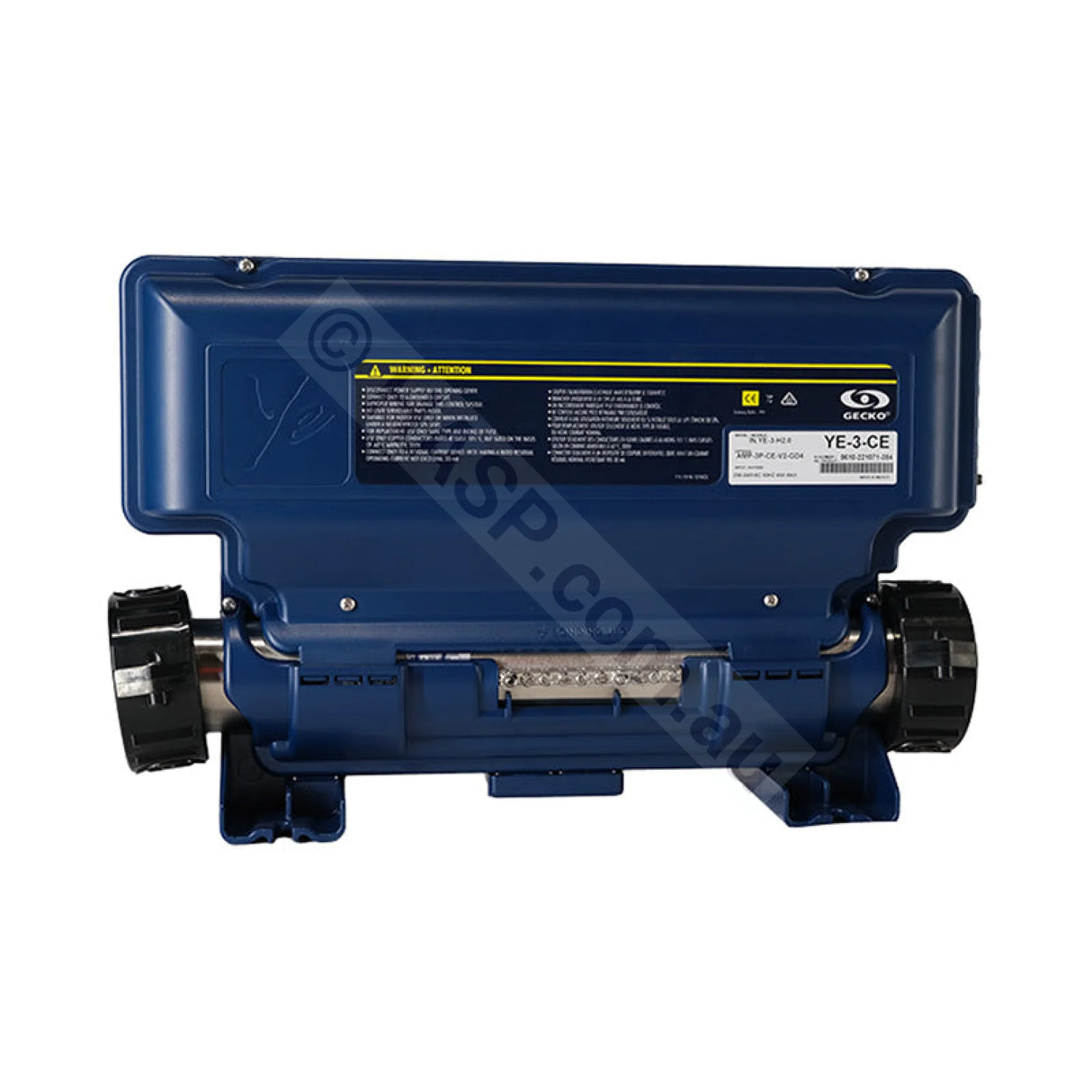

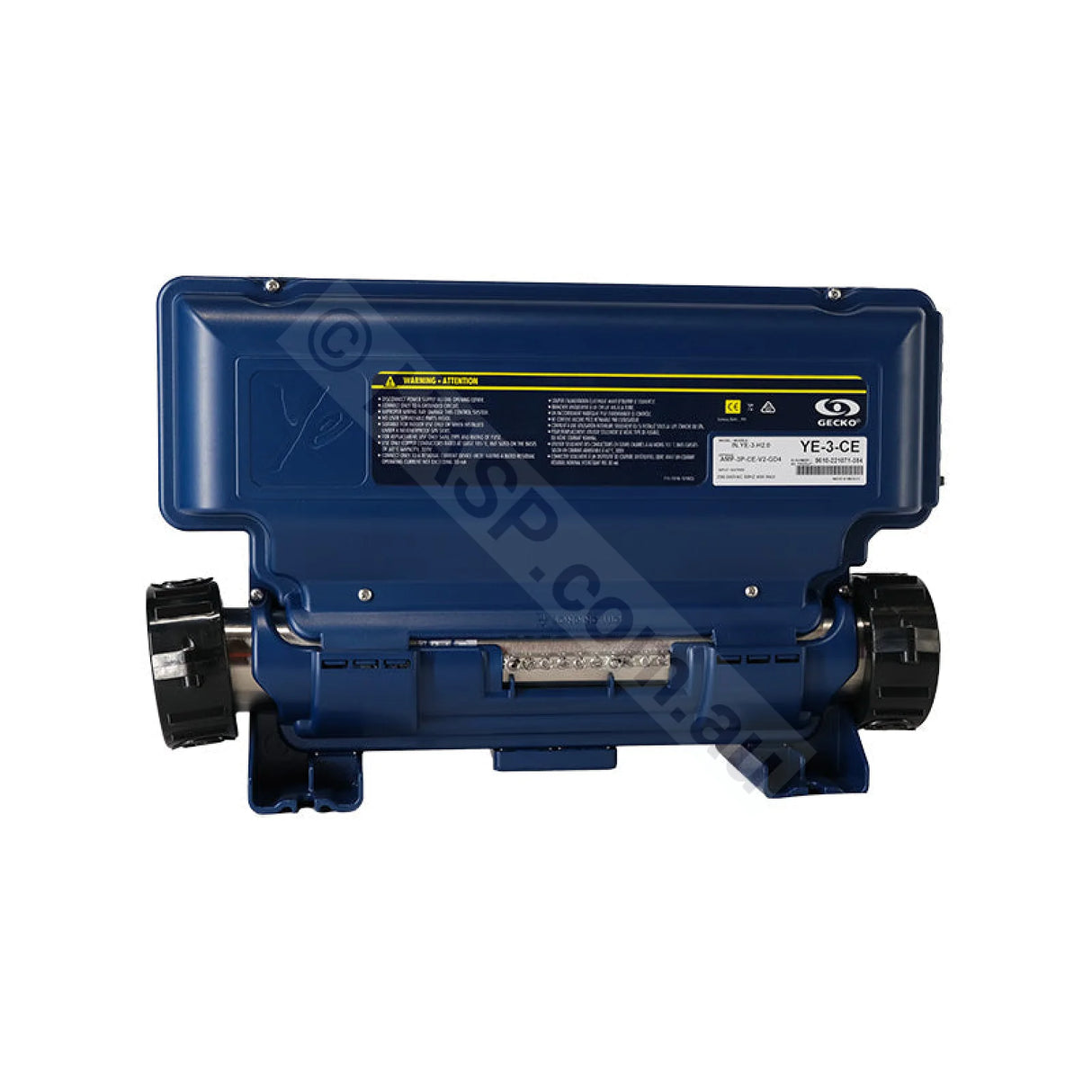

Gecko Aeware in.ye-3 Spa Control Box - 3.0kw, 4.0kw

Gecko Aeware in.ye-3 electronic spa control box complete with heater. Available with 3.0 and 4.0kw heater element. Touchpad and cables sold separately. If upgrading from an in.xe system, you will need to remove the old plugs and fit AMP standard plugs.

These control systems require programming using a Gecko Prgramming Stick for the Australian market. These are only available to authorised Gecko technicians. If you do not have this stick, we can program it for you.

We will need to know:

• Total Amps Available to Spa - ___A
• Circ Pump or 2-Speed Pump - Model: ______
• Pump 1 - Yes or No - Model: ______

• Pump 2 - Yes or No - Model: ______
• Pump 3 - Yes or No - Model: ______
• Blower - Yes or No - Model: ______
• Ozone - Yes or No - Model: ______

IN.YE-3 240volt Output Sockets

• CIRC PUMP: Circulation Pump
• PUMP 1: 1Spd Pump or 2Spd Pump
• PUMP 2: 1Spd Pump
• PUMP 3: 1Spd Pump
• BLOWER: Blower
• O3: This outlet is only to be used with an ozone system

IN.YE-3 Low Voltage

• 1 x Touchpad Outlet
• 1 x Light
• 2 x Comunication Links (AUX touchpad/In.Touch)

IN.YE-3 Features

• In heater temp sensor
• Max Temp 40 degrees
• Adjustable Filtration
• Heat Pump Interface
• Wifi Interface (optional)
