Aquaflo Circ-Master HP Replacement - SXC35/WTC50 Circmaster Kit (CMHP / CMCP / Emerson)

Aqua-Flo (Aquaflo) Circ-Master HP Replacement - SXC35/WTC50 Circmaster Kit (CMHP / CMCP / Emerson)

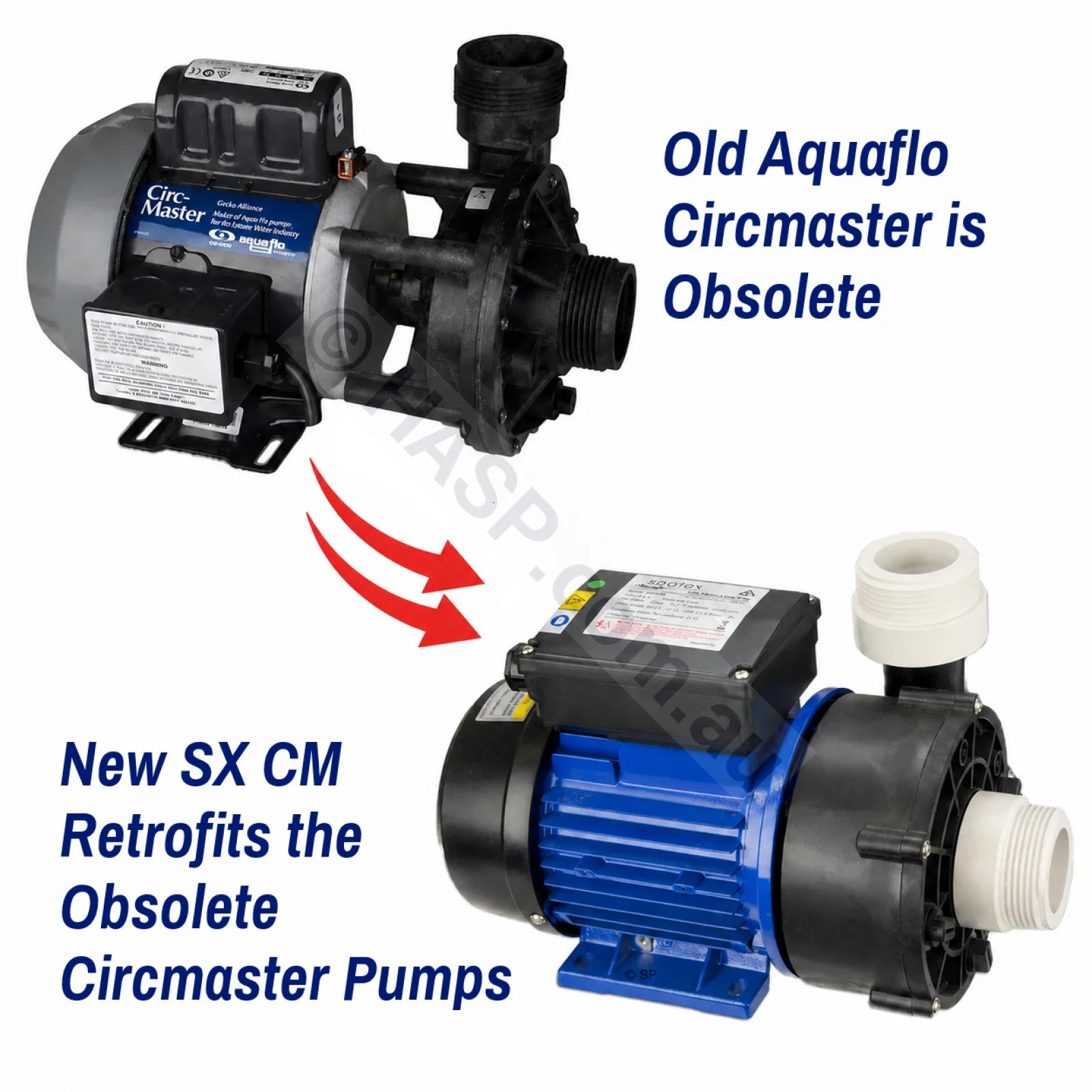

The SXC35/WTC50 Circmaster Kit is the most direct drop-in replacement on the market for the discontinued Aqua-Flo Circ-Master HP (CMHP / CMCP) spa circulation pump. The included split-union adapters let the SXC35 fit straight into the original Circmaster plumbing — usually with enough give in the existing pipework to screw on without any modification.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

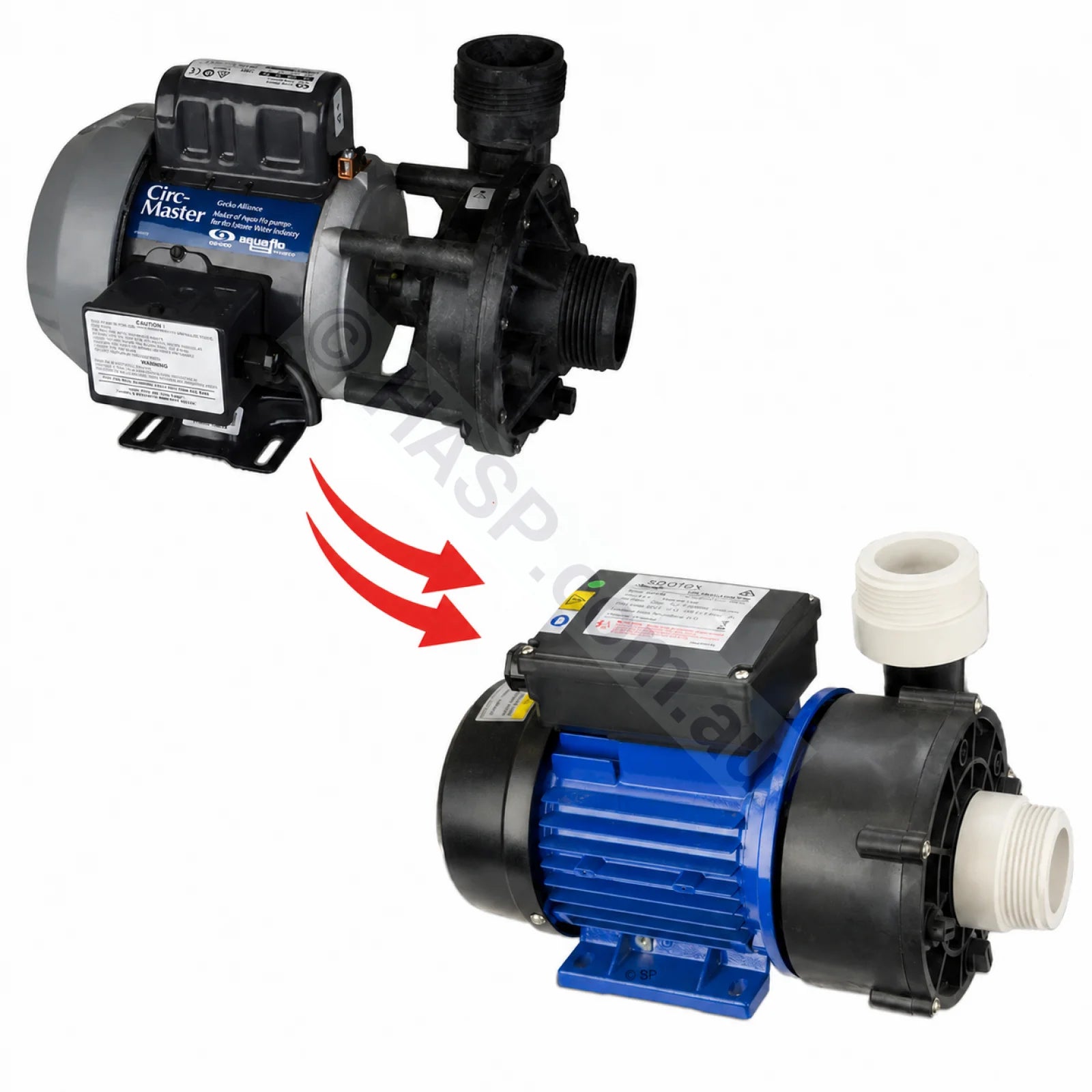

Aqua-Flo's Circ-Master CMHP/CMCP was discontinued after a long run, leaving thousands of spas needing a sensible drop-in replacement. The SXC35/WTC50 Circmaster Kit was purpose-built for exactly that job — similar footprint, plumbing within millimeters, modern motor.

What's in the Box

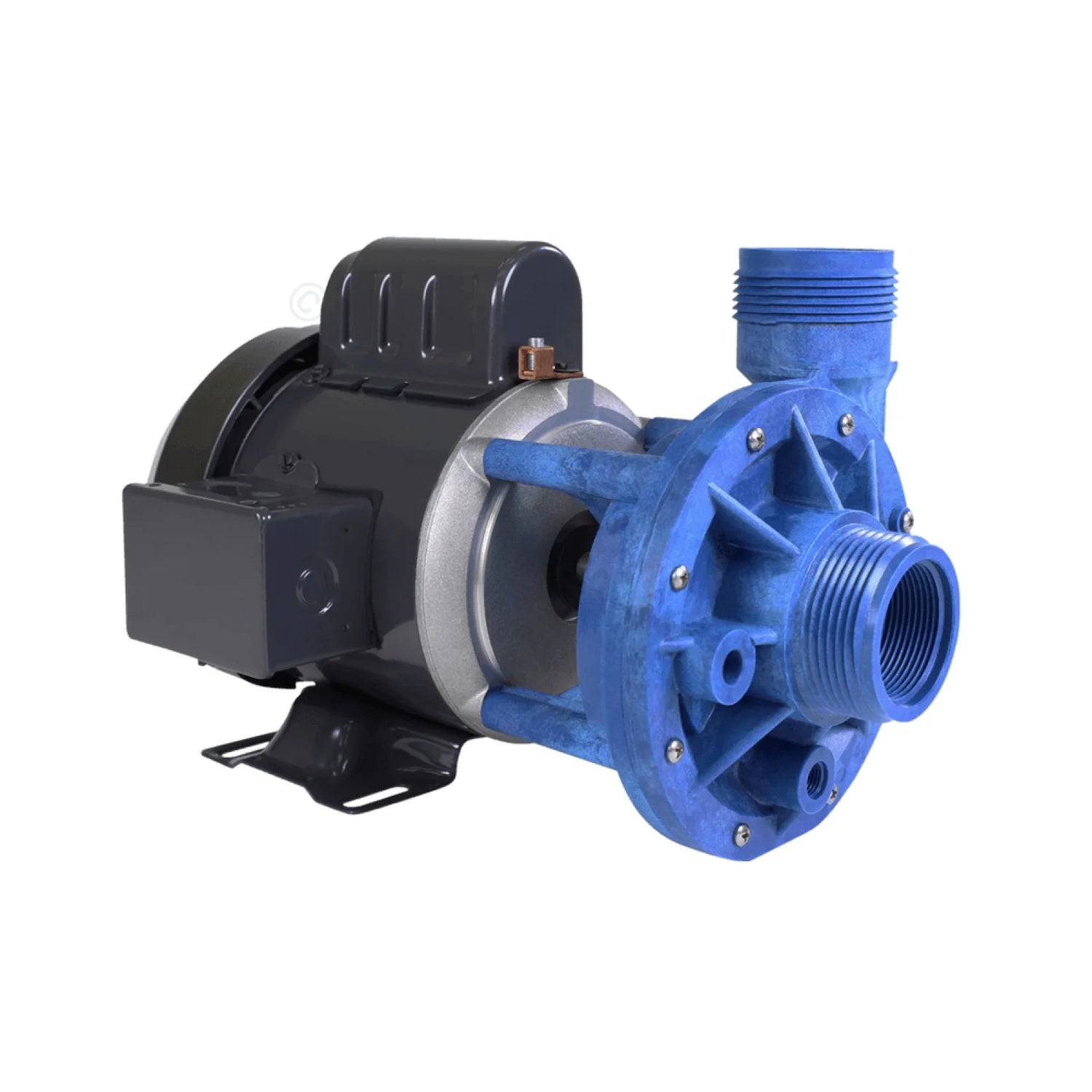

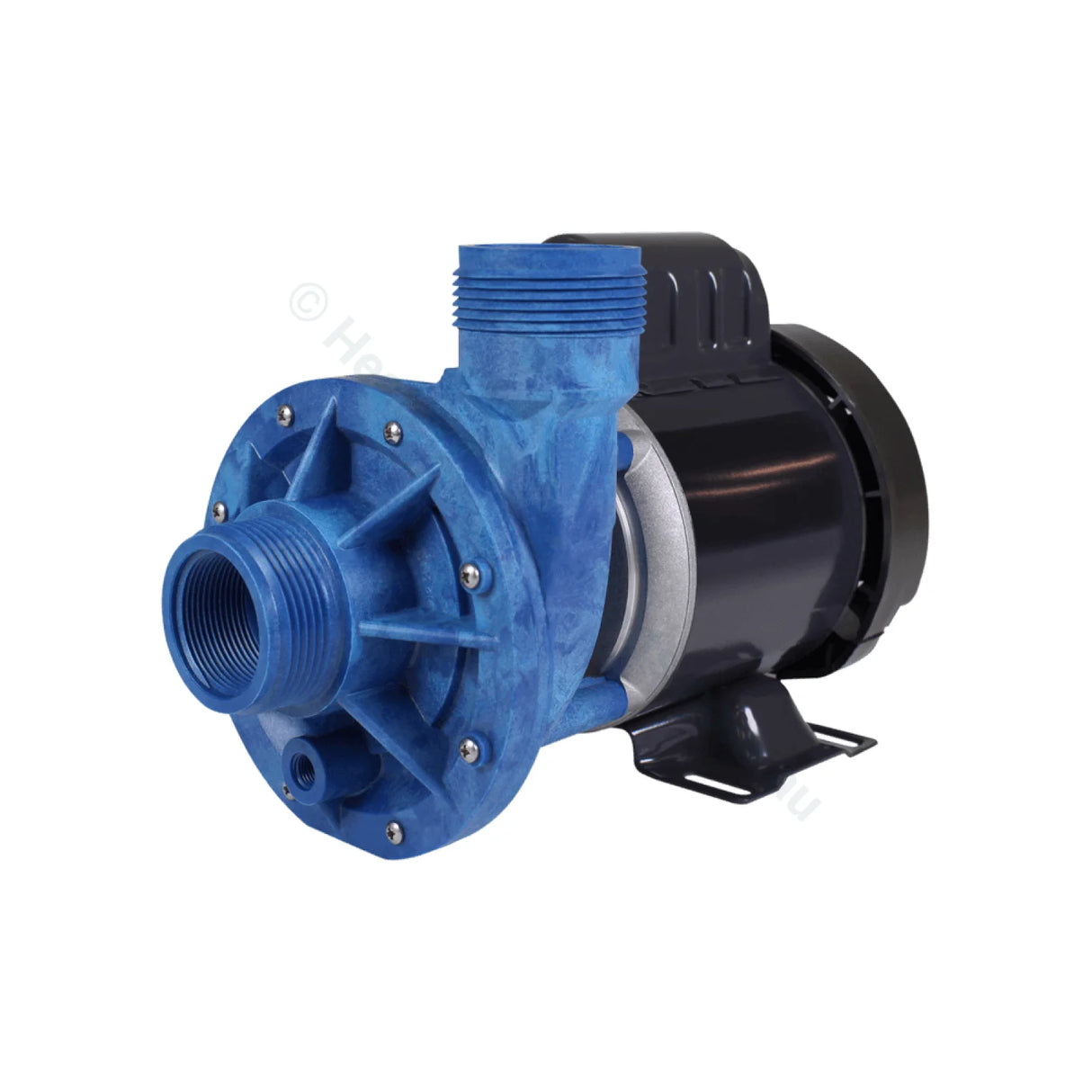

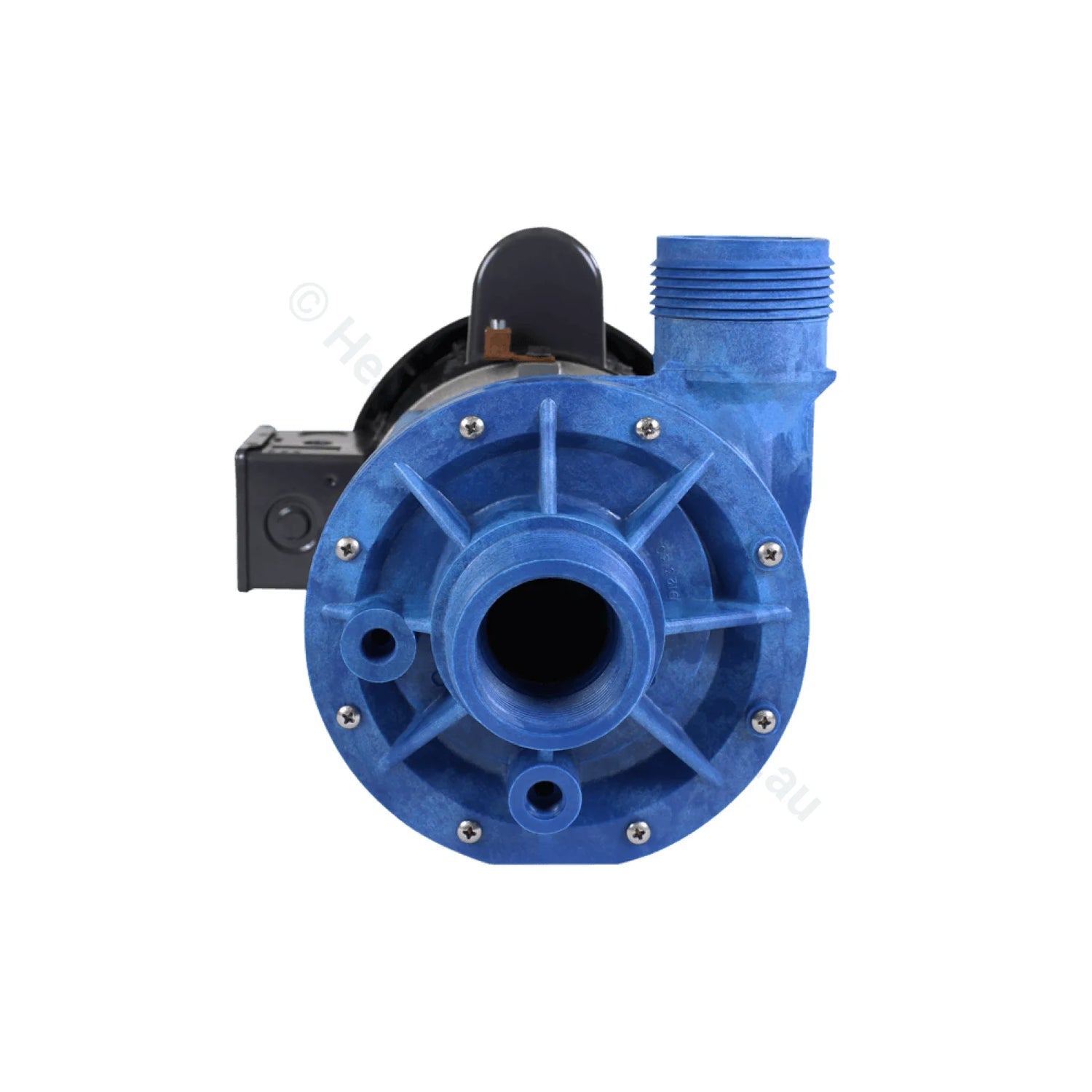

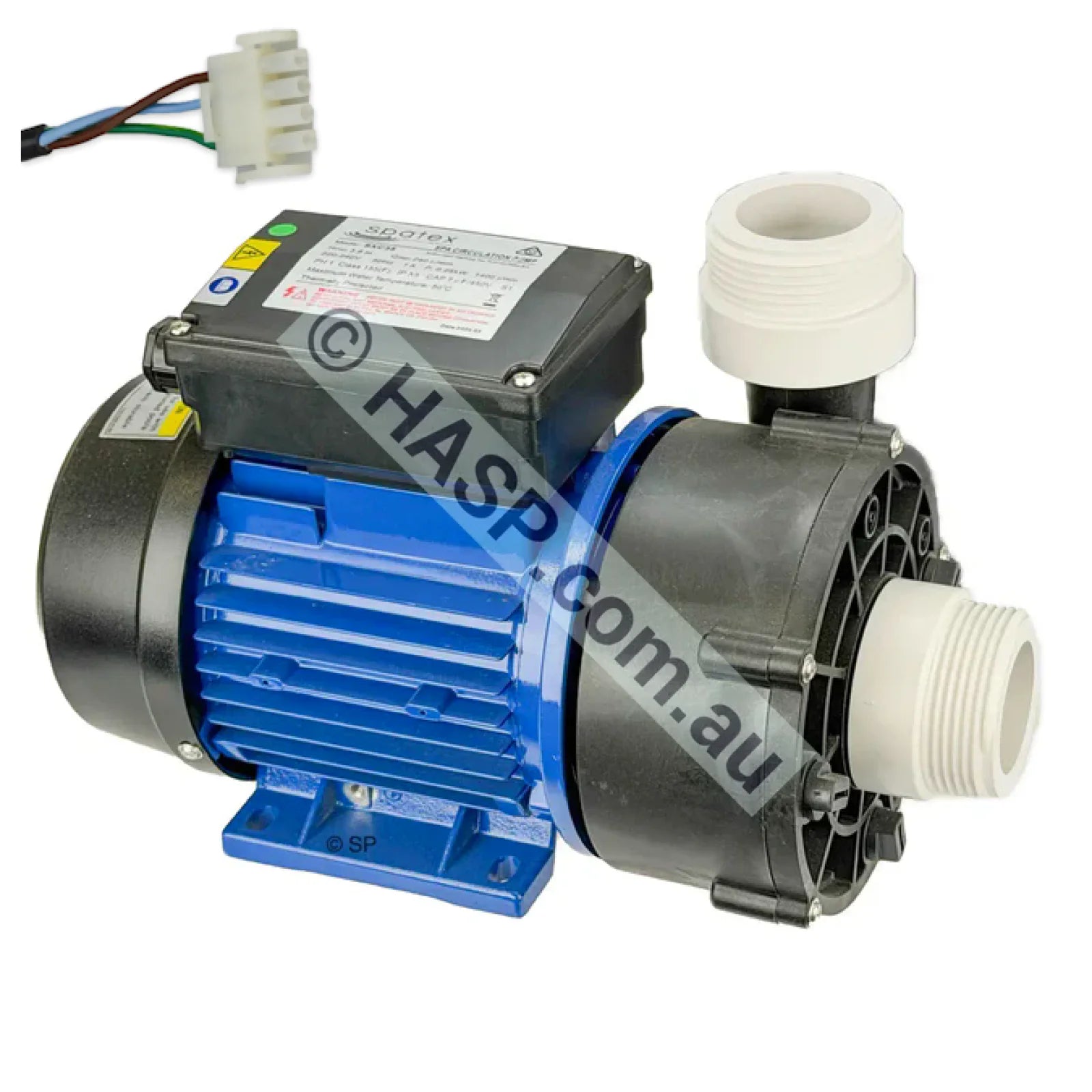

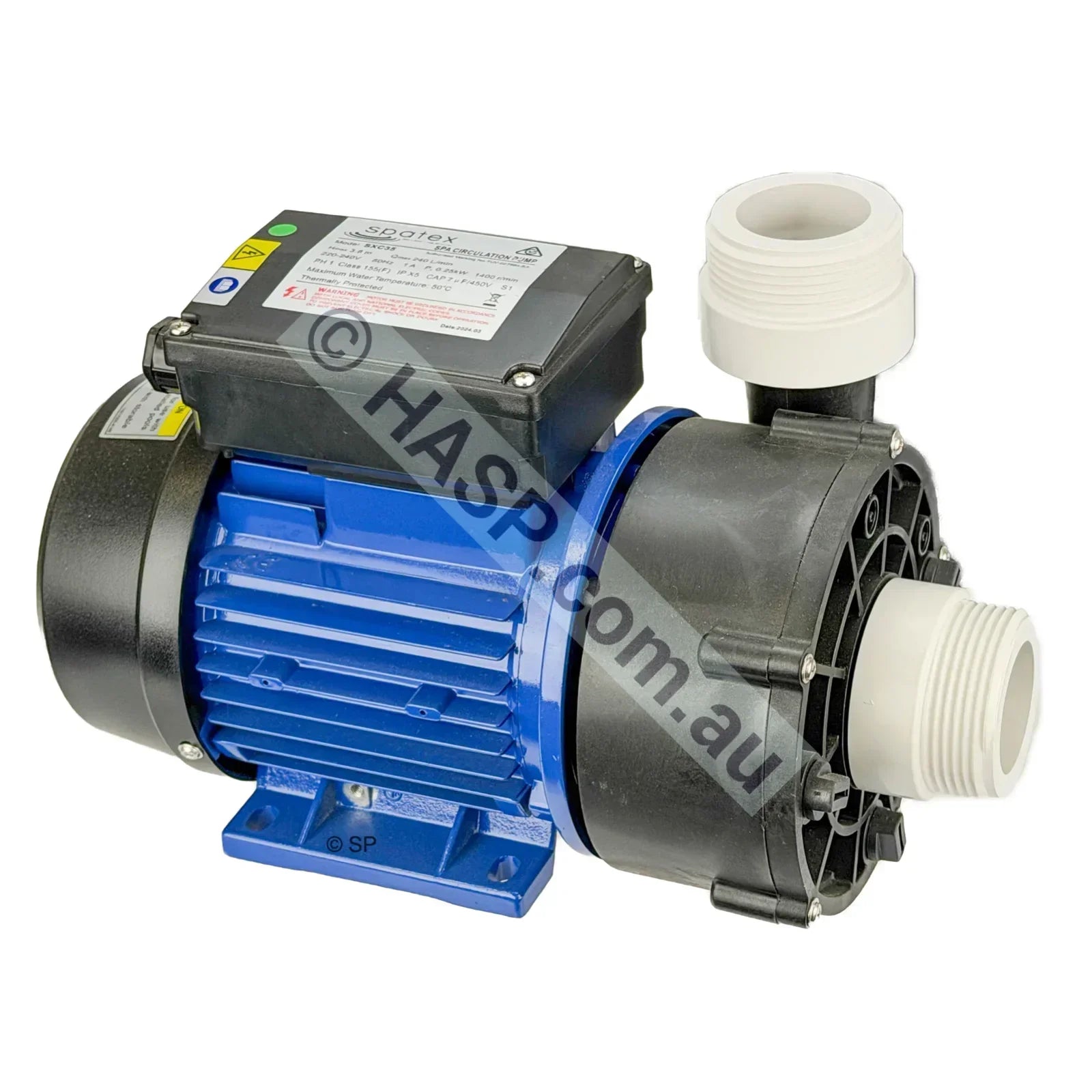

• SXC35 or WTC50(m) Spa Circulation Pump (1/3HP / 250W)
• 2× Aqua-Flo Circmaster union adapters for direct retrofit (within mm)
• Pre-fitted power lead — choose plug type from options.
  • AMP - for Balboa, Davey, Spa-quip (SpaQuip), Spanet, Some Gecko Aeware

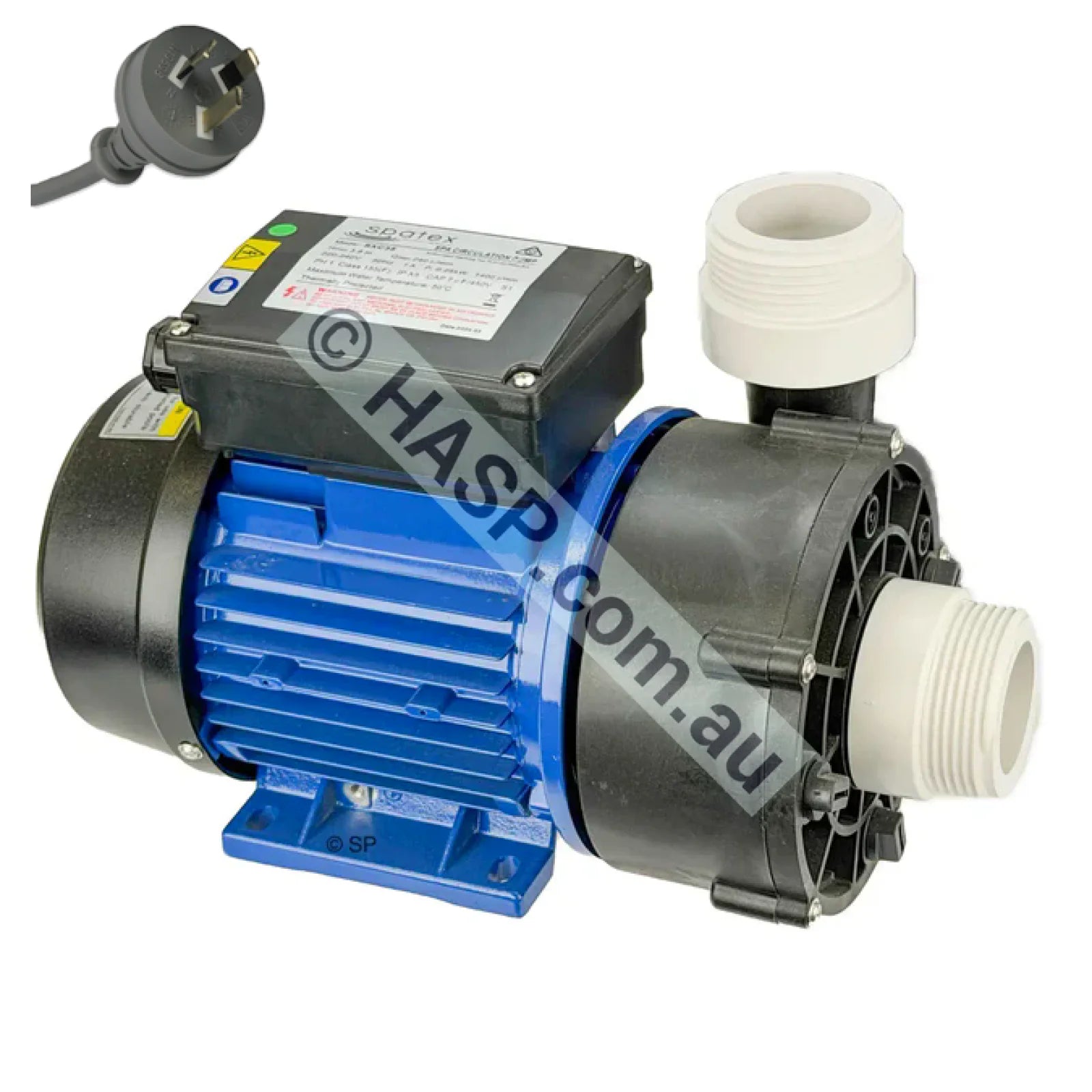

  • 3-pin C38 - for standard Australian 10a power points.
  • Mini JJ and Gecko in.link plugs no longer available - use old lead or get electrician to make electrical terminal box to adapt.

SXC35 Pump Specifications

• Power: 0.35HP / 250W / 1/3HP
• Voltage: 220-240V, 50Hz, 1A
• Max flow rate: 340 L/min
• Motor: 1400 rpm, 4-pole, extremely efficient
• Plumbing: 1.5" FPT thread, 55mm ID collar to slip over existing pump male tail
• Sound: Quiet running
• Warranty: 2 years (excluding chemical damage)

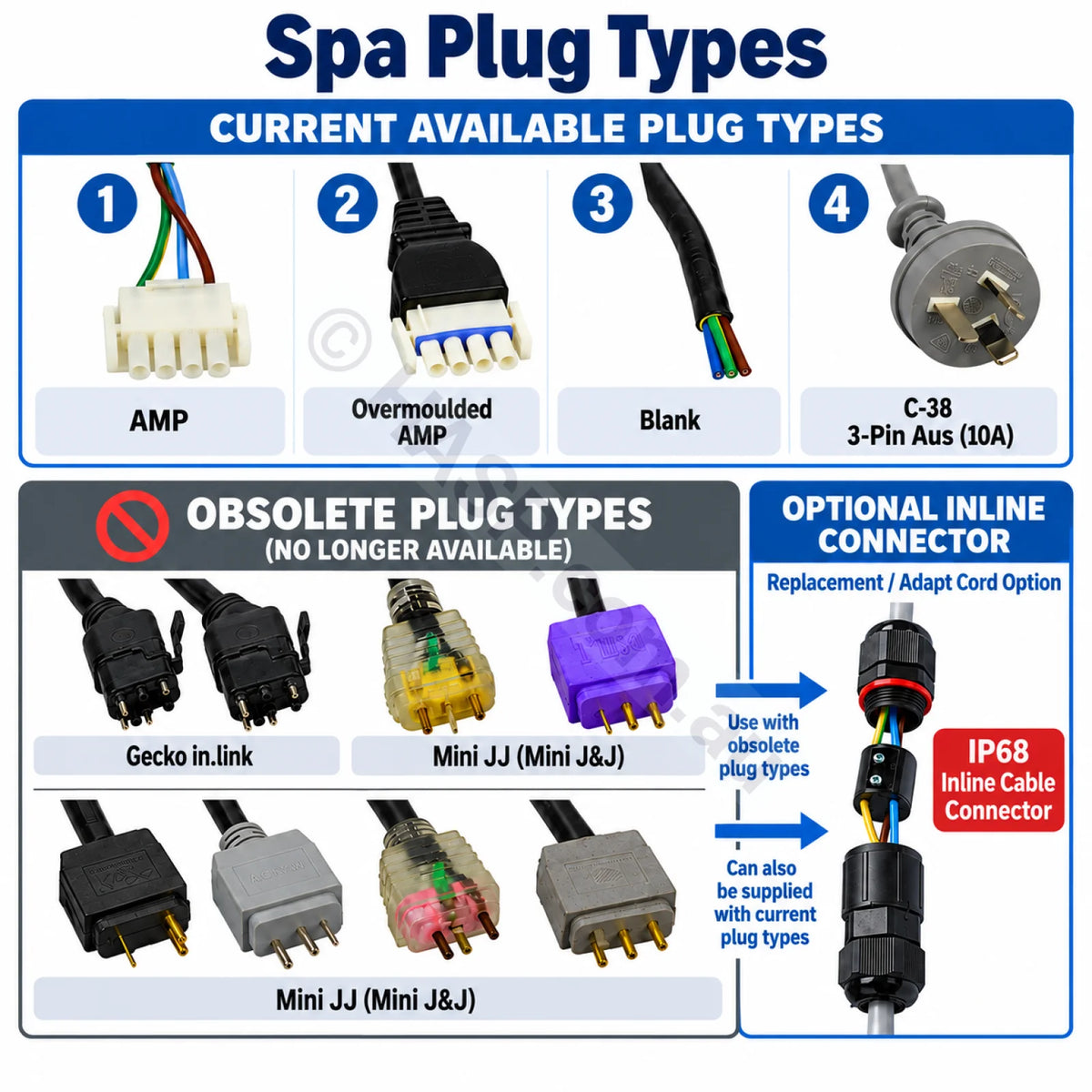

Plug Types:

• AMP for Balboa, Joyonway, Gecko Aeware
• Overmoulded AMP for Davey, Spanet, Spa-quip

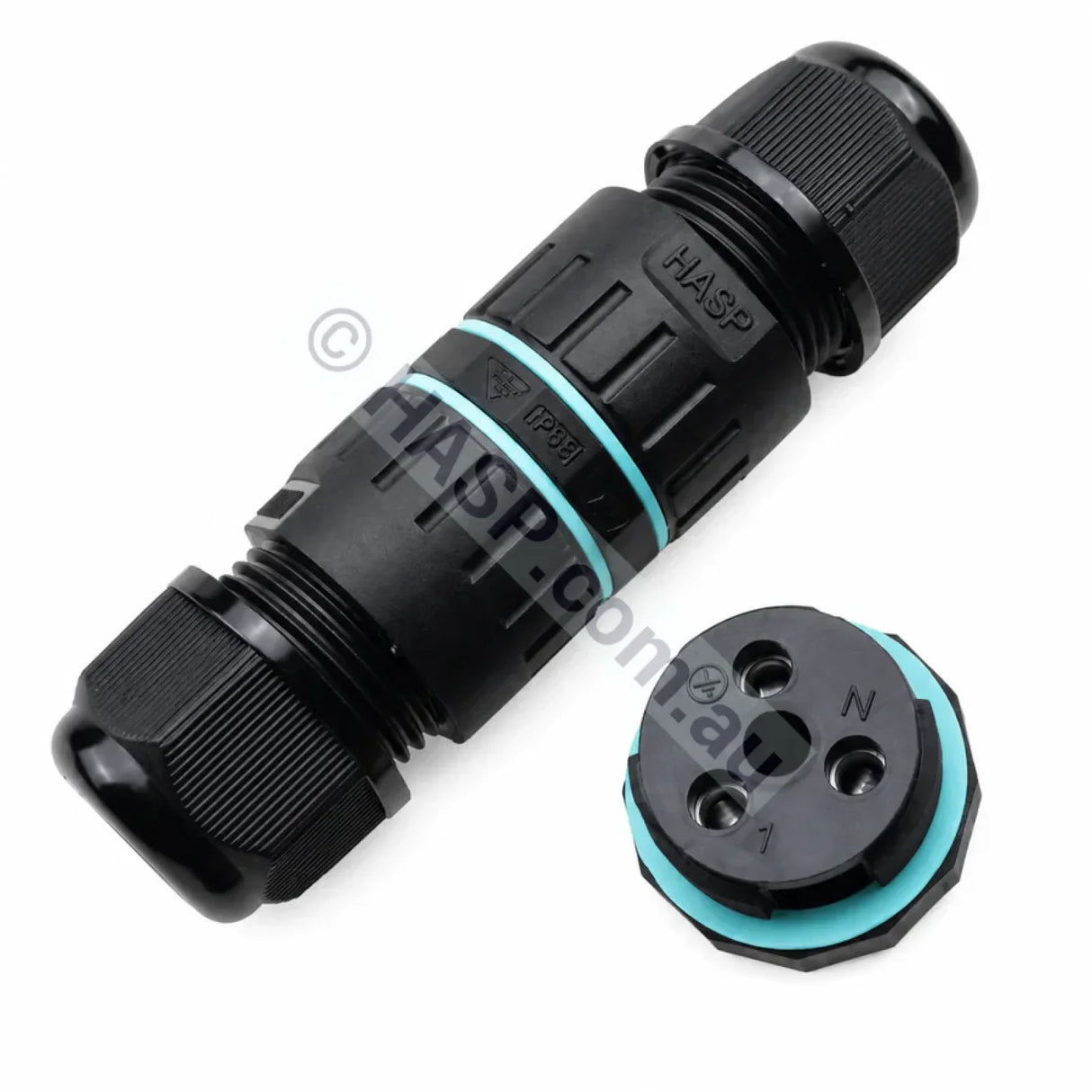

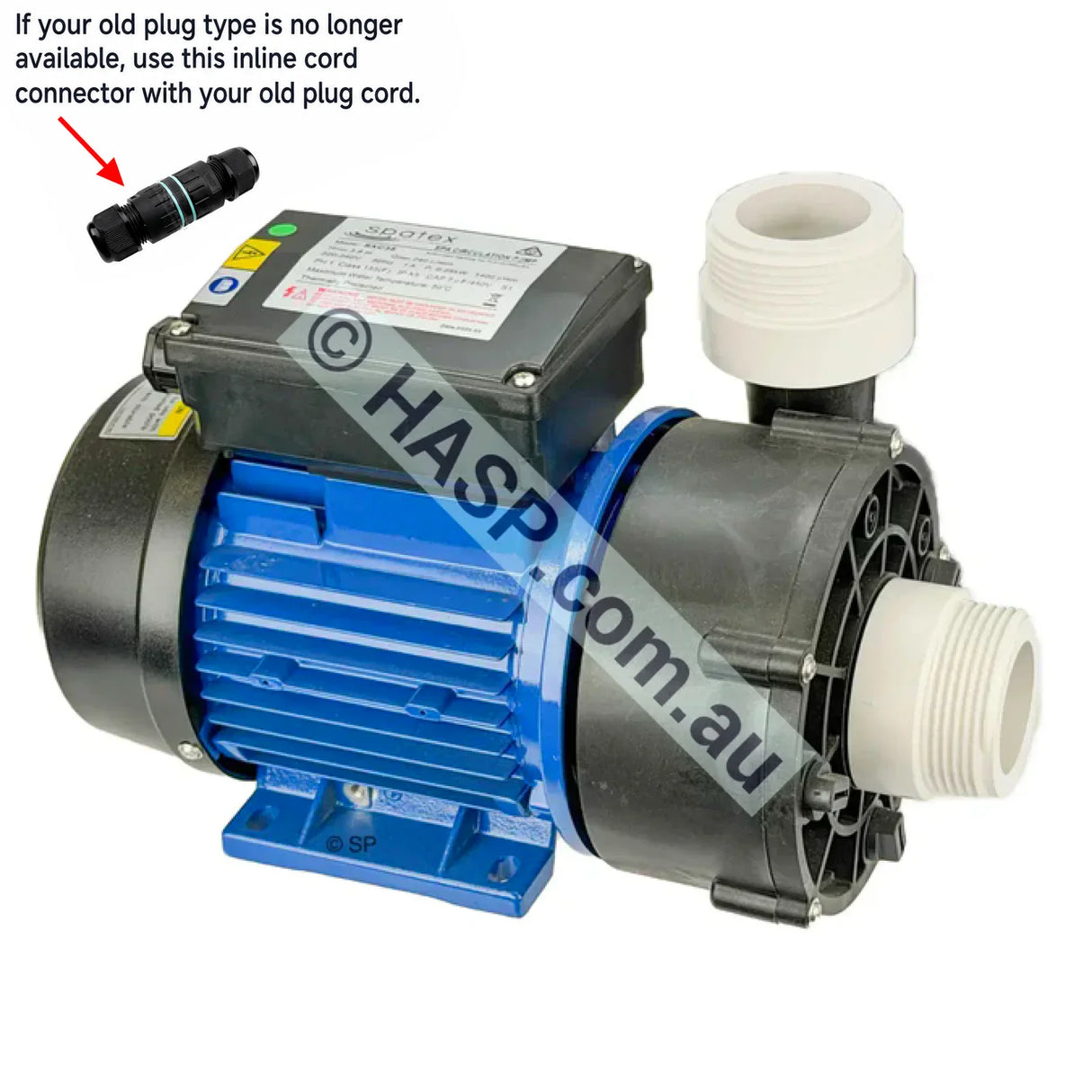

• Any other plug type (eg: Mini JJ, Gecko in.link, etc): <-- Comes with Inline Connector - Electrician can use old plug to fit to new pump cable.

Best Replacement For

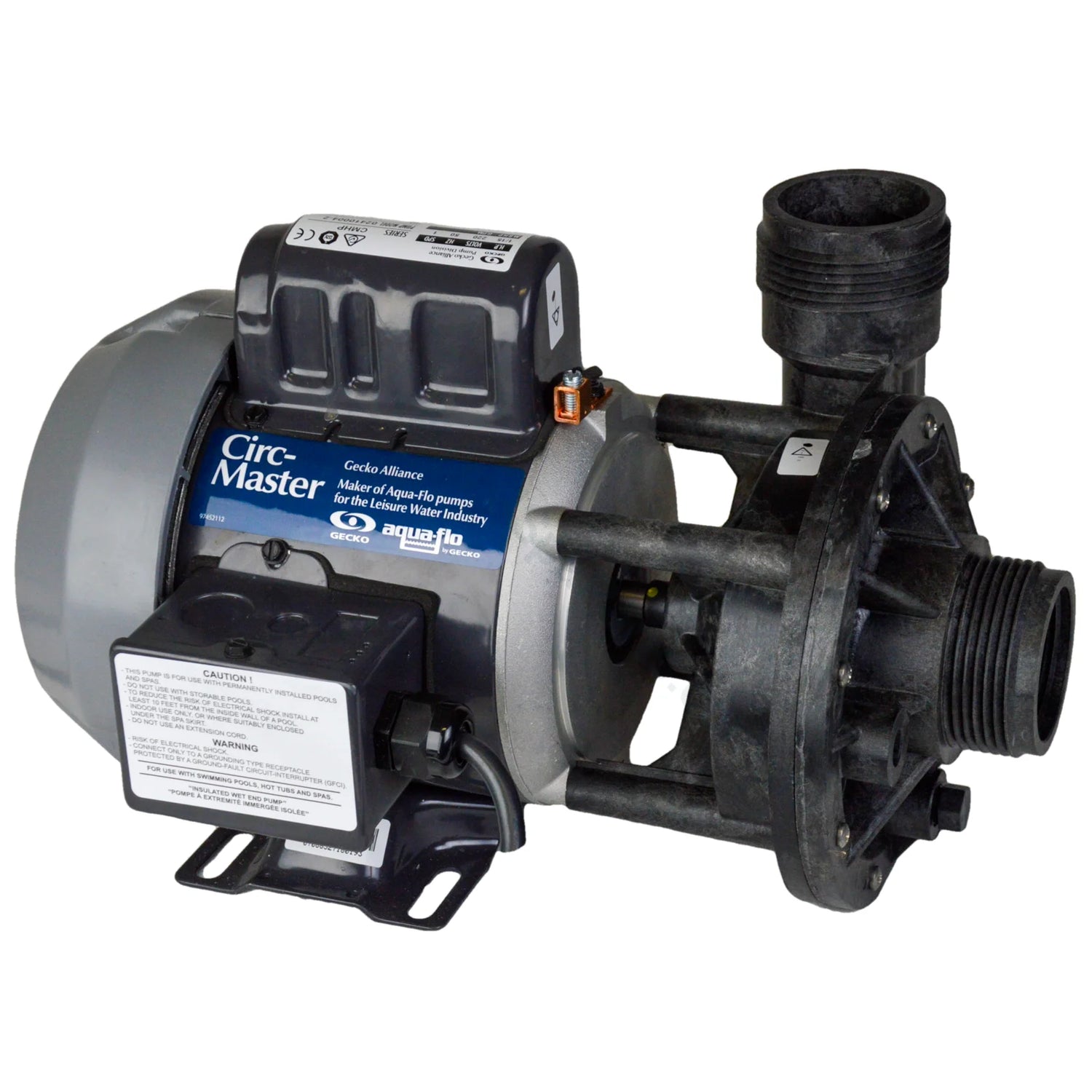

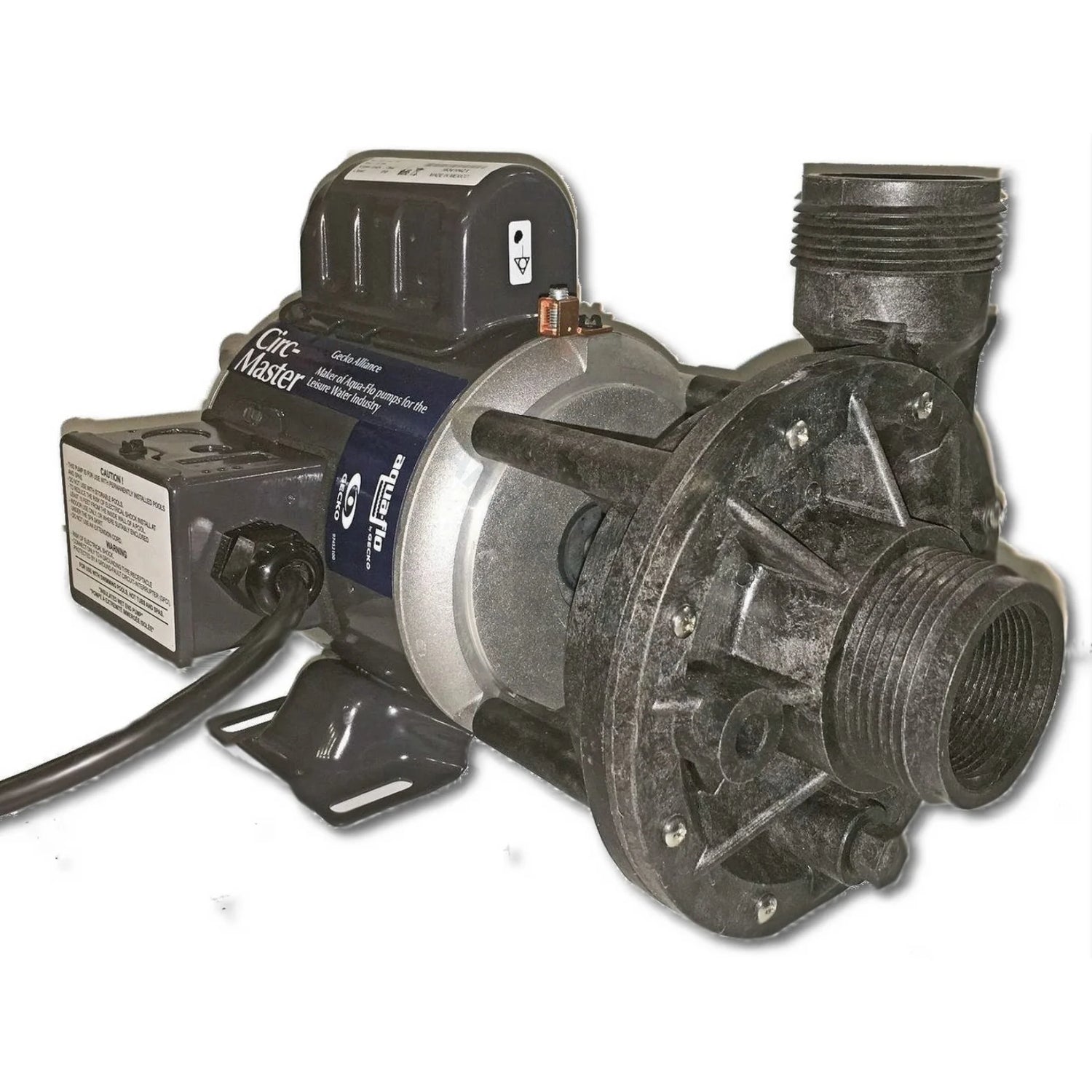

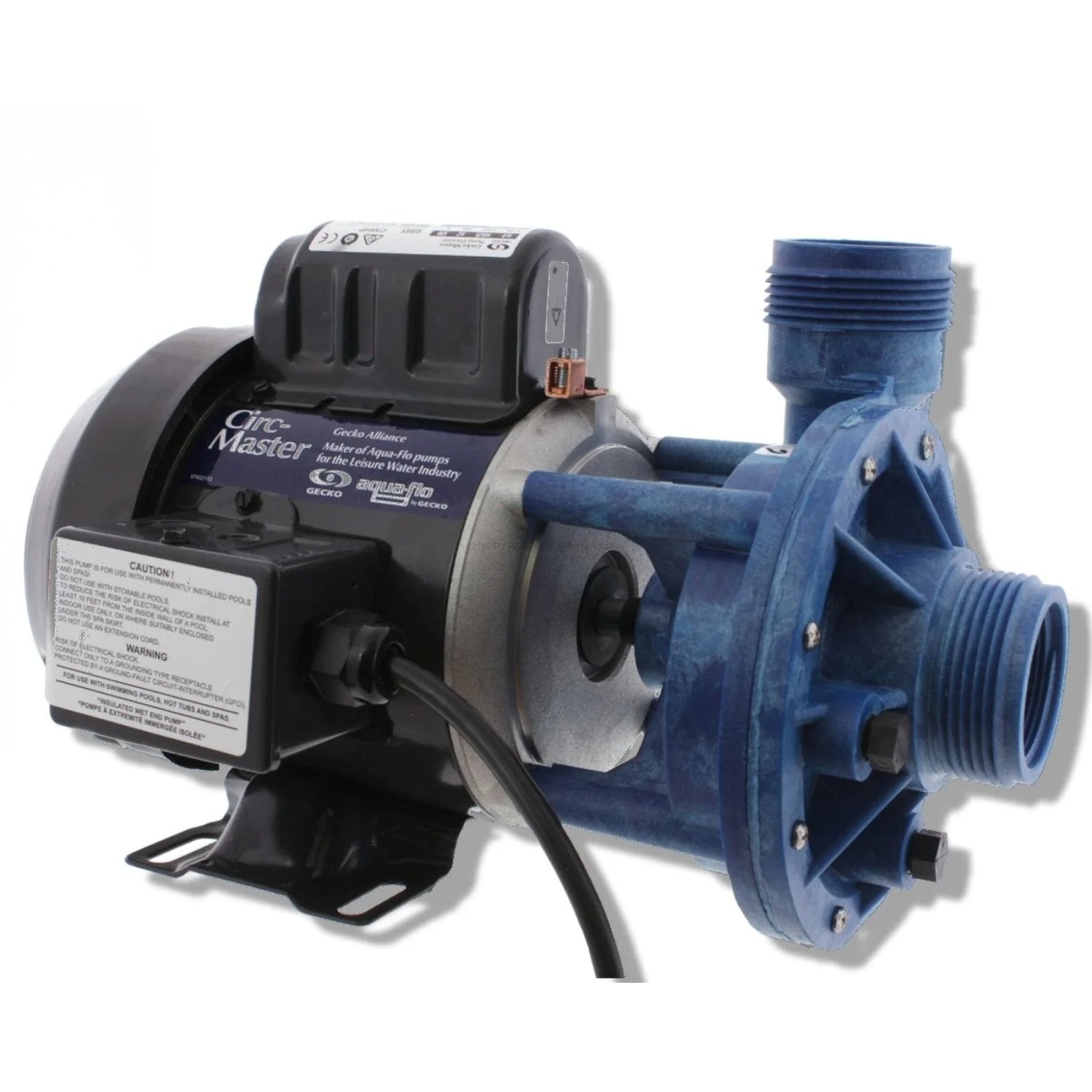

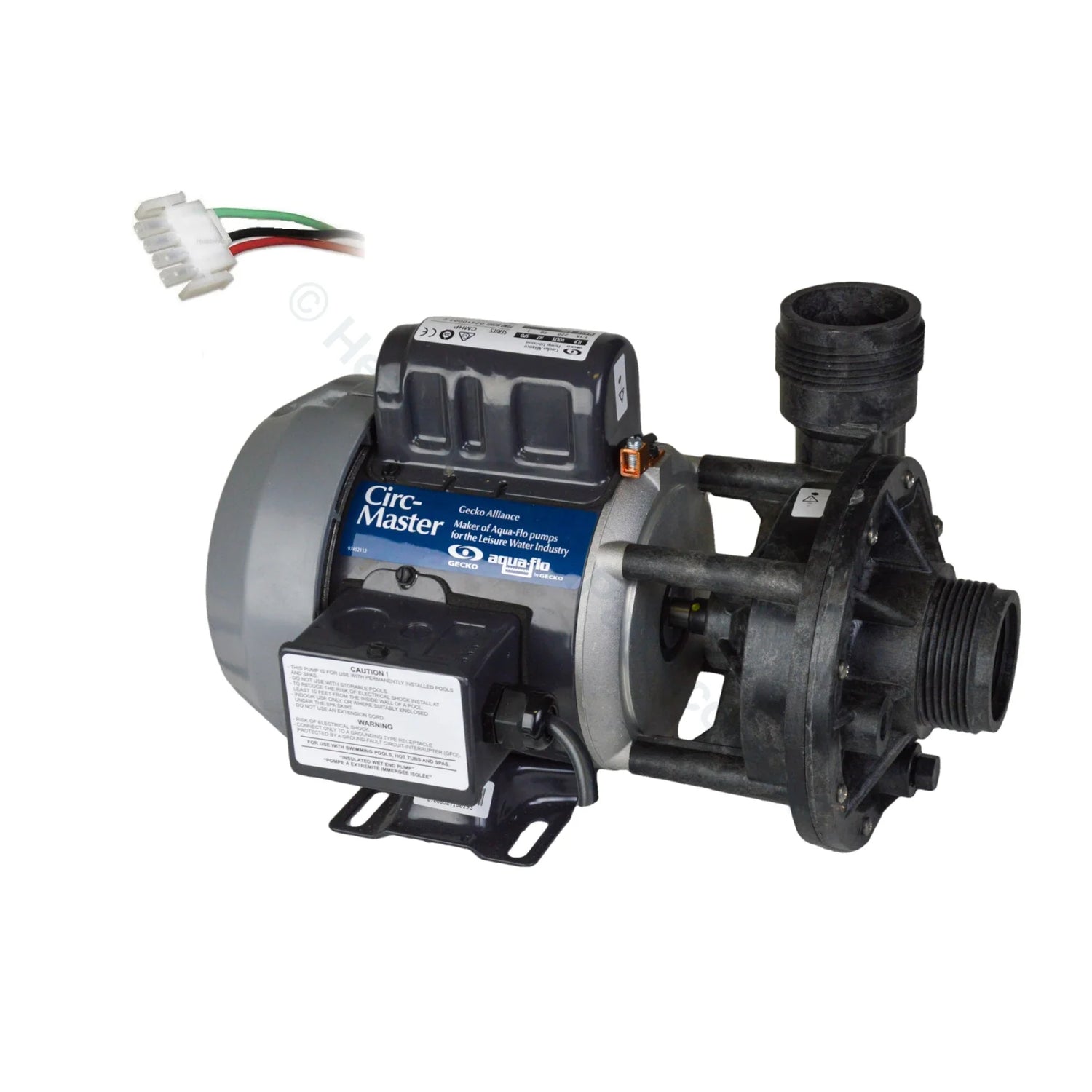

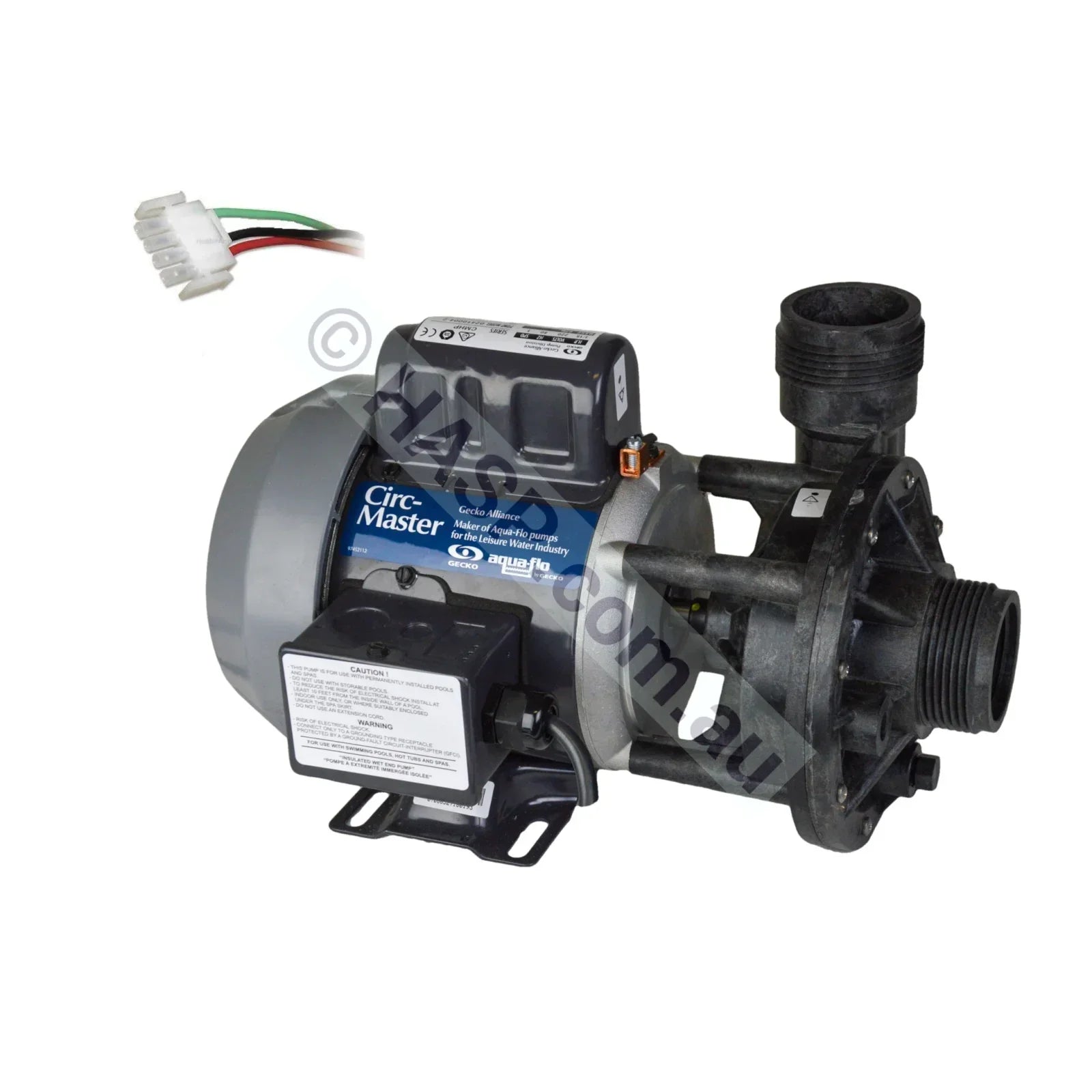

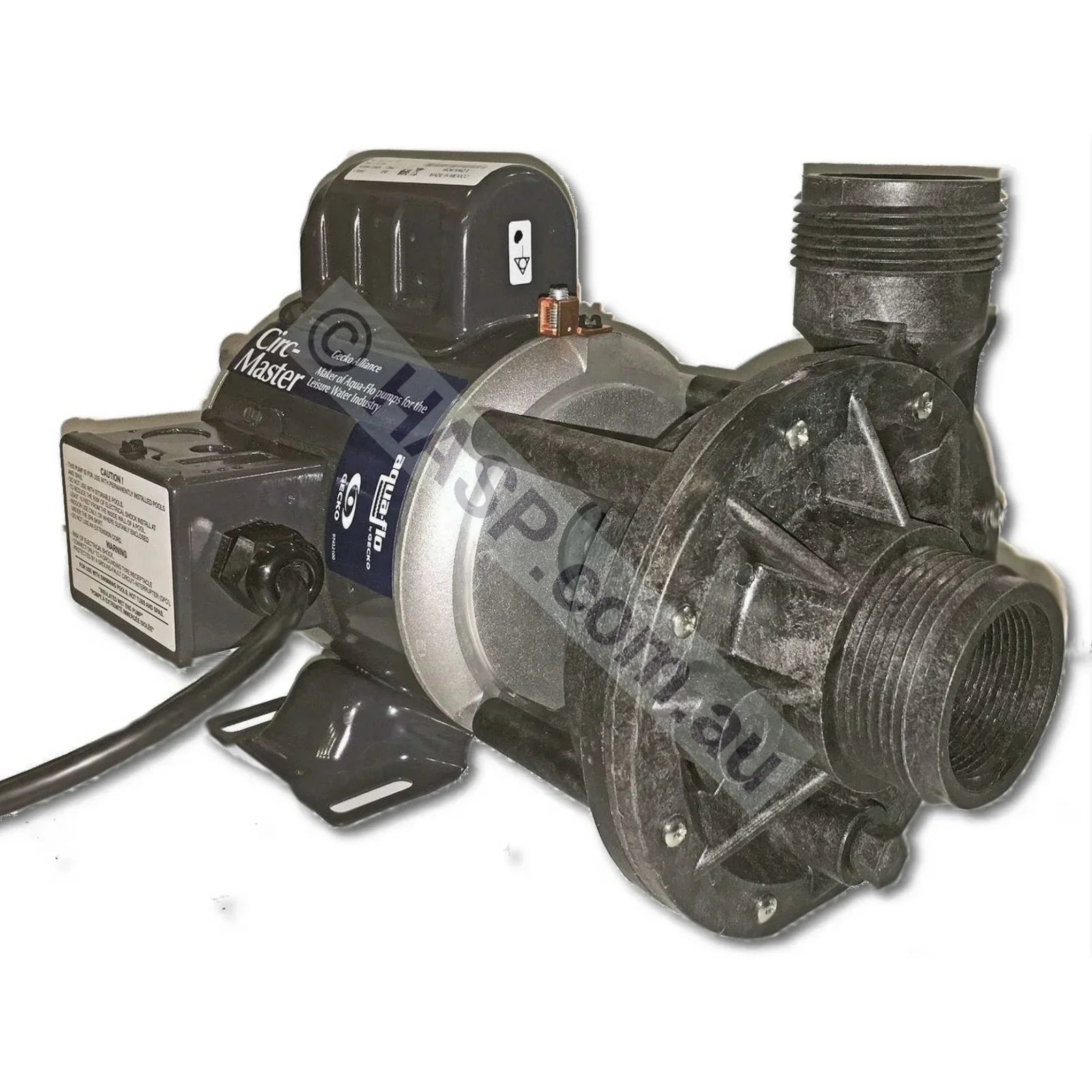

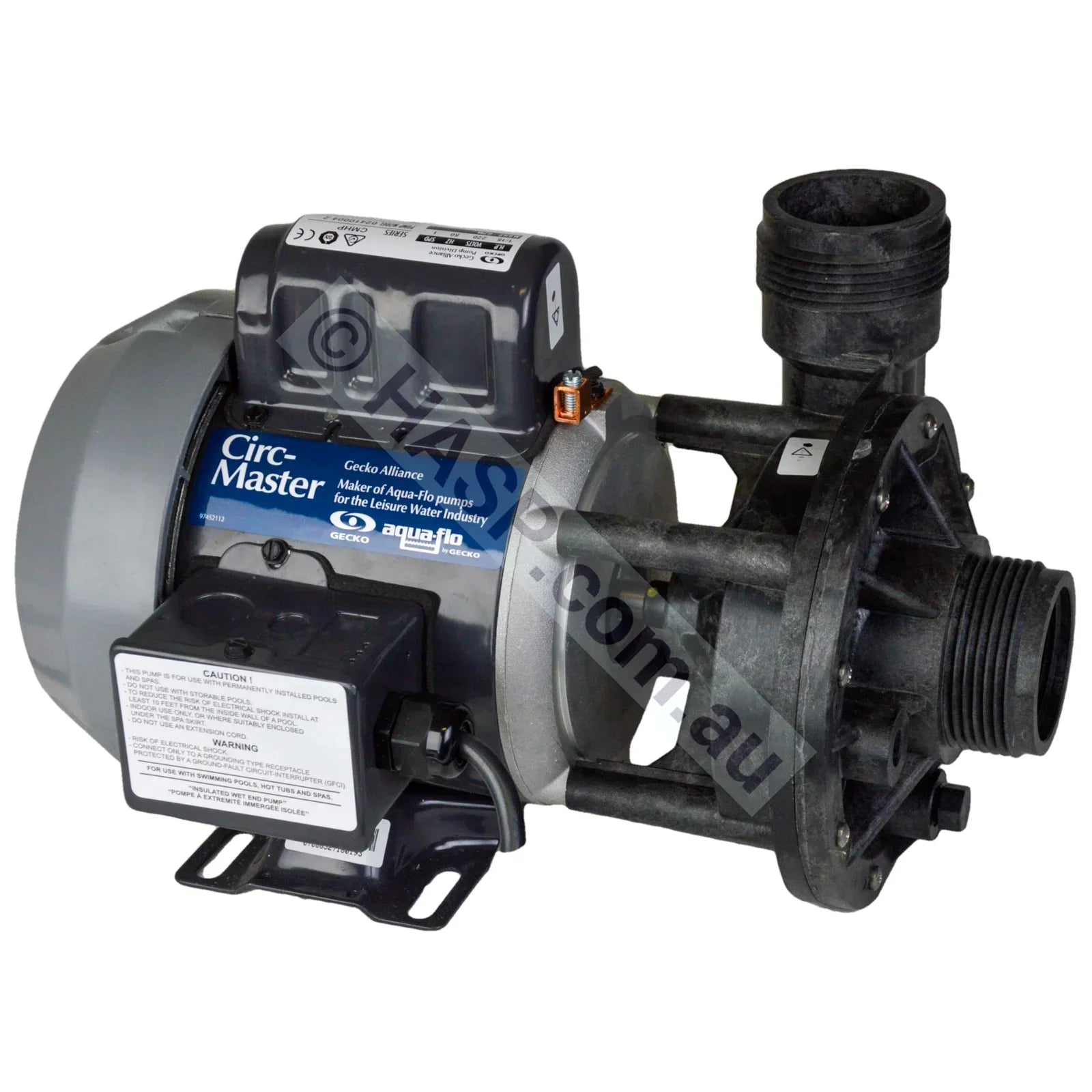

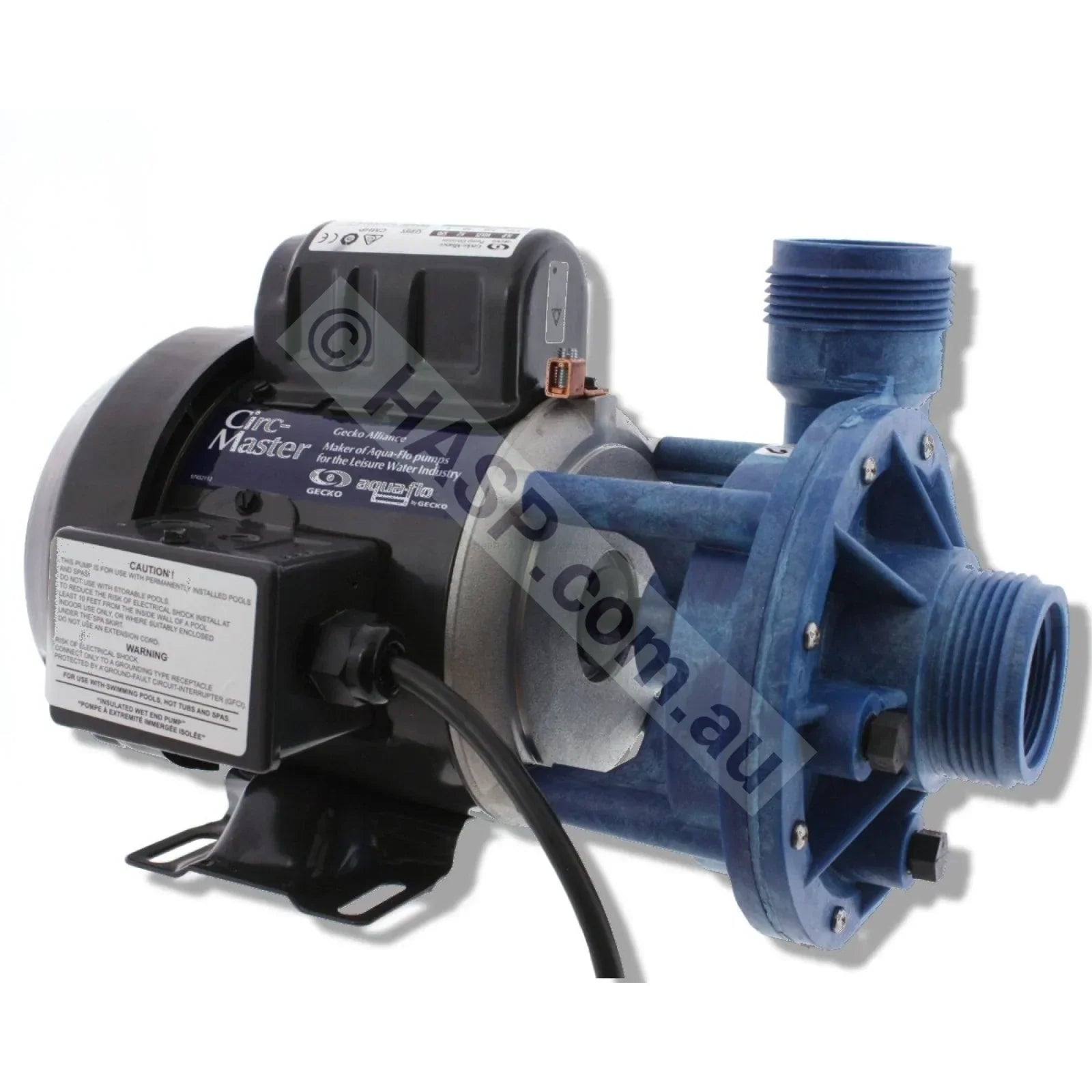

• Aqua-Flo Circ-Master HP / CMHP / CMCP / CMXP (Emerson / Australian-spec Circmaster pumps)
• Spa Industries EcoSpa / EcoSpa 1 circulation pump (APUMC1552A, APUMC1562A)
• Many WWDG, SpaPro, Sapphire, Alpine, Oasis, Vortex and similar imported builds that originally shipped with a Circmaster


Before You Buy: Quick Fitment Checklist

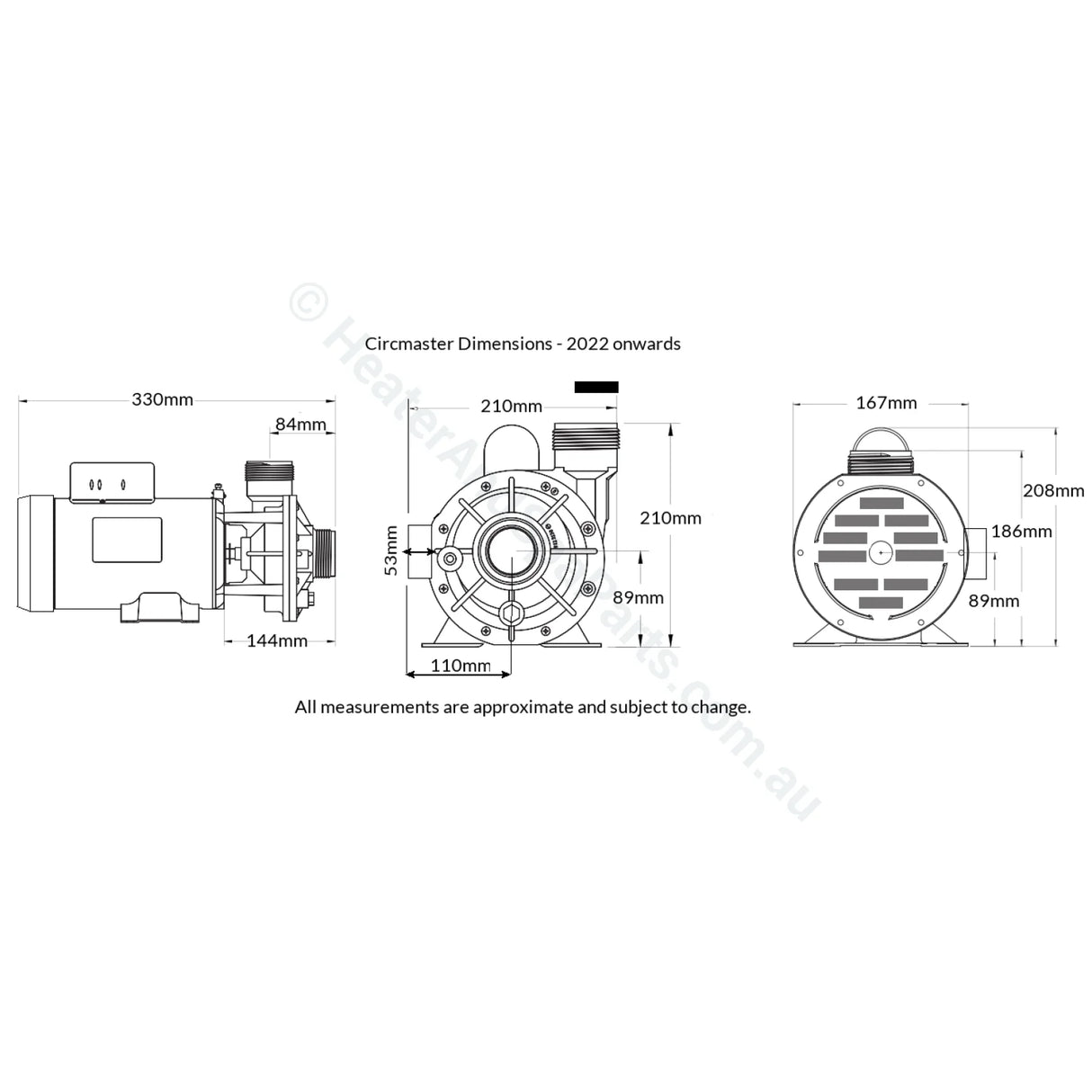

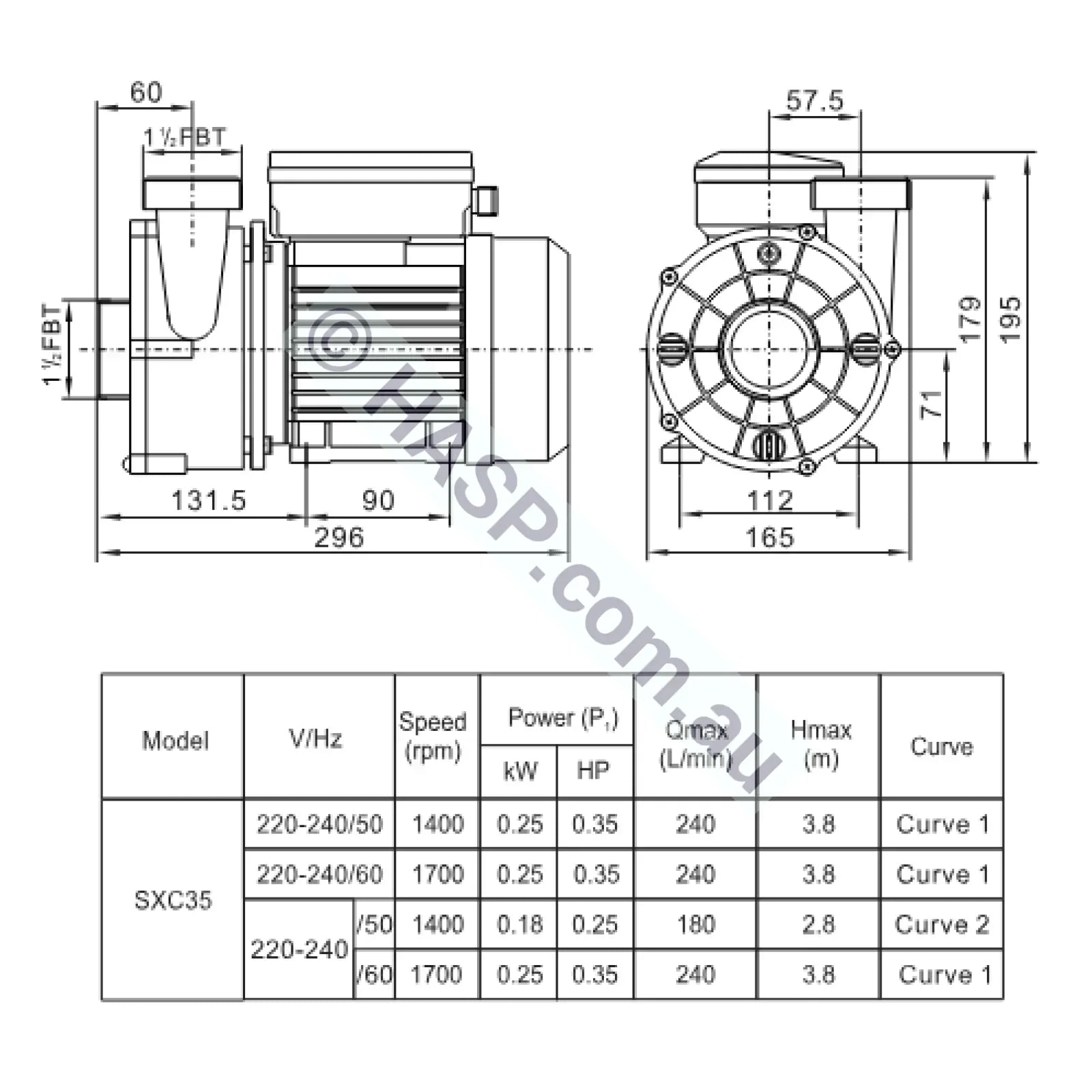

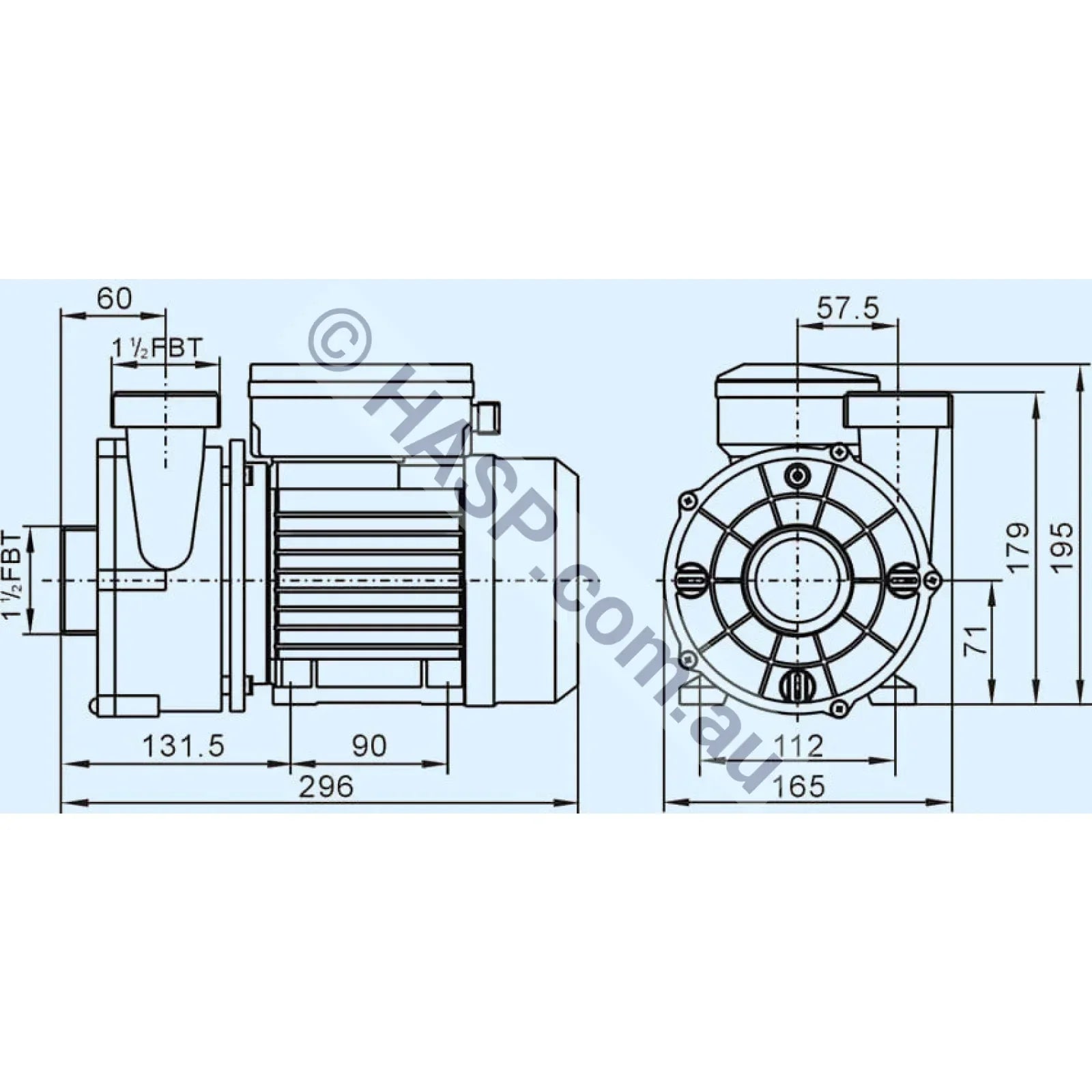

• Orientation & space: Check whether your suction and discharge line up. The union adapters allow some rotation variance, but very rigid pipework may need a gentle tweak with a heat gun. Check pump dimensions in diagram to ensure this will fit in your spa.
• Remove any motor-mounting studs or blocks. As with any updated motor, these may need to be modified.

Common Names & Part Numbers & References:

• CircMaster / Circ-Master, CMCP, CMHP, CMXP
• Emerson motor references: 1563 Spa Motor, K55MYGRD-8367, K55MYKHF-9557 (and variants)
• Spa Industries: APUMC1552A, APUMC1562A
• Sundance / Jacuzzi refs: 6500-911, 02410512-2
• Aqua-Flo refs (sample): CMHP-550114, 06040000-2, 02410004-2, 02410004-2510, 02410004-2, (plus many superseded codes)
• Also referenced as: Waterway Iron Might (in some listings)

Compliance note (AU): If you're shopping elsewhere, make sure any electrical pump supplied into Australia is properly approved and compliant. Non-approved units can be a safety and insurance headache.
