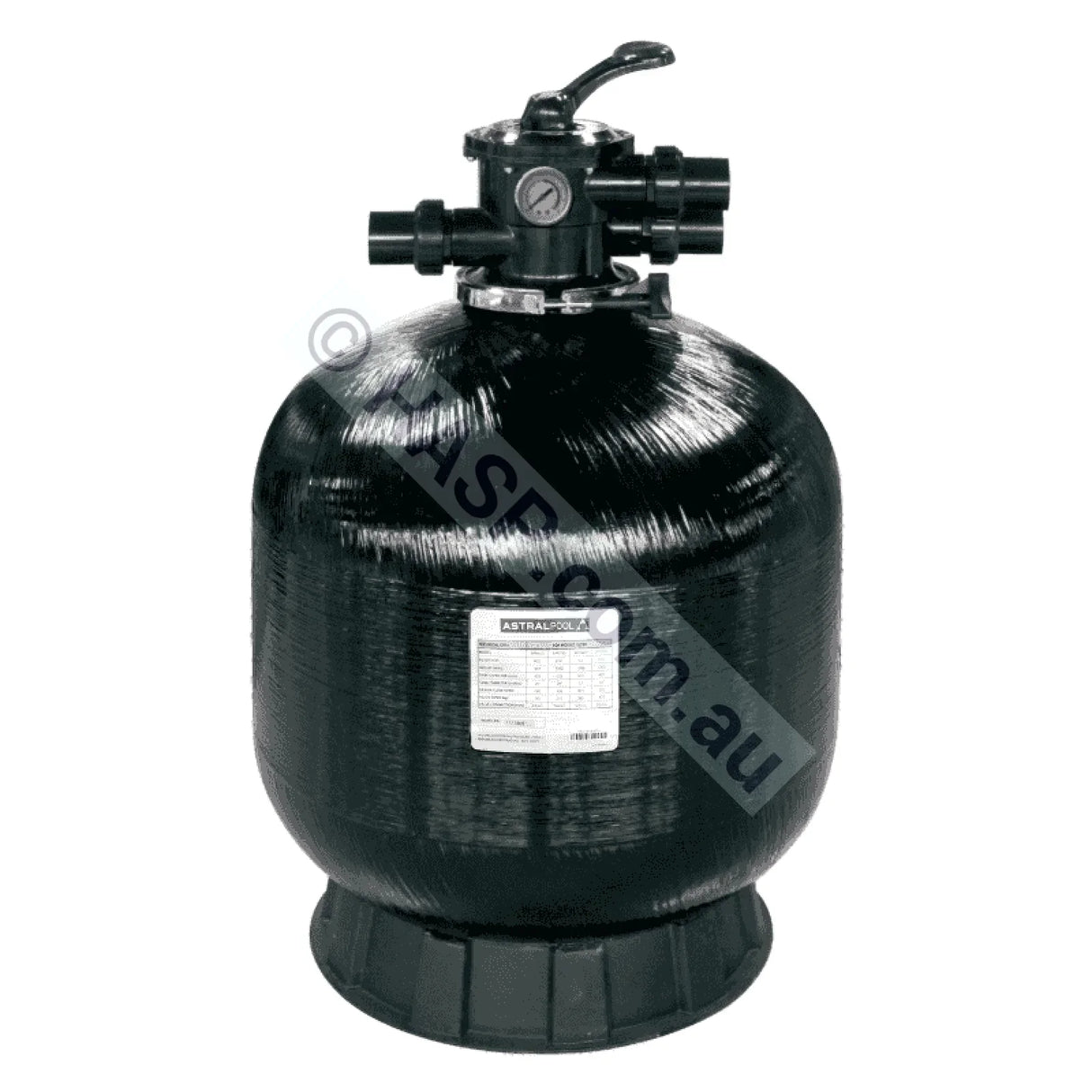

Astralpool APV 650 Sand / Media Filter — 25" Fibreglass — Pickup Carrum Downs, Vic Only
Astralpool APV 650 Sand / Media Filter — 25" Fibreglass — Pickup Carrum Downs, Vic Only is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Astralpool APV 650 Sand / Media Filter — 25" Fibreglass — Pick...
Astralpool APV 650 Sand / Media Filter — 25" Fibreglass — Pickup Carrum Downs, Vic Only is temporarily out of stock and will ship as soon as it's available.
Astralpool APV 650 Sand / Media Filter — 25" Fibreglass
The Astralpool APV 650 is the entry model in Astralpool's premium Australian-made FG fibreglass filter range, built for high strength, long life, higher flow rates and reliable filtration. True fibreglass construction — not just a thin layer over a plastic tank like many others! The 25" (635 mm) top mount tank flows up to 260 LPM.
- Physically Stocked, unlike most "drop-shipping" websites.
- Genuine Authorised Dealer
Documentation: Brochure | Manual
Warranty: 10 Years Tank | 1 Year Parts | 1 Year Labour
*Subject to change - Check Warranty Details Here
- Authorised Astralpool Dealer.
- Spare Parts are easy!
- Warranty is easy!
Glass Media Required — APV 650
- Coarse: 2 x 15kg Coarse Glass Media
- Fine: 5 x 15kg Fine Glass Media
Astralpool FG Fibreglass Filter Features
- High strength fibreglass tank construction
- Large media capacity for efficient filtration
- Higher flow rates for residential and small commercial applications
- Top mount design for simple installation and servicing
- Easy maintenance and dependable day-to-day performance
- Suitable for pool and spa filtration systems
- Proven Astralpool design trusted by pool owners and professionals
Specifications
| Product | APV 650 |
|---|---|
| Part Number | 50025 |
| Tank Code | 50025T |
| MPV Code | 76060 |
| Tank Diameter | 635 mm (25") |
| Filter Area | 0.32 sq m |
| Max Flow Rate | 260 LPM |
| Valve Connection | 40 mm |
| Height | 950 mm |
| Glass Media Coarse | 2 x 15kg bags |
| Glass Media Fine | 5 x 15kg bags |
Other Astralpool Sand & Media Filters
APV Range (Top-level Fibreglass): APV 650 – 25" (this filter) | APV 700B – 28" | APV 800 – 32" | APV 900 – 36"
CA Range (Mid-level): CA 280 – 26" 40mm | CA 300 – 26" 50mm | CA 340 – 29" 50mm | CA 400 – 32" 50mm
ECA Range (Entry-level): ECA 550 – 23" | ECA 650 – 26"
Glass Media: 15kg Coarse Glass Media | 15kg Fine Glass Media
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
