Astralpool BPM / BP / BPA Series Heat Pump - Model Guide, Specifications and Spare Parts

Astralpool BPM / BP / BPA Series Heat Pump - Model Guide, Specifications and Spare Parts

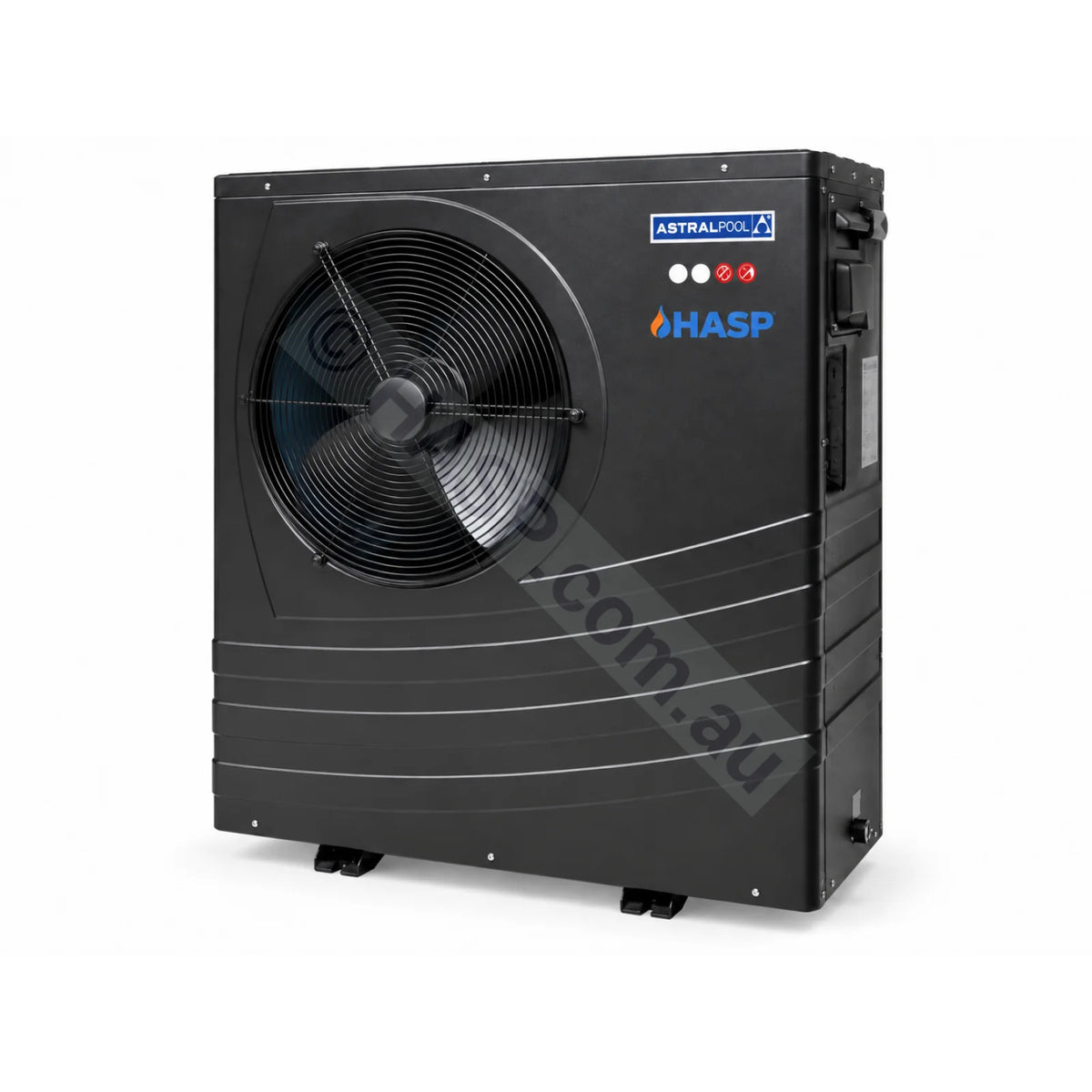

The Astralpool BPM range is one of the most common older pool and spa heat pumps still running in Australia, and one of the most confusing to identify. The same machines were catalogued by Astralpool Australia as both the BP Series and the BPA Series, and sold across Europe under an entirely different name. This page brings together the model list, the specifications, the European equivalents, the spare part numbers and the alarm codes in one place.

• Physically Stocked, unlike most 'drop-shipping' websites.
• Shipped from VIC, NSW, WA, QLD

Read this first: parts availability

Almost every factory part for this range has now been discontinued by Fluidra. The range itself is long out of production, and the majority of the factory references listed further down this page are no longer obtainable as genuine Astralpool stock at any price.

That is the single most useful thing to know before you start chasing a repair. It is also exactly why the manufacturing and OEM platform information on this page matters, because many components in these machines were never unique to Astralpool and can still be matched by specification rather than by part number.

The flow switch is the exception worth checking first, because it is both the most commonly needed part and the cause of the most common fault code on this range. See the Astralpool BP / BPA / BPM Series pressure switch and flow switch listing.

BP, BPA and BPM are the same range

There is no difference between them. The warranty text inside the Australian manual calls it the BP Series. The Astralpool Australia product page titled it the BPA Series. The badge and data plate on the machine read BPM or BPT. All three names describe the same five models, and parts are shared across all of them.

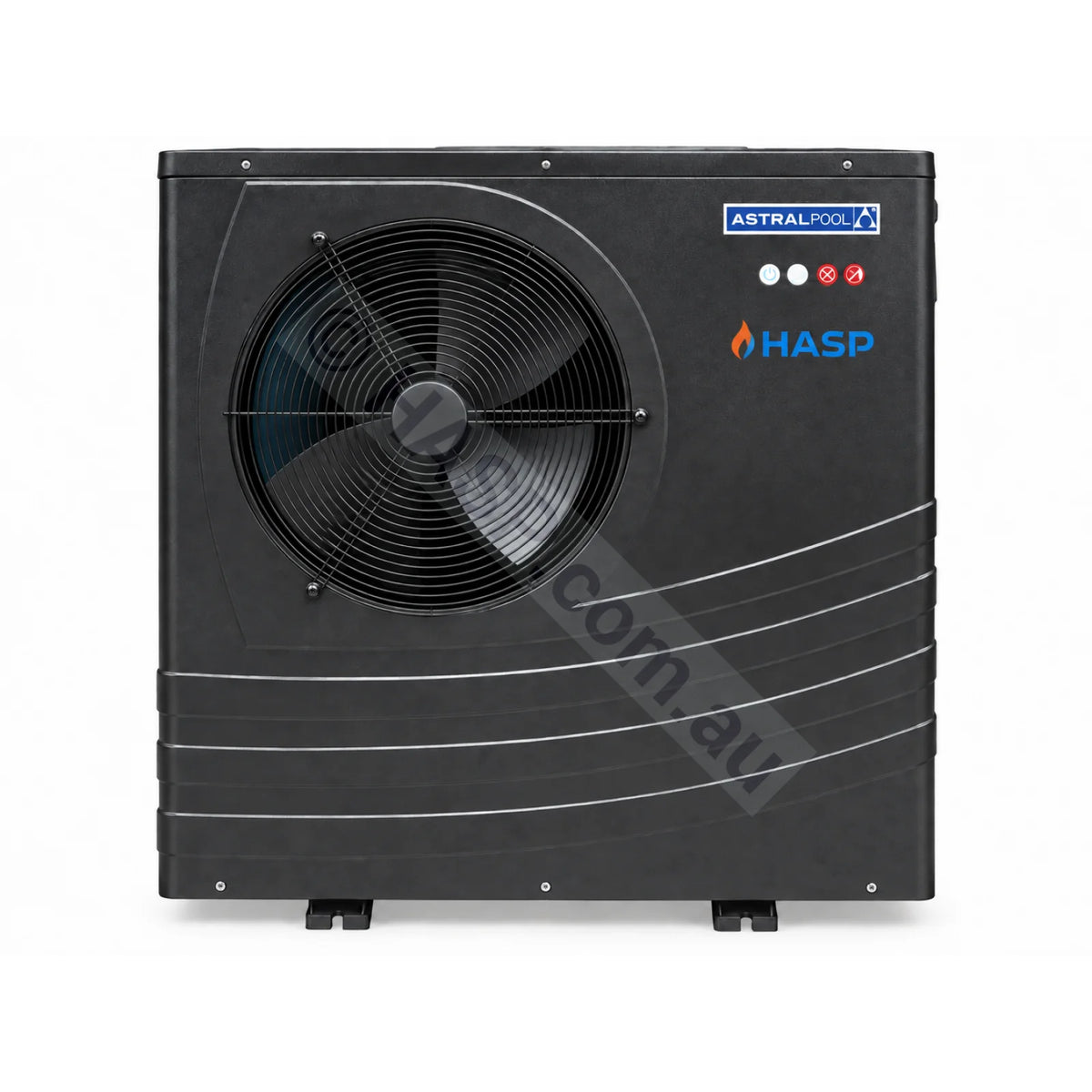

Australian models and specifications

Model	Heat output	BTU/h	Power input	COP	Supply	Compressor	Weight
BPM400A	8.5 kW	29,000	1.70 kW	5.0	240V 1ph, 8.3A	Rotary	70 kg
BPM600A	13.0 kW	43,000	2.60 kW	5.0	240V 1ph, 11A	Rotary	75 kg
BPM700A	17.0 kW	58,000	3.50 kW	4.9	240V 1ph, 14.7A	Scroll	97 kg
BPM800A	21.0 kW	72,000	4.50 kW	4.7	240V 1ph, 19.3A	Scroll	110 kg
BPT900A	25.0 kW	85,000	5.50 kW	4.6	415V 3ph, 8.8A	Scroll	115 kg

All Australian models use R407C refrigerant, a PVC water barrel with a titanium coil inside, and 50mm water connections. Required flow is roughly 150 to 550 litres per minute, and an external bypass valve must be fitted above 250 litres per minute. Clearances are 500mm at the rear and sides, 1000mm above and 1000mm at the front for discharge air.

The original Australian warranty was 10 years on the titanium heat exchanger, 3 years on the compressor and evaporator, and 12 months on the thermostat, switches and all other components. The range is discontinued.

Reading the model code

• BPM = single phase. BPT = three phase. The letter is the supply, not the size.
• The number is the capacity step: 400 is 8.5 kW, 600 is 13 kW, 700 is 17 kW, 800 is 21 kW, 900 is 25 kW.
• A suffix appears on Australian machines. It also appears on some European catalogue listings, so the A alone does not prove an Australian unit.
• R suffix indicates the reversible heat and cool models sold in Europe.
• RW suffix indicates the later Pro Calor II revision.

The Spanish and European equivalents

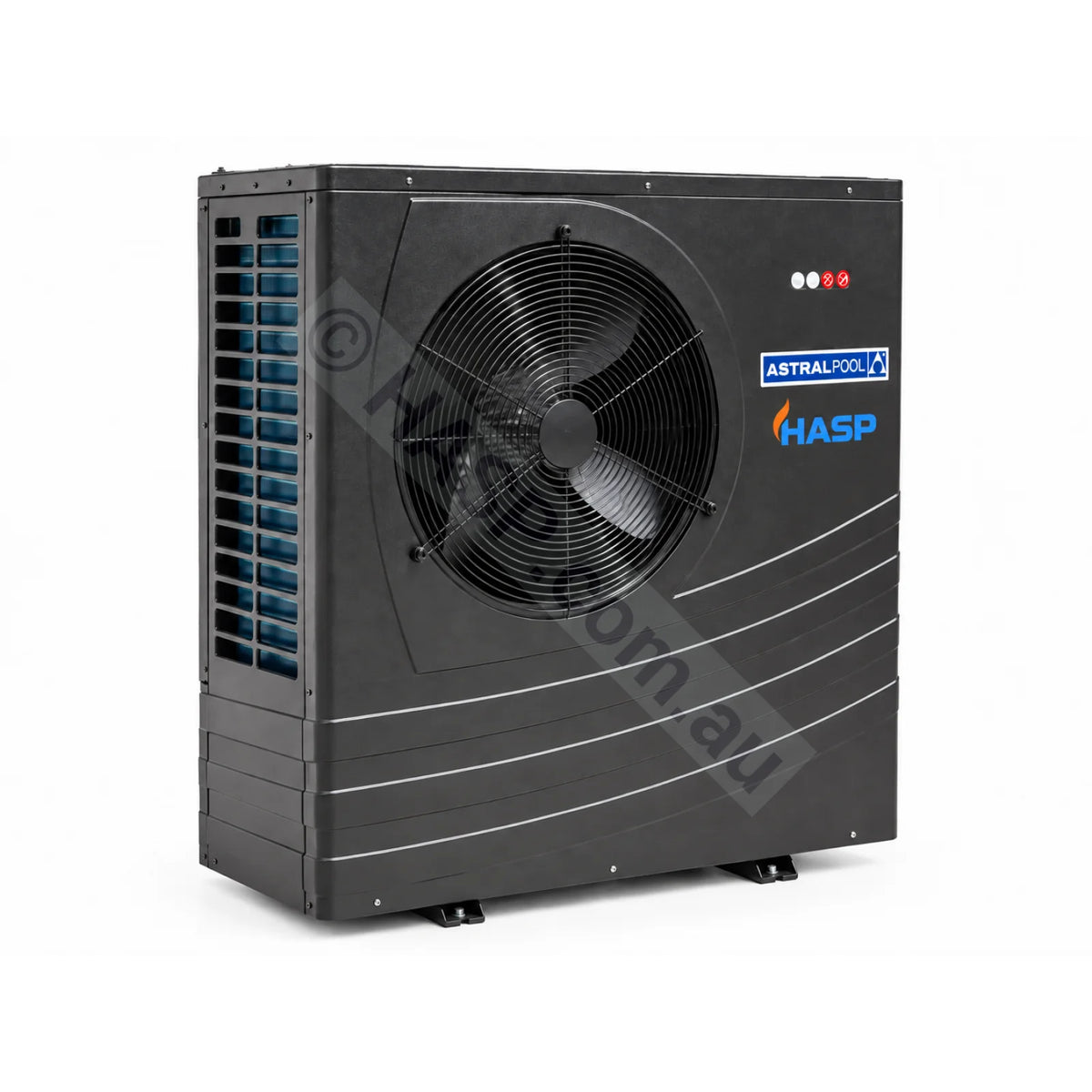

The same chassis was sold across Europe as the Astralpool Pro Calor, and later the Pro Calor II. Weights, cabinet dimensions and water connections match the Australian units almost exactly, which is why the parts tree is shared. The important differences are refrigerant and supply voltage.

Australian model	Pro Calor	Fluidra code	Pro Calor II	Fluidra code
BPM400A	BPM400R	51880	BPM400RW	55208
BPM600A	BPM600R	51881	BPM600RW	55209
BPM700A	BPM700R	52667	BPM700RW	55210
-	BPT700R	52668	BPT700RW	55211
BPM800A	BPM800R	51883	BPM800RW	55212
-	BPT800R	51884	BPT800RW	55213
BPT900A	BPT900R	-	BPT900RW	55214

European Pro Calor II units run R410A with charges of 1.25, 1.55, 2.30, 2.80 and 3.10 kg by size, on 230V single phase or 400V three phase. Rated pool volumes are 18 to 29, 29 to 46, 36 to 58, 45 to 72 and 53 to 86 cubic metres. Cabinet sizes are 310 x 860 x 920mm for the 8.5 and 13.5 kW, and 340 x 950 x 1300mm for the 17, 21 and 25 kW. Minimum operating air temperature is 5 degrees, and defrost is by cycle reversal through a four-way valve.

Adjacent Astralpool heat pump ranges

The BPM range did not appear in isolation, and several neighbouring families share components with it.

• Astral Calor, around 2009: BLM200 (41434-004), BLM400 (41435-004), BLM600 (41436-004), BLM800 (43505-004), BLT800 (43862-004). R407C, NA8824 controller.
• BM, Aboveheat and PAC First: BM100, BM200, BM400, BM400R, BM600, BM600R, BM700, BM700R, BT700, BT700R. R407C or R410A depending on model. Most of the Pro Calor part descriptions actually name this range, so the overlap is large.
• Calor Evo, from around 2013: BLPAM100, BLPAM200, BLPAM400, BLPAM600, BLPAM700, BLPAM800, BLPAT700, BLPAT800, BLPAT900, Fluidra codes 55215 to 55222. R407C, white ABS cabinet, flow switch, forced air defrost.
• Optima, around 2008: Optima 7, 12, 15, 20, 25, 30, 45, 50 and 60.
• V-Heat AHP, around 2010: the heat and cool series that followed the BP range in Australia.
• BLPI-JD (BLPIM 400 to 900), Bering Inverboost and Excellium Inverter are the later inverter generations.

Who actually built these

The machines carry Astralpool branding but were manufactured in China. Fluidra's own press release states that the group closed a deal with a Ningbo refrigeration company, enabling Fluidra to open Loitech, a plant manufacturing heat and cooling pumps, and notes that most Fluidra production plants are based in Ningbo.

Ningbo Skysea Refrigeration Equipment publishes its factory address as No. 568 Shizhu Road, Linyu Industrial Zone, Zhenhai District, Ningbo, which is the same address recorded for Loitech, and Skysea separately states a long-standing relationship with Astral in Spain. The Astralpool capacity, input and COP ladder reproduces the Skysea platform ladder step for step. Engineering, documentation and European certification appear to have run through Talleres del Agua in Cantabria, Spain, with conformity paperwork marked MADE IN PRC.

No surviving document names a specific factory as the builder of a specific BPM400A, so Skysea is best described as the likely OEM manufacturing partner rather than a proven builder. It matters practically because it explains why so many components in these machines are not unique to Astralpool, and why a discontinued factory reference does not always mean the end of the machine.

The NA6888 controller

The controller fitted to most BPM machines is the NA6888, which Astralpool did not design or build. It is a Chinese refrigeration controller that appears in heat pumps from several different brands, and the executive standard printed in the Astralpool manuals places its manufacturer in Suzhou, Jiangsu.

Australian and European machines do not share an identical controller arrangement. The Australian documentation shows three external safety inputs, while some European Pro Calor documentation shows fewer. Controller boards, display panels, sensors, flow switches and wiring looms should be matched against the actual machine and its wiring, never against the model number alone.

Alarm codes

Code	Meaning	Where to start
A11	Low pressure alarm	Gauge pressure, fan operation, inspect joints for oil staining
A12	High pressure alarm	Clean the evaporator coil, confirm clearances, check water flow and bypass setting
A15	Water flow alarm	See the section below, and the BP / BPA / BPM flow switch listing. This is a safety circuit fault, not a refrigeration fault
A21	Water temperature sensor fault	Measure sensor resistance. NTC R25 = 5k, B(25/50) = 3470K
A22	Outdoor or evaporator sensor fault	Press the down key to read the defrost sensor, then measure resistance
A99	Probation time exceeded	Set parameter F87 to OFF, or clear accumulated run time with F86
SHr	Sensor short circuit	Shown in place of a temperature reading
OPE	Sensor open circuit	Shown in place of a temperature reading

A15 on an Australian BPM is a water flow alarm

This is the code most often misdiagnosed as a gas fault. A15 means the water flow safety circuit is not satisfied, and the controller is refusing to run the refrigeration system without water moving through the heat exchanger. Common causes, roughly in the order worth checking:

1. Circulation pump not running, or running on a timer that stops before the heat pump does.
2. Insufficient flow from a dirty cartridge or media filter.
3. A partially closed isolation valve, or a bypass valve that has been adjusted since commissioning.
4. Air trapped in the hydraulic circuit after a service.
5. A blocked or scaled heat exchanger.
6. A failed flow switch, damaged flow switch wiring, or a corroded connector.
7. An open external safety input, or a controller input fault.

Work down that list before replacing anything. If items one to five all check out and the circuit still will not close, the switch itself is the likely culprit. The part is here: Astralpool BP / BPA / BPM Series pressure switch and flow switch. Like almost everything else for this range it is no longer a stock factory item, so send us your model and serial number and we will tell you what can still be matched.

A worked example from a service call: a 2012 BPM600A at a property also running a SpaPro X2 spa pack indoors and a WWDG W3 swim spa. The heat pump threw A15 every afternoon once the filtration timer dropped out, while the spa equipment ran faultlessly. Nothing was wrong with the heat pump at all. The pool timer had been shortened and the heat pump was being left running on its own, which is exactly the condition the flow switch exists to catch. No part was needed, and a new flow switch would have changed nothing.

The flow switch is a safety device. It must never be left permanently bypassed, and any temporary bypass used for diagnosis is for a qualified technician only.

Spare part numbers by exploded view item

These are the Fluidra factory references that appear on the Pro Calor, Pro Calor II and Calor Evo parts diagrams. Almost all of them are now discontinued at factory level. They are published here so a machine can be identified and a component matched by specification, not as a list of items that can simply be ordered.

• Item 1, compressors: 01870867 (BPM800A / BLPOM800), 01870864 (8.5 kW R410A), 01870879 (BPM700A), 01870903 (three phase SANYO C-SBN373H8A).
• Item 2, titanium heat exchangers and condensers: 01940355 (21 kW / BM800), 01940426 (Pro Calor II 8.5 kW, BPM400RW), 01940428 (Pro Calor II 17 kW), 01940427 (BPM600RW), 01940354 (BPM700R), 01940353 (BM600), 01940352 (BM400).
• Item 3, fan motors: 09080557 (YSK60-6, 60W, 6.5 to 13.5 kW), 09080555 (YSK200-6, 200W, 21 kW), 09080554 (YSK120-6, BM700), 09080552 (YSK45-6).
• Item 4, fan blades: 09080562 (17 kW), 09080563 (21 to 25 kW, 555mm), 09080561 (420mm, 8.5 and 13.5 kW), 09080560 (2.5 to 4.5 kW).
• Item 5, evaporators: 00820995 (supersedes 00820994), 00820993 (BLM600), 00820987 (BLM600), 00820985 (BLM200 single row).
• Item 6, cabinet covers: 07670517 (BPM800), 07670624 (Calor Evo 13.5 kW).
• Item 8, fan grilles: 06710910 (420mm), 06710911 (BPM800A), 06710916 (354mm).
• Item 13, controllers: 02170188 (NA6888, three alarms), 02170188-SC (NA6888, not remote compatible), 06070301 (NA6888W, remote compatible), 33112R000 (AKO TTDP type).
• Item 14, fuses and breakers: 03300071, 03300072 (BM600), 03300073 (BM800), 03300070, 03300074 superseded by 05140106.
• Item 15, contactors: 02050273 (17, 21 and 25 kW), 02050261 (10.5 to 21 kW), 02050260 (BM400).
• Item 16, compressor capacitors: 01870855 (50uF, 8.5 kW), 01870856 (60uF, 13.5 kW), 01870857 superseded by 01870858 plus 01870912, 01870854 (2.5 to 4.5 kW).
• Item 17, fan capacitors: 01870862 (5uF), 01870861 (3uF), 01870863 (8uF).
• Items 18 and 19, unions and adaptors: 02331 (50mm union), 02257 (50-40mm adaptor), 02680131, 02680133, 02680134 superseded by 4402011507.
• Items 21 to 26, switches and safety: 06460400 and 04640401 (flow switch LF20), 266550 (low pressure), 06460407 (high pressure R410A), 06460408 (low pressure R410A), 05450031 and 05450030 (gauge), 05140100 (BM700 air switch), 05140101 (BM800 air switch), 07590020 superseded by 07590030 (phase controller). See the flow switch listing for the A15 fault.
• Items 98 to 100, refrigerant and ancillaries: 08420043 (expansion valve), 08420194 (21 kW expansion valve), 07220320 (temperature sensor kit), 01820004 (condensate drain elbow), 02660183, 02660184 and 02660191 (weatherproof covers).

Before you order a part

Two mistakes account for most wrong orders on this range.

Refrigerant. Australian BP, BPA and BPM units are R407C. European Pro Calor II units are R410A. Compressors and pressure switches are not interchangeable between the two, even though the part diagrams are shared. Check the data plate, not the model number.

Voltage. Australian three phase is 415V. European three phase is 380 to 400V. Contactors, breakers and the phase controller need checking before any cross-reference is trusted.

When contacting us, record the full model number, serial number, manufacturing date, refrigerant type, compressor make and model, controller and PCB numbers, fan motor details, capacitor values, flow switch type and pressure switch ratings. Photographs of the data plate, the electrical enclosure and the controller terminals save a great deal of time.

Manufacturer catalogues, diagrams and part numbers

Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues below.

• Astralpool Catalogue 2026 | Zodiac Catalogue 2026

Important before ordering

Please ensure you order correctly. Confirm the product is suitable before ordering. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers, and any labels.

As with all products, these must be diagnosed and fitted by a qualified and experienced person. Refrigeration work must be carried out by a licensed technician. Parts for this range are special-order items where they remain obtainable at all.

Questions we get asked

Is a BPA different to a BPM?
No. BP, BPA and BPM all describe the same Australian range. Astralpool Australia used BP Series in the manual warranty text and BPA Series on the product page, while the machine itself is badged BPM or BPT.

What does the T in BPT900A mean?
Three phase. BPM models are single phase and BPT models are three phase. The number is the capacity step.

Are parts still available for a BPM heat pump?
Almost none. Fluidra has discontinued essentially the entire factory parts list for this range. The flow switch is the part most often asked for and the one most worth enquiring about. Beyond that, most repairs now depend on matching a component by specification rather than by Astralpool part number. Send us your model and serial number and we will tell you honestly what can and cannot be done.

My heat pump shows A15. Is the gas low?
Almost certainly not. On an Australian BPM, A15 is the water flow alarm. Check that the circulation pump is running, the filter is clean and the bypass has not been altered before anyone touches the refrigeration circuit. If the water side is genuinely fine, the flow switch is the next suspect.

Can I fit a European Pro Calor part to my Australian BPM?
Sometimes, but not blindly. Cabinet, fan, grille and plumbing parts generally cross over. Compressors and pressure switches usually do not, because the Australian units are R407C and the European Pro Calor II units are R410A.

Is it worth repairing or should I replace it?
Given how little is still available, that question now matters more than it used to. Fans, capacitors, contactors, sensors and switches can often still be matched and are usually worth doing. A failed titanium exchanger or compressor on a machine of this age rarely is, and the later inverter ranges are substantially cheaper to run.

Who made these heat pumps?
They are Astralpool and Fluidra products, manufactured in China through Fluidra's Ningbo operation, with Spanish engineering and documentation. That is useful to know because many components were shared across other brands built on the same platform, which is often the only route left to a part.
