Astralpool® (Genuine) Hurlcon CTX 500 Pool & Spa Pumps - Replaces CX TX 2.0hp

$1,247.00 $1,561.16

Fluidra Restricted Product
  • Manufacturer prohibits this product be sold on eBay, Gumtree, Marketplace, or any website offering Add to Cart.
  • Purchasing from an unauthorised seller may void warranty & impact support.
  • We are an Authorised Dealer & Warranty Agent - More Info Here
  • We keep physical stock and spare parts at our real store at 10 Industry Blvd, Carrum Downs.

Astralpool, Zodiac, Jandy are subsidiaries of Fluidra.

Request to Purchase

Manufacturer restricts "Add to Cart" for this product, please fill out this form to purchase. See Fluidra Restricted Product information.

Contact Us for any queries.

Don't Guess - Ask Us!

Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.

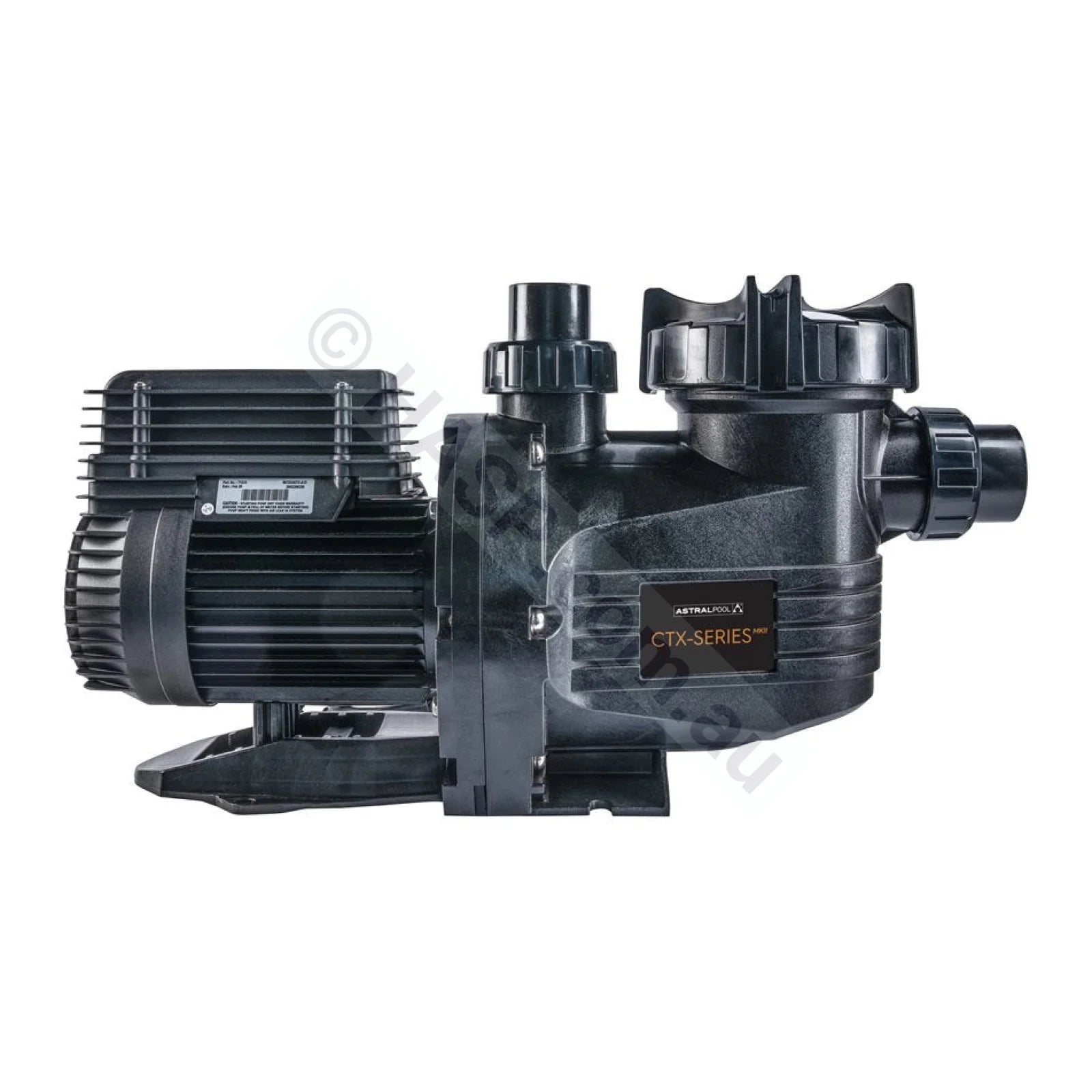

Astralpool CTX 500C 2.0HP Pump. Replaces all older Hurlcon & Astral CTX 500, & TX 2.0 pumps directly, with no plumbing changes. The "C" version is the latest iteration.

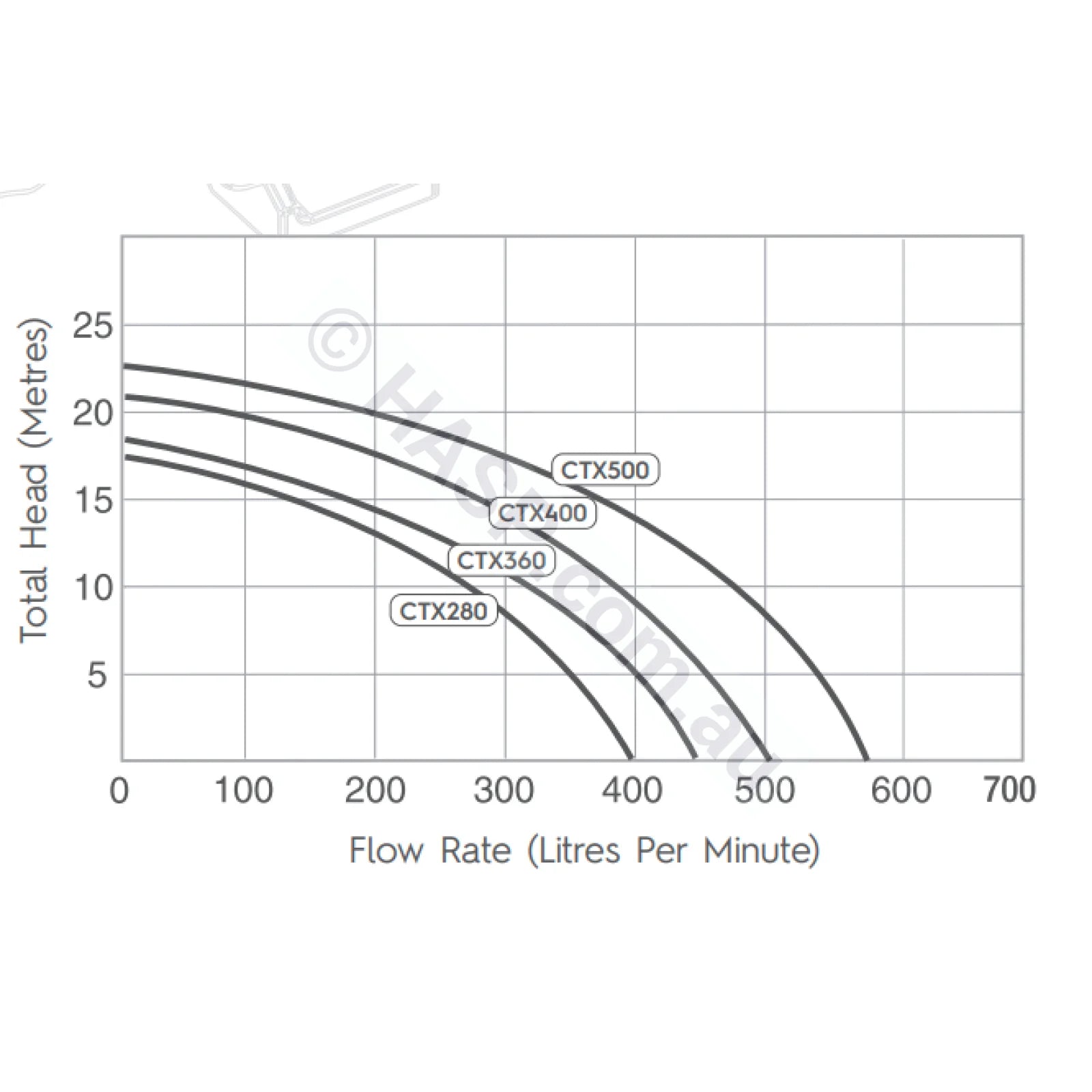

Note older CX pumps from Hurlcon / Astral had inflated HP ratings, so HorsePower is not an accurate way of sizing a replacement. We generally go by Flow Rate vs Head.

  • In-store Only Product - Physically stocked in-store at 10 Industry Blvd, Carrum Downs, VIC for Pick-up Only.
  • Enquire via the button or contact us here.
  • We are an Authorised Fluidra (Astralpool / Zodiac) Dealer and Warranty Agent and offer Full Warranty protection. We also carry more spare parts than anyone!

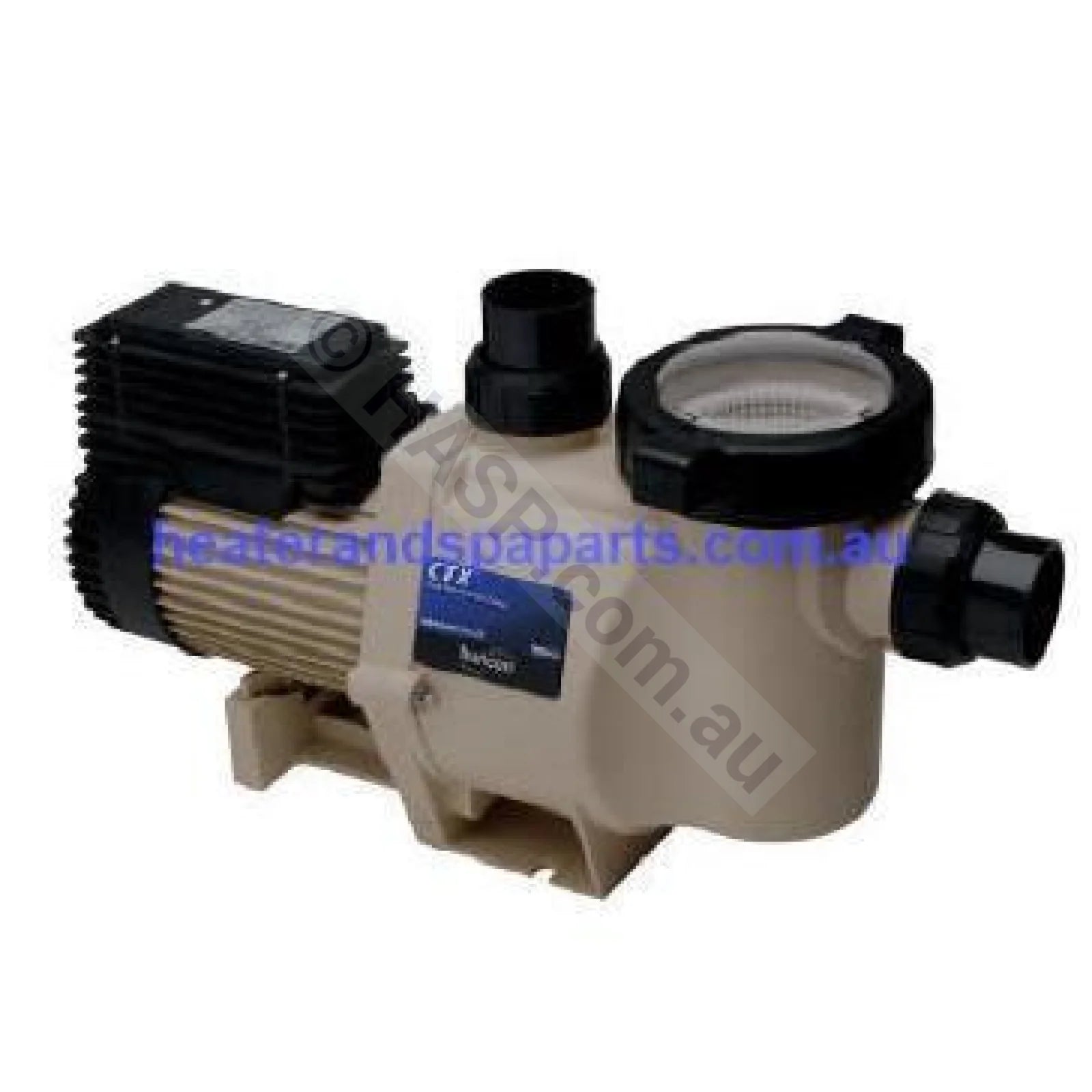

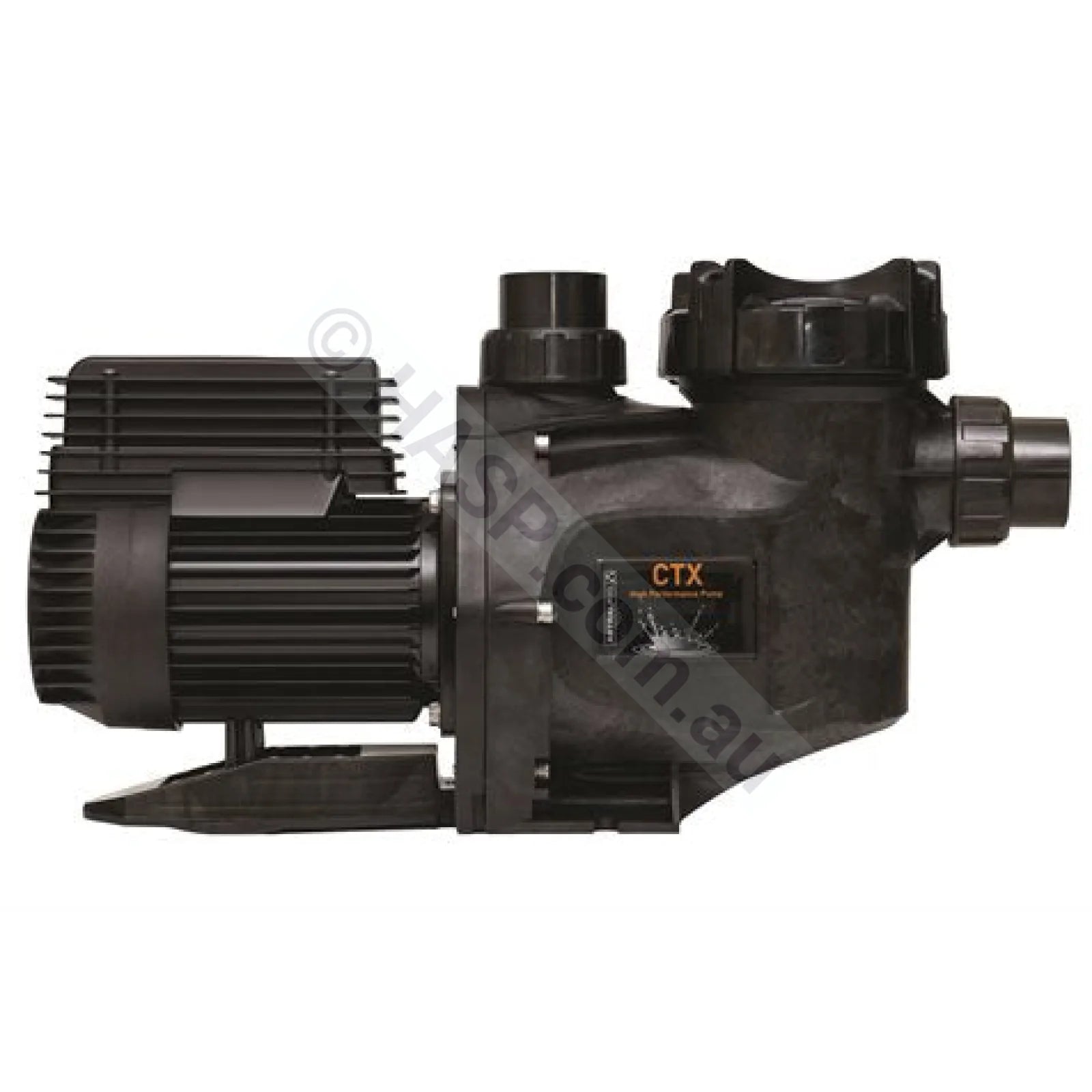

The Astral Pool (Fluidra) CTX pool pump range have proven reliability and performance. Astral CTX pool pumps are made from quality materials and only the best components are used in their manufacture.

Suitable for in-floor cleaning systems, spa jets and other demanding applications the CTX will provide a high performance and reliability.

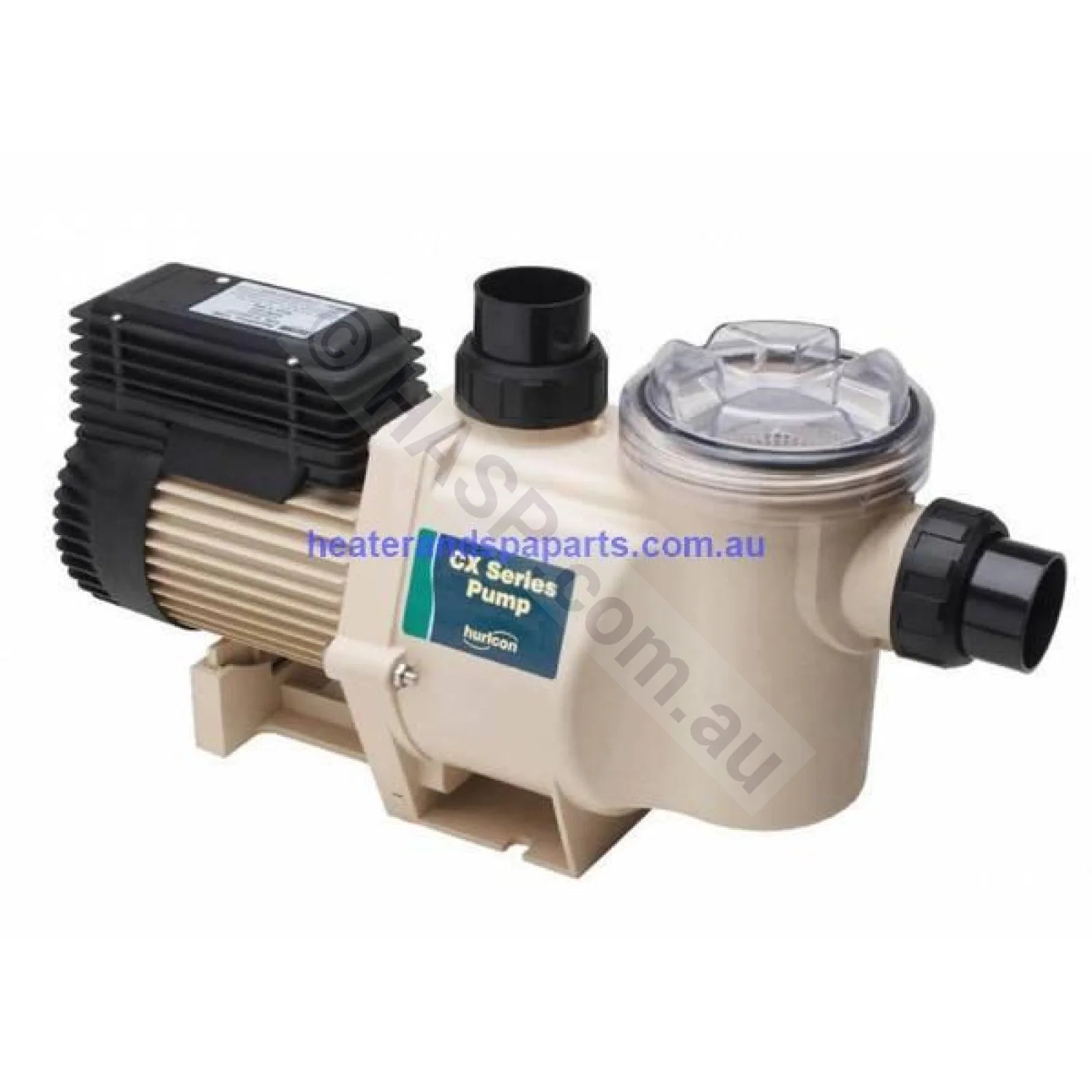

The Astral CTX Pumps replace CX and TX pool pumps without plumbing changes.

This pump also replaces the Hurlcon Pool Pumps CX and TX pool pumps.  We consider the Astral CTX Pool Pumps as one of the most durable pumps in the pool industry.

Features & Benefits of Astral CTX Pool Pumps

  • Australian made
  • 40 & 50mm Plumbing Fittings Included
  • Available in several different sizes to meet your application
  • Large capacity basket with easily removed lid
  • Incorporates a large lint pot requiring less maintenance
  • Reduced operating noise
  • Made from quality components
  • 3 Year warranty

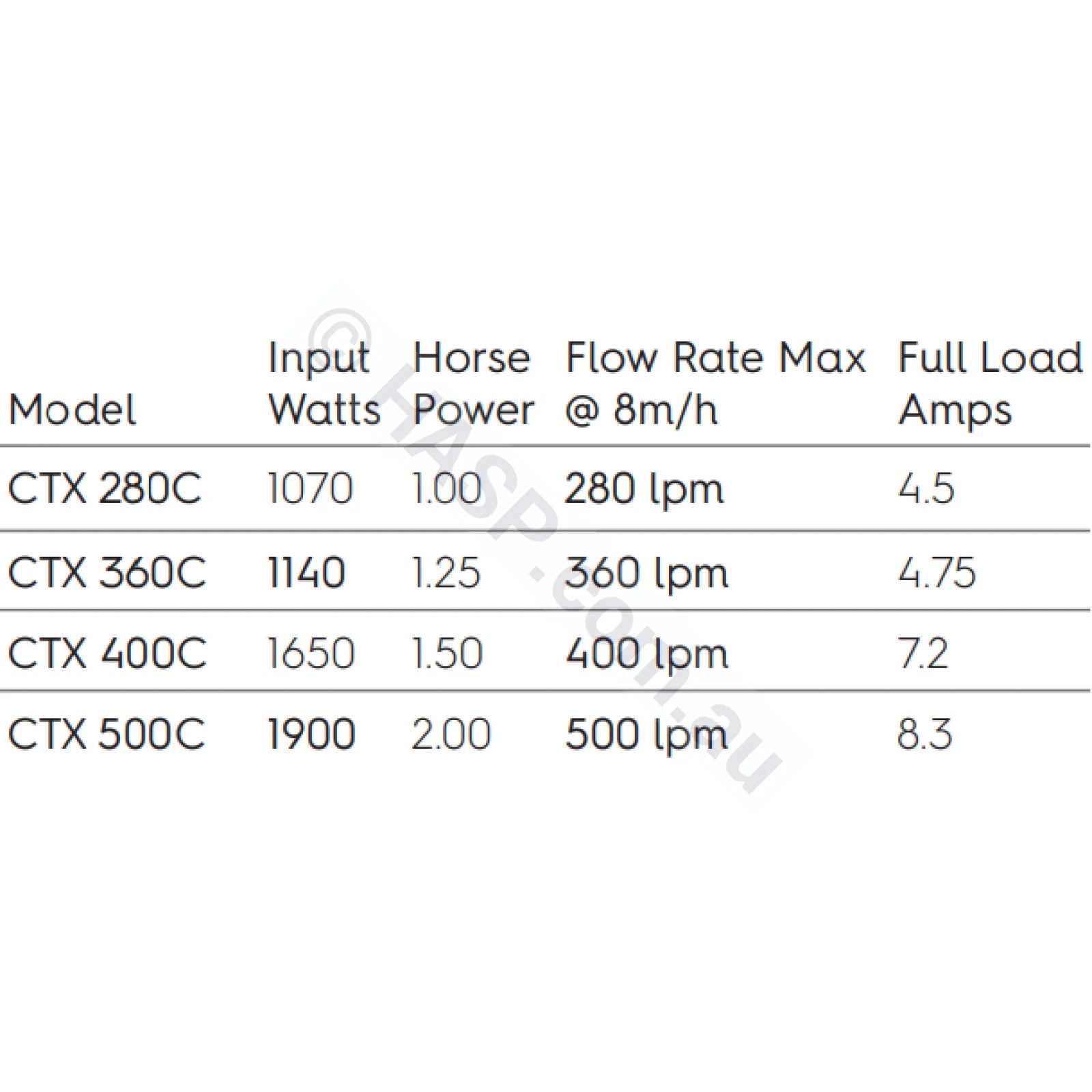

Specifications:

  • CTX 180 C - 0.75hp / 180lpm Max (Obsolete - Use E170)
  • CTX 280 C - 1.0hp / 280lpm Max / 4.5A
  • CTX 360 C - 1.25HP / 360lpm Max / 4.75A
  • CTX 400 C - 1.5hp / 140lpm Max / 7.2A
  • CTX 500 C - 2.0hp / 500lpm Max / 8.3

Warranty: See here

Payment & Security

We accept: Visa, Mastercard, Amex, Apple Pay, Google Pay, ShopPay, Paypal, Zip, Afterpay

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Plug Types & Styles

    Common plug types found on spa equipment are AMP, Mini JJ, C38 (Aus 3-pin), Gecko in.link, etc. For more information please click here.

    • AMP plugs are the most common type used for over 20 years.
    • Many Mini J&J plugs are no longer available and must be modified.
    • C38 is the common Australian 3-pin plug found in normal household outlets.
    • Gecko (Aeware) in.link style plugs are no longer available and must be modified.

  • Handy PVC Plumbing Size Info

    Plumbing sizes can be confusing. Pressure PVC pipe use nominal sizes - the size is simple a name, not the measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.

    • 50mm / 2" = ~60-61mm OD
    • 40mm / 1.5" = ~48mm OD
    • 25mm / 1" = ~33-34mm OD
