Astralpool Hurlcon XF Series Pool & Spa Pumps — Range Overview
We keep these physically in stock for fast shipping or local pick-up, unlike most drop-shipping websites.
- Genuine Authorised Dealer

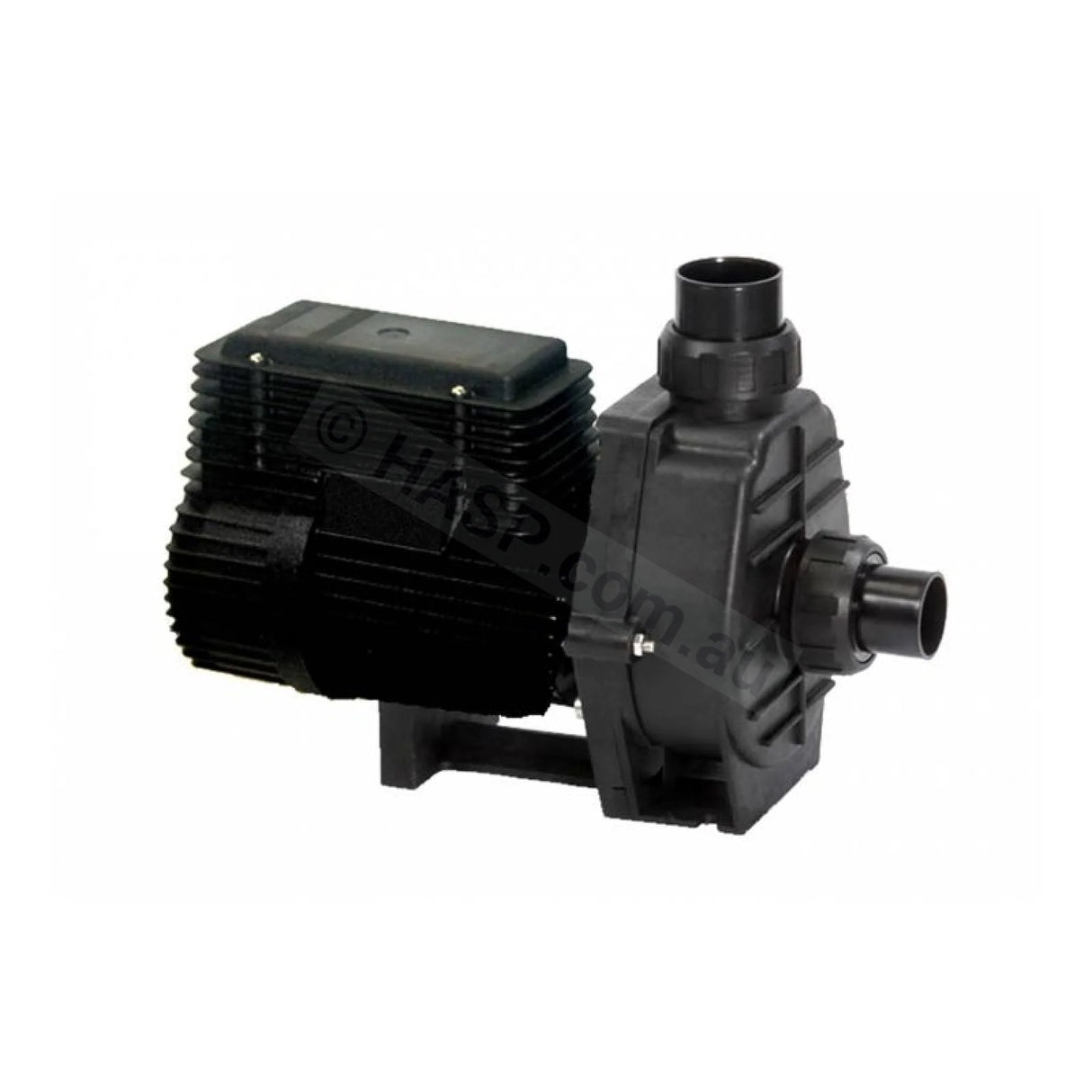

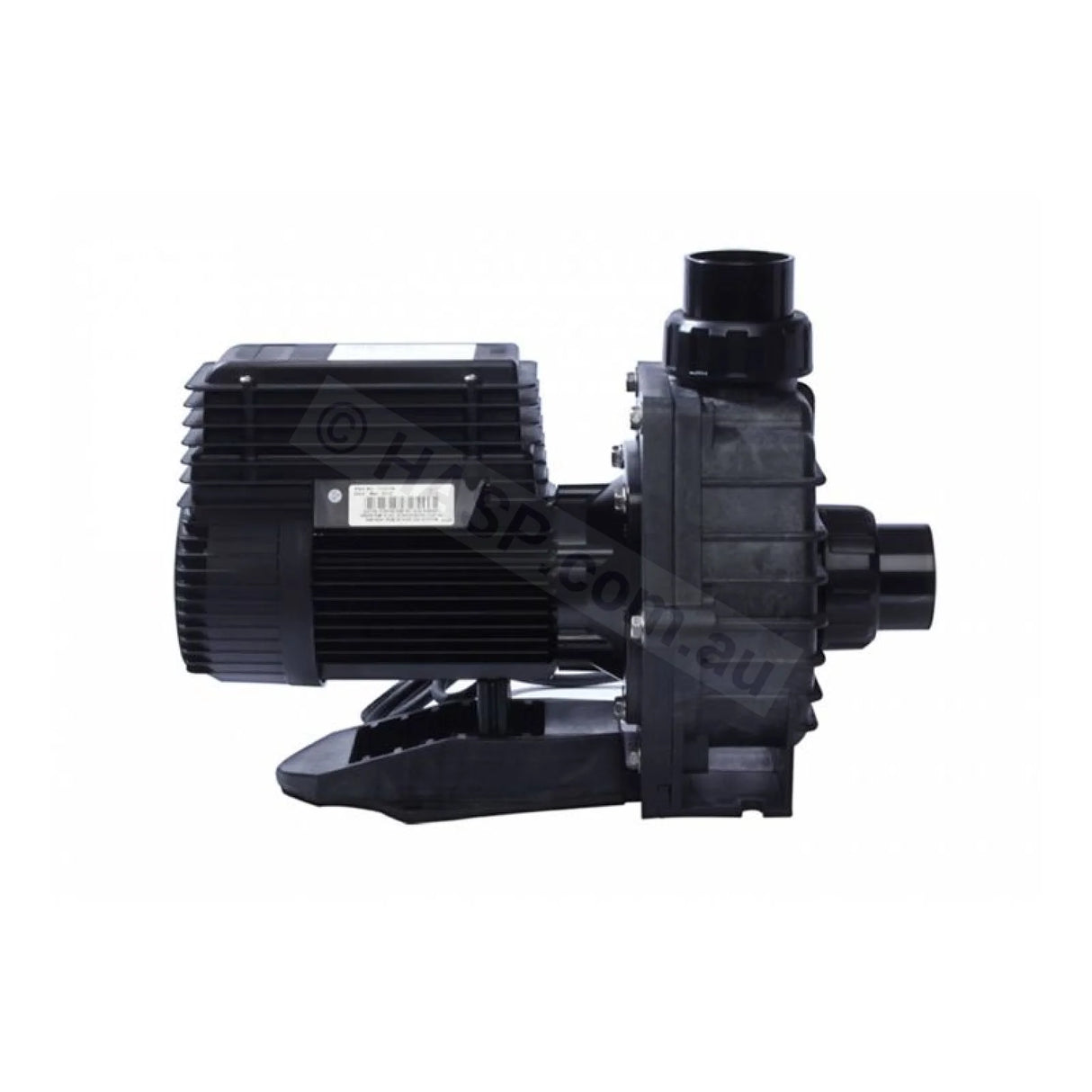

The AstralPool XF Series is the current replacement for the older Hurlcon / AstralPool FX Series. These are flooded suction pumps — no hair and lint pot — designed to be installed below water level. Typical uses are solar pool heating, above-ground pools, circulation duty on gas heaters and heat pumps, and spa jet boosting.
An inbuilt non-return valve stops the impeller reverse-rotating under high pressure, which is what keeps these reliable on solar circuits where the column drains back.
The range is now three models. Pick your size below.
Pick your model
| Model | Power | Flow | Best for |
| Astralpool XF 140 | 0.5 HP | 140 LPM | Solar boost, above-ground pools, light circulation |
| Astralpool XF 250 | 1.0 HP | 250 LPM | Larger solar arrays, longer pipe runs, heavier circulation |
| Astralpool XF 520 | 2.0 HP | 520 LPM | Swim jets, multi-jet spa boosting, high-flow solar |
Full comparison
| Specification | XF 140 | XF 250 | XF 520 |
| AstralPool code | 21105 | 21110 | 21120 |
| Motor | 0.5 HP | 1.0 HP | 2.0 HP |
| Input power | 650 W | 1015 W | 1900 W |
| Full load current | 3.5 A | 5.0 A | 8.8 A |
| Supply | 240 V single phase | 240 V single phase | 240 V single phase |
| Flow rate | 140 LPM | 250 LPM | 520 LPM |
| Energy consumption | 1058 kWh/year | 1313 kWh/year | Not rated |
| Connections | 40 mm / 50 mm | 40 mm / 50 mm | 40 mm / 50 mm |
| Hair and lint pot | No — flooded suction | No — flooded suction | No — flooded suction |
Replacing an older Hurlcon FX pump?
The FX Series ran to five models. The XF Series that replaced it has three. Two of the old sizes are gone with no direct equivalent.
| Old FX model | Original spec | Current replacement |
| FX 140 | 0.5 HP / 140 LPM | XF 140 — direct swap |
| FX 190 | 0.75 HP / 190 LPM | Discontinued — nearest is XF 250 (step up) |
| FX 250 | 1.0 HP / 250 LPM | XF 250 — direct swap |
| FX 340 | 1.5 HP / 340 LPM | Discontinued — nearest is XF 520 (step up) |
| FX 520 | 2.0 HP / 520 LPM | XF 520 — direct swap |
Where the replacement is a step up in output, check your pipework and circuit rating before ordering. Give us a call if you are not sure which way to go.
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
Warranty: See here
