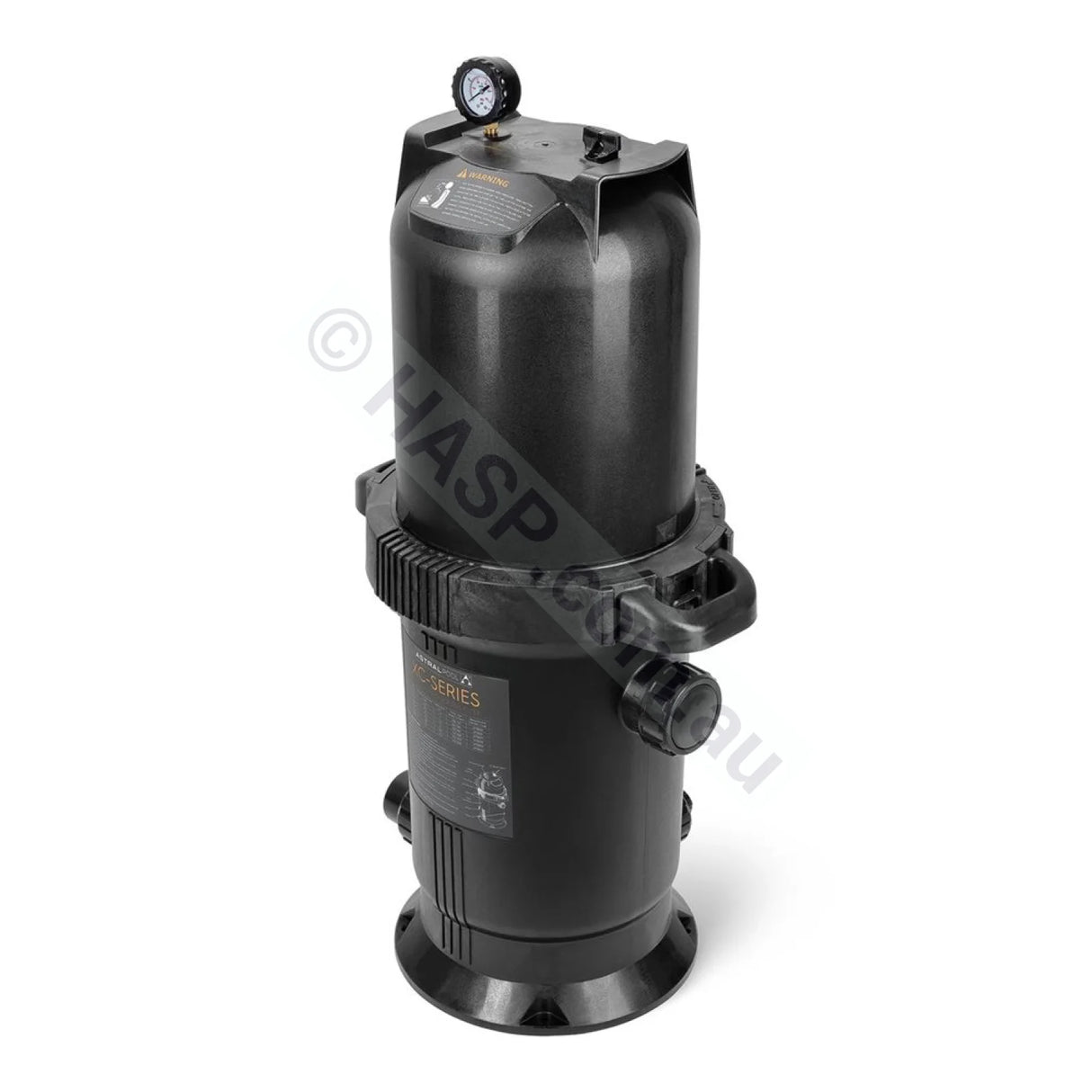

Astralpool XC 250 Cartridge Filter

$852.00 $1,420.00

Fluidra Restricted Product
  • Manufacturer prohibits this product be sold on eBay, Gumtree, Marketplace, or any website offering Add to Cart.
  • Purchasing from an unauthorised seller may void warranty & impact support.
  • We are an Authorised Dealer & Warranty Agent - More Info Here
  • We keep physical stock and spare parts at our real store at 10 Industry Blvd, Carrum Downs.

Astralpool, Zodiac, Jandy are subsidiaries of Fluidra.

Request to Purchase

Manufacturer restricts "Add to Cart" for this product, please fill out this form to purchase. See Fluidra Restricted Product information.

Contact Us for any queries.

Don't Guess - Ask Us!

Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.

The AstralPool XC250 filter replaces the old ZX 250 (ZX250) and is a compact-designed single element filter with a small footprint. A perfect product where space maybe a constraint. With no backwashing required, this is an ideal filter where wastewater disposal or water restrictions are in force. Australian designed and manufactured, the XC range filters provide superior quality filtration along with an environmentally friendly and responsible use of water.

This item available for pick-up only at 10 Industry Blvd, Carrum Downs VIC

  • Enquire via the button or contact us here.
  • We are an Authorised Fluidra (Astralpool / Zodiac) Dealer and Warranty Agent and offer Full Warranty protection.
  • We carry more spare parts than anyone!
  • Single piece moulded body and lid
  • Patented “Cyclonic Water Filtration” technology
  • Self locking ring to prevent overtightening or accidental loosening
  • Quick and Easy maintenance
  • Flexible configuration with 3 inlets and 1 outlet
  • Available in 6 different sizes
  • Climate Care Certified by SPASA Australia
  • Brochure
  • User Manual


CYCLONIC WATER FILTRATION

The XC filters comes with a patented cyclonic water filtration technology to improve the filter element life and reduce overall pressure on the complete system through its unique way of separating contaminants in the water.

The XC cartridge filter reduces maintenance while saving thousands of litres of water every year. It takes just 100 litres of water to clean the elements instead of backwashing thousands of litres to clean a traditional media filter.

Model No. XC 50 XC 75 XC 100 XC 150 XC 150C XC 200 XC 250
Flow rate (lpm) 335 400 410 410 445 405 460
Max pressure (kPa) 250 250 250 250 250 250 250
Filter area (m²) 4.7 7.0 9.4 14.0 14.0 19.0 24.0
Weight (kg) 7.0 8.0 15.5 16.5 16.5 24.0 25.0

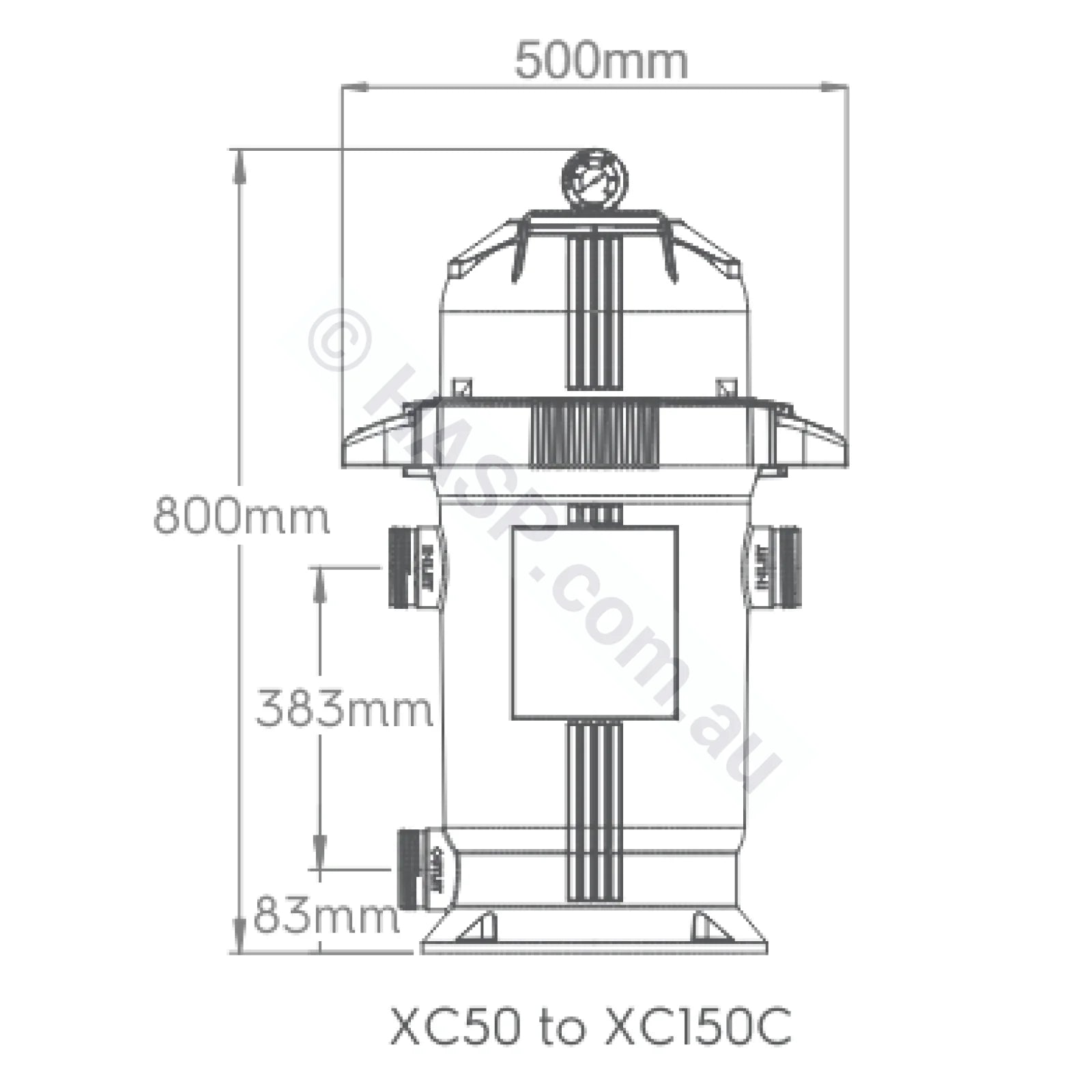

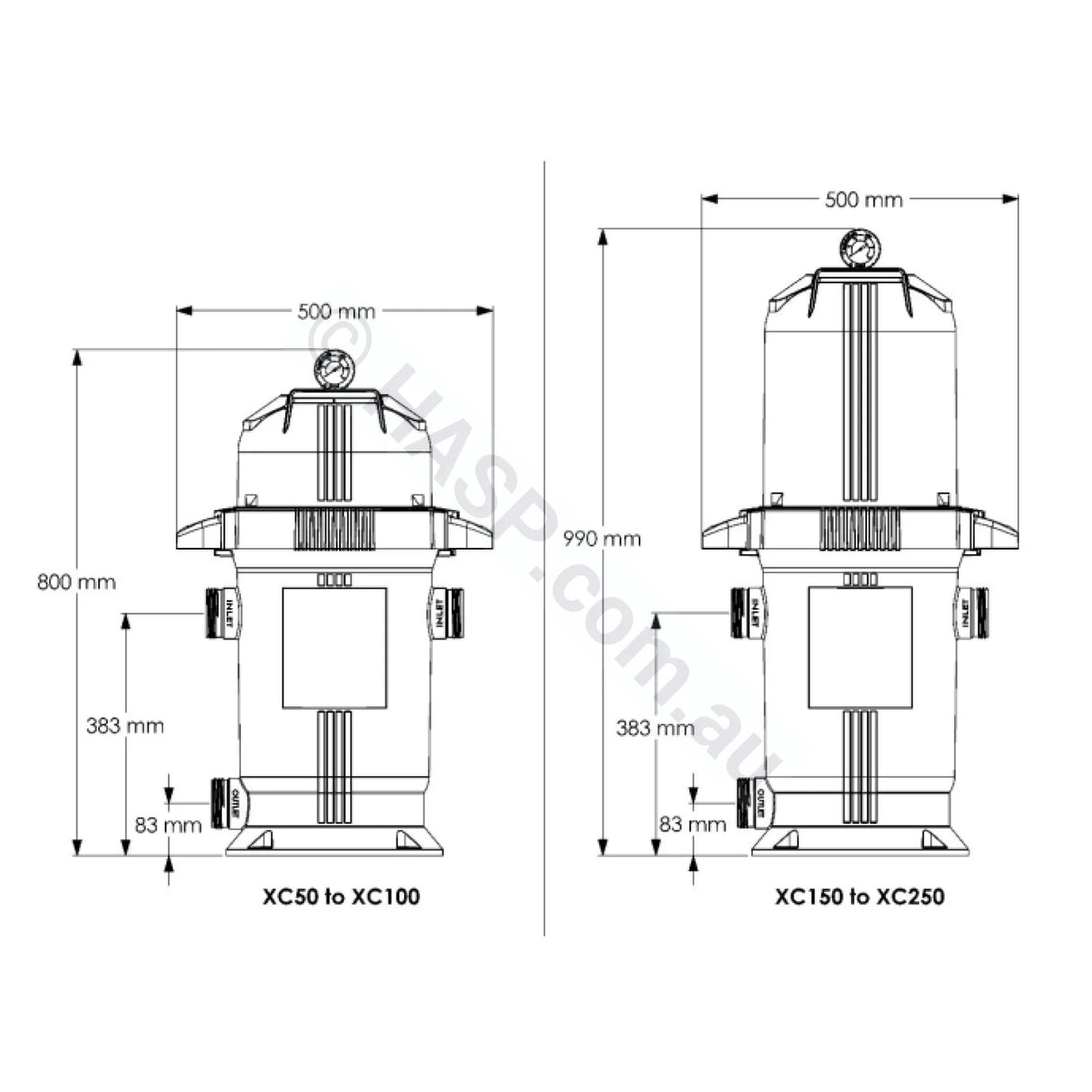

Height (mm) 800 800 800 990 800 990 990
Length (mm) 406 406 406 406 406 406 406
Width (mm) 500 500 500 500 500 500 500
