Astralpool ZX Cartridge Filters - ZX50, ZX75, ZX100, ZX150, ZX200, ZX250 - Obsolete

Obsolete as of 2023. Now replaced by the Astralpool XC filters listed here .

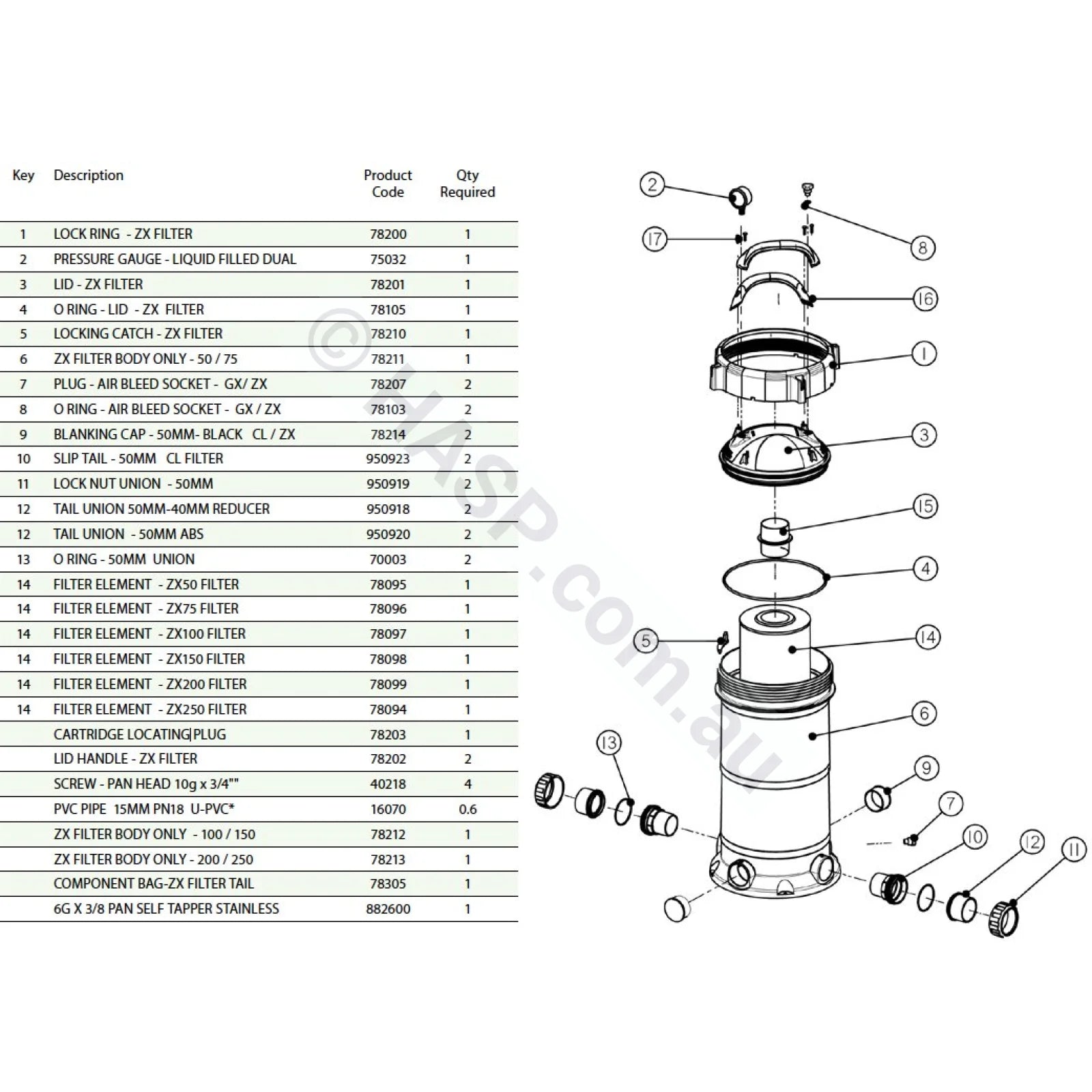

Parts:

• ZX Filter Tanks (Body)
• ZX Filter Lid
• ZX Filter O-ring
• ZX Filter Air Bleed
• ZX Filter Cartridges - ZX50, ZX75, ZX100, ZX150, ZX200, ZX250, ZX310
• Pressure Gauge

ZX Cartridge Filters are a small compact design, that does not require a back washing line so they are ideal for places or situation where waste water disposal or water restrictions are in force. With the use of antimicrobial elements your pool or spa will be bacteria free and require less maintenance. Based on the very popular QX series from Hurlcon.

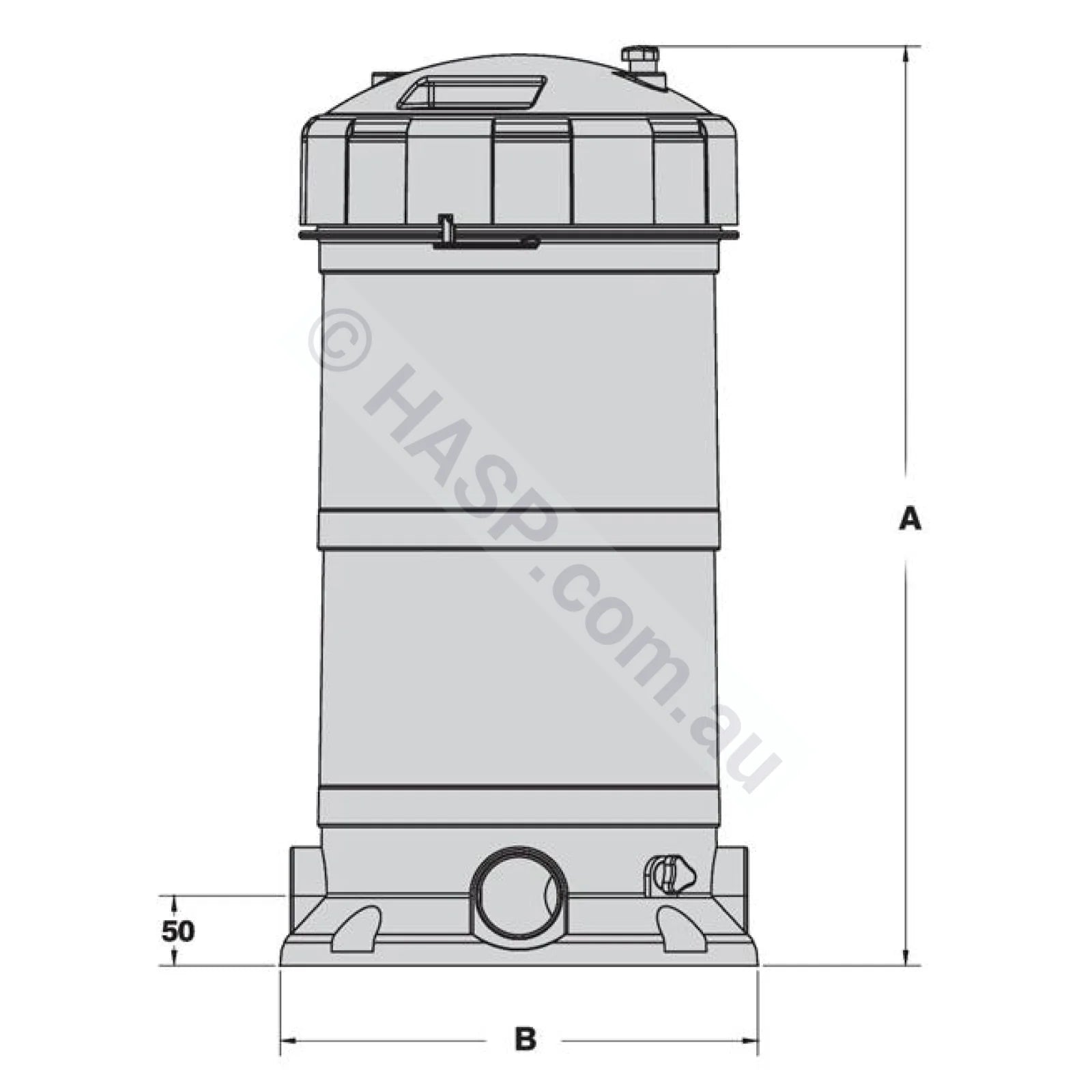

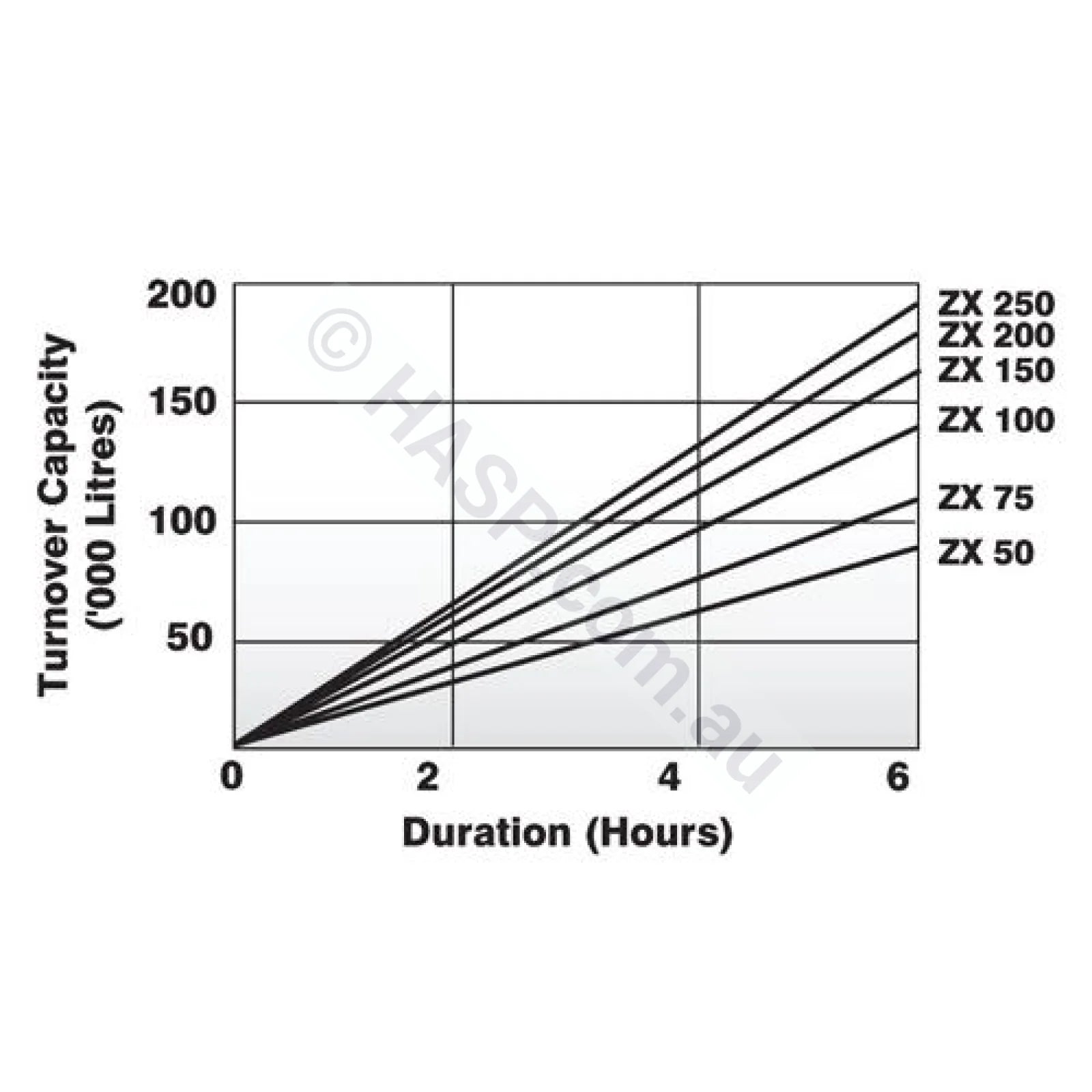

Models, Specifications & Replacements:

• ZX 50: 225lpm Max / 4.7M² Filter Area  / 300kPa Max / 7.0kg / 510mm Height
• Replaced by XC 50
• ZX 75:  290lpm Max / 7.0M² Filter Area  / 300kPa Max / 8.0kg / 510mm Height
• Replaced by XC 75
• ZX 100:  375lpm Max / 9.4M² Filter Area  / 300kPa Max / 15.5kg / 710mm Height
• Replaced by XC 100
• ZX 150: 445lpm Max / 14.0M² Filter Area  / 300kPa Max / 16.5kg / 710mm Height
• Replaced by XC 150
• ZX 200:  490lpm Max / 19.0M² Filter Area / 300kPa Max / 24.0kg / 910mm Height
• Replaced by XC 200
• ZX 250:  515 lpm Max / 24.0M² Filter Area  / 300kPa Max / 25.0kg / 910mm Height
• Replaced by XC 250
• ZX 310:  No direct replacement. We recommend Two XC 150 or similar.
