Balboa AX10 1 Button Touchpad & Overlay
Balboa AX10 1 Button Touchpad & Overlay - is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Balboa AX10 1 Button Touchpad & Overlay
Balboa AX10 1 Button Touchpad & Overlay - is temporarily out of stock and will ship as soon as it's available.

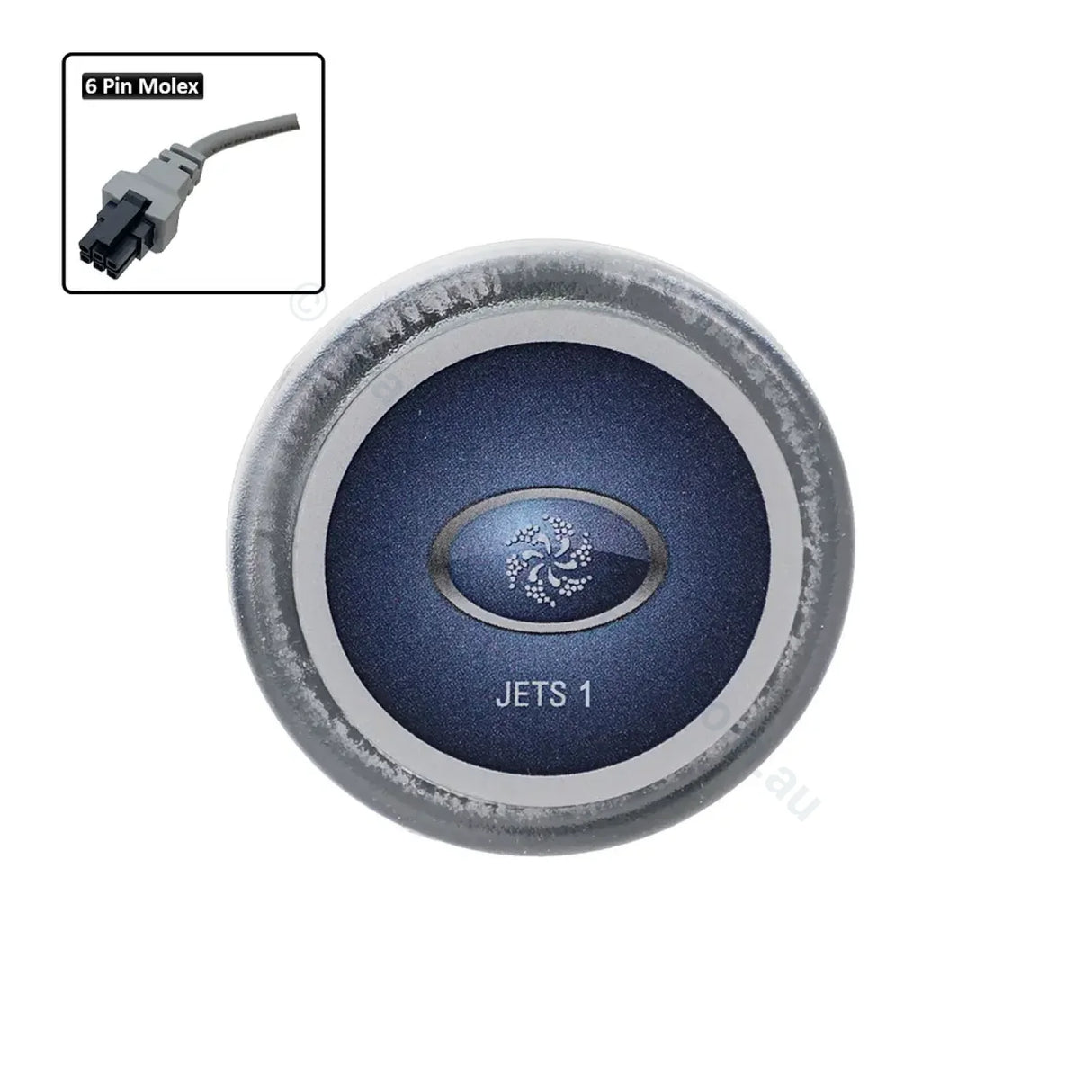

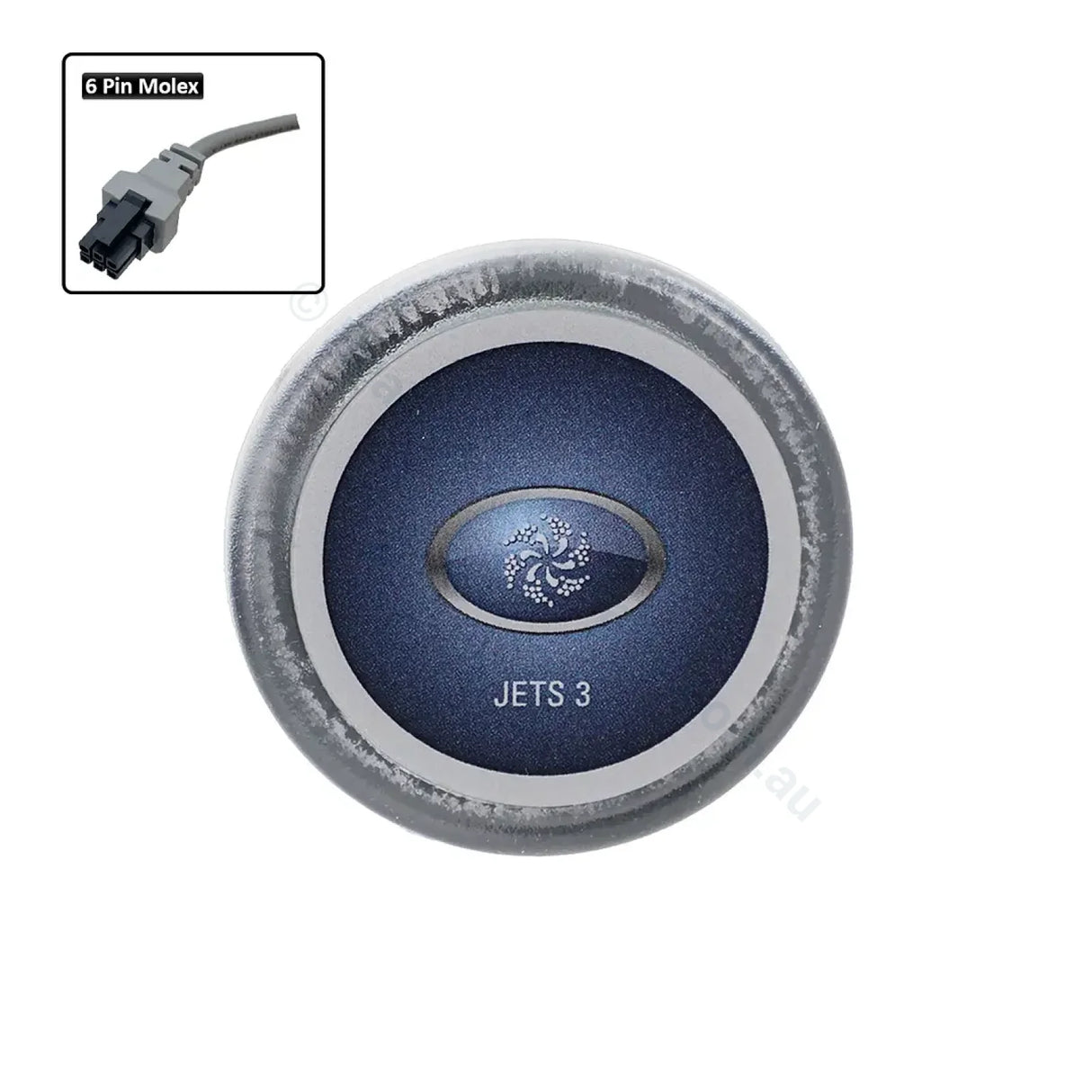

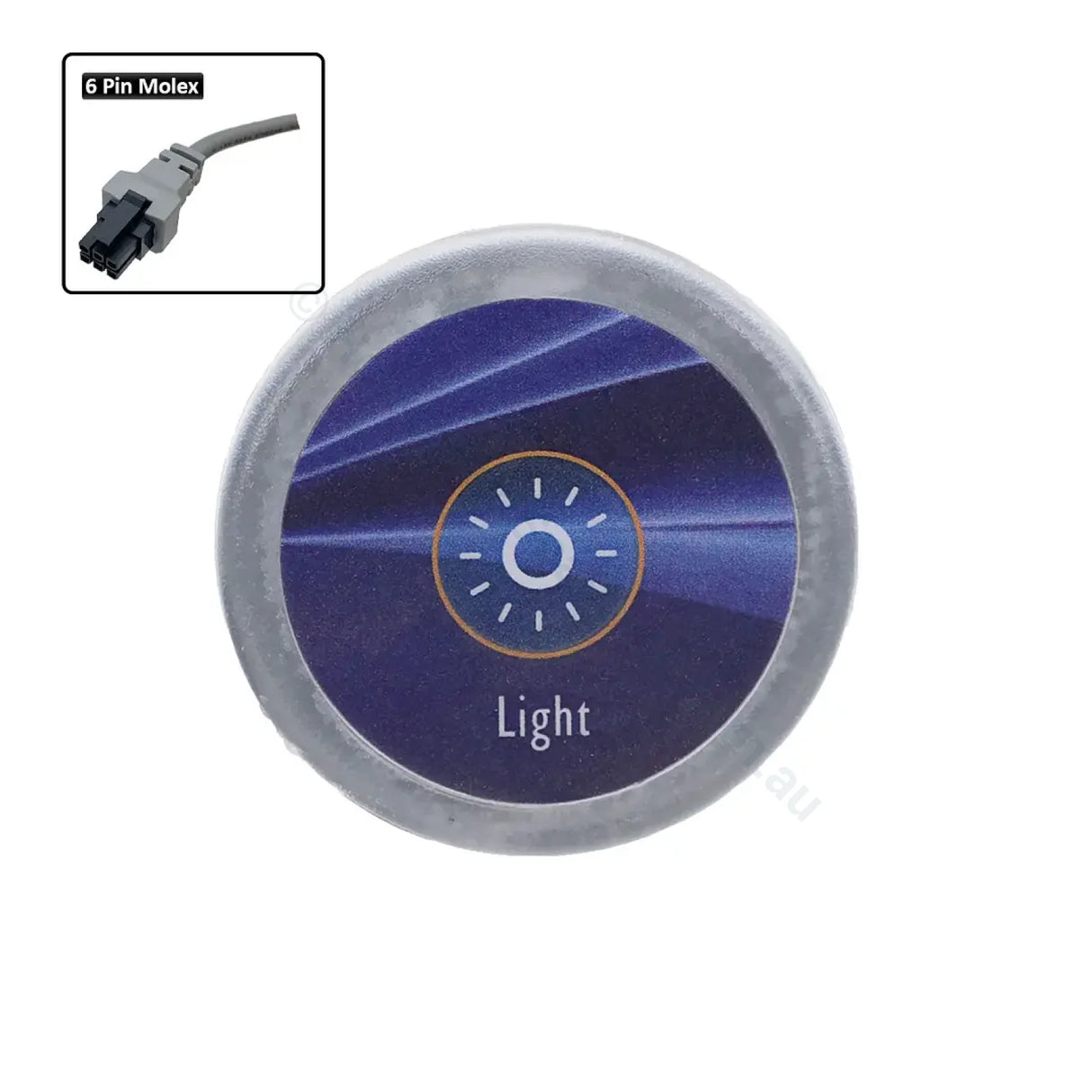

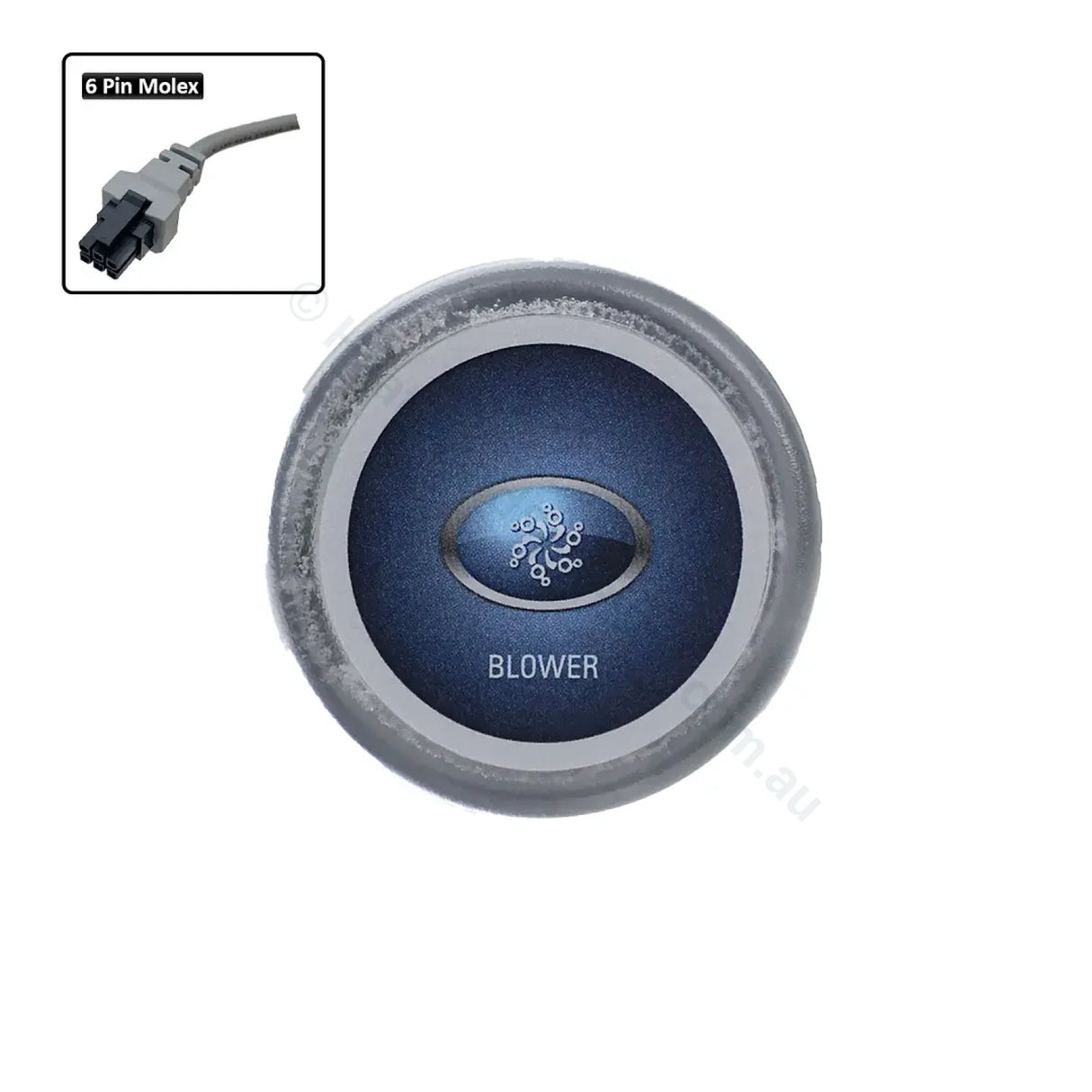

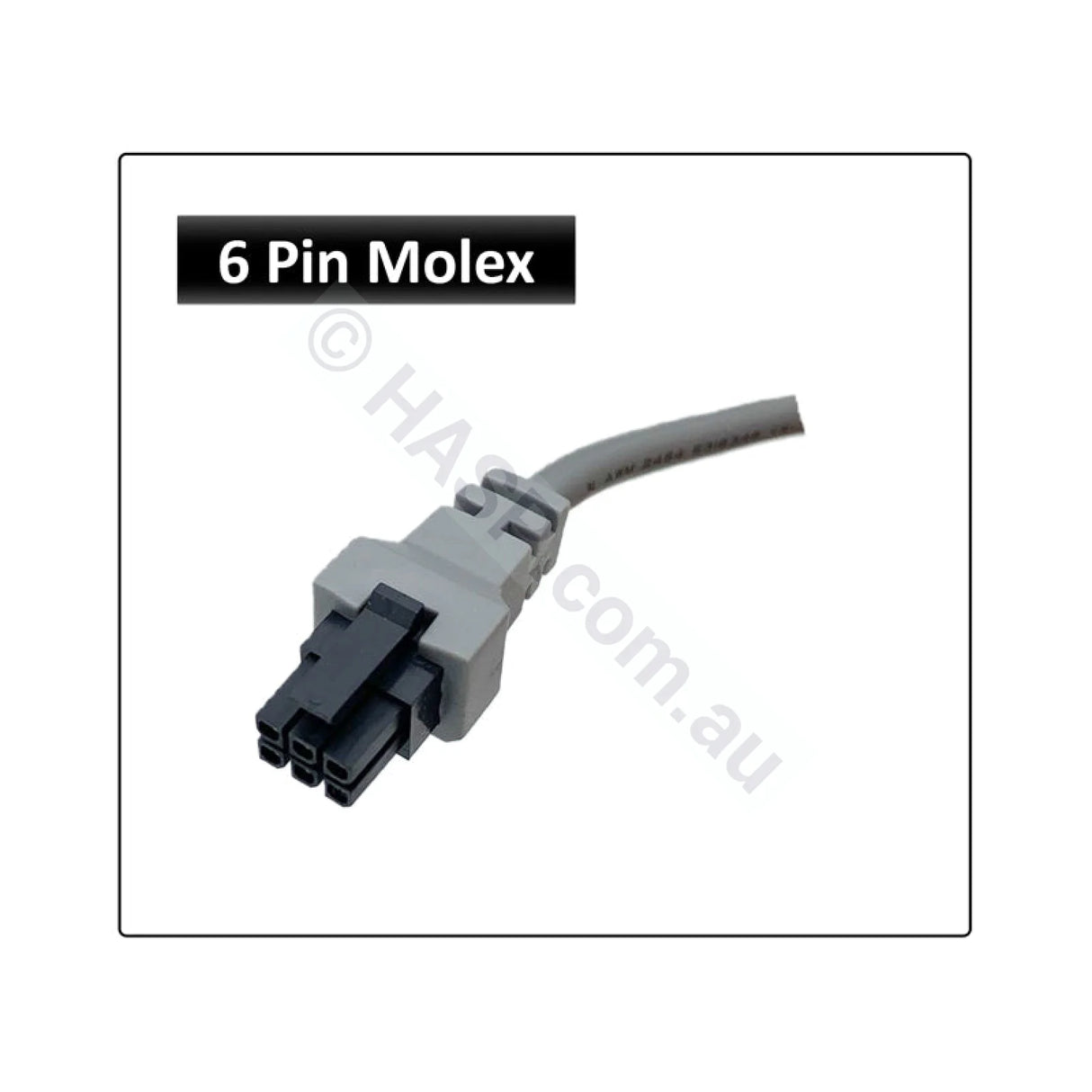

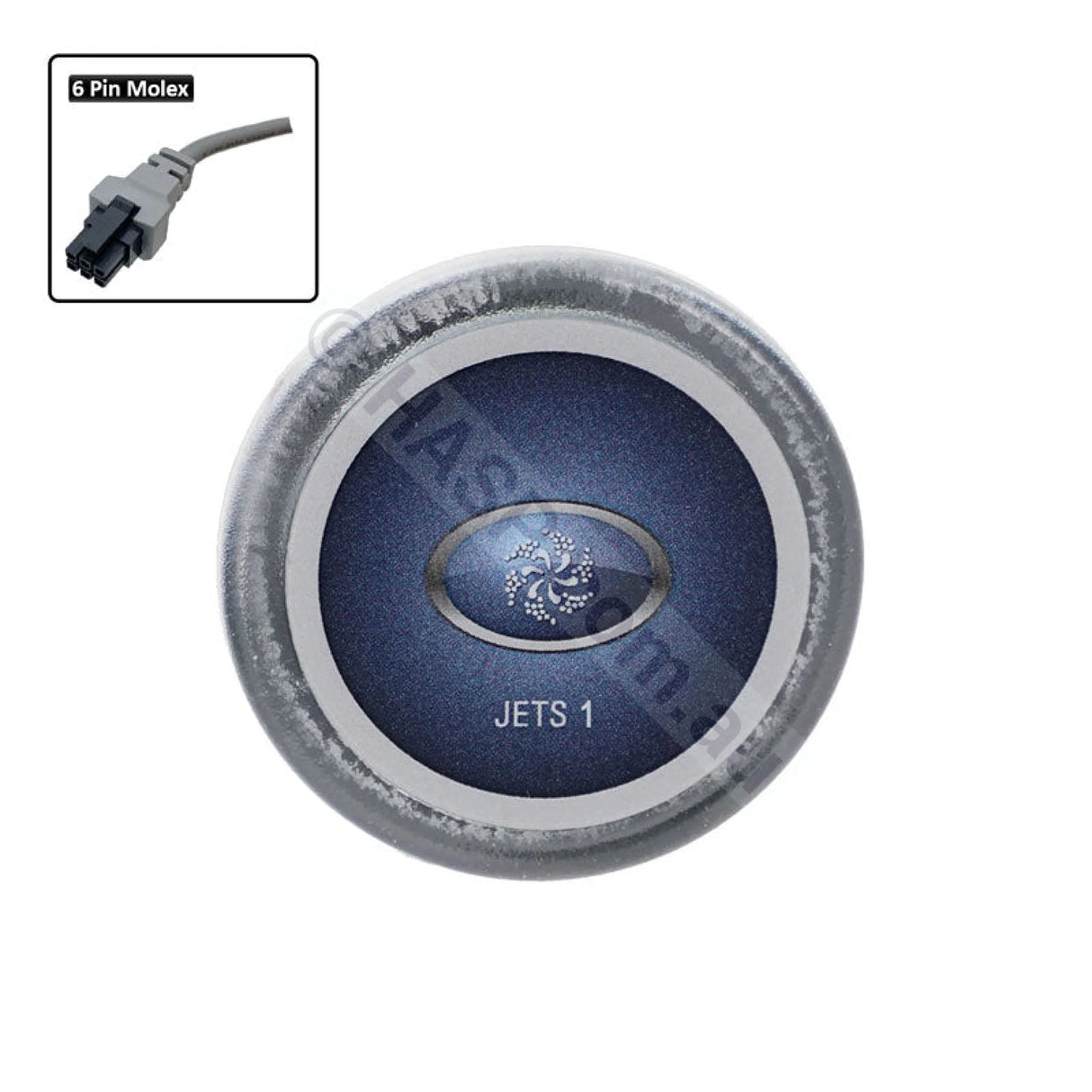

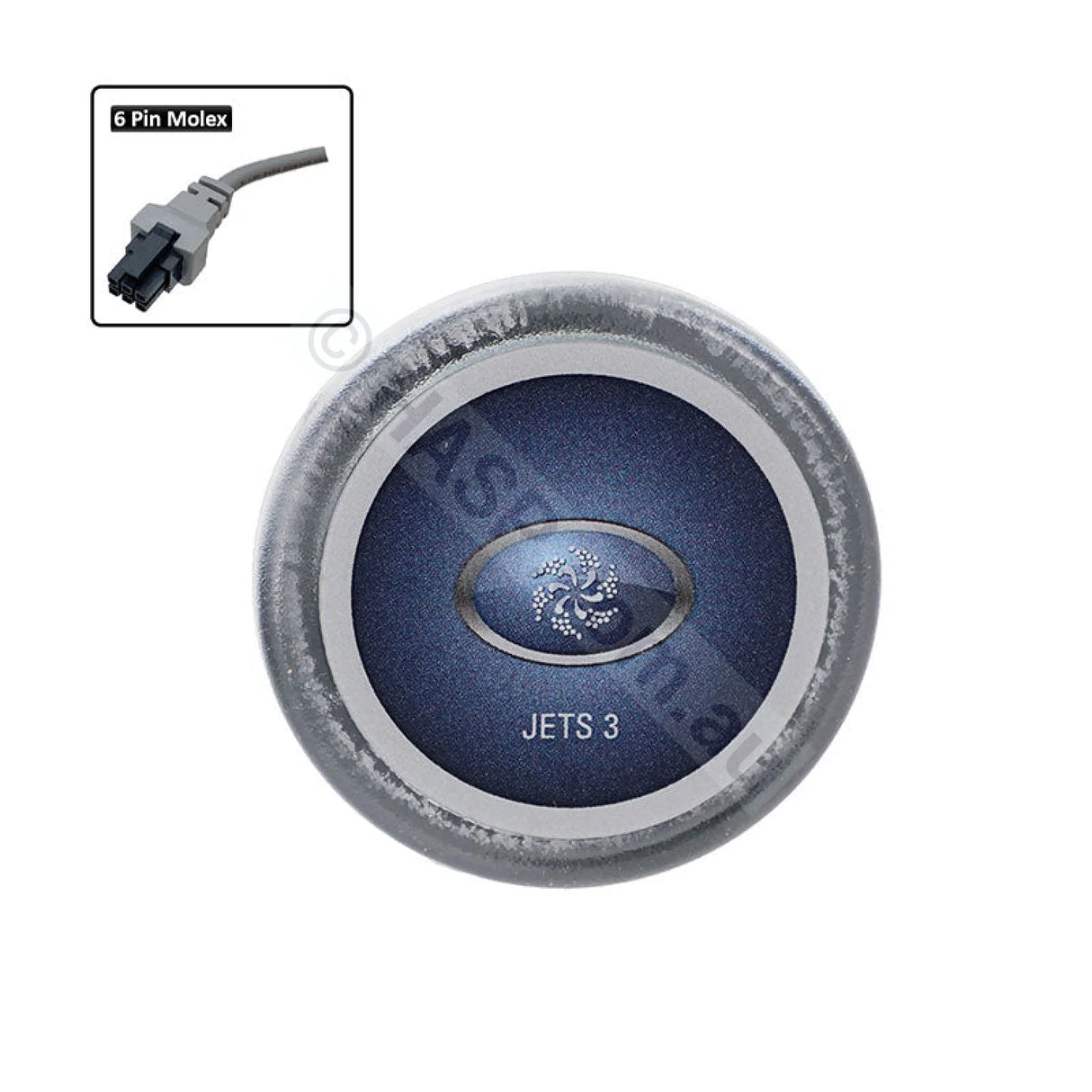

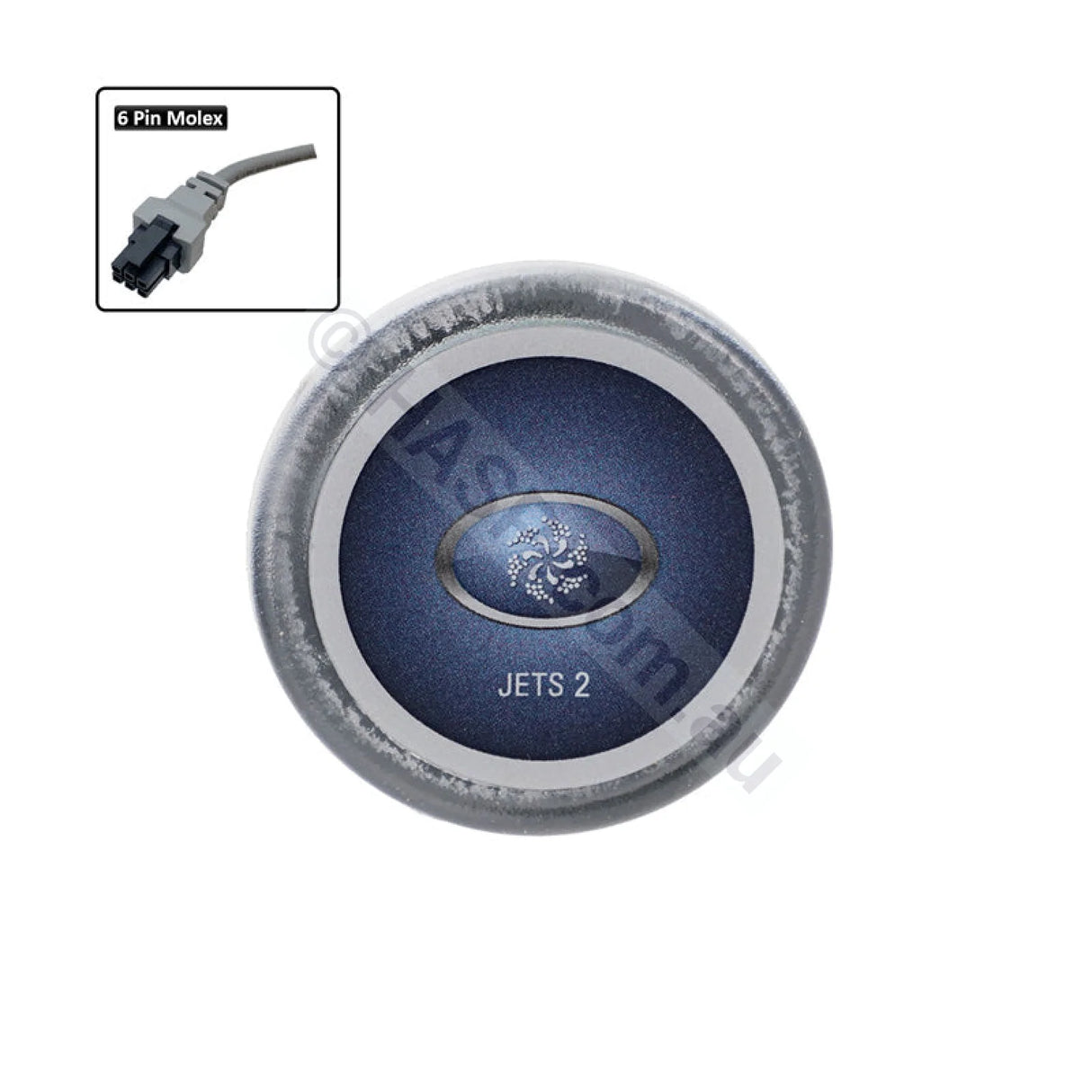

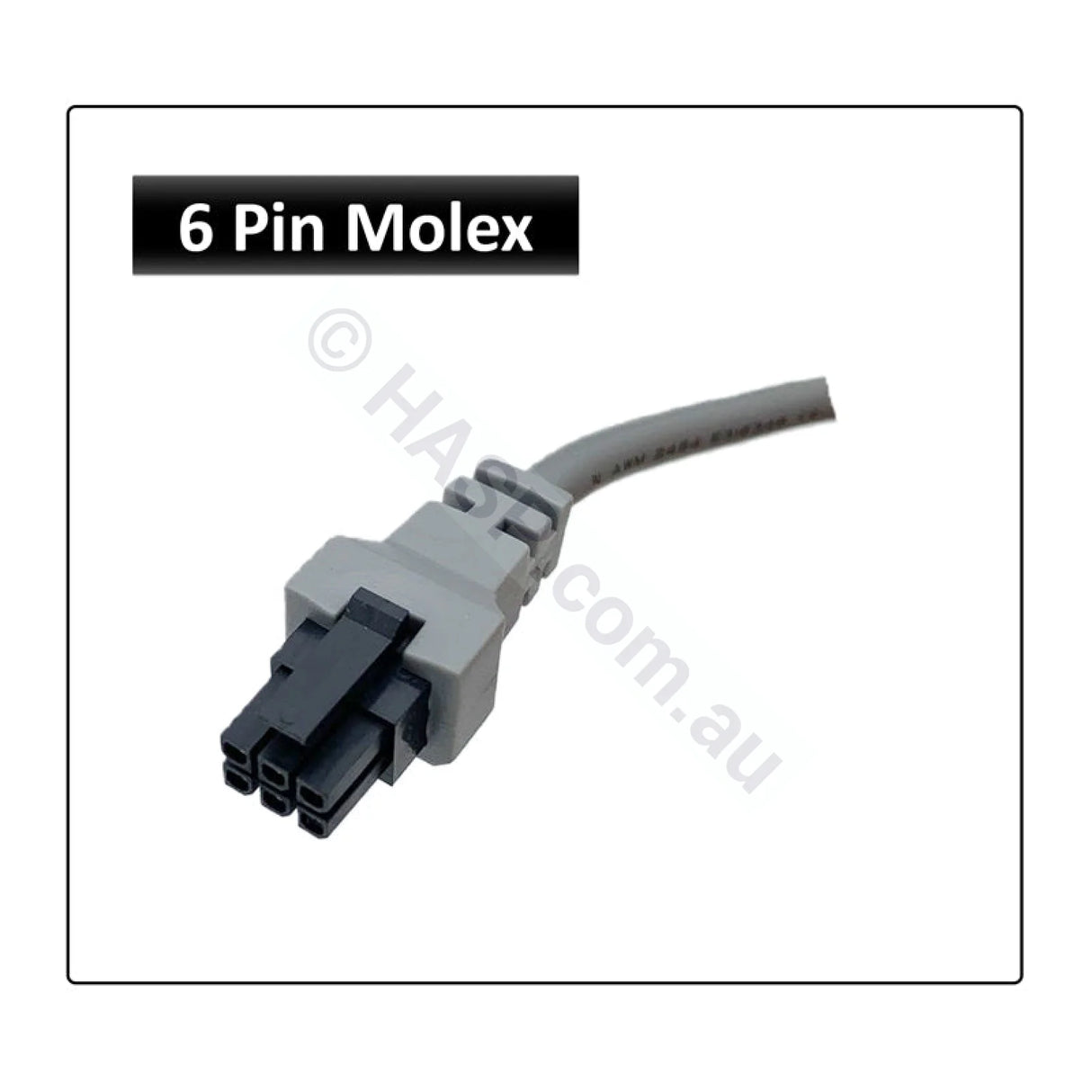

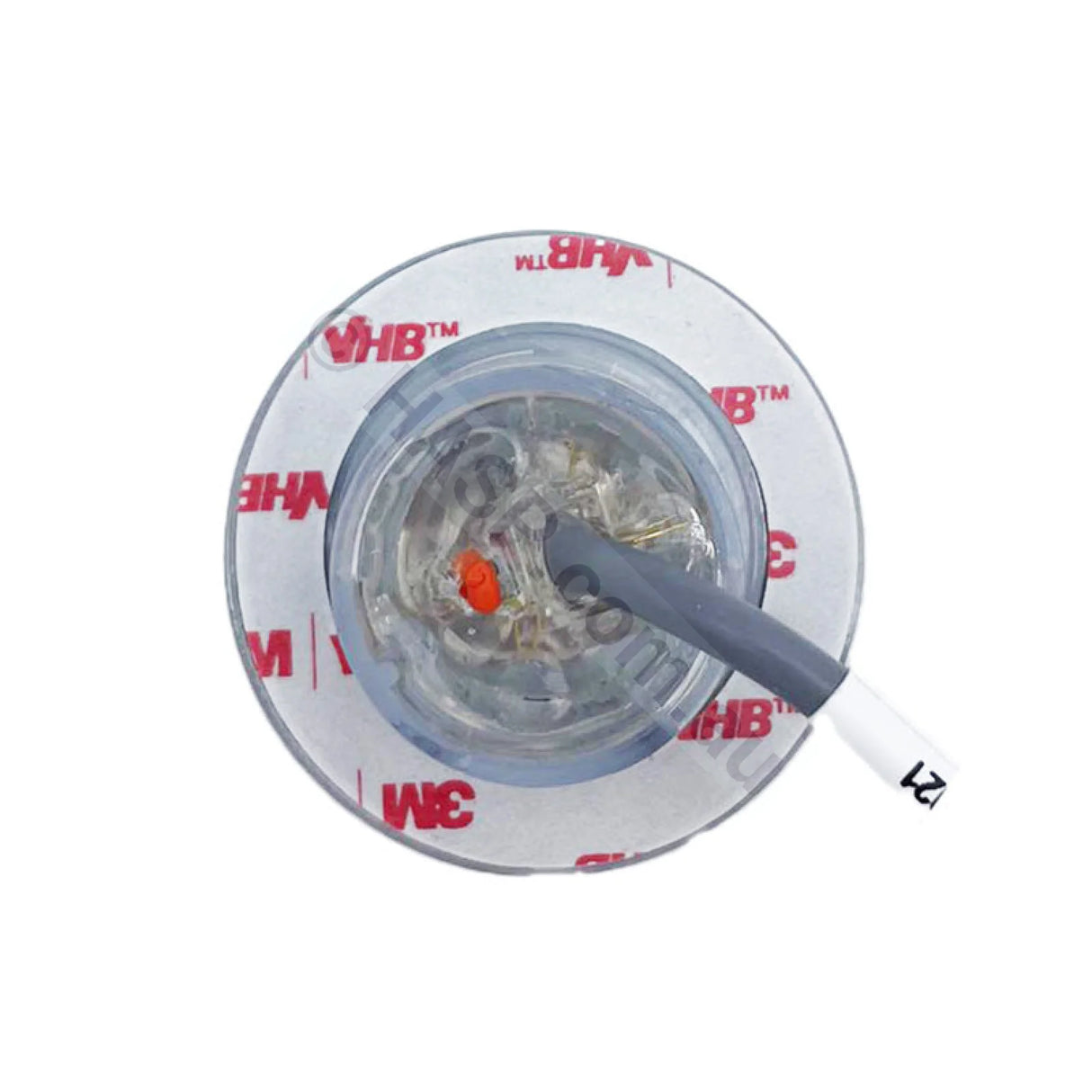

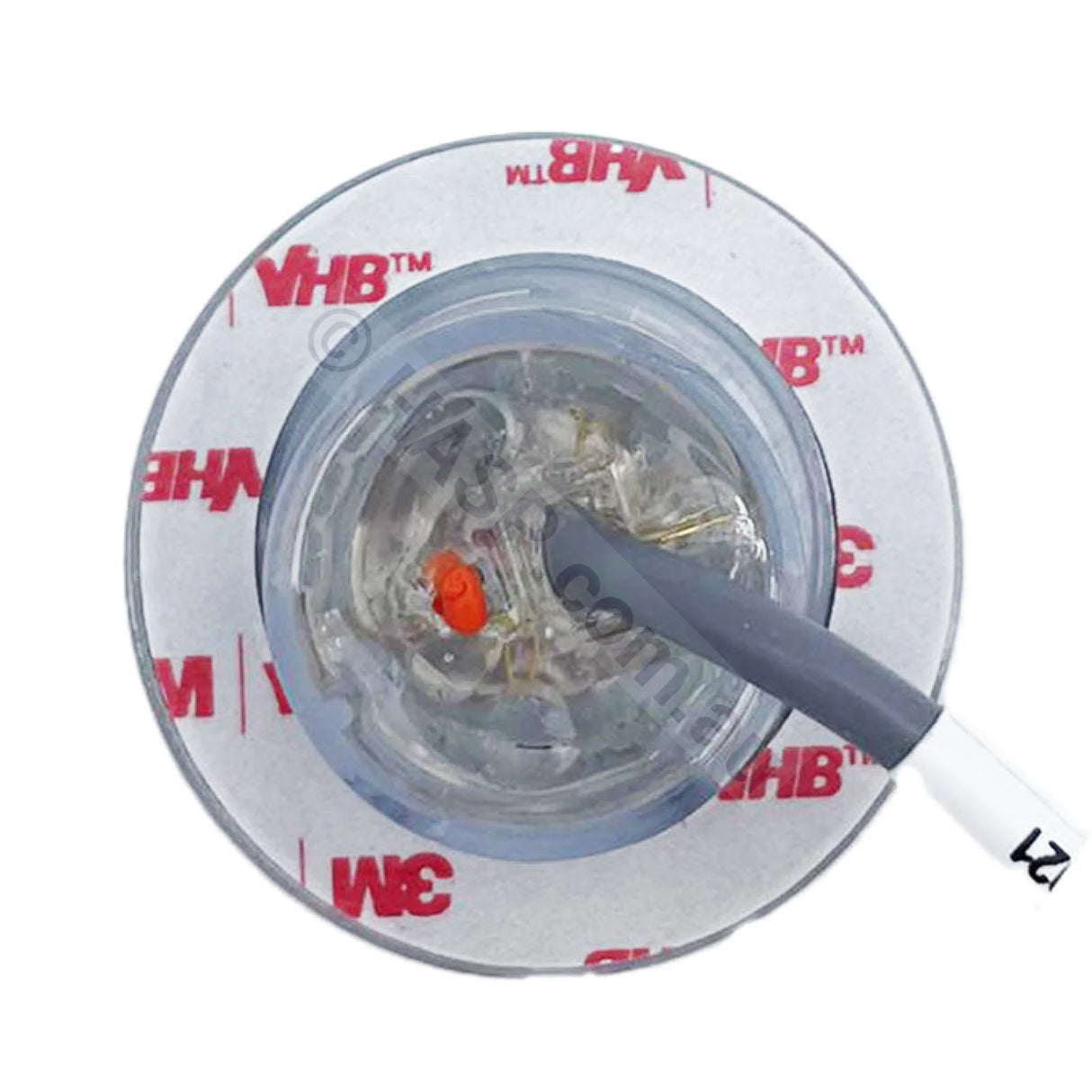

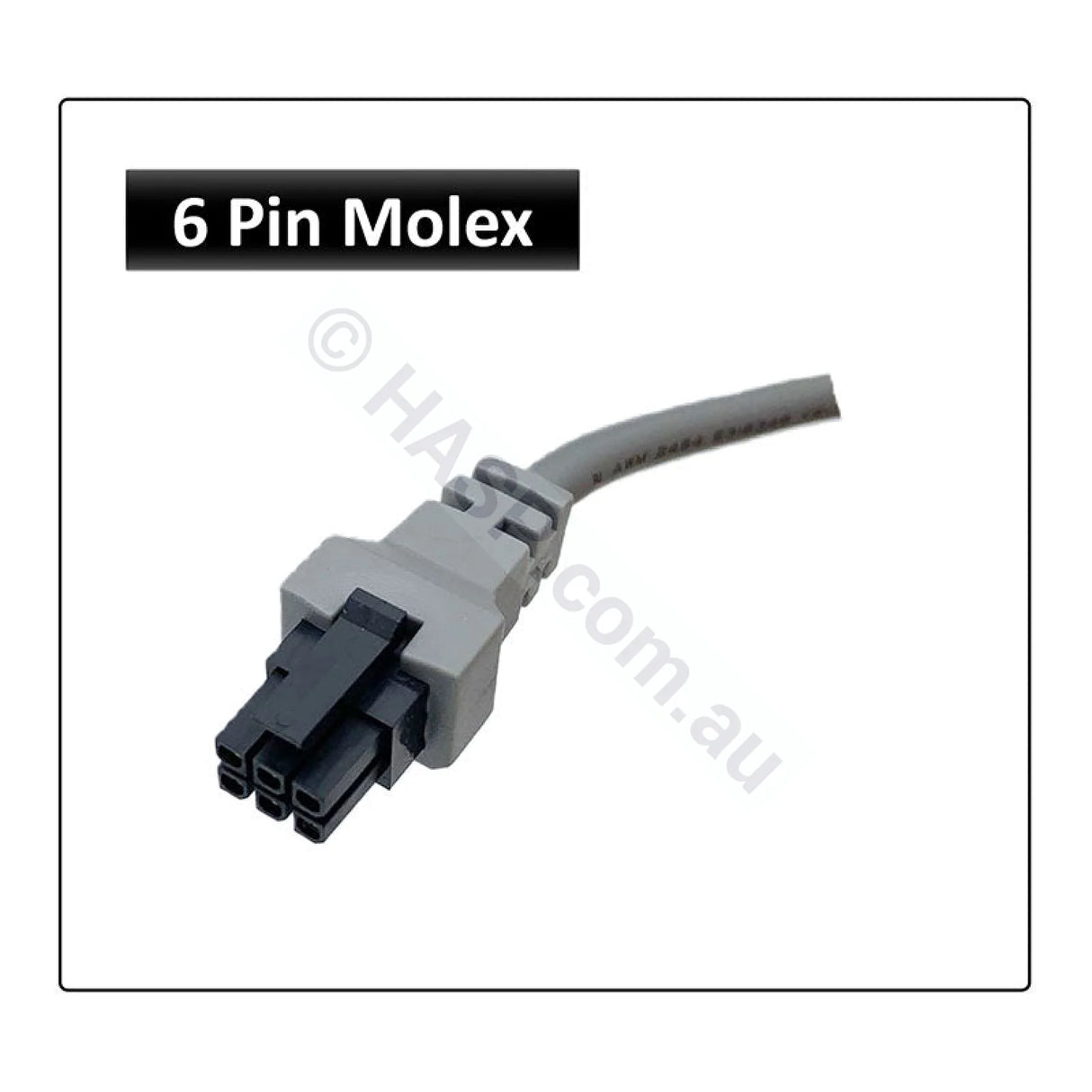

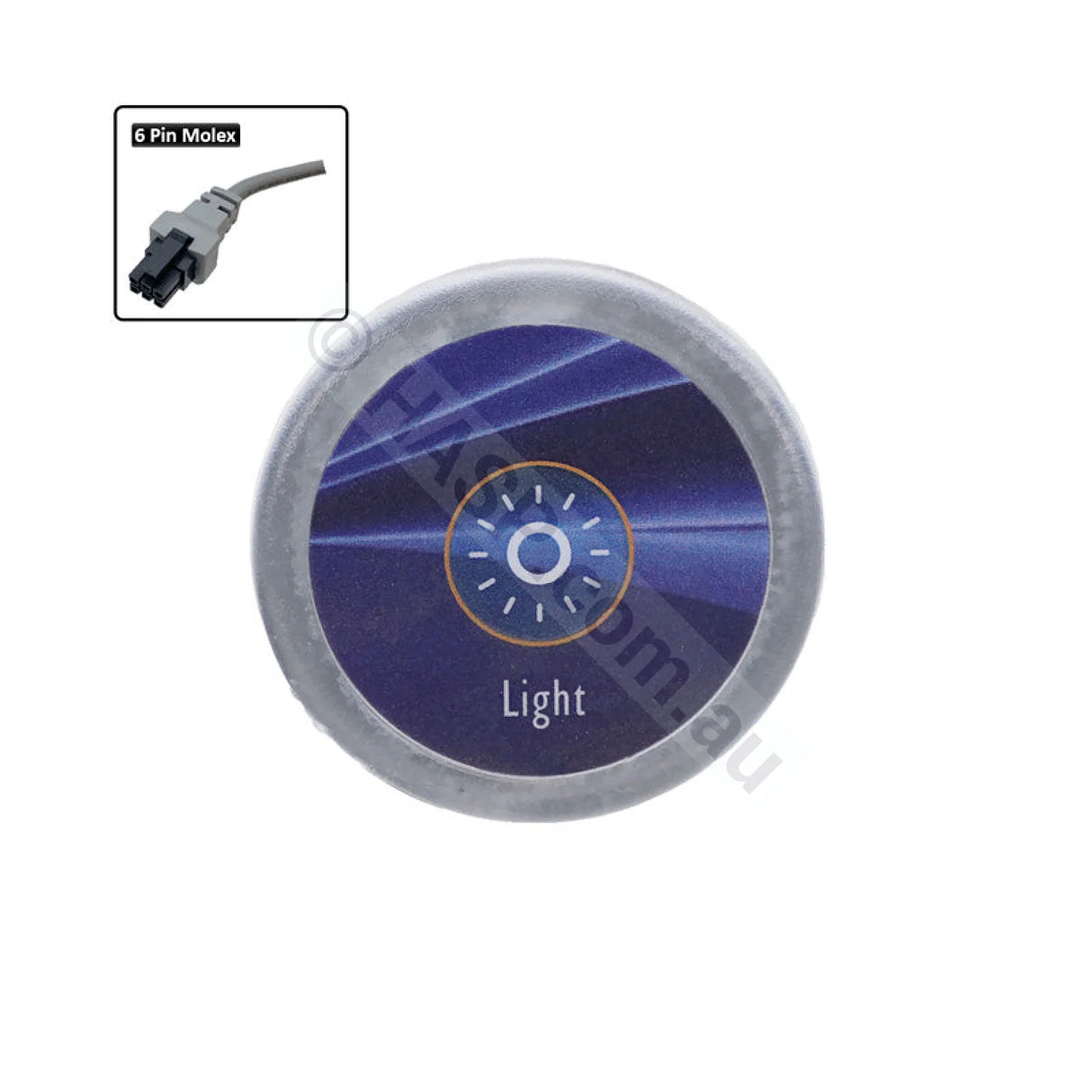

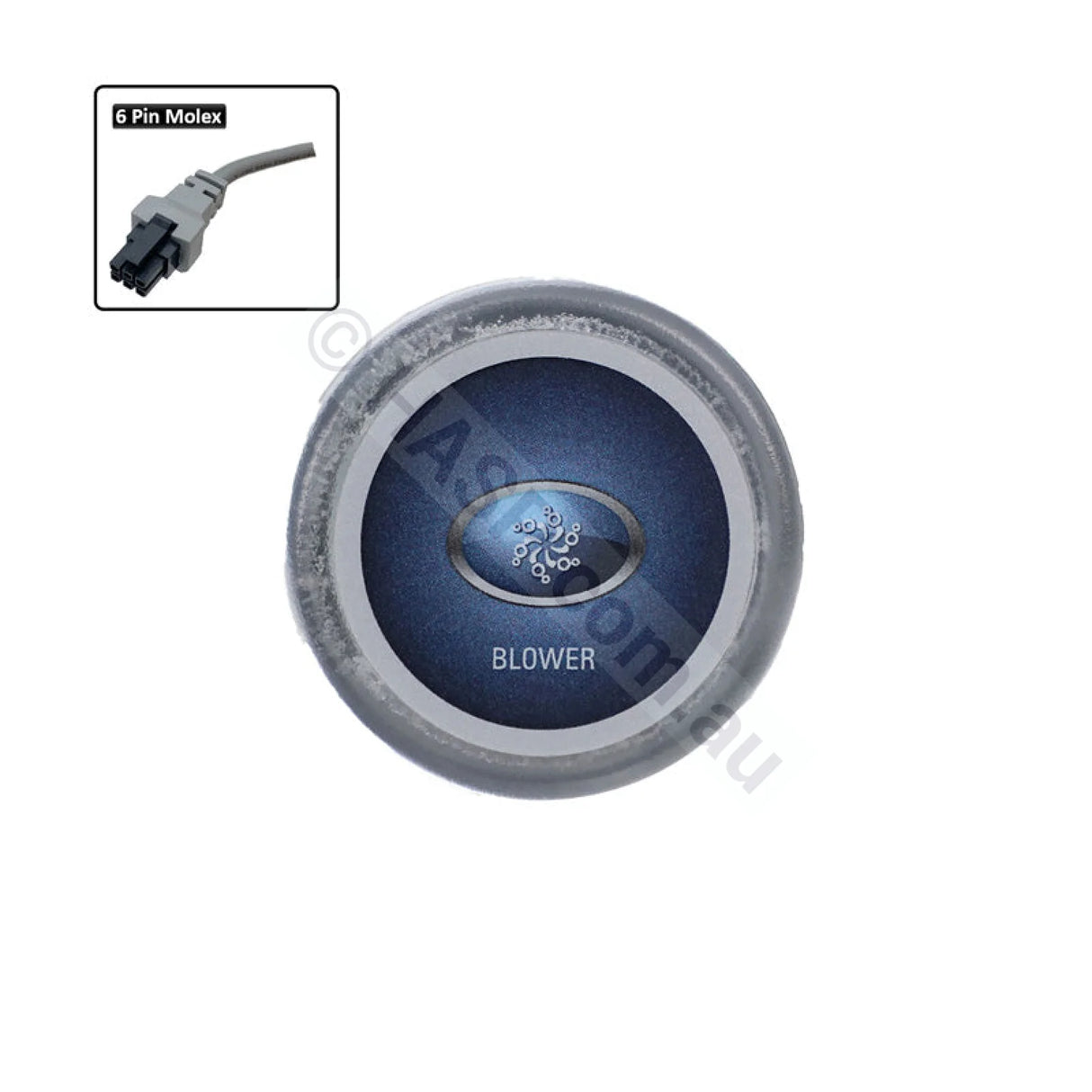

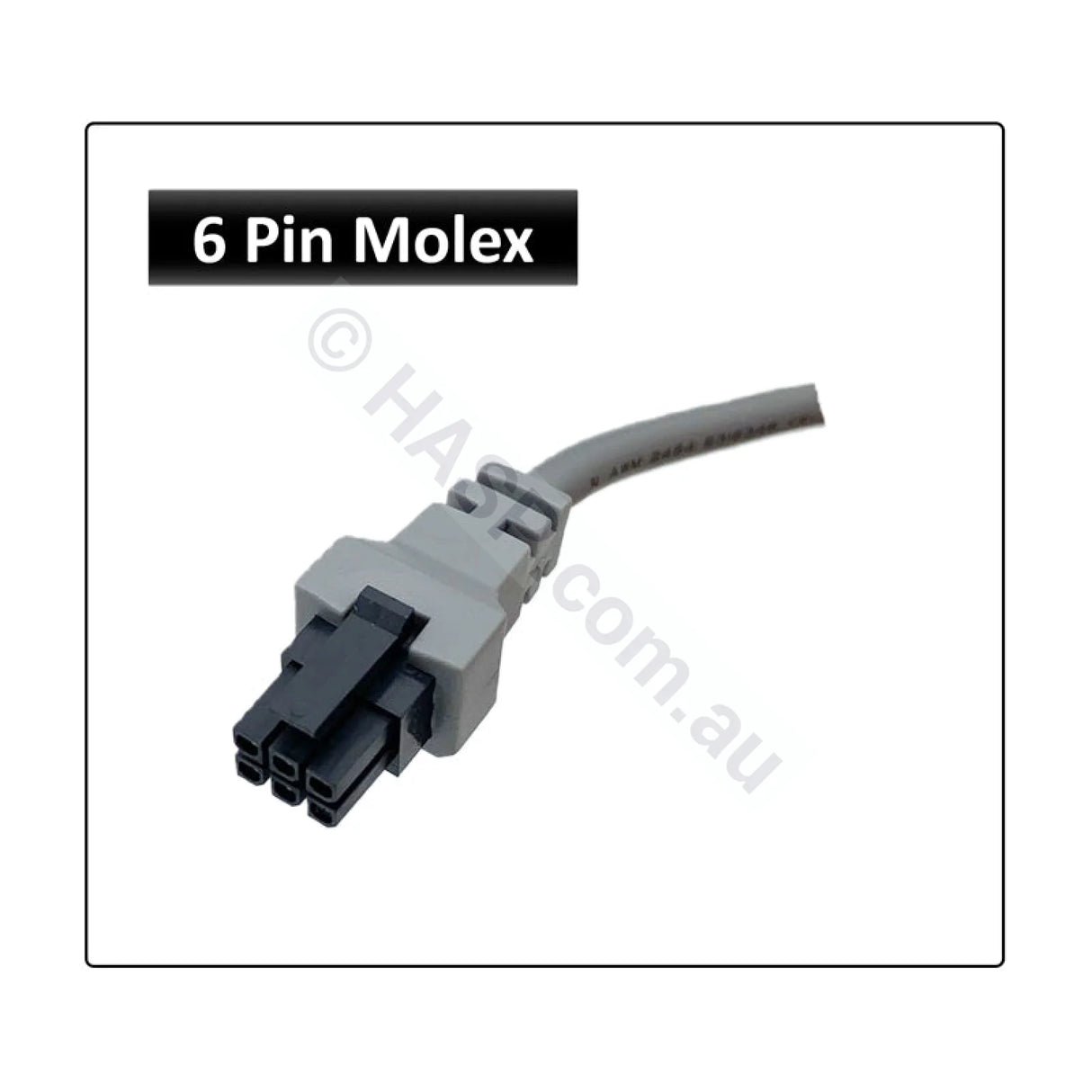

1 Button (Single Button) Touchpad used on Balboa control systems for spas. Choose the overlay. Uses 6-pin Molex connector. These have had several branded overlays.
Often found on GL2000, GL8000 and BP series controllers.

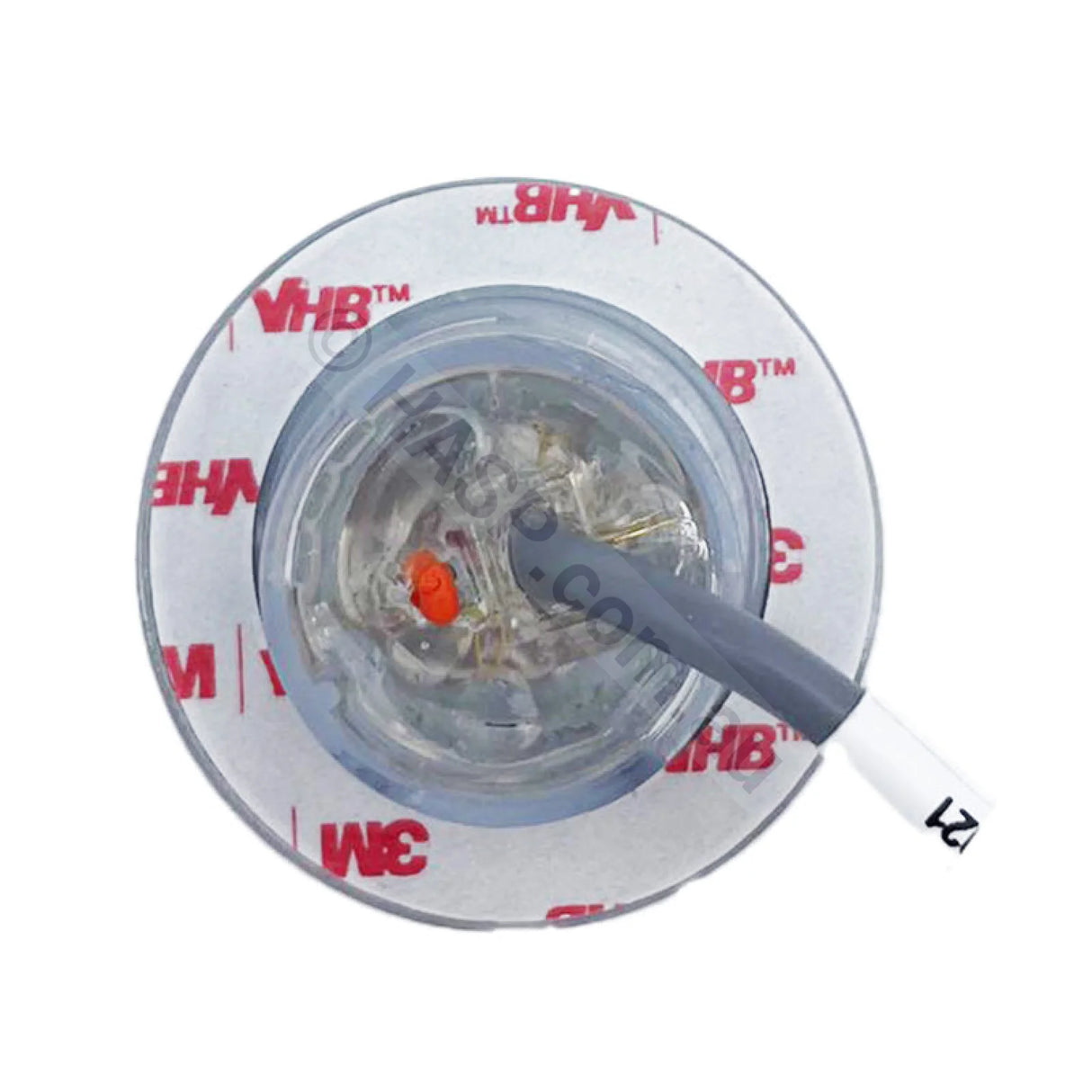

Touchpad Dimensions
Face Size
Length: 56mm
Width: 56mm
Depth: 30mm
Hole Size
Length: 32mm
Width: 32mm
Touchpad Lead Length: 3.0m
