Balboa Eco Spa Circulation Pump - 0.25HP - Ultima Circ Pump - 1031030, 1030017, 10700107

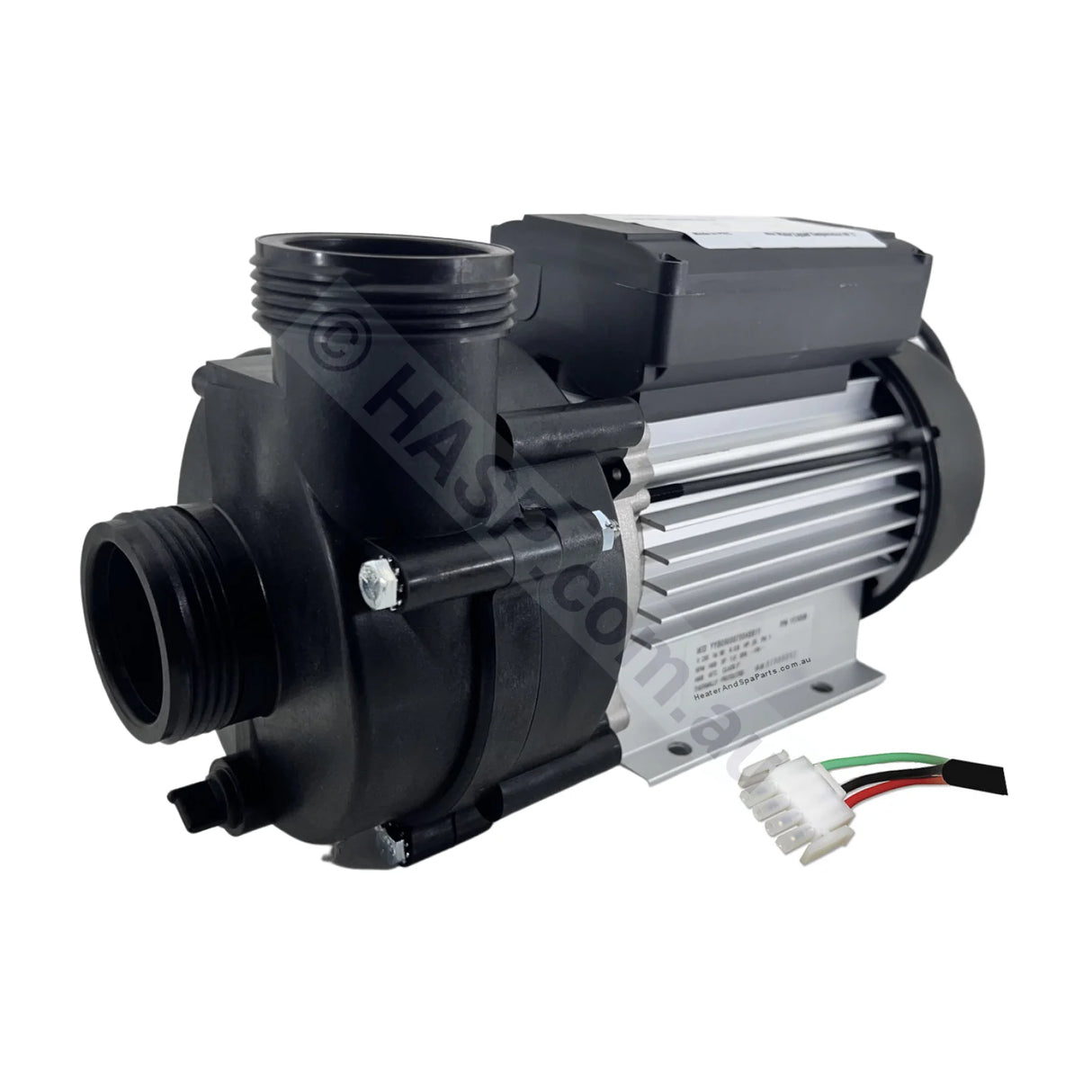

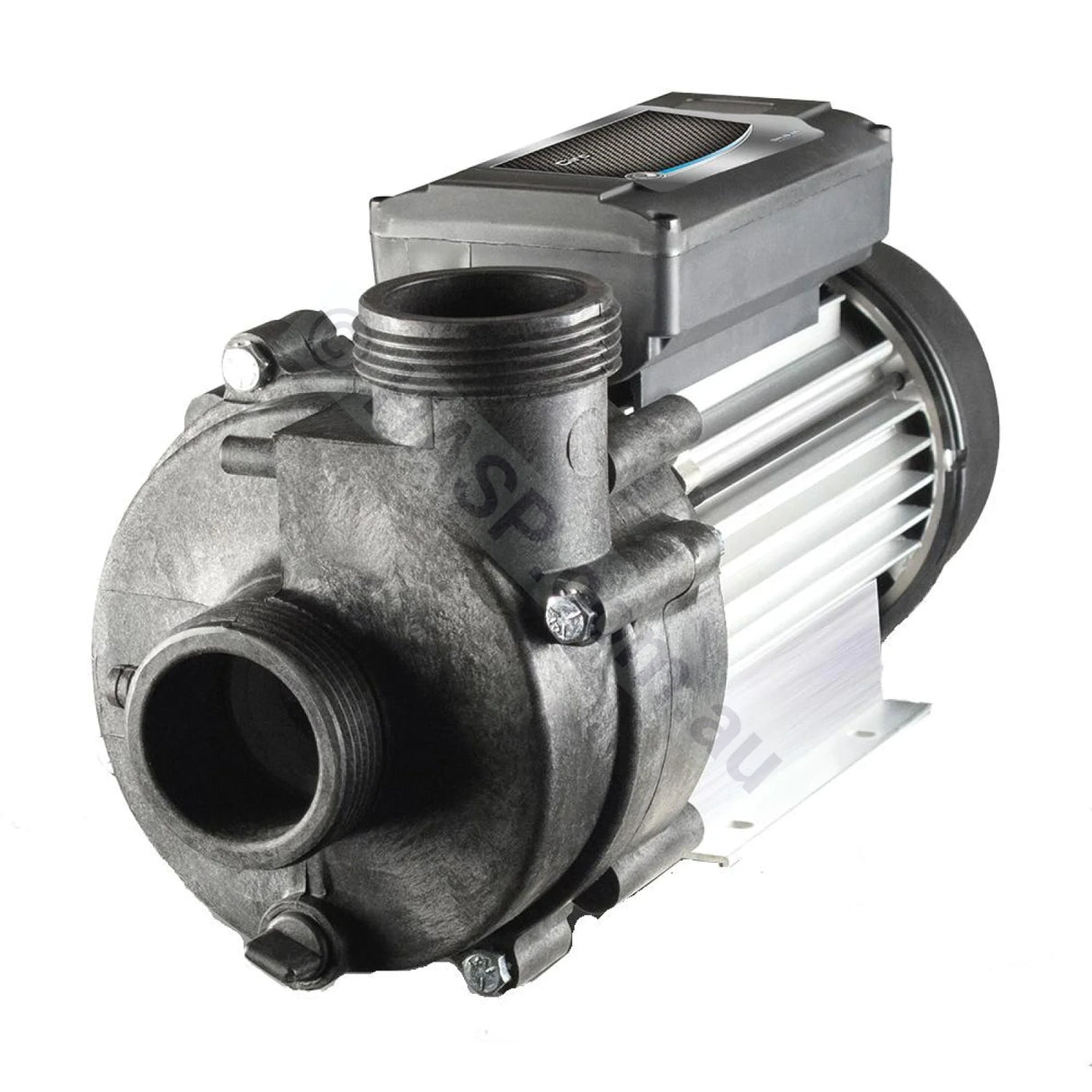

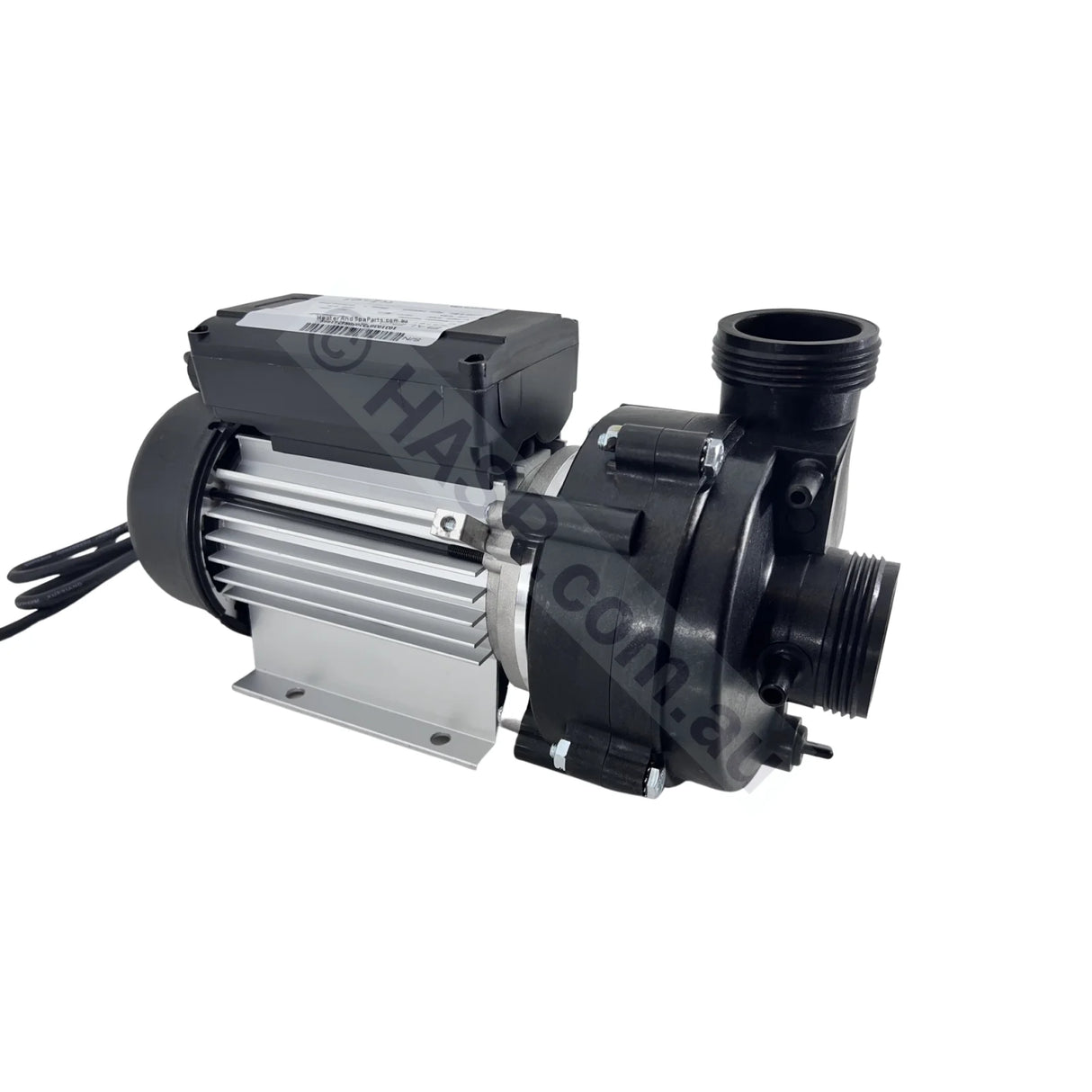

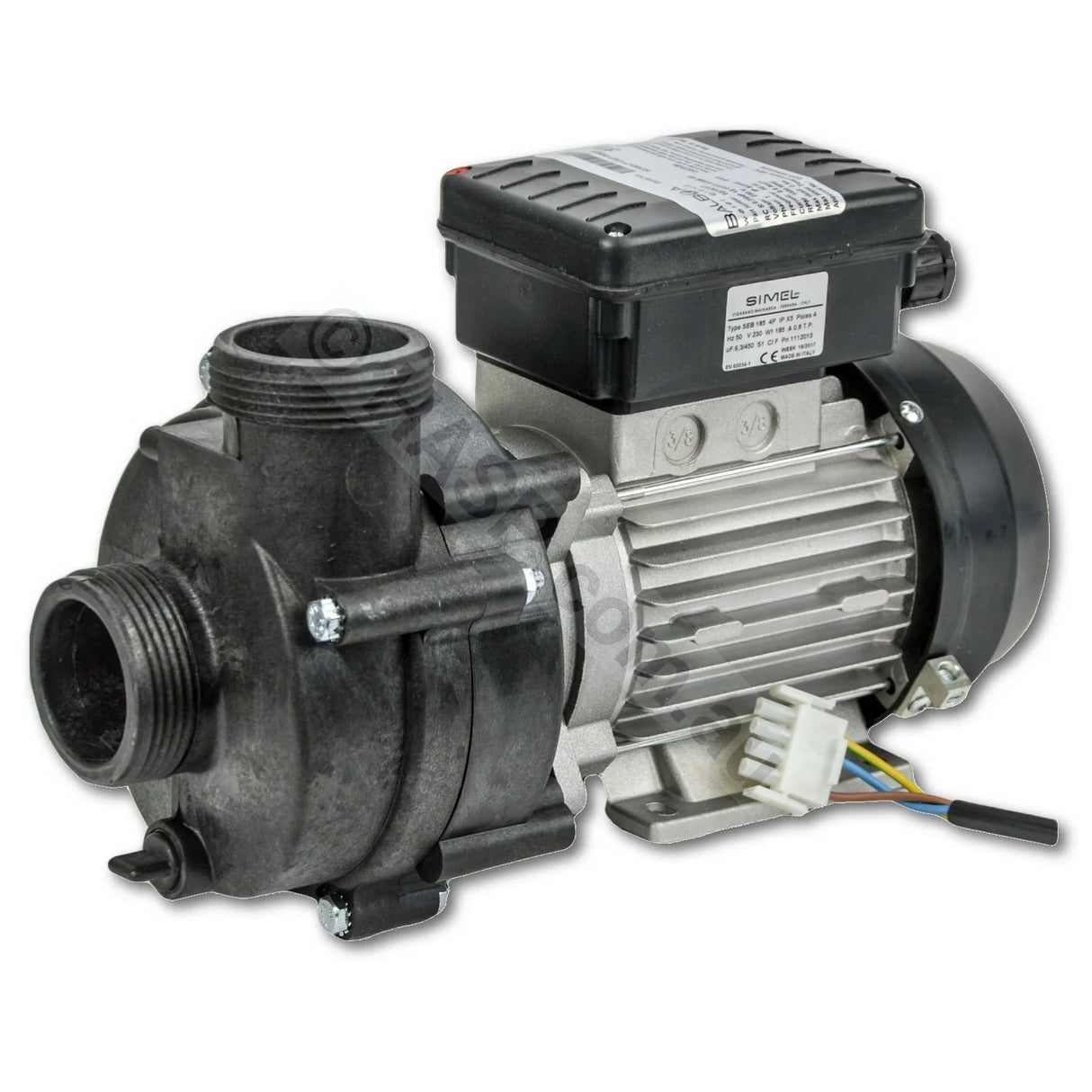

Genuine Balboa Circ Pump. Replaces all older Balboa 1030017 / 10700107 / 1031030 / Ultima 0.25HP circulation & filtration spa pumps with new part number 1031030. Originally had Simel motor, and now has YYB motor. Same wet-end.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
- Genuine Balboa product, not an inferior Chinese copy.
Important Notes:

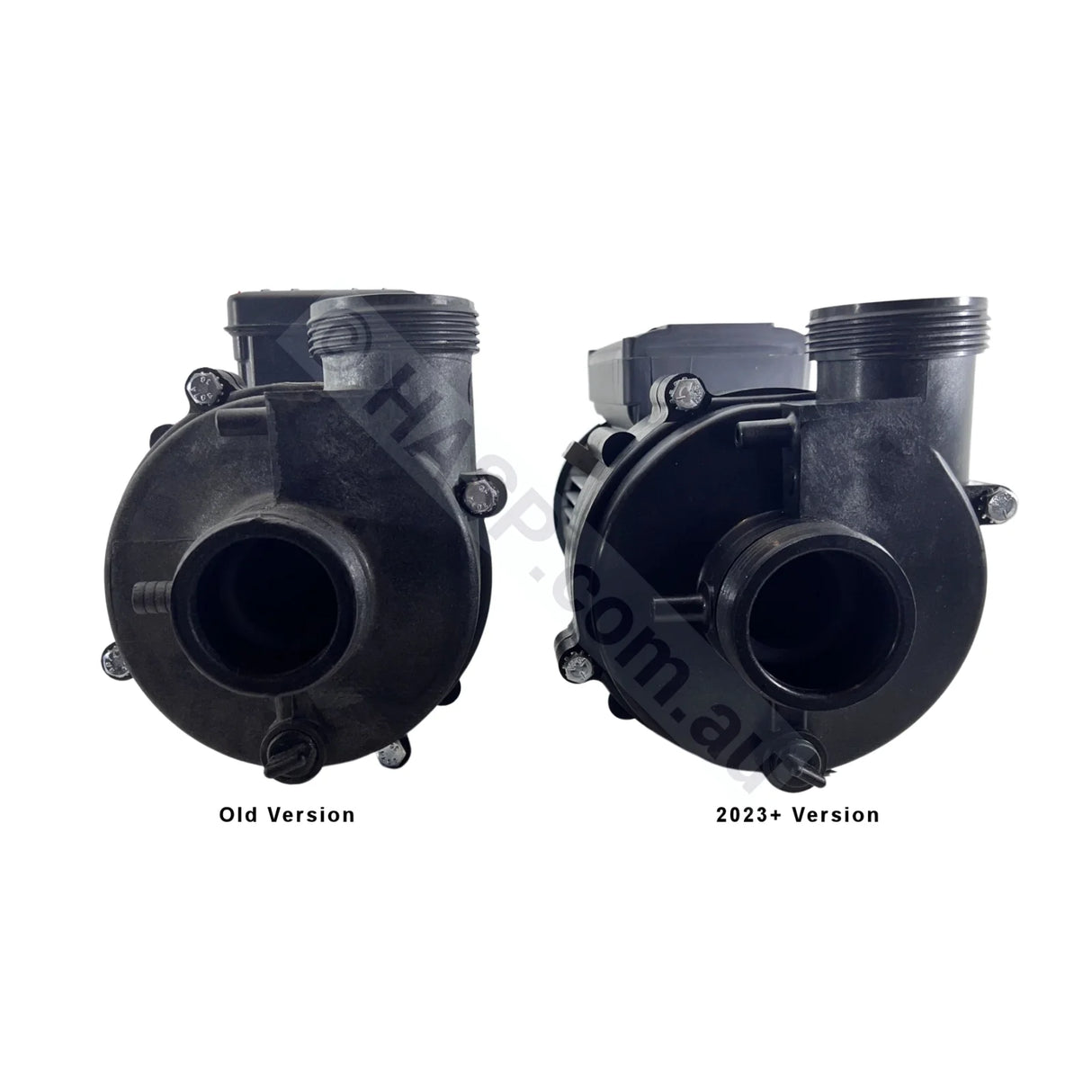

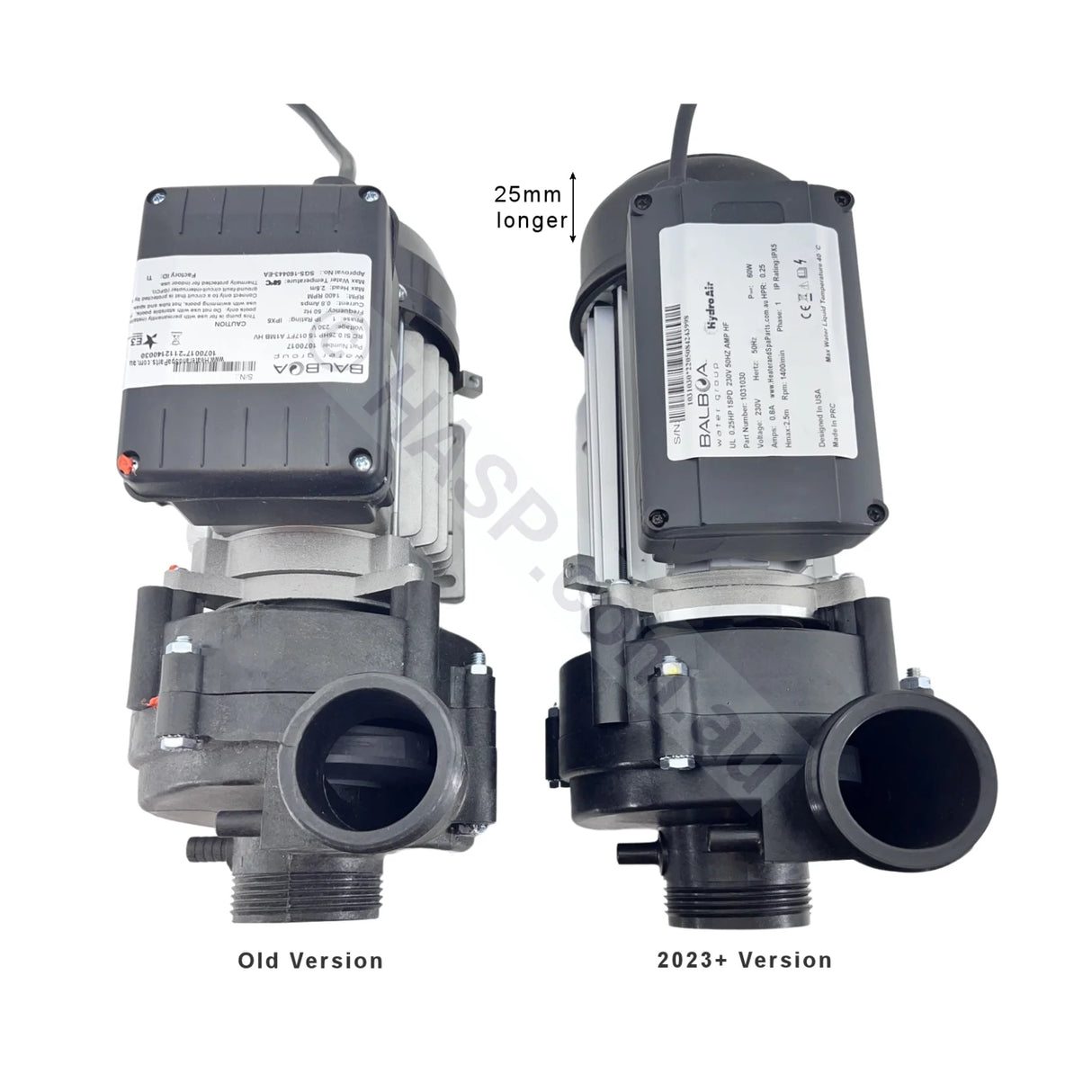

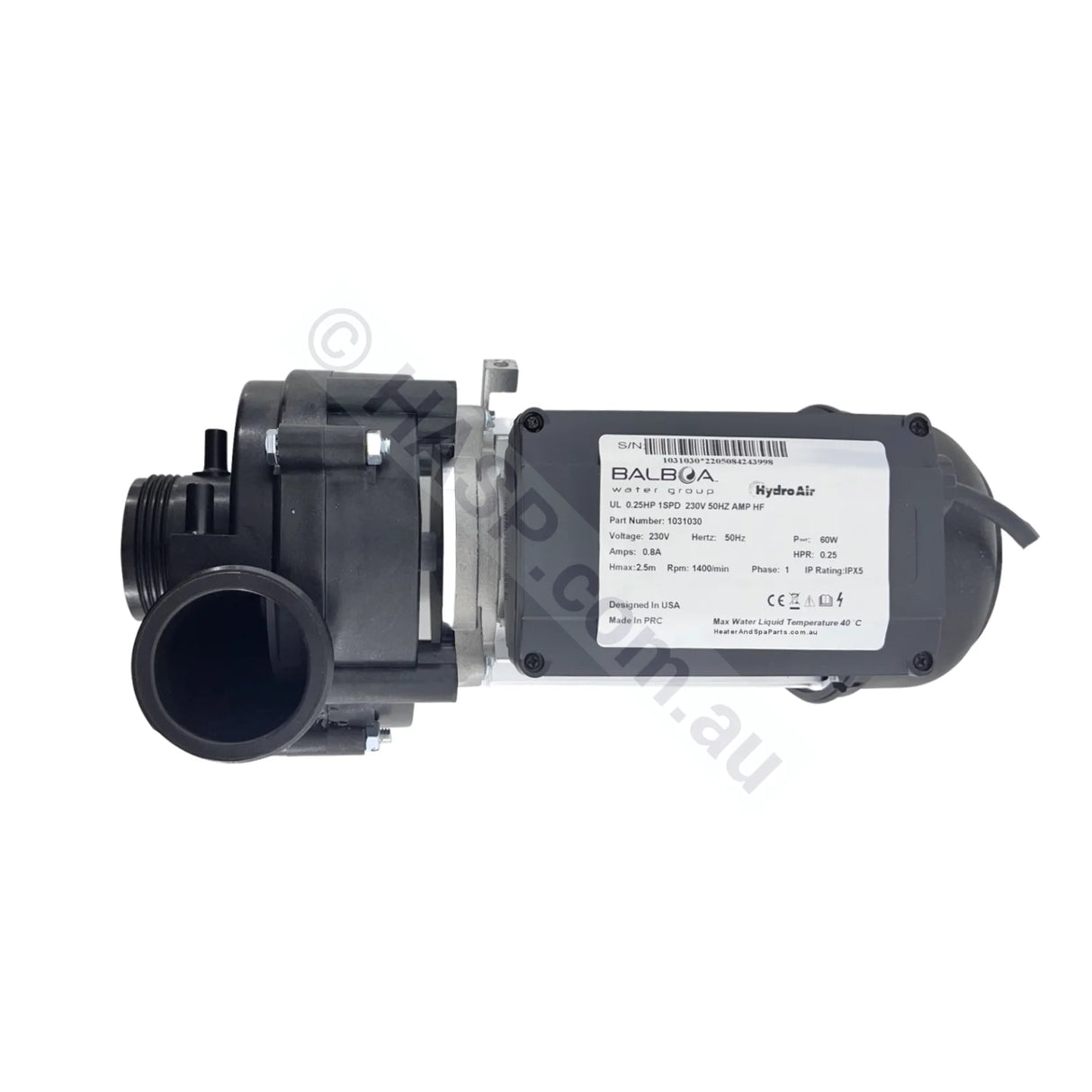

- As of 2023, these pumps have a new motor but same wet-end, and are ~25-30mm longer than the older models, but the motor mounts and black wet-end are the same (see images).
- Cable is 1.3m. Extension cable available.
- New version is somewhat louder than previous models. We recommend installing on soft absorbent rubber or rubber feet.
- For a quieter and smaller pump, the Gecko Maelstrom here can be used, but replumbing may be required.

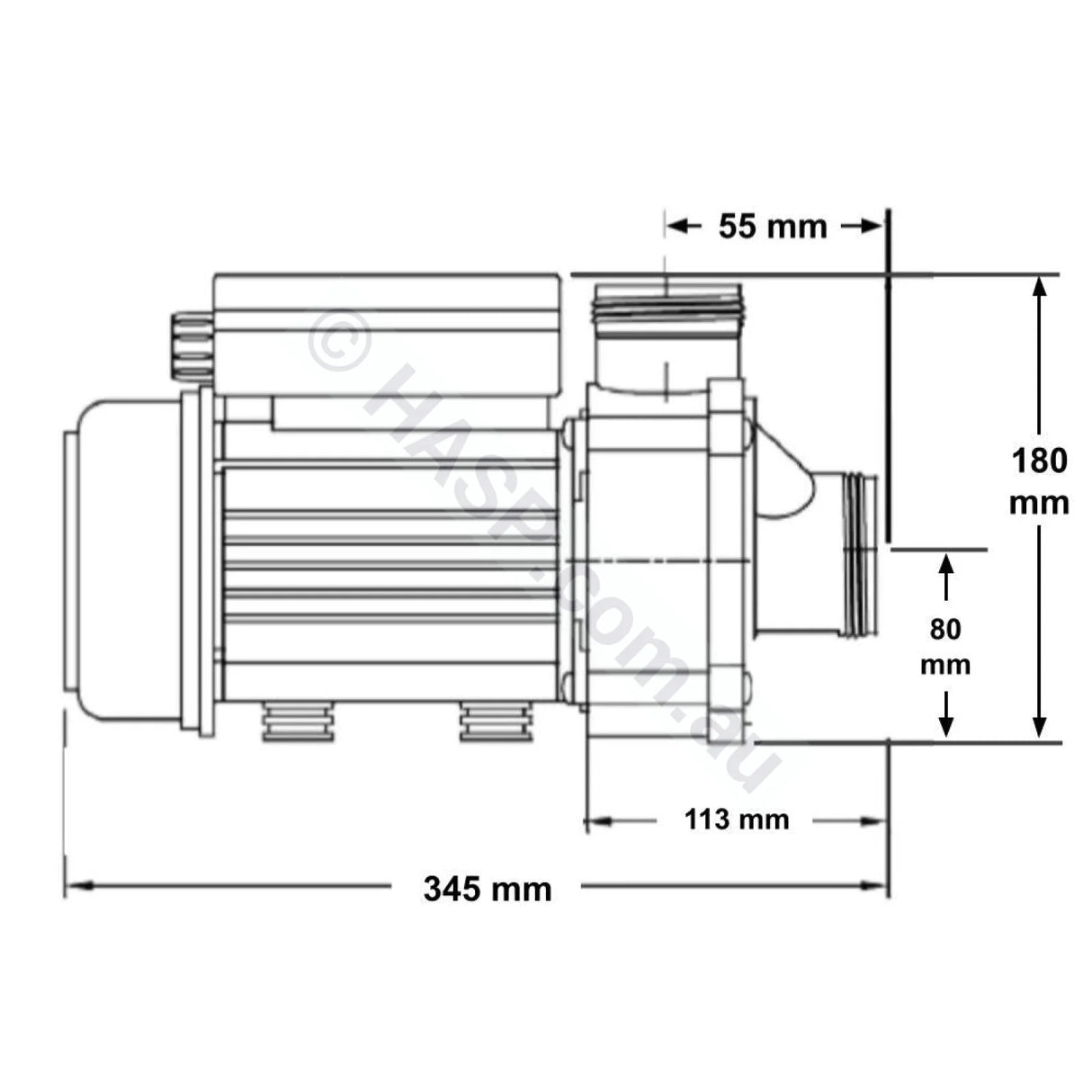

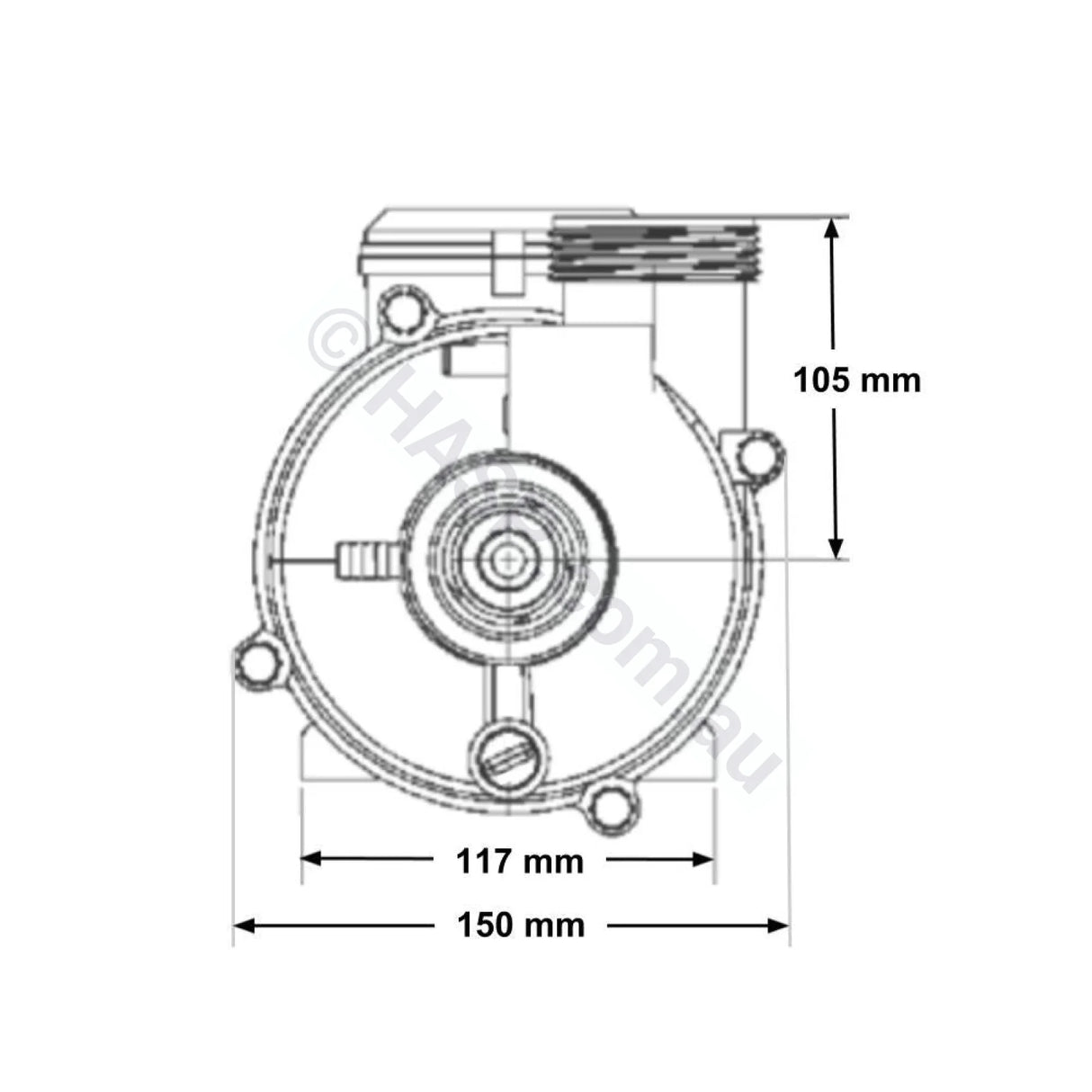

Dimensions:
- Length: ~350mm (~25-30mm longer than older models)
- Height: ~185mm
- Width: ~165mm
- Weight: ~3kg
Used by Spa Industries, Bullfrog, Signature, Designer, Leisurite, Heritage, Cyclone, Lanark, Heritage, H20, Artesian Spas, and many others.
These pumps have an in-built thermal limit switch. When the winding fails, they may overheat, and temporary switch off. This may be the source of Low Flow, HFL, or HL error codes in Balboa spa control systems.
Balboa Water Group Circulation / Filtration Pump Specifications:
- Part Numbers: Current 1031030 supersedes 1030017 / 1070017 / B-1070017 / 1030056 / APUMC2552A / APUMC2552B / APUMBCIR40 / 1031030 / Hydroair / b1031030 / b1030017 / b1070017
- Power: 0.25HP
- Voltage: 220-240 V
- Phase: 1
- IP Rating: IPX5
- Frequency: 50 Hz
- Current: 0.8-1.0 Amps
- RPM: 1400 RPM
- Max Head: 2.5m
- Max Water Temperature: 50°C

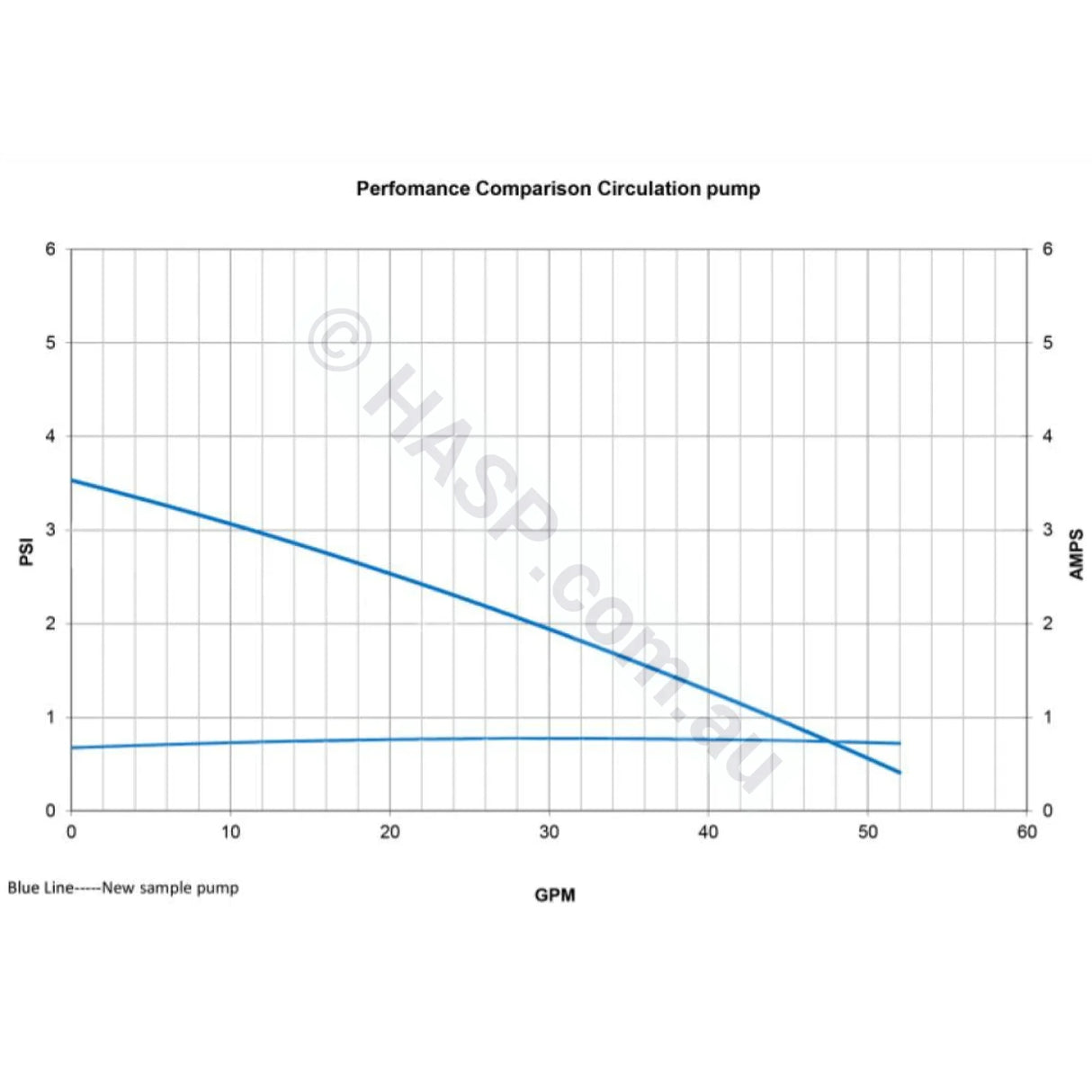

- Flow Rate: 100-150lpm / 127LPM @ 2.89m Head Pressure
- Energy Rating: 6 star energy rating - uses 460 kWh* per year (@ 6.5 hrs per day)
- Plug: AMP plug with 1.3m lead. Extension cable here.
- Unions: 40mm standard (not supplied)
Features
- Center suction / radial side discharge orientation - head can be rotated 90°
- Suction Port: 1.5" / 40mm
- Discharge Port: 1.5" / 40mm
-
Mechanical Seal: Carbon ceramic with Viton® elastomers
Balboa circ pump. Balboa filter pump.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
