Genuine Balboa 3.0kW M7 Heater Assembly - Updated Version - 3kW M7

Genuine Updated 2024+ Version - Replaces all older M7 style 3kW Balboa heater assemblies. 3.0kW M7 Balboa Instruments & Balboa Water Group heater assembly for all GS, VS, EL, GS, BP, Dominator series (and many other) spa controllers. This is the new 2024+ updated version that replaces the old copper connectors with Balboa's improved Plug N Click System.

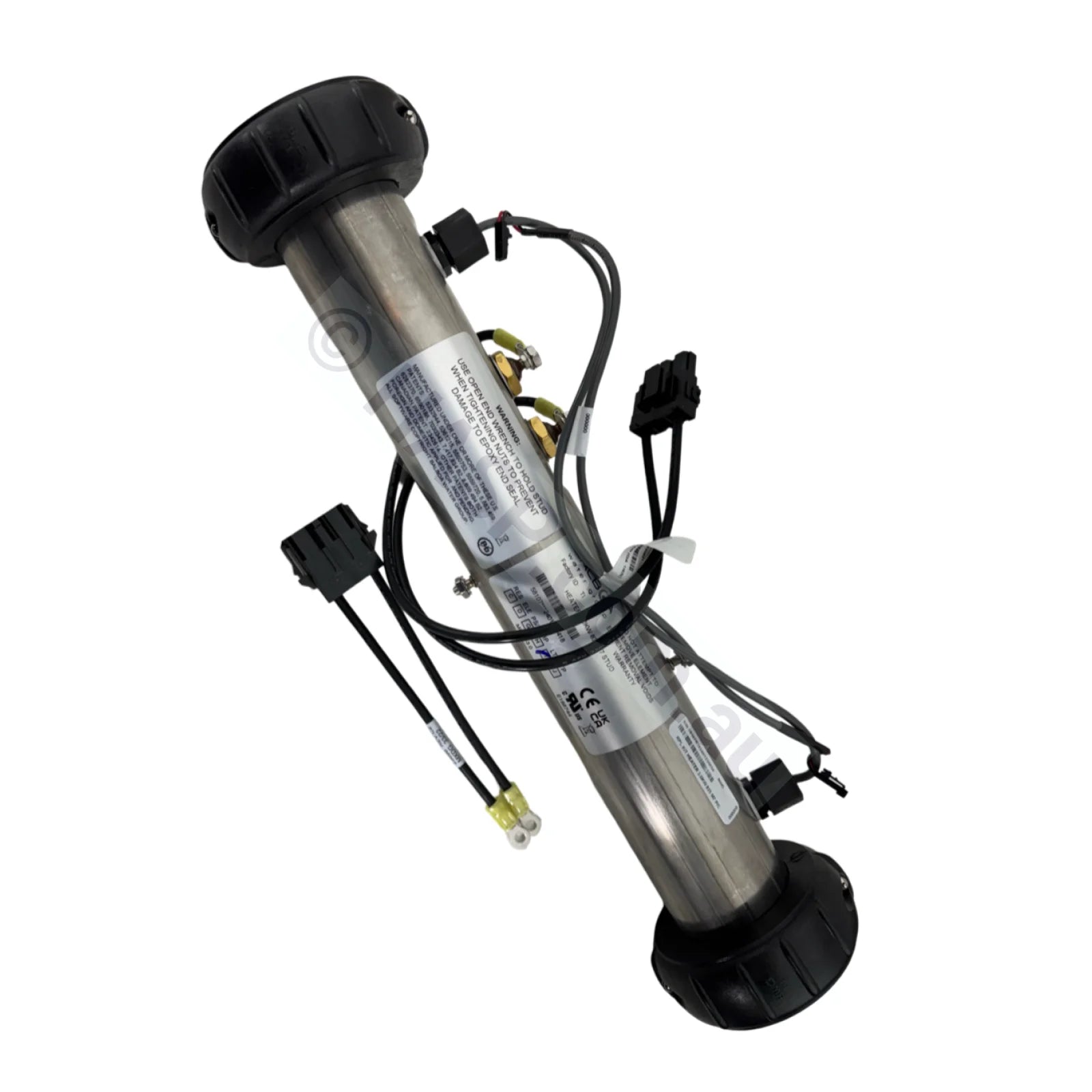

As of 2024, comes with the new easier-to-install Plug n Click loom as shown in first and second photos.

Replaces 58118, 55626, 58301 and others - See full list below.

Full Kit Includes Genuine Balboa M7 3.0kW Heater assembly, 2x Balboa M7 Temp Sensors, Plug n Click Lead, Plug n Click Adaptor (replaces copper connectors), Heater Gasket Seals.

Heater Only w/ Half Loom Includes Genuine Balboa M7 3.0kW Heater assembly, 2x Balboa M7 Temp Sensors, Plug n Click Lead - <— for replacing a heater that already has the adaptor such as in Balboa BP series control systems.

• Genuine Balboa product - now with 'Plug n Click' as of 2024. We note others are passing copycats & older versions off as "Genuine." (Thermcore versions are cheap knockoff.)
• Buy from a Balboa authorised dealer & service agent.
• Shipped Fast from NSW, VIC, QLD, WA
• Can be picked up.
• Australia's largest supplier of spa parts & heaters. We keep physical stock and are not a "drop-shipper" like many online sellers.

Important - Please Read: As of 2024 new M7 Balboa heaters come with an attached Balboa Plug n Click lead as per photo. Replace the old copper connectors with the new Plug N Click adaptor. This makes future replacements faster, easier, and safer!

Electricians: Simply remove the 3/8” SS Nuts from the main PCB to remove the old copper connectors, and replace with the ring terminals on the new loom adaptor. Reinstall the 3/8” SS Nuts and tighten properly. Fit heater and plug the Male & Female together.

Failure to tighten connections properly will result in overheating and may damaged components.

We have noted some online sellers are removing the Plug n Click leads. Failure to use the Plug n Click system will result in a rejection of warranty from Balboa.

• Length: 381mm or 15"
• Diameter: 57mm or 2.25" (referred to as 2")
• Overheating due to improperly tight connections and damage to heater studs is not covered by warranty.

Suits all Twin-Sensor M7 Balboa Systems without pressure switch. This the most most common spa heater since the 2000s. Used by Spa Industries, Signature, Cyclone, Leisurite, Bullfrog, Designer, H2O, LA Spas, USA Spas, Spas Direct, and many others.

• 2 x sensor mounts - suits twin sensor M7 systems. Also suits Dominator, BP, GS, GS501, GS501Z, GL, BFBP, ES, GS series and many others. See list below.
• Comes with heater tube, heater element, and twin sensors

Replaces the following part numbers:
53475, 53475, 53475-01, 53883, 53883-01, 53883-02, 53475-01, 53883-03, 53883-04, 53885, 53885-01, 53885-0253883, 53885-03, 53885-04, 53996, 54282, 54282-01, 53883-01, 54282-02, 54282-03, 54282-04, 54297, 54297-01, 53883-02, 54297-02, 54297-03, 54305, 54305-01, 54305-02, 53883-03, 54346, 54346-01, 54406, 54476, 54476-01, 53883-04, 54479, 54479-01, 54479-02, 54501, 54501-01, 53885, 54503, 54503-01, 54699, 54705, 54850, 53885-01, 54850-01, 55085, 55085-01, 55087, 55087-01, 53885-02, 55496, 55496-01, 55565, 55595, 55595-01, 53885-03, 55866, 55866-01, 55890, 56002, 56002-01, 53885-04, 56002-02, 56002-03, 56002-04, 56004, 56004-01, 53996, 56012, 56012-01, 56012-02, 56220, 56282, 54282, 56290, 56290-01, 58061, 58118, 58215, 58107, 58118, 58118KIT1, 58300, 58301, and more

HEATER 3.0KW 15" 2X2" M7 STUD - BALBOA WATER GROUP - MIL15 3.0
