Balboa Oval Spatouch - Colour Touchscreen 50403

This product is no longer available.

Scroll down for replacement options and more information.

Description

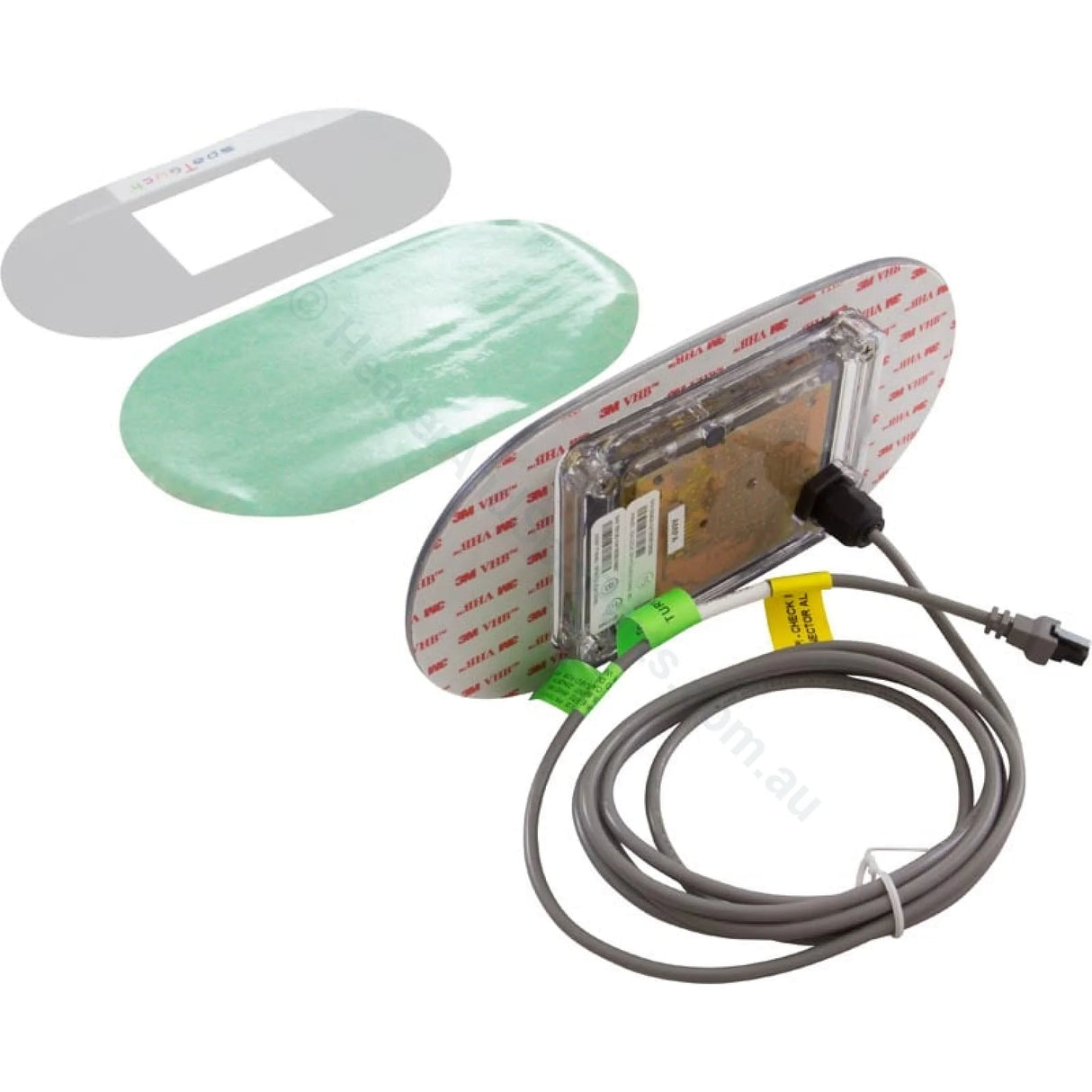

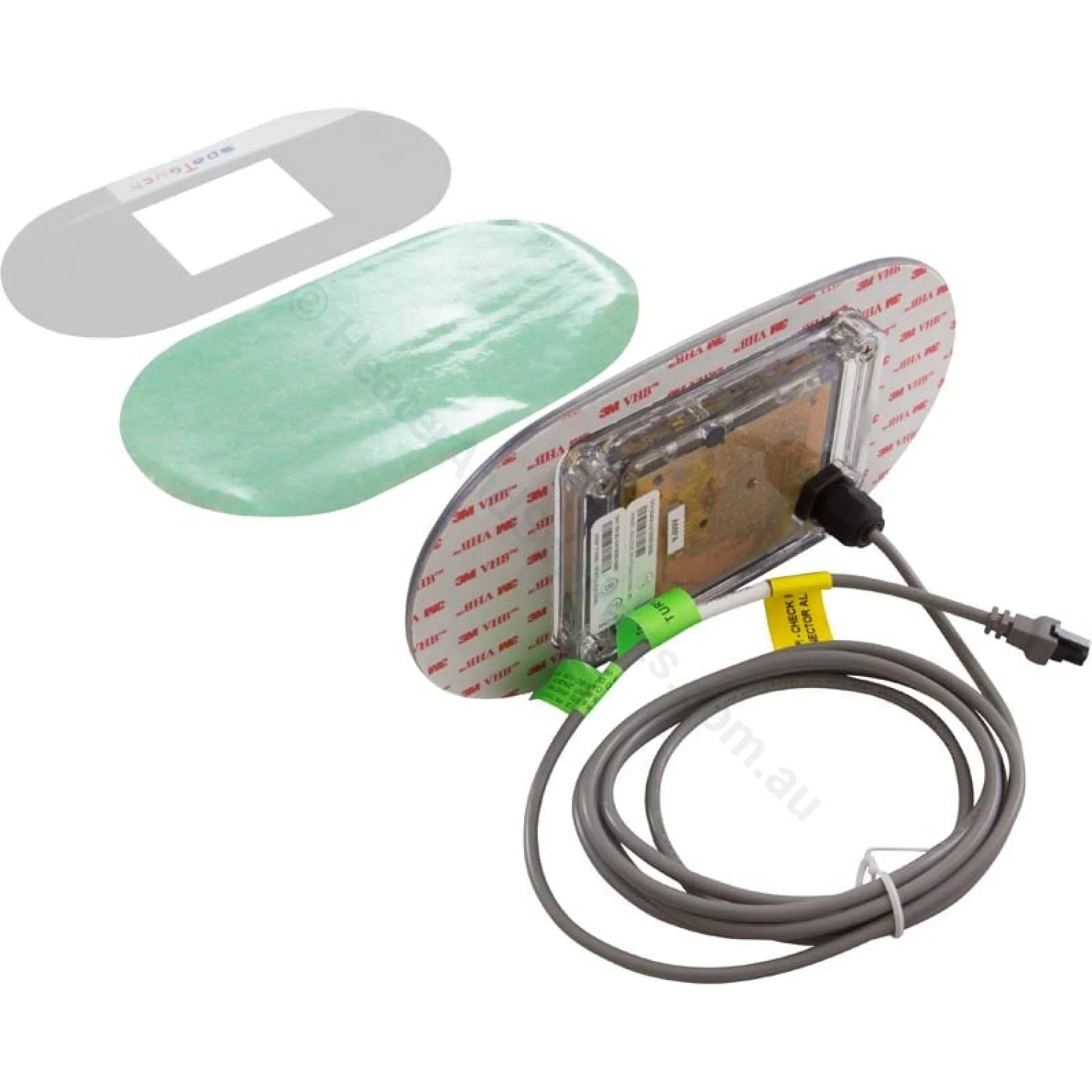

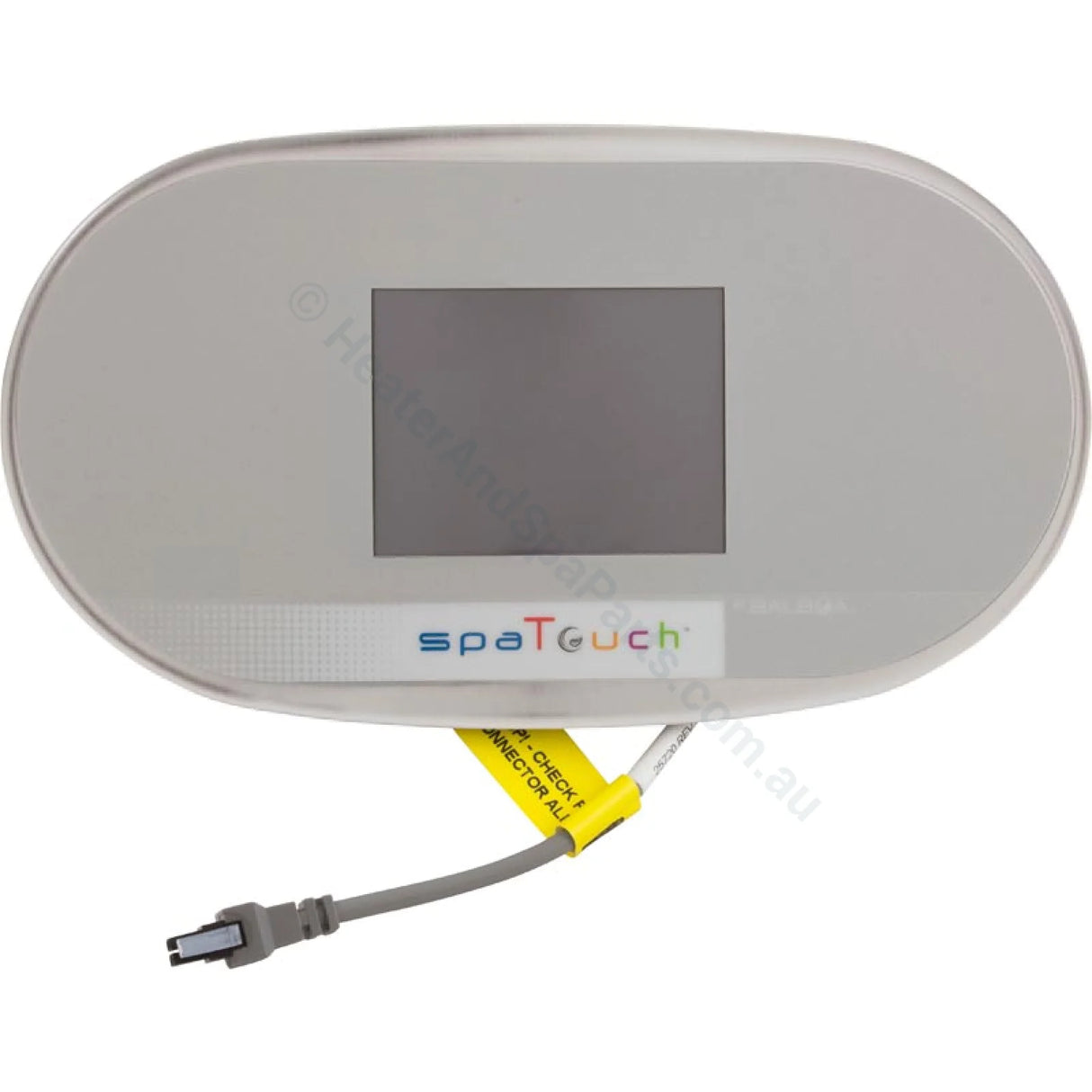

Balboa SpaTouch Oval 50403 touchpad / control pad / touch screen. No longer available. Replaced with the Spatouch 2 listed here.

Dimensions & Details:

  • Width: 225mm
  • Height: 125mm
  • Hole size required: 120mm x 90mm
  • Plug type: 4 pin (may have adaptor).
  • Cable Length: 3m
  • Note: Older Balboa BBA Audio systems are no longer compatible with new touchpads. As a result, you will lose audio functions with any new touchpad.

Important Information:

  • Do not fit this touchpad where the spa cover can press on the touch screen.
  • Do not leave touchpad exposed to sun for long periods.

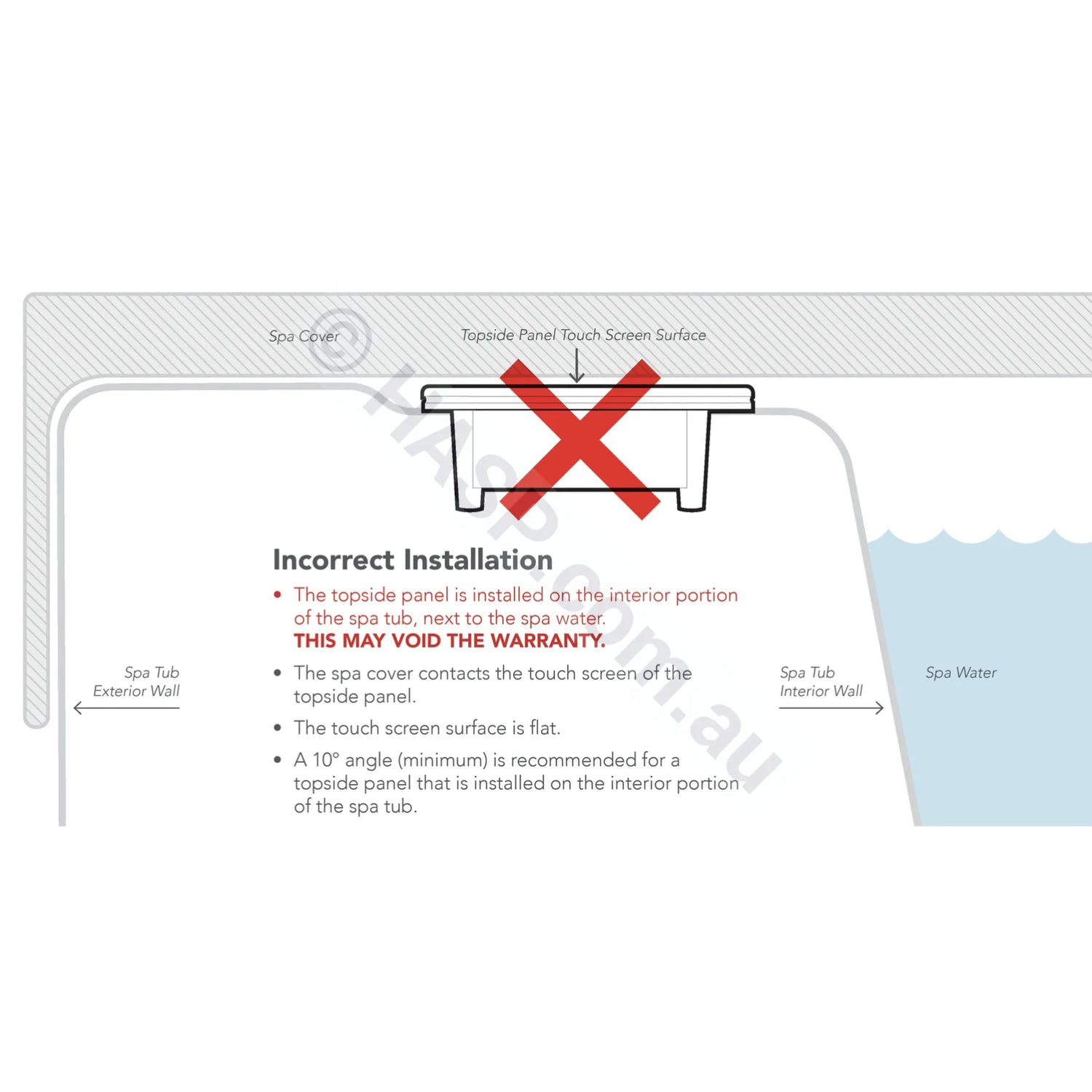

  • Balboa recommends installation on the outside/exterior portion of the spa shell, angled away from the water.
  • If fitted on the interior portion of the spa shell, the panel surface should be on an angle away from the spa water.
  • Flat, or angled in the direction of the spa water, installation in this position is not to specification.
  • Some Chinese spa manufacturers fitted these touchpads against Balboa’s guidelines. See listing images.
  • Warranty may not apply where installed outside Balboa’s specifications.
  • The spa cut-out hole may need modification when replacing older obsolete touchpads.
