Balboa Spa Industries Dominator SIBP601X w/ 3.0kheater
Balboa Spa Industries Dominator SIBP601X w/ 3.0kheater is backordered and will ship as soon as it is back in stock.

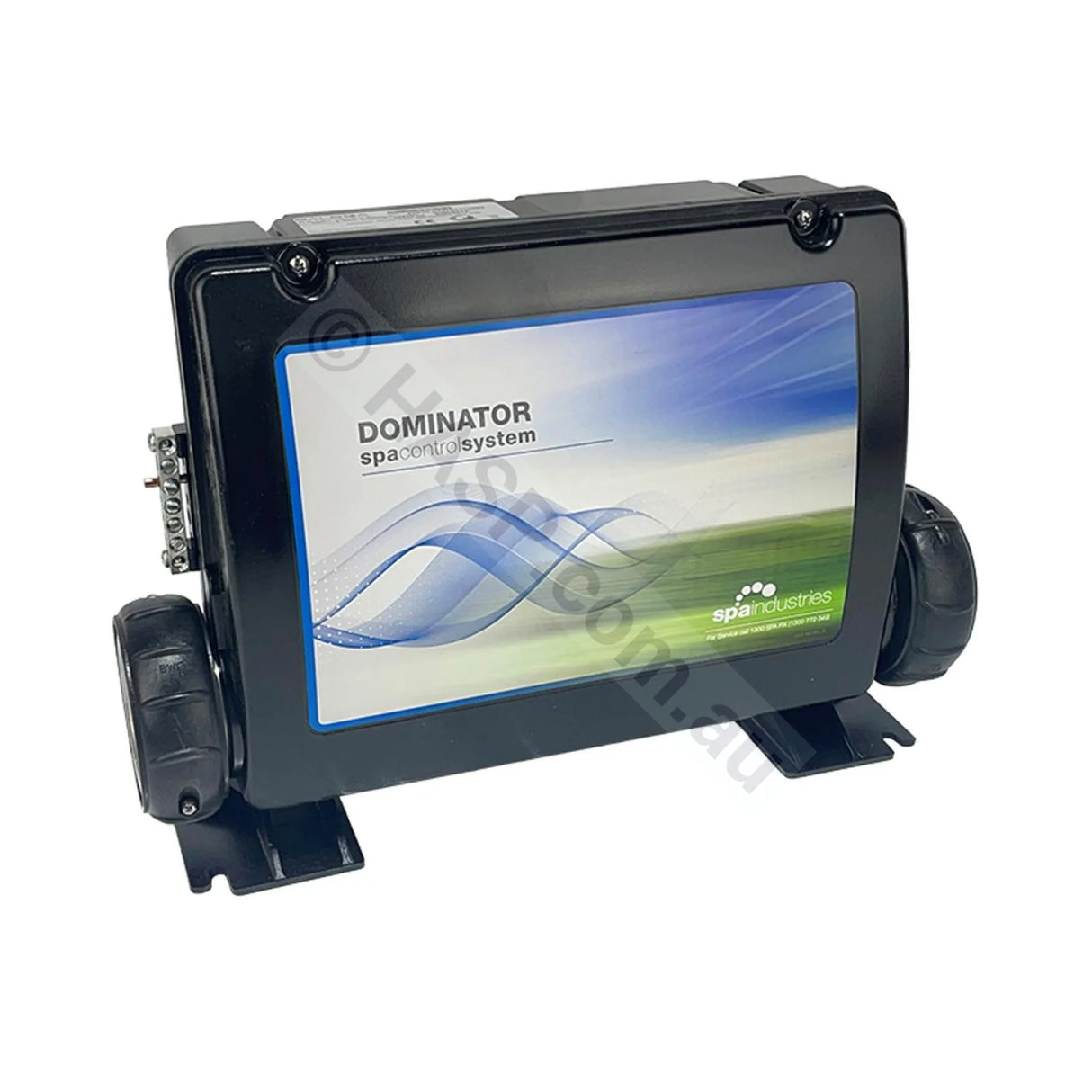

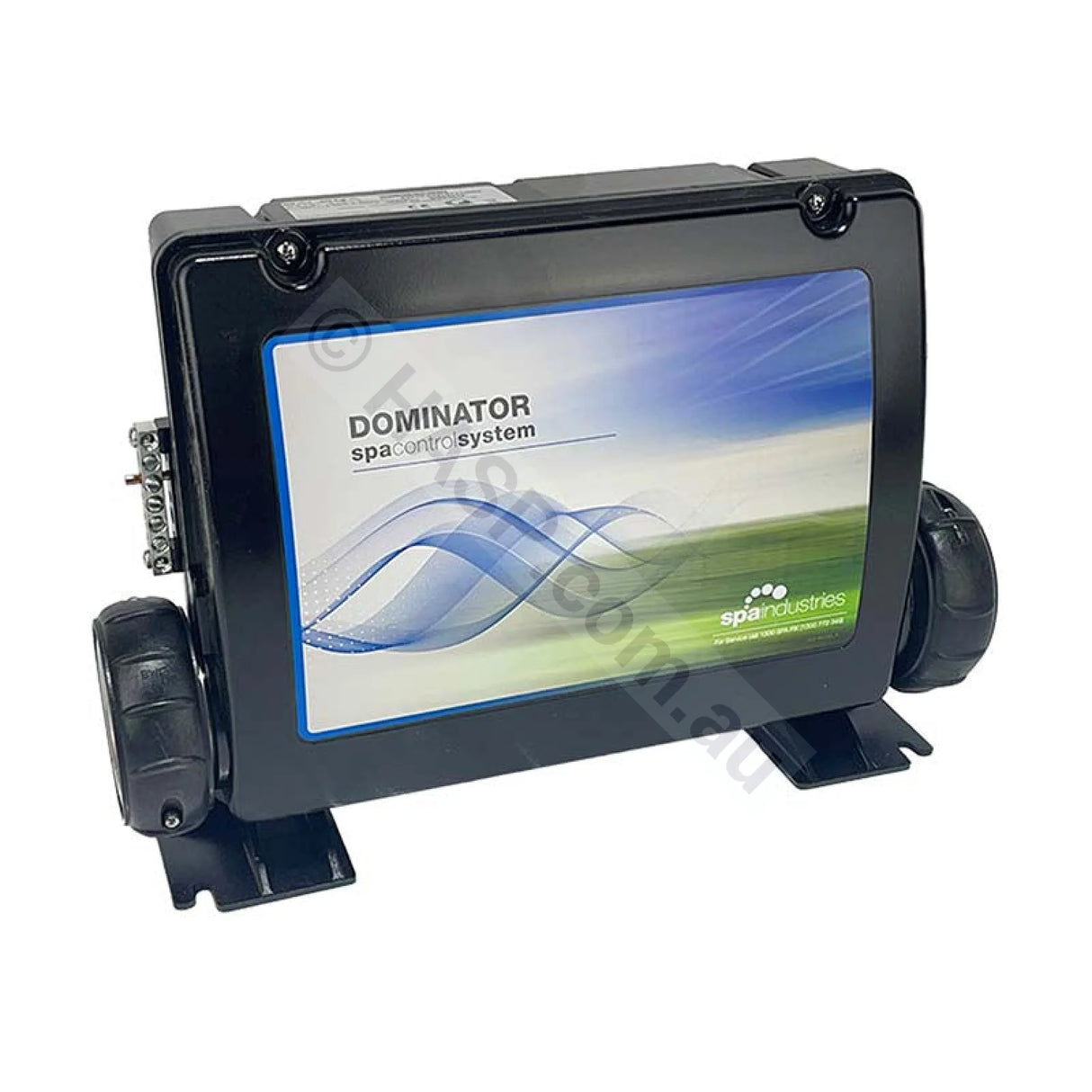

Balboa SIBP601X Dominator Controller. Used by Spa Industries. Touchpad sold separately. This version replaces all older versions.
For installation, please refer to the table below, software setups. To enter Setup Menu, you will need to refer to the Tech Sheet here. Must be fitted by a qualified and experienced person only.
| Setup No | Circ Pump | Pump 1 | Pump 2 | Blower |
|
1 |
Filters & Polling | 1-Speed | 1-Speed | 1-Speed |
| 2 | Filters & Polling | 1-Speed | 1-Speed | none |
| 3 | Filters & Polling | 1-Speed | none | 1-Speed |
| 4 | Filters & Polling | 1-Speed | none | non |
| 5 | none | 2-Speed | 1-Speednon | 1-Speed |
| 6 | none | 2-Speed | none | 1-Speed |
| 7 | none | 2-Speed | none | none |
| 8 | Filters & Polling | 2-Speed | none | none |
| 9 | Filters & Polling | 2-Speed | none | 1-Speed |
SIBP601X 240volt Output Sockets
- CPUMP: Circulation Pump (Must be used if Pump 1 1Spd)
- PUMP 1: 1Spd Pump or 2Spd Pump
- PUMP 2: 1Spd Pump
- BLOWER: Blower
- 240V: This outlet has a constant 240volts and is not switchable
- O3/UV: This outlet is only to be used with an ozone system
SIBP601X Low Voltage
- 2 x Touchpad Outlets
- 1x AUX
- 1 x Light
- 1 x Wifi Port
SIBP601X Features
- In-heater temp sensors
- Max Temp 40 degrees
- Adjustable Filtration
- Heater Modes (Ready/Rest)
- Wifi Interface
- Programmable Load Shedding
B-56539-04
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
