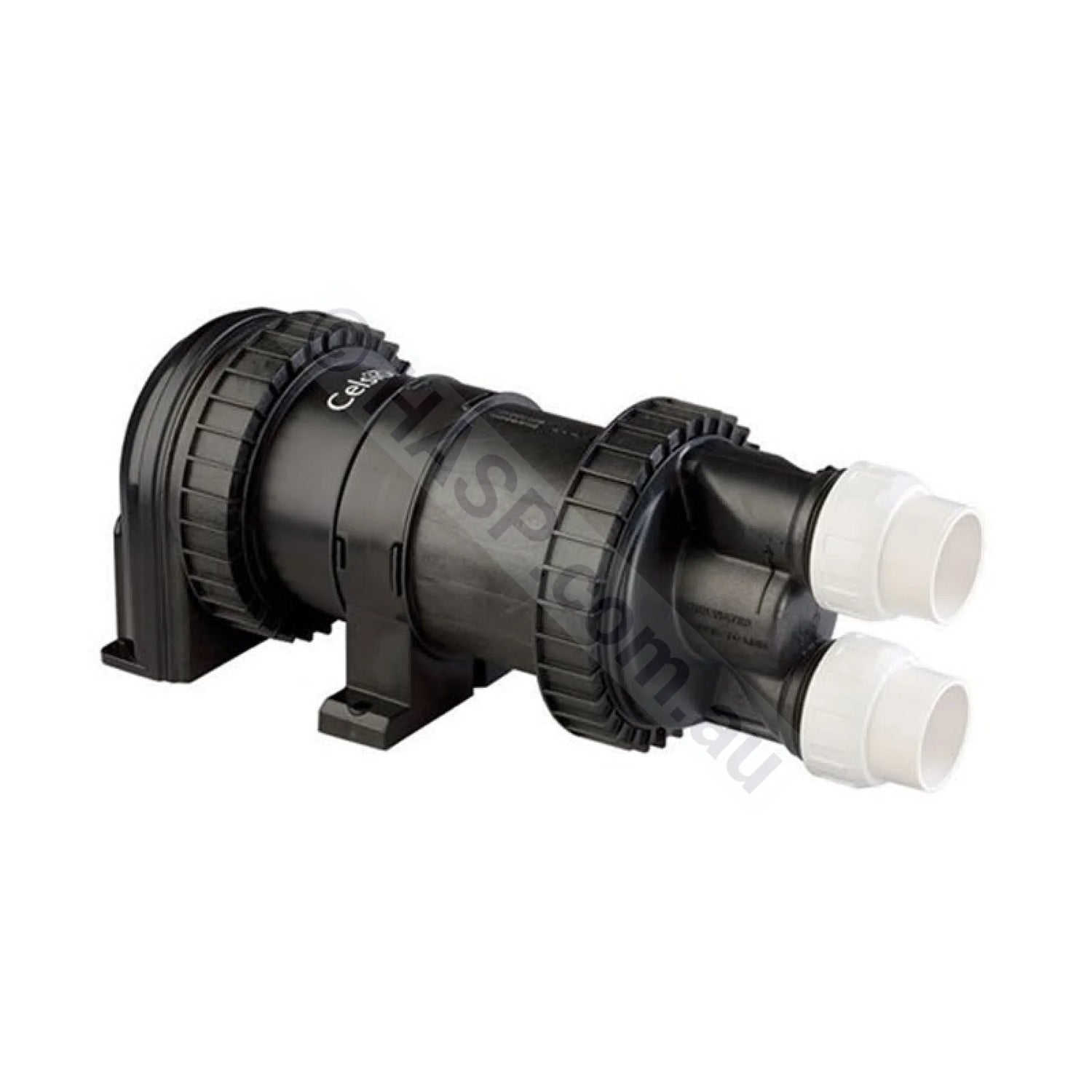

Obsolete - Davey Celsior Spa Bath Pumps - C400 Series - 2HP

Obsolete - See Replacement Options Below. Note all replacements will require the old unions to be cut off and new ones fitted.

• C400A Replacement - Edgetec 1.5HP Xtra Heat
• C400AB Replacement - Edgetec 1.5HP Xtra Heat

• C400TB Replacement - Edgetec 1.5HP Sensaheat

Archived Information:

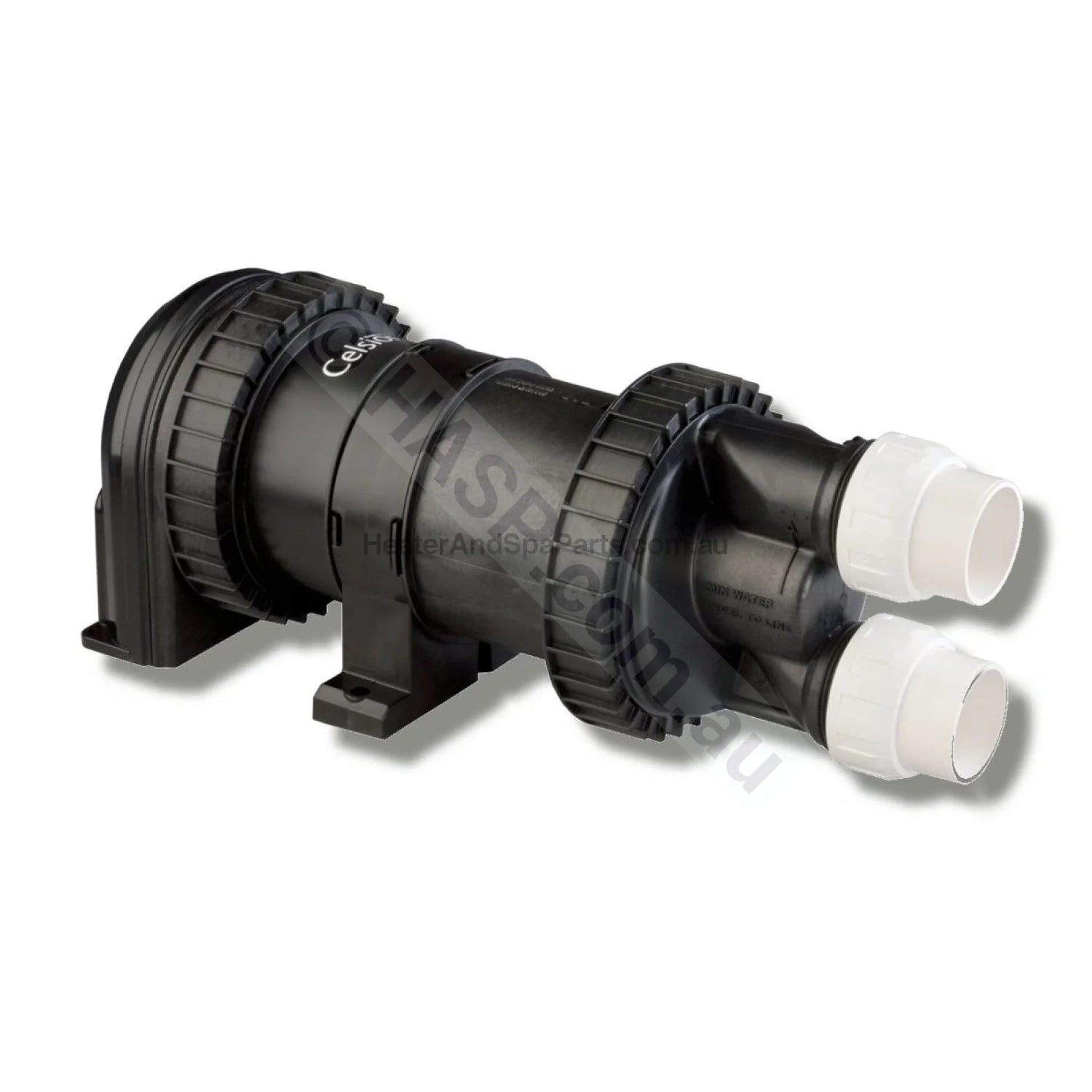

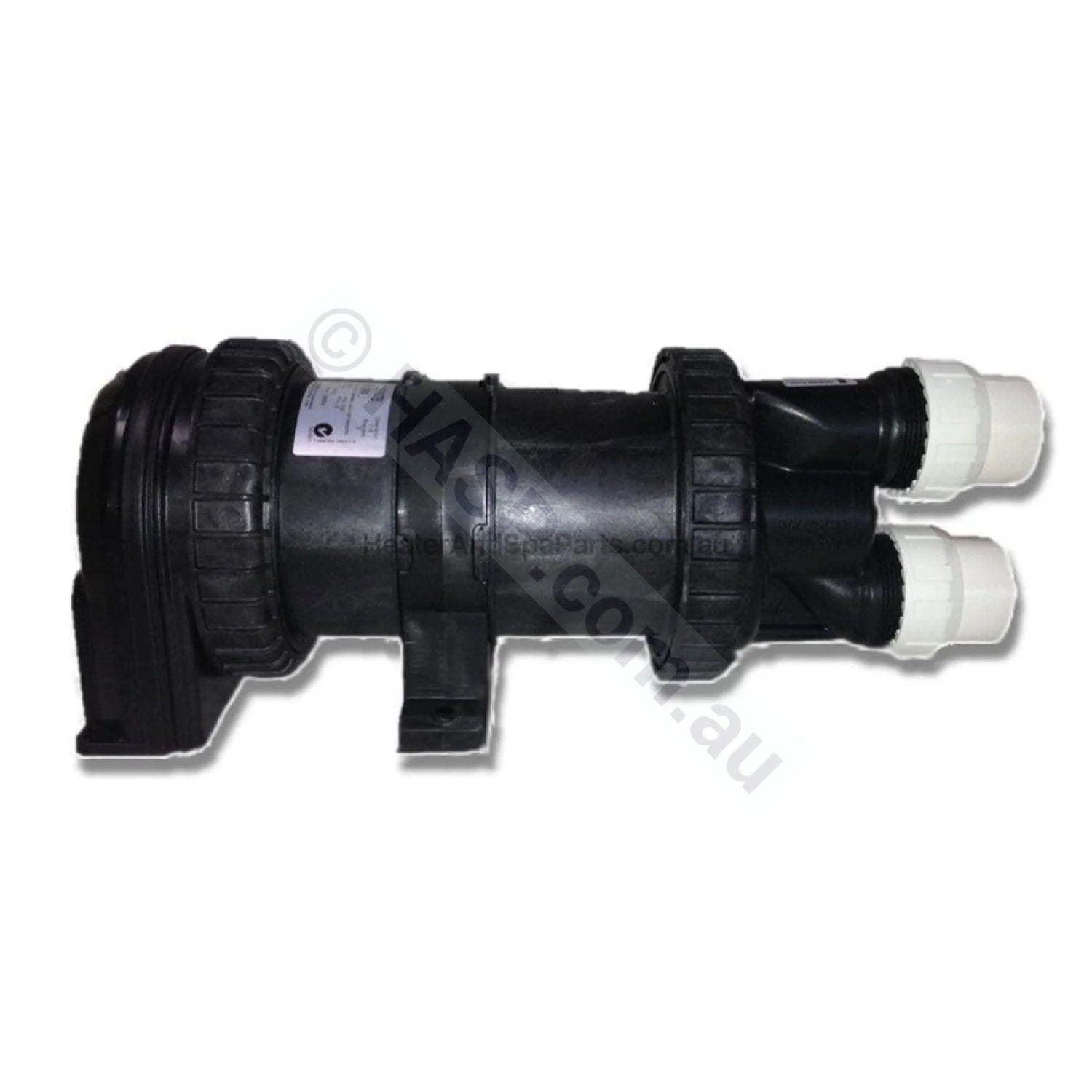

Davey Celsior Spa Bath Pumps. This pump has Heat Maintenance Technology. It provides a stable maintained water temperature from the water cooled motor(It does not heat the water but maintains it)

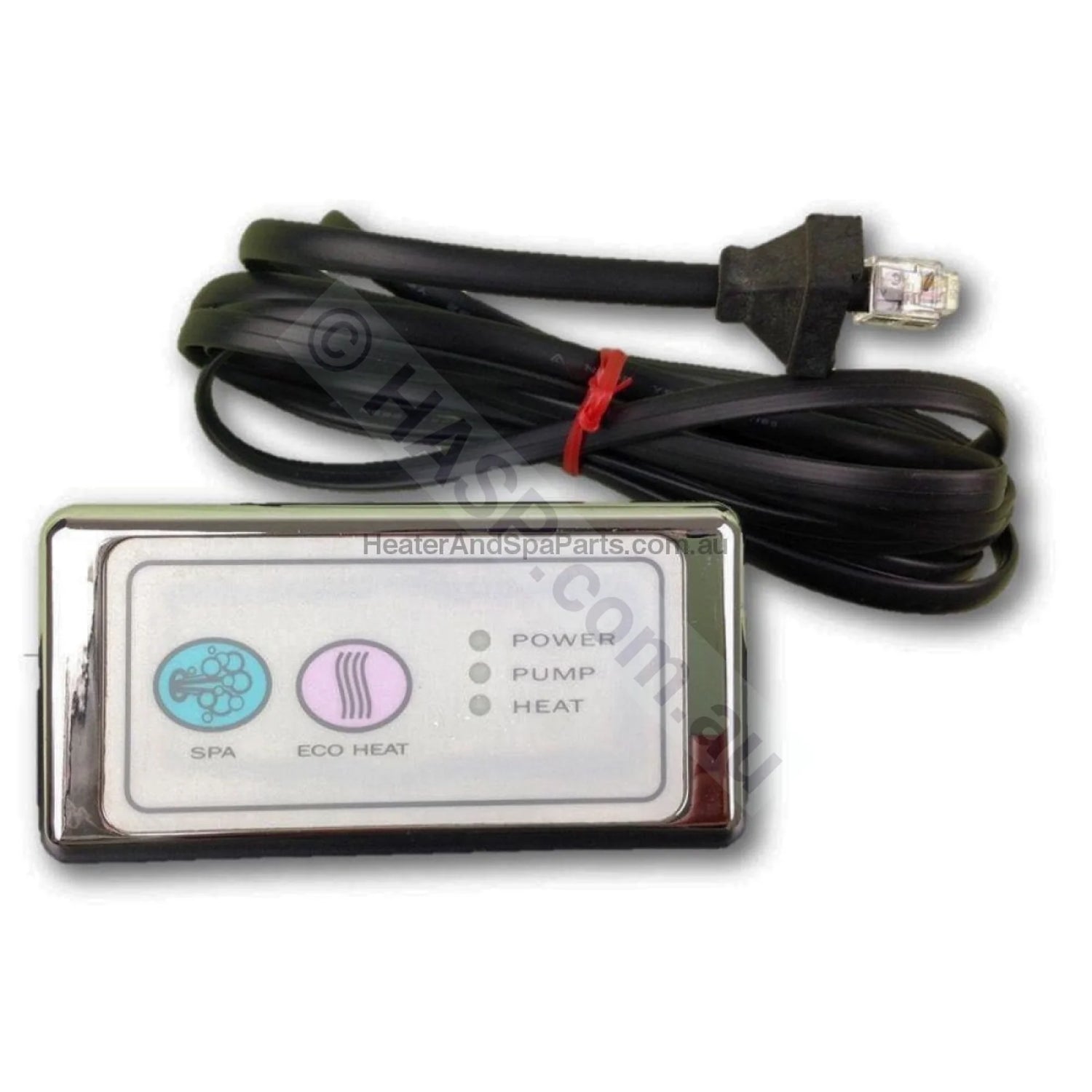

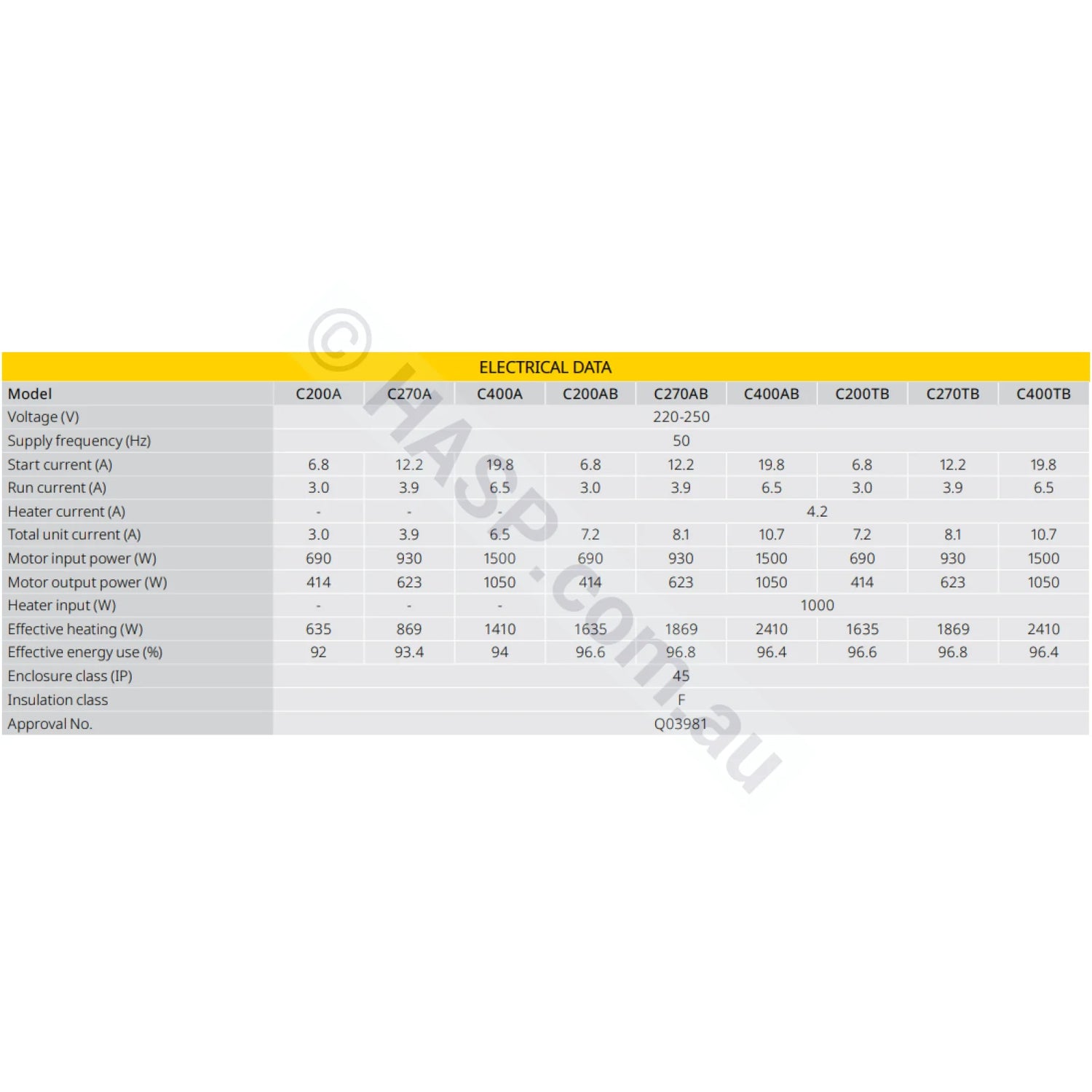

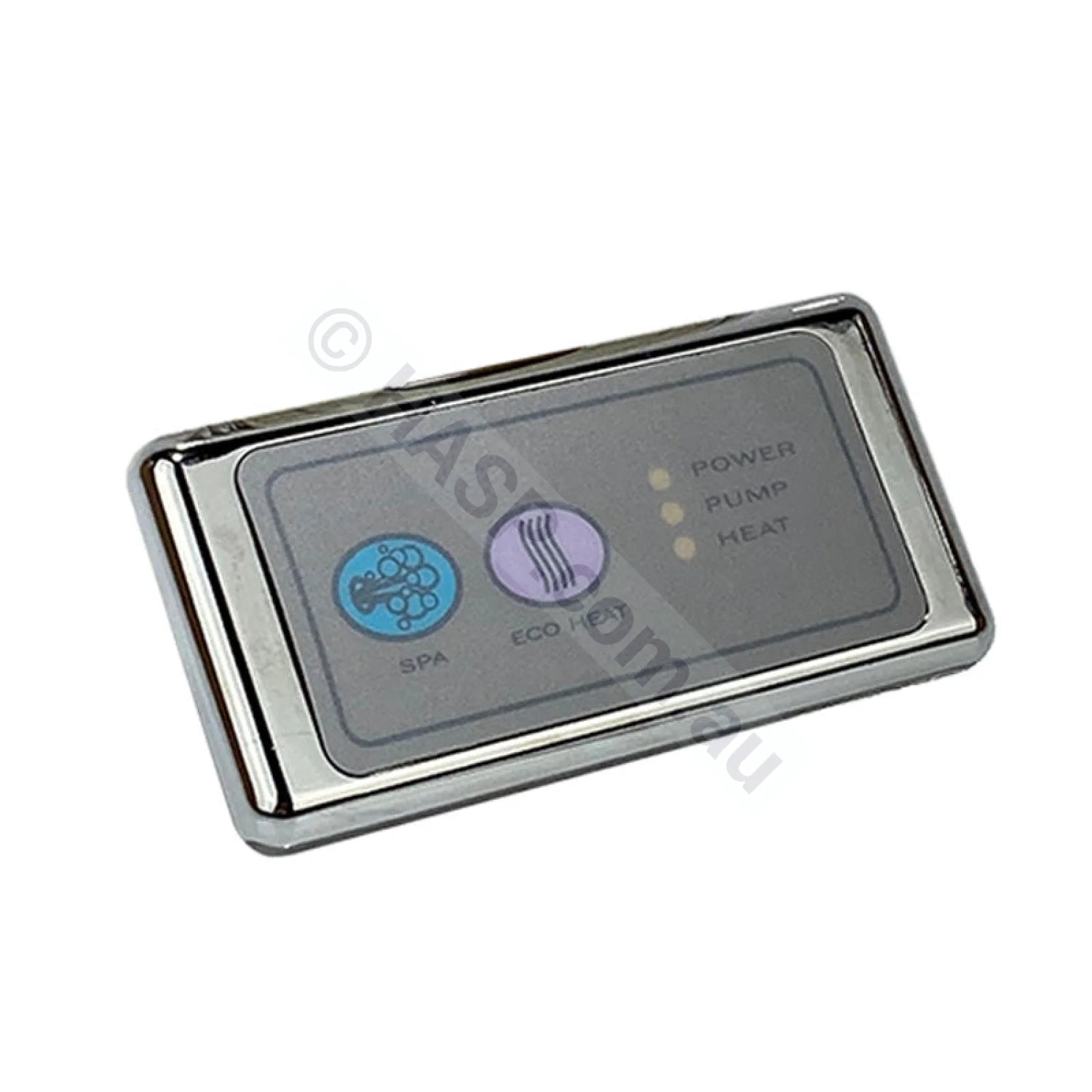

C400A -  1500Watt with 2hp. It has the inbuilt air switch(air button sold separately) and comes with a 10amp plug.

C400AB - 1500Watt with 2hp and a 1Kw heater element. It has the inbuilt air switch(air button sold separately) and comes with a 10amp plug.

C400TB

This pump retro fits the Davey XS 200 Spa Bath range & has the same barrel unions.

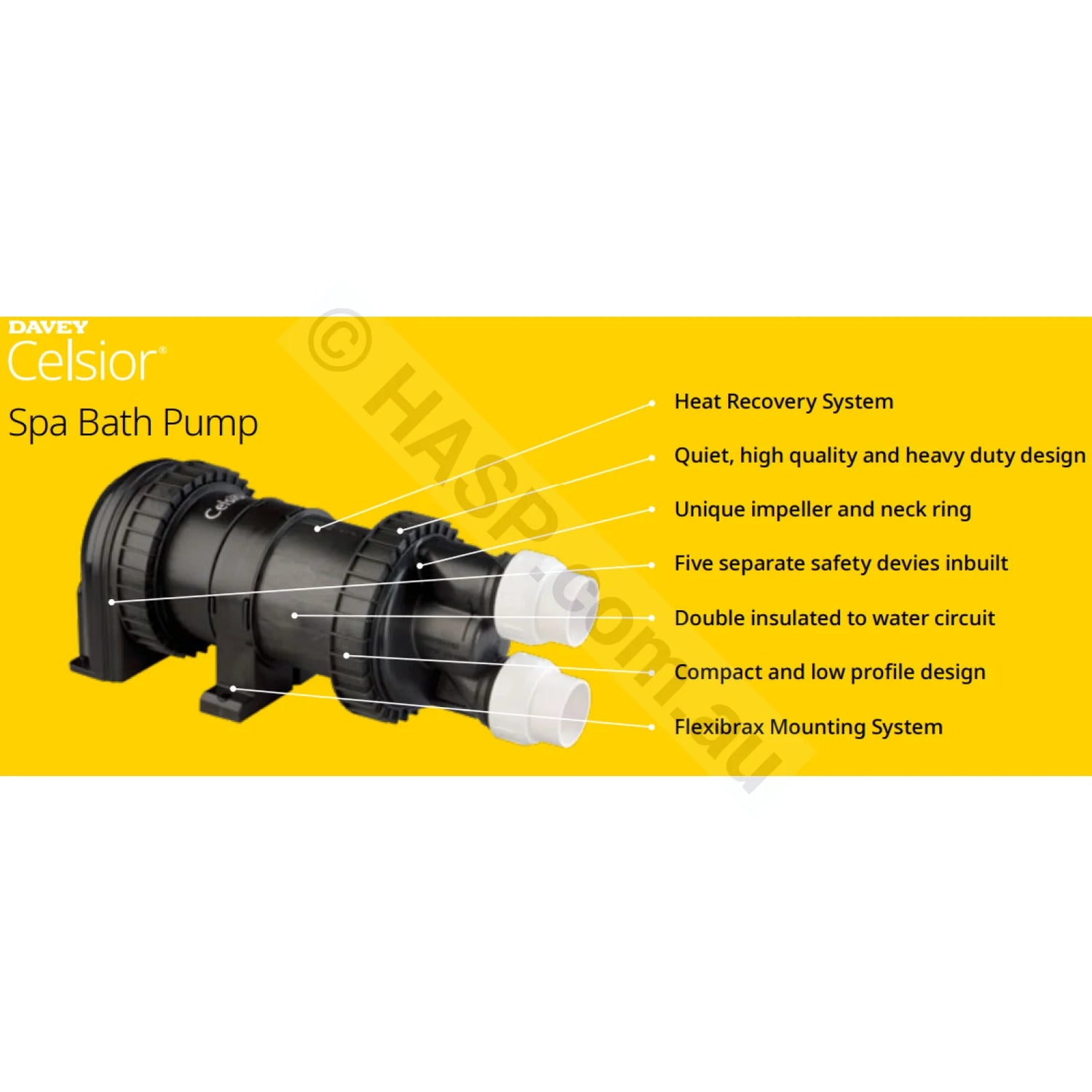

 Features & Information:

• Double insulated to water circuit and designed to exceed standards for electrical safety, with up to 5 safety devices that monitor environmental and pump conditions
• Up to 50% quieter than other pumps which provides a more enjoyable spa experience that will not disturb your well deserved relaxation or your neighbours

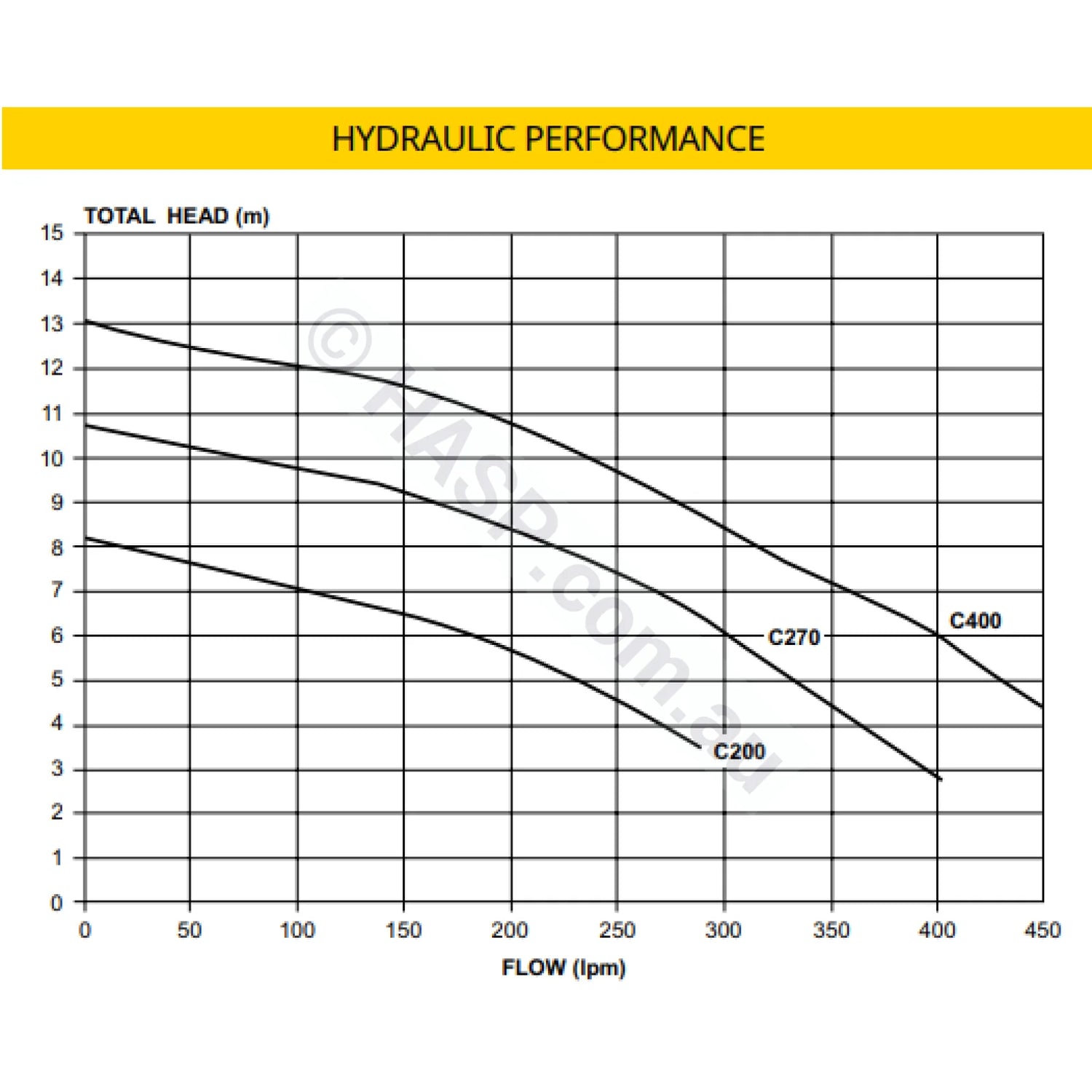

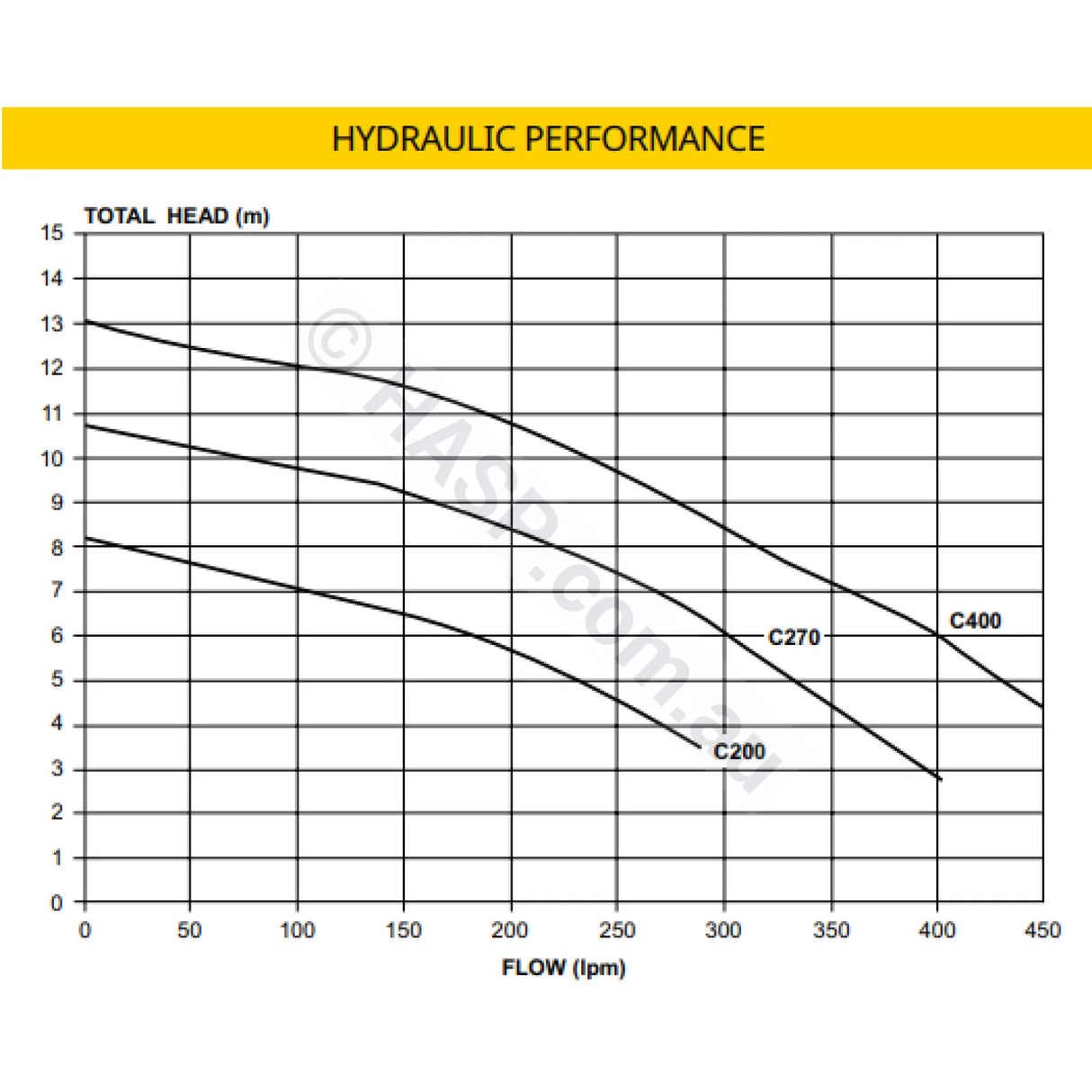

• With pumps as large as 2HP, and three unique patented features, Celsior pumps deliver greater water flow and pressure, enlivening your spa for a complete massaging effect
• Patented ‘heat maintenance technology’ uses motor heat to assist in maintaining the water temperature
• Environmentally friendly and highly efficient with up to 97% effective energy usage
• High efficiency impeller lowers running costs, delivering savings of up to 15% over older style spa bath pumps
• Unique impeller neck ring increases water pressure and flow
• Quick and easy to install using the Davey ‘Flexibrax’ which makes wall mounting possible with no extra parts and maximises the flexibility and space within your bathroom
• Designed to self-drain free of water after each use, prevents build up of stale unhygienic water for your peace of mind
• ‘No water’ protection prevents heater operation if the pump is run in the absence of water
• All Celsior models feature automatic shutdown protection if the pump is run without water or the suction is blocked

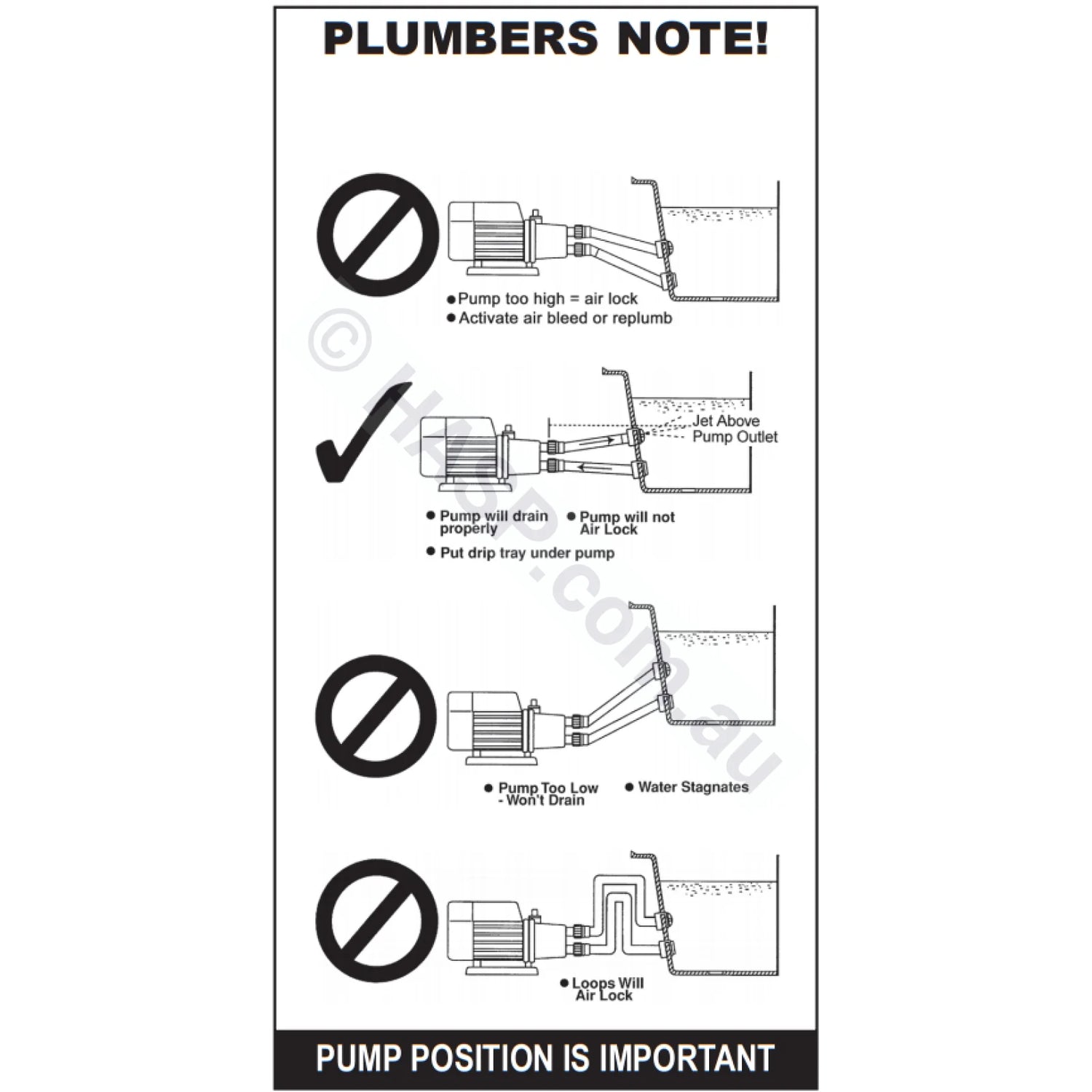

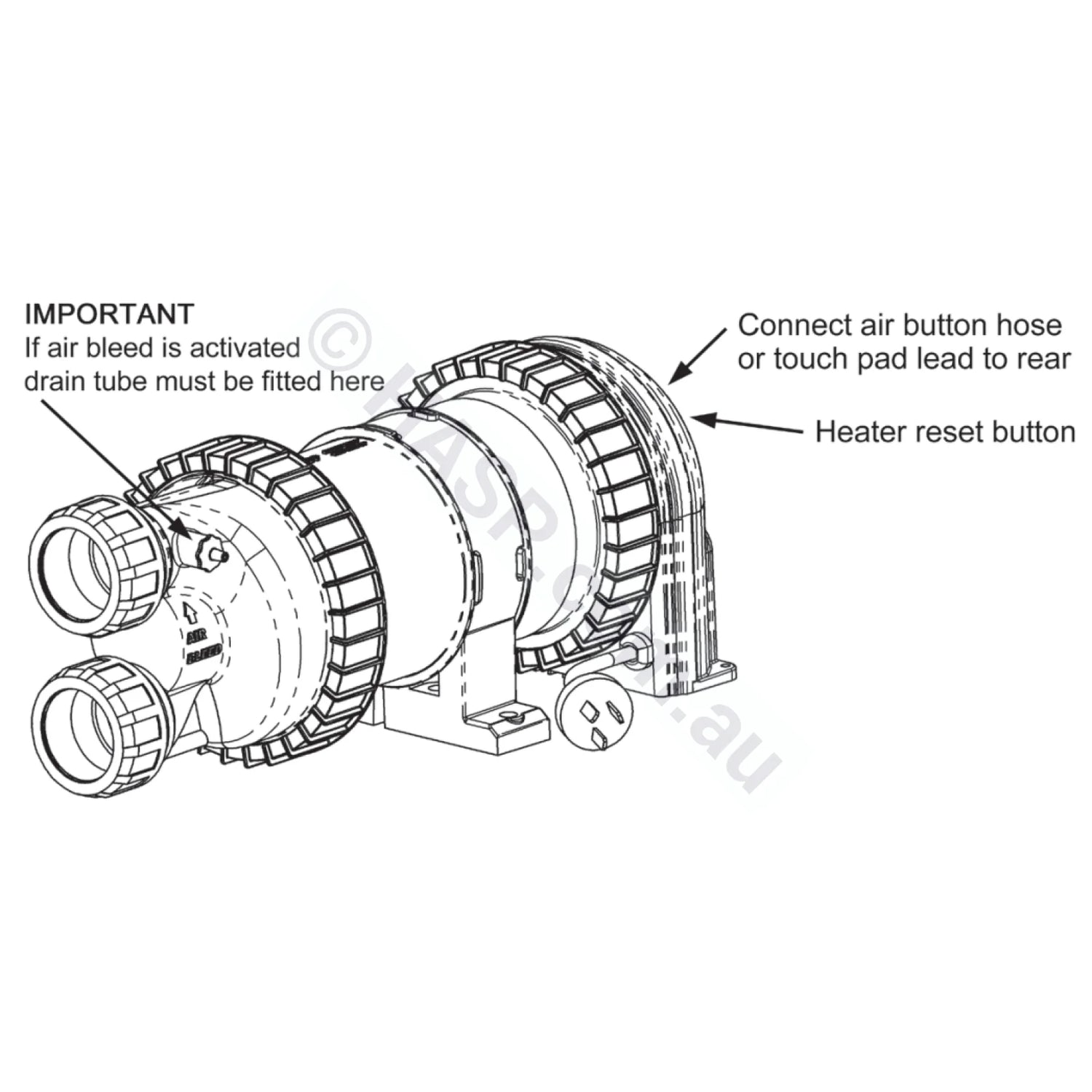

• Built-in automatic air bleed, enables air to be released from the pump, to assist priming performance in difficult installations

Instruction & Information Manual
