Davey CrystalClear ER (2026+) Cartridge Filters - 135ft², 180ft², 225ft² and 270ft²
Davey CrystalClear ER (2026+) Cartridge Filters - 135ft², 180ft², 225ft² and 270ft² - is backordered and will ship as soon as it is back in stock.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Davey CrystalClear ER (2026+) Cartridge Filters - 135ft², 180ft², 225ft² and 270ft² - is backordered and will ship as soon as it is back in stock.
Davey CrystalClear cartridge filters are a water-saving, low-maintenance filtration option for pools and spas where you want clear water without the mess and water waste of backwashing.
We keep these physically in stock for fast shipping or local pick-up, unlike most drop-shipping websites.
If you are replacing an older AstralPool ZX cartridge filter, Davey CrystalClear, Davey EasyClear, or most other cartridge filters, the Davey CrystalClear ER range is often the closest current alternative by size class, filtration area, and flow rate. These filters are ideal where backwashing is not practical, where water may be scarce, or where a simple cartridge filter is preferred.

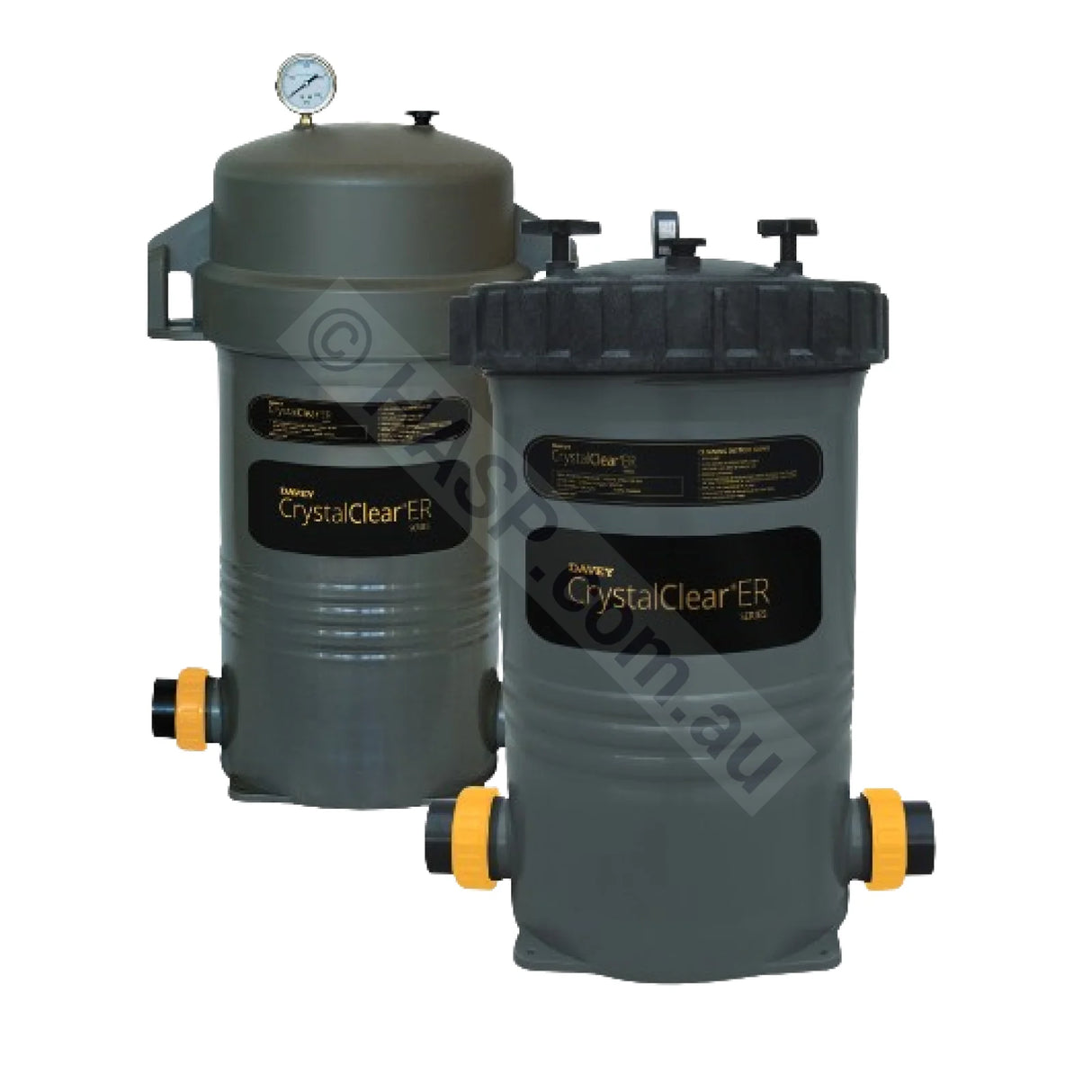

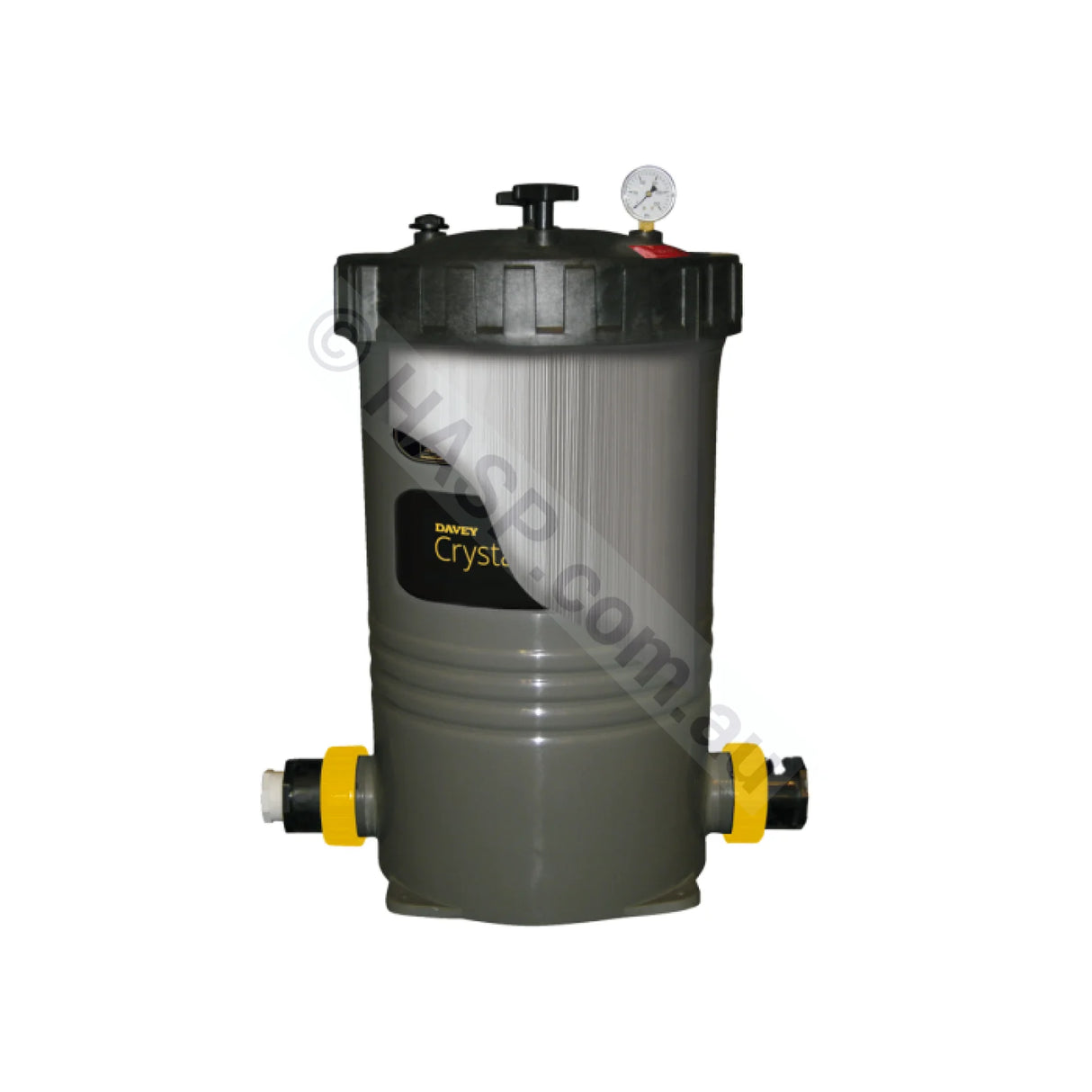

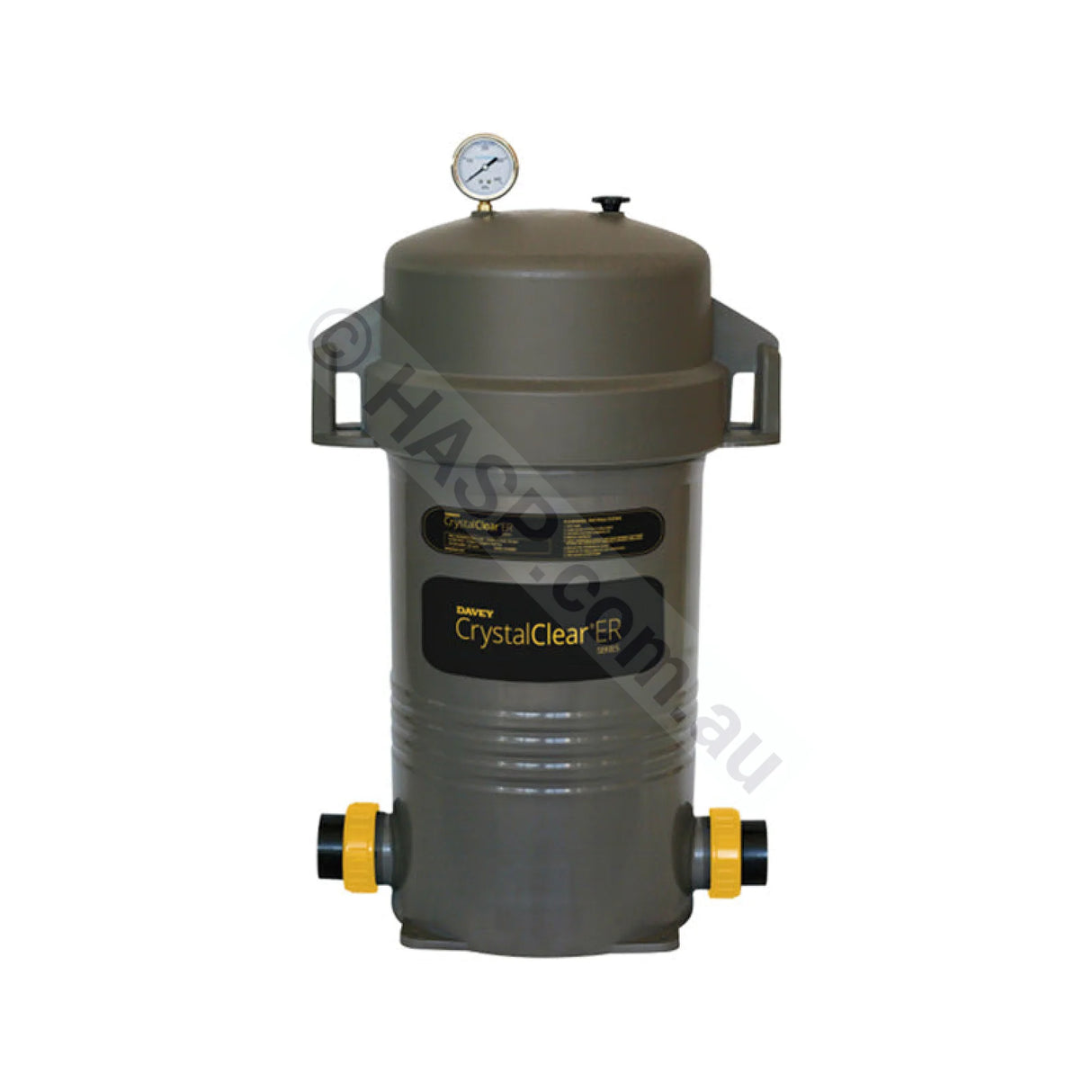

The Davey CrystalClear range is available in 135ft², 180ft², 225ft² and 270ft² models, with a solid one-piece polypropylene tank, reusable polyester cartridges, a pressure gauge, manual air bleed, and 50mm quick connect barrel unions supplied for installation.
Why People Replace AstralPool ZX Filters With Davey CrystalClear ER
AstralPool ZX cartridge filters were a compact, low-height cartridge filter range widely used on Australian pools and spas. The closest Davey CrystalClear crossover is generally:
- AstralPool ZX 100 = Davey DCC135
- AstralPool ZX 150 = Davey DCC180
- AstralPool ZX 200 = Davey DCC225
- AstralPool ZX 250 = Davey DCC270
These are the closest corresponding sizes, not guaranteed drop-in replacements. Always compare dimensions, pipe layout, union style, and the clearance needed above the filter to remove the cartridge element.

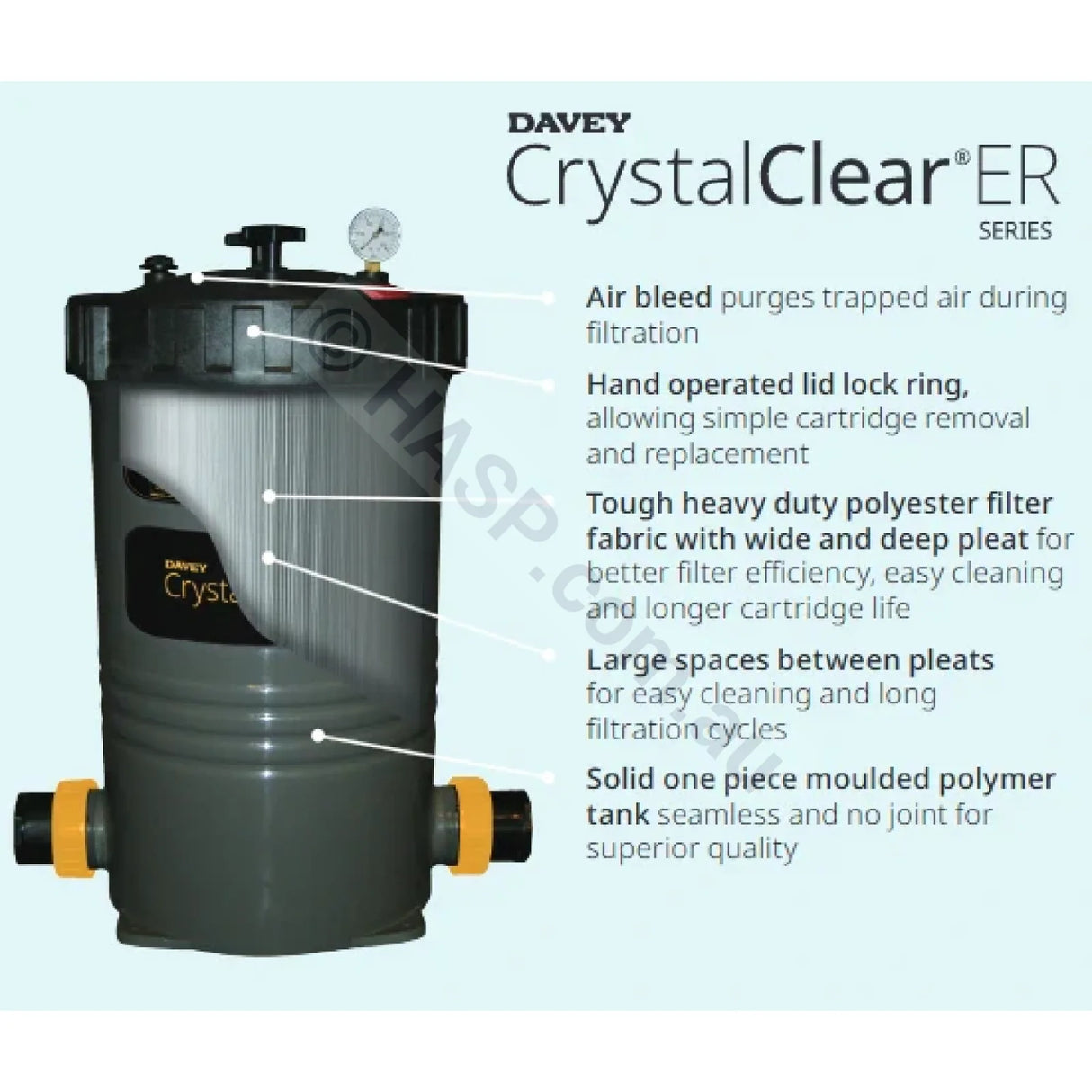

Features & Benefits
- Provides crystal clear water with minimal maintenance
- Less water used, with no backwashing needed
- Ideal where backwashing may not be practical or where water may be scarce
- Tank constructed from high-impact polypropylene as a solid one-piece mould for long non-corrosive life
- Low-profile design with easy access to the filter cartridge for removal, cleaning and installation
- Quality pressure gauge makes it easy to see when element cleaning is required
- Manual air bleed allows the filter to be depressurised before opening for cleaning
- Heavy-duty reusable polyester filter cartridges with wide and deep pleats for good filter efficiency, easy cleaning and longer cartridge life
- Replacement filter elements available
- 50mm quick connect barrel unions supplied for simple installation
- Maximum flow rate up to 510 lpm
- Maximum working pressure 250 kPa

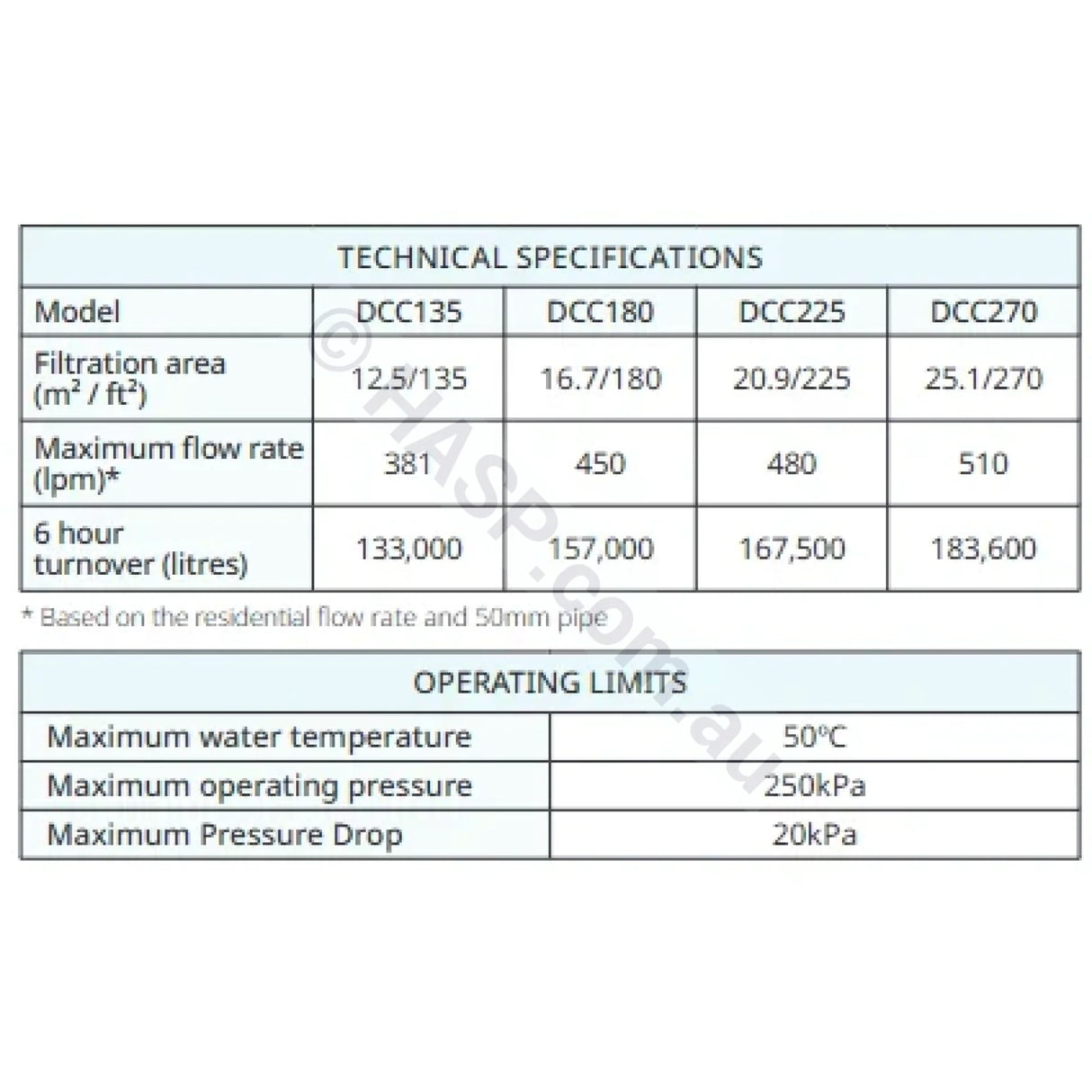

Davey CrystalClear Model Sizes
- DCC135 – 12.5m² / 135ft² filtration area, 381 lpm max flow
- DCC180 – 16.7m² / 180ft² filtration area, 450 lpm max flow
- DCC225 – 20.9m² / 225ft² filtration area, 480 lpm max flow
- DCC270 – 25.1m² / 270ft² filtration area, 510 lpm max flow
AstralPool ZX vs Davey CrystalClear Comparison
| AstralPool ZX Model | Davey Equivalent | ZX Filter Area | Davey Filter Area | ZX Max Flow | Davey Max Flow | ZX Height | Davey Main Height / Clearance |
|---|---|---|---|---|---|---|---|
| ZX 100 | DCC135 | 9.4m² | 12.5m² | 375 lpm | 381 lpm | 710mm | C: 668mm, D: 1000mm clearance |
| ZX 150 | DCC180 | 14.0m² | 16.7m² | 445 lpm | 450 lpm | 710mm | Same DCC135 / DCC180 body family |
| ZX 200 | DCC225 | 19.0m² | 20.9m² | 490 lpm | 480 lpm | 910mm | C: 811.5mm, D: 1600mm clearance |
| ZX 250 | DCC270 | 24.0m² | 25.1m² | 515 lpm | 510 lpm | 910mm | C: 941.5mm, D: 1600mm clearance |

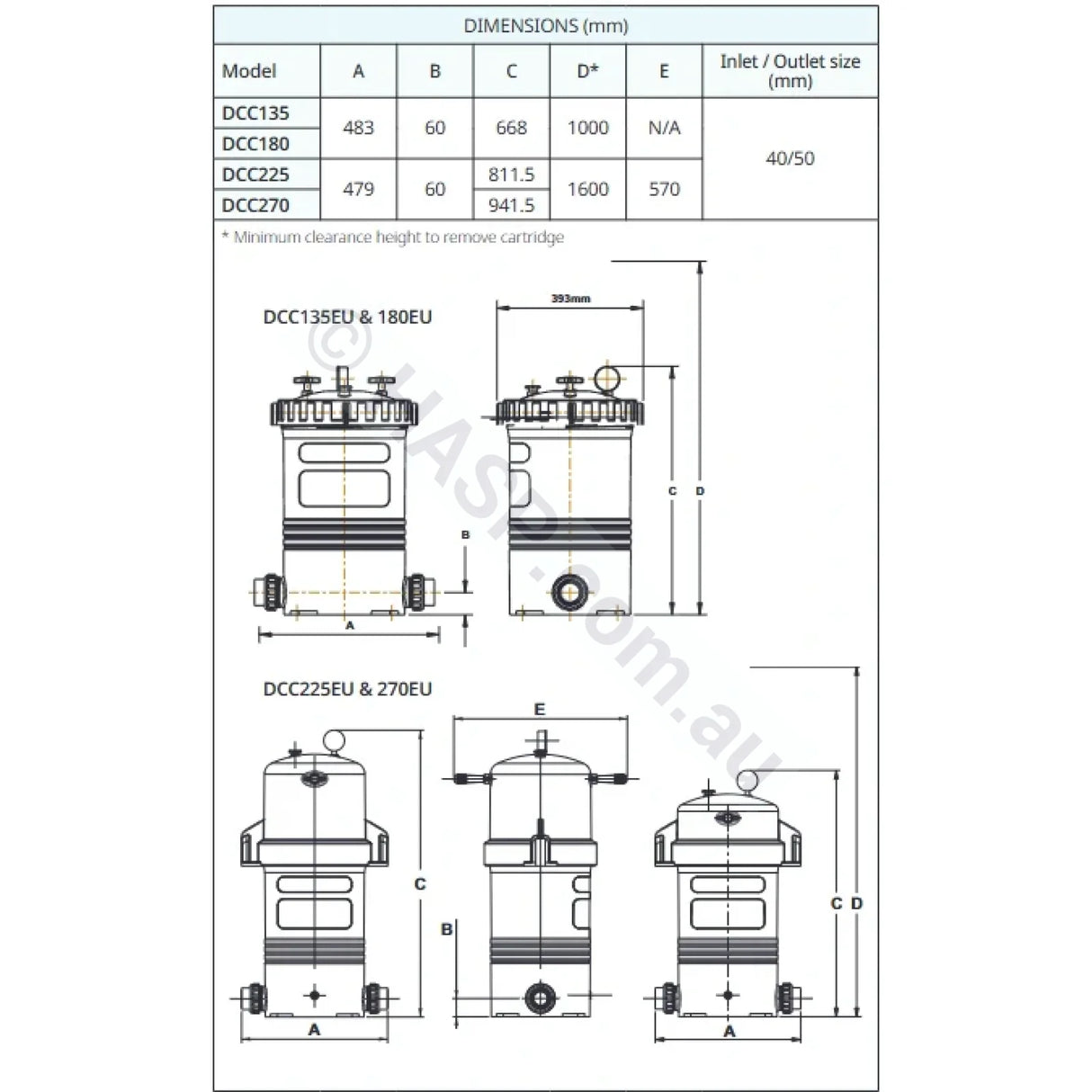

Important: On the Davey drawings, the D dimension is the minimum clearance height required to remove the cartridge. This is especially important if the filter sits under a deck, under roofing, or in a tight plant room.
Davey CrystalClear Dimensions
- DCC135 – A: 483mm, B: 60mm, C: 668mm, D: 1000mm clearance, inlet / outlet 40/50mm
- DCC180 – same shorter-body family as DCC135. Check the official drawing and space available before ordering
- DCC225 – A: 479mm, B: 60mm, C: 811.5mm, D: 1600mm clearance, E: 570mm, inlet / outlet 40/50mm
- DCC270 – C: 941.5mm, D: 1600mm clearance, E: 570mm, inlet / outlet 40/50mm

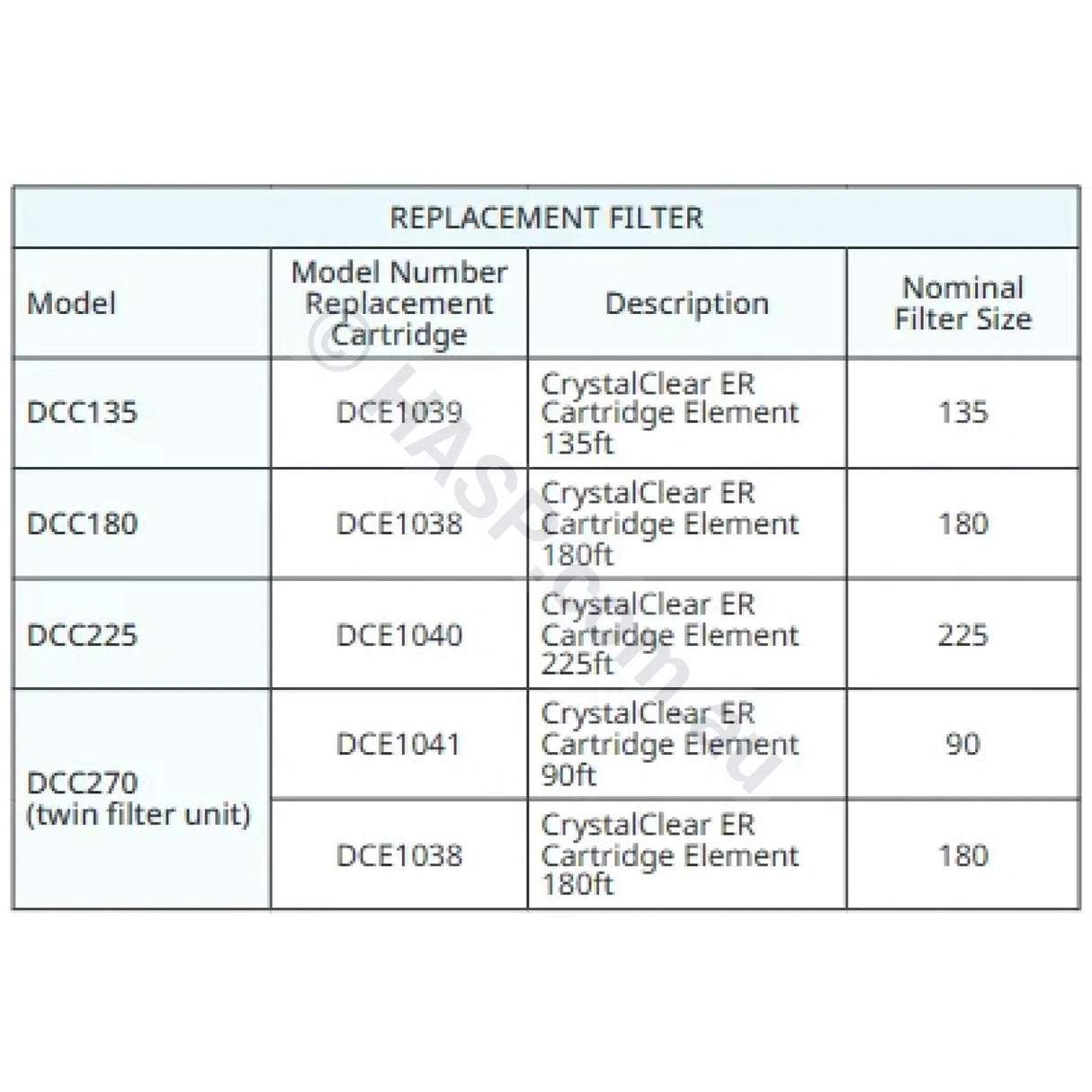

Replacement Filter Cartridges
| Model | Model Number Replacement Cartridge | Description | Nominal Filter Size |
|---|---|---|---|
| DCC135 | DCE1039 | CrystalClear ER Cartridge Element 135ft | 135 |
| DCC180 | DCE1038 | CrystalClear ER Cartridge Element 180ft | 180 |
| DCC225 | DCE1040 | CrystalClear ER Cartridge Element 225ft | 225 |
| DCC270 (twin filter unit) | DCE1041 | CrystalClear ER Cartridge Element 90ft | 90 |
| DCC270 (twin filter unit) | DCE1038 | CrystalClear ER Cartridge Element 180ft | 180 |
Applications
Suitable for in-ground and above-ground pools, including salt, mineral salt and fresh water pools. Davey states the range includes models suitable for pools up to 180,000 litres.
Things To Check Before Ordering
- Do not order based on model name alone
- Check overall height and diameter
- Check plumbing position and union style
- Check the available clearance above the filter for cartridge removal
- Confirm whether your old unit used glued plumbing connections or threaded unions
- Installation should be carried out by a suitably qualified person
Common Search Terms
Davey CrystalClear cartridge filter, DCC135, DCC180, DCC225, DCC270, DCE1039, DCE1038, DCE1040, DCE1041, AstralPool ZX replacement, ZX 100 replacement, ZX 150 replacement, ZX 200 replacement, ZX 250 replacement, cartridge pool filter Australia, water saving pool filter, no backwash pool filter, 50mm pool cartridge filter.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
