Astralpool Hub, Laterals & Stand Pipe Assembly - ECA650 Filter - 77752
Astralpool Hub, Laterals & Stand Pipe Assembly - ECA650 Filter - 77752 is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Astralpool Hub, Laterals & Stand Pipe Assembly - ECA650 Filter ...
Astralpool Hub, Laterals & Stand Pipe Assembly - ECA650 Filter - 77752 is temporarily out of stock and will ship as soon as it's available.
Astralpool Hub, Laterals & Stand Pipe Assembly - ECA650 Filter - 77752
- We keep these physically in stock for fast shipping or local pick-up, unlike most drop-shipping websites.
- Shipped from VIC, NSW, WA, QLD

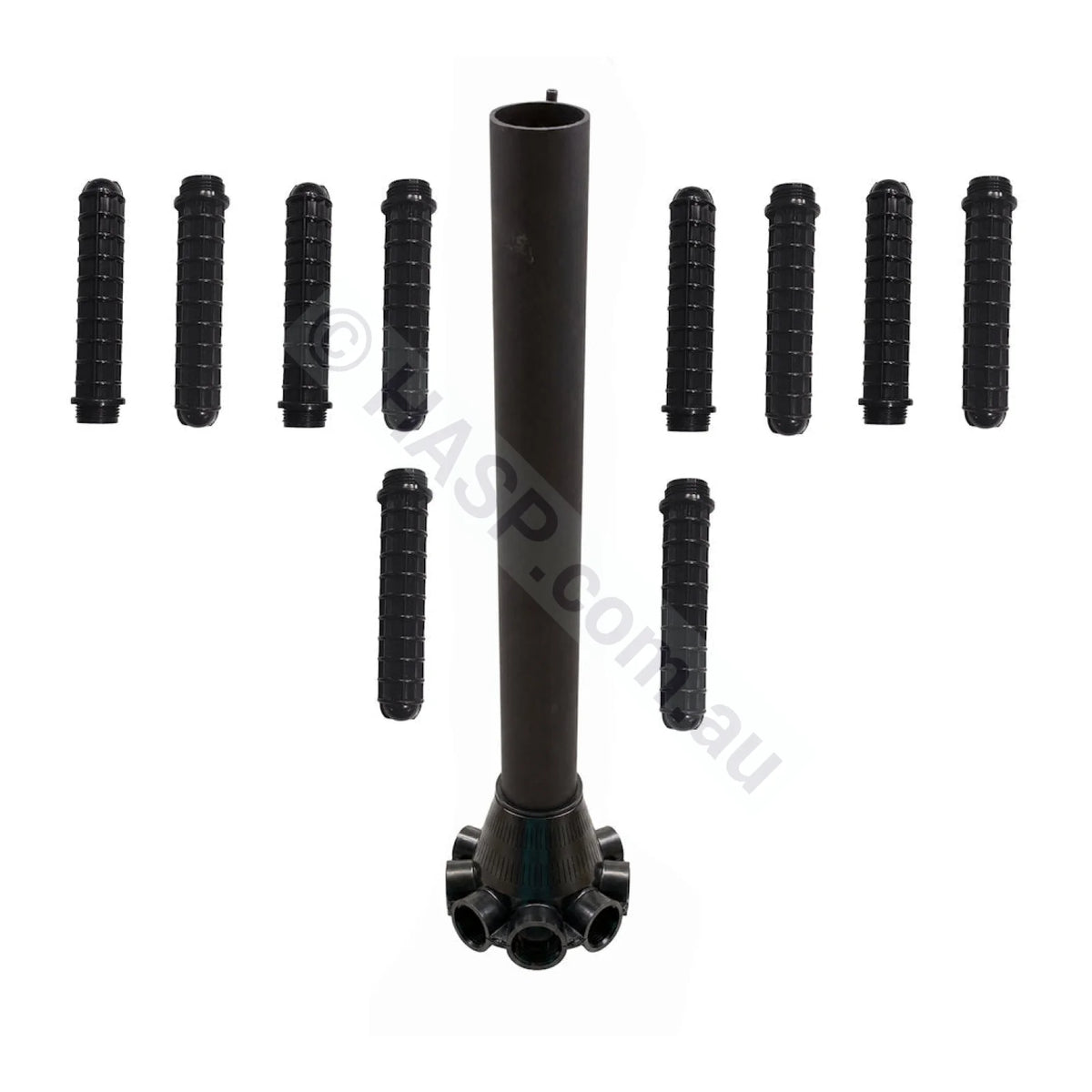

Complete internal assembly for the Astralpool ECA650 media filter - hub, laterals and stand pipe supplied together. This is the full underdrain rebuild for a filter that is passing media back to the pool.
Assembly or Individual Parts?
If several laterals are cracked, or you have found damage to both the laterals and the hub, the complete assembly is usually the better buy and guarantees everything matches. If only one or two laterals have failed and the hub and stand pipe are sound, the individual parts are far cheaper - see 77756 and 77712.
Fitment
- Astralpool ECA650 media filter
ECA550 uses a different assembly. Check the tank label before ordering.
Before You Order
The tank must be emptied of media to fit this assembly. Plan on replacing the media and the tank lid O-ring at the same time - both are far cheaper to do while the filter is already open.
Specifications
- Part number: 77752
- Fits: Astralpool ECA650 media filter
- Supplied: hub, laterals and stand pipe assembly
- Barcode: 9343609013110
