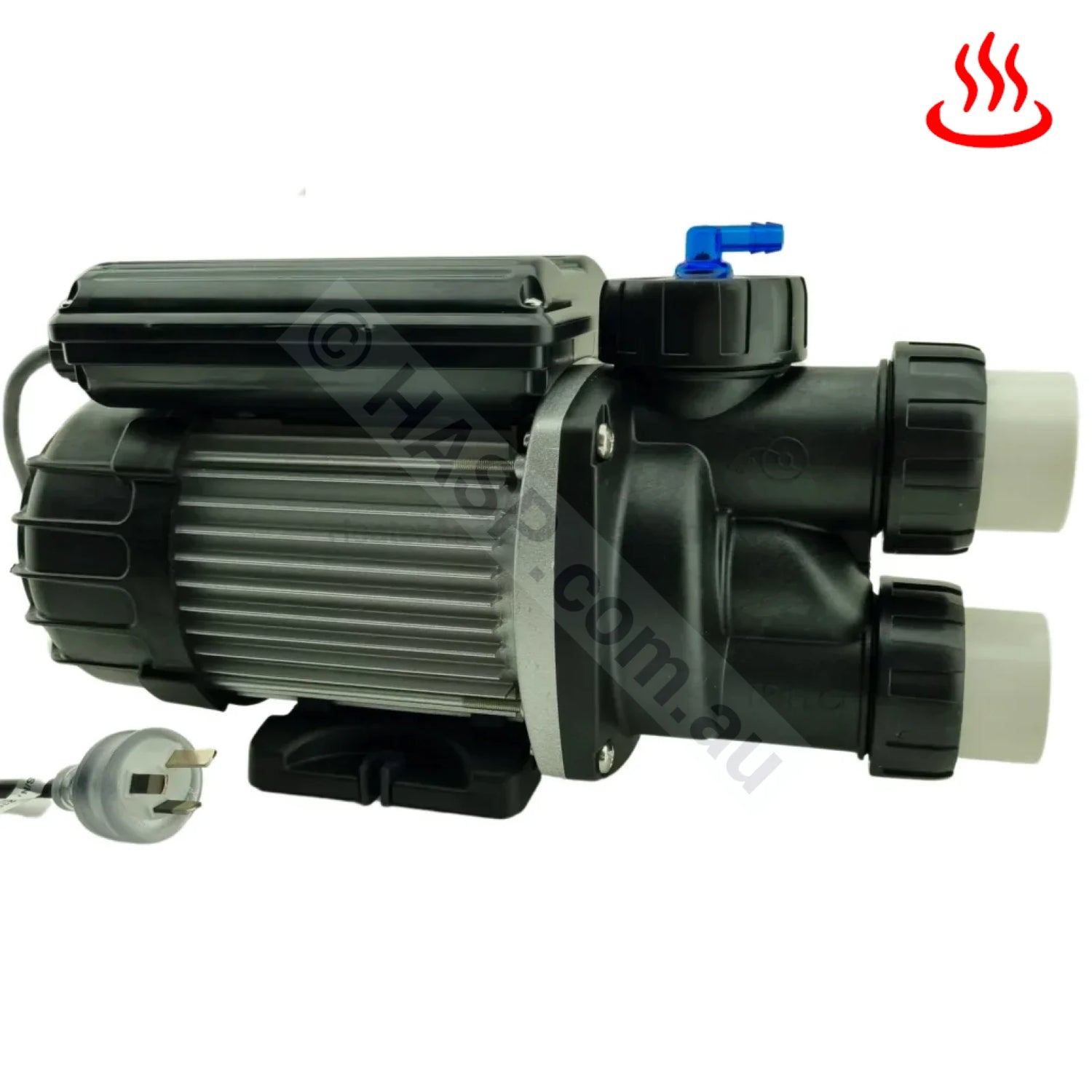

Edgetec / Decina Sensa-Touch Triflo 1.5hp Heated Spa Bath Pump w/ Heater
Edgetec / Decina Sensa-Touch Triflo 1.5hp Heated Spa Bath Pump w/ Heater - is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
Edgetec SensaTouch spa bath pump with adjustable heater. Heat can be set to 36, 38, or 40C. Used by Decina and many others. These spa bath pumps replace all Dega Research spa bath pumps and are the best replacement for Davey XS 200HD, XS 250HX pumps. Note as with all Davey or Dega replacement pumps, new unions (included) will need to be fitted to suit these pumps.
- Perfect replacement for Dega Spa Bath Heaters
- Built-In 700w Heater
- Low profile touchpad
- 1.0HP for up to 10 jets (best replacement for Davey XS 200HD, and 250HD)
- 1.5HP for 12+ jets (best replacement for Davey XS 300HD)
- Built-in air release valve for easy priming
- Note, now comes with the White Touchpad only.
- Can generally be used to replace Onga 2372, 2373, 2382, 2383, 2392, 2393, 2402, 2403 aka 23720, 23730, 23820, 23830, 23920, 23930, 24020, 24030
Details / Models:
- Edgetec / Decina Sensatouch 1.5hp
- E-6110 - TF110-ST-50
- E-6210 - DC110-ST / DC110-ST-50

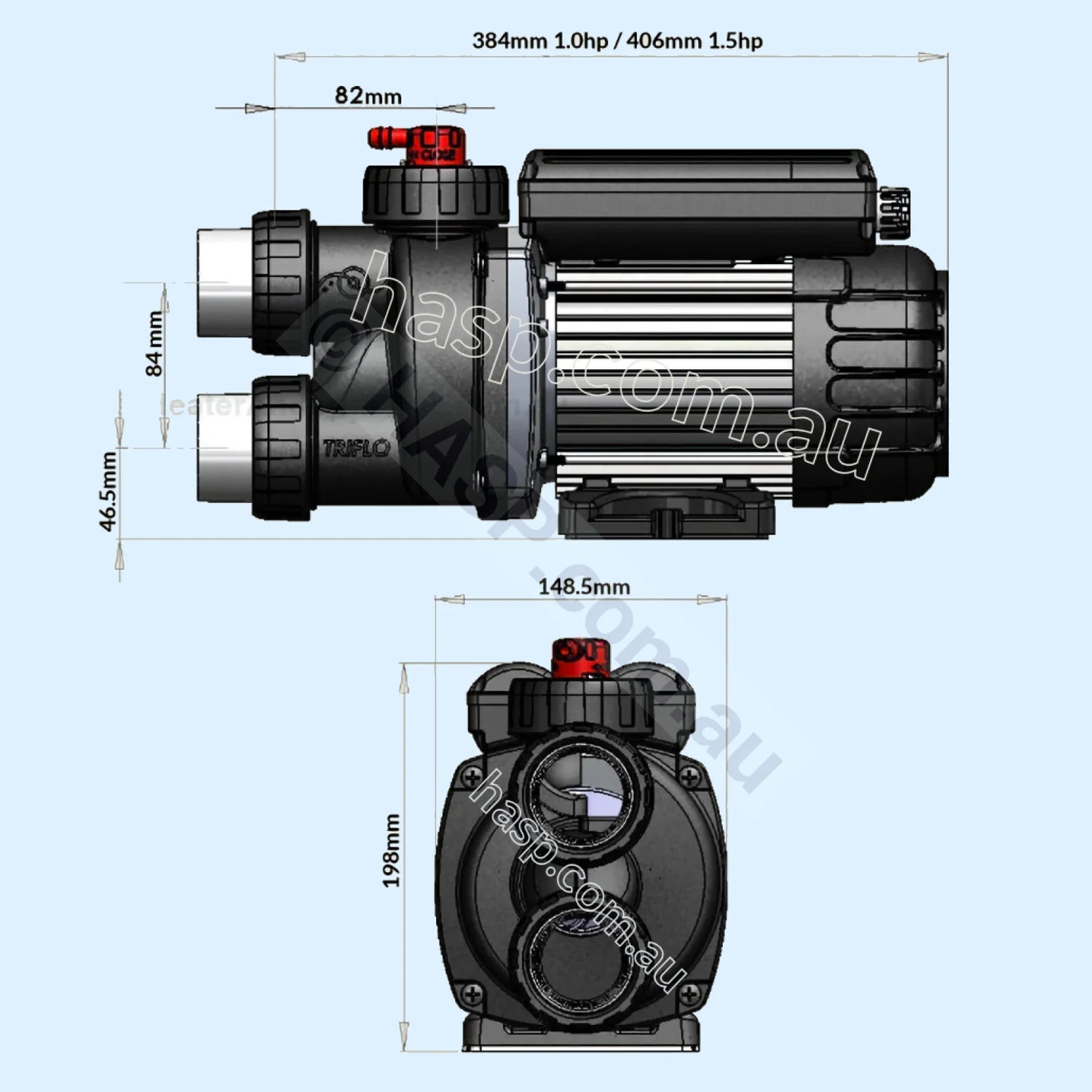

- Dimensions: L: 406mm | W: 148mm | H: 198mm | 10kg
- Warranty: 1 Year Domestic / 6 Month Commercial - Note: we often see these pumps last over 10+ years!
-
Important Note: Includes new barrel unions for plumbing when replacing pumps from other brands (e.g., Davey, Onga, Balboa, Spaquip, Englefield), as each brand uses different unions.
Documentation:

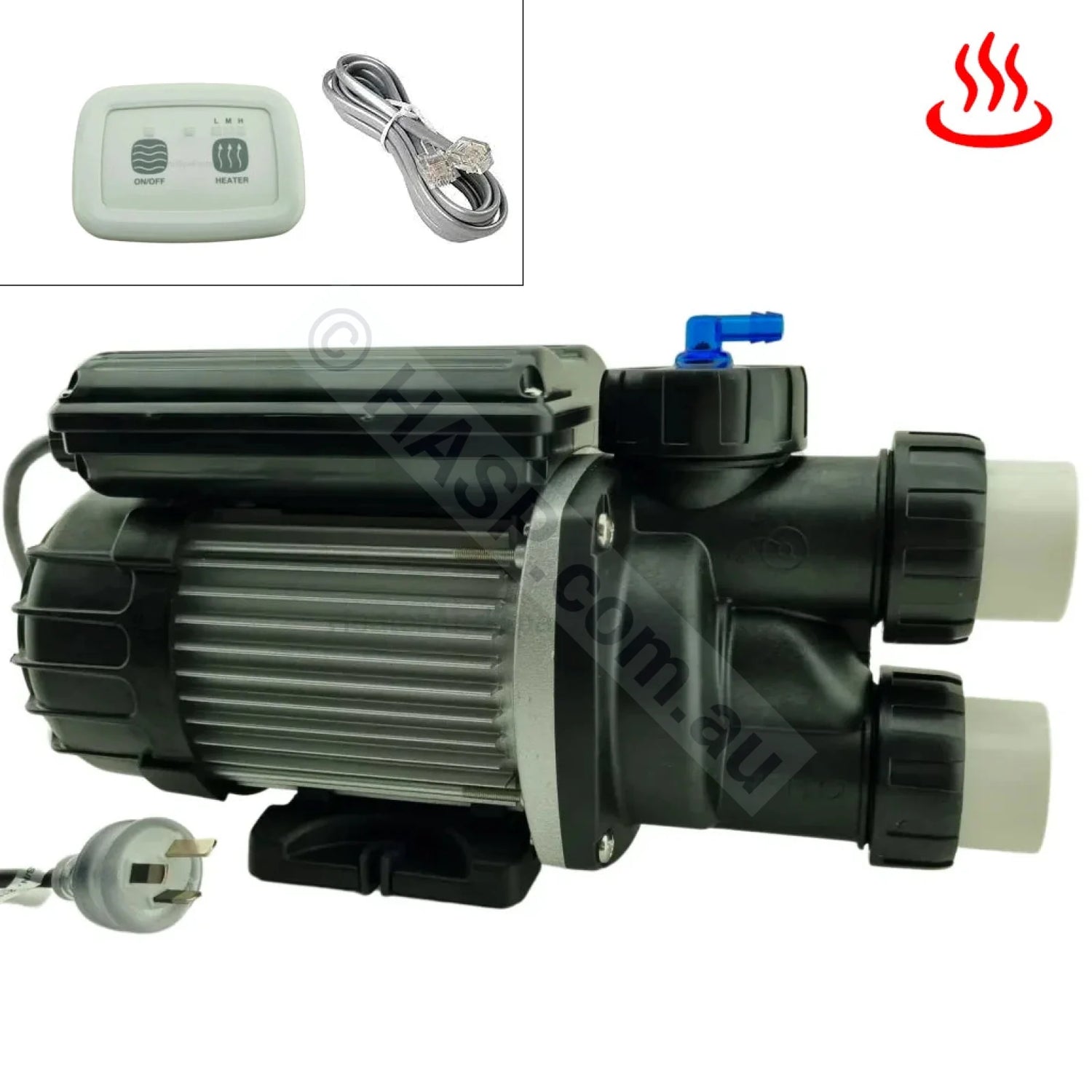

The Edgetec Triflo Sensa-Touch control panel operates the pump and heater from the side of your bath. By simply pressing the pump button your pump starts and automatically initiates the heater function to maintain your bath water temperature. You can adjust the amount of heat you require by pressing the heater button on the touch pad. When the pump starts, the heater automatically is set to high. A second press is medium, a third press is low and a fourth press turns the heater off if not required. The internal control system features automatic shut down under “no water/blocked suction” condition for optimum safety.
The TriFlo pump internal design allows the water to self drain so that there is no residue water left in the pump when the spa is emptied in accordance with Local Health Regulations.
TriFlo spa bath pumps are designed for spa bath operation only and should not be used in chemically treated water or permanently filled spas or any other purpose without seeking written approval from Edgetec Systems Pty Ltd for the application.
There are 3 power sizes in the range - 0.8 hp, 1.0 hp and 1.5 Hp - these are designed to match the type, size and number of spa jets in your bath. View my other listings for the alternative power sizes.
IMPORTANT: We are aware of some unscrupulous places selling bath pumps as standalone spa pumps. This is incorrect, and will lead to disappointment.
- These bath pumps are intended to help maintain temperature in a bath to roughly 36-38° and not to heat a bath from cold.
- Spa bath pumps are designed for spa bathtub operation only and should not be used in chemically-treated water or permanently-filled spas.
- For standalone permanently-filled spas, click here for retrofit kits.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
