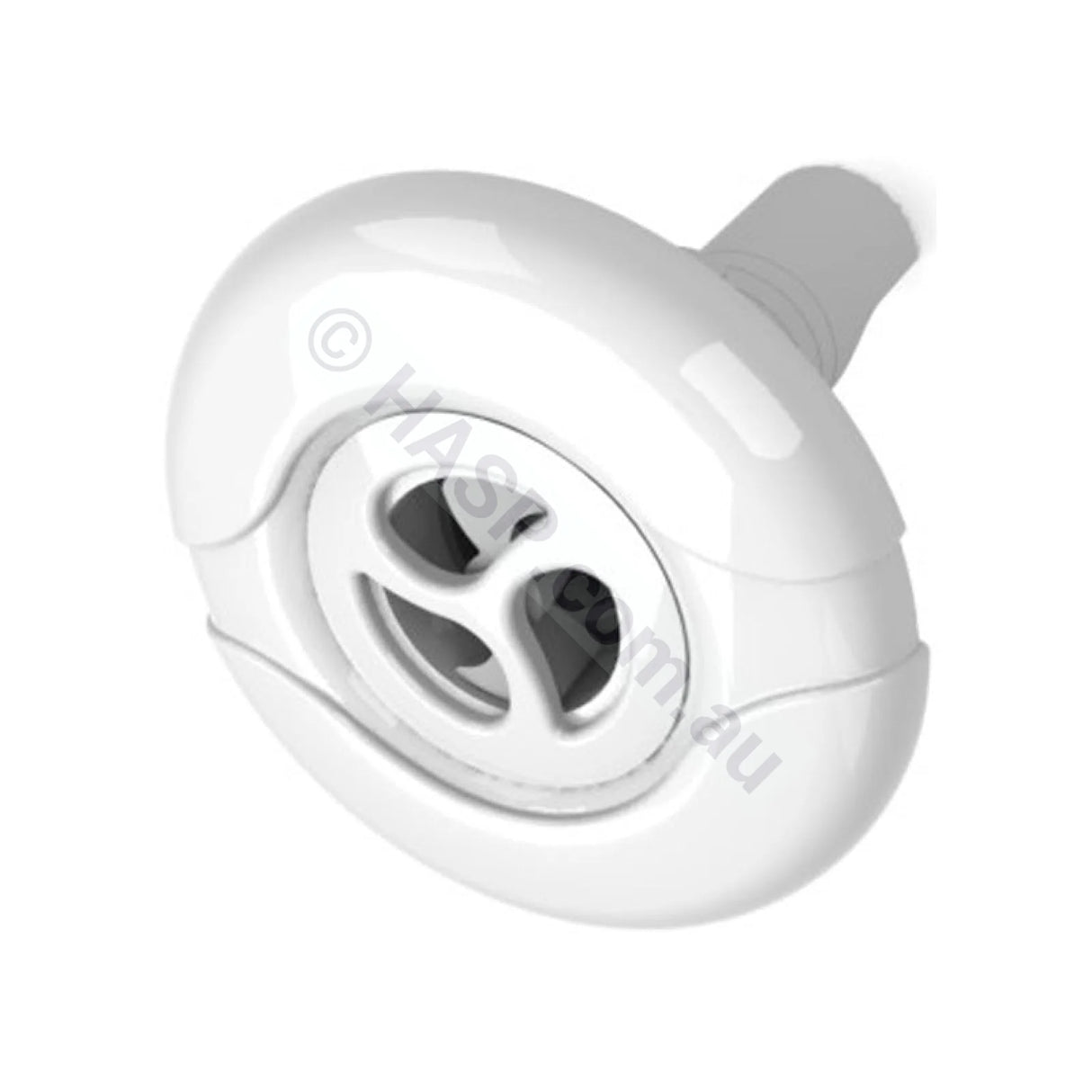

Edgetec Trio Eyeris Pulse Jet Face & Venturi - Classic White - Mitee / Decina - 72mm
Edgetec Trio Eyeris Pulse Jet Face & Venturi - Classic White - Mitee / Decina - 72mm is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

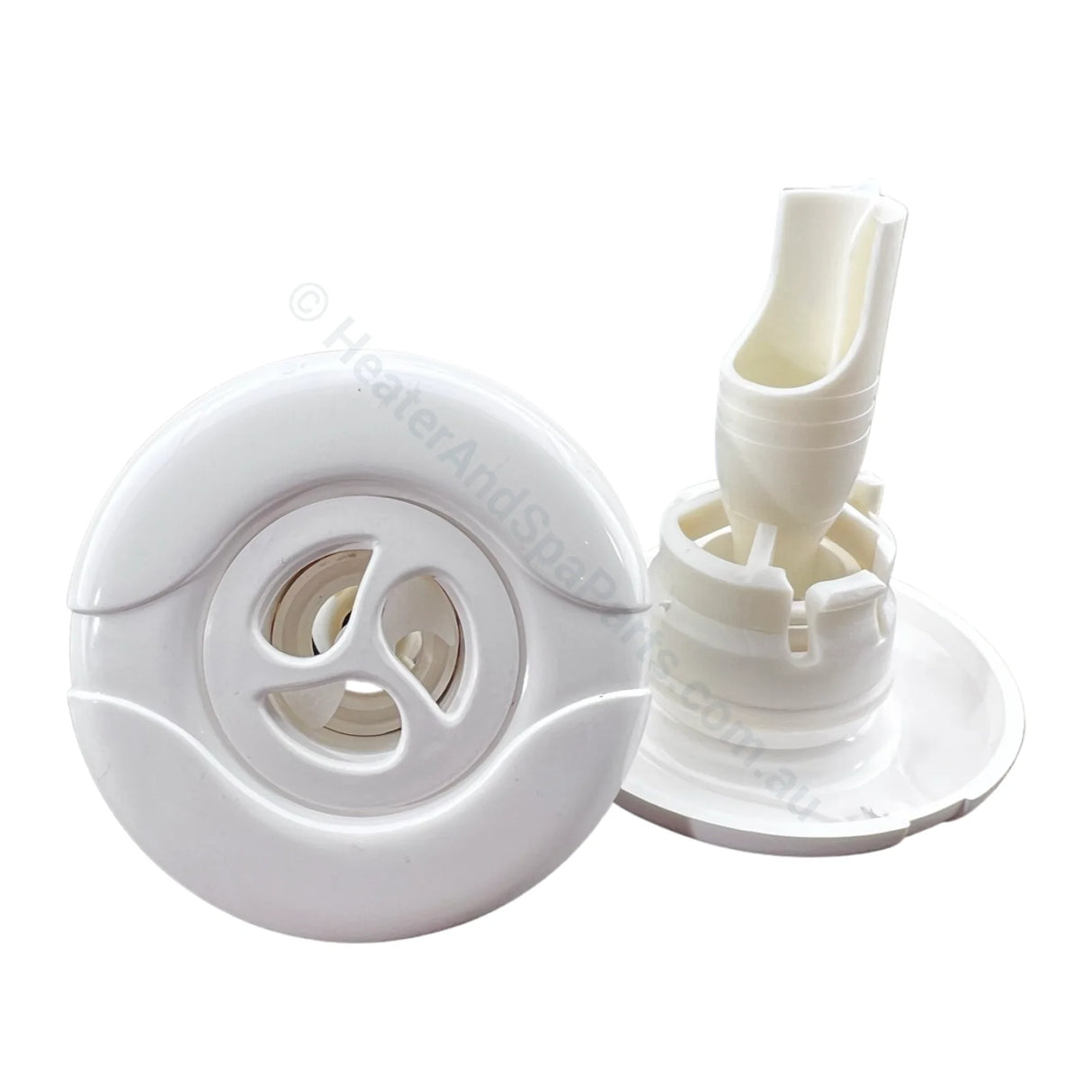

Spa bath jet face with 72mm diameter face. Supercedes older Mi-tee jet (with ribbed face) used on Decina spa baths and others. Can also be used to replace Mini Trio.
Used on Lanark, Signature, Jacuzzi, Decina, Multiform, Award and other spa baths.
Important Notes:
- Classic White in Colour.
- Chrome versions are no longer available.
- About whites in baths and fittings.

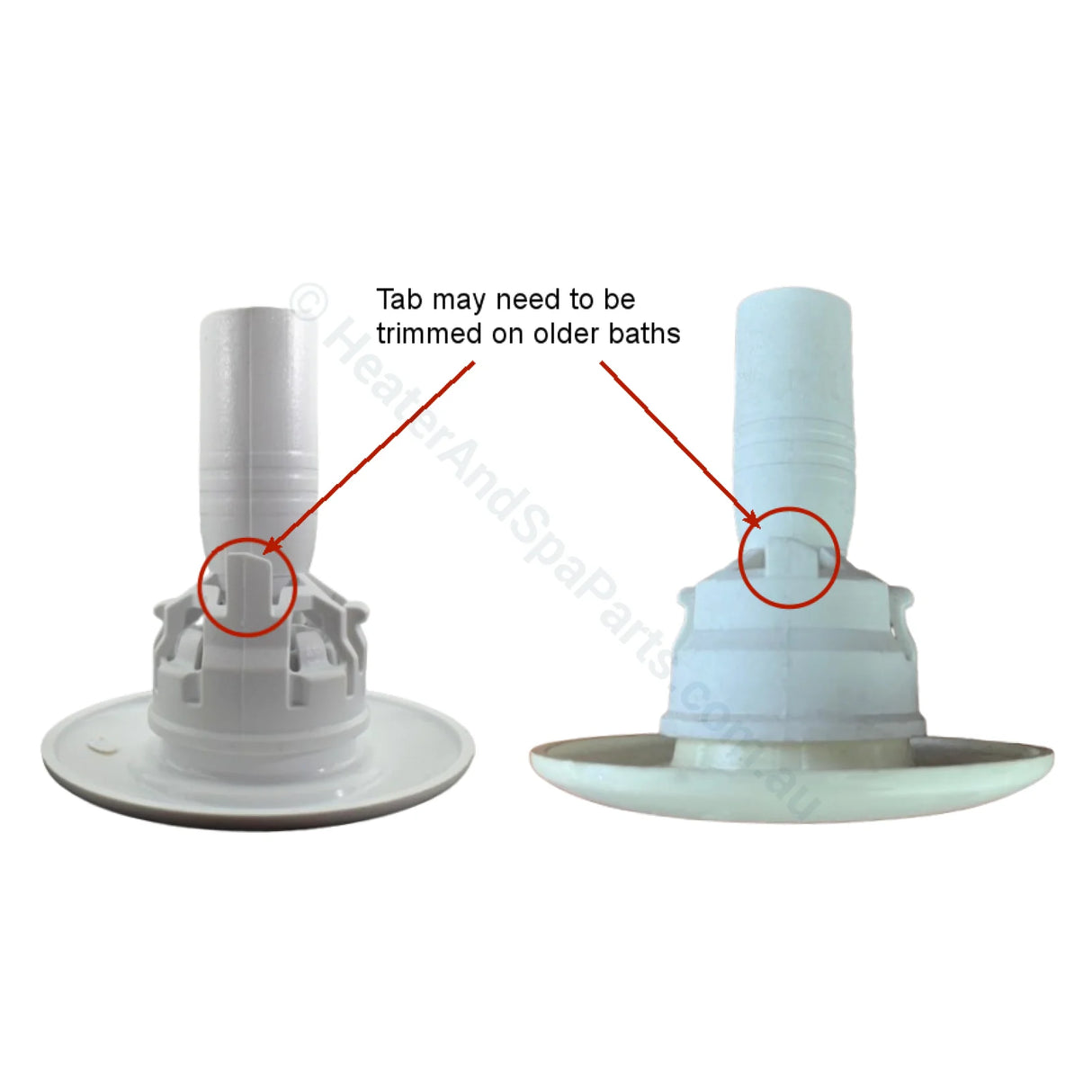

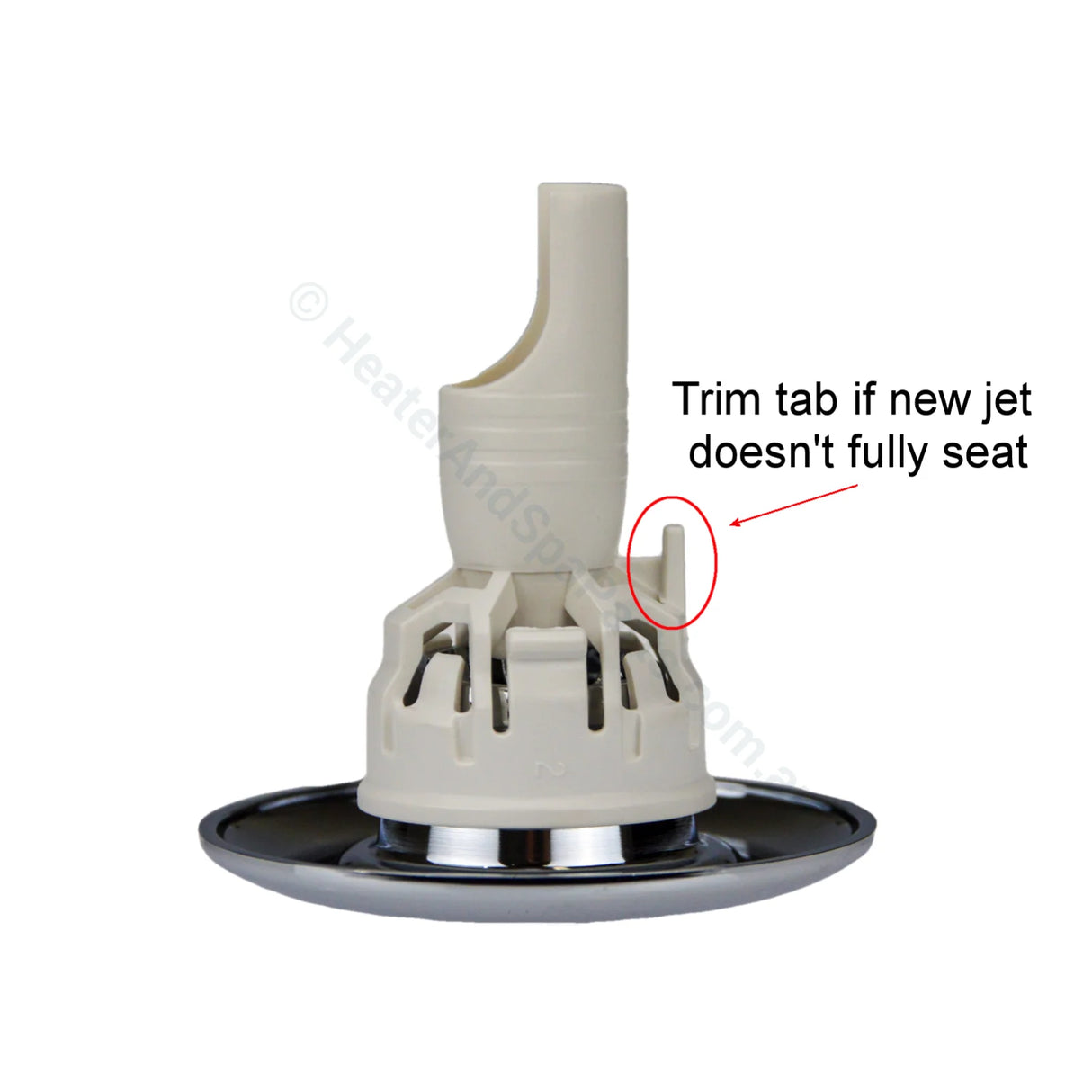

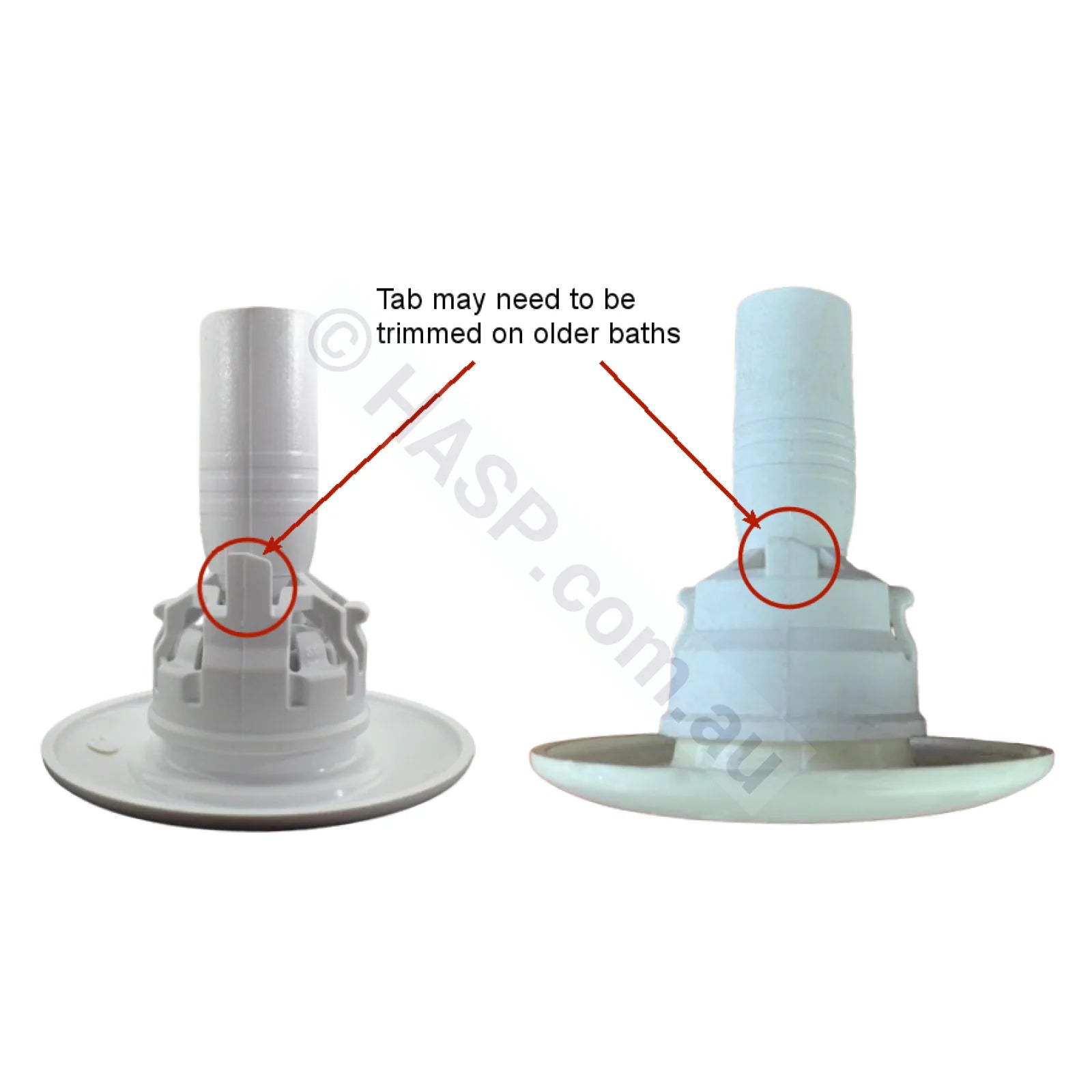

- If the replacement jet does not fully seat into the jet body, its likely your bath has the original slightly different version. In order to seat the jet face fully into the jet body, you may need to trim the 'easy out' tab shorter (see image)
Other Interchangeable Jets Listed Here
- The Eyeris jet is designed to give optimum performance using lower water flow with increased airflow during the venturi operation.
- Eyeris jets are fully adjustable, turning the jet anti clockwise for the fully open position and clockwise to the off position.
- Eyeris eyeball features fingertip directional control.
- Eyeris Pulse jet gives an invigorating pulsing massage.
- The Easy-Out function allows jets to be removed and changed without the use of a tool.
- To remove the jet with the Easy-Out function, simply rotate the jet face passed the off position (Clockwise). The Jet face will hesitate slightly and then pop out.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
Imperial Name | Metric Name | Pipe Diameter (OD) |
---|---|---|
1" | 25 mm | ~33.4–33.7 mm |
1.5" | 40 mm | ~48.1–48.4 mm |
2" | 50 mm | ~60.2–60.5 mm |
2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
---|---|---|---|---|---|
1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
Imperial Name | Metric Name | Inside Diameter (ID) |
---|---|---|
3/8" | 9–10 mm | ~9 mm |
3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
---|---|---|
1/16" BSP | 7.7 mm / 0.304" | 28 |
1/8" BSP | 9.7 mm / 0.383" | 28 |
1/4" BSP | 13.16 mm / 0.518" | 19 |
3/8" BSP | 16.66 mm / 0.656" | 19 |
1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
5/8" BSP | 22.99 mm / 0.902" | 14 |
3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
7/8" BSP | 30.20 mm / 1.189" | 14 |
1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
1-1/4" BSP | 41.91 mm / 1.650" | 11 |
1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
2-1/4" BSP | 65.71 mm / 2.587" | 11 |
2-1/2" BSP | 75.18 mm / 2.960" | 11 |
3" BSP | 87.88 mm / 3.460" | 11 |
4" BSP | 113.03 mm / 4.450" | 11 |
5" BSP | 138.43 mm / 5.450" | 11 |
6" BSP | 163.83 mm / 6.450" | 11 |
